Product Type	Split system air conditioner, heat pump (cooling and heating)
Model (Indoor/Outdoor)	A5CM 20 E-ER / A5LC 20CR
Cooling Capacity	17600 Btu/h (5.13 kW)
Heating Capacity	18500 Btu/h (5.42 kW)
Power Supply	220-240 V / 1 Ph / 50 Hz
Rated Cooling Input Power	1723 W
Rated Heating Input Power	1493 W
Running Current (Cooling/Heating)	7.6 A / 6.6 A
EER / COP	2.98 W/W / 3.63 W/W
Refrigerant Type	R410A
Indoor Unit Dimensions (HxWxD)	218 x 1080 x 630 mm
Indoor Unit Weight	27 kg
Outdoor Unit Dimensions (HxWxD)	648 x 855 x 328 mm
Outdoor Unit Weight	59 kg
Air Flow (High)	245 l/s (520 CFM)
Sound Pressure Level (Indoor H/M/L)	48 / 46 / 43 dBA
Sound Pressure Level (Outdoor)	52 dBA
Pipe Connection (Liquid/Gas)	6.35 mm (1/4") / 12.7 mm (1/2") flare
Maximum Piping Length / Elevation	15 m / 8 m
Control	Wireless remote controller G12 with LCD display
Key Features	Negative ion generator, automatic air swing, sleep mode, turbo mode, personalized setting, auto restart, self diagnosis
Installation Options	Ceiling convertible (under ceiling or floor standing)

Frequently Asked Questions - A5CM 20 E-ER Acson

How to clean the air filter?

Open the air intake grille by pulling it down. Remove the washable Saranet filter and clean it with water or a vacuum cleaner. Dry thoroughly before reinstalling. For best performance, clean every 2 weeks.

What should I do if the air conditioner does not cool?

Check if the air filter is dirty. Ensure windows and doors are closed. Verify the set temperature is lower than room temperature. Also check if the outdoor unit's air intake/discharge is obstructed. If problem persists, consult a technician.

How to set the ON/OFF timer?

Press the SET button on the remote to activate timer. Use +/- to adjust the desired time (1-10 hours). Press SET again to confirm. Press CLR to cancel. The unit will automatically start/stop at the set time.

What does the sleep mode do?

Sleep mode gradually adjusts the set temperature for comfort during sleep. In cooling mode, temperature increases by 0.5°C after 30 min, 1°C after 1 hour, 2°C after 2 hours. In heating mode, it decreases by 1°C after 30 min, 2°C after 1 hour, 3°C after 2 hours.

The remote control display is dim or not working

Replace the batteries with new AA/AAA batteries (check polarity). Ensure no obstacles between remote and indoor unit sensor. If still not working, reset the remote electronics by removing batteries for 30 seconds.

How does the auto restart function work?

After a power failure, the unit automatically restarts with the last settings. If multiple units share the same power phase, they restart in random sequence to prevent overload. To use, keep the auto restart function enabled.

What is the negative ion generator for?

The negative ion generator increases the amount of negative ions in the air, helping to freshen the indoor environment by reducing airborne particles and odors. Press the ION button on the remote to activate.

What should I do if the unit displays an error code?

Error codes like blinking E1, E2, etc., indicate sensor or system faults. Refer to the troubleshooting section in the manual. For example, E1 means room sensor open or short. In many cases, you need to call a qualified technician to diagnose and repair.

How to use the turbo mode?

Press the TURBO button on the remote. The unit will operate at maximum power to quickly reach the set temperature. After achieving the desired temperature, the unit returns to normal operation. Turbo mode is effective for rapid cooling or heating.

What is the recommended clearance for installation?

For indoor unit under ceiling, maintain at least 300mm from ceiling, 500mm from side walls, and 90mm from floor. For outdoor unit, allow at least 300mm back clearance, 1000mm front (for discharge), 300mm on each side, and 500mm above. Ensure good airflow.

USER MANUAL A5CM 20 E-ER Acson

Front view of a white air conditioner unit with visible cooling fins and ventilation slots (no text or symbols)

Ceiling Convertible

Split Systems

TABLE OF CONTENTS

1. NOMENECLATURE .... 1
2. PRODUCT LINE-UP .... 3
3. FEATURES 6
4. APPLICATION INFORMATION

- OPERATING RANGE 7

- REFRIGERANT CIRCUIT DIAGRAMS 8

- CONTROLLERS .... 14

- INSTALLATION 18

1. ENGINEERING AND PHYSICAL DATA

2. GENERAL DATA ...... 31

3. COMPONENTS DATA 45
4. SAFETY DEVICES .... 59
5. PERFORMANCE DATA 63
6. PERFORMANCE TABLES ...... 67

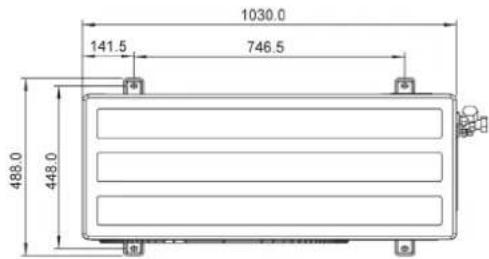

7. DIMENSIONAL DATA 87
8. ELECTRICAL DATA.... 89

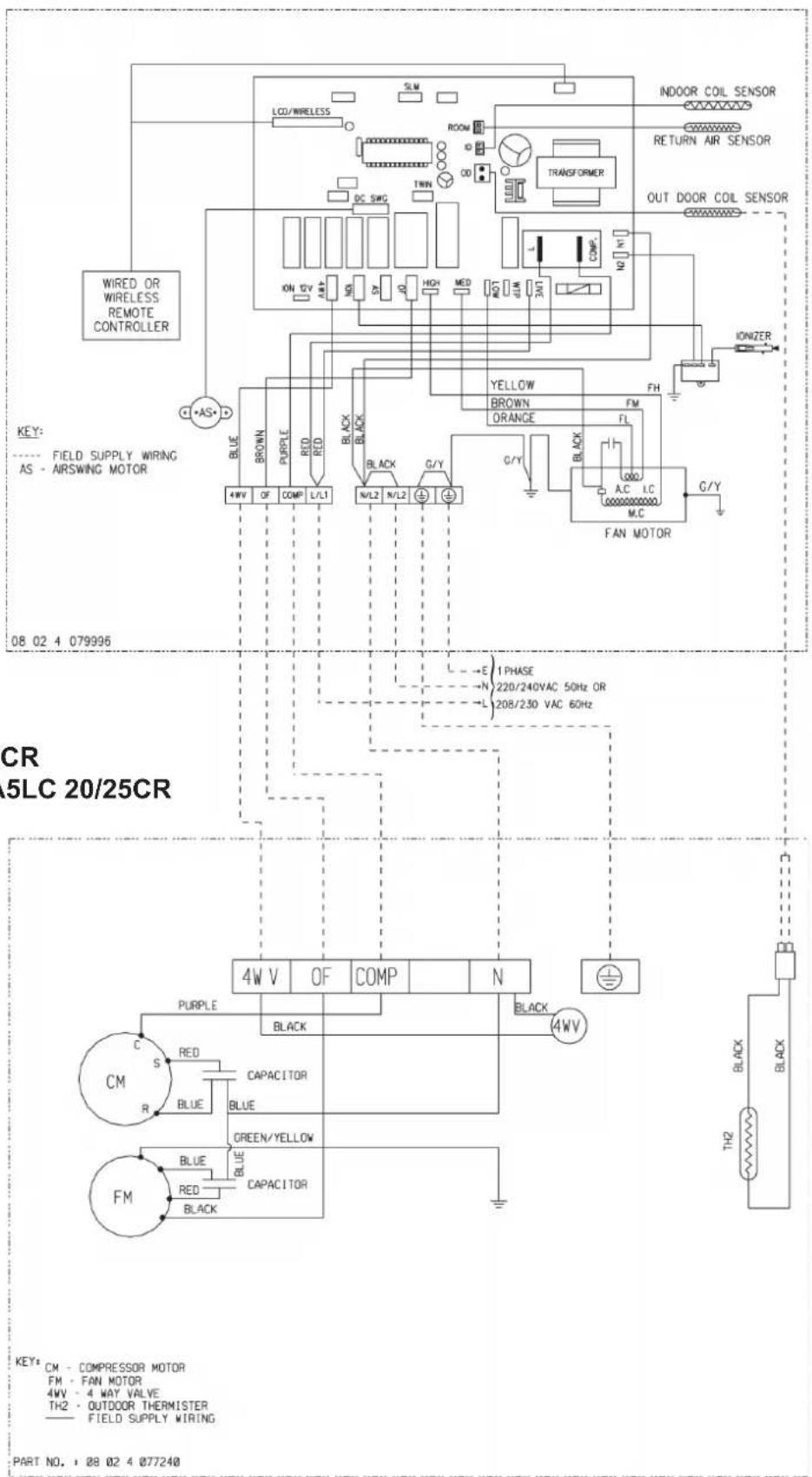

9. WIRING DIAGRAMS......97
10. SERVICING AND MAINTENANCE 108
11. TROUBLESHOOTING 110

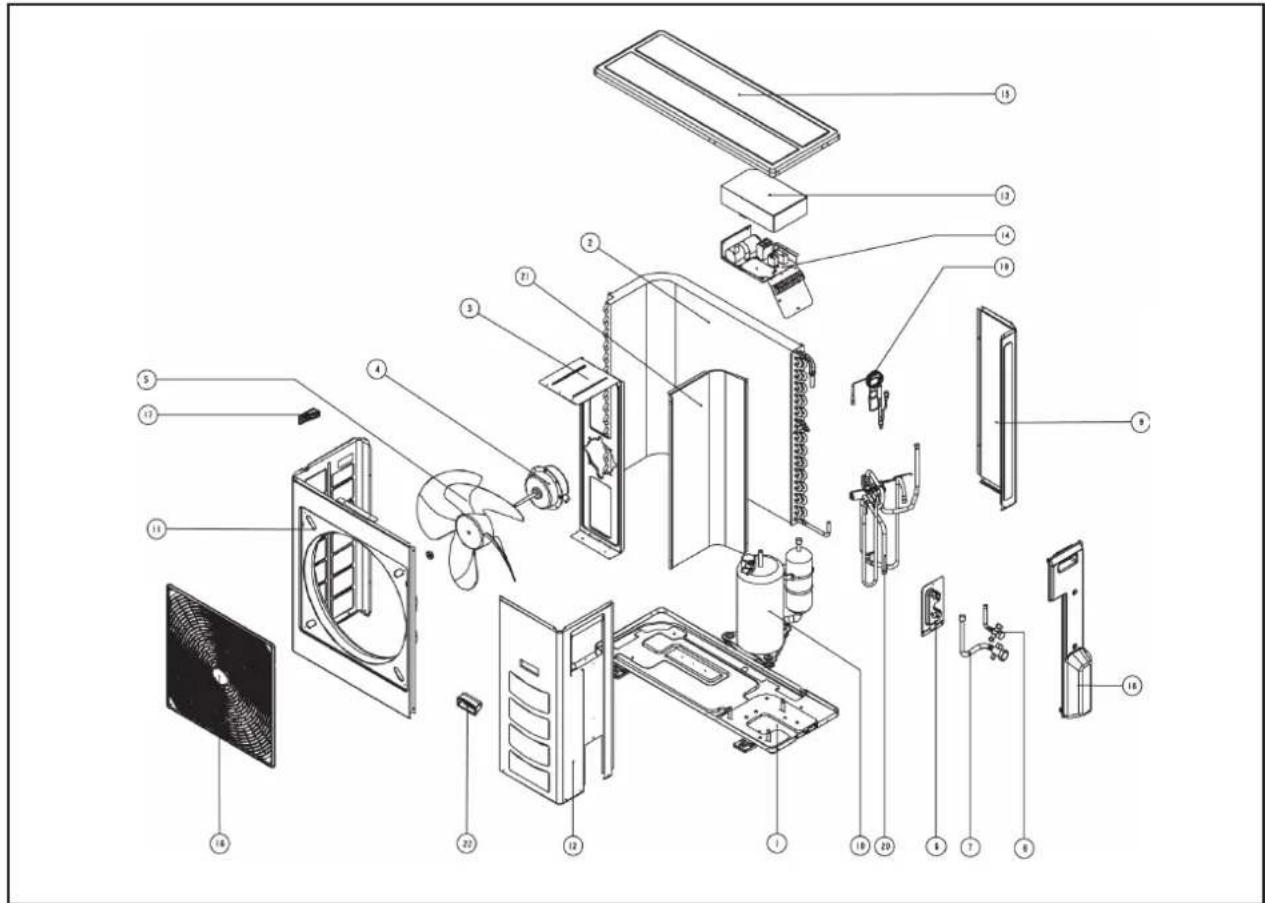

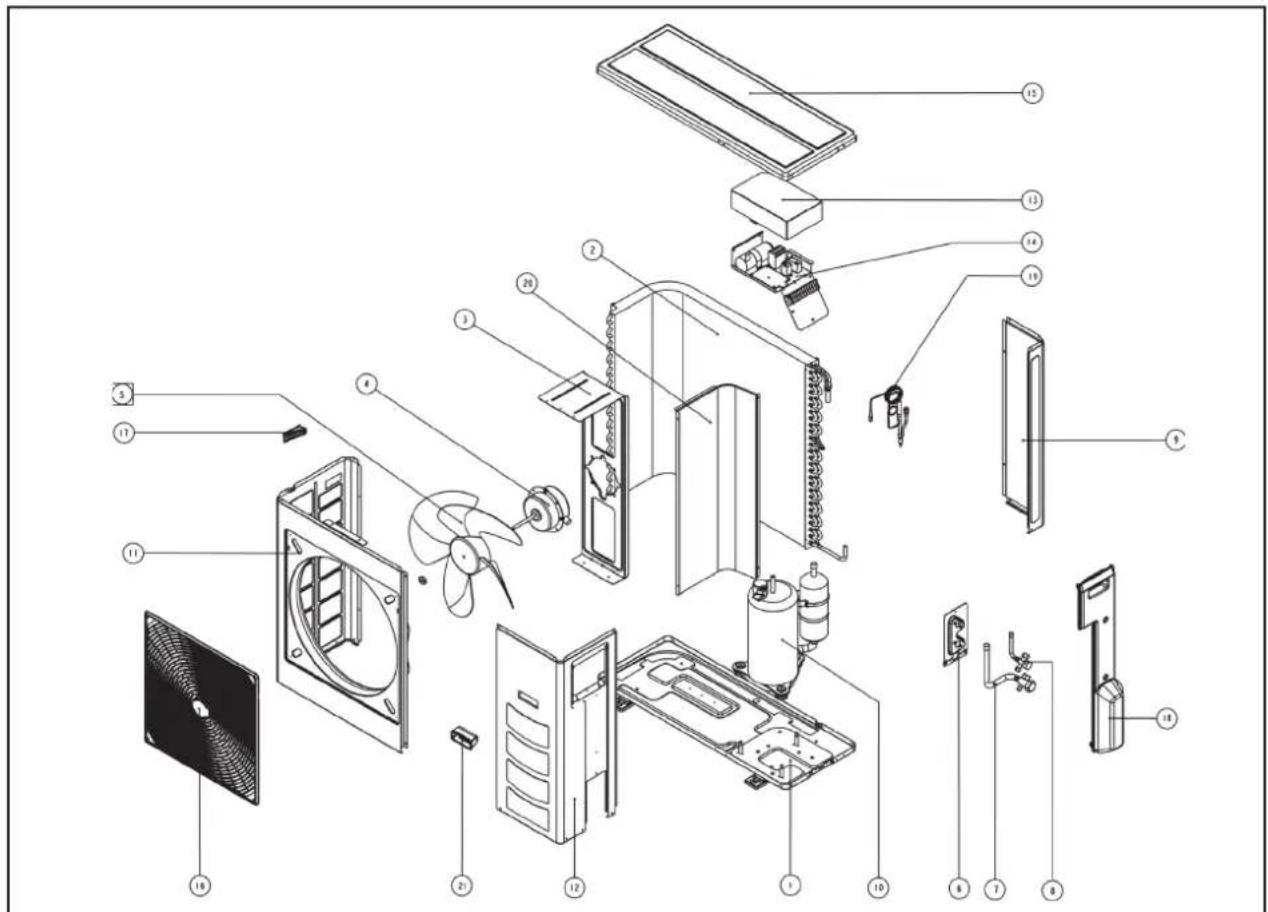

12. EXPLODED VIEW & PARTS LIST 115

1. NOMENCLATURE

Indoor

Others
A: First issue
Other Specifications
I: Ionizer GeneratorN: Non Thermal Plasma
Controller Specifications
G: Wireless handsetS: SLM3N: Netware III
Market Region
C: Export with CE mark
Electrical
A: 220 - 240V/1Ph/50Hz
A CM 20
	E R
	G I A C A-

Outdoor

2. PRODUCT LINE UP

INDOOR UNIT

ACM-E SERIES PRODUCT LINE UP

Classification

ACM

Nomenclature

Control Module

Handset

Marking

Fin

Ionizer

NTP

Refrigerant Control

L2

SLM3

Netware III

G12 Handset

CE Mark

W/out Marking

Hydrophilic (SLIT)

Cap. Tube

W/out Cap. Tube

Cooling Model

15E A

CGIA X X X

X X X

20E

A C

G

I

A

X

X

X

X

X

A

C

G

N

A

X

25E

A C

G

I

A

X

X

X

X

X

A

C

G

N

A

X

28E

A C

G

I

A

X

X

X

X

X

ACGNA X

X

X X

X X

Heat Pump Model

1 5

E R

A

C

G

I

A

X

X

X

X

20ER

A C

G

I

A

X

X

X

X

X

A

C

G

N

A

X

25ER

A C

G

I

A

X

X

X

X

X

A

C

G

N

A

X

28ER

A C

G

I

A

X

X

X

X

X

A

C

G

N

A

X

X		X		X
X		X		X
	X
X		X		X
X		X		X
X		X		X

A5CM-E SERIES PRODUCT LINE UP

Classification

A5CM

NONMENCLATURE

Control Module

Handset

Marking

Fin

Negative Ionizer

NTP

Refrigerant Control

L2

SLM3

Netware III

G12 Handset

CE Mark

W/out Marking

Hydrophilic (SLIT)

Cap. Tube

W/out Cap.Tube

Cooling Model

15E A

CGIA X

X X

X X

X

20E

ACGIA

X

X

X

X

X

X

AC

G

N

A

X

X

25E

ACGIA

X

X

X

X

X

X

AC

G

N

A

X

X

28E

ACGIA

X

X

X

X

X

X

AC

G

N

A

X

X

Heat Pump Model

15ER

ACGIA

X

X

X

X

X

X

20ER

ACGIA

X

X

X

X

X

X

AC

G

N

A

X

X

25ER

ACGIA

X

X

X

X

X

X

AC

G

N

A

X

X

28ER

ACGIA

X

X

X

X

X

X

AC

G

N

A

X

X

X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X
X	X	X	X

The unit is uniquely designed with the option to install either below the ceiling or mounted at low wall position without any modification needed. Furthermore, the unit is design adds a touch of elegance to suit any interior design requirement

Excellent Air Distribution

The louver with automatic air swing function fully optimize the room comfort by enables the air flow to be evenly distributed into the room from the front discharge area.

Negative Ion Generator

ACSON emphasis on provide indoor air quality solution. Therefore, the negative ionizer technology is being brought in as an essential part of the unit. The negative ion generator increases the amount of negative ion in the air-conditioning area, creating a refreshing and healthy living environment.

Easy Installation

The ceiling convertible fan coil unit is easily installed with a very economical and space saving installation. No need renovation on wall or ceiling for installation. This easy to install and ready to operate unit ensure rapid and low installation cost.

Magnificent Serviceability

The blower, fan motor assembly and electrical parts can be inspected and air filter can be accessed by pulling down the air intake grille. During servicing or repairing, only the bottom panel needs to be removed in order to access the fan motor, blower, control box piping connection and drain pan.

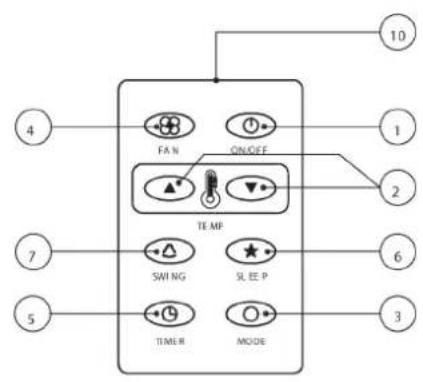

Wireless Remote Controller

The standard unit comes with a simple, user friendly and stylish wireless controller. The G12 controller offers many features:

• The compact LCD transmitter is able to operate the indoor unit within 9 meters of distance.
• Fan speed can be set at low/medium/high or automatic.
• Sleep mode auto control will gradually increase or decrease the set temperature to provide a comfortable surrounding for sleeping.
• The real time timer allows the unit to be switched ON and OFF automatically based on user settings.
• Ionizer or non-thermal plasma is available to create better air quality.
• Turbo mode function is available to enables the required set temperature to be achieved in a short time.
• Personalized Setting allows user to preset and store 2 groups of personal settings (including timer setting) in the handset.

Auto Random Restart

Auto random restart function allows the unit to automatic restart as the last setting condition when the power supply is resumed after power failure. However, the compressor will restart randomly if more than one unit is installed and sharing the same phase of power.

Self Diagnosis

The microprocessor provides the possibility to detect and diagnose any fault or malfunction that occurs in the system. The error will be reflected by the blinking of the LED lights.

4. APPLICATION INFORMATION

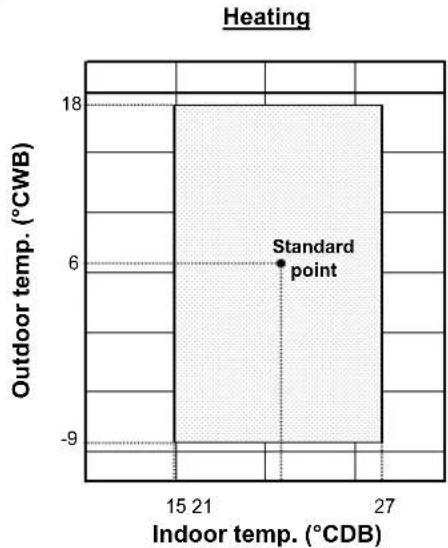

Operating Range

Ensure the operating temperature is in allowable range.

Cooling only

Caution :

The use of your air conditioner outside the range of working temperature and humidity can result in serious failure.

Heatpump

Note :

Standard operating range.

With High ambient unit. (Optional item) Please refer to local dealer for unit of this specification.

With Low ambient kit. (Optional item) Please refer to local dealer for unit of this specification.

Refrigerant Circuit Diagrams

MODEL : ACM / A5CM 15E - ALC / A5LC 15C ACM 20E - ALC 18C ACM / A5CM 20E - ALC / A5LC 20C A5CM 25E - A5LC 25C

MODEL : ACM 25E - ALC 25C A5CM 28E - A5LC 28C

MODEL : ACM 28E - ALC 28C

MODEL : ACM 28E - ALC 30C


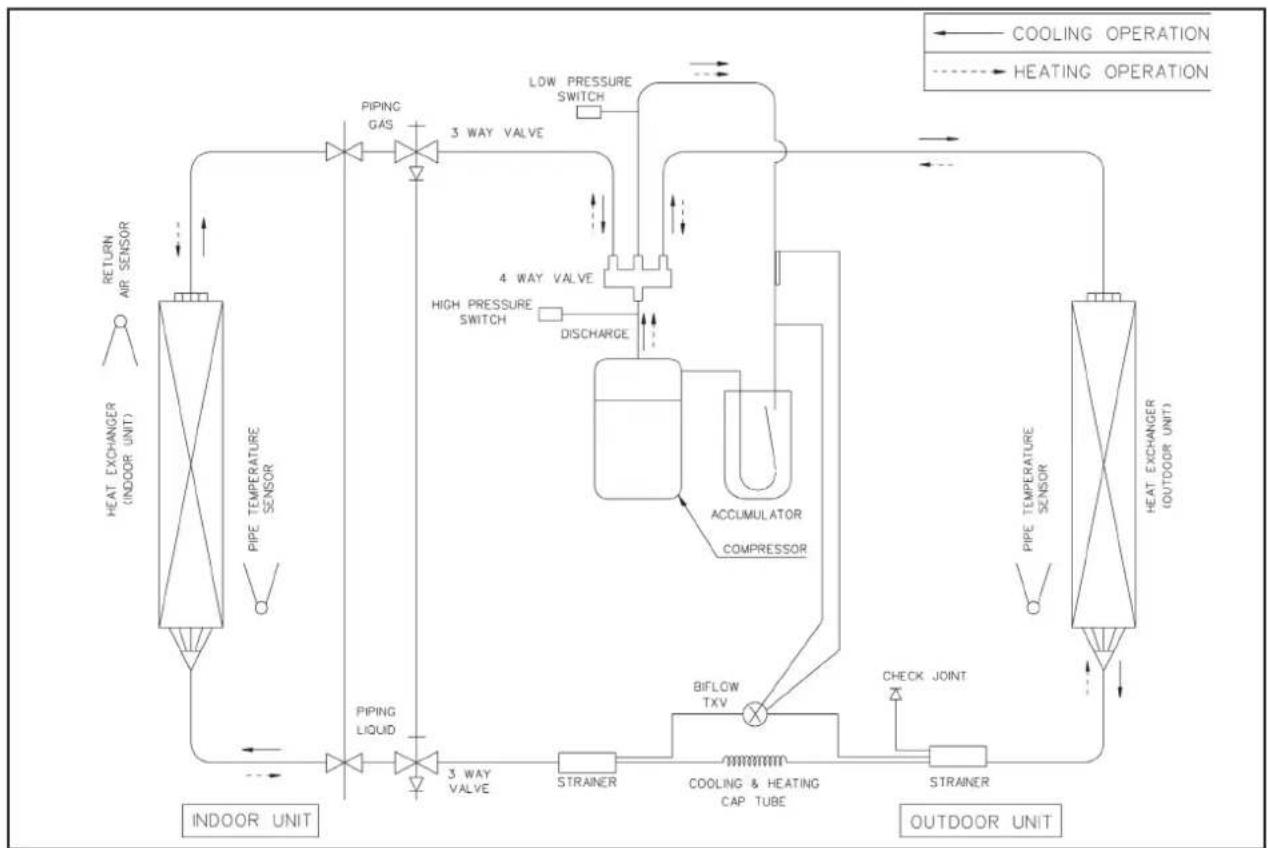


MODEL : ACM / A5CM 15ER - ALC / A5LC 15CR

MODEL : ACM / A5CM 20ER - ALC / A5LC 20CR

A5CM 25ER - A5LC 25CR

MODEL : ACM 25ER - ALC 25CR ACM 28ER - ALC 28CR

MODEL : A5CM 28ER - A5LC 28CR

MODEL : ACM 28ER - ALC 30CR

MODEL : A5CM 28ER - A5LC 35CR

G12 Remote Controller

Temperature Setting

• To set the desired room temperature, press the button to increase or decrease the set temperature.
• The temperature setting range is from 16°C to 30°C
• Press both buttons simultaneously to toggle the temperature setting between °C and °F

On/Off Button

• Press Once to start the air conditioner
• Press again to stop the unit

ON Timer Setting

• Press the SET button will activate the on timer function.
• Set the desired on time by pressing the SET button continuously.
• Press the CLR button to cancel the off timer setting

Fan Speed Selection

- Press the button until the desired fan speed is achieved.

Turbo Mode

- Press the TURBO button to achieve the required set temperature in a short time.

Automatic Air Awing

• Press the SWING button to activate the automatic air swing function.
• To distribute the air to a specific direction, press the SWING button and wait until the louver move to the desired direction and press the button once again.

lonizer

- Press the button to activate the negative lon function, which will refresh the indoor air effectively.

Personalised Setting

• Press and hold the button for 3s to initiate personalized setting.
• Set the individual setting e.g. MODE, SET TEMP or FAN SPEED and leave for 4s to save
• 2 groups of settings are allowed to stored in the handset

OFF Timer Setting

• Press the SET button will activate the off timer function.
• Set the desired off time by pressing the SET button continuously.
• Press the CLR button to cancel the off timer setting

Clock Time Setting

- Press button + or - to increase or decrease the clock time.

Sleep Mode

• Press the button to activate sleep mode. This function is available under COOL, HEAT & AUTO mode.
• When it is activated in COOL mode, the set temperature will be increased 0.5°C after 30mins, 1°C after 1 hour and 2°C after 2 hours.
• When it is activated in HEAT mode, the set temperature will be decreased 1°C after 30mins, 2°C after 1 hour and 3°C after 2 hours.

Operating Mode

• Press the MODE button to select the type of operating mode.
• For Cooling only unit, the available modes are: COOL, DRY & FAN.
• For Heatpump unit, the available modes are: AUTO, COOL, DRY, FAN & HEAT.

SLM AC-5300 (OPTIONAL)

1. "ON/OFF" switch

• Press to start the air conditioner unit.
• Press again to stop the unit.

2. Temperature setting

• Set the desired room temperature.
• Press button to increase or decrease the set temperature. Setting range are between 16°C to 30°C (60°F to 80°F).

3. Operation Modes

- Press the "mode" button for select the type of operating mode.

• Cooling Only : COOL, DRY, FAN
• Heat Pump : AUTO, COOL, DRY, HEAT, FAN (AUTO mode is represented by bothCOOL and HEAT LED light on)

4. Fan Speed selection

- Press the button until the desired fan speed is achieved.

5. Timer

- Press the set button to select the switch timer of the air conditioner unit (the setting range is between 1 to 10 hours).

6. "Sleep" mode

- Press button to activate the sleep function can only be activated under "cool" or heating mode operation. When it is activated under "cool" mode operation, the set temperature will increase 0.5°C after 30 minutes, 1°C after 1 hour and 2°C after 2 hours. If it is actiaved under "HEAT" mode operation, the set temperature will be decreased 0.5°C after 30 minutes, 1°C after 1 hour and 2°C after 2 hours.

7. Air Swing

- Press button to activate the automatic air swing function.

8. Sensor

- Infra red sensor to receive signals from wireless controller.

9. LED Display

- To display the set temperature (in °C) and timer delay setting (in hours).

10. Transmission source

• To transmit signals to the air conditioner.

Operating State and Fault Table

Wireless Remote Control – Handset

LED Indicator Light Display

Cooling Only Heatpump

COOL

DRY

FAN

COOL

DRY

FAN

HEAT

COOL DRY FAN HEAT				Normal Operation / Fault Indication
○				Cool mode
			○	Heat mode
	○			Dry mode
		○		Fan mode
○			●	Auto mode in cooling operation
●			○	Auto mode in heating operation
		●		Room air sensor open or short
	●	●		Indoor coil sensor open or short
	●			Outdoor coil sensor open or short
●				Compressor overload / indoor coil sensor short / outdoor coil sensor short
●	●			Gas leak

O - ON

- Blinking

Wired Remote Control – SLM

Cooling / Heatpump Model

Error Code at 7 Segment Display Operation / Faulty Indication
Blink E1 Room sensor open or short
Blink E2 Indoor coil sensor open
Blink E3 Outdoor coil sensor open
Blink E4	Compressor overload /Indoor coil sensor short /Outdoor coil sensor short
Blink E5 Gas leak
Blink E6 Water pump faulty

Phase Sequencer

	LED_P LED_R LED_S LED_T
	(Red) (Yellow) (Yellow) (Yellow)
Normal Operation	O	n	-	-
Reverse Phase	Blink Blink Blink Blink
S & T Phase Missing	Blink - Blink Blink
T Phase Missing	Blink -	- Blink
S Phase Missing	Blink - Blink -
R Phase Missing	-	-	-	-
Overload	Blink -	-	-
Sensor Missing	Blink	On	On	On

Notes: 1. “-” means LED off.
2. When R phase missing, no LED or buzzer will indicate the error, but relay 71 (Common) and 81 (NO) will cut off.
3. The unit will check the discharge sensor availability only during power up.
4. All errors can only recover through manually reset.

Installation

Caution

Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them.

(1) Installation of Indoor Unit

Preliminary Site Survey

• Electrical supply and installation is to confirm to local authority's (e.g. National Electrical Board) codes and regulations.
• Voltage supply fluctuation must not exceed ± 10% of rated voltage. Electricity supply lines must be independent of welding transformers which can cause high supply fluctuation.
• Ensure that the location is convenient for wiring, piping and drainage.

Standard Mounting

Ensure that the overhead supports are strong enough to hold the weight of the unit. Position the hanger rods (wall mounting bracket for floor standing), and check for its alignment with the unit as shown in Figure A. Also, check that the hangers are secured and the base of the fan coil unit is leveled in both horizontal directions, taking into account the gradient for drainage flow as recommended in Figure B.

Figure A

Please ensure that the following steps are taken:

• Check the gradient for drainage flow as recommended in Figure B.
• Provide clearance for easy servicing and optimal air flow as shown in Figure C.
• The indoor unit must be installed such that there is no short circuit of the cool discharge air with the warm return air.
• Don not install the indoor unit where there is direct sunlight shining on the unit. The location should be suitable for piping and drainage installation. The unit must be a large distance away from the door.

Figure B

Figure C

Under Ceiling Installation

Install the Suspension Bolts

1. Install the suspension bolts so that it can support the indoor unit.
2. Adjust the distance to ceiling before installation.
3. Refer to the dimension given (Figure A) to install the unit.

Install the Indoor Unit

1. Insert the suspension bolts into the fittings of the hanger bracket.
2. Set the nuts and washer on the both side of the metal fittings.
3. Secure it with nuts.
4. Attach the hanger cover (4 pcs) to the units.

Floor standing installation

1. Refer to the dimension as illustrated when installing the mounting bracket.
2. Determine the pipe hose position using the rear piping hole. Drill the pipe hole at the slight downward slant to the outdoor side.

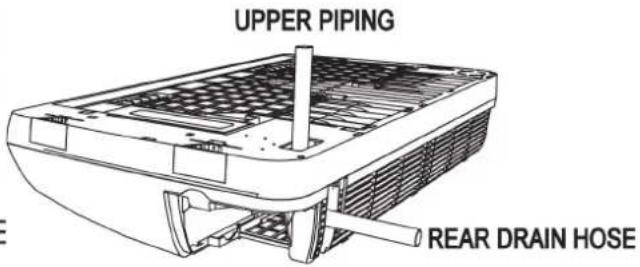

Piping and Drain Hose Installation

Under Ceiling Type

1. The piping direction can be 2 ways as illustrated.
2. The drain hose is only 1 way.

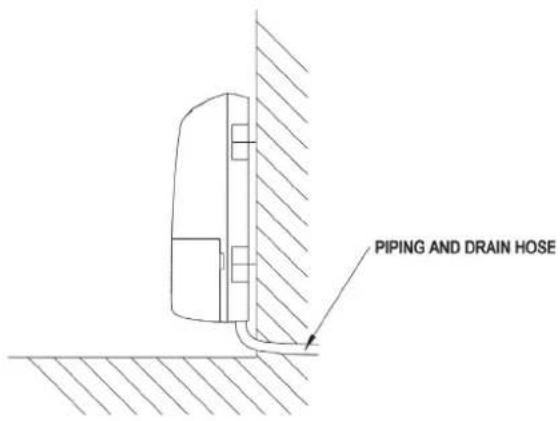

Floor standing type

OR

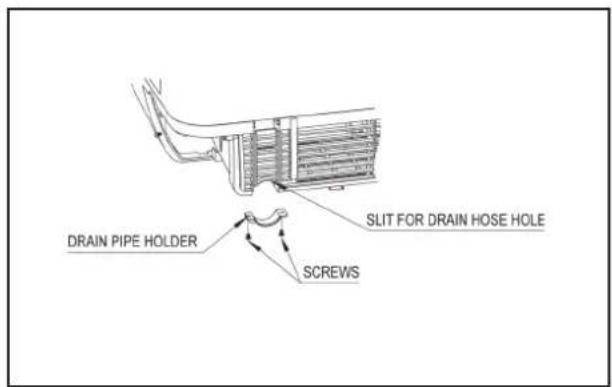

How to Install the Drain Hose

1. Remove the 2 screws and the drain pipe holder.
2. Cut a slit for the drain hose hole.
3. Place the drain hose on the v-shape area and secure it with drain pipe holder and 2 screws.

Technical line drawing of a mechanical device with internal components (no text or symbols)

How to Remove the Air Inlet Grille

1. Remove the air inlet grille by both hands as the direction shown.
2. Loosen the screws for fixing the panel arm (3 screws - Left, Right and Center). Do not remove the screws at this time.
3. Move the air inlet grille upward, and then turn it backwards. (Do not use too much force).
4. Remove the grille holder (both left and right side). After that, remove the air intake grille.
5. Remove the grille holder (center) from the panel.

How to install the air filter

To Adjust the Vane Direction

Adjust the vane linkage as the direction shown to get the required vane direction.

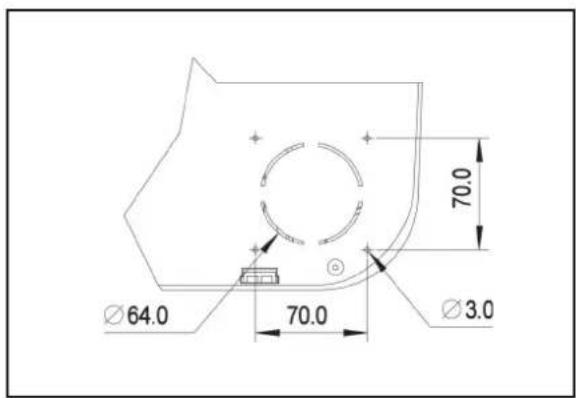

Dimension of the Fresh Air Intake Hole

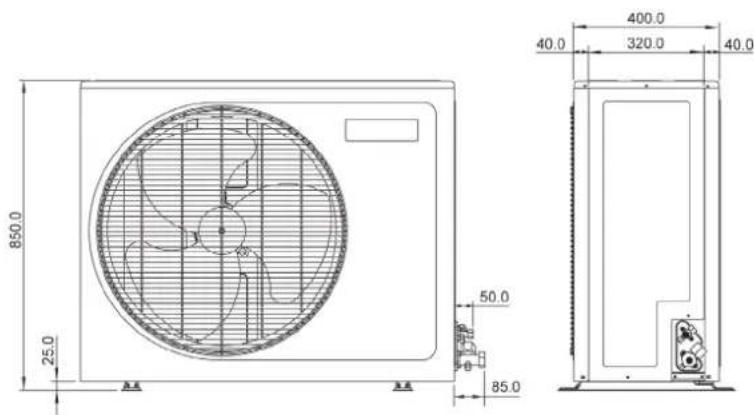

(2) Installation Of Outdoor Unit

As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve maximum cooling capacity, the location selected for outdoor unit should fulfill the following requirements:

- Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow sufficient space for maintenance around the unit.

Isometric line drawing of two server racks connected by a wall, with a cross symbol indicating a device (no text or labels present)

Isometric line drawing of two server units connected by lines, no text or symbols present

- Ensure that there is no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or discharge.

Technical illustration of a mechanical or electrical component with a grid box and cylindrical housing (no text or symbols)

Isometric line drawing of server racks connected by a line, no text or symbols present

• The location must be well ventilated, so that the unit can draw in and distribute plenty of air thus lowering the condensing temperature.
• A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
• A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.

Isometric line drawing of a small industrial or storage unit with brick walls and a checkmark symbol (no text or labels)

- The location must not be susceptible to dust or oil mist.

Installation Clearance

- Outdoor units must be installed such that there is no short circuit of the hot discharge air or obstruction to smooth air flow. Select the coolest possible place where intake air should not be hotter than the outside temperature (max. 45°C)

ALL MODELS A B C D
Minimum Distance 300 mm 1000 mm 300 mm 500 mm

CAUTION : If the condensing unit is operated in an atmosphere containing oils(including machine oils), salt(coastal area), sulphide gas(near hot spring, oil refinery plant), such substances may lead to failure of the unit.

(3) Refrigerant Piping

Maximum Piping Length And Maximum Number Of Bends

When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping resistance to the refrigerant flow increases, thus lowering the cooling capacity, and as the result the compressor may become defective. Always choose the shortest path and follow the recommendation as tabulated below:

Model	Indoor 15E/ER	20E/ER 25E/ER			28E/ER
	Outdoor 15C/CR	18 / 20C/CR 25C	/CR 28C/CR 30 /	35C/CR
Maximum Length, m		12 15 15	15 45
Maximum Elevation, m		5	8	8	8	2
Maximum No. of Bends		10 10 10	10 10

Piping Sizes (Flare Connection Type)

Piping sizes are as follows:

R22

Model	ALC 15C/CR	ALC 18/20C/CR	ALC 25C/CR	ALC 28C/CR	ALC 30C/CR
Liquid (mm/in)	6.35 / ^1/_4	6.35 / ^1/_4	9.52 / ^3/_8	9.52 / ^3/_8	9.52 / ^3/_8
Suction (mm/in)	12.70 / ^1/_2	15.88 / ^5/_8	15.88 / ^5/_8	15.88 / ^5/_8	15.88 / ^5/_8

R410A

Model	A5LC 15C/CR	A5LC 20C/CR	A5LC 25C/CR	A5LC 28C/CR	A5LC 35C/CR
Liquid (mm/in)	6.35 / ^1/_4	6.35 / ^1/_4	6.35 / ^1/_4	9.52 / ^3/_8	9.52 / ^3/_8
Suction (mm/in)	12.70 / ^1/_2	12.70 / ^1/_2	15.88 / ^5/_8	15.88 / ^5/_8	15.88 / ^5/_8

Piping Connection to the Units

• Align the center of the piping and tighten the flare nut sufficiently with fingers.
• Finally tighten the flare nut with torque wrench unit the wrench clicks.
• When tightening the flare nut with torque wrench, ensure the direction for tightening follows the arrow on the wrench.

Pipe Size (mm/in)	Torque (Nm)
6.35 (1/4) 18
9.52 (3/8) 42
12.70 (1/2) 55
15.88 (5/8) 65
19.05 (3/4) 78

(4) Wiring

Electrical Connections

- Wiring regulations on wire diameters differ from country to country. Please refer to your LOCAL ELECTRICAL CODES for field wiring rules. Be sure that installations comply with the rules and regulations.

General Precautions

• Ensure that the rated voltage of the unit corresponds to the name plate before carrying out proper wiring according to the wiring diagram.
• Provide a power outlet to be used exclusively for each unit. A power supply disconnects and a circuit breaker for over-current protection should be provided in the exclusive line.
• The unit must be GROUNDED to prevent possible hazards due to insulation failures.
• All wiring must be firmly connected.
• All wiring must not touch the hot refrigerant piping, compressor or any moving parts of fan motors.

(5) Vacuuming And Charging

The pre-charged outdoor unit does not need any vacuuming or charging. However once it is connected, the connecting pipe line and the indoor unit need to be vacuumed before releasing the R22/R407C/R410A from the outdoor unit.

1. Open the service port core cap.
2. Connect pressure gauge to the service port.
3. Connect the line to vacuum pump. Open the charging manifold valve and turn the pump on. Vacuum to -0.1 MPa (-760mmHg) or lower. (Evacuation time varies by the pump but averagely in 1 hour).

Note : R407C - Fix filter dryer
R22 - Nil
R410A - Nil

(6) Additional Charge

• The refrigerant charge has already charged into the outdoor unit. For the piping length of 7.6m, additional refrigerant charge after vacuuming is not necessary.
• When the piping length is more than 7.6m, please use the table below (unit in gram).

Model 10m 12m 15m 25m 35m 45m
ALC 15C/CR 37 /	57 68 / 104 ----
ALC 18C/CR 38 /	54 70 / 98 118 / 166 -	-
ALC 20C/CR 38 /	53 70 / 96 118 / 162 -	-
ALC 25C/CR 94 /	53 172 / 98	289 / 164 ---
ALC 28C/CR	94 / 133	172 / 244	291 / 411	-	-	-
ALC 30C/CR	133 / 133	244 / 243	410 / 409	964 / 961	1518 / 1514	2072 / 2067

Model 10m 15m 20m 25m 35m 45m
A5LC 15C/CR	20 / 39 37 / 71	---
A5LC 20C/CR	24 / 40 44 / 73	74 / 123 ---
A5LC 25C/CR	24 / 23 45 / 43	75 / 72	---
A5LC 28C/CR	58 / 91 106 / 167	178 / 281 ---
A5LC 35C/CR	65 / 98	118 / 180	199 / 303	469 / 712	738 / 1122	1007 / 1531

The additional refrigerant charge amount recommended is a guideline for longer piping application. The actual charge required may be different from the guideline due to different application and variation in site conditions.

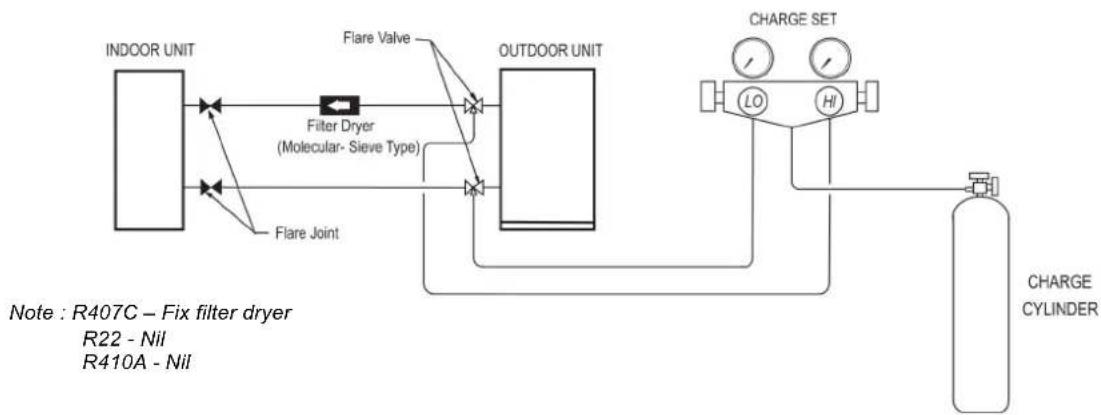

Diagram shows typical charging method:
    J["Note: R407C - Fix filter dryer\nR22 - Nil\nR410A - Nil"]

(7) Overall Checking

- Ensure the following, in particular:

1. The unit is mounted solidly and rigid in position.
2. Piping and connections are leak proof after charging.
3. Proper wiring has been done.

- Drainage check – pour some water into drain pan.

- Test run

1. Conduct a test run after water drainage test and gas leakage test.
2. Watch out for the following:

(a) Is the electric plug firmly inserted into the socket?
(b) Is there any abnormal sound from the unit?
(c) Is there any abnormal vibration with regard to the unit itself or piping?
(d) Is there smooth drainage of water?

- Check that:

1. Outdoor fan is running, with warm air blowing off the outdoor unit (cooling cycle).
2. Indoor blower is running and discharge cool air (cooling cycle).
3. Suction (low side) pressure is as per recommendations.
4. The remote controller has incorporated a 3 minutes delay in the circuit. Thus, it requires about 3 minutes before the outdoor unit can start up.

(8) Standard Operating Condition

Cooling Only Unit

Temperature	T_s °C / °F	T_h °C / °F
Minimum Indoor Temperature 19.4 / 66.9	13.9 / 57.0
Maximum Indoor Temperature 26.7 / 80.1	19.4 / 66.9
Minimum Outdoor Temperature 19.4 / 66.9	13.9 / 57.0
Maximum Outdoor Temperature 46 / 114.8	24 / 75.2

Heat Pump Unit

Temperature	T_s °C / °F	T_h °C / °F
Minimum Indoor Temperature 10 / 50 -
Maximum Indoor Temperature 26.7 / 80.1	-
Minimum Outdoor Temperature -8 / 17.6	-9 / 15.8
Maximum Outdoor Temperature	24 / 75.2	18 / 64.4

(9) Special Precautions When Dealing With Refrigerant R410a Unit

i) What Is New Refrigerant R410A?

R410A is a new HFC refrigerant which does not damage the ozone layer. The working pressure of this new refrigerant is 1.6 times higher than conventional refrigerant (R22), thus proper installation / servicing is essential.

ii) Components

Mixture weight composition R32(50%) and R125(50%)

iii) Characteristic

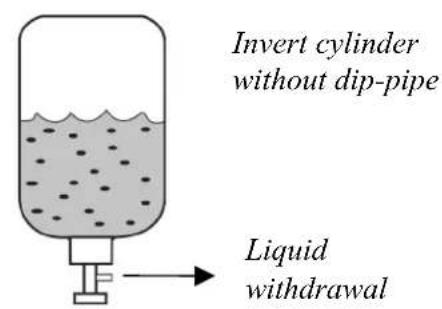

• R410A liquid and vapor components have different compositions when the fluid evaporates or condenses. Hence, when leak occurs and only vapor leaks out, the composition of the refrigerant mixture left in the system will change and subsequently affect the system performance. DO NOT add new refrigerant to leaked system. It is recommended that the system should be evacuated thoroughly before recharging with R410A.
• When refrigerant R410A is used, the composition will differ depending on whether it is in gaseous or liquid phase. Hence when charging R410A, ensure that only liquid is being withdrawn from the cylinder or can. This is to make certain that only original composition of R410A is being charged into the system.
• POE oil is used as lubricant for R410A compressor, which is different from the mineral oil used for R22 compressor. Extra precaution must be taken not to expose the R410A system too long to moist air.

iv) Check List Before Installation/Servicing

• Tubing
  Refrigerant R410A is more easily affected by dust of moisture compared with R22, make sure to temporarily cover the ends of the tubing prior to installation
• Compressor oil
  No additional charge of compressor oil is permitted.
• Refrigerant
  No other refrigerant other that R410A
• Tools (size of service port is different from R22 system)
  Tools specifically for R410A only (must not be used for R22 or other refrigerant)
  i) Manifold gauge and charging hose
  ii) Gas leak detector
  iii) Refrigerant cylinder/charging cylinder
  iv) Vacuum pump c/w adapter
  v) Flare tools
  vi) Refrigerant recovery machine

v) Handling And Installation Guidelines

Like R22 system, the handling and installation of R410A system are closely similar. All precautionary measures; such as ensuring no moisture, no dirt or chips in the system, clean brazing using nitrogen, and thorough leak check and vacuuming are equally important requirements. However, due to its hydroscopic POE oil, additional precautions must be taken to ensure optimum and trouble free system operation.

a) During installation or servicing, avoid prolong exposure of the internal part of the refrigerant system to moist air. Residual POE oil in the piping and components can absorb moisture from the air.
b) Ensure that the compressor is not expose to open air for more than the recommended time specified by its manufacturer (typically less than 10 minutes). Removed the seal plugs only when the compressor is about to be brazed.
c) The system should be thoroughly vacuumed to 1.0 Pa (700mmHg) or lower. This vacuuming level is more stringent than R22 system so as to ensure no incompressible gas and moisture in the system.

d) When charging R410A, ensure that only liquid is being withdrawn from the cylinder or can. This is to ensure that only the original composition of R410A is being delivered into the system. The liquid composition can be different from the vapor composition.

f) Normally, the R410A cylinder or can is being equipped with a dip pipe for liquid withdrawal. However, if the dip pipe is not available, invert the cylinder or can so as to withdraw liquid from the valve at the bottom.

5. ENGINEERING AND PHYSICAL DATA

GENERAL DATA - COOLING ONLY (R22)

MODEL		INDOOR UNIT			ACM 15E
		OUTDOOR UNIT			ALC 15C
NOMINAL CAPACITY				Btu/h	12000
				W	3520
NOMINAL TOTAL INPUT POWER				W	1250
NOMINAL RUNNING CURRENT				A	5.6
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50
EER 2.82				W/W
REFRIGERANT TYPE R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	240 / 508
		MEDIUM		I/s / CFM	182 / 386
		LOW		I/s / CFM	165 / 350
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	48 / 43 / 41
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	26
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	453 / 960
	SOUND PRESSURE LEVEL			dBA	49
	UNIT DIMENSION	HEIGHT		mm/in	540 / 21.3
		WIDTH		mm/in	700 / 27.6
		DEPTH		mm/in	250 / 9.8
	PACKING DIMENSION	HEIGHT		mm/in	620 / 24.4
		WIDTH		mm/in	810 / 31.9
		DEPTH		mm/in	330 / 13.0
	UNIT WEIGHT			kg/lb	32 / 71
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		6.4 / 1/4
			GAS mm/in		12.7 / 1/2
REFRIGERANT CHARGE				kg/lb	0.60 / 1.32

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW: COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - COOLING ONLY (R22)

MODEL		INDOOR UNIT			ACM 20E
		OUTDOOR UNIT			ALC 18C ALC 20C
NOMINAL CAPACITY				Btu/h 18000 19000
				W 5280	5570
NOMINAL TOTAL INPUT POWER				W	1870 1861
NOMINAL RUNNING CURRENT				A 8.4 8.0
POWER SOURCE				V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50
EER				W/W	2.82 2.99
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	245 / 520
		MEDIUM		I/s / CFM	217 / 460
		LOW		I/s / CFM	192 / 406
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	48 / 46 / 43
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	27 / 60
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	614 / 1300
	SOUND PRESSURE LEVEL			dBA	51
	UNIT DIMENSION	HEIGHT		mm/in	648 / 25.5
		WIDTH		mm/in	855 / 33.7
		DEPTH		mm/in	328 / 12.9
	PACKING DIMENSION	HEIGHT		mm/in	710 / 28.0
		WIDTH		mm/in	990 / 39.0
		DEPTH		mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	58 / 128 59 / 130
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.4 / 1/4
			GAS	mm/in	15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	0.85 / 1.87	1.35 / 2.98

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - COOLING ONLY (R22)

MODEL		INDOOR UNIT			ACM 25E
		OUTDOOR UNIT			ALC 25C
NOMINAL CAPACITY				Btu/h	24000
				W	7030
NOMINAL TOTAL INPUT POWER				W	2573
NOMINAL RUNNING CURRENT				A	11.5
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50
EER				W/W	2.73
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	274 / 580
		MEDIUM		I/s / CFM	250 / 530
		LOW		I/s / CFM	231 / 490
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	50 / 47 / 46
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	27 / 60
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	755 / 1600
	SOUND PRESSURE LEVEL			dBA	52
	UNIT DIMENSION	HEIGHT		mm/in	750 / 29.5
		WIDTH		mm/in	855 / 33.7
		DEPTH		mm/in	328 / 12.9
	PACKING DIMENSION	HEIGHT		mm/in	810 / 31.9
		WIDTH		mm/in	990 / 39.0
		DEPTH		mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	62 / 137
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		9.5 / 3/8
			GAS mm/in		15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	1.50 / 3.31

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :
COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - COOLING ONLY (R22)

MODEL		INDOOR UNIT			ACM 28E
		OUTDOOR UNIT			ALC 28C ALC 30C
NOMINAL CAPACITY				Btu/h 28000 28000
				W 8210	8210
NOMINAL TOTAL INPUT POWER				W	2811 2747
NOMINAL RUNNING CURRENT				A 13.6	13.3
POWER SOURCE				V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50
EER				W/W 2.92 2.99
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					INDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	302 / 640
		MEDIUM		I/s / CFM	264 / 560
		LOW		I/s / CFM	217 / 460
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	56 / 51 / 44
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	28 / 62
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM 741 / 1570	1605 / 3400
	SOUND PRESSURE LEVEL			dBA	54	58
	UNIT DIMENSION	HEIGHT		mm/in	750 / 29.5	850 / 33.46
		WIDTH		mm/in	855 / 33.7	1030 / 40.55
		DEPTH		mm/in	328 / 12.9	400 / 15.75
	PACKING DIMENSION	HEIGHT		mm/in	810 / 31.9	1000 / 39.37
		WIDTH		mm/in	990 / 39.0	1200 / 47.24
		DEPTH		mm/in	415 / 16.3	560 / 22.05
	UNIT WEIGHT			kg/lb	68 / 150	95 / 209
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	9.5 / 3/8	9.5 / 3/8
			GAS	mm/in	15.9 / 5/8	15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	2.40 / 5.3	1.40 / 3.09

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R22)

MODEL		INDOOR UNIT			ACM 15ER
		OUTDOOR UNIT			ALC 15CR
NOMINAL COOLING CAPACITY				Btu/h	12000
				W	3520
NOMINAL HEATING CAPACITY				Btu/h	12000
				W	3520
NOMINAL TOTAL INPUT POWER (COOLING)				W	1250
NOMINAL TOTAL INPUT POWER (HEATING)				W	998
NOMINAL RUNNING CURRENT (COOLING)				A	5.6
NOMINAL RUNNING CURRENT (HEATING)				A	4.5
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50
EER				W/W	2.82
COP				W/W	3.53
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH	I/s / CFM		240 / 508
		MEDIUM	I/s / CFM		182 / 386
		LOW	I/s / CFM		165 / 350
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	48 / 43 / 41
	UNIT DIMENSION	HEIGHT	mm/in		218 / 8.6
		WIDTH	mm/in		1080 / 42.5
		DEPTH	mm/in		630 / 24.8
	PACKING DIMENSION	HEIGHT	mm/in		297 / 11.7
		WIDTH	mm/in		1197 / 47.1
		DEPTH	mm/in		740 / 29.1
	UNIT WEIGHT			kg/lb	26
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	453 / 960
	SOUND PRESSURE LEVEL			dBA	49
	UNIT DIMENSION	HEIGHT	mm/in		540 / 21.3
		WIDTH	mm/in		700 / 27.6
		DEPTH	mm/in		250 / 9.8
	PACKING DIMENSION	HEIGHT	mm/in		620 / 24.4
		WIDTH	mm/in		810 / 31.9
		DEPTH	mm/in		330 / 13.0
	UNIT WEIGHT			kg/lb	32 / 71
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		6.4 / 1/4
			GAS mm/in		12.7 / 1/2
REFRIGERANT CHARGE				kg/lb	1.20 / 2.65

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R22)

MODEL		INDOOR UNIT			ACM 20ER
		OUTDOOR UNIT			ALC 18CR ALC 20CR
NOMINAL COOLING CAPACITY				Btu/h 18000 19000
				W 5280 5570
NOMINAL HEATING CAPACITY				Btu/h	18500 19500
				W 5420 5720
NOMINAL TOTAL INPUT POWER (COOLING)				W 1870 1861
NOMINAL TOTAL INPUT POWER (HEATING)				W	1710 1811
NOMINAL RUNNING CURRENT (COOLING)				A	8.4 8.2
NOMINAL RUNNING CURRENT (HEATING)				A 7.7 8.0
POWER SOURCE				V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50
EER				W/W	2.82 2.99
COP				W/W 3.17 3.16
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	245 / 520
		MEDIUM		I/s / CFM	217 / 460
		LOW		I/s / CFM	192 / 406
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	48 / 46 / 43
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	27 / 60
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	614 / 1300
	SOUND PRESSURE LEVEL			dBA	51
	UNIT DIMENSION	HEIGHT		mm/in	648 / 25.5
		WIDTH		mm/in	855 / 33.7
		DEPTH		mm/in	328 / 12.9
	PACKING DIMENSION	HEIGHT		mm/in	710 / 28.0
		WIDTH		mm/in	990 / 39.0
		DEPTH		mm/in	415 / 16.3
	UNIT WEIGHT			kg/lb	58 / 128	59 / 130
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.4 / 1/4
			GAS	mm/in	15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	0.85 / 1.87	1.35 / 2.98

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R22)

MODEL		INDOOR UNIT			ACM 25ER
		OUTDOOR UNIT			ALC 25CR
NOMINAL COOLING CAPACITY				Btu/h	24000
				W	7030
NOMINAL HEATING CAPACITY				Btu/h	25000
				W	7330
NOMINAL TOTAL INPUT POWER (COOLING)				W	2573
NOMINAL TOTAL INPUT POWER (HEATING)				W	2493
NOMINAL RUNNING CURRENT (COOLING)				A	11.5
NOMINAL RUNNING CURRENT (HEATING)				A	11.2
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50
EER				W/W	2.73
COP				W/W	2.94
REFRIGERANT TYPE					R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH	I/s / CFM		274 / 580
		MEDIUM	I/s / CFM		250 / 530
		LOW	I/s / CFM		231 / 490
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	50 / 47 / 46
	UNIT DIMENSION	HEIGHT	mm/in		218 / 8.6
		WIDTH	mm/in		1080 / 42.5
		DEPTH	mm/in		630 / 24.8
	PACKING DIMENSION	HEIGHT	mm/in		297 / 11.7
		WIDTH	mm/in		1197 / 47.1
		DEPTH	mm/in		740 / 29.1
	UNIT WEIGHT			kg/lb	27 / 60
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	755 / 1600
	SOUND PRESSURE LEVEL			dBA	52
	UNIT DIMENSION	HEIGHT	mm/in		750 / 29.5
		WIDTH	mm/in		855 / 33.7
		DEPTH	mm/in		328 / 12.9
	PACKING DIMENSION	HEIGHT	mm/in		810 / 31.9
		WIDTH	mm/in		990 / 39.0
		DEPTH	mm/in		415 / 16.3
	UNIT WEIGHT			kg/lb	62 / 137
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		9.5 / 3/8
			GAS mm/in		15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	1.50 / 3.31

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R22)

MODEL		INDOOR UNIT			ACM 28ER
		OUTDOOR UNIT			ALC 28CR ALC 30CR
NOMINAL COOLING CAPACITY				Btu/h 28000 28000
				W 8210	8210
NOMINAL HEATING CAPACITY				Btu/h	28500 28500
				W 8350	8350
NOMINAL TOTAL INPUT POWER (COOLING)				W 2862	2747
NOMINAL TOTAL INPUT POWER (HEATING)				W	2902 2954
NOMINAL RUNNING CURRENT (COOLING)				A	13.7 13.3
NOMINAL RUNNING CURRENT (HEATING)				A 13.8	14.1
POWER SOURCE				V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50
EER				W/W	2.87 2.99
COP				W/W 2.88 2.83
REFRIGERANT TYPE					R22 R22
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE OUTDOOR CAP TUBE + TXV
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	302 / 640
		MEDIUM		I/s / CFM	264 / 560
		LOW		I/s / CFM	217 / 460
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	56 / 51 / 44
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	28 / 62
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	741 / 1570	1605 / 3400
	SOUND PRESSURE LEVEL			dBA	54	58
	UNIT DIMENSION	HEIGHT		mm/in	750 / 29.5	850 / 33.5
		WIDTH		mm/in	855 / 33.7	1030 / 40.6
		DEPTH		mm/in	328 / 12.9	400 / 15.8
	PACKING DIMENSION	HEIGHT		mm/in	810 / 31.9	1000 / 39.4
		WIDTH		mm/in	990 / 39.0	1200 / 47.2
		DEPTH		mm/in	415 / 16.3	560 / 22.1
	UNIT WEIGHT			kg/lb	68 / 150	95 / 209
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	9.5 / 3/8	9.5 / 3/8
			GAS	mm/in	15.9 / 5/8	15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	2.40 / 5.30	2.15 / 4.12

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - COOLING ONLY (R410A)

MODEL		INDOOR UNIT			A5CM 15E
		OUTDOOR UNIT			A5LC 15C
NOMINAL CAPACITY				Btu/h	12900
				W	3780
NOMINAL TOTAL INPUT POWER				W	1280
NOMINAL RUNNING CURRENT				A	5.8
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50
EER				W/W	2.95
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	240 / 508
		MEDIUM		I/s / CFM	182 / 386
		LOW		I/s / CFM	165 / 350
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
				dBA	48 / 43 / 41SOUND PRESSURE LEVEL (H/M/L)
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	26
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	453 / 960
	SOUND PRESSURE LEVEL			dBA	49
	UNIT DIMENSION	HEIGHT		mm/in	540 / 21.3
		WIDTH		mm/in	700 / 27.6
		DEPTH		mm/in	250 / 9.8
	PACKING DIMENSION	HEIGHT		mm/in	620 / 24.4
		WIDTH		mm/in	810 / 31.9
		DEPTH		mm/in	330 / 13.0
	UNIT WEIGHT			kg/lb	32 / 71
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		6.4 / 1/4
			GAS mm/in		12.7 / 1/2
REFRIGERANT CHARGE				kg/lb	0.83 / 1.83

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - COOLING ONLY (R410A)

MODEL		INDOOR UNIT			A5CM 20E A5CM 25E
		OUTDOOR UNIT			A5LC 20C A5LC 25C
NOMINAL CAPACITY - 1∅ / <3∅>				Btu/h 17500 / <18100> 20000 / <22860>
				W 5130 / <5300> 5860 / <6700>
NOMINAL TOTAL INPUT POWER - 1∅ / <3∅>				W	1723 / <1757> 1973 / <2231>
NOMINAL RUNNING CURRENT - 1∅ / <3∅>				A 7.6 / <3.3> 8.8 / <4.2>
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
EER - 1∅ / <3∅>				W/W 2.93 / <3.02> 2.97 / <3.00>
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH	I/s / CFM		245 / 520 274 / 580
		MEDIUM	I/s / CFM 217 / 460 250 / 530
		LOW	I/s / CFM 192 / 406 231 / 490
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg. 0				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	48 / 46 / 43	50 / 47 / 46
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	27 / 60
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	614 / 1300	689 / 1460
	SOUND PRESSURE LEVEL			dBA	52	52
	UNIT DIMENSION	HEIGHT		mm/in	648 / 25.5	750 / 29.5
		WIDTH		mm/in 855 / 33.7	855 / 33.7
		DEPTH		mm/in 323 / 12.9	323 / 12.9
	PACKING DIMENSION	HEIGHT		mm/in 710 / 28.0	810 / 31.9
		WIDTH		mm/in	990 / 39.0	990 / 39.0
		DEPTH		mm/in 415 / 16.3	415 / 16.3
	UNIT WEIGHT			kg/lb	59 / 130	62 / 137
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	6.4 / 1/4	6.4 / 1/4
			GAS	mm/in	12.7 / 1/2 15.9 / 5/8
REFRIGERANT CHARGE				kg/lb	1.40 / 3.09	1.65 / 3.64

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - COOLING ONLY (R410A)

MODEL		INDOOR UNIT			A5CM 28E
		OUTDOOR UNIT			A5LC 28C A5LC 35C
NOMINAL CAPACITY - 10 / <30>				Btu/h 26000 / <26000> 30000 / <30000>
				W 7620 / <7620> 8790 / <8790>
NOMINAL TOTAL INPUT POWER - 10 / <30>				W	2670 / <2715> 2917 / <28	17>
NOMINAL RUNNING CURRENT - 10 / <30>				A 12.6 / <4.7> 14.5 / <3.6>
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
EER - 10 / <30>				W/W 2.85 / <2.81> 3.01 / <3.12>
REFRIGERANT TYPE					R410A	R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE & TXV
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION			WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH		I/s / CFM	302 / 640
		MEDIUM		I/s / CFM	264 / 560
		LOW		I/s / CFM	217 / 460
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	56 / 51 / 44
	UNIT DIMENSION	HEIGHT		mm/in	218 / 8.6
		WIDTH		mm/in	1080 / 42.5
		DEPTH		mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT		mm/in	297 / 11.7
		WIDTH		mm/in	1197 / 47.1
		DEPTH		mm/in	740 / 29.1
	UNIT WEIGHT			kg/lb	28 / 62
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	684 / 1450	1605 / 3400
	SOUND PRESSURE LEVEL			dBA	54	58
	UNIT DIMENSION	HEIGHT		mm/in	750 / 29.5	850 / 33.5
		WIDTH		mm/in	855 / 33.7	1030 / 40.6
		DEPTH		mm/in	328 / 12.9	400 / 15.8
	PACKING DIMENSION	HEIGHT		mm/in	810 / 31.9	1000 / 39.4
		WIDTH		mm/in	990 / 39.0	1200 / 47.2
		DEPTH		mm/in	415 / 16.3	560 / 22.1
	UNIT WEIGHT			kg/lb	68 / 150	95 / 209
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID	mm/in	9.5 / 3/8	9.5 / 3/8
			GAS	mm/in 15	9 / 5/8	15.9 / 5/8
REFRIGERANT CHARGE				kg/lb 1.70 / 3.75	1.90 / 4.19

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW :

COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR

4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R410A)

MODEL		INDOOR UNIT			A5CM 15ER
		OUTDOOR UNIT			A5LC 15CR
NOMINAL COOLING CAPACITY				Btu/h	12900
				W	3780
NOMINAL HEATING CAPACITY				Btu/h	11800
				W	3460
NOMINAL TOTAL INPUT POWER (COOLING)				W	1268
NOMINAL TOTAL INPUT POWER (HEATING)				W	1138
NOMINAL RUNNING CURRENT (COOLING)				A	6.0
NOMINAL RUNNING CURRENT (HEATING)				A	5.1
POWER SOURCE				V/Ph/Hz	220 - 240 / 1 / 50
EER				W/W	2.98
COP				W/W	3.04
REFRIGERANT TYPE					R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)					OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE			AUTOMATIC LOUVER (UP & DOWN)
		OPERATION WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH	I/s / CFM		240 / 508
		MEDIUM	I/s / CFM		182 / 386
		LOW	I/s / CFM		165 / 350
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.				0
	SOUND PRESSURE LEVEL (H/M/L)			dBA	48 / 43 / 41
	UNIT DIMENSION	HEIGHT	mm/in		218 / 8.6
		WIDTH	mm/in		1080 / 42.5
		DEPTH	mm/in		630 / 24.8
	PACKING DIMENSION	HEIGHT	mm/in		297 / 11.7
		WIDTH	mm/in		1197 / 47.1
		DEPTH	mm/in		740 / 29.1
	UNIT WEIGHT			kg/lb	26
	CONDENSATE DRAIN SIZE			mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW			I/s / CFM	453 / 960
	SOUND PRESSURE LEVEL			dBA	49
	UNIT DIMENSION	HEIGHT	mm/in		540 / 21.3
		WIDTH	mm/in		700 / 27.6
		DEPTH	mm/in		250 / 9.8
	PACKING DIMENSION	HEIGHT	mm/in		620 / 24.4
		WIDTH	mm/in		810 / 31.9
		DEPTH	mm/in		330 / 13.0
	UNIT WEIGHT			kg/lb	32 / 71
	PIPE CONNECTION	TYPE			FLARE VALVE
		SIZE	LIQUID mm/in		6.4 / 1/4
			GAS mm/in		12.7 / 1/2
REFRIGERANT CHARGE				kg/lb	0.83 / 1.83

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R410A)

MODEL		INDOOR UNIT			A5CM 20ER A5CM 25ER
		OUTDOOR UNIT			A5LC 20CR A5LC 25CR
NOMINAL COOLING CAPACITY - 1∅ / <3∅>			Btu/h 17600 / <18100> 20000 / <26000>
			W 5130 / <5300> 5860 / <6700>
NOMINAL HEATING CAPACITY - 1∅ / <3∅>			Btu/h	18500 / <18770> 22000 / <23200>
			W 5420 / <5500> 6450 / <6800>
NOMINAL TOTAL INPUT POWER (COOLING) - 1∅ / <3∅>			W 1723 / <1757> 1973 / <2231>
NOMINAL TOTAL INPUT POWER (HEATING) - 1∅ / <3∅>			W	1493 / <1527> 2003 / <2124>
NOMINAL RUNNING CURRENT (COOLING) - 1∅ / <3∅>			A	7.6 / <3.3> 8.9 / <4.2>
NOMINAL RUNNING CURRENT (HEATING) - 1∅ / <3∅>			A 6.6 / <2.8> 9.1 / <4.0>
POWER SOURCE			V/Ph/Hz	220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
EER - 1∅ / <3∅>			W/W	2.98 / <3.02> 2.97 / <3.00>
COP - 1∅ / <3∅>			W/W 3.63 / <3.60> 3.22 / <3.20>
REFRIGERANT TYPE				R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)				OUTDOOR CAP. TUBE
INDOOR UNIT	CONTROL	AIR DISCHARGE		AUTOMATIC LOUVER (UP & DOWN)
		OPERATION		WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH	I/s / CFM 245 / 520	274 / 580
		MEDIUM	I/s / CFM	217 / 460	250 / 530
		LOW	I/s / CFM	192 / 406	231 / 490
	EXTERNAL STATIC PRESSURE (H/M/L)		Pa / in.wg.	0	0
	SOUND PRESSURE LEVEL (H/M/L)		dBA	48 / 46 / 43	50 / 47 / 46
	UNIT DIMENSION	HEIGHT	mm/in	218 / 8.6
		WIDTH	mm/in	1080 / 42.5
		DEPTH	mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT	mm/in	297 / 11.7
		WIDTH	mm/in	1197 / 47.1
		DEPTH	mm/in	740 / 29.1
	UNIT WEIGHT		kg/lb	27 / 60
	CONDENSATE DRAIN SIZE		mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW		I/s / CFM	614 / 1300	689 / 1460
	SOUND PRESSURE LEVEL		dBA	52	52
	UNIT DIMENSION	HEIGHT	mm/in	648 / 25.5	750 / 29.5
		WIDTH	mm/in	855 / 33.7	855 / 33.7
		DEPTH	mm/in	328 / 12.9	328 / 12.9
	PACKING DIMENSION	HEIGHT	mm/in	810 / 31.9	810 / 31.9
		WIDTH	mm/in	990 / 39.0	990 / 39.0
		DEPTH	mm/in	415 / 16.3	415 / 16.3
	UNIT WEIGHT		kg/lb	59 / 130	62 / 137
	PIPE CONNECTION	TYPE		FLARE VALVE
		SIZE	LIQUID	mm/in	6.4 / 1/4	6.4 / 1/4
			GAS	mm/in	12.7 / 1/2	15.9 / 5/8
REFRIGERANT CHARGE			kg/lb	1.40 / 3.09	1.65 / 3.64

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

GENERAL DATA - HEATPUMP (R410A)

MODEL		INDOOR UNIT			A5CM 28ER
		OUTDOOR UNIT			A5LC 28CR A5LC 35CR
NOMINAL COOLING CAPACITY - 10 / <30>			Btu/h 26000 / <26000 > 30000 / <30000>
			W 7620 / <7620 > 8790 / <8790>
NOMINAL HEATING CAPACITY - 10 / <30>			Btu/h	26500 / <26500 > 31000 / <31000>
			W 7770 / <7770 > 9090 / <9090>
NOMINAL TOTAL INPUT POWER (COOLING) - 10 / <30>			W 2670 / <2715 > 2917 / <2817>
NOMINAL TOTAL INPUT POWER (HEATING) - 10 / <30>			W	2420 / <2378 > 2777 / <2667>
NOMINAL RUNNING CURRENT (COOLING) - 10 / <30>			A	12.6 / <4.7 > 14.5 / <3.6>
NOMINAL RUNNING CURRENT (HEATING) - 10 / <30>			A 11.7 / <4.3 > 13.6 / <3.4>
POWER SOURCE			V/Ph/Hz	220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
EER - 10 / <30>			W/W	2.85 / <2.81 > 3.01 / <3.12>
COP - 10 / <30>			W/W 3.21 / <3.27 > 3.27 / <3.41>
REFRIGERANT TYPE				R410A	R410A
REFRIGERANT CONTROL (EXPANSION DEVICE)				OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE & TXV
INDOOR UNIT	CONTROL	AIR DISCHARGE		AUTOMATIC LOUVER (UP & DOWN)
		OPERATION		WIRELESS OR WIRED MICROCOMPUTER REMOTE CONTROL
	AIR FLOW	HIGH	I/s / CFM	302 / 640
		MEDIUM	I/s / CFM	264 / 560
		LOW	I/s / CFM	217 / 460
	EXTERNAL STATIC PRESSURE (H/M/L) Pa / in.wg.			0
	SOUND PRESSURE LEVEL (H/M/L)		dBA	56 / 51 / 44
	UNIT DIMENSION	HEIGHT	mm/in	218 / 8.6
		WIDTH	mm/in	1080 / 42.5
		DEPTH	mm/in	630 / 24.8
	PACKING DIMENSION	HEIGHT	mm/in	297 / 11.7
		WIDTH	mm/in	1197 / 47.1
		DEPTH	mm/in	740 / 29.1
	UNIT WEIGHT		kg/lb	28 / 62
	CONDENSATE DRAIN SIZE		mm/in	19.1 / 3/4
OUTDOOR UNIT	AIR FLOW		I/s / CFM	684 / 1450 1605 / 3400
	SOUND PRESSURE LEVEL		dBA 54	58
	UNIT DIMENSION	HEIGHT	mm/in	750 / 29.5	850 / 33.5
		WIDTH	mm/in	855 / 33.7	1030 / 40.6
		DEPTH	mm/in	328 / 12.9	400 / 15.8
	PACKING DIMENSION	HEIGHT	mm/in	810 / 31.9	1000 / 39.4
		WIDTH	mm/in	990 / 39.0	1200 / 47.2
		DEPTH	mm/in	415 / 16.3	560 / 22.1
	UNIT WEIGHT		kg/lb	68 / 150	95 / 209
	PIPE CONNECTION	TYPE		FLARE VALVE
		SIZE	LIQUID	mm/in	9.5 / 3/8	9.5 / 3/8
			GAS	mm/in	15.9 / 5/8	15.9 / 5/8
REFRIGERANT CHARGE			kg/lb	1.70 / 3.75	1.90 / 4.19

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.
3) NOMINAL COOLING AND HEATING CAPACITY ARE BASED ON THE CONDITIONS BELOW:
a) COOLING - 27°C DB / 19°C WB INDOOR AND 35°C DB / 24°C WB OUTDOOR
b) HEATING - 20°C DB INDOOR AND 7°C DB / 6°C WB OUTDOOR
4) SOUND PRESSURE LEVEL ARE ACCORDING TO JIS B 8615 STANDARD. POSITION OF THE MEASUREMENT POINT IS 1m IN FRONT AND 1m BELOW THE UNIT.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 15E
	OUTDOOR UNIT			ALC 15C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		404 / 16
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT	cm3 / fl.oz.		350 / 11.8
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		2
		FIN PER INCH		16
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.36 / 3.88
		ROW		1
		FIN PER INCH		20
AIR QUALITY FILTER	TER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 20E
	OUTDOOR UNIT			ALC 18C ALC 20C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		457 / 18
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT	cm3 / fl.oz.		670 / 23.6
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		2
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.52 / 5.59
		ROW		1	2
		FIN PER INCH		20 24
AIR QUALITY FILTER	TER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 25E
	OUTDOOR UNIT			ALC 25C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		457 / 18
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT	cm3 / fl.oz.		700 / 24.6
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.62 / 6.67
		ROW		2
		FIN PER INCH		18
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 28E
	OUTDOOR UNIT			ALC 28C ALC 30C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in 45	/ 18 609.6 / 24
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54 -
COMPRESSOR	TYPE			ROTARY SCROLL
	OIL TYPE			ATMOS M60 or SUNISO 4GDID MINERAL (Sontex 200 LT)
	OIL AMOUNT	cm3 / fl.oz.		1130 / 39.8 1240 / 43.6
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER	SEAMLESS COPPER
		DIAMETER	mm/in 9.52 / 3/8 9.52 / 3/8
		THICKNESS	mm/in 0.33 / 0.013 0.35 / 0.014
	FIN	MATERIAL		ALUMINIUM (SLIT FIN) ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.12 / 0.005 0.12 / 0.005
		FACE AREA	m2/ft2	0.61 / 6.52 0.87 / 9.33
		ROW		2	1
		FIN PER INCH		18 16
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH	mm/in	383.00 / 15.08
			THICKNESS	mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 15ER
	OUTDOOR UNIT			ALC 15CR
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		404 / 16
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			ATMOS M60 or SUNISO 4GDID
	OIL AMOUNT	cm3 / fl.oz.		350 / 11.8
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		2
		FIN PER INCH		16
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.36 / 3.88
		ROW		1
		FIN PER INCH		20
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 20ER
	OUTDOOR UNIT			ALC 18CR ALC 20CR
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		457 / 18.0
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT	cm3 / fl.oz.		670 / 23.6
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		2
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.52 / 5.59
		ROW		1	2
		FIN PER INCH		20 24
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 25ER
	OUTDOOR UNIT			ALC 25CR
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL SYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		457 / 18
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			ATMOS NM56M or SUNISO 4GDID
	OIL AMOUNT		cm^3 /fl.oz.	700 / 24.6
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m^2/ft^2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m^2/ft^2	0.62 / 6.67
		ROW		2
		FIN PER INCH		18
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R22)

MODEL	INDOOR UNIT			ACM 28ER
	OUTDOOR UNIT			ALC 28CR ALC 30CR
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in 45	/ 18 609.6 / 24
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54 -
COMPRESSOR	TYPE			ROTARY SCROLL
	OIL TYPE			ATMOS M60 or SUNISO 4GDID MINERAL (Sontex 200 LT)
	OIL AMOUNT	cm3 / fl.oz.		1130 / 39.8 1240 / 43.6
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER	SEAMLESS COPPER
		DIAMETER	mm/in 9.52 / 3/8 9.52 / 3/8
		THICKNESS	mm/in 0.33 / 0.013 0.35 / 0.014
	FIN	MATERIAL		ALUMINIUM (SLIT FIN) ALUMINIUM (CORR. FIN)
		THICKNESS	mm/in 0.12 / 0.005 0.12 / 0.005
		FACE AREA	m2/ft2	0.61 / 6.52 0.87 / 9.33
		ROW		2	2
		FIN PER INCH		18 16
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH	mm/in	383.00 / 15.08
			THICKNESS	mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R410A)

MODEL	INDOOR UNIT			A5CM 15E
	OUTDOOR UNIT			A5LC 15C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		404 / 16
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			RB68A or Freol Alpha68M
	OIL AMOUNT	cm3 / fl.oz.		430 / 15.1
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.26 / 2.90
		ROW		2
		FIN PER INCH		16
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.360 / 3.940
		ROW		1
		FIN PER INCH		20
AIR QUALITY FILTER	TER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R410A)

MODEL	INDOOR UNIT			A5CM 20E A5CM 25E
	OUTDOOR UNIT			A5LC 20C A5LC 25C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		457 / 18
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			RB68A or Freol Alpha68M
	OIL AMOUNT	cm3 / fl.oz.		670 / 23.6 1130 / 39.8
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE) ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in 0.10 / 0.004 0.10 / 0.004
		FACE AREA	m2/ft2	0.510 / 5.460 0.620 / 6.630
		ROW		2	2
		FIN PER INCH		18 18
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R410A)

MODEL	INDOOR UNIT			A5CM 28E
	OUTDOOR UNIT			A5LC 28C A5LC 35C
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in 45	/ 18 609.6 / 24
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54 N/A
COMPRESSOR	TYPE			ROTARY SCROLL
	OIL TYPE			RB68A or Freol Alpha68M MOBIL EAL ARCTIC 22CC
	OIL AMOUNT	cm3 / fl.oz.		1130 / 39.8 1242 / 43.7
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER	SEAMLESS COPPER
		DIAMETER	mm/in 7.00 / 0.276 7.00 / 0.276
		THICKNESS	mm/in 0.28 / 0.011 0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (CORR. FIN) ALUMINIUM (CORR. FIN)
		THICKNESS	mm/in	0.11 / 0.0043 0.11 / 0.0043
		FACE AREA	m2/ft2	0.620 / 6.630 0.87 / 9.33
		ROW		2	2
		FIN PER INCH		18 18
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS	mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R410A)

MODEL	INDOOR UNIT			A5CM 15ER
	OUTDOOR UNIT			A5LC 15CR
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		404 / 16
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			RB68A or Freol Alpha68M
	OIL AMOUNT	cm3 / fl.oz.		430 / 15.1
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.26 / 2.90
		ROW		2
		FIN PER INCH		16
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004
		FACE AREA	m2/ft2	0.360 / 3.940
		ROW		1
		FIN PER INCH		20
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R410A)

MODEL	INDOOR UNIT			A5CM 20ER A5CM 25ER
	OUTDOOR UNIT			A5LC 20CR A5LC 25CR
INDOOR FAN	TYPE			CROSS FLOW
	QUANTITY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER	mm/in		146 / 5.75
	LENGTH	mm/in		200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN MOTOR	TYPE			PROPELLER
	QUANTITY			1
	MATERIAL			GLASS REINFORCED ACRYL SYRENE RESIN
	DRIVE			DIRECT
	DIAMETER	mm/in		457 / 18
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	QUANTITY			1
	INDEX OF PROTECTION (IP)			IP54
COMPRESSOR	TYPE			ROTARY
	OIL TYPE			RB68A or Freol Alpha68M
	OIL AMOUNT	cm3/ fl.oz.		670 / 23.6 1130 / 39.8
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (RAISE LANCE) ALUMINIUM (RAISE LANCE)
		THICKNESS	mm/in	0.10 / 0.004 0.10 / 0.004
		FACE AREA	m2/ft2	0.510 / 5.460 0.620 / 6.630
		ROW		2	2
		FIN PER INCH		18 18
AIR QUALITY FILTER	TYPE			WASHABLE SARANET FILTER
	QUANTITY		pc	2
	SIZE	LENGTH mm/in		309.20 / 12.17
		WIDTH mm/in		383.00 / 15.08
		THICKNESS mm/in		2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

COMPONENTS DATA (R410A)

MODEL	INDOOR UNIT			A5CM 28ER
	OUTDOOR UNIT			A5LC 28CR A5LC 35CR
INDOOR FAN	TYPE			CROSS FLOW
	Q'TY			2
	MATERIAL			ABS
	DRIVE			DIRECT
	DIAMETER		mm/in	146 / 5.75
	LENGTH		mm/in	200 / 7.87
INDOOR FAN MOTOR	TYPE			INDUCTION
	Q'TY			1
	INDEX OF PROTECTION (IP)			N/A
OUTDOOR FAN	TYPE			PROPELLER
	Q'TY			1
	MATERIAL			GLASS REINFORCED ACRYL STYRENE RESIN
	DRIVE			DIRECT
	DIAMETER		mm/in 45° / 18 609.6 / 24
OUTDOOR FAN MOTOR	TYPE			INDUCTION
	Q'TY			1
	INDEX OF PROTECTION (IP)			IP54 -
COMPRESSOR	TYPE			ROTARY SCROLL
	OIL TYPE			RB68A or Freol Alpha68M MOBIL EAL ARCTIC 22CC
	OIL AMOUNT		cm3 / fl.oz.	1130 / 39.8 1242 / 43.7
INDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER
		DIAMETER	mm/in	7.00 / 0.276
		THICKNESS	mm/in	0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (SLIT FIN)
		THICKNESS	mm/in	0.11 / 0.0043
		FACE AREA	m2/ft2	0.27 / 2.90
		ROW		3
		FIN PER INCH		18
OUTDOOR COIL	TUBE	MATERIAL		SEAMLESS INNER GROOVE COPPER	SEAMLESS COPPER
		DIAMETER	mm/in 7.00 / 0.276 7.00 / 0.276
		THICKNESS	mm/in 0.28 / 0.011 0.28 / 0.011
	FIN	MATERIAL		ALUMINIUM (CORR. FIN) ALUMINIUM (CORR. FIN)
		THICKNESS	mm/in	0.11 / 0.0043 0.11 / 0.0043
		FACE AREA	m2/ft2	0.620 / 6.630 0.87 / 9.33
		ROW		2	2
		FIN PER INCH		18 18
AIR QUALITY	FILTER	TYPE		WASHABLE SARANET FILTER
		QUANTITY	pc	2
		SIZE	LENGTH mm/in	309.20 / 12.17
			WIDTH mm/in	383.00 / 15.08
			THICKNESS	mm/in	2.25 / 0.09
CASING	INDOOR UNIT		MATERIAL	PS
			FINISHING	ETCHING SURFACE
			COLOUR	LIGHT GREY
	OUTDOOR UNIT		MATERIAL	GALVANISED MILD STEEL
			FINISHING	POLYESTER POWDER
			COLOUR	LIGHT GREY

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

SAFETY DEVICES

MODEL	INDOOR UNIT			ACM 15E
	OUTDOOR UNIT			ALC 15C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			ACM 20E
	OUTDOOR UNIT			ALC 18C ALC 20C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			ACM 25E
	OUTDOOR UNIT			ALC 25C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			ACM 28E
	OUTDOOR UNIT			ALC 28C ALC 30C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A NC
		OPEN kPa / p	psi N/A 2937 / 426
		CLOSE kPa /	psi N/A 2413 / 350
	LOW PRESSURE SWITCH	TYPE		N/A NC
		OPEN kPa /	psi N/A 124 / 8
		CLOSE kPa /	psi N/A 193 / 28
	PHASE SEQUENCER - 1∅ / <3∅>			N/A N/A /
	DISCHARGE THERMOSTAT SETTING - 1∅ / <3∅> °C /		F N/A N/A / < 30 / 266>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

SAFETY DEVICES

MODEL	INDOOR UNIT			ACM 15ER
	OUTDOOR UNIT			ALC 15CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			ACM 20ER
	OUTDOOR UNIT			ALC 18CR ALC 20CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			ACM 25ER
	OUTDOOR UNIT			ALC 25CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	/°F		N/A

MODEL	INDOOR UNIT			ACM 28ER
	OUTDOOR UNIT			ALC 28CR ALC 30CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A NC
		OPEN kPa / psi N/A 2937 / 426
		CLOSE kPa / psi N/A 2413 / 350
	LOW PRESSURE SWITCH	TYPE		N/A N/A
		OPEN kPa / psi N/A N/A
		CLOSE kPa / psi N/A N/A
	PHASE SEQUENCER - 1∅ / <3∅>			N/A N/A /
	DISCHARGE THERMOSTAT SETTING - 1∅ / <3∅>		°C / °F	N/A	N/A / <130 / 266>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

SAFETY DEVICES

MODEL	INDOOR UNIT			A5CM 15E
	OUTDOOR UNIT			A5LC 15C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			A5CM 20E
	OUTDOOR UNIT			A5LC 20C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER - 1∅ / <3∅>			N/A /
	DISCHARGE THERMOSTAT SETTING - 1∅ / <3∅> °C / F			N/A / <130 / 266>

MODEL	INDOOR UNIT			A5CM 25E
	OUTDOOR UNIT			A5LC 25C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER - 10 / <30>			N/A /<YES>
	DISCHARGE THERMOSTAT SETTING - 10 / <30> °C / F			N/A / <130 / 266>

MODEL	INDOOR UNIT			A5CM 28E
	OUTDOOR UNIT			A5LC 28C A5LC 35C
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A	NC
		OPEN kPa / psi N/A 4140 / 600
		CLOSE kPa / psi N/A 3312 / 480
	LOW PRESSURE SWITCH	TYPE		N/A NC
		OPEN kPa / psi N/A 48 / 7
		CLOSE kPa / psi N/A 152 / 22
	PHASE SEQUENCER - 1∅ / <3∅>			N/A /N/A /
	DISCHARGE THERMOSTAT SETTING - 1∅ / <3∅>		°C / °F	N/A / <130 / 266>	N/A / <130 / 266>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

SAFETY DEVICES

MODEL	INDOOR UNIT			A5CM 15ER
	OUTDOOR UNIT			A5LC 15CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER			N/A
	DISCHARGE THERMOSTAT SETTING °C	°F		N/A

MODEL	INDOOR UNIT			A5CM 20ER
	OUTDOOR UNIT			A5LC 20CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER - 1∅ / <3∅>			N/A /
	DISCHARGE THERMOSTAT SETTING - 1∅ / <3∅> °C / F			N/A / <130 / 266>

MODEL	INDOOR UNIT			A5CM 25ER
	OUTDOOR UNIT			A5LC 25CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	LOW PRESSURE SWITCH	TYPE		N/A
		OPEN kPa / psi		N/A
		CLOSE kPa / psi		N/A
	PHASE SEQUENCER - 10 / <30>			N/A /<YES>
	DISCHARGE THERMOSTAT SETTING - 10 / <30> °C / F			N/A / <130 / 266>

MODEL	INDOOR UNIT			A5CM 28ER
	OUTDOOR UNIT			A5LC 28CR A5LC 35CR
SAFETY DEVICE	HIGH PRESSURE SWITCH	TYPE		N/A	NC
		OPEN kPa / psi N/A 4140 / 600
		CLOSE kPa / psi N/A 3312 / 480
	LOW PRESSURE SWITCH	TYPE		N/A NC
		OPEN kPa / psi N/A 48 / 7
		CLOSE kPa / psi N/A 152 / 22
	PHASE SEQUENCER - 1∅ / <3∅>			N/A /N/A /
	DISCHARGE THERMOSTAT SETTING - 1∅ / <3∅>		°C / °F	N/A / <130 / 266>	N/A / <130 / 266>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

6. PERFORMANCE DATA

Interpolation and Extrapolation method can be used to get the total capacity, Q and sensible capacity, SC at those temperatures which are not stated out in the table.

Example:

Model: ACM 15E / ALC 15C

Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 37°C DB

Solution:

Overall

Based on the Performance table in page 67,

1. Refer to the Indoor DB column,

- 23°C is located between 20°C and 24°C (Thus, Interpolation need to be applied)

1. Refer to the Indoor WB column,

- 15°C only available in the case of Indoor DB = 20°C. (Thus, Extrapolation between 16°C WB and 17°C WB during 24°C indoor DB is required)

1. Refer to the Outdoor DB column,

- 37°C is located between 35°C and 40°C. (Thus, Interpolation need to be applied)

Please follow the steps below in order to get the required capacity.

Details:

1 ^st Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 24°C DB, 15°C WB

Outdoor Condition: 35°C DB

Indoor DB Indoor WB 35°C °C TC (kW) SC (kW)	Outdoor DB °C
24 16 3.3	15	x_1	y_1
	63 2.381
	17 3.431	2.288

Total capacity, TC

$$ \Rightarrow x _ {1} = 3. 2 9 5 \mathrm{kW} (\text { Same as Total capacity at } 2 0 ^ {\circ} \mathrm{C Indoor DB / 15} ^ {\circ} \mathrmC Indoor WB & 3 5 ^ {\circ} \mathrm{C Outdoor WB}) ^ {*} $$

Sensible capacity, SC

Extrapolation Method:

$$ \begin{array}{l} \Rightarrow \frac {1 7 ^ {\circ} \mathrm{C} - 1 5 ^ {\circ} \mathrm{C}}{1 7 ^ {\circ} \mathrm{C} - 1 6 ^ {\circ} \mathrm{C}} = \frac {2 . 2 8 8 \mathrm{kW} - \mathrm{y} _ {1}}{2 . 2 8 8 \mathrm{kW} - 2 . 3 8 1 \mathrm{kW}} \ \Rightarrow \mathrm{y} _ {1} = 2. 4 7 4 \mathrm{kW} \ \end{array} $$

(b) Indoor Condition: 24°C DB, 15°C WB

Outdoor Condition: 40°C DB

Indoor DB Indoor WB 40°C °C TC (kW) SC (kW)	Outdoor DB °C
24 16 3.0	15	x_2	y_2
	66 2.056
	17 3.137	1.954

Total capacity, TC

$$ \Rightarrow x _ {2} = 2. 9 9 5 \mathrm{kW} (\text { Same as Total capacity at } 2 0 ^ {\circ} \mathrm{C} \text { Indoor DB } / 1 5 ^ {\circ} \mathrm{C} \text { Indoor WB } \& 4 0 ^ {\circ} \mathrm{C} \text { Outdoor WB }) ^ {*} $$

Sensible capacity, SC

Extrapolation Method:

$$ \begin{array}{l} \Rightarrow \frac {1 7 ^ {\circ} \mathrm{C} - 1 5 ^ {\circ} \mathrm{C}}{1 7 ^ {\circ} \mathrm{C} - 1 6 ^ {\circ} \mathrm{C}} = \frac {1 . 9 5 4 \mathrm{kW} - \mathrm{y} _ {2}}{1 . 9 5 4 \mathrm{kW} - 2 . 0 5 6 \mathrm{kW}} \ \Rightarrow \mathrm{y} _ {2} = 2. 1 5 8 \mathrm{kW} \ \end{array} $$

* This is due to 2 different conditions with same WB temperature, will have the same level of enthalpy. For more details, please refer to psychrometrics chart

2nd Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 35°C DB

Indoor DB Indoor WB 35°C °C TC (kW) SC (kW)	Outdoor DB °C
20 15 3.295 1.510
23 15 x		3	y_3
24 15 3.295 2.474

Total capacity, TC

$$ \Rightarrow x _ {3} = 3. 2 9 5 \mathrm{kW} (\text { Same as Total capacity at } 2 0 ^ {\circ} \mathrm{C Indoor DB / 15} ^ {\circ} \mathrm{C Indoor WB & 35} ^ {\circ} \mathrm{C Outdoor WB}) ^ {*} $$

Sensible capacity, SC

Interpolation Method:

$$ \Rightarrow \frac {2 4 ^ {\circ} \mathrm{C} - 2 0 ^ {\circ} \mathrm{C}}{2 4 ^ {\circ} \mathrm{C} - 2 3 ^ {\circ} \mathrm{C}} = \frac {2 . 4 7 4 \mathrm{kW} - 1 . 5 1 0 \mathrm{kW}}{2 . 4 7 4 \mathrm{kW} - \mathrm{y} _ {3}} $$

$$ \Rightarrow \mathrm{y} _ {3} = 2. 2 3 3 \mathrm{kW} $$

(b) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 40°C DB

Indoor DB Indoor WB 40°C °C TC (kW) SC (kW)	Outdoor DB °C
20 15 2.9	95 1.195
23 15 x		4	y_4
24 15 2.9	95 2.158

Total capacity, TC

$$ \Rightarrow x _ {4} = 2. 9 9 5 \mathrm{kW} (\text { Same as Total capacity at } 2 0 ^ {\circ} \mathrm{C} \text { Indoor DB } / 1 5 ^ {\circ} \mathrm{C} \text { Indoor WB } \& 4 0 ^ {\circ} \mathrm{C} \text { Outdoor WB }) ^ {*} $$

Sensible capacity, SC

Interpolation Method:

$$ \Rightarrow \frac {2 4 ^ {\circ} \mathrm{C} - 2 0 ^ {\circ} \mathrm{C}}{2 4 ^ {\circ} \mathrm{C} - 2 3 ^ {\circ} \mathrm{C}} = \frac {2 . 1 5 8 \mathrm{kW} - 1 . 1 9 5 \mathrm{kW}}{2 . 1 5 8 \mathrm{kW} - \mathrm{y} _ {4}} $$

$$ \Rightarrow \mathrm{y} _ {4} = 1. 9 1 7 \mathrm{kW} $$

* This is due to 2 different conditions with same WB temperature will have the same level of enthalpy. For more details, please refer to psychrometrics chart

3rd Step:

To obtain the Total capacity and Sensible capacity for

(a) Indoor Condition: 23°C DB, 15°C WB

Outdoor Condition: 37°C DB

Indoor DB Indoor WB 35 37 °C °C TC (kW) SC (kW)	Outdoor DB °C
	40
	TC (kW)	SC (kW)	TC (kW) SC (kW)	(kW)
23	15	- - - - -	3.295	2.233	x	y	2.995

Total capacity, TC

Interpolation Method:

$$ \Rightarrow \frac {4 0 ^ {\circ} \mathrm{C} - 3 5 ^ {\circ} \mathrm{C}}{4 0 ^ {\circ} \mathrm{C} - 3 7 ^ {\circ} \mathrm{C}} = \frac {2 . 9 9 5 \mathrm{kW} - 3 . 2 9 5 \mathrm{kW}}{2 . 9 9 5 \mathrm{kW} - \mathrm{x}} $$

$$ \Rightarrow x = 3. 1 7 5 \mathrm{kW} $$

Sensible capacity, SC

Interpolation Method:

$$ \Rightarrow \frac {4 0 ^ {\circ} \mathrm{C} - 3 5 ^ {\circ} \mathrm{C}}{4 0 ^ {\circ} \mathrm{C} - 3 7 ^ {\circ} \mathrm{C}} = \frac {1 . 9 1 7 \mathrm{kW} - 2 . 2 3 3 \mathrm{kW}}{1 . 9 1 7 \mathrm{kW} - \mathrm{y}} $$

$$ \Rightarrow \mathrm{y} = 2. 1 0 7 \mathrm{kW} $$

Performance Tables

R22 MODELS

(COOLING ONLY)

MODEL : ACM 15E / ALC 15C

ID DB°C ID WB°C		Outdoor DB°C
		20 25 30 35		40 46
		TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	C(kW) TC	(kW) SC(kW)	TC(kW)	$C(kW) TC	(kW) SC(kW)
20	15	4.1982.4	553.8972.1	403.5961.8	253.2951.5	102.9951.19	52.6340.816
	16	4.2552.3	903.9582.0	653.6601.7	413.3631.4	173.0661.09	32.7090.704
24	16	4.2553.3	533.9583.0	293.6602.7	053.3632.38	13.0662.05	62.7091.667
	17	4.3133.2	884.0192.9	553.7252.6	213.4312.28	883.1371.95	42.7841.554
	18	4.3703.2	244.0802.8	813.7892.5	383.4982.19	53.2081.85	32.8591.441
	19	4.4283.1	594.1402.8	073.8532.4	553.5662.10	33.2791.75	12.9341.328
	20	4.4863.0	954.2072.7	443.9282.39	33.6492.04	23.3701.69	13.0361.270
28	18	4.3704.1	874.0803.8	443.7893.5	023.4983.15	93.2082.81	62.8592.405
	19	4.4284.1	224.1403.7	703.8533.4	183.5663.06	663.2792.71	42.9342.292
	20	4.4864.0	594.2073.7	083.9283.3	573.6493.00	63.3702.65	53.0362.234
	21	4.5443.9	964.2773.6	534.0103.3	103.7422.96	73.4752.62	43.1542.213
	22	4.6033.9	334.3473.5	984.0913.2	633.8362.92	83.5802.59	33.2732.192
	23	4.6613.8	704.4173.5	434.1733.2	163.9292.89	03.6852.56	33.3922.170
	24	4.7203.8	074.4873.4	894.2553.1	704.0222.85	13.7902.53	23.5112.149
30	20	4.5404.8	404.2074.1	903.9283.8	393.6493.48	83.3703.13	73.0362.716
	21	4.5444.4	784.2774.1	354.0103.7	923.7423.44	93.4753.10	63.1542.695
	22	4.6034.4	154.3474.0	804.0913.7	453.8363.41	03.5803.07	53.2732.673
	23	4.6614.3	524.4174.0	254.1733.6	983.9293.37	13.6853.04	43.3922.652
	24	4.7204.2	894.4873.9	704.2553.6	514.0223.33	33.7903.01	43.5112.631

ACM 15/20/25/28E/ER A5CM 15/20/25/28E/ER

Note : Dimension in mm

OUTDOOR UNIT

ALC / A5LC 15 C/CR

Note : Dimension in mm

ALC 18C/CR

ALC 20/25/28C/CR

A5LC 20/25/28C/CR

MODEL A B C D E F G		HI J K L M		N O P Q R S T
ALC 18C, ALC/A5LC 20C/CR	855	628	328	508	181	44	93	149	101	113	603	126	164	17	49	32	323	73 75
ALC / A5LC 25/28 C/CR	855	730	328	513	182	44	93	149	101	113	603	126	164	17	47	32	323	73 75

Note : Dimension in mm

ALC 30C/CR

A5LC 35C/CR

Note : Dimension in mm

8. ELECTRICAL DATA

ELECTRICAL DATA - COOLING ONLY (R22)

MODEL	INDOOR UNIT		ACM 15E
	OUTDOOR UNIT		ALC 15C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		79
	RATED RUNNING CURRENT A		0.34
	MOTOR OUTPUT W		50
	POLES		6
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		59
	RATED RUNNING CURRENT A		0.26
	MOTOR OUTPUT W		35
	POLES		6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		30.0
	RATED INPUT POWER W		1112
	RATED RUNNING CURRENT A		5.0
	LOCKED ROTOR AMP. A		21

MODEL	INDOOR UNIT		ACM 20E
	OUTDOOR UNIT		ALC 18C ALC 20C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		101
	RATED RUNNING CURRENT A		0.46
	MOTOR OUTPUT W		50
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 120 120
	RATED RUNNING CURRENT A		0.53	0.53
	MOTOR OUTPUT W		64	64
	POLES		6	6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		60.0	60.0
	RATED INPUT POWER W		1653	1640
	RATED RUNNING CURRENT A		7.4	7.0
	LOCKED ROTOR AMP. A	32	32

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - COOLING ONLY (R22)

MODEL	INDOOR UNIT		ACM 25E
	OUTDOOR UNIT		ALC 25C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		109
	RATED RUNNING CURRENT A		0.49
	MOTOR OUTPUT W		65
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		132
	RATED RUNNING CURRENT A		0.58
	MOTOR OUTPUT W		64
	POLES		6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		45.0
	RATED INPUT POWER W		2222
	RATED RUNNING CURRENT A		11.0
	LOCKED ROTOR AMP. A		54

MODEL	INDOOR UNIT		ACM 28E
	OUTDOOR UNIT		ALC 28C ALC 30C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		150
	RATED RUNNING CURRENT A		0.75
	MOTOR OUTPUT W		70
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 142 220
	RATED RUNNING CURRENT A		0.62 1.02
	MOTOR OUTPUT W		75	145
	POLES		6	8
COMPRESSOR	INSULATION GRADE		CLASS E -
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		50.0 50.0
	RATED INPUT POWER W		2519	2377
	RATED RUNNING CURRENT A		12.2 11.5
	LOCKED ROTOR AMP. A	66	82

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - HEATPUMP (R22)

MODEL	INDOOR UNIT		ACM 15ER
	OUTDOOR UNIT		ALC 15CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		79
	RATED RUNNING CURRENT A		0.34
	MOTOR OUTPUT W		50
	POLES		6
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		59
	RATED RUNNING CURRENT A		0.26
	MOTOR OUTPUT W		35
	POLES		6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		35.0
	RATED INPUT POWER (COOLING) W		1150
	RATED INPUT POWER (HEATING) W		860
	RATED RUNNING CURRENT (COOLING) A		5.2
	RATED RUNNING CURRENT (HEATING) A		3.9
	LOCKED ROTOR AMP. A		24

MODEL	INDOOR UNIT		ACM 20ER
	OUTDOOR UNIT		ALC 18CR ALC 20CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		101
	RATED RUNNING CURRENT A		0.46
	MOTOR OUTPUT W		50
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 120		117
	RATED RUNNING CURRENT A	0.53	0.51
	MOTOR OUTPUT W 64		64
	POLES		6	6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF 60.0		45.0
	RATED INPUT POWER (COOLING)	W	1649	1522
	RATED INPUT POWER (HEATING) W		1489	1512
	RATED RUNNING CURRENT (COOLING) A		7.4	6.7
	RATED RUNNING CURRENT (HEATING)	A	7.6	7.0
	LOCKED ROTOR AMP. A	32	47

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - HEATPUMP (R22)

MODEL	INDOOR UNIT		ACM 25ER
	OUTDOOR UNIT		ALC 25CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		109
	RATED RUNNING CURRENT A		0.49
	MOTOR OUTPUT W		65
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		132
	RATED RUNNING CURRENT A		0.58
	MOTOR OUTPUT W		64
	POLES		6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		45.0
	RATED INPUT POWER (COOLING) W		2222
	RATED INPUT POWER (HEATING) W		2062
	RATED RUNNING CURRENT (COOLING) A		11.0
	RATED RUNNING CURRENT (HEATING) A		10.6
	LOCKED ROTOR AMP. A		54

MODEL	INDOOR UNIT		ACM 28ER
	OUTDOOR UNIT		ALC 28CR ALC 30CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		150
	RATED RUNNING CURRENT A		0.75
	MOTOR OUTPUT W		70
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 142		220
	RATED RUNNING CURRENT A	0.62	1.02
	MOTOR OUTPUT W 75		145
	POLES		6	8
COMPRESSOR	INSULATION GRADE		CLASS E -
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF 50.0		50.0
	RATED INPUT POWER (COOLING)	W	2570	2377
	RATED INPUT POWER (HEATING) W		2610	2584
	RATED RUNNING CURRENT (COOLING) A		12.3	11.5
	RATED RUNNING CURRENT (HEATING)	A	12.4	12.3
	LOCKED ROTOR AMP. A	66	82

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - COOLING ONLY (R410A)

MODEL	INDOOR UNIT		A5CM 15E
	OUTDOOR UNIT		A5LC 15C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		79
	RATED RUNNING CURRENT A		0.34
	MOTOR OUTPUT W		26
	POLES		6
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		59
	RATED RUNNING CURRENT A		0.26
	MOTOR OUTPUT W		35
	POLES		6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		35.0
	RATED INPUT POWER W		1130
	RATED RUNNING CURRENT A		5.4
	LOCKED ROTOR AMP. A		24

MODEL	INDOOR UNIT		A5CM 20E A5CM 25E
	OUTDOOR UNIT		A5LC 20C A5LC 25C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 101 109
	RATED RUNNING CURRENT A 0.46		0.49
	MOTOR OUTPUT W		50	65
	POLES		4	4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 120 132
	RATED RUNNING CURRENT A		0.53	0.58
	MOTOR OUTPUT W		64	64
	POLES		6	6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR mF		50.0 / <NIL>	50.0 / <NIL>
	RATED INPUT POWER W		1502 / <1536>	1732 / <1990>
	RATED RUNNING CURRENT A		6.6 / <3.0> 7.8 / <3.8>
	LOCKED ROTOR AMP.	A	27 / <19>	63 / <26>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.

2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - COOLING ONLY (R410A)

MODEL	INDOOR UNIT		A5CM 28E
	OUTDOOR UNIT		A5LC 28C A5LC 35C
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		150
	RATED RUNNING CURRENT A		0.75
	MOTOR OUTPUT W		70
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		142 220
	RATED RUNNING CURRENT A		0.62 1.06
	MOTOR OUTPUT W		75 145
	POLES		6	8
COMPRESSOR	INSULATION GRADE		CLASS E -
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR mF		45.0 /60.0 /
	RATED INPUT POWER W		2378 / <2423> 2547 / <2447>
	RATED RUNNING CURRENT	A	11.30 / <4.29>	12.70 / <3.01>
	LOCKED ROTOR AMP.	A	65 / <26>	97 / <7>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - HEATPUMP (R410A)

MODEL	INDOOR UNIT		A5CM 15ER
	OUTDOOR UNIT		A5LC 15CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		79
	RATED RUNNING CURRENT A		0.34
	MOTOR OUTPUT W		50
	POLES		6
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		59
	RATED RUNNING CURRENT A		0.26
	MOTOR OUTPUT W		35
	POLES		6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	CAPACITOR mF		35.0
	RATED INPUT POWER (COOLING) W		1130
	RATED INPUT POWER (HEATING) W		1000
	RATED RUNNING CURRENT (COOLING) A		5.4
	RATED RUNNING CURRENT (HEATING) A		4.5
	LOCKED ROTOR AMP. A		24

MODEL	INDOOR UNIT		A5CM 20ER A5CM 25ER
	OUTDOOR UNIT		A5LC 20CR A5LC 25CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W	101	109
	RATED RUNNING CURRENT A	0.46	0.49
	MOTOR OUTPUT W 50		65
	POLES		4	4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W	120	132
	RATED RUNNING CURRENT A	0.53	0.58
	MOTOR OUTPUT W 64		64
	POLES		6	6
COMPRESSOR	INSULATION GRADE		CLASS E
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR	mF	50.0 / <NIL>	50.0 / <NIL>
	RATED INPUT POWER (COOLING)	W	1502 / <1536>	1732 / <1990>
	RATED INPUT POWER (HEATING) W		1272 / <1306>	1762 / <1883>
	RATED RUNNING CURRENT (COOLING) A		6.6 / <3.0>	7.8 / <3.8>
	RATED RUNNING CURRENT (HEATING)	A	5.6 / <2.5>	8.0 / <3.6>
	LOCKED ROTOR AMP.	A	27 / <19>	63 / <26>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

ELECTRICAL DATA - HEATPUMP (R410A)

MODEL	INDOOR UNIT		A5CM 28ER
	OUTDOOR UNIT		A5LC 28CR A5LC 35CR
INDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W		150
	RATED RUNNING CURRENT A		0.75
	MOTOR OUTPUT W		70
	POLES		4
OUTDOOR MOTOR	INSULATION GRADE		CLASS B
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50
	RATED INPUT POWER W 142 220
	RATED RUNNING CURRENT A		0.62 1.06
	MOTOR OUTPUT W		75 145
	POLES		6	8
COMPRESSOR	INSULATION GRADE		CLASS E -
	POWER SOURCE V/Ph/Hz		220 - 240 / 1 / 50 / <380 - 415 / 3 / 50>
	CAPACITOR mF 45.0 /60.0 /
	RATED INPUT POWER (COOLING)	W	2378 / <2423>	2547 / <2447>
	RATED INPUT POWER (HEATING)	W	2128 / <2086>	2407 / <2297>
	RATED RUNNING CURRENT (COOLING)	A	11.30 / <4.29>	12.70 / <3.01>
	RATED RUNNING CURRENT (HEATING)	A	10.30 / <3.89>	11.80 / <2.81>
	LOCKED ROTOR AMP.	A	65 / <26>	97 / <7>

1) ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
2) ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151.

9. WIRING DIAGRAMS

COOLING ONLY

INDOOR UNIT

MODEL: ACM / A5CM 15E

OUTDOOR UNIT

MODEL: ALC / A5LC 15C

INDOOR UNIT

MODEL: ACM / A5CM 20/25E

INDOOR UNIT

MODEL: ACM / A5CM 28E

INDOOR UNIT

MODEL: ACM 28E

INDOOR UNIT

MODEL: A5CM 28E

OUTDOOR UNIT

MODEL: A5LC 35C

HEATPUMP

INDOOR UNIT

MODEL: ACM / A5CM 15ER

OUTDOOR

MODEL: ALC 18CR

ALC / A5LC 20/25CR

INDOOR UNIT

MODEL: ACM / A5CM 28ER

INDOOR UNIT

MODEL: ACM 28ER

INDOOR UNIT

MODEL: A5CM 28ER

Warning : Disconnect from main supply before servicing the air conditioner

The unit is designed to give long life operation with minimum maintenance required. However, it should be regularly checked and the following items should be given due attention.

Components Maintenance Procedure Recommended Schedule
Indoor Air Filter	1. Remove any dust adhering on the filter by using a vacuum cleaner or wash in lukewarm water (below 40°C/104°F) with a neutral cleaning detergent.2. Rinse the filter well and dry before placing it back onto the unit.3. Note :Do not use gasoline, volatile substances or chemicals to clean the filter.	At least once every 2 weeks.More frequently if necessary.
Indoor Unit 1. Clean any dirt or dust on the grille or panel by wiping it with a soft cloth soaked in lukewarm water (below 40°C/104°F) and a neutral detergent solution.2. Note : Do not use gasoline, volatile substances or chemicals to clean the indoor unit.		At least once every 2 weeks.More frequently if necessary
Condensate Drain Pan and Pipe	1. Check and clean. Every 3 months.
Indoor Fan 1. Check for unusual noise. As necessary.
Indoor/Outdoor Coil	1. Check and remove dirt which are clogged between fins.2. Check and remove obstacles which hinder air flow in and out of indoor/outdoor unit.	Every month.Every month.
Electrical 1. Check voltage, current and wiring.2. Check faulty contacts caused by loose connections, foreign matters, etc.		Every 2 months.Every 2 months.
Compressor	1. No maintenance needed if refrigerant circuit remains sealed. However, check for refrigerant leak at joints and fittings.	Every 6 months.
Compressor Lubrication	1. Oil is factory charged. Not necessary to add oil if circuit remains sealed.	No maintenance required.
Fan Motors Lubrication	1. All motors pre-lubricated and sealed at factory. No maintenance required.

PRE START UP MAINTENANCE (AFTER EXTENDED SHUTDOWN)

– Clean or replace air filters.
- Clean condensate drain line.
– Clean clogged indoor and outdoor coils.
- Check fan imbalance before operation.
– Tighten all wiring connections and panels.
- Check for refrigerant leakage.

- Inspect thoroughly and clean indoor and outdoor units.

The design of the ALC outdoor series allows servicing to be carried out readily and easily. The removal of the top/front and back panel make almost every part accessible.

Under normal circumstances, these outdoor units only require a check and cleaning of air intake coil surface once quarterly. However, if a unit is installed in areas subjected to much oil mist and dust, the coils must be regularly cleaned by qualified Air Conditioner Service Technicians to ensure sufficient heat exchange and proper operation. Otherwise, the systems life span may be shortened.

CAUTION!

Do not charge OXYGEN, ACETYLENE OR OTHER FLAMMABLE and poisonous gases into the unit when performing a leakage test or an airtight test. These gases could cause severe explosion and damage if exposed to high temperature and pressure.

It is recommended that only nitrogen or refrigerant be charged when performing the leakage or airtight test.

11. TROUBLESHOOTING

When a malfunction of the air conditioner unit is detected, immediately switch off the main power supply before proceeding with the following troubleshooting procedures.

The following are common fault conditions and simple troubleshooting tips. If any other fault conditions which are not listed occur, contact your nearest local dealer. DO NOT attempt to troubleshoot the unit by yourself.

No	Fault conditions Possible causes / corrective actions
1	The air conditioner unit will not resume after power failure.	·The auto restart function is not functioning. Please turn on the unit with the wireless / wired controller.
2	The compressor does not operate 3 minutes after the air conditioner unit is started.	·Protection against frequent starting.·Wait for 3 or 4 minutes for the compressor to start operating by it self.
3	The airflow is too slow or room cannot be cooled sufficiently.	·The air filter is dirty.·The doors and windows are opened.·The air suction and discharge of both indoor and outdoor units are clogged or blocked.·The regulated temperature or temperature setting is not low enough.
4	Discharge airflow has bad odor.	·Cigarettes, smoke particles, perfume and others, which might have adhered onto the coil, may cause odor.·Contact your nearest dealer.
5	Condensation on the front air grille of the indoor unit.	·This is caused by air humidity after an extended period of operation.·The set temperature is too low. Increase the temperature setting and operate the unit at high fan speed.
6	Water flowing out from the air conditioner.	·Switch off the unit and contact your nearest dealer. This might be due to tilted installation.
7	Hissing airflow sound from the air conditioner unit during operation.	·Liquid refrigerant flowing into the evaporator coil.
8	The wireless controller display is dim.	·The batteries are discharged.·The batteries are not correctly inserted.·The assembly is not good.
9	Compressor operates continuously.	·Dirty air filter. Clean the air filter.·Temperature setting too low (cooling). Use higher temperature setting.·Temperature setting too high (heating), Use lower temperature setting.
10	No cool air comes out during cooling cycle, or no hot air comes out during heating cycle.	·Temperature setting too high (cooling). Use lower temperature setting.·Temperature setting too low (heating). Use higher temperature setting.
11	On heating cycle, warm air does not come out.	·Unit is in defrost mode. Heating operation will resume after defrost cycle ends.

Diagnostic Guidelines

By means of pressure reading:

DataCircuit	Pressure					Probable cause
	Too low	A little low	Normal	A little high	Too high
High sideLow side					●●	1. Overcharged with refrigerant.2. Non-condensable gases in refrigerant circuit (e.g. air)3. Obstructed air-intake / discharge.4. Hot air short circuiting in outdoor unit.
High sideLow side	●				●	1. Poor compression / no compression (compressor defective)2. Reversing valve leaking.
High sideLow side	●	●				1. Undercharged with refrigerant.2. Refrigerant leakage.3. Air filter clogged / dirty (indoor unit).4. Indoor fan locked / seized.5. Defective defrost control, outdoor coil freeze up (heating).6. Outdoor fan locked / seized (heating).
High sideLow side				●	● 1.	Outdoor fan blocked (cooling).2. Outdoor coil dirty (cooling).3. Indoor fan locked / seized (heating).4. Indoor air filter clogged / dirty (heating).5. Non-condensable gases in refrigerant circuit (e.g. air)
High sideLow side				●	●	1. Air intake temperature of indoor unit too high.

By means of diagnostic flow chart:

Generally, there are two kinds of problems, i.e. starting failure and insufficient cooling/heating. "Starting failure" is caused by electrical defect while improper application or defects in refrigerant circuit causes "Insufficient cooling / heating".

i) Diagnosis of Electric Circuit

    subgraph Failure Cases
        L1["No Voltage or Low Voltage"] --> M1["Get the Right Voltage"]
        L2["Wrong Phase/Missing Phase"] --> M2["Repair the Power Line"]
        M1 --> N1["Blown"]
        M2 --> N2["Components Shorted"]
        M2 --> N3["Tighten The Connections"]
        N1 --> O1["Connections Loose"]
        N2 --> O2["High or Low Voltage"]
        N2 --> O3["Wrong Phase/Missing Phase"]
        O1 --> P1["Overcurrent Relay For Evaporator Fan"]
        O3 --> P2["Check The Power Supply To The Motor : Repair When Necessary"]
        P1 --> Q1["Faulty"]
        P2 --> Q2["Coil Burnt"]
        P2 --> Q3["Contact Faulty"]
        P2 --> Q4["Faulty Fan Motor"]
        P2 --> Q5["Defective Operation Switch"]
        Q1 --> R1["Change The Contactor"]
        Q2 --> R2["Repair The Contacts"]
        Q3 --> R3["Repair Or Change The Motor"]
        Q4 --> R4["Repair Or Replace The Switch"]
        R1 --> S1["Overcurrent Relay For Condenser Fan"]
        R2 --> S2["High Voltage or Low Voltage"]
        R3 --> S3["Wrong Phase/Missing Phase"]
        S3 --> T1["Get The Right Voltage"]
        S3 --> T2["Check The Power Supply To The Motor : Repair When Necessary"]
        T2 --> U1["Close The Contactor"]
        T2 --> U2["Change The Contacts"]
        U1 --> V1["Coil Burnt"]
        U2 --> V2["Contact Faulty"]
        U3 --> V3["Fan Motor Faulty"]
        U4 --> V4["Other Electrical Component Faulty"]
        V4 --> W1["Repair or Change If Necessary"]
        W1 --> X1["Change The Contactor"]
        W1 --> X2["Change The Contacts"]
        X2 --> Y1["Open Compressor Windings"]
        X2 --> Y2["Change The Compressor"]
        Y2 --> Z1["Correct The Wiring"]
    end

    subgraph Failure Details
        AA1[a) Voltage not within ±10% of rated voltage.
b) Power supply interrupted.
c) Improper control settings.
d) Air conditioner is disconnected from main power source.
e) Fuse blown or circuit breaker off.
    end

ii) Diagnosis of Refrigerant Circuit / Application

There might be some causes where the unit starts running but does not perform satisfactorily, i.e. insufficient cooling. Judgement could be made by measuring temperature difference of indoor unit's intake and discharge air as well as running current.

Satisfactory operation with temperature difference of air intake & discharge of indoor unit 8°C to 13°C. *

(* value is for reference only)

Satisfactory operation with temperature difference of air intake & discharge of indoor unit 14°C to 20°C. *

(* value is for reference only)

12. EXPLODED VIEW & PARTS LIST

MODEL: ACM / A5CM 15/20/25/28 E/ER

No	Description Part No No Description Part No
1 Assy., Top Panel R50124074907 8 Motor, Bracket	R01014071324
2 Assy., Coil 9 Blower Wheel R03024004754ACM / A5CM 15E/ER R50024085233 10 Blower Housing R12014071385ACM 20E/ER, A5CM 25E/ERA5CM 20E/ER R50024080385 12 Assy., Bottom PanelACM 25E/ER, ACM 28ER,A5CM 28E/ERACM 28E	R50024071828R50024074757R50024075729 14 Cover, Hanger L2 (D) R12014071355		11	Motor, Air Swing	R03039023303
			R50124074909
			13	Cover, Hanger L1 (C)	R12014071354
3	Assy., Vane	R50124074906	15	Cover, Hanger R1 (A)	R12014071356
4 Assy., Drain PanACM / A5CM 20/25/28EACM / A5CM 20/25/28ER	R50124076123 17 MountingR50124080076 18 Control Module		16 Cover, Hanger R2 (B)		R12014071357
			Bracket	R01014071319
5 Assy., Control BoxACM / A5CM 15/20/25/028E (IONIZER)ACM / A5CM 20/25/28E (NTP)ACM / A5CM 15/20/25ER (IONIZER)ACM / A5CM 20/25ER (NTP)ACM / A5CM 28ER (IONIZER)ACM / A5CM 28ER (NTP)	R50044083484R50044083700R50044080078R50044083701R50044080079R50044083702 20 Louver		ACM / A5CM 20/25/28E (IONIZER) R04089023399ACM / A5CM 20/25/28E (NTP)ACM / A5CM 20/25/28ER (IONIZER)ACM / A5CM 20/25/28ER (NTP)	R04089023670R04089023668R04089023667
			19	G12 Handset (Cooling Only)G12 Handset (Heatpump)	R04084065327R04084067315
				R12014071335
6 Cover, Control Box	R01014069872 21 Saranet Filter			R12014071342
7 MotorACM / A5CM 15E/ER R03034085800ACM / A5CM 20E/ER R03039023304ACM / A5CM 25E/ER R03039023305ACM / A5CM 28E/ER R03039023306	ACM / A5CM 20/25/28EACM / A5CM 20/25/28ER23 Air Intake Grille		22 Assy., LED BoardR50044076124R50044080080
				R12014071341

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No Description Part No No Description Part No
1 Assy. Base Pan R50014051158 13 Assy., Control Panel R50044086056
2 Assy. Outdoor Coil 14 Assy., Valve Cover R50124051173ALC 15C A50024087838 15 Assy., Front Grille R50124056700A5LC 15C	R50024084998 16 Plastic Handle	R12014057948
3 Valve Bracket	R01014051164 17 Rubber Grommet	R11054000271
4 CompressorALC 15C A04019027709 ALC 15C R50054054950A5LC 15C	R04019026326 A5LC 15C	18 Assy., Flare Valve 2 Ways 1/4"R50059019453
5 Assy., Partition	R50064055063 19 Assy., FlareValve	3 Ways 1/2"
6 Assy., Cap Tube	R50024087757 ALC 15C	R50054064042
7 Bracket, Fan Motor	R01014051162 A5LC 15C	R50059019452
8 Fan Motor	R03039015323	Parts Not in Diagram
9 Fan Blade	R03019015339 Capacitor, FanMotor	R04029026755
10 Left Panel	R01014051166 Capacitor, Compressor
11 Right Panel	R01014051167 ALC 15C	R04029026775
12 Assy., Front Panel	R01014051171 A5LC 15C	R04029026776

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No Description Part No No Description Part No
1 Assy. Base Pan R50014078281 10 Compressor
2 Assy. Outdoor Coil ALC 18/20C A04019027266ALC 18C R50024089940 A5LC 20C R04019020625ALC 20C A50024084570 11 Front Panel, LeftA5LC 20C R50024079078 12 Service Panel		R01014070597
		R01014070598
3 Motor Bracket	R01014070601 13 Terminal Cover Panel R01014070838
4 Fan Motor	R03039024539 14 Assy. Control Panel R50014072877
5 Fan Blade	R03019023393 15 Top Panel			R01014070596
6 Valve BracketALC 18/20C A50014072861 17 Plastic HandleA5LC 20C R50014078280 18 Assy. Valve Cover		16 Assy. Front Grille R50124072880
		R12014057948
		R50124072885
7 ALC 18/20CAssy. Flare Valve 3 Ways 5/8"A5LC 20CAssy. Flare Valve 3 Ways 1/2"	R50054072863 ALC 18C R50024089926R50059023335 A5LC 20C R50024081921
8 Assy. Flare Valve 2 Ways 1/4"ALC 18/20CA5LC 20C R50059023334 Capacitor, Fan Motor		20 Partition R01014070603
		Parts Not in Diagram
		R04029026759
9 Back Panel, Right	R01014070599 Capacitor, Compressor		ALC 18/20CA5LC 20C R04029026779	R04029026782

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No	Description Part No No Description Part No
1	Assy. Base Pan R50014073884 10 Compressor
2	Assy. Outdoor Coil ALC 25C A04019027570ALC 25C R50024089206 A5LC 25C R04019021361A5LC 25/28C R50024079238 ALC 28C R04019012828ALC 28C A50024070959 A5LC 28C R04019020449
3	Motor Bracket	R01014070948 11 Front Panel	Left	R01014070947
4	Fan MotorALC 25C R03039028207 13 TerminalCover PanelA5LC 25C R03039023391 14 Assy.Control PanelALC / A5LC 28C	R03039024538 ALC / A5LC 25C	12 Service PanelR01014070949
			A01014070838
				R50044086076
5	Fan Blade	R03019023393 ALC 28C R50044086137	A5LC 28C R50044086138
6	Valve BracketALC 25/28CA5LC 25C R50014078321 16 Assy. Front GrilleA5LC 28C R50014080371 17 Plastic Handle, Side	A50014073890 15 Top Panel		R01014070596
			R50124072880
			R12014057948
7	Assy. Flare Valve 3 Ways 5/8"ALC 25/28CA5LC 25/28C R50059023336 ALC 25C R50024090095	R50054072863 19 Assy. Cap	Tube
			A5LC 25C R50024081916
8	ALC 25/028CAssy. Flare Valve 3 Ways 3/8"A5LC 25CAssy. Flare Valve 2 Ways 1/4"A5LC 28CAssy. Flare Valve 3 Ways 3/8"	R50059022577 A5LC 28C R50024079593	20 Partition	R01014070951
			21 Plastic Handle, Front	R12014070955
		R50059023334	Parts Not in Diagram
9	Back Panel, Right	R50059024820 Capacitor, Fan MotorR01014070950 ALC / A5LC 25C	R04029026759ALC / A5LC 28C	R04029026966
				Capacitor, CompressorALC / A5LC 25C, ALC 28CA5LC 28C R04029026778	R04029026779

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No Description Part No No Description Part No
1 Assy. Base Pan R50014051158 11 Left Panel R01014051166
2 Assy. Outdoor Coil 12 Right Panel R01014051167ALC 15CR A50024086953 13 Assy., Front Panel R01014051171A5LC 15CR R50024084998 14 Assy., Control Panel R50044086063
3 Valve Bracket R01014051164 15 Assy., Valve Cover R50124051173
4 CompressorALC 15CR R04019019125 17 Plastic Handle R12014057948A5LC 15CR R04019026326 18 Rubber Grommet R11054000271
5 Assy., Partition R50064055063 19 Assy., Flare Valve 2 Ways 1/4"ALC 15CR R50059019453
6 Assy., 4 Way ValveALC 15CR A50024087158 A5LC 15CR A5LC 15CR R50024084737 20 Assy., Flare Valve 3 Ways 1/2"ALC 15CR R50059019452
7 Assy., Cap TubeALC 15CR A50024087023 A5LC 15CR A5LC 15CR R50024084738 21 Sensor, Outdoor Defrost R50134039416
8 Bracket, Fan Motor R01014051162 Parts Not in Diagram
9 Fan Motor R03039015323				Capacitor, Fan Motor	R04029026755
10 Fan Blade R03019015339				Capacitor, Compressor	R04029026776

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No	Description Part No No Description Part No
1	Assy. Base Pan R50014078281 11 Front Panel, Left R01014070597
2	Assy. Outdoor Coil 12 Service Panel R01014070598ALC 18CR R50024090296 13 Terminal Cover Panel R01014070838ALC / A5LC 20CR R50024075143 14 Assy. Control Panel
				R50014072877
3	Motor Bracket	R01014070601 15 Top Panel		R01014070596
4	Fan Motor	R03039024539 16 Assy. Front Grille		R50124072880
5	Fan Blade	R03019023393 17 Plastic Handle		R12014057948
6	Valve BracketALC 18/20CR A50014072861A5LC 20CR	19 Assy. Cap TubeR50014078280	18 Assy. Valve Cover		R50124072885
				ALC 18CR R50024089931ALC 20CR R50024087058A5LC 20CR	R50024081904
7	ALC 18/20CRAssy. Flare Valve 3 Ways 5/8"A5LC 20CRAssy. Flare Valve 3 Ways 1/2"	R50054072863	20 Assy. 4 Way ValveALC 18/20CRA5LC 20CR		R50054077222R50059024520
8	Assy. Flare Valve 2 Ways 1/4"ALC 18/20CR R50059022156 21 PartitionA5LC 20CR	R50059023335
			R01014070603
			Parts Not in Diagram
9	Back Panel, Right	R01014070599		Capacitor, Fan Motor	R04029026759
10	CompressorALC 18/20CR A04019027266A5LC 20CR	ALC 18/20CR R04029026782R04019020625	Capacitor, CompressorA5LC 20CR		R04029026779

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No	Description Part No No Description	Part No
1	Assy. Base Pan R50014073884 11 Front Panel, Left R01014070947
2	Assy. Outdoor Coil 12 Service Panel R01014070949ALC 25CR R50024088731 13 Terminal Cover Panel R01014070838A5LC 25/28CR R50024075147 14 Assy. Control PanelALC 28CR A50024082133	ALC / A5LC 25CR
3	Motor Bracket	R01014070948		R50044086136ALC 28CR R50044086139A5LC 28CR	R50044086140
4	Fan MotorALC 25CR R03039028207 15 Top PanelA5LC 25CRALC / A5LC 28CR	R03039023391 16 Assy. Front Plastic Handle		R01014070596
				R50124072880
				R50124072880
				R50124072880
				R50124072880
5	Fan Blade	R03019023393 18 Assy. Valve		R50124075948
6	Valve BracketALC 25/28CR A50014073890A5LC 25CRA5LC 28CR	ALC 25CR R50024088789		Cover R50124073905
				19 Assy.Cap Tube
				A5LC 25CRALC 28CR A50024080186A5LC 28CR	R50024081899
7	Assy. Flare Valve 3 Ways 5/8"ALC 25/28CR R50054072863 20 Assy. 4 Way ValveA5LC 25/28CR R50059023336	R50014078321R50014080371			R50024080312
				A5LC 28CR
				R50054077222
8	ALC 25/28CRAssy. Flare Valve 3 Ways 3/8"A5LC 25CRAssy. Flare Valve 2 Ways 1/4"A5LC 28CRAssy. Flare Valve 3 Ways 3/8"	R50059022577R50059023334R50059024820		A5LC 25/28CR R50059024520
				21 Partition	R01014070951
				22 Plastic Handle, Front	R12014070955
				Parts Not in Diagram
9	Back Panel, Right	R01014070950		Capacitor, Fan MotorALC /A5LC 25CRALC /A5LC 28CR	R04029026759R04029026966
10	CompressorALC 25CR A04019027570A5LC 25CRALC 28CR R04019012828A5LC 28CR	ALC /A5LC 25CR, ALC 28CR		Capacitor, CompressorR04029026779A5LC 28CR	R04029026778

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE

No	Description Part No No Description	Part No
1	Assy. Base Pan R50014053238 11 Bracket, Fan Motor R01014053232
2	Assy. Flare Valve 3/8" 12 Side Panel, Left R01010029899ALC 30C/CR R50059000221 13 Fan Motor R03039004046A5LC 35C/CR R50059017536 14 Fan Blade R03013028160
3	Assy. Flare Valve 5/8" 15 Assy. Front Panel R50014053236ALC 30C/CR R50059000071 16 Plate, Flare Vlave R01013034235A5LC 35C/CR R50059020805 Parts Not in Diagram
4	Panel, Partition	R50014053277
5	CompressorALC 30C/CR220-240V/1PH/50Hz380-415V/3PH/50HzA5LC 35C/CR220-240V/1PH/50Hz380-415V/3PH/50Hz	R50049013221R50049019889R50049025547R50049025336
6	Service Panel	R01010029898
7	AccumulatorALC 30C/CR R02119025988A5LC 35C/CR R02119024262	Capacitor, Fan MotCapacitor, Compre
8	Back Panel, Right	R01014053233
9	Top Panel R01011029900	A5LC 35C
10	Assy. CoilALC 30CALC 30CRA5LC 35C/CR R50024082878	A50024041851A50024035282

	Phase Sequencer	R04089017029
High Pressure SwitchALC 30C/CR R04109015136A5LC 35C/CR R04104061879
	Low Pressure SwitchALC 30CA5LC 35C/CR R04109015400	R04109015125
	Assy. 4 Way ValveALC 30CRA5LC 35CR	R05029001991R50024087051
r	R04029026761
ssor	ALC 30C/CR R04029026779R04029026782
TXV		R05019020252

1) ALL SPECIFICATIONS ARE SUBJECT TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE
