Product Type	Internet Radio / Network Audio Player
Brand	Sagem
Model	My Web Tuner 500
Connectivity	Wi-Fi 802.11b/g, Ethernet 10/100 Mbps (RJ45), USB 2.0 (Type A)
Audio Output	RCA stereo line out
Supported Audio Formats	MP3, WMA (without DRM), WAV (including IMA-ADPCM)
Music Sources	Internet radio (vTuner), UPnP media server (e.g., Windows Media Player 11), USB storage devices
Display	128x64 graphic LCD with backlight
Remote Control	Infrared (IR) with batteries (2x AAA included)
Alarm Clock	Dual alarm with snooze; music source: Internet radio, media server, USB, or buzzer
Equalizer Presets	Normal, Classic, Rock, Jazz, Pop
Playback Control	Play/Pause, Stop, Next/Previous, Fast Forward/Rewind, Shuffle, Repeat
Firmware Upgrade	Via USB drive (file transfer)
Power Supply	DC 5V / 2A (adapter included)
Network Configuration Modes	Wireless client, wired client, wireless access point (AP)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Certifications	CE, CB
Safety	Do not open; use only supplied adapter; keep away from moisture
Warranty	Parts and labor by Sagem Communications (see website)

Frequently Asked Questions - My Web Tuner 500 SAGEM

How do I connect the My Web Tuner 500 to my Wi-Fi network?

On first use without Ethernet, the device automatically scans for wireless access points. Use the remote to select your network and enter the encryption key via the alphanumeric keypad. If you need to change settings later, go to Setup > Advanced Setup > Configure Network and select Wireless Client mode.

Why is there no sound from my Hi-Fi system?

Ensure the RCA cable is properly connected from the Tuner's line out to your Hi-Fi's AUX input, and that your Hi-Fi is set to the correct AUX mode. Also check that the Web Tuner volume is not muted or set too low. Press Vol+ or the Mute button to adjust.

How can I set an alarm to wake me up?

Go to the Alarm menu from the main screen. Choose Alarm 1 or 2, enable it, set the time using the directional buttons, select the music source (e.g., Internet radio from Favorites), and adjust the volume. After confirming, a bell icon appears on the clock screen. Ensure your Hi-Fi is on and set to AUX for the alarm to sound.

Can I listen to music from my USB flash drive?

Yes. Plug your USB drive into the front USB port, then select MP3 Player from the main menu. Browse folders and press OK to play. Supported formats: MP3, WMA, WAV. Note: Only USB 2.0 devices are guaranteed; USB 1.x may not work.

What should I do if the remote control doesn't work?

First check that the batteries are inserted correctly (fresh AAA batteries). Ensure you are within 7 meters of the Tuner and pointing directly at the IR sensor. Remove any obstacles between remote and device. If still not working, replace batteries.

How do I access Internet radio stations?

From the main menu, select Internet Radio. The device connects to the vTuner server. You can browse by Locations, Genres, or New Stations. Use the remote to navigate and press OK to start streaming. Add stations to Favorites by pressing the ♥ key.

Why can't I connect to the Internet radio server?

If you see 'Failed to Login Vtuner Server', check your network connection. Ensure your router has DHCP enabled and you have internet access. For wireless, verify the Wi-Fi encryption key is correct. Try rebooting the router and the Tuner. If the problem persists, the vTuner server may be temporarily unavailable.

How do I play music from my computer?

Install and run a UPnP media server like Windows Media Player 11 on your PC, and enable media sharing. On the Tuner, select Media Server from the main menu. It will detect the server; choose it and browse your music library. Ensure both devices are on the same network.

Can I use the Tuner as a wireless access point?

Yes. Go to Setup > Advanced Setup > Configure Network, select AP mode, then enter an SSID, channel, and encryption key. The device will reboot as an access point, extending your wireless network.

How do I update the firmware?

Download the latest firmware from Sagem's support site. Unzip the file to get ShrekW.BIN (do not rename). Copy it to the root of a USB 2.0 drive. Plug the drive into the Tuner, go to Setup > Advanced Setup > F/W Upgrade (thru. USB) and press OK. The unit will reboot after completion. Verify the version in Setup > Advanced Setup > Firmware Version.

USER MANUAL My Web Tuner 500 SAGEM

Thank you for purchasing a SAGEM Web Tuner; we appreciate your trust in us.

This product was manufactured with the utmost care, should you encounter any difficulties during its use, we recommend that you refer to this installation guide. You can also find information on the following site:

http://www.sagem-communications.com/support

The new material is guaranteed (parts and labour) by Sagem Communications under the conditions and according to procedures' defined on the site

www.sagem-communications.com heading support.

In the event of a technical problem, please refer to the table at the end of this user guide for a list of incidents and the way to solve them. The SAGEM site (www.sagem-communications.com assistance section) also provides information on how your Web Tuner SAGEM works and how to solve any problems you may encounter. You can also contact our assistance service by E-mail. If the problem persists, you should contact our call centre (see the table below). They will offer an expert appraisal of your material remotely to determine the cause as well as the type of repair required.

Country Phone numbers Tariff/Minute

For your comfort and safety, please carefully read the paragraph below on safety recommendations and instructions.

Recommendations and safety instructions

Do not install your Web Tuner in a humid room (bathroom, laundry, kitchen, etc.), or within 1.50 m of a tap or water source, or outside. Your Web Tuner should be used at an ambient temperature of between 15 °C and 35 °C for optimum sound results.

Do not set up your Web Tuner in a dusty environment as dust deposits might adversely affect the sound quality.

Avoid objects or liquids getting into the unit.

Unplug the power lead if the unit will not be used for a long period.

Do not handle your AC cord with wet hands. if liquid spills on your product, unplug immediately and contact your dealer for cleaning instructions.

Only the power supply provided with the Web Tuner should be used. Connect this to the mains in accordance with the installation instructions in this user guide and the information on the identification label affixed to the power supply (voltage, current, mains frequency). As a precaution, in case of danger, the mains adapters act as a disconnecting mechanism for the 230 V power supply. They should be placed near the device and should be easily accessible.

Do not attempt to remove any screws or open the unit. No user serviceable parts are inside.

The length of the ethernet and USB cables used on this product shall not exceed 3m.

Do not connect your Web Tuner to an Ethernet Network leading outside your building. TThis device must only be connected to an Ethernet Network inside your building.

This terminal was designed for private use inside a building (CPE customer premises equipment) in the European Free Trade association (EFTA). It has been tested in accordance with the technical provisions for radio equipment (EN 300328).

The radio frequency bands authorized for Wireless transmission depend on national regulations.

The installation of this terminal operating in the 2.4 GHz band is covered by the European recommendation ERC 70-03.

Before use, make sure that the gateway with which you establish a wireless connection from your terminal is set up in accordance with this regulation and with the national regulations where it is used.

Sagem Communications accepts no liability if the regulations in force on the installation site are not complied with.

Some sensitive medical equipment and safety equipment may be affected by the radio-frequency transmissions of your radio. In all cases, we ask that you respect the safety recommendations.

The device shall not permanently be installed or used closer than 20cm from the human body.

The CE marking certifies that the product meets the essential requirements of Directive 1999/5/CE of the European Parliament and of the Council pertaining to microwave radio equipment and telecommunication terminal equipment, for the safety and health of users, for electromagnetic interference. Furthermore, it efficiently uses the frequency spectrum attributed to ground and spatial communication to prevent damaging interference.

The declaration of compliance may be looked up on the www.sagem-communications.com site or can be obtained from the following address:

Sagem Communications SAS Customer relations department 4 rue du Petit Albi 95800 Cergy Saint-Christophe -France

1. Your Web Tuner 5

Main Features 5

Unpacking 5

Front Panel 6

Rear Panel 6

Remote control functions 7

Installing the batteries 8

Web Tuner SET-UP 9

Menu Structure 13

2. Installation 14

Network Setup 14

Basic Requirements 14

Configuration as a Wireless Client 15

Configuration as a Wired Client 22

Configuration as a Wireless Access Point (AP) 25

3. Listening to Music 28

Listening to Internet Radio 28

Handle your VTuner web interface 32

Create a VTuner account 32

Create and edit your own radio station folders 35

Add internet radio stations 37

Listening to the music in your computer 38

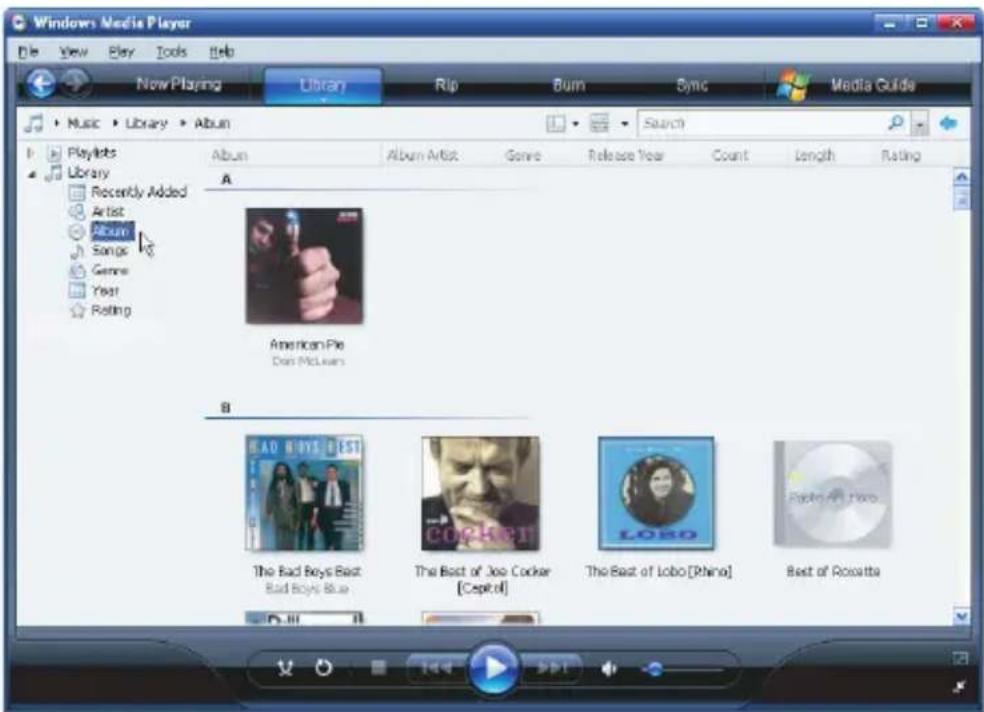

Windows Media Player 11: Installation and connection 38

Command from the remote control: 46

Listening to the Music on your USB drive 50

The Playback Screen 52 Option Menu 52

4. Alarm 53

Clock 53

Setting the Clock 54

Manual setting of the clock 54

Automatic setting of the clock 54

Setting the Time Display Format 55

Alarm settings 56

Snooze 58

5. Miscellaneous Setup Functions 60

Backlight Settings 60

Language Choice 60

Equalizer Settings 61

Reset to Factory Default Settings 61

Clear Favorites 61

Check Firmware Version 62

Software Updation 62

6. Appendix 64

Care and Maintenance 64

Problems 64

7. Specifications 68

8. Environment 70

Packaging 70

Batteries

The product

70

70

1. YOUR WEB TUNER

This product is a Web Tuner that will allow you, once connected to an internet gateway and plugged in your hi-fi system, to access worldwide internet radio stations and to listen to your digital musical files stored on your PC, on a multimedia UPnP server or on a portable music player. It can also be used as an alarm clock.

1.1. MAIN FEATURES

1. IEEE 802.11b/g wireless connection and IEEE 802.3 Ethernet connection to access the network resource.
2. Subscription vTuner services for listening to Internet radio stations directly. No PC server is required to listen to the Internet radio.
3. Compliant with the UPnP A/V protocol and popular UPnP-based streaming servers, such as Microsoft Windows Media Player 11 and the MusicMatch Jukebox. Users benefit from the network audio streams delivered from UPnP-based audio servers.
4. Direct access/playback of music from external USB storage devices (including Flash, MP3 player, HDD-based storage, single/first partition supported).
5. Supported audio formats: .mp3, .wma, .wav (including IMA-AMPCM)
6. A management function for storing the user's favorite radio stations in the memory for quick access.
7. Playback controls: Play, Pause, Stop, Fast Forward, Fast Backward, Next, and Prev.
8. Selectable play modes: Sequential, Single, Random, repeat all, repeat single, and non-repeat.
9. Predefined equalizer and volume controls.
10. Simple means of upgrading the device with new firmware.
11. Dual alarm and snooze function to wake you up with any available music source.

1.2. UNPACKING

The product package includes the following items:

• 1 x Web Tuner device,
• 1 x power adapter,
• 1 x remote control,
• 2 x AAA batteries,
• 1 x RCA cable
• 1 x CD,
• 1 x Installation Guide.

1.3. FRONT PANEL

1.4. REAR PANEL

1.5. REMOTE CONTROL FUNCTIONS

The navigator of the remote control is a rapid selection tool.

1.5.1. Installing the batteries

Take the remote control and turn it around so that the battery compartment is accessible.

Insert the batteries one after the other in compliance with the battery polarity, as shown on the battery slot.

Refit the battery compartment cover, first by the bottom, then lowering the top until full closure.

3D rendering of a remote control device showing internal casing, battery pack, and external casing (no text or symbols)

At the end of their useful life, batteries must be disposed of according to the recycling instructions presented in this booklet.

Your Web Tuner does not have any loudspeakers. To listen to radio stations on the Internet, your songs stored on your PC or your songs stored on your MP3 key; your Web Tuner must be connected to a Hi-Fi system via an RCA cable.

1. Connect the RCA cable in the audio output connectors of your Web Tuner complying with the colours of the RCA connectors (red and white) (1).
2. Connect the other end of the RCA cable in the "Auxiliary" audio output connectors of your Hi-Fi system complying with the colours of the RCA connectors (red and white) (2).
3. On your Hi-Fi system, select the "Auxiliary" mode to hear the sound from the Web Tuner.
4. If you want to use Ethernet for wired network connection, plug your Ethernet cable into the RJ45 port (3).
5. Once you have made these connections, carefully plug the DC power adapter (4) to the outlet and connect the DC power jack carefully to power the device.

You need to set up the network and your PC server before being able to use the radio and music playback functions on the device.

1. Select the music source on the Web Tuner: Radio Internet / Media Server / Lecteur MP3.

The following tables describe the keypad functions available when the Web Tuner device is in operation.

(A) For the Selection Screen & Playback screen

		Select Screen (Screen with menu list)	Playback Screen (Screen with name of station / song)
SNOOZE No function Launches the timer for 15, 30,			45, or 60 min (stops the current music source after time selected) - Information screen displayed for 3s. - Goes back to standby screen with timer icon ON.
STOP 1. STOP MUSIC.		2. Go back to main menu.	Identical.
POWER Put the device		in Standby mode.	Identical.
OK Select the function.		Goes to option screen.
UP Move to previous item.		1. Volume up.	2. After 2s goes back to playback screen.
DOWN Move to next item.		1. Volume down.	2. After 2s goes back to playback screen.
LEFT Radio	IP Goes back to the previous menu.		Goes back to radio list.
	Media Server		Goes back to the song list.
	MP3 Player		Goes back to song list.
RIGHT	Radio IP	Goes back to the next menu.	Goes back to radio list.
	Media Server		Goes back to the song list.
	MP3 Player		Goes back to song list.

(B) For the Idle screen (clock screen)

		Standby screen & Music Playing	Standby Screen & Alarm Music	Standby Screen & No Music
SNOOZE Launches 15,		30, 45, or 60 min timer to stop current music source (Goes back to clock screen with timer icon ON).	STOPS the music (Goes back to clock screen & reactivates alarm after 10 min.).	No function
STOP STOPS MUSIC&		Goes back to main menu.	STOPS the music & Goes back to standby screen (No reactivation of alarm).	Alarm menu displayed.
POWER Put the device in Standby mode.			Identical. Identical.
OK Displays playback		screen.	Identical. Main menu displayed.
UP Volume up (after 2s goes back to playback screen).			Identical. Main menu displayed.
DOWN Volume down (after 2s goes back to playback Screen).			Identical. Main menu displayed.
LEFT Radio IP First press:		____ Goes back to Station radio screen.Second press: Goes back to radio list.	Identical. Main menu displayed.
RIGHT Radio IP Goes back to Station radio screen.			Identical. Main menu displayed.

1.7. MENU STRUCTURE

Internet Radio

Media Server

MP3 Player

Alarm

Setup

2. INSTALLATION

2.1. NETWORK SETUP

2.1.1. Basic Requirements

For the Web Tuner device to work properly under your existing network environment, your network must feature the following:

You must have a router device with an enabled DHCP server function, so that it can automatically assign the IP address to your computer or another network device.

If you already have a router device in your home, it will be easy to setup the Web Tuner device with your existing network environment. If you don't know what you have on your home network, the following FAQ will help you to troubleshoot before operating your Web Tuner device.

The minimum streams to receive Radio IP are :

• 192 kB/s for a normal quality,
• 640 kB/s for an upper quality.

How does your computer or Notebook PC access the Internet?

The answer might be one of the following:

Case I

I have to plug an Ethernet cable to the computer, and

1. I have to execute a dial-up program from my computer to link to the ISP service, and I can then access the Internet.
   → You need to purchase a (wireless) broadband router.
2. No extra dial-up program is executed in my computer, but I set a fixed IP address in my computer.
3. No extra dial-up program is executed in my computer, and I set a dynamic IP address in my computer.
   → There is a router device in your home. You can configure the Web Tuner device in wired client mode to operate it with your home network.

Case II

I use wireless connection, and

1. I have to execute a dial-up program from my computer to link to the ISP service, and I can then access the Internet.

→ There is no router device in your home. You need to purchase a new router device to upgrade your home network.

1. No extra dial-up program is executed in my computer, but I set a fixed IP address in my computer.

If the IP address is provided by your ISP supplier, there is probably no DHCP service in your home network. You need to buy a new router device. If the IP address is a virtual IP, such as 192.168.xxx.xxx, you should have a router device. Therefore, the Web Tuner device will function with your home network.

1. No extra dial-up program is executed in my computer, and I set the dynamic IP address in my computer.

There is a wireless router device in your home, the Web Tuner device will be able to operate with your home network.

Moreover, the Web Tuner allows to play the music loaded in your PC, this one being connected to the same router.

2.1.2. Configuration as a Wireless Client

There are three network configuration modes available for the Web Tuner device: simple wireless client, wired client, or wireless access point (AP).

The factory default mode is the client mode. If an Ethernet cable is available, the device will automatically select a suitable client mode to operate. Users can also manually change the network configuration settings via the Setup menu "Setup/Advanced Setup/Configure Network".

If you have a 802.11b/g wireless network in your home, this mode is the most straightforward means of connecting theWeb Tuner device to the existing network.

Simply power the device, without connecting an Ethernet cable, and the device will automatically switch to the wireless client mode and detect all available wireless APs (Access Points). The first time the device is set to the wireless client mode, you need to determine which AP to connect to and enter the encryption key. Once the settings have been established, the device will remember the settings and attempt to connect to the designated AP when it is switched on. However, if you encounter any difficulty in connecting to the designated AP, the device will display the AP list for you to configure the device once again.

(A) Using the device for the first time, without an Ethernet cable connection:

	Screen on the right	Screen shot Next screen Comment
1 Initial screen
2 Device run as a
3 "OK" button Select the
4 "OK" button Select the
5 Scanning for
6 "▼" button (Once)			"►" button or "OK" button
7 Numeric key pads		WEP HEX 64Bit123456789Q	"OK" button Enter the encryption key if the access point is protected.

Using the device for the first time, without an Ethernet cable connection (continued)

	Screen on the right	Screen shot Next screen Comment
8 "OK"	button
! You could have the option to connect to the internet through a proxy server. If you are connected directly to the internet, select «No». Otherwise, activate this option and enter the IP address and the port of your proxy server.
9 "OK"	button Confirm the			settings above.
10 Apply new settings.
! If the connection fails, check that your access point does not require a specific registration procedure. Some access points require, for example, that you press a specific button during the step 9 above.
11 The device is now				in wireless client mode.
12
13		●000
14 The device is				already connected to your network.

(B) Manually set to the Wireless Client Mode:

	Screen on the right	Screen shot Next screen Comment
1 "OK"	button Initial screenshot
2 "▼"	button(4 times)		"►" buttonor "OK" button
3 "▼"	button(Once)		"►" buttonor "OK" button
4 "►"	button		or "OK" button	Manually select the wireless client mode.
5 Scanning for				available APs.
6 "▼"	button(Once)		"►" buttonor "OK" button	Select the AP that you can connect to your router device.
7 Numeric keypad.			"OK" button Enter the encryption key if the access point is protected.
8 "OK"	button
! You could have the option to connect to the internet through a proxy server. If you are connected directly to the internet, select «No». Otherwise, activate this option and enter the IP address and the port of your proxy server.
9 "OK"	button Confirm th			settings above.
10 Apply new settings.
! If the connection fails, check that your access point does not require a specific registration procedure. Some access points require, for example, that you press a specific button during the step 9 above.
11 The	device is now			in wireless client mode.
12
13		●000
14 The device is				already connected to your network.

2.1.3. Configuration as a Wired Client

If there is no 802.11b/g wireless network in your home, and only a wired 802.3 network is available, the Web Tuner device can connect to the wired network via an Ethernet cable.

In this case, before powering the device, you need to plug the Ethernet cable into the RJ45 connector. The device will automatically switch to the wired client mode when it detects a link status via the Ethernet connection.

(A) Using the device for the first time, with an Ethernet cable connection:

If the Web Tuner is switched on after a reset, wireless client mode will be chosen, even if Ethernet cable has already been plugged in.

	Screen on the right	Screen shot Next	screen Comment
1 Initial screen.
2 Device run as a				Wired Client.
3 " ►"	button		or "OK" button	Select the MMI language.
4 " ►"	button		or "OK" button	Select the Internet radio menu language.
5
6 The device is now in				wired client mode.It is already connected to your network.

(B) Manually set to the Wired Client Mode:

	Screen on the right	Screen shot Next screen Comment
1 "OK"	button Initial scre
2 "▼"	button(4 times)		"►" buttonor "OK" button
3 "▼"	button(Once)		"►" buttonor "OK" button
4 "▼"	button(Once)		"►" buttonor "OK" button	Manually select the wired client mode.
5 "▼"	button(Once)		"►" buttonor "OK" button	Select the DHCP for auto configured IP address.
6 "OK"	button
! You could have the option to connect to the internet through a proxy server. If you are connected directly to the internet, select «No». Otherwise, activate this option and enter the IP address and the port of your proxy server.
7 "OK"	button Confirm th			settings above.

Manually set to the Wired Client Mode (continued)

	Screen on the right	Screen shot Next screen Comment
8 Apply new settings.
9 The device is now			in wired client mode.
10
11 The device is			already connected to your network.

2.1.4. Configuration as a Wireless Access Point (AP)

If you wish to extend your wireless network coverage range, you need to add new access points to specific locations in your home. This will enable other wireless notebook PCs and network devices to access the extended wireless network. The Web Tuner device can also be configured as a wireless AP. With this feature, you can easily extend your wireless coverage without having to purchase another AP.

To configure the Web Tuner device as an AP, you need to setup the device manually via the MMI menu "Setup/Advanced Setup/Configure Network/AP mode". You then need to enter the IP address, the SSID, the channel number and the AP encryption. Once these settings have been established, the device will automatically reboot and function as an AP.

Manually set to the Wireless AP Mode:

	Screen on the right	Screen shot Next screen Comment
1 "OK"	button Initial scre
2 "▼"	button(4 times)		"►" buttonor "OK" button
3 "▼"	button(Once)		"►" buttonor "OK" button
4 "▼"	button(2 times)		"►" buttonor "OK" button	Manually select the AP mode.
5 "▼"	button(Once)		"►" button or "OK" button	Select the DHCP for auto configured IP address.
6 Numeric key pad			"OK" button Enter the Identifier (name) for this AP.
7 Numeric key pad			"OK" button Select the wireless channel to be allocated to this AP.
8 "▼"	button(Once)		"OK" button Select one of the security functions.
9 Numeric key pad			"OK" button Enter the encryption key if the access point is protected.
10 "OK" button
! You could have the option to connect to the internet through a proxy server. If you are connected directly to the internet, select «No». Otherwise, activate this option and enter the IP address and the port of your proxy server.

Manually set to the Wireless AP Mode (continued)

	Screen on the right	Screen shot Next screen Comment
11 "OK" button Confirm t			settings above.
12 Apply new settings.
13 The device is in			wireless AP mode now.
14
15 The device is			already connected to your network and can now operate.

3. LISTENING TO MUSIC

The Web Tuner device is a high-performance audio player that can play music from various types of source. You can use it to listen to Internet radios all over the world, music files in your computer, and even music files in portable USB storage devices (external USB HDD-based storage, USB Flash, MP3 player)..

The following part of this manual explains how to listen to the music using the Web Tuner device.

3.1. LISTENING TO INTERNET RADIO

Command from the remote control:

◀◀ ▶▶ Go to preview/next station.
II ▶ Back to station list.
Vol -, ▼ Decrease the hearing level.
Vol +, ▲ Increase the hearing level.
♥	Add (or cancel) the song from (to the) list of favourites.

To listen to music or programs on Internet radio stations, select the "Internet Radio" function in the main menu and then press the "OK" button to activate the Internet Radio function.

The first screen of the Internet Radio function displays a choice of 3 items:

• Station List : access the list of internet radio stations available on the server.
• Favorite Stations : access the list of favorites internet radio stations stored in the device.
• VTuner ID : display your Web Tuner id (mac address) allowing you to access your personalised VTuner interface (refer "Handle your VTuner web interface", page 32).

Press the button "OK" or "▶" to access the list of stations.

Your Web Tuner connects to the Vtuner server storing the list of internet radios available. the following screen is displayed:

The access to the list of radios can take a few seconds. The next screen is as follows.

It means the Web Tuner has successfully connected to the Internet server and has retrieved information from the server.

If the following screen appears, it means that the device could not connect to the radio server :

Please refer to the troubleshooting chapter to identify the problem and solve it step by step.

The following screen shots illustrate the sequence used to browse the radio station "FM PLUS" in France and play back music from it.

	Screen on the right	Screen shot	Next screen Comment
1 Initial screen
2

Access sequence to the French FM station "FM PLUS" (continued)

	Screen on the right	Screen shot	Next screen Comment
3 "▼"	button(4 times)		"►" buttonor "OK" button
4 "▼"	button(15 times)		"►" buttonor "OK" button
5			"►" buttonor "OK" button
6 "▼"	button		"►" buttonor "OK" button	Press the "♥"button to add thecurrent station tothe list of favoritesfor quick access infuture.
7				Try to connect tothe radio station.
8				Buffering the musicfrom the radiostation.

Access sequence to the French FM station "FM PLUS" (continued)

	Screen on the right	Screen shot	Next screen Comment
9

The navigation in the list of radios is done using the ▲ and ▼ keys on your remote control. You can also use the alphanumerical keypad on your remote control in order to do an alphabetical search by entering the first letters of the searched station.

3.2. HANDLE YOUR VTUNER WEB INTERFACE

Sagem offers you the possibility to handle your personal web interface of radio stations on its web site http://sagem.vtuner.com/. You can create and sort out your own list of Vtuner radio stations but also add a radio station that would not be in the VTuner list.

3.2.1. Create a VTuner account

1. Enter the address: http://sagem.vtuner.com/ in your web browser:.

1. Register your product using its MAC address as identifier, that can be found in the menu Internet Radio / VTuner ID.

1. Enter the mac address "005018xxxxxx" in the ID field (do not entre the "-" that are between the numbers).

Click on

1. The next page presents the different radio stations grouped by format, location and language.

From the field "Browse by Format, Location or Language" click on the desired link to choose a grouping type.

1. A list of folders sorted out following your choice is displayed. The number of radio stations available for each category is displayed between brackets.

Click on the desired folder.

1. A list of radio stations is displayed on your web browser:

1. To listen to a radio station on line, click on . A window proposes you to download the radio station file. Click on "Download".

Once the download is over, open the downloaded file with Windows Media Player 11. The radio station is played.

1. To add a station to the list of favorites, click on : .❤️! ! During your first connection to the web interface, a screen requires you to enter your e-mail address and your password. These informations can be used to access

your personnal interface.

3.2.2. Create and edit your own radio station folders

Once register on the web site http://sagem.vtuner.com, you can open a Vtuner session by using your email address and the password you have defined.

1. Choose a folder, the list of radio station appears. Click on .

A window opens :

• If you have already created folders, choose the folder where you want to add the selected sttion then click on the corresponding button.

• Otherwise, if you want to create a new folder, enter its name in the relevant text field and click on the corresponding button.

• A message confirms that your station has been added.

• You can access the various folders that you have created from the main menu of your web interface in the field: "My favorite groups".

3.2.3. Add internet radio stations

You can add internet radio stations that do not appear on the initial list by doing the following :

1. From the main page, click on from the menu "My added Stations".

1. Enter the informations related to the station you want to add:

Click on →

The radio station is added, you can listen to it, edit it or remove it from the main page.

3.3. LISTENING TO THE MUSIC IN YOUR COMPUTER

To listen to the music stored in your own computer, you need to install and activate the media server utility for the computer in which your digital music is stored. Please refer to the section describing installation of the Media Server.

Paragraphs 3.3.1 and 3.3.2 presents the installation of two media servers available on the market. The user must choose one server and install it on its computer.

Once you have installed and activated the media server, you can enjoy listening to the music via the Web Tuner device.

3.3.1. Windows Media Player 11: Installation and connection

Please follow the instructions below:

Step 1: Download the WMP11.

Download the Windows Media Player 11 (WMP11) installation file, e.g., wmp11-windowsxp-x86-enu.exe, from the Microsoft web site.

Install the wmp11-windowsxp-x86-enu.exe without making any modifications.

Click on 'next' to complete the installation.

Step 2: Activate the Media Player.

Find the "Windows Media Player" icon in the Program list,

and click on this program to activate it.

Step 3:

Switch from "Now Playing" to "Library" by clicking on the Library Tab to manage the content and share your media. The following screen will be displayed:

Step 4: Add your Media content to the WMP11 media library.

Click on the "Library" tab again to access the pull-down menu. To add your media files to the WMP11 media library, click on "Add to Library..."

The following screen will be displayed:

Click on the Add button, select the media folder in your computer, and then click on the OK button.

You can put all of the music files in the D:\Music directory to be able to add the folder to the share list.

You will see that the specified folder will have been added to the WMP11 monitor folder list. Click on the OK button. A pop-up window will be displayed, showing you that the WMP11 is searching for the media files. Once completed, click on the "Close" button.

You can now browse and manage your media content using the WMP11 Library manager.

Step 5: Share the WMP11 media library.

As in to Step 4, click on the "Library" tab again to access the pull-down menu. Click on "Media Sharing" to activate the media sharing function.

The following dialog windows will be displayed.

Select the "Share my media" box and click on the "OK" button.

The WMP11 will detect the available network devices in your LAN. The following window shows that no devices have been detected.

If the Web Tuner device is already connected to your home network, a screen similar to the following may be displayed, showing you that the WMP11has detected a network device named "My Web Tuner 500".

Step 6: Manage the media sharing settings.

Click on the "Settings" button, and specify the name of the WMP11 server to be displayed on your Web Tuner device.

Next, press OK to exit.

Step 7: Authorize access from your Web Tuner device.

The WMP11 access control settings are simple. When the WMP11 detects a new network device (as shown on the final screen in Step 5), you need to decide whether you want to allow or deny the requests from that device.

Select the device icon and then click on the "Allow" button to allow further streaming requests from that device.

The device state icon will change accordingly.

Next, press the OK button to activate the settings.

There is an alternative means of access management for your network devices.

A small icon will be added to the Windows XP status bar to inform you that the WMP11 has detected network devices.

Double-click on it to manage the access for the devices.

Click on the "Allow" button.

Step 8: Establish the connection between the Web Tuner device and the WMP11 server.

On the Web Tuner device, select the "Media Server" function in the main menu (or press the "Media Player" hot key on the remote controller). The Web Tuner device will then initiate the server detection process. After a few seconds, it will detect a server and display "PC_Hostname: Server Name"

This is the WPM11 server that you installed.

Press the 'OK' button to try to connect to the server.

The Web Tuner screen will read "Connecting...." and will then display the following list:

You can browse the "Music" list and play the music of your choice.

For further details, please refer to paragraph, "Listening to the music in your computer", page 38.

3.3.2. Command from the remote control:

◀▶ Fast forward/backward in the file (10 S step).
◀▶ Previous/Next file.
II ▶ Pause / Play.
Vol -, ▼ Decrease the volume.
Vol +, ▲ Increase the volume.
♥	Add (or remove) the song from (to the) list of favourites.
↓↑	Shuffle ON / OFF: Random research.
↔	Repeat: OFF / ALL / SINGLE.

Select the "Media Server" function in the main menu and then press the "OK" button to activate the stream from the Media Server function.

The following message will be displayed while the device is detecting all available media servers on your network. It takes a few seconds to complete.

The screen will then list all of the available media servers that you are able to select.

If you stay locked on one of the intermediates windows, you may have to activate the service "network sharing" of windows media player.

If no server is detected, the list will be empty.

Please check to ensure you have activated the media server on your computer. If, after that, there are still no media servers on the list, please refer to the troubleshooting chapter to identify the problem and solve it step by step.

The following screen shots illustrate the sequence used to connect to a media server "SNNECCI:Windows media", the service of which is provided by Windows Media Player 11, browsing to the music album "Chimene Badi" to play the songs on this album.

	Screen on the right	Screen shot Next screen Comment
1 "▶"	button		or "OK" button
2
3 "▼"	button(Once)		"▶" buttonor "OK" button
4 "▶"	button		or "OK" button
5 "▼"	button(6 times)		"▶" buttonor "OK" button
6 "▼"	button(4 times)		"▶" buttonor "OK" button

Access sequence to connect to the multimedia server "SNNECCI: Windows Media" (continued)

	Screen on the right	Screen shot Next screen Comment
7 "▶"	button		or "OK" button	Press the "♥" button to add the current station to the list of favorites for quick access in future.
8 Wait	until end		of song, or press "▶" for next song.	Music playing.
9 Next	song playing.

Once the music starts, you can use the playback buttons, as you would with a traditional stereo or CD player.

To listen to the music on your USB drive or portable MP3 player, connect the USB drive to the USB connector on the Web Tuner device. Next, select the "MP3 Player" function in the main menu and press the "OK" button to activate the MP3 player function.

The first screen of the MP3 Player function shows the root folder content of the attached USB drive.

If the following "NO DEVICE" screen is displayed, there may be a problem in accessing the USB device. Unplug the USB device and then plug it in again.

To play back songs stored in the USB drive, simply browse the folder of the music album of your choice and then press "Play".

Command from the remote control:

◀ ▶ Fast forward/backward in the file (10 S step).
◀◀ ▶ Previous/Next file.
II ▶ Pause / Play.
Vol -, ▼ Decrease the volume.
Vol +, ▲ Increase the volume.
♥	Add (or remove) the song from (to the) list of favourites.
↓↑	Shuffle ON / OFF: Random research.
⇐	Repeat: OFF / ALL / SINGLE.

The following screen shots illustrate the sequence used to listen to the music in the folder "Diamonds Love Song" in the attached USB drive.

	Screen on the right	Screen shot Next screen Comment
1 "▶"	button		or "OK" button	Initial screen
2
3 "▼"	button(2 times)		"▶" button or "OK" button	Select the music folder to browse and play back.
4 "▼"	button(Once)		"▶" button or "OK" button	Select the music folder to browse and play back.
5			"▶" button or "OK" button
6

Warning ! : The interface of MP3 reader must be USB2. USB1 is not guaranteed.

Warning ! : Before disconnecting the MP3 player, go to the setup menu and choose "Remove MP3 player". Select "Yes" to confirm.

3.5. THE PLAYBACK SCREEN

When the music starts, the screen will display playback information. This includes the title of the song / station, the album & artist, and the music progression.

3.5.1. Option Menu

During the music playback, press "OK" to access the tlis of options.

4. ALARM

In addition to the music playback function, the Web Tuner Device also provides a simple alarm function. There are two different alarms, one to wake you up in the morning, and another used to remind you of important times of day, or dates.

4.1. CLOCK

Before setting the alarm, you need to set the clock on the Web Tuner device.

First, select the Setup function in the Main Menu.

In the setup menu, the first item, "Clock", is used to set the date and time. Press the "OK" or "►" button to set the clock.

There are 3 items in the clock menu. The first displays the current date and time; the second is used to set the date and time, and the third function is the "Time Display Format" (to set the time format: 12 or 24 hours).

There is also a battery in the device, so even when you switch the device OFF, the clock will keep ticking. This means you only need to set the clock once.

4.1.1. Setting the Clock

Press the "OK" or "▶" button to access the sub-menu to set-up the time.

4.1.1.1. Manual setting of the clock

If you decide to set the clock manually, press the "OK" or the "▶" button to access the date and time screen. You can use the four directional buttons and the OK button to set the time.

a. Use the "◀" and "▶" buttons to switch between the items to be altered. The selected item will flash.
b. Use the "▲" and "▼" buttons to alter the value selected.
c. Press the "OK" button to confirm.

4.1.1.2. Automatic setting of the clock

If you want to set the clock automatically (automatic retrieval of the date and time on the Internet), select the menu "Auto-Sync (NTP)" and choose your time zone. You can also choose to activate the automatic handling of daylight saving time. The device then changes the date and time automatically when the clocks change.

The following screen shows an example of time zone selection screen.

4.1.2. Setting the Time Display Format

If you would set the time format, access to the menu "Time Display Format" then select the format (12 or 24 hours).

4.2. ALARM SETTINGS

To enable an alarm setting, you need to set the time and alarm music. The following table illustrates a typical alarm setting procedure. It sets Alarm 1 to generate an alarm (play music) at 7:00 AM, and to use the Internet radio station "4U Classical Rock" as the source of alarm music.

Caution! The alarm sounds through the loudspeakers of your Hi-Fi system.

For your alarm to be audible, your Hi-Fi system must be turned on in "Auxiliary" mode (refer to paragraph "Web Tuner SET-UP", page 9) when the alarm sounds.

	Screen on the right	Screen shot Next screen Comment
1 "OK"	button Initial screen
2 "OK"	button
3	"▼" button (Once)		"OK" button Enable alarm 1.
4 "OK"	button Use the		4 directional buttons to set the time;

5 " ▶ "	button		or "OK" button	Set Internet radio as alarm source.
6 "OK"	button Select	the station		from your Favorites.(Refer to Sec. 3.1)
7 Select the alarm				volume level.
8 Alarm information,				displayed for 3~5 seconds
9 The alarm is set.

Once you have set and activated the alarm, a bell icon will be added to the clock screen.

When it is time for the alarm, the device will activate the alarm and play back the specified music.

The music volume will then increase progressively up to the selected alarm volume level.

As with traditional clock alarms, the Web Tuner device also provides a SNOOZE function for you to stop the alarm, and request it to be activated 10 minutes later. You can press the "STOP" button to switch the alarm and music off completely.

If your Web Tuner is not on the clock screen, there is no icon displayed to indicate that alarm is on.

4.3. SNOOZE

This function is used to stop the radio after a preprogrammed time.

This function is available from the following menus : Radio Internet, media server and MP3 reader.

You are listening to a radio station (IP radio) or a file (on PC /MP3 reader):

	Screen on the right	Screen shot Next screen Comment
1 "OK"	button Initial screen
2 "▼"	button	Select Sleep		Function
3	"▼" button		"►""OK" button	Countdown
4 "►"		Sleep Function: 15 Minute	"OK" button

You are listening to a radio station (IP radio) or a file (on PC /MP3 reader), You can also use the remote control by pressing the " snooze " key up to the chosen time.

Once the sleep function is activated, the following icon is displayed on the clock screen:.

5. MISCELLANEOUS SETUP FUNCTIONS

There are other useful setup functions to ensure optimum use of the device.

5.1. BACKLIGHT SETTINGS

You can adjust the backlight ON / OFF settings.

The default setting is always ON. You can set the backlight to be turned OFF when the device is idle (no keys pressed) after a specified amount of time.

You can activate/deactivate or modify the intensity of the screen backlight by successive presses on the key 🖱️ the remote control.

5.2. LANGUAGE CHOICE

V-Tuner is a base recording the radio stations on Internet.

You may choose the Web Tuner and V-tuner languages.

Choice of main language (Web Tuner):

Choice of V-Tuner language:

5.3. EQUALIZER SETTINGS

You can adjust the equalization from Radio, media server and MP3 menus. Once on the selected station screen, or file, key OK.

5.4. RESET TO FACTORY DEFAULT SETTINGS

When you reset the device to its factory default settings, your Internet radio favorites settings will be stored in the device.

5.5. CLEAR FAVORITES

Caution! This is not recommended.

5.6. CHECK FIRMWARE VERSION

5.7. SOFTWARE UPDATE

This function will allow you to proceed the software updating by mean of an USB2 key containing the programm file.

You can visit the supplier's website to check whether there is any new firmware for this device to upgrade it. If any new firmware has been released, download it and follow the upgrade procedure below to upgrade the firmware on your device.

Upgrading the Firmware on your Device:

Step 1: Uncompress the new F/W file (e.g. the file

"20080919_MAA303SG_Sagem_R1.11.zip") and copy the uncompressed file "ShrekW.BIN" on the root folder of the USB key or USB MP3 player.

Note ! DO NOT rename it !, Otherwise the Web Tuner will not be able to find the new F/W)

Step 2: Turn on the Web Tuner and then plug the USB key into the front USB port of the Web Tuner.

Step 3: Operate the Web Tuner to access the F/W upgrade menu ("Setup\Advanced Setup\ F/W Upgrade (thru. USB)"), then press the "OK" button to activate the F/W upgrade function.

The messages "F/W Upgrading", and "Don't Power Off!!" messages should be displayed. After few seconds, once the upgrade procedure has been completed, the device will reboot automatically.

Step 4: You can check whether the Web Tuner upgrade has been successful by checking the F/W version in the menu "Setup\Advanced Setup\Firmware Version". In this case, the firmware version must be the same as the new firmware file downloaded. If a different version number is shown, there may have been a problem during the upgrade. Check to ensure the file "ShrekW.bin" in the USB key is the correct one.

6. Appendix

6.1. Care and Maintenance

Switch off your Web Tuner. Use a smooth and dry cloth to wipe it. Do not use a rough cloth, powerful liquid cleaners, thinner painting, alcohol nor other solvents to clean it. These products can damage your Web Tuner.

6.2. Problems

Refer to the table presented below in case of an operational malfunction:

Problems Remedies
The remote control does not work.	·Check that the batteries are correctly introduced.·Check that you are not too far from the Web Tuner (7 meters are the maximum recommended) and that the infra-red sensor is not blocked.·Make sure that the remote control is well pointed towards the sensor, when manipulating the Web Tuner.
The screen is switched off.	Make sure that:·the power adapter is properly connected to a power socket.·the power connector is properly plugged into the Web Tuner.·your fuse and circuit-breaker are in working order and that the power socket is powered.
The choosen station can not be played.	·To hear the station, you must confirm your selection by pressing OK button.·Make sure that your Web Tuner is not set to MUTE mode.·Check the volume level.·Check the network configuration.
Audio parasites or clearness less.	If you use ear-phones, check that they function well.
Access denied to the Internet Radio.	Check your wi-fi router, modem or the line.
Access denied to the Web Tuner from a personal computer as an access point (Media Server).	Check that your Web Tuner is not encoded. Else you must have the encoding key to access.
The alarm does not ring. •	Check that the alarm source is configured well (sample: the mp3 player is disconnected,...).Make sure that the Web Tuner is connected to the Hi-Fi system.Make sure that Hi-Fi system is switched on and operates in "Auxiliary" mode.
Problem of the connexion to the router.	No DHCP server enabled. Please check the setting of your router.Wrong WiFi encryption key is entered. Please double confirm the key and re-enter via the remote controller.Trouble in the RJ45 port or WiFi module.
The connection between the Web Tuner and vTuner is not OK.	DNS no response. Please ping the IP address of the DNS to check if it is the case.DNS doesn't have the record of the vTuner server or radio station that you are trying to connect.
The connection between the Web Tuner and vTuner is not OK.	Traffic jam for the internet access. Please try later.vTuner server is out of service or heavy loaded to reply in time.The authorization process is failed. VTuner server reject the access request.The streaming service of the radio station is unavailable or heavy loaded.The Web Tuner doesn't support the service type of the radio station.There is some buffering trouble on the internet. The available bandwidth is not good enough to have the stable streams from the radio station.
The Web Tuner is booted normally but it doesn't get an IP address.	No DHCP server enabled. Please check the setting of your router.Wrong WiFi encryption key is entered. Please double confirm the key and re-enter via the remote controller.The network interface has trouble.

In case of non receiving on Internet, refer to the table here under.

What has been done with succes W	What could be the trouble ?
The Web Tuner is booted normally.BUTNO BAR IN THE RADIO STATIONLOGO.	The Web Tuner doesn't get an IP address.1. No DHCP server enabled. Please check the setting of your router.2. Wrong WiFi encryption key is entered. Please double confirm the key and re-enter via the remote controller.3. The network interface has trouble.
1. The network interface of the Web Tuner is good.2. The connection between Web Tuner and router was OK.3. The Web Tuner already got an IP address.BUTONLY ONE BAR IN THE RADIO STATION LOGO.	1. Can't access to the vTuner server.2. The DNS lookup for the IP address of the radio station failed.3. Can't access to the router or internet.
Connection between Web Tuner and vTuner server is OK.BUTONLY TWO BARS IN THE RADIO STATION LOGO.	1. Can't access to the radio station.2. The radio station rejected the connection request.
Connection between Web Tuner and radio station is OK.BUTONLY THREE BARS IN THE RADIO STATION LOGO.	1. The streaming service of the radio station is unavailable or heavy loaded.2. The Web Tuner doesn't support the service type of the radio station.
The connection between Web Tuner and the radio station was OK.BUTONLY FOUR BARS IN THE RADIO STATION LOGO.	There is some buffering trouble on the internet. The available bandwidth is not good enough to have the stable streams from the radio station.

7. SPECIFICATIONS

Hardware and Port Characteristic
CPU	AMRISC 10020
Memory	Flash 1MB, SDRAM 2MB
Front Panel Display	128x64 Graphic-based & Back-lighted LCD
Remote Control	1 x IrDA Receiver on front panel
Audio Port	2 x RCA connectors for stereo out
Ether Port	1 x RJ45, 10/100 Mbps with Auto - MDI/MDIX
USB Port	1 x USB Jack (type A),USB 2.0 Compliant
Input Power	DC 5V / 2A

Environment, Certification and Reliability
Operating Temperature	Temperature: 0~40°C, Humidity 10%~90% non-condensing
Storage Temperature	Temperature: -20~70°C, Humidity 0%~95% non-condensing
EMC/Safety	CE, CB

Main Characteristic
Audio source		PC-based audio server (streaming out the music per audio adapter's request)
		Attached USB-based storage or MP3/WMA player
		vTuner Internet radio stations (streaming MP3 & WMA).
Supported Audio Format		1. Thru vTuner: .mp3, .wma (w/o DRM).2. Thru Audio Server: .mp3, .wma (w/o DRM), wav (including IMA-ADPCM @48kbps).3. Thru USB connector: .mp3, .wma (w/o DRM), wav (including IMA -ADPCM @ 48kbps)
Supported Audio Server		Popular UPnP compliant media s (eg. Microsoft Media Player 11, Microsoft Media Connect, and MusicMatch JukeBox)
User operation	MMI	Support multi-language MMI
	Music Navigation	Browse by Album, Artist, Genre, and Playlist, Folder (depends on the server connected).
	Playback Control	Play, Pause, Stop, Fast Forward, Fast Backward, Next, and Prev
	Playback Mode	Sequential, Single, Random, Repeat All, Repeat Single, Non Repeat
	Pre-defined EQ	Normal, Classic, Rock, Jazz, Pop
	Sound Effect	Volume.
USB extension		Support direct access and playback for the music stored in attached USB 2.0 compliant MP3 player or USB storage.
Alarm Clock		24 hours / Dual alarm, snooze
		Music source: USB, WiFi, Internet radio, Buzzer
Supported Network Configuration		1. Client mode (both wired and wireless, auto detection).2. AP mode.
Firmware upgrade		Through USB Port

8. ENVIRONMENT

Preservation of the environment is an essential concern of Sagem Communications. The desire of Sagem Communications is to operate systems observing the environment and consequently it has decided to integrate environmental performances in the life cycle of its products, from manufacturing to commissioning, use and elimination.

8.1. Packaging

The presence of the logo (green dot) means that a contribution is paid to an approved national organisation to improve packaging recovery and recycling infrastructures.

To facilitate recycling, please respect the sorting rules set up locally for this kind of waste.

8.2. Batteries

If your product contains batteries, they must be disposed of at appropriate collection points.

8.3. The product

Symbol of a trash bin with crossed diagonals and a solid black rectangle below (no text or labels)

The crossed-out waste bin stuck on the product or its accessories means that the product belongs to the family of electrical and electronic equipments.

In this respect, the European and Australian/New-zealand regulations ask you to dispose of it selectively:

• At sales points in the event of the purchase of similar equipment.
• At the collection points made available to you locally (drop-off centre, selective collection, etc.).

In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health.

User Manual

Data subject to change without notice
