DF 261-160 - Dishwasher GAGGENAU - Free user manual and instructions
Find the device manual for free DF 261-160 GAGGENAU in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Built-in Dishwasher |
| Brand | Gaggenau |
| Model | DF 261-160 |
| Dimensions (H x W x D) | 86.5 cm x 45 cm x 55 cm |
| Weight | 35 kg |
| Power Supply | 220-240 V, 50/60 Hz, 10 A |
| Water Connection | Cold water only, 1/2" connection |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 240 kWh |
| Annual Water Consumption | 3360 L |
| Noise Level | 42 dB(A) |
| Place Settings | 8 |
| Number of Programs | 5 |
| Programs | Eco 50°C, Auto 45-65°C, Intensive 70°C, Quick 45°C, Rinse & Hold |
| Additional Functions | Delay Start, Half Load, Extra Dry |
| Drying System | Heat exchanger condensation drying |
| Interior Material | Stainless steel |
| Cutout Height | 86.5 - 87.5 cm |
| Cutout Width | 45 cm |
| Cutout Depth | 57 cm |
| Noise Emission Class | B |
| Cleaning Performance | Excellent on all soiling levels |
| Maintenance | Clean filters regularly, descale as needed |
| Spare Parts Availability | At least 10 years |
Frequently Asked Questions - DF 261-160 GAGGENAU
How do I install the Gaggenau DF 261-160 dishwasher?
Installation must be performed by a qualified professional. Ensure the cutout dimensions match: height 86.5-87.5 cm, width 45 cm, depth 57 cm. Connect to cold water supply (1/2" thread) and a 220-240 V power outlet. Level the appliance using the adjustable feet.
What should I do if the dishwasher does not start?
Check if the door is fully closed and latched. Ensure the power cord is plugged in and the circuit breaker is on. Verify that the water supply is open. If the problem persists, consult the manual for error codes.
How do I clean the filters?
Remove the lower rack and unscrew the filter assembly (flat and fine filters). Rinse under running water, scrub with a soft brush if needed, and reassemble. Clean filters every 2-4 months for optimal performance.
What do the error codes mean?
Common error codes include E01 (water inlet failure), E02 (drainage failure), and E04 (heating element fault). Refer to the manual's error code table for specific troubleshooting steps.
Can I use regular dish soap?
No, use only dishwasher-specific detergent (powder, gel, or tablets) and rinse aid. Regular dish soap can cause excessive suds and damage the machine.
How do I adjust the water hardness setting?
The water hardness must be set according to your local water supply. Refer to the manual for the hardness range (e.g., soft, medium, hard) and adjust using the program selection buttons as described in the settings section.

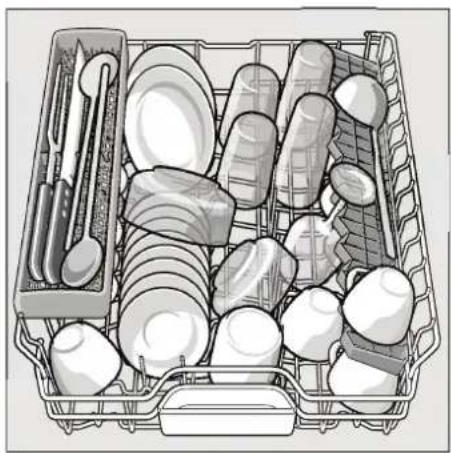

What is the maximum load capacity?
The dishwasher can hold up to 8 standard place settings. Ensure items are placed correctly, with plates facing the spray arms and cutlery in the basket for best cleaning results.
How do I descale the dishwasher?
Use a descaling agent designed for dishwashers. Run an empty cycle at high temperature (e.g., Intensive 70°C) with the descaler. Repeat every 3-6 months depending on water hardness.
Why is the dishwasher noisy?
Normal operation sounds include water spray and drain pump. Unusual noises may be due to improper loading (items hitting each other) or debris in the pump. Check the filters and ensure items are secure.
Where can I find spare parts?
Spare parts such as filters, racks, and seals are available from authorized Gaggenau service centers or online retailers. Use exact model number DF 261-160 for correct compatibility.
