Product Type	Microwave oven with grill and combination cooking
Brand	Team
Model	MW 93
Capacity	23 liters
Microwave Power Output	900 W
Power Consumption	230 V~50 Hz, 1400 W (Microwave), 1000 W (Heater)
Operating Frequency	2450 MHz
Outside Dimensions (H x W x D)	305 mm x 508 mm x 424 mm
Oven Cavity Dimensions (H x W x D)	215 mm x 350 mm x 330 mm
Turntable Diameter	314 mm
Net Weight	Approx. 16.5 kg
Grill Function	Yes, up to 60 minutes
Combination Cooking	Two modes: Combi 1 (30% microwave + 70% grill) and Combi 2 (55% microwave + 45% grill)
Control Panel	Touch buttons (Power, Grill, Combi, Time/Menu, Weight Adjust, Clock, Start, Stop/Cancel) and dial
Auto Cook Menu	10 pre-set programs (e.g., coffee, rice, spaghetti, potatoes, reheating, fish, chicken, beef, skewered meat, auto defrost)
Auto Defrost	Yes, for meat, poultry, seafood; weight range 100 g to 4000 g
Express Cooking	Quick start at full power by pressing Start button repeatedly (30 sec increments up to 12 min)
Timer Function	Countdown timer up to 60 minutes (no microwave)
Child Lock	Yes, press and hold Stop/Cancel for 3 seconds to activate
Auto Reminder	3 beeps every 2 minutes after cooking until door opened or canceled
Safety Features	Door safety lock system, grounding plug, automatic shut-off if door opened
Cleaning Instructions	Wipe interior and exterior with damp cloth; glass tray and roller ring dishwasher safe
Power Cord	Grounded, 3-wire, length not specified
Oven Light Replacement	Must be replaced by a qualified electrician

Frequently Asked Questions - MW 93 TEAM

How do I set the clock on the Team MW 93 microwave?

After plugging in, the display shows '1:01'. Press STOP/CANCEL, then CLOCK. Turn the TIME/MENU dial to set the hour (e.g., 8). Press CLOCK again, turn the dial to set minutes (e.g., 30), then press CLOCK to confirm.

What power levels are available for microwave cooking?

Press the POWER button repeatedly to select: 100% (display 100), 80% (80), 60% (60), 40% (40), 20% (20), or 0% (for timer only). The maximum cooking time is 60 minutes.

How do I use the grill function?

Press GRILL, then turn the TIME/MENU dial to set the desired grilling time (up to 60 minutes). Press START to begin. Ideal for thin meat slices, steaks, sausages, and au gratin dishes.

What is combination cooking and how do I use it?

Combination cooking combines microwave and grill. COMB1 uses 30% microwave + 70% grill (good for fish, potatoes). COMB2 uses 55% microwave + 45% grill (good for puddings, poultry). Press the respective button, set time, and press START.

How do I defrost food automatically?

Turn the TIME/MENU dial past the 9th auto cook menu to select defrost, then continue turning to set the weight (100 g to 4000 g). Press START. The oven automatically sets power and time. For example, for 600 g of shrimp, turn to defrost, then to 600 g, press START.

How to clean the microwave oven?

Unplug the oven. Wipe interior and exterior with a damp cloth; use mild detergent if needed. Do not let water seep into vents. The glass tray and roller ring can be washed in warm soapy water or a dishwasher. For odors, microwave a cup of water with lemon juice and peel for 5 minutes.

How to activate the child lock?

Press and hold the STOP/CANCEL button for 3 seconds until a beep sounds and the lock indicator appears. To cancel, press and hold the same button for 3 seconds until the indicator disappears.

What safety precautions should I take?

Do not operate with door open. Do not heat sealed containers or eggs in shell. Avoid metal utensils. Keep a 20 cm clearance above, 10 cm at back, and 5 cm on sides for ventilation. Always ground the oven. If damaged, contact a qualified electrician.

What should I do if the microwave doesn't start?

Check that the plug is securely inserted, wait 10 seconds, and try again. Check the circuit breaker or fuse. Ensure the door is closed properly. Verify the control panel is programmed correctly. If none work, consult a qualified electrician.

Can I use metal utensils or aluminum foil?

Metal trays and racks can only be used in grill mode, not microwave. Aluminum foil should be used sparingly and kept at least 2.54 cm (1 inch) from the cavity walls. Do not use recycled paper products as they may contain metal fragments.

USER MANUAL MW 93 TEAM

Line drawing of a microwave oven with control panel and display (no text or symbols)

Microwave oven

Microondas

CE

I/B Version

030916

TEAM MW 93 I

230 V \~ 900 W

GB OPERATING INSTRUCTIONS

READ these instructions carefully before installing and operating the oven. Keep them for further reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the :
① Door (bent),
② Hinges and latches (broken or loosened),
③ Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

SPECIFICATIONS

Power consumption: 230V\~50Hz, 1400W(Microwave)

230 V, 1000W (Heater)

Output: 900W

Operation frequency: 2450MHz

Outside dimensions:

305mm(H)×508mm(W)×424mm(D)

Oven cavity dimensions:

215mm(H)×350mm(W)×330mm(D)

Capacity: 23Liters

Turntable system: {Φ314mm}

Net weight: Approx.16.5kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
c) Check to ensure that the control panel is programmed correctly and the timer is set.
d) Check to ensure that the door is securely closed. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A COMPETENT QUALIFIED ELECTRICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

Back cover page (last page).

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a competent qualified electrician.
3. This microwave oven must be placed on a flat, stable surface to hold its weight (+/- 14kg) and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides.
6. Do not cover or block any openings on the appliance. Do not remove the feet.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in case of emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Note

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

Back cover page (last page).

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequently to the possibility of ignition.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
4. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
5. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
6. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
7. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
8. Utensils should be checked to ensure that they are suitable for use in microwave oven.
9. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

Back cover page (last page).

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

1. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

Back cover page (last page).

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.

2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware	Microwave Cooking	Grill	Combination Cooking *
Heat-Resistant Glass	Yes	Yes	Yes
Non Heat-Resistant Glass	No	No	No
Heat-Resistant Ceramics	Yes	Yes	Yes
Microwave-Safe Plastic Dish	Yes	No	No
Kitchen Paper	Yes	No	No
Metal Tray	No	Yes	No
Metal Rack	No	Yes	No
Aluminum Foil & Foil Containers	No	Yes	No

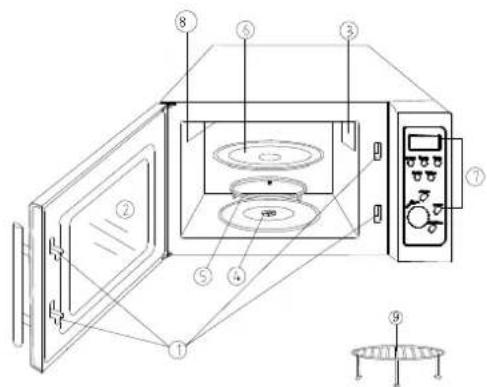

1. Door Safety Lock System
2. Oven Window
3. Oven Air Vent
4. Shaft
5. Roller Ring
6. Glass Tray
7. Control Panel
8. Grill Heater
9. Metal Rack

Back cover page (last page)

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

CONTROL PANEL

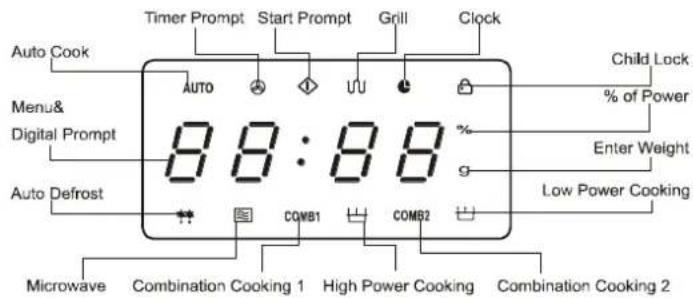

MENU ACTION SCREEN

Cooking time, power, action indicators, and clock time are displayed.

POWER

Touch this button a number of times to set microwave cooking power level.

GRILL

Press this button to set a grill-cooking program up to 60 minutes.

COMB1/COMB2

Cooking with combined microwave and grill power.

TIME/MENU

Turn the dial to set the oven clock time and input cooking time.

Turn the timer/menu dial to select an auto-cooking menu including auto defrost.

WEI. ADJ.

After choosing an auto-cooking menu, use it to specify food weights or number of servings.

CLOCK

Touch this button to start setting the oven clock and ending by touching it again.

START

Touch to start a cooking program.

Simply touch it a number of times to set cooking time and cook immediately at full power level.

STOP/CANCEL

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

It is also used for setting child lock.

Back cover page (last page).

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

MENU ACTION SCREEN

Setting clock time

When the oven is first plugged in, the display shows "1:01", this is a 12-hour clock. To check the time while the oven is operating, press the CLOCK button, then the time will be displayed for 5 seconds in the display.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30 (A.M. or P.M.).

• Press STOP/CANCEL button.
• Press CLOCK button.
• Turn TIME/MENU to set 8 o'clock.
• Press CLOCK button.
• Turn TIME/MENU to set 30 min.
• Press CLOCK to confirm the setting.

Microwave Cooking

For microwave cooking, just press the POWER button a number of times to select a cooking power level, and then use the TIME/MENU dial to set a desired cooking time. The longest cooking time is 60 minutes.

Select power level by pressing the POWER button.

PRESS POWER BUTTON once	DISPLAY 100	COOKING POWER 100%
twice	80	80%
3 times	60	60%
4 times	40	40%
5 times	20	20%
6 times (setting timer)	0	0

For example, suppose you want to cook for 1 minute at 60% of microwave power.

• Press STOP/CANCEL button to reset the oven.
• Press POWER button 3 times.
  • Turn TIME/MENU to 1:00.
• Press START button.

Back cover page (last page).

Grill

The longest cooking time is 60 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes.

For example, suppose you want to grill for 12 minutes.

• Press STOP/CANCEL button.
• Press GRILL button.
• Turn the TIME/MENU to 12:00.
• Press START button.

Combination 1

The longest cooking time is 60 minutes.

30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin.

FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.

• Press STOP/CANCEL button.
• Press COM1 button.
• Turn TIMER to 25:00.
• Press START button.

Combination 2

The longest cooking time is 60 minutes.

55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes and poultry.

FOR EXAMPLE: Suppose you want to set combination 2 cooking for 12 minutes.

• Press STOP/CANCEL button.
• Press COM 2 button.
• Turn TIMER to 12:00.
• Press START button.

Auto Cook Menu

For the following foods or cooking operation, you do not need to input cooking power and time. Try to focus on telling the oven what you want to cook and how much the food weighs. You can do so by turning the TIME/MENU dial to select a food/operation category, then press the WEI. ADJ. button to indicate the number of servings or approximate weights of food you are about to cook. The oven starts to work after you touching the START button.

You may need to turn food over at the middle of cooking time to obtain uniform cooking.

For example, to cook 400g of fish..

• Press STOP/CANCEL button.
  • Turn MENU dial to fish cooking, which is the item 6 on the auto-menu.
• Press WEI. ADJ. button 8 times to indicate weight 400g.
• Press START button.

Back cover page (last page).

AUTO MENU CODE	Weight setting /quantity
	once	twice	3 times	4 times	5 times	6 times	7 times	8 times	9 times
1. coffee/soup	1cup	2cups (equal 1 soup)	3cups (equal 2 soup)
2. rice	80g	100g	120g
3. spaghetti	100g	200g	300g
4. potatoes	150g	300g	450g	600g
5. Reheating	70g	140g	210g	280g	320g	350g	380g	420g	450g
6. Fish	50g	100g	150g	200g	250g	300g	350g	400g	450g
7. chicken	800g	1000g	1200g	1300g	1400g	1500g	1700g	1800g	2000g
8. Beef/mutton	300g	500g	800g	1000g	1200g	1300g	1800g
9. Skewerd meat	80g	100g	150g	200g		400g	500g	600g	700g
10. Auto Defrost

However, please remember that the result of auto cooking depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place the food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.

Auto Defrost

The oven can be used to defrost meat, poultry, and seafood. The defrosting time and power level are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 4000g.

FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.

• Press STOP/CANCEL button.
• Turn MENU dial to defrost setting by turning the dial until it have passed the 9th auto cook menu, and then turn the dial again to indicate weight 600g.
• Press START button.

Express Cooking

The oven will operate at HIGH microwave power (100% power output) for EXPRESS cooking program.

You touch the START button a number of times to set cooking time as follows:

TIME	PRES START BUTTON
0:30	once
1:00	twice
1:30	thrice
...	...
12:00	15 times

For example, to set the oven to cook for 2 minutes using this feature:.

• Press STOP/CANCEL button.
• Press START button 4 times, the oven starts working immediately at full microwave power.

Back cover page (last page).

Setting Timer

The minute timer will enable you to set a countdown time. The oven light, turntable, and cooling fan are in operation, but there is no microwave present in the oven cavity. . Beep will be heard at the end of the countdown.

For example, if you want to time a 3 minutes distant phone call:

• Press STOP/CANCEL button.
• Press POWER button 6 times
  • Turn TIME/MENU to 3:00.
• Press START button.

Child Lock

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set.

To set the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds, a beep sounds and LOCK indicator lights.

To cancel the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds until lock indicator on display goes off.

Special Feature

AUTO REMINDER

After a cooking or defrosting program has completed, the oven will automatically continue to sound three beeps every two minutes until the oven door is opened or the CANCEL button is pressed.

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the window on both sides with a damp cloth to remove any spills or spatters.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions, this is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

Back cover page (last page).

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the language integrity.

1. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
2. When it becomes necessary to replace the oven light, please consult a competent qualified electrician to have it replaced.

Back cover page (last page).
