Product Type	Kitchen Sink
Brand	Foster
Model	New Wave 86.1V.FT
Material	Austenitic Stainless Steel AISI 304 - 18/10
Standard	UNI EN 13310:2004
Edge Types	Standard (3 mm bended edge), Flush-mount, Undermount
Fixing System	Fixed brackets and sliding brackets with screws (tightening torque max 60 N/cm)
Included Accessories	Template, gasket, waste-fitting, overflow pipe (when present), fixing brackets
Installation Requirements	Cut-out according to template; professional installation recommended for flush-mount
Daily Cleaning	Wash with water and mild soap or dishwashing liquid; rinse and dry thoroughly
Stain Removal	Use warm vinegar or Foster Steel Clean products
Avoid	Steel sponges, abrasive cleaners, hydrochloric acid, bleach, prolonged contact with iron objects or acidic foods
Maintenance Note	Dry after each use to maintain shine; avoid dropping heavy objects
Waste-fitting	Must be connected to siphon; check water-tightness after installation
Overflow	Present when available; pipe must be installed during sink placement
Applicable Taps	Can be installed before or after sink positioning
Worktop Compatibility	Check bowl dimensions fit cabinets; for flush-mount, use hydro-repellent materials
Repairs & Spare Parts	Contact Foster Assistance Centres for genuine parts and Steel Clean products
Safety	Do not exceed 60 N/cm torque on brackets; do not use electric screwdrivers
General Information	Designed for domestic use; follow installation and maintenance instructions carefully

Frequently Asked Questions - New Wave 86.1V.FT Foster

What material is the Foster New Wave 86.1V.FT sink made of?

The sink is made of austenitic stainless steel AISI 304 - 18/10, ensuring durability and resistance to corrosion.

How do I install the sink correctly?

First, make a cut-out on the worktop using the provided template. Position the gasket around the hole, then place the sink. Tighten the brackets with screws (max torque 60 N/cm) and remove excess gasket. Connect the waste-fitting and siphon, and check water-tightness.

Can I install the sink flush with the worktop?

Yes, the sink supports flush-mount installation. Strictly follow the technical sheet provided; the cut-out should be done by qualified personnel using computer-operated machinery. Seal with silicone and use hydro-repellent worktop materials.

What cleaning products should I use?

For daily cleaning, use mild soap or dishwashing liquid. For stubborn stains, use warm vinegar or Foster Steel Clean products. Avoid steel sponges, abrasive cleaners, hydrochloric acid, and bleach.

How do I prevent stains and damage?

Rinse and dry the sink after each use. Avoid leaving tomato, milk, coffee, or iron objects on the surface for long periods. Do not drop heavy objects or use sharp utensils that may scratch.

What is the maximum torque for tightening the brackets?

The maximum tightening torque is 60 N/cm. Do not use electric screwdrivers to avoid over-tightening.

Does the sink come with a waste-fitting and overflow?

Yes, the sink includes a waste-fitting and overflow pipe (when present). They must be installed before positioning the sink. An automatic waste-fitting command is also available.

Can I install the taps after the sink is placed?

Yes, taps can be installed either before or after sink positioning. Ensure adequate space and access to water mains.

What should I do if the sink gets scratched?

Minor scratches can often be minimized with special stainless steel polishes. For deeper scratches, contact a professional or Foster Assistance Centre. Prevent scratches by using soft cloths and avoiding metal utensils.

Is the sink suitable for undermount installation?

Yes, the sink supports undermount installation. Follow the same cut-out procedure as built-in sinks, seal with silicone, and tighten brackets securely.

USER MANUAL New Wave 86.1V.FT Foster

Stainless steel sinks

Foster spa

via M.S. Ottone, 18/20

42041 Brescello (RE) - Italy

Instructions for the installation, use and maintenance of kitchen stainless steel sinks

Sinks' material: austenitic stainless steel AISI 304 - 18/10

UNI EN 13310:2004

(kitchen sinks for domestic use, functional features and tests' methods)

INSTALLATION

Standard and flat (3 mm bended) edge

Before making any cut-out on the worktop, we suggest to verify and lay the sink on the worktop itself and/or on the cabinets in order to verify that the external dimensions of the bowls are compatible with the cabinets themselves, in order to avoid making cut-outs for sinks that cannot be installed.

We also recommend to verify the possibility to install taps and other accessories, by checking the place they need and the place that remains. Also verify the possibility to accede to the water main tap under the sink, and that the positioning of the siphon is feasible. To install the sink, one must make a cut-out on the worktop according to the template included in the packing.

Once the cut-out is made, one must position the gasket around the perimeter of the hole. Before installing the sink, please position the waste-fitting and overflow pipe (when present); when available, also the command of the automatic waste-fitting must be

installed at this stage. Make sure that the external edge of the sink is positioned upon the gasket, so as to create a barrier preventing the infiltration of water and dirt between sink and worktop.

After having positioned the sink on the worktop, fix it by tightening the screws of the brackets which are provided (the screws must be tightened just enough to have

the brackets clamp down on the worktop). Afterwards, remove the excess gasket with a cutter. The taps can be installed before or after the positioning of the sink.

After having installed the sink, connect the waste-fitting with the siphon. Check the water-tightness by closing the basket of the waste-fitting, open the tap and wait until the water level reaches the overflow; shut the tap, and wait several minutes, verifying that the water does not drain away. Empty the sink.

Flush-mount edge

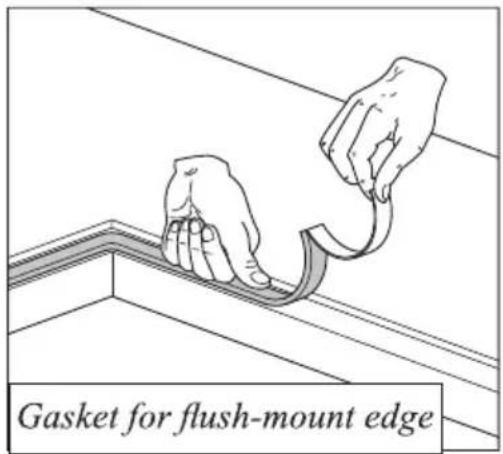

For a correct installation of the flush-mount sinks, please follow strictly the technical sheet (template) provided with the sink; only qualified personnel should make the cut-out, and a computer-operated machine is necessary. It is advisable to accurately clean the seat for the cut-out, and to insert the gasket which is provided, between the sink and the worktop, so as to avoid possible water infiltration into the worktop or the cabinets. The work must be carried out by experienced personnel.

Do not use electric screwdrivers to tighten the brackets. The tightening torque must not exceed 60 N/cm.

It is advisable to install the flush-mount sinks on hydro repellent materials, in order to avoid eventual deformations of the material itself.

Undermount installation

For the undermount sinks, proceed as for the normal built-in sinks.

Make a cut-out on the worktop following the template and/or instructions provided with the sink. Before installing the sink, seal with silicone. Tighten the brackets.

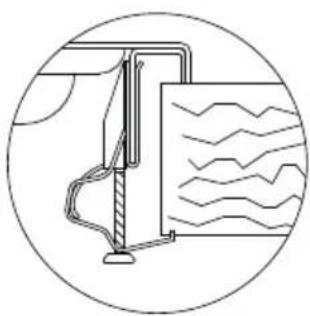

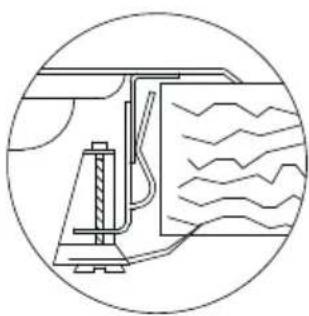

Fixing system
fixed bracket	fixed bracket
sliding bracket	fixed bracket

The Foster collections are the result of a huge experience, and a careful development to meet at best the necessities of the users', so as to obtain a high-quality product. It is important, however, to inform our customers that one must also use the product correctly and maintain it properly.

As all materials, also stainless steel can become dirty; by following very simple instructions, one can bring the sink back to its original shine.

For everyday's maintenance, wash the sink with water and soap, or a product to wash the dishes, rinse abundantly, and do not forget to dry. For more obstinate dirt, the STEEL CLEAN line of products, proposed by Foster and available at all our Assistance Centres throughout the Country, is very suitable to eliminate it without much fuss. Take care to avoid shocks, to drop heavy objects on the sink, and not to use utensils which can scratch the surface. Also avoid the contact with chemicals, cleaners for metal, products to take off paint, metal brushes. Do not leave for long stretches of time tomato residues on the sink, as well as milk, and coffee on the sink; also, avoid long contacts with metal drums with wet bottoms, and iron objects in general. Please note that the long contact of any of the above-mentioned substances with the sink can originate a corrosive attack of electrochemical nature, even though very mild.

TENTION

• Rinse accurately after use, and dry with a clean cloth
• To clean the sink, normal detergent can be used, as long as not containing hydrochloric Acid (commercial Muriatic acid) or its derivates
• In case of persistent staine, try to clean with some warm vinegar or with specific products for Stainless steel (the specific line of products “Foster Steel clean” is suggested)
• Do not use steel sponges to clean the sink, or any other item that could scratch the surface
• Avoid using muriatic acid or bleach
• Do not leave iron objects on the sink for long
• Please keep this instructions leaflet
