1218 897 - Kitchen sink Foster - Free user manual and instructions

Product Type	Kitchen sink
Brand	Foster
Model	1218 897
Material	Austenitic stainless steel AISI 304 18/10
Standard	UNI EN 13310:2004
Edge Types	Standard edge, flat edge (3 mm bent), flush-mount, undermount
Installation Methods	Built-in (cut-out), flush-mount, undermount
Fixing System	Fixed bracket, sliding bracket
Included Accessories	Waste-fitting, overflow pipe (when present), gasket, fixing brackets
Recommended Cleaning	Water and soap, mild dishwashing liquid, warm vinegar for stains
Daily Maintenance	Rinse after use and dry with a clean cloth
Prohibited Substances	Hydrochloric acid, bleach, steel sponges, abrasive cleaners
Safety Warnings	Avoid dropping heavy objects, do not leave iron objects or food residues (tomato, milk, coffee) for long
Country of Origin	Italy (Foster spa, Brescello)
Intended Use	Domestic kitchen sink

Frequently Asked Questions - 1218 897 Foster

How do I install the Foster 1218 897 kitchen sink?

First, make a cut-out in the worktop using the provided template. Place the gasket around the hole perimeter. Install the waste-fitting and overflow pipe if present. Position the sink on the gasket and tighten the brackets (torque max 60 N/cm). Remove excess gasket with a cutter. Connect the siphon and test water tightness.

Can I install the sink as undermount?

Yes, for undermount installation, proceed similarly to built-in. Cut the worktop according to the template, seal with silicone before placing the sink, and tighten the brackets. Ensure the worktop is made of hydro-repellent material to avoid deformation.

What is the recommended daily cleaning for the sink?

Wash the sink with water and soap or a mild dishwashing detergent. Rinse abundantly and dry with a clean cloth to maintain the original shine. For everyday maintenance, this is sufficient.

What should I do for stubborn stains?

For persistent stains, use warm vinegar or specific stainless steel cleaners like the Foster Steel Clean line. Avoid abrasive sponges or harsh chemicals. Rinse thoroughly after cleaning.

Can I use bleach or muriatic acid to clean the sink?

No, avoid using muriatic acid (hydrochloric acid) or bleach as they can damage the stainless steel surface. Only use mild detergents that do not contain these substances.

How do I prevent corrosion or staining?

Do not leave iron objects, wet metal drums, or food residues (tomato, milk, coffee) on the sink for long periods. Rinse and dry after use. Avoid contact with chemicals like paint removers or metal cleaners.

What type of material is the sink made of?

The sink is made of austenitic stainless steel AISI 304 18/10, which is a high-quality corrosion-resistant steel suitable for domestic use.

Are there any special requirements for flush-mount installation?

Flush-mount installation requires a precise cut-out using a computer-operated machine by qualified personnel. Follow the technical sheet (template) provided. Use the gasket between sink and worktop to prevent water infiltration. Do not use electric screwdrivers; torque must not exceed 60 N/cm.

What accessories are included with the sink?

The sink comes with a waste-fitting, overflow pipe (when present), gasket, and fixing brackets. Additional accessories like taps are not included and must be purchased separately.

What should I do if I need a translated manual?

On the product page, you can select your desired language and provide your email. A specifically translated version will be sent to you. Alternatively, the manual is available in English for download.

USER MANUAL 1218 897 Foster

Stainless steel sinks

Foster spa

via M.S. Ottone, 18/20

42041 Brescello (RE) - Italy

Instructions for the installation, use and maintenance of kitchen stainless steel sinks

Sinks' material: austenitic stainless steel AISI 304 - 18/10

UNI EN 13310:2004

(kitchen sinks for domestic use, functional features and tests' methods)

INSTALLATION

Standard and flat (3 mm bended) edge

Before making any cut-out on the worktop, we suggest to verify and lay the sink on the worktop itself and/or on the cabinets in order to verify that the external dimensions of the bowls are compatible with the cabinets themselves, in order to avoid making cut-outs for sinks that cannot be installed.

We also recommend to verify the possibility to install taps and other accessories, by checking the place they need and the place that remains. Also verify the possibility to accede to the water main tap under the sink, and that the positioning of the siphon is feasible. To install the sink, one must make a cut-out on the worktop according to the template included in the packing.

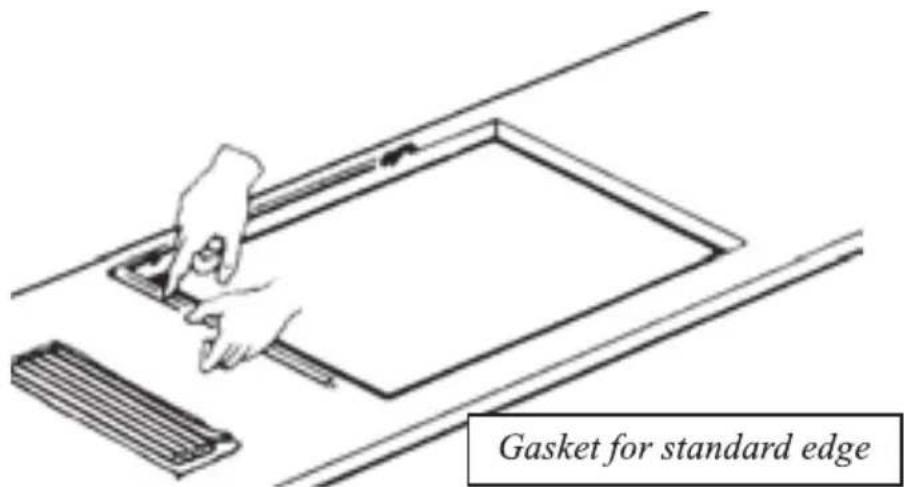

Once the cut-out is made, one must position the gasket around the perimeter of the hole. Before installing the sink, please position the waste-fitting and overflow pipe (when present); when available, also the command of the automatic waste-fitting must be

installed at this stage. Make sure that the external edge of the sink is positioned upon the gasket, so as to create a barrier preventing the infiltration of water and dirt between sink and worktop.

After having positioned the sink on the worktop, fix it by tightening the screws of the brackets which are provided (the screws must be tightened just enough to have

the brackets clamp down on the worktop). Afterwards, remove the excess gasket with a cutter. The taps can be installed before or after the positioning of the sink.

After having installed the sink, connect the waste-fitting with the siphon. Check the water-tightness by closing the basket of the waste-fitting, open the tap and wait until the water level reaches the overflow; shut the tap, and wait several minutes, verifying that the water does not drain away. Empty the sink.

Flush-mount edge

For a correct installation of the flush-mount sinks, please follow strictly the technical sheet (template) provided with the sink; only qualified personnel should make the cut-out, and a computer-operated machine is necessary. It is advisable to accurately clean the seat for the cut-out, and to insert the gasket which is provided, between the sink and the worktop, so as to avoid possible water infiltration into the worktop or the cabinets. The work must be carried out by experienced personnel.

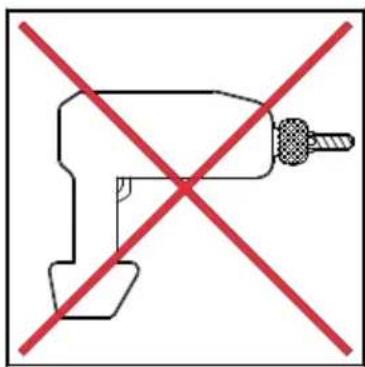

Do not use electric screwdrivers to tighten the brackets. The tightening torque must not exceed 60 N/cm.

It is advisable to install the flush-mount sinks on hydro repellent materials, in order to avoid eventual deformations of the material itself.

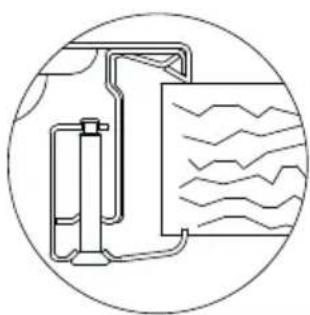

Undermount installation

For the undermount sinks, proceed as for the normal built-in sinks.

Make a cut-out on the worktop following the template and/or instructions provided with the sink. Before installing the sink, seal with silicone. Tighten the brackets.

Fixing system
FR FIfixed bracket	fixed bracket
Ssliding bracket	FIfixed bracket

The Foster collections are the result of a huge experience, and a careful development to meet at best the necessities of the users', so as to obtain a high-quality product. It is important, however, to inform our customers that one must also use the product correctly and maintain it properly.

As all materials, also stainless steel can become dirty; by following very simple instructions, one can bring the sink back to its original shine.

For everyday's maintenance, wash the sink with water and soap, or a product to wash the dishes, rinse abundantly, and do not forget to dry. For more obstinate dirt, the STEEL CLEAN line of products, proposed by Foster and available at all our Assistance Centres throughout the Country, is very suitable to eliminate it without much fuss. Take care to avoid shocks, to drop heavy objects on the sink, and not to use utensils which can scratch the surface. Also avoid the contact with chemicals, cleaners for metal, products to take off paint, metal brushes. Do not leave for long stretches of time tomato residues on the sink, as well as milk, and coffee on the sink; also, avoid long contacts with metal drums with wet bottoms, and iron objects in general. Please note that the long contact of any of the above-mentioned substances with the sink can originate a corrosive attack of electrochemical nature, even though very mild.

TENTION

• Rinse accurately after use, and dry with a clean cloth
• To clean the sink, normal detergent can be used, as long as not containing hydrochloric Acid (commercial Muriatic acid) or its derivates
• In case of persistent staine, try to clean with some warm vinegar or with specific products for Stainless steel (the specific line of products “Foster Steel clean” is suggested)
• Do not use steel sponges to clean the sink, or any other item that could scratch the surface
• Avoid using muriatic acid or bleach
• Do not leave iron objects on the sink for long
• Please keep this instructions leaflet
