USER MANUAL PJD5350LS VIEWSONIC

IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in a safe manner, as well as registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"

Model No. VS15903/VS15906/VS15908/VS15918/VS15921

Thank you for choosing ViewSonic

With over 25 years as a world leading provider of visual solutions, ViewSonic is dedicated to exceeding the world's expectations for technological evolution, innovation, and simplicity. At ViewSonic, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

ViewSonic®

Compliance Information

FCC Compliance Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC.

Following information is only for EU-member states:

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and collection systems available.

If the batteries, accumulators and button cells included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.

Declaration of RoHS2 Compliance

This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:

Substance	Proposed Maximum Concentration	Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium ( Cr^6+ ) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers (PBDE) 0.1%	< 0.1%

Certain components of products as stated above are exempted under the Annex III of the RoHS2 Directives as noted below:

Examples of exempted components are:

1. Mercury in cold cathode fluorescent lamps and external electrode fluorescent lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):

(1) Short length ( ≤ 500 mm): maximum 3.5 mg per lamp.
(2) Medium length (>500 mm and ≤ 1,500 mm): maximum 5 mg per lamp.
(3) Long length (>1,500 mm): maximum 13 mg per lamp.

1. Lead in glass of cathode ray tubes.
2. Lead in glass of fluorescent tubes not exceeding 0.2% by weight.
3. Lead as an alloying element in aluminium containing up to 0.4% lead by weight.
4. Copper alloy containing up to 4% lead by weight.
5. Lead in high melting temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
6. Electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or ceramic matrix compound.

Indian Restriction of Hazardous Substances

Restriction on Hazardous Substances statement (India) This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this unit near water.

6. Clean with a soft, dry cloth.

7. Do not block any ventilation openings. Install the unit in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs. Convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury from tipping over.

1. Unplug this unit when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped.

Copyright Information

Copyright © ViewSonic Corporation, 2014. All rights reserved.

Macintosh and Power Macintosh are registered trademarks of Apple Inc.

Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association.

DPMS and DDC are trademarks of VESA.

PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To fulfill possible future product needs, and to receive additional product information as it becomes available, please visit your region section on ViewSonic's website to register your product online.

The ViewSonic CD also provides an opportunity for you to print the product registration form. Upon completion, please mail or fax to a respective ViewSonic office. To find your registration form, use the directory “:\CD\Registration”.

Registering your product will best prepare you for future customer service needs. Please print this user guide and fill the information in the "For Your Records" section. For additional information, please see the "Customer Support" section in this guide.

For Your Records

Product Name: PJD5155L/PJD5255L/PJD5555LW/PJD5350LS/PJD5550LWS ViewSonic DLP Projector

Model Number: VS15903/VS15906/VS15908/VS15918/VS15921

Document Number: PJD5155L/PJD5255L/PJD5555LW/PJD5350LS/PJD5550LWS_UG_ENG Rev. 1A 11-13-14

Serial Number:

Purchase Date:

Product disposal at end of product life

The lamp in this product contains mercury which can be dangerous to you and the environment. Please use care and dispose of in accordance with local, state or federal laws.

ViewSonic respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing.

Please visit ViewSonic website to learn more.

USA & Canada: http://www.viewsonic.com/company/green/recycle-program/

Europe: http://www.viewsoniceurope.com/uk/support/recycling-information/

Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx

Table of contents

Introduction 1

Projector features 1

Package contents 2

Projector overview 3

Using the product 5

Control panel 5

Connection ports 7

Remote control 8

Installing the batteries 11

Remote control operation 12

Connection 13

Connecting a computer or monitor 14

Connecting Video source devices 14

Operation 16

Powering on/off the projector 16

Adjusting the projector height 17

Adjusting the projector zoom and focus 17

Adjusting projection image size 18

Securing the projector 20

Locking control keys 22

Setting the presentation timer 23

Menu operation 24

Maintenance 39

Cleaning the lens 39

Cleaning the projector housing 39

Installing the dust filter (optional accessory) 40

Installing the cable management cover (optional accessory) 41

Replacing the lamp 42

Specifications 44

Dimensions 46

Ceiling mount installation 46

Appendix 47

LED indicator messages 47

Compatibility modes 48

Troubleshooting 50

RS-232 command and configuration 51

IR control table 57

Introduction

Projector features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features:

• Compatibility with Macintosh ^ computers
• Compatibility with NTSC, PAL, SECAM and HDTV
  • D-Sub 15-pin terminal for analog video connectivity
  • Equipped with HDMI connection supporting HDCP
• Multi-language On-Screen Display (OSD) menus
  • Digital keystone correction to correct distorted images
  • RS-232 connector for serial control
• Power saving function decreasing the power consumption of the lamp by up to 30% when no input signal can be detected for a set period of time.
• Presentation timer for better control of time during presentations
• Blu-Ray 3D function supported
• Selectable quick power off function
  • Color Management allowing color adjustments to your liking
• Screen Color correction allowing projection on surfaces of several predefined colors
• Quick auto search speeding up the signal detecting process
• HDMI CEC (Consumer Electronics Control) function allows synchronized power ON/OFF operation between the projector and a CEC-compatible DVD player device connected to the HDMI input of the projector

Note

• The information in this manual is subject to change without notices.
• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Package contents

When you unpack the projector, make sure you have all these components:

Line drawing of a projector with visible lens and screen (no text or symbols)

PJD5155L/PJD5255L/PJD5555LW projector

Line drawing of a projector with a screen and lens (no text or symbols)

PJD5350LS/ PJD5550LWS projector

Remote control (IR) & batteries (AAA *2 PCS)

Line drawing of a coiled electrical plug with three terminal connectors (no text or symbols)

AC power cord

Line drawing of a multi-pin electrical connector with terminal connectors (no text or symbols)

VGA cable (D-SUB to D-SUB)

ViewSonic CD wizard

Quick start guide

Optional accessories

1. Cable management cover (rear cable cover)
2. Carry bag
3. Dust filter
4. Lens cap for PJD5155L/PJD5255L/PJD5555LW

Note

• Contact you dealer immediately if any items are missing, appear damaged, or if the unit does not work.
• For maximum protection of the product, please save the original shipping carton and packing materials and repack your product as it was originally packed at the factory if you need to ship it.

Projector overview

Front view

PJD5155L/PJD5255L/
PJD5555LW

PJD5350LS/PJD5550LWS

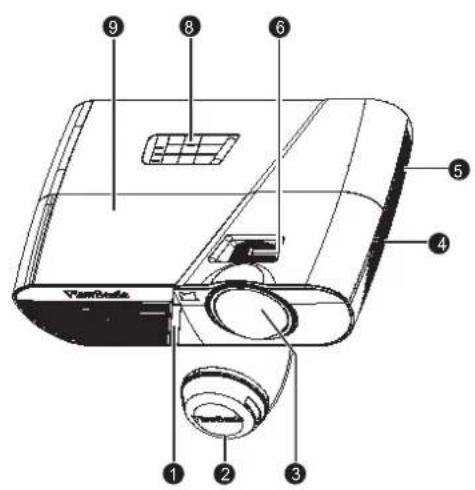

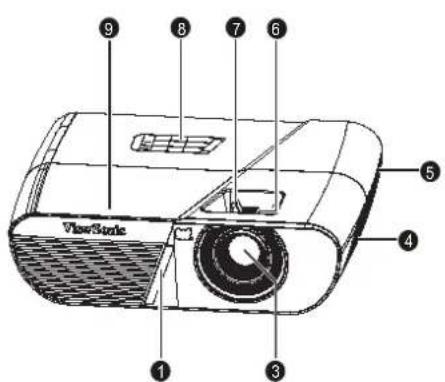

1. Front IR remote control sensor 2. Lens cover
2. Projection lens 4. Speaker

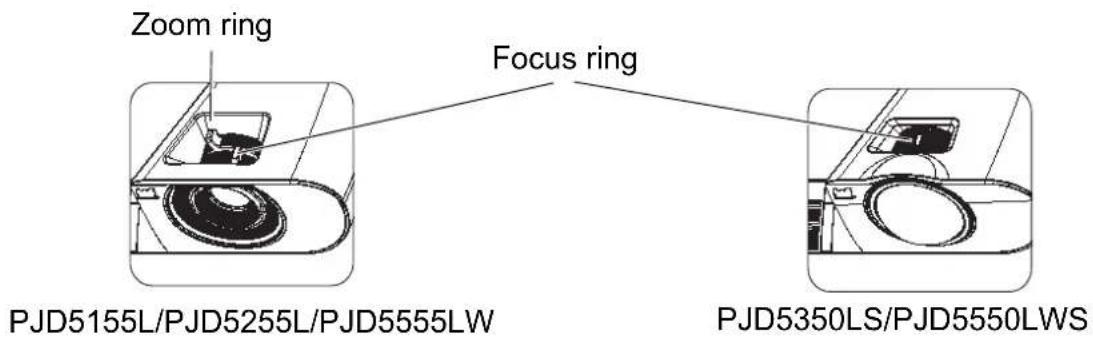

3. Ventilation holes 6. Focus ring
4. Zoom ring 8. Control panel
5. Lamp cover

Rear View

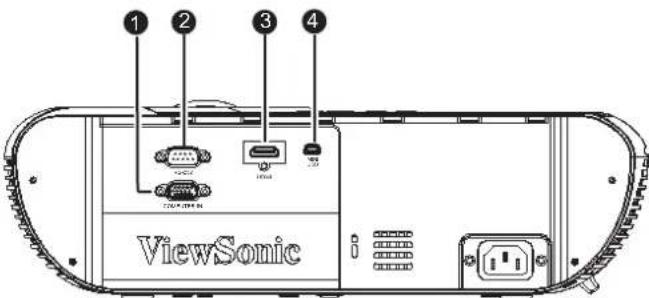

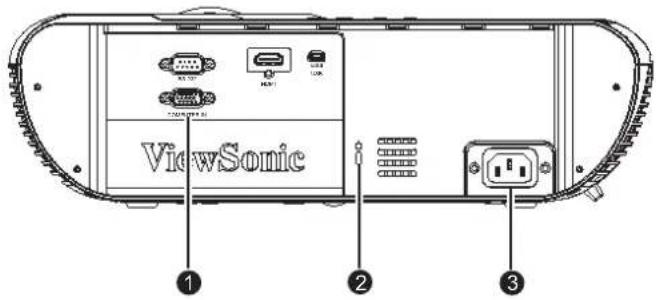

1. Connection ports 2. Kensington lock
2. AC power socket

Bottom View

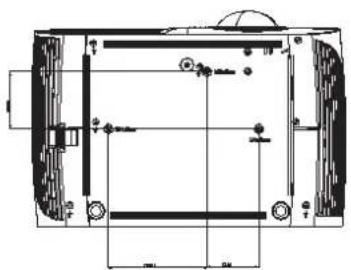

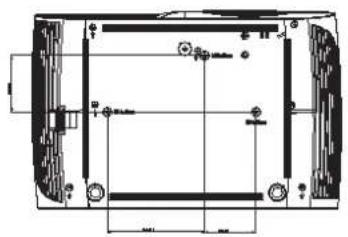

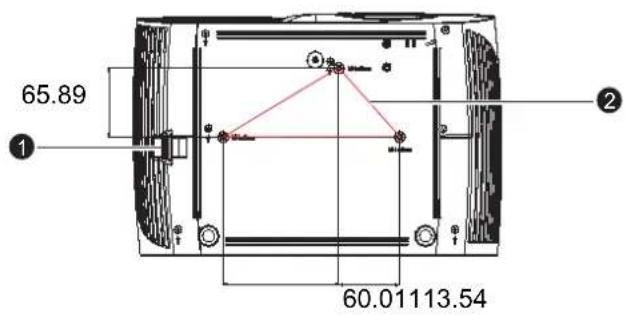

Ceiling mount screws: M4 x 8 (Max. L = 8 mm)

Unit: mm

1. Security bar 2. Ceiling mount holes

Note

• This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package.
• Contact your dealer for information to mount the projector on a ceiling.

Using the product Control panel

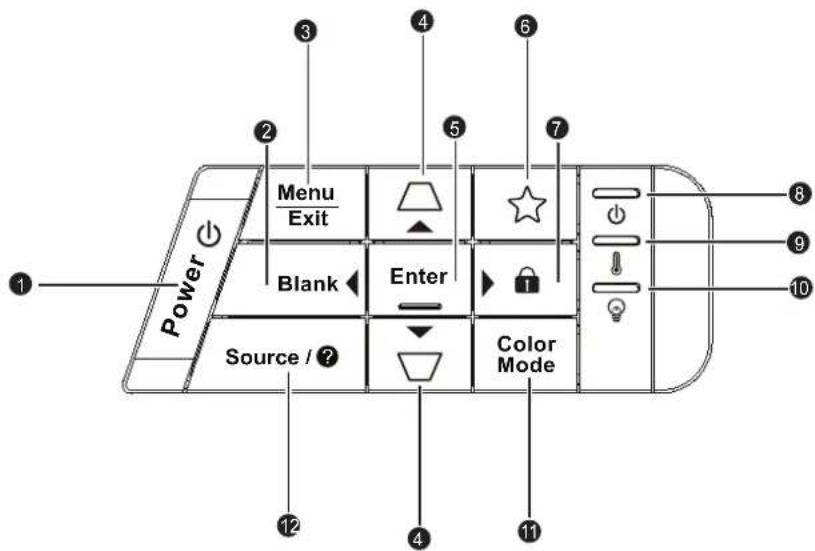

1. POWER

Turn the projector on or off.

2. Blank/ Left key

Hide the screen picture.

3. Menu/Exit

Menu: Display or exit the on-screen display menus.

Exit: Goes back to previous OSD menu, exits and saves menu settings.

4. Keystone/Arrow keys (/Up / ▽ Down)

Manually correct distorted images resulting from an angled projection.

5. Enter

Enacts the selected On-Screen Display (OSD) menu item.

6. (My Button)

User definable key for customized function.

7. (lock)/ Right key

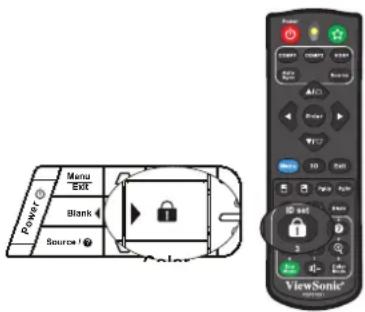

Lock: Activates panel key lock or disable panel key lock by a long press for 3 seconds.

Right key: When the On-Screen Display (OSD) menu is activated, #2 #4 and #7 keys are used as directional arrows to select the desired menu items and to make adjustments.

8. (Power LED indicator)

Refer to "LED Indicator Messages".

9. (Temp LED indicator)

Refer to "LED Indicator Messages".

10. (Lamp LED indicator)

Refer to "LED Indicator Messages".

11. Color Mode

Select the picture setup mode.

12. Source/©(Help)

Source: Display the source selection bar.

Help: Display the HELP menu by a long press for 3 seconds.

Connection ports

1. COMPUTER IN

Connect image input signal (analog RGB or component) to this jack.

2.RS-232

When operating the projector via a computer, connect this to the controlling computer's RS-232C port.

3. HDMI

Connect HDMI output from video equipment to this jack.

4. MINI USB

This connector is for firmware update and mouse function support.

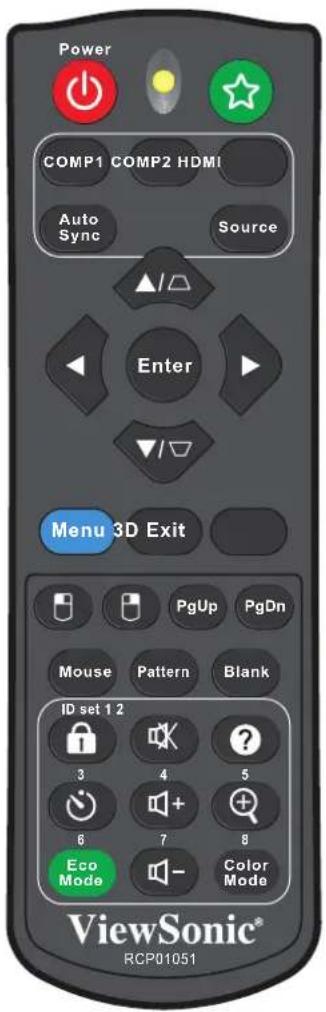

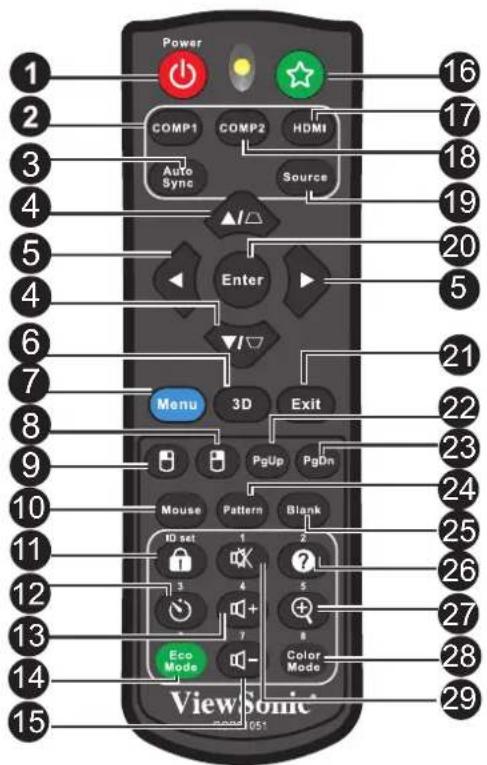

Remote control

1. Power

Turn the projector on or off.

1. COMP1

Display COMPUTER IN 1 signal.

1. Auto Sync

Automatically determines the best picture timings for the displayed image.

1. / (Keystone)

Manually correct distorted images resulting from an angled projection.

1. ▲ (Up)/▼ (Down)/◀ (Left)/▶ (Right)

When the On-Screen Display (OSD) menu is activated, the #4 and #5 keys are used as directional arrows to select the desired menu items and to make adjustments.

6.3D

Activates the 3D On-Screen Display (OSD) menu item.

1. Menu

Display on-screen display menus.

1. (Right mouse)

Perform the right button of the mouse when mouse mode is activated.

1. (Left mouse)

Perform the left button of the mouse when mouse mode is activated.

1. Mouse

Switch between the normal and mouse modes.

11. (Lock)/ID Set

Lock: Activates or disables panel key lock.

ID Set: Sets remote control code.

12. (Timer)

Activate P-Timer OSD menu.

13. (Volume+)

Increase the volume level.

14. Eco Mode

Switch the lamp mode from Normal, Economic, Dynamic to Sleep.

15. (Volume-)

Decrease the volume level.

16. (My Button)

User definable key for customized function.

17. HDMI

Display HDMI signal.

18. COMP2

Not available for PJD5 series.

19. Source

Display the source selection bar.

20. Enter

Enacts the selected On-Screen Display (OSD) menu item.

21. Exit

Goes back to previous OSD menu, exits and saves menu settings.

22. PgUp (Page Up)

Perform page up function when mouse mode is activated.

23. PgDn (Page Down)

Perform page down function when mouse mode is activated.

24. Pattern

Display embedded test pattern.

25. Blank

Hide the screen picture.

26. (Help)

Display the Help menu.

27. (Magnify)

Displays the zoom bar that magnifies or reduces the projected picture size.

28. Color Mode

Select the picture setup mode.

29. (Mute)

Toggles the projector audio between on and off.

Using the remote mouse control

The capability of operating your computer with the remote control gives you more flexibility when delivering presentations.

1. Connect the projector to your PC or notebook with a USB cable prior to using the remote control in place of your computer's mouse. See "Connecting a computer" on page 14 for details.
2. Set the input signal to COMPUTER.
3. Press Mouse on the remote control to switch from the normal mode to the mouse mode. An icon appears on the screen to indicate the activation of the mouse mode.
4. Perform the desired mouse controls on your remote control.

• To move the cursor on the screen, press ▼/ ◀/▶ /
- To left-click, press .
- To right-click, press .
- To operate your display software program (on a connected PC) which responds to page up/down commands (like Microsoft PowerPoint), press Page Up/Page Down.
- To return to the normal mode, press Mouse again or other keys except for the mouse related multi-function keys.

Remote control code

The projector can be assigned to 8 different remote control codes, 1 to 8. When several adjacent projectors are in operation at the same time, switching the remote control codes can prevent interference from other remote controls. Set the remote control code for the projector first before changing that for the remote control.

To switch the code for the projector, select from among 1 to 8 in the SYSTEM SETTING: ADVANCED > Remote Control Code menu.

To switch the code for the remote control, press ID set and the corresponding button from 1 to 8 buttons on the remote control together for 5 seconds or more. The initial code is set to 1. When the code is switched to 8, the remote control can control every projector.

Note

- If different codes are set on the projector and remote control, there will be no response from the remote control. When that happens, switch the code for the remote control again.

Installing the batteries

1. Open the battery cover in the direction shown.

2. Install batteries as indicated by the diagram inside the compartment.

3. Close the battery cover into position.

Top-down view of a car's side panel showing the front wheel and side door (no text or symbols)

Top-down schematic of a vehicle showing battery and motor components (no text or labels)

Top-down diagram of a vehicle showing airflow or movement direction (no text or symbols)

Caution

• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.

Note

• Keep the battery out of the reach of children.
• Remove batteries from remote control when not using for extended periods.
• Do not recharge the battery or expose the battery to fire or water.
• Do not dispose the used battery along with household waste. Dispose used batteries according to local regulations.
• Danger of explosion may happen if batteries are incorrectly replaced. Replace only with the same type recommended by the manufacturer.
• Battery should not be in or near to fire or water, keep batteries in a dark, cool and dry place.
• If suspect battery leakage, wipe out the leakage and then replace a new battery. If the leakage adheres to your body or clothes, rinse well with water immediately.

Remote control operation

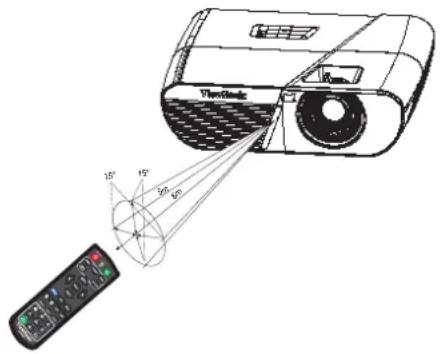

Point the remote control at the infrared remote sensor and press a button.

- Operating the projector from the front.

Note

• The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor.
• Operate the remote control from a position where the remote sensor is visible.
• Do not drop the remote control or jolt it.
• Keep the remote control out of locations with excessively high temperature or humidity.
• Do not get water on the remote control or place wet objects on it.
• Do not disassemble the remote control.

Connection

When connecting a signal source to the projector, be sure to:

1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.


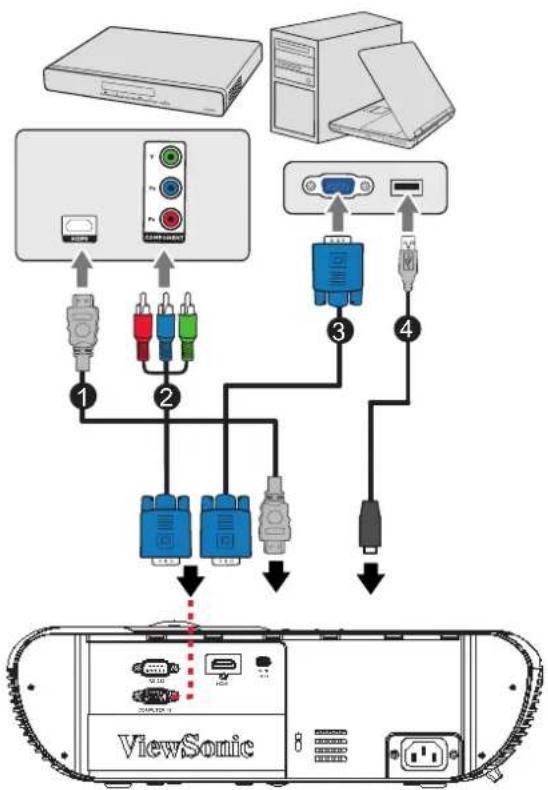

1. HDMI cable 2. VGA (D-Sub) to HDTV (RCA) cable
2. VGA to DVI-A cable 4. USB cable

Important

• In the connections shown above, some cables may not be included with the projector (see "Package contents" on page 2). They are commercially available from electronics stores.
• The connection illustrations above are for reference only. The rear connecting jacks available on the projector vary with each projector model.
• For detailed connection methods, see pages 14-16.

Connecting a computer or monitor

Connecting a computer

The projector provides two VGA input sockets that allow you to connect them to both IBM ^® compatibles and Macintosh ^® computers. A Mac adapter is needed if you are connecting legacy version Macintosh computers.

To connect the projector to a notebook or desktop computer:

1. Take the supplied VGA cable and connect one end to the D-Sub output socket of the computer.
2. Connect the other end of the VGA cable to the COMPUTER signal input socket on the projector.

Important

- Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting Video source devices

You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Terminal name	Terminal appearance	Reference	Picture quality
HDMI	HDMI	"Connecting an HDMI source device" on page 15	Best
Component Video	COMPUTER	"Connecting a Component Video source device" on page 15	Better

Connecting an HDMI source device

Examine your Video source device to determine if it has a set of unused HDMI output jacks available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to an HDMI source device:

1. Take an HDMI cable and connect one end to the HDMI output jack of the HDMI source device.
2. Connect the other end of the HDMI cable to the HDMI jack on the projector.

Connecting a Component Video source device

Examine your Video source device to determine if it has a set of unused Component Video output sockets available:

• If so, you can continue with this procedure.
• If not, you will need to reassess which method you can use to connect to the device.

To connect the projector to a Component Video source device:

1. Take a VGA (D-Sub) to HDTV (RCA) cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device. Match the color of the plugs to the color of the sockets; green to green, blue to blue, and red to red.

2. Connect the other end of the cable (with a D-Sub type connector) to the COMPUTER socket on the projector.

Important

- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Operation

Powering on/off the projector

Powering on the projector:

1. Complete the AC power cord and peripheral signal cable(s) connections.
2. Press to turn on the projector.

The projector takes a minute or so to warm up.

- If the projector is still hot from previous activity, it will run the cooling fan for approximately 60 seconds before energizing the lamp.

1. Turn on your source (computer, notebook, DVD, etc.).

2. If you are connecting multiple sources to the projector simultaneously, press Source to select your desired signal or press your desired signal key on the remote control.

3. If the projector doesn't detect a valid signal, the message 'No Signal' will continue to be displayed.
4. Be sure the Quick Auto Source function in the SOURCE menu is On if you want the projector to automatically search for the signals.

Warning

• Never look into the lens when the lamp is on. This can damage your eyes.
• This focal point concentrates high temperature. Do not place any object near it to avoid possible fire hazard.

Powering off the projector:

1. Press to turn off the projector lamp. You will see a message "Power off? Press Power again" appear on the screen.

2. Press again to confirm.

3. When Active VGA/ Audio Out function is turned off, the Power LED begins flashing and the projector has entered stand-by mode.

4. When Active VGA/ Audio Out function is turned on, the Power LED becomes steady light and the projector has entered stand-by mode.

5. If you want to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered stand-by mode. Once in stand-by mode, simply press Ⓞto restart the projector.

6. Disconnect the AC power cord from the electrical outlet and the projector.

7. Do not turn on the projector right after power off.

Adjusting the projector height

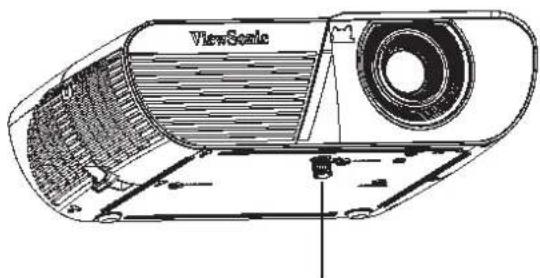

Elevator foot

The projector is equipped with an elevator foot to adjust the image height. To raise or lower the image, turn the elevator foot to fine-tune the height.

Note

• To avoid damaging the projector, make sure that the elevator foot is fully retracted before placing the projector in its carrying case.

Adjusting the projector zoom and focus

1. Sharpen the image by rotating the focus ring.
2. Adjust the image size by rotating the zoom ring or move the projector forward or backward.

Adjusting projection image size

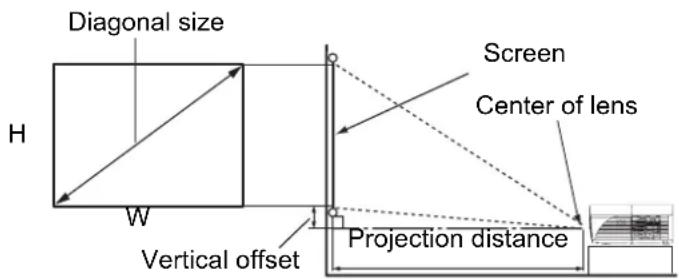

Refer to the graphic and table below to determine the screen size and projection distance.

PJD5155L/PJD5255L

4 : 3 Screen diagonal
Screen size			Projection distance[inch (m)]		Vertical offset[inch (cm)]
Diagonal[inch (cm)]	W[inch (cm)]	H[inch (cm)]	(min.) (max.)
30 (76) 24	(61) 18 (46) 47	(1.2) 51 (1.3) 2.7 (6.9)
40 (102) 32	(81) 24 (61) 62	(1.6) 69 (1.7) 3.6 (9.1)
60 (152) 48	(122) 36 (91) 94	(2.4) 103 (2.6) 5.4	(13.7)
80 (203) 64	(163) 48 (122)	125 (3.2) 137 (3.5)	7.2 (18.3)
100 (254) 80	(203) 60 (152)	156 (4.0) 172 (4.4)	9.0 (22.9)
150 (381)	120 (305)	90 (229)	234 (5.9)	257 (6.5)	13.5 (34.3)
200 (508)	160 (406)	120 (305)	312 (7.9)	343 (8.7)	18.0 (45.7)
250 (635)	200 (508)	150 (381)	390 (9.9)	429 (10.9)	22.5 (57.2)
300 (762)	240 (610)	180 (457)	468 (11.9)	515 (13.1)	27.0 (68.6)

PJD5555LW

16 : 10 Screen diagonal
Screen size			Projection distance[inch (m)]		Vertical offset[inch (cm)]
Diagonal[inch (cm)]	W[inch (cm)]	H[inch (cm)]	(min.) (max.)
30 (76) 26	(65) 16 (40) 36	(0.9) 46 (1.2) 1.2 (3.0)
40 (102) 34	(86) 21 (54) 49	(1.2) 61 (1.5) 1.6 (4.1)
60 (152) 51	(130) 32 (81) 75	(1.9) 93 (2.4) 2.4 (6.1)
80 (203) 68	(173) 42 (108)	100 (2.5) 124 (3.2) 3.2 (8.1)
100 (254) 85	(216) 53 (135)	126 (3.2) 156 (4.0) 4.0 (10.1)
150 (381)	128 (324)	80 (202) 189 (4.8) 235 (6.0) 6.0 (15.2)
200 (508)	170 (432)	106 (269)	253 (6.4)	313 (8.0)	8.0 (20.2)
250 (635)	213 (540)	133 (337)	317 (8.0)	392 (10.0)	10.0 (25.3)
300 (762)	255 (648)	159 (404)	380 (9.7)	-	12.0 (30.4)

PJD5350LS

4 : 3 Screen diagonal
Screen size			Projection distance[inch (m)]	Vertical offset[inch (cm)]
Diagonal[inch (cm)]	W[inch (cm)]	H[inch (cm)]
30 (76) 24 (61)	18 (46) 15 (0.4)	2.7 (6.9)
40 (102) 32 (81)	24 (61) 20 (0.5)	3.6 (9.1)
60 (152) 48 (122)	36 (91) 30 (0.8)	5.4 (13.7)
80 (203) 64 (163)	48 (122) 40 (1.0)	7.2 (18.3)
100 (254) 80 (203)	60 (152) 50 (1.3)	9.0 (22.9)
150 (381)	120 (305)	90 (229)	75 (1.9)	13.5 (34.3)
200 (508)	160 (406)	120 (305)	100 (2.5)	18.0 (45.7)
250 (635)	200 (508)	150 (381)	125 (3.2)	22.5 (57.2)
300 (762)	240 (610)	180 (457)	150 (3.8)	27.0 (68.6)

PJD5550LWS

16 : 10 Screen diagonal
Screen size			Projection distance[inch (m)]	Vertical offset[inch (cm)]
Diagonal[inch (cm)]	W[inch (cm)]	H[inch (cm)]
30 (76) 25 (65)	16 (40) 13 (0.3)	2.0 (5.0)
40 (102) 34 (86)	21 (54) 17 (0.4)	2.6 (6.7)
60 (152) 51 (129)	32 (81) 26 (0.7)	4.0 (10.1)
80 (203) 68 (172)	42 (108) 36 (0.9)	5.3 (13.5)
100 (254) 85 (215)	53 (135) 45 (1.1)	6.6 (16.8)
150 (381) 127 (323)	79 (202)		68 (1.7) 9.9 (25.2)
200 (508)	170 (431)	106 (269)	91 (2.3)	13.2 (33.6)
250 (635)	212 (538)	132 (336)	115 (2.9)	16.6 (42.1)
300 (762)	254 (646)	159 (404)	138 (3.5)	19.9 (50.5)

Note

• Position the projector in a horizontal position; other positions can cause heat build-up and damage to the projector.
• Keep a space of 30 cm or more between the sides of the projector.
• Do not use the projector in a smoky environment. Smoke residue may build-up on critical parts and damage the projector or its performance.

Securing the projector

Setting a password

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Advanced > Security Settings menu. Press Enter. The Security Settings page displays.
2. Highlight Change Password and press Enter.
3. As pictured to the right, the four arrow keys ( /ʌ/ ʌ) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter six digits for the password.
4. Confirm the new password by re-entering the new password.
5. Go back to SYSTEM SETTING: ADVANCED > Advanced > Security Settings > Power on Lock menu, and press Enter. You will be asked to input password. Once the password is set, the OSD menu returns to the Power On Lock. Select On by pressing 🔊.
6. To leave the OSD menu, press Menu/Exit.

Entering the password recall procedure

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message displays. Press Menu to re-enter the password.

1. If you enter an incorrect password 5 times in succession, the projector will display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Seek help from the local ViewSonic service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Open the OSD menu and go to the SYSTEM SETUP: Advanced > Advanced > Security Settings > Change Password menu.

2. Enter the old password.

3. If the password is correct, another message 'INPUT NEW PASSWORD' displays.

4. If the password is incorrect, the password error message displays, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press Menu to cancel the change or try another password.

5. Enter a new password.

6. Confirm the new password by re-entering the new password.
7. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.
8. To leave the OSD menu, press Menu/Exit.

Disabling the password function

To disable password protection, go back to SYSTEM SETTING: ADVANCED > Advanced > Security Settings > Power on Lock menu, and press Enter. You will be asked to input password. Once the password is set, the OSD menu returns to the Power On Lock. Select Off by pressing ◀/▶. To leave the OSD menu, press Menu/Exit.

Locking control keys

With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except ⏻ Power.

1. Press Lock on the remote control or keypad on the projector for 3 seconds. Press Lock on the remote control, a confirmation message "Are you sure to lock panel keys?" is displayed. Select Yes to confirm.

To release panel key lock:

1. Press lock on the remote control directly. The Panel keys are unlock.

2. Press 🔒 Lock on the keypad on projector, a message is displayed. Panel keys are locked. please press lock key for 3 seconds to unlock panel keys.

Important

• If you press ⏻ Power to turn off the projector without disabling panel key lock, the projector will still be in locked status the next time it is turned on.
• Keys on the remote control are still functional when panel key lock is enabled.

Setting the presentation timer

The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function:

1. Press Timer on the remote control to access the Presentation Timer menu or go to the SYSTEM SETTING: BASIC > Advanced > Presentation Timer menu and press Enter to display the Presentation Timer page.

2. Highlight Timer Period and decide the timer period by pressing ◀/▶.

3. Press ▼ to highlight Timer Display and choose if you want the timer to show up on the screen by pressing ◀ ▶

Selection Description

Always Displays the timer on screen throughout the presentation time.
1 Min/2 Min/3 Min	Displays the timer on screen in the last 1/2/3 minute(s).
Never Hides the timer throughout the presentation time.

1. Press ▼ to highlight Timer Position and set the timer position by pressing ◀/▶. Top-Left → Bottom-Left → Top-Right → Bottom-Right

2. Press ▼ to highlight Timer Counting Direction and select your desired counting direction by pressing ◀.▶

Selection Description

Count Up Increases from 0 to the preset time.

Count Down Decrease from the preset time to 0.

1. Press ▼ to highlight Sound Reminder and select your desired counting direction by pressing ◀/▶. If you select On, a double beep sound will be heard at the last 30 seconds of counting down/up, and a triple beep sound will be produced when the timer is up.
2. To activate the presentation timer, press ▼ to highlight Start Counting and select Yes.
3. To cancel the timer, highlight Start Counting and select No.

Menu operation

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings.

How to operate

1. Press Menu to open the OSD menu.
2. When OSD is displayed, use / to select any feature in the main menu.
3. After selecting the desired main menu item, press to enter sub-menu for feature setting.
4. Use / to select the desired item and adjust the settings with /.
5. Press Menu, the screen will return to the main menu or go back to the upper level of the menu.

Menu tree

Main Menu Sub Menu Settings
DISPLAY	Screen Color Off / Blackboard / Greenboard / Whiteboard
	Aspect Ratio	Auto / 4:3 / 16:9 (PJD5155L/PJD5255L/PJD5350LS) / 16:10 (PJD5555LW/PJD5550LWS) / Wide / Anamorphic/
	Keystone -40 - 40
	Position	X: -5 - 5Y: -5 - 5
	Phase 0 - 31
	H. Size -15 - 15
	Zoom	PC:1.0X - 2.0XVideo:1.0X - 1.8X
PICTURE	Color Mode	Brightest / Dynamic / Standard / ViewMatch / Movie
	Brightness 0 - 100
	Contrast -50 - 50
	Color Temp.	Warm / Normal / Neutral / Cool
		Red Gain
		Green Gain
		Blue Gain
		Red Offset
		Green Offset
		Blue Offset
	OverScan Off / 1	/ 2 / 3 / 4 / 5
	HDMI Settings	HDMI Format Auto/ RGB / YUV
		HDMI Range Auto / Enhanced / Normal
	Advanced	Color -50 - 50
		Tint	-50 - 50
		Sharpness 0 - 31
		Gamma	1 / 2 / 3 / 4 / 5 / 6 / 7 / 8
		Brilliant Color	Off / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10
		Noise Reduction	0 - 31
		Color Management	Primary color	R / G / B / C / M / Y
			Hue	-99 - 99
			Saturation	0 - 199
			Gain	5 - 195
	Reset Color Settings	Reset / Cancel
SOURCE	Quick Auto Search	Off / On
	3D Settings	3D Sync	Auto
			Off
			Frame Sequential
			Frame Packing
			Top-Bottom
			Side-by-Side
		3D Sync Invert	Disable /Invert
	Auto Power On	Computer Disable	Enable
		CEC Disable/ Enable
		Direct Power On	Off / On
	Auto Power Off	Power Saving	Disable/ 10/ 20/ 30 min
		Sleep Timer	Disable / 30 min/ 1 hr / 2 hr / 3 hr / 4 hr / 8 hr / 12 hr
	Smart Restart	Disable / Enable
	Quick Power Off	Disable / Enable
SYSTEM SETTING: BASIC	Language	English / Deutsch / Français / Español / Italiano / Русский / 한국어 / İtin / Português / 簡体中文 / 繁體中文 / 日本語 / Nederlands / Svenska / Türkçe / Čeština / Suomi / Polski / Indonesia / العربية / हृतिदी
	Projector Position	Front Table / Rear Table / Rear Ceiling / Front Ceiling
	Menu Settings	Menu Display Time	5 sec / 10 sec / 15 sec / 20 sec / 25 sec / 30 sec
		Menu Position	Center / Top-Left / Top-Right / Bottom-Left / Bottom-Right
	Blank Timer	Disable / 5 min / 10 min / 15 min / 20 min / 25 min / 30 min
	Splash Screen	Black / Blue / ViewSonic/ Off
	My Button	Auto Sync / Projector Position / Menu Position / Color Temp. / Brightness / Contrast / 3D Settings / Screen Color / Splash Screen / Message / Quick Auto Search / CEC / Lamp Mode / DCR / Power Saving / Freeze / Information
	Advanced	Pattern Off / 01 / Message On / Off
		Presentation Timer	Timer period 1 ~ 240 min
			Timer display Always / 1 min / 2 min / 3 min / Never
			Timer Position Top-Left / Bottom-Left / Top-Right / Bottom-Right
			Timer counting direction Count Down / Count Up
			Sound Reminder On / Off
			Start Counting / Off Yes / No

SYSTEM SETTING: ADVANCED	High Altitude Mode	Off / On
	DCR Off / On
	Audio Settings	Mute Off / On
		Audio Volume 0	-20
		Power On/Off Ring Tone	On/ Off
	Lamp Settings	Lamp Mode	Normal / Economic / Dynamic / Sleep Mode
		Reset Lamp Hours	Reset / Cancel
		Lamp hours
	Filter Settings	Filter Mode Off /	On
		Reset Filter Hours	Reset / Cancel
		Filter Hours
	Remote Control Code	1 / 2 / 3 / 4 / 5 / 6 / 7 / 8
	Advanced	Security Settings	Change password
			Power on Lock	Off / On
		Panel Key Lock	Off / On
	Reset Settings Reset / Cancel
INFORMATION	Current System Status
	Source
	Color Mode
	Resolution
	Color System
	Lamp Hours
	Filter Hours
	Firmware Version

DISPLAY

Screen Color

The Screen Color feature can help correct the projected picture's colors to prevent possible color difference between the source and projected pictures.

There are several precalibrated colors to choose from: Whiteboard, Greenboard, and Blackboard.

Aspect Ratio

Select how the picture fits on the screen:

• Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal or vertical width. You want to make most use of the screen without altering the source image's aspect ratio.
• 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio, as it displays them without aspect alteration.
  • 16:9: Available for PJD5155L/PJD5255L/PJD5350LS
  Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio, as it displays them without aspect alteration.
  • 16:10: Available for PJD5555LW/PJD5550LWS
  Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio, as it displays them without aspect alteration.
• Wide: Available for PJD5555LW/PJD5550LWS
  Scales a 4:3 aspect image vertically and horizontally in a non-linear manner so that it fills the screen with a 16:10 aspect ratio.
• Anamorphic: Scales a 16:9 aspect image vertically and horizontally in a non-linear manner so that it fills the screen with a 4:3 aspect ratio.

Keystone

Manually correct distorted images resulting from an angled projection.

Press Keystone △/□ on the projector or remote control to display the Keystone correction page.

Press to correct keystone at the top of the image.

Press ▽ to correct keystone at the bottom of the image.

Position

Displays the position adjusent page. This function is only available when a PC type input signal is selected.

Phase

Adjusts the clock phase to reduce image distortion. This function is only available when a PC type input signal is selected.

H. Size

Adjusts the horizontal width of the image. This function is only available when a PC type input signal is selected.

Zoom

Using the remote control

1. Press ☑ on the remote control to display the Zoom bar.
2. Press /▲to magnify the picture to a desired size.
3. Press ▲ repeatedly to magnify the picture to a desired size.
4. To navigate the picture, press Enter to switch to the paning mode and press the directional arrows ▲ (▼, ◀, ▶, ) to navigate the picture.
5. To reduce size of the picture, press Enter to switch back to the zoom in/out functionality, and press Auto Sync to restore the picture to its original size. You can also press ▼ repeatedly until it is restored to the original size.

Using the OSD menu

1. Press Menu and then press ▶ until the DISPLAY menu is highlighted.
2. Press ▼ to select Zoom and press Enter. The Zoom bar displays.
3. Repeat steps 3-5 in the section of Using the remote control above.


Color Mode

There are many factory presets optimized for various types of images.

• Brightest: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required.
• Dynamic: Is designed for presentations under daylight environment to match PC and notebook coloring. In addition, the projector will optimize the image quality using the dynamic PC function in accordance with the projected contents.
• Standard: Is designed for presentations under daylight environment to match PC and notebook coloring.
• ViewMatch: Switches between high brightness performance and accurate color performance.
• Movie: Is appropriate for playing colorful movies. This mode is suitable for viewing in a blackened (little light) environment

Brightness

Brighten or darken the image.

Contrast

Sets the difference between light and dark areas.

Color Temp.

Sets a color temperature from Warm, Normal, Neutral and Cool.

• Cool: With the highest color temperature, Cool makes the image appear the most bluish white than other settings.
• Neutral: Makes images appear bluish white.
• Normal: Maintains normal colorings for white.
• Warm: Makes images appear reddish white.
• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue.
• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and Blue.

OverScan

OverScan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.

HDMI Settings

HDMI Format

Selects appropriate HDMI format automatically or manually.

Note

- This function is only available when the HDMI-input port is in use.

HDMI Range

• Enhanced: The range for HDMI output signal is from 0 - 255.
• Normal: The range for HDMI output signal is from 16 - 235.

Advanced

Color

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Tint

Adjusts the red and green color tones of the image.

Sharpness

Adjusts the image to make it look sharper or softer.

Gamma

Effect the represent of dark scenery. With greater gamma value, dark scenery will look brighter.

Brilliant Color

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from "1" to "10". If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Noise Reduction

This function reduces electrical image noise caused by different media players. The higher the setting, the less the noise.

Color Management

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its hue, saturation and gain according to your preference.

Reset Color Settings

Reset the Color Mode settings of the current input source to default values.

SOURCE

Quick Auto Search

Automatically scan through all the input source if the function in the OSD menu is On. The function will stop the signal auto scan process and fix the signal source you preferred if you turn Off the Quick Auto Search.

3D Settings

This projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.

3D Sync

When you discover the inversion of the image depth, enable this function to correct the problem.

3D Sync Invert

When you discover the inversion of the image depth, enable this function to correct the problem.

Auto Power On

Computer

Selecting Enable the projector will turn on automatically when COMPUTER signal is detected.

CEC

This projector supports CEC (Consumer Electronics Control) function for synchronized power on/off operation via HDMI connection. That is, if a device that also supports CEC function is connected to the HDMI input of the projector, when the projector's power is turned off, the power of the connected device will also be turned off automatically. When the power of the connected device is turned on, the projector's power will be turned on automatically.

Note

• When connected to the HDMI input of the projector via an HDMI cable, and its CEC function is turned on.
• Depending on the connected device, the CEC function may not work.
• The function can't be enabled when Active VGA/Audio out function is disabled.

Direct Power On

Selecting On the projector will turn on automatically after the power cord has been connected and power has been applied.

Auto Power Off

Power Saving

The projector lowers the projector power if no input source is detected after 5 minutes to prevent unnecessary waste of lamp life. You can further decide if you would like the projector to turn off automatically after a set period of time.

When Disable is selected, the projector power will be reduced to 30% after no signal is detected for 5 minutes.

If you select 10 min, 20 min or 30 min, the projector power will be reduced to 30% after no signal is detected for 5 minutes. And when 10 min, 20 min or 30 min is up, the projector will turn off automatically.

Sleep Timer

This function allows the projector to turn off automatically after a set period of time to prevent unnecessary waste of lamp life.

Smart Restart

It takes some time to initiate this function. Make sure the projector has been turned on for more than 4 minutes. If the projector is resumed by using the Smart Restart feature, this function can be executed immediately.

Quick Power Off

- ON: Quick power on function speeds up the cooling process when turning off the projector.

- OFF: Turn off with cooling procedure.

Note

- When Desable is selected, the Smart Restart function will be automatically turned OFF.

SYSTEM SETTING: BASIC

Language

Select the language used by the on-screen menu.

Projector Position

Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly.

Menu Settings

Menu Display Time

Duration of OSD menu display countly starts (at idle state by second).

Menu Position

Choose the menu location on the display screen.

Blank Timer

Sets the image blank time when the Blank Timer feature is activated, once elapsed the image will return to the screen.

Splash Screen

Allows you to select which logo screen will display during projector start-up.

My Button

Allow user to define a short cut key on the remote control, and the function item is selected in OSD menu. Available options are: Auto Sync, Projector Position, Menu Position, Color Temp., Brightness, Contrast, 3D Settings, Screen Color, Splash Screen, Message, Quick Auto Search, CEC, Lamp Mode, DCR, Power Saving, Freeze, and Information.

Advanced

Pattern

Display embedded test pattern.

Message

Enable or disable the message box at the right bottom of the screen.

Presentation Timer

Remind the presenter to finish the presentation within a certain time frame. See "Setting the presentation timer" on page 23.

SYSTEM SETTING: ADVANCED

High Altitude Mode

Use this function to allow the fans operates at full speed continuously to achieve proper high altitude cooling of the projector.

DCR

DCR (Dynamic Contrast Ratio): Enable DCR will further enhance contrast ratio by darkening the black scenes. Disable DCR will resume to normal contrast performance. DCR will impact lamp life and system noise performance.

Audio Settings

Mute

Cuts off the sound temporarily.

Audio Volume

Adjusts the projector's volume level.

Power On/Off Ring Tone

Setting the sound mute or changing the sound level will not affect the Power On/Off Ring Tone. The only way to change Power On/Off Ring Tone is setting On or Off here.

Lamp Settings

Lamp Mode

Sets the Lamp Mode.

• Normal: 100% lamp power
• Economic: 80% lamp power
• Dynamic: 30\~100% lamp power based on signal
- Sleep Mode: 30% lamp power

Reset Lamp Hours

Reset the lamp Hour to 0 hours.

Lamp Hours

Display the lamp's elapsed operating time (in hours).

Filter Settings (Optional)

Filter Mode

Use this function to activate filter mode after the projector is installed an optional filter cover.

Reset Filter Hours

Reset the filter Hour to 0 hours.

Filter Hours

Display the filter's elapsed operating time (in hours).

Remote Control Code

See "Remote control code" on page 10 for details.

Advanced

Security Settings

• Change Password: Allows you to set or change the password.
• Power on Lock: If you enable this function, you will have to enter the password next time you turn on the projector.

See "Securing the projector" on page 20 for details.

Panel Key Lock

Disables or enables all panel key functions except Power on the projector and keys on the remote control. See "Locking control keys" on page 22 for details.

Reset Settings

Restore settings to factory default. The following settings will still remain: Keystone, Language, Projector Position, High Altitude Mode, Security Settings, Remote Control Code.

INFORMATION

Current System Status

Shows the current system status.

Source

Shows the current signal source.

Color Mode

Shows the selected mode in the Color Mode menu.

Resolution

Shows the native resolution of the input signal.

Color System

Shows input system format, NTSC, PAL, SECAM, or RGB.

Lamp Hours

Displays the number of hours the lamp has been used.

Filter Hours

Displays the number of hours the filter has been used.

Firmware Version

Shows firmware version.

Maintenance

The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.

Warning

- Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.

Cleaning the lens

Gently wipe the lens with lens cleaning paper. Do not touch the lens with your hands.

Cleaning the projector housing

Gently wipe with a soft cloth. If dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.

Note

• Turn off the projector and remove the AC power cord from the power outlet before beginning maintenance work.
• Make sure the lens is cool before cleaning.
• Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners.
• Do not use chemical sprays.
• Use a soft cloth or lens paper only.

Installing the dust filter (optional accessory)

Caution

• It is important to clean the dust filter every 100 hours after the dust filter is installed.
• Be sure to turn off the projector and unplug it from power source before installing or detaching the filter.
• If your projector is ceiling-mounted or is not easily accessible, pay special attention to your personal safety when replacing the dust filter.

Installing the dust filter

1. Be sure to turn off the projector and unplug it from power source.

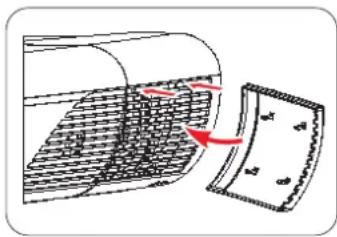

2. As the arrows shown to the right, fit the filter by aligning and inserting it into the projector slots. Make sure it clicks into place.

For first time installation:

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter Settings menu.
2. Press Enter and the Filter Settings page is displayed.
3. Highlight Filter Mode and select "On". The filter timer starts counting and the projector will remind you to clean the filter when the filter is in use for over 100 hours.

Caution

- Set Filter Mode to On only when using the projector after the dust filter (optional accessory) is properly attached. Failing to do so will result in a shorter lamp life.

Diagram showing a curved pipe or duct with internal hatching and a separate flat sheet, no text or symbols present.

Obtaining the filter hour information

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter Settings menu.
2. Press Enter and the Filter Settings page is displayed.
3. You will see the Filter Hours information on the menu.

Cleaning the dust filter

1. Be sure to turn off the projector and unplug it from power source.

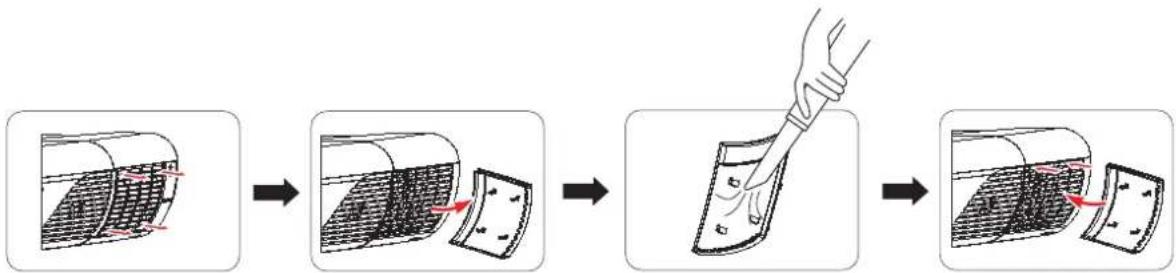

2. Press the latches on the dust filter and remove the filter from the projector.
3. Use a small vacuum cleaner or a soft brush to sweep the dust on the filter away.
4. Re-install the dust filter.

Resetting the filter timer

1. Open the OSD menu and go to the SYSTEM SETTING: ADVANCED > Filter Settings menu.
2. Press Enter and the Filter Settings page is displayed.
3. Highlight Reset Filter Hours and press Enter. A warning message is displayed asking if you want to reset the filter timer.
4. Highlight Reset and press Enter. The lamp timer will be reset to '0'.

Caution

- Remember to use Filter Mode to Off in the SYSTEM SETTING: ADVANCED > Filter Settings menu when using the projector with the dust filter removed. Setting Filter Mode to Off does not reset the filter timer. The timer will continue counting the next time you fit the filter back on and set Filter Mode to On.

Installing the cable management cover (optional accessory)

1. Make sure that all the cables are properly connected to the projector.

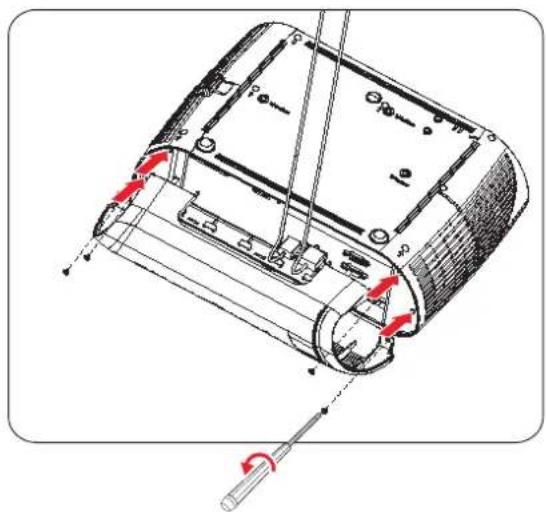

2. Attach the cable management cover to the back of the projector.
3. Tighten the screws that secure the cable management cover.

Technical line drawing of a mechanical device with red arrows indicating motion or assembly (no text or symbols)

Replacing the lamp

As the projector operates over time, the brightness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement.

Note

• The lamp is extremely hot right after turning off the projector. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down.
• Do not touch the lamp glass at any time. The lamp may explode due to improper handling, including the touching of the lamp glass.
• Lamp lifetime may differ from lamp to lamp and according to the environment of use. There is no guarantee of the same lifetime for each lamp. Some lamps may fail or terminate their lifetime in a shorter period of time than other similar lamps.
• A lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used.
• Wear protective gloves and eyeglasses when fixing or detaching the lamp.
• Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least for 5 minutes to turn off the projector after powering on.
• Do not operate the lamp in proximity to paper, cloth, or other combustible material nor cover it with such materials.
• Do not operate the lamp in an atmosphere containing an inflammable substance, such as thinner.
• Thoroughly ventilate the area or the room when operating the lamp in an oxygen atmosphere (in the air). If ozone is inhaled, it could cause headaches, nausea, dizziness, and other symptoms.

• The inorganic mercury is involved in the lamp. If the lamp bursts, the mercury inside the lamp will be exposed. Leave the area immediately if the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid the inhalation of mercury fumes. Otherwise it could be harmful to user's health.

• Turn off the projector.

• If the projector is installed in a ceiling mount, remove it.
• Unplug the power cord.

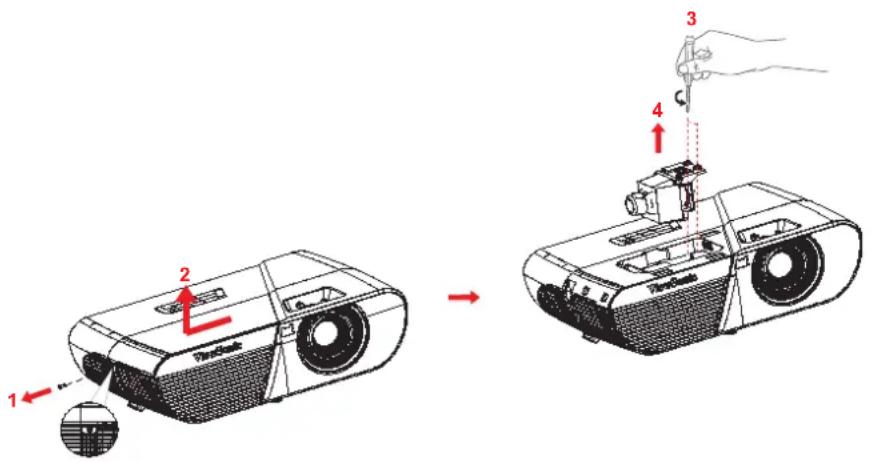

• Loosen the screw in the side of the lamp cover.1
• Remove the cover.2
• Loosen the screws from the lamp module.3
• Raise the handle and pull out the lamp module slowly and carefully.4
• Insert the new lamp module into the projector and tighten the screws.

• Replace the lamp cover and tighten the screw.

• Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling the lamp.

• Reset the lamp hour. Refer to the "SYSTEM SETTING: ADVANCED > Lamp Settings > Reset Lamp Hours" menu.

Note

• Dispose the used lamp according to local regulations.
• Ensure that screws are tightened properly. Screws not tightened fully may result in injury or accidents.
• Since the lamp is made of glass, do not drop the unit and do not scratch the glass.
• Do not reuse the old lamp. This could cause the lamp to explode.
• Be sure to turn off the projector and unplug the AC power cord before replacing the lamp.
• Do not use the projector with the lamp cover removed.

Specifications

Model name PJD5155L	PJD5255L PJD5555LW
Display system Single 0	.55" DLP panel Single 0.65" DLP pane
Resolution SVGA (800 pixels)	x 600	XGA (1024 x 768 pixels)	WXGA (1280 x 800 pixels)
Zoom 1.1x 1.2x
F/No. 2.5 - 2.7 2.56
Focal length 22.08 - 24	.28mm 20.99 - 25.61mm
Screen size 30" - 300"
Lamp 190W
Input terminal D-Sub 1	5-pin x 1, HDMI x 1
Output terminal	D-Sub 15 pin x 1
Control terminal	RS-232 x 1, Mini-B USB x1 (supports firmware upgrade and remote mouse control)
Speaker	2 watt x 1
Video compatibility	NTSC, NTSC 4.43PAL, PAL-N, PAL MSECAM, HDTV (480i/p, 576p, 720p, 1080i/p), Composite video
Scanning frequency Horizontal frequency Vertical frequency	31 - 100 KHz24 - 120 Hz
Environment	Operating:Temperature: 0°C to 40°CHumidity: 10%-90%Storage:Temperature: -20°C to 60°CHumidity:10%-90%
Power requirement	AC 100-240 V, 50 - 60 Hz, 2.6A
Power consumption	265W (Max.)
Dimension (W x D x H)	362 x 231 x 109 mm
Weight	2.4 kg (5.3 lb) without cable management cover
Note: Design and Specifications are subject to change without prior notice.

Model name PJD5350LS PJ	D5550LWS
Display system Single 0.55"	DLP panel Single 0.65" DLP	panel
Resolution XGA (1024 x 768 pixels) WXGA (1280 x 800 pixels)
Zoom Fix
F/No. 2.8
Focal length 7.26mm 7.51mm
Screen size 30" - 300"
Lamp 210W
Input terminal D-Sub 15-pin x 1, HDMI x 1
Output terminal D-Sub 15 pin x 1
Control terminal	RS-232 x 1, Mini-B USB x1 (supports firmware upgrade and remote mouse control)
Speaker	2 watt x 1
Video compatibility	NTSC, NTSC 4.43PAL, PAL-N, PAL MSECAM, HDTV (480i/p, 576p, 720p, 1080i/p),Composite video
Scanning frequencyHorizontal frequencyVertical frequency	31 - 100 KHz24 - 120 Hz
Environment	Operating:Temperature: 0°C to 40°CHumidity: 10%-90%Storage:Temperature: -20°C to 60°CHumidity:10%-90%
Power requirement	AC 100-240 V, 50 - 60 Hz, 2.6A
Power consumption	275W (Max.)
Dimension (W x D x H)	362 x 248 x 116 mm
Weight	2.5 kg (5.5 lb) without cable management cover
Note: Design and Specifications are subject to change without prior notice.

Dimensions

PJD5155L/PJD5255L/PJD5555LW

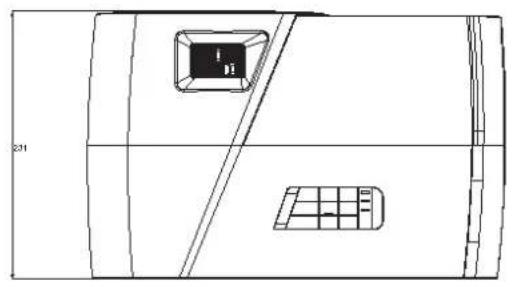

362 mm (W) x 231 mm (D) x 109 mm (H)

Technical line drawing of a vehicle or container with internal compartments and structural elements (no text or symbols)

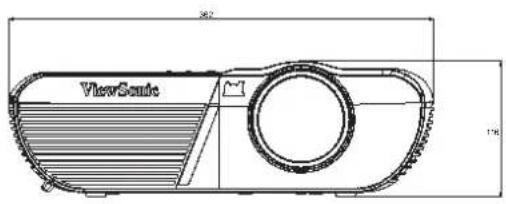

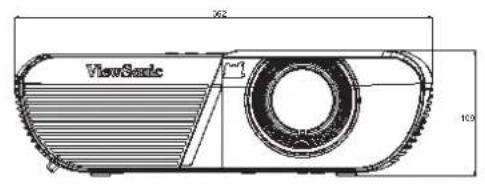

PJD5350LS/PJD5550LWS

Technical line drawing of a mechanical component with no visible text or symbols

Ceiling mount installation

Technical line drawing of a vehicle chassis frame with no visible text or symbols

PJD5155L/PJD5255L/PJD5555LW

Ceiling mount screws:

$$ \mathrm{M} 4 \times 8 (\text { Max. } L = 8 \mathrm{mm}) $$

Unit: mm

Technical line drawing of a vehicle chassis frame with no visible text or symbols

PJD5350LS/PJD5550LWS

Appendix

LED indicator messages

LED Type Color Status Meaning
Power LED Blue Solid			Normal power of standby mode .(Not available for PJD5 series)
Temp LED Red Off
Lamp LED Red Off
Power LED Blue Flash			Low power of standby mode. Temp LED Red Off
Lamp LED Red Off
Power LED Blue Flash			Powering upTemp LED Red Off
Lamp LED Red Off
Power LED Blue Solid			Normal operationTemp LED Red Off
Lamp LED Red Off
Power LED Blue Solid			Powering down
Temp LED Red Off
Lamp LED Red Off
Power LED Blue Solid			If the projector system has some problems with its fans, the projector will shut down.
Temp LED Red Flash
Lamp LED Red Flash
Power LED Blue Solid The lamp has reached its end of life and must be changed soon. The lamp will continue to operate until it fails. Change the lamp. If the lamp is off, then the ballast will become malfunction.
Temp LED Red Off
Lamp LED Red Flash
Power LED Blue Flash		Flash	1. Temperature is too high. The lamp will turn off. The fan motor is cooling the lamp.Or2. The cooling process is not complete after the projector is shut down and re-started right away.
Temp LED Red Flash
Lamp LED Red Off
Power LED Blue Flash			The lamp ignition failed. If temperature is too high, the fans will cool the lamp.
Temp LED Red Off
Lamp LED Red Solid
Power LED Blue Solid			Color wheel start fail
Temp LED Red Solid
Lamp LED Red Solid

Compatibility modes

Supported 3D signal for PC input

Resolution	Horizontal frequency (KHz)	Vertical frequency (Hz)	Pixel Frequency (MHz)	3D frame sequential	3D top bottom	3D side by side
640 x 480	59.94 31.469	25.175		◎	◎	◎
	72.809 37.861	31.500
	75 37.5	31.500
	85.008 43.269	36.000
720 x 400 70.087	31.469	28.3221
800 x 600	60.317 37.879	40.000		◎	◎	◎
	72.188 48.077	50.000
	75 46.875	49.500
	85.061 53.674	56.250
	119.854 77.425	83.000		◎
1024 x 768	60.004 48.363	65.000		◎	◎	◎
	70.069 56.476	75.000
	75.029 60.023	78.750
	84.997 68.667	94.500
	119.989 97.551	115.5		◎
1152 x 864	75 67.5	108
1280 x 720	60	45	74.250	◎	◎	◎
	120	90.000	148.500	◎
1280 x 768	59.87	47.776	79.5		◎	◎
1280 x 800	59.81	49.702	83.500		◎	◎
	74.934	62.795	106.500
	84.88	71.554	122.500
	119.909	101.563	146.25	◎
1280 x 1024	60.02	63.981	108.000			◎
	75.025	79.976	135.000
	85.024	91.146	157.500
1280 x 960	60	60	108.000		◎	◎
	85.002	85.938	148.500
1360 x 768	60.015	47.712	85.5			◎
1440 x 900	59.887	55.935	106.500			◎
1400 x 1050	59.978	65.317	121.750			◎
1600 x 1200	60	75	162.000		◎	◎
1680 x 1050	59.954	65.29	146.25		◎	◎
1920 x 1200	59.95	74.038	154.000			◎
640 x 480 @67Hz	66.667	35	30.240
832 x 624 @75Hz	74.546	49.722	57.280
1024 x 768 @75Hz	75.02	60.241	80.000
1152 x 870 @75Hz	75.06	68.68	100.000

• The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.
• 120Hz is signals are supported for frame sequential format only.

Supported timing for Component-YPbPr input

Timing Resolution		Vertical Frequency (Hz)	Horizontal Frequency (kHz)	Pixel Frequency (MHz)
480i* 720 x 480	59.94 15.73 13.5
480p* 720 x 480	59.94 31.47 27
576i 720 x 576	50 15.63 13.5
576p 720 x 576	50 31.25 27
720/50p 1280 x	720 50 37.5 74.25
720/60p*	1280 x 720 60 45.00	74.25
1080/50i	1920 x 1080 50 28.13	74.25
1080/60i	1920 x 1080 60 33.75	74.25
1080/24P	1920 x 1080 24	27 74.25
1080/25P	1920 x 1080 25 28.13	74.25
1080/30P	1920 x 1080 30 33.75	74.25
1080/50P	1920 x 1080 50 56.25	148.5
1080/60P	1920 x 1080 60 67.5 148.5

• *Supported timing for 3D signal with Frame Sequential format.
• Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration.

Troubleshooting

Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well.

Start-up problems

If no lights turn on:

• Be sure that the power cord is securely connected to the projector and the other end is plugged into an outlet with power.
• Press the power button again.
• Unplug the power cord and wait for a short while, then plug it in and press the power button again.

Image problems

If the searching source is displayed:

• Press Source to select an active input source.
• Be sure the external source is turned on and connected.
• For a computer connection, ensure your notebook computer's external video port is turned on. Refer to the computer manual.

If the image is out of focus:

• While displaying the on-screen menu, adjust the focus ring. (The image size should not change; if it does, you are adjusting the zoom, not the focus.)
• Check the projection lens to see if it needs cleaning.
• If the image is flickering or unstable for a computer connection:
• Press Menu, go to DISPLAY and adjust Phase or H. Size.

Remote control problems

If the remote control does not operate:

• Be sure nothing is blocking the remote control receiver on the front of the projector. Use the remote control within the effective range.
• Aim the remote control at the screen or at the front of the projector.
• Move the remote control so it is more directly in front of the projector and not as far to the side.

RS-232 command and configuration

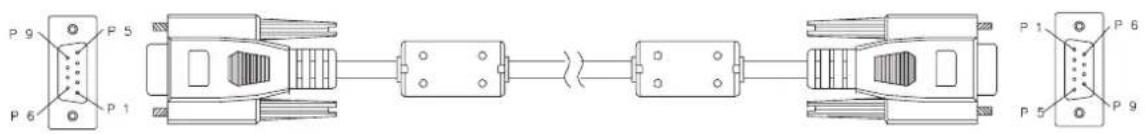

D-Sub 9 pin

1	1 C	D
2	RXD
3	TXD
4	DTR
5	GND
6	DSR
7	RTS
8	CTS
9	RI

Wire List

C1 COLOR C2
1 Black 1
2	B r o
3	R e
4 Orange 6
5	Yellow 5
6	Green
7	Blue
8	P urp le
9	White
SHELL DW SHELL

Baud Rate 115200 bps
Data Length 8 bit
Parity Check None
Stop Bit 1 bit
Flow Control None

Function Status Action		cmd
Power	Write	Power on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
		Power off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
	Read Power	status (on/off)	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00 0x5E
Reset all settings Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x02 0x00 0x5F
Reset Color Settings	Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2A 0x00 0x87
Splash Screen	Write	Splash Screen Black 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x00 0x67
		Splash Screen Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68
		Splash Screen ViewSonic	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69
		Splash Screen Screen Capture	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x03 0x6A
		Splash Screen Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x04 0x6B
	Read Splash	Screen status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68
Quick Power Off	Write	Quick Power Off Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x00 0x68
		Quick Power Off On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0B 0x01 0x69
	Read	Quick Power Off status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0B 0x69
High Altitude Mode	Write	High Altitude Mode Off	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x00 0x69
		High Altitude Mode On	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0C 0x01 0x6A
	Read	High Altitude Mode status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0C 0x6A
Lamp Mode	Write	Normal	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x00 0x6D
		Economic	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x01 0x6E
		Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x02 0x6F
		Sleep Mode	0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x03 0x70
	Read Lamp	Mode status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x10 0x6E
Message	Write	Message Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x00 0x84
		Message On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x27 0x01 0x85
	Read Message	age status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x27 0x85
Projector Position	Write	Front Table	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x00 0x5E
		Rear Table	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x01 0x5F
		Rear Ceiling	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x02 0x60
		Front Ceiling 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x00 0x03 0x61
	Read	Projector position status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x00 0x5F
3D Sync	Write	OFF	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x00 0x7E
		Auto	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x01 0x7F
		Frame Sequential	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x02 0x80
		Frame Packing	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x03 0x81
		Top-Bottom	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x04 0x82
		Side-by-Side	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x20 0x05 0x83
	Read 3D Sync	Sync Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x20 0x7F
3D Sync Invert	Write	Off	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x00 0x7F
		On	0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x21 0x01 0x80
	Read	3D Sync Invert Status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x21 0x80
Contrast	Write	Contrast decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x00 0x60
		Contrast increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x02 0x01 0x61
	Read Contrast ratio
Brightness	Write	Brightness decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x00 0x61
		Brightness increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x03 0x01 0x62
	Read Brightness
Aspect ratio	Write	Aspect ratio Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x00 0x62
		Aspect ratio 4:3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x02 0x64
		Aspect ratio 16:9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x03 0x65
		Aspect ratio 16:10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x04 0x66
		Aspect ratio Anamorphic 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68
		Aspect ratio Wide 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x04 0x06 0x68
	Read Aspect ratio
Auto Adjust Execute 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x05 0x00 0x63
Horizontal position	Write	Horizontal position shift right
		Horizontal position shift left
	Read Horizontal position
Vertical position	Write	Vertical position shift up
		Vertical position shift down
	Read read Vertical position
Color temperature	Write	color temperature Warm
		color temperature Normal
		color temperature Neutral
		color temperature Cool
	Read color temperature status
Blank	Write	Blank On 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68
		Blank Off 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67
	Read Blank status
Keystone-Vertical	Write	Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E
		Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x01 0x8F
	Read Keystone status
Keystone-Horizontal	Write	Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x31 0x00 0x8E
		Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x11 0x31 0x01 0x8F
	Read Keystone status
Color mode	Write	Brightest
		Movie
		PC
		ViewMatch
		Dynamic 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0B 0x08 0x71
	Read Preset mode status

Primary Color	Write	Primary color R 0x06	0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x00 0x6E
		Primary color G 0x06	0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x01 0x6F
		Primary color B 0x06	0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x02 0x70
		Primary color C 0x06	0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x03 0x71
		Primary color M 0x06	0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x04 0x72
		Primary color Y 0x06	0x14 0x00 0x04 0x00 0x34 0x12 0x10 0x05 0x73
	Read Primary color status		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x10 0x6F
Hue	Write	Hue decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x00 0x6F
		Hue increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x11 0x01 0x70
	Read Hue		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x11 0x70
Saturation	Write	Saturation decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x00 0x70
		Saturation increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x12 0x01 0x71
	Read Saturation		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x12 0x71
Gain	Write	Gain decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x00 0x71
		Gain increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x13 0x01 0x72
	Read Gain		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13 0x72
Freeze	Write	Freeze On 0x06 0x14	0x00 0x04 0x00 0x34 0x13 0x00 0x01 0x60
		Freeze Off 0x06 0x14	0x00 0x04 0x00 0x34 0x13 0x00 0x00 0x5F
	Read Freeze status		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x00 0x60
Source input	Write	Input source VGA 0x06	0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x00 0x60
		Input source VGA2 0x06	0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x08 0x68
		Input source HDMI 0x06	0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x03 0x63
		Input source HDMI2	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x07 0x67
		Input source Composite	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x05 0x65
		Input source SVIDEO	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x01 0x06 0x66
	Read Source		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x01 0x61
Quick Auto Search	Write	Quick Auto Search on	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x01 0x62
		Quick Auto Search off	0x06 0x14 0x00 0x04 0x00 0x34 0x13 0x02 0x00 0x61
	Read	Quick Auto Search status	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x13 0x02 0x62
Mute	Write	Mute on	0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x01 0x61
		Mute off	0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x00 0x00 0x60
	Read Mute status		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x00 0x61
Volume	Write	Increase Volume 0x06	0x14 0x00 0x04 0x00 0x34 0x14 0x01 0x00 0x61
		Decrese Volume	0x06 0x14 0x00 0x04 0x00 0x34 0x14 0x02 0x00 0x62
	Read Volume		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x14 0x03 0x64
Language	Write	English 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x00 0x61
		Français 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x01 0x62
		Deutsch 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x02 0x63
		Italiano 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x03 0x64
		Español 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x04 0x65
		Русский 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x05 0x66
		繁體中文 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x06 0x67
		简体中文 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x07 0x68
		日本語 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x08 0x69
		한국어 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x09 0x6A
		Svenska 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0a 0x6B
		Nederlands 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0b 0x6C
		Türkçe 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0c 0x6D
		Čeština 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0d 0x6D
		Português 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0e 0x6F
		Insu 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x0f 0x70
		Polski 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x10 0x71
		Suomi 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72
		العربية 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73
		Indonesia 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74
		हनिर्वी 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x14 0x75
	Read Language	0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x00 0x62
Lamp Time	Write	Reset Lamp usage hour 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x01 0x00 0x62
	Read Lamp	usage hour 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x15 0x01 0x63
HDMI Format	Write	RGB 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x00 0x85
		YUV 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x01 0x86
		Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x28 0x02 0x87
	Read HDMI	Format status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x28 0x86
HDMI Range	Write	Enhanced 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x00 0x86
		Normal 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x01 0x87
		Auto 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x29 0x02 0x88
	Read HDMI	Range status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x29 0x87
CEC	Write	Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x00 0x88
		On 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x2B 0x01 0x89
	Read CEC	status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x2B 0x89
Error status Read Read error status		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x0D 0x66
Brilliant Color	Write	Brilliant Color 0 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x00 0x6D
		Brilliant Color 1 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x01 0x6E
		Brilliant Color 2 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x02 0x6F
		Brilliant Color 3 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x03 0x70
		Brilliant Color 4 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x04 0x71
		Brilliant Color 5 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x05 0x72
		Brilliant Color 6 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x06 0x73
		Brilliant Color 7 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x07 0x74
		Brilliant Color 8 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x08 0x75
		Brilliant Color 9 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x09 0x76
		Brilliant Color 10 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0F 0x0A 0x77
	Read Brilliant Color status		0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x0F 0x6E
Remote Control code	Write	code 1 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x00 0xA0
		code 2 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x01 0xA1
		code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2
		code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3
		code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4
		code 6 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x05 0xA5
		code 7 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x06 0xA6
		code 8 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x07 0xA7
	Read	Remote Control code status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x0C 0x048 0xA1
Screen Color	Write	Screen color Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x00 0x8F
		Blackboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x01 0x90
		Greenboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x02 0x91
		Whiteboard 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x32 0x03 0x92
	Read Screen	Color status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x32 0x90
Over Scan	Write	Overscan Off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x00 0x90
		Overscan 1 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x01 0x91
		Overscan 2 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x02 0x92
		Overscan 3 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x03 0x93
		Overscan 4 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x04 0x94
		Overscan 5 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x33 0x05 0x95
	Read Oversc	scan status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x33 0x91
Remote Key Write		Menu 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0F 0x61
		Exit 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x13 0x65
		Top 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0B 0x5D
		Bottom 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0C 0x5E
		Left 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0D 0x5F
		Right 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x0E 0x60
		Source 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x04 0x56
		Enter 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x15 0x67
		Auto 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x08 0x5A
		My Button 0x02 0x14 0x00 0x04 0x00 0x34 0x02 0x04 0x11 0x63

IR control table

System Code: 83F4

Format : NEC

Key Format Byte1 Byte2 Byte3 Byte4
Freeze NEC X3 F4 03 FC
PgDn NEC X3 F4 05 FA
PgUp NEC X3 F4 06 F9
Blank NEC X3 F4 07 F8
Auto sync NEC X3 F4 08 F7
Up	NEC	X3	F4	0B
Down	NEC	X3	F4	0C
Left	NEC	X3	F4	0E
Right	NEC	X3	F4	0F
Color Mode NEC X3 F4 10 EF
Aspect NEC X3 F4 13 EC
Mute NEC X3 F4 14 EB
Enter NEC X3 F4 15 EA
Power ON	NEC X3 F4 17 E8
Magnify	NEC	X3	F4	32
Presentation Timer	NEC X3 F4 27 D8
Exit	NEC X3 F4 28 D7
D. ECO(Eco mode)	NEC X3 F4 2B D4
Menu NEC X3 F4 30 CF
Mouse	NEC X3 F4 31 CE
Mouse Left	NEC X3 F4 36 C9
Mouse Right	NEC X3 F4 37 C8
Source NEC X3 F4 40 BF
VGA (PC)	NEC X3 F4 41 BE
Pattern	NEC X3 F4 55 AA
My button NEC X3 F4 56		A9
HDMI NEC X3 F4 58		A7
Volume+	NEC X3 F4 82 7D
Volume-	NEC X3 F4 83 7C
Key pad lock	NEC X3 F4 8E		71
RC ID	NEC X3 F4 96 69

CD

Address code

Code 1	83F4
Code 2	93F4
Code 3	A3F4
Code 4	B3F4
Code 5	C3F4
Code 6	D3F4
Code 7	E3F4
Code 8	F3F4

Customer Support

For technical support or product service, see the table below or contact your reseller.

NOTE: You will need the product serial number.

Country/Region Website		T= TelephoneC = CHAT ONLINE	Email
AustraliaNew Zealand	www.viewsonic.com.au	AUS= 1800 880 818NZ= 0800 008 822	[e-mail]
Canada www.viewsonic.com		T (Toll-Free)= 1-866-463-4775T (Toll)= 1-424-233-2533	[e-mail]
Europe www.viewsoniceurope.com www.viewsoniceurope.com/uk/support/call-desk/
Hong Kong www.hk.viewsonic.com T= 852 3102		2900 [e-mail]
India www.in.viewsonic.com T= 1800 419 0959 [e-mail]
Korea ap.viewsonic.com/kr/ T= 080 333 2131 [e-mail]
Latin America(Argentina)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Latin America(Chile)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Latin America(Columbia)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Latin America(Mexico)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Nexus Hightech Solutions, Cincinnati #40 Desp. 1 Col. De los Deportes Mexico D.F.Tel: [phone])6547-6484Other places please refer to http://www.viewsonic.com/la/soporte/servicio-tecnico#mexico
Latin America(Peru)	www.viewsonic.com/la/	C=http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]
Macau www.hk.viewsonic.com T= 853 2870 0303 [e-mail]
Middle East ap.viewsonic.com/me/ Contact your reseller [e-mail]
Puerto Rico &Virgin Islands	www.viewsonic.com	T= 1-800-688-6688 (English)C= http://www.viewsonic.com/la/soporte/servicio-tecnico	[e-mail]@viewsonic.com
Singapore/Malaysia/Thailand	www.ap.viewsonic.com	T= 65 6461 6044 [e-mail]
South Africa	ap.viewsonic.com/za/	Contact your reseller	[e-mail]
United States	www.viewsonic.com	T (Toll-Free)= 1-800-688-6688T (Toll)= 1-424-233-2530	[e-mail]

Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.

Limited Three (3) year General Warranty

Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information.

Limited One (1) year Heavy Usage Warranty:

Under heavy usage settings, where a projector's use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase.

Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only. All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lightning, or other acts of nature, improper maintenance, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Operation outside of product specifications.
c. Operation of the product for other than the normal intended use or not under normal conditions.
d. Repair or attempted repair by anyone not authorized by ViewSonic.
e. Any damage of the product due to shipment.
f. Removal or installation of the product.
g. Causes external to the product, such as electric power fluctuations or failure.
h. Use of supplies or parts not meeting ViewSonic's specifications.
i. Normal wear and tear.
j. Any other cause which does not relate to a product defect.

1. Removal, installation, one way transportation, insurance, and set-up service charges.

How to get service:

1. For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to Customer Support page). You will need to provide your product's serial number.
2. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.

Effect of state law:

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

Sales outside the U.S.A. and Canada:

For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer.

The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.

For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information.

Mexico Limited Warranty

ViewSonic® Projector

What the warranty covers:

ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories.

How long the warranty is effective:

3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase.

Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer's installed lamp only.

All accessory lamps purchased separately are warranted for 90 days.

Who the warranty protects:

This warranty is valid only for the first consumer purchaser.

What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Causes external to the product, such as electrical power fluctuations or failure.
d. Use of supplies or parts not meeting ViewSonic's specifications.
e. Normal wear and tear.
f. Any other cause which does not relate to a product defect.

1. Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time.

2. Removal, installation, insurance, and set-up service charges.

How to get service:

For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your product's serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.

For Your Records

Product Name: ____ Model Number: ____

Document Number: ____ Serial Number: ____ Purchase Date: ____ Extended Warranty Purchase? ____(Y/N)

If so, what date does warranty expire?

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties:

There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.

Exclusion of damages:

ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
2. Any other damages, whether incidental, consequential or otherwise.
3. Any claim against the customer by any other party.
4. Repair or attempted repair by anyone not authorized by ViewSonic.

Contact Information for Sales & Authorized Service (Centro Autorizado de Servicio) within Mexico:
Name, address, of manufacturer and importers:México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas,Col. San Fernando Huixquilucan, Estado de MéxicoTel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm
NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004
Hermosillo:Distribuciones y Servicios Computacionales SA de CV.Calle Juarez 284 local 2Col. Bugambilas C.P: 83140Tel: [phone]E-Mail: [e-mail]	Villahermosa:Compumantenimietnos Garantizados, S.A. de C.V.AV. GREGORIO MENDEZ #1504COL, FLORIDA C.P. 86040Tel: [phone]E-Mail: [e-mail]
Puebla, Pue. (Matriz):RENTA Y DATOS, S.A. DE C.V. Domicilio:29 SUR 721 COL. LA PAZ72160 PUEBLA, PUE.Tel: [phone] CON 10 LINEASE-Mail: [e-mail]	Veracruz, Ver.:CONEXION Y DESARROLLO, S.A DE C.V. Av. Americas # 419ENTRE PINZÓN Y ALVARADOFracc. Reforma C.P. 91919Tel: [phone]E-Mail: [e-mail]
ChihuahuaSoluciones Globales en ComputaciónC. Magisterio # 3321 Col. MagisterialChihuahua, Chih.Tel: [phone]E-Mail: [e-mail]	CuernavacaCompusupport de Cuernavaca SA de CVFrancisco Leyva # 178 Col. Miguel HidalgoC.P. 62040, Cuernavaca MorelosTel: 01 777 3180579 / 01 777 3124014E-Mail: [e-mail]
Distrito Federal:QPLUS, S.A. de C.V.Av. Coyoacán 931Col. Del Valle 03100, México, D.F.Tel: [phone]E-Mail : [e-mail]	Guadalajara, Jal.:SERVICRECE, S.A. de C.V.Av. Niños Héroes # 2281Col. Arcos Sur, Sector Juárez44170, Guadalajara, JaliscoTel: 01(52)33-36-15-15-43E-Mail: [e-mail]
Guerrero AcapulcoGS Computación (Grupo Sesicomp)Progreso #6-A, Colo Centro39300 Acapulco, GuerreroTel: 744-48-32627	Monterrey:Global Product ServicesMar Caribe # 1987, Esquina con Golfo PérsicoFracc. Bernardo Reyes, CP 64280Monterrey N.L. MéxicoTel: 8129-5103E-Mail: [e-mail]
MERIDA:ELECTROSERAv Reforma No. 403Gx39 y 41Mérida, Yucatán, México CP97000Tel: [phone]E-Mail: [e-mail]	Oaxaca, Oax.:CENTRO DE DISTRIBUCION YSERVICIO, S.A. de C.V.Murguía # 708 P.A., Col. Centro, 68000, OaxacaTel: 01(52)95-15-15-22-22Fax: [phone]E-Mail. [e-mail]
Tijuana:STDAv Ferrocarril Sonora #3780 L-CCol 20 de NoviembreTijuana, Mexico	FOR USA SUPPORT:ViewSonic Corporation14035 Pipeline Ave. Chino, CA 91710, USATel: 800-688-6688 (English); 866-323-8056 (Spanish);E-Mail: http://www.viewsonic.com

Three colorful bird illustrations perched on a branch against a red background (no text or symbols)

ViewSonic®
