NXT-CA7 - Screen AMX - Free user manual and instructions

Product Type	7-inch Table Top Touch Panel
Model	NXT-CA7 (FG2258-09)
Brand	AMX
Dimensions (HWD)	Fully raised: 6.86" x 7.96" x 6.93" (17.40 cm x 20.20 cm x 17.60 cm); Fully lowered height: 3.70" (9.40 cm)
Weight	2.5 lb (1.12 kg)
Power Requirements	Power over Ethernet (PoE); Max power draw: 5.5W
Display Type	TFT Color Active-Matrix, 16:9 aspect ratio
Screen Resolution	800 x 480 pixels (HV) @ 60 Hz
Active Screen Area	6.00" x 3.60" (15.24 cm x 9.14 cm)
Brightness (Luminance)	300 cd/m²
Contrast Ratio	400:1
Display Colors	256 thousand colors (18-bit color depth)
Viewing Angle	Up/Down/Left/Right: 70°/60°/70°/70°
Memory	128 MB SDRAM; 256 MB integrated Flash memory (factory programmed, firmware upgradeable)
Connectivity	Ethernet 10/100 port (RJ-45, PoE), Mini-USB (programming and audio output)
Front Panel Features	Light sensor (auto brightness adjustment), Motion sensor (PIR, wakes panel), Front bezel button (sleep/wake and setup access), built-in speaker (4 Ohm, 2W, 300 Hz cutoff)
Supported Audio Sample Rates	48000, 44100, 32000, 24000, 22050, 16000, 12000, 11025, 8000 Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity (Operating / Storage)	20% - 85% RH / 5% - 85% RH (non-condensing)
Certifications	FCC Part 15 Class B, CE, IEC60950, RoHS
Included Accessories	PS-POE-AF PoE Injector (FG423-80), CC-USB programming cable (FG10-5965), USB to Headphone Adaptor (FG5966-23)
Warranty	3 years limited warranty (display and touch overlay components: 1 year)

Frequently Asked Questions - NXT-CA7 AMX

How do I calibrate the touch screen on the NXT-CA7?

Press and hold the front bezel button for 8 seconds to access the Calibrate page. Touch each crosshair target as it appears. After successful calibration, a 'Calibration Successful.' message will appear. Press anywhere to return to Setup.

What power supply does the NXT-CA7 require?

The NXT-CA7 is powered via Power over Ethernet (PoE). Use a PoE injector like the PS-POE-AF (included) or a PoE-enabled switch. No local power supply is needed.

How do I connect the panel to a NetLinx Master?

Connect the panel to the network via the Ethernet port. From the Setup page, go to Protected Setup > System Settings. Configure the IP Settings (DHCP or Static) and set the Master Connection Type to Ethernet, Mode URL, and enter the Master IP/URL and System Number.

Can I use the NXT-CA7 wirelessly?

No, the NXT-CA7 does not support wireless communication. It requires a wired Ethernet connection for all network communication.

How do I update the firmware on the NXT-CA7?

Use the mini-USB port to connect the panel to a PC running NetLinx Studio. Configure the panel for USB communication, then use the firmware upgrade tool to transfer the KIT file. Ensure the panel is powered on before connecting the USB cable.

What is the purpose of the light sensor and motion sensor?

The light sensor automatically adjusts the panel brightness based on ambient light. The motion sensor (PIR) wakes the panel from sleep mode when someone approaches, saving power.

Can I use a headphone with the NXT-CA7?

Yes, the mini-USB port supports audio output. Use the included USB to Headphone Adaptor (FG5966-23) to connect standard headphones.

How do I reset the panel to factory settings?

From the Setup page, go to Protected Setup and enter password 1988. Navigate to System Settings and select the option to reset to factory defaults. Alternatively, a firmware reflash can restore default settings.

What is the maximum number of touch panels that can be connected to one NetLinx Master?

The number depends on the Master model and system configuration. Each panel must have a unique Device Number (1-32000). Consult your NetLinx Master documentation for capacity limits.

How do I clean the touch screen?

Use a soft, lint-free cloth slightly dampened with water or a mild glass cleaner. Do not use abrasive cleaners or spray directly onto the screen. Gently wipe the surface.

USER MANUAL NXT-CA7 AMX

Operation/Reference Guide

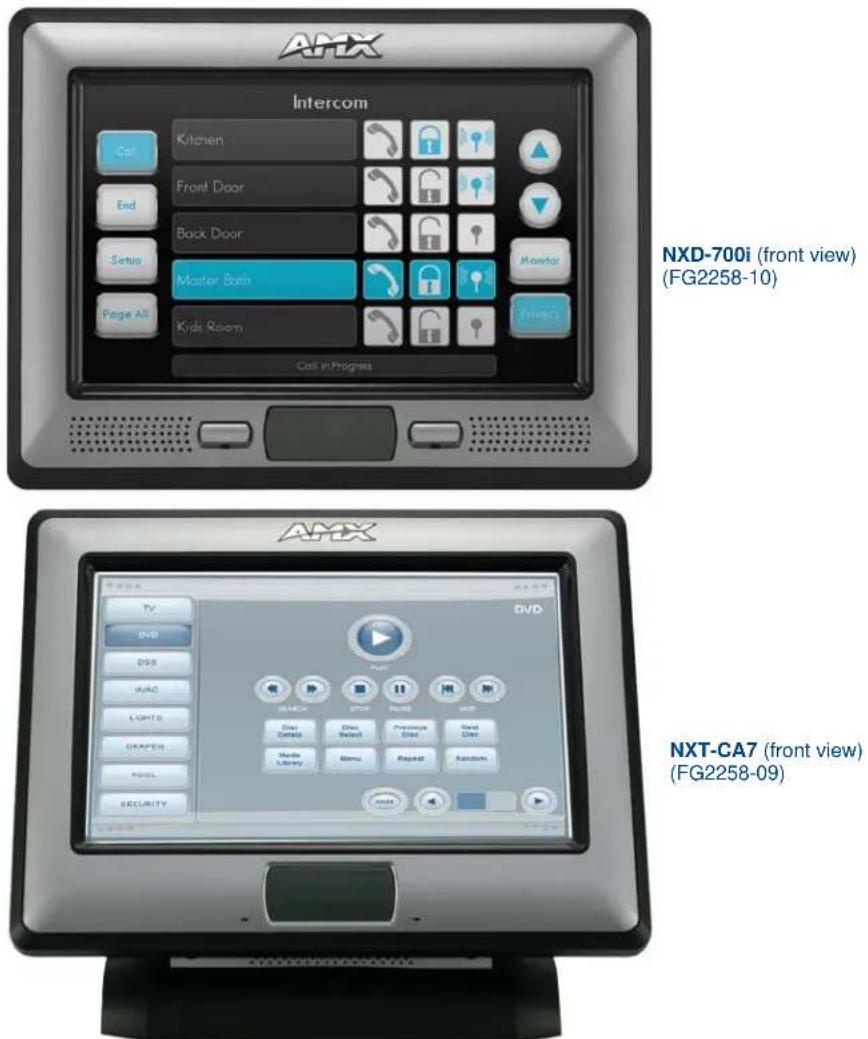

7" Modero Touch Panels

NXD-700i 7" Wall/Flush Mount Touch Panel with Intercom

NXT-CA7 7" Table Top Touch Panel

AMX Limited Warranty and Disclaimer

This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which include AMX Dealers, Distributors, VIP's or other AMX authorized entity.

AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of purchase, with the following exceptions:

• Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components are warranted for a period of one (1) year.
  • Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year.
• AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combinations of dimmers, lamps and ballasts or transformers.

- AMX software is warranted for a period of ninety (90) days.

- Batteries and incandescent lamps are not covered under the warranty.

- AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty applies to products in their original installation only. If a product is moved to a different installation, the Limited Lifetime Warranty will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty.

All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number.

AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Authorized Partner for a third party.

This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earthquake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts, sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence.

This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury.

Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determination of rights.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRANTIES, PRICES, AND POLICIES WITHOUT NOTICE.

AMX Software License and Warranty Agreement

• LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists of generally available programming and development software, product documentation, sample applications, tools and utilities, and miscellaneous technical information. Please refer to the README.TXT file on the compact disc or download for further information regarding the components of the AMX Software. The AMX Software is subject to restrictions on distribution described in this License Agreement. AMX Dealer, Distributor, VIP or other AMX authorized entity shall not, and shall not permit any other person to, disclose, display, loan, publish, transfer (whether by sale, assignment, exchange, gift, operation of law or otherwise), license, sublicense, copy, or otherwise disseminate the AMX Software. Licensee may not reverse engineer, decompile, or disassemble the AMX Software.
• ACKNOWLEDGEMENT. You hereby acknowledge that you are an authorized AMX dealer, distributor, VIP or other AMX authorized entity in good standing and have the right to enter into and be bound by the terms of this Agreement.
• INTELLECTUAL PROPERTY. The AMX Software is owned by AMX and is protected by United States copyright laws, patent laws, international treaty provisions, and/or state of Texas trade secret laws. Licensee may make copies of the AMX Software solely for backup or archival purposes. Licensee may not copy the written materials accompanying the AMX Software.
  • TERMINATION. AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REASON UPON WRITTEN NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or destroy all originals and copies of the AMX Software to AMX and certify in writing that all originals and copies have been returned or destroyed.
• PRE-RELEASE CODE. Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRE-RELEASE CODE and such code may not be at the level of performance, compatibility and functionality of the GA code. The PRE-RELEASE CODE may not operate correctly and may be substantially modified prior to final release or certain features may not be generally released. AMX is not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS PROVIDED "AS IS" WITH NO WARRANTIES.
• LIMITED WARRANTY. AMX warrants that the AMX Software (other than pre-release code) will perform substantially in accordance with the accompanying written materials for a period of ninety (90) days from the date of receipt. AMX DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE AMX SOFTWARE. THIS LIMITED WARRANTY GIVES LICENSEE SPECIFIC LEGAL RIGHTS. Any supplements or updates to the AMX SOFTWARE, including without limitation, any (if any) service packs or hot fixes provided to Licensee after the expiration of the ninety (90) day Limited Warranty period are not covered by any warranty or condition, express, implied or statutory.
• LICENSEE REMEDIES. AMX's entire liability and Licensee's exclusive remedy shall be repair or replacement of the AMX Software that does not meet AMX's Limited Warranty and which is returned to AMX in accordance with AMX's current return policy. This Limited Warranty is void if failure of the AMX Software has resulted from accident, abuse, or misapplication. Any replacement AMX Software will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer. Outside the United States, these remedies may not available. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL AMX BE LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF OR INABILITY TO USE THIS AMX SOFTWARE, EVEN IF AMX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES/COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO LICENSEE.
• U.S. GOVERNMENT RESTRICTED RIGHTS. The AMX Software is provided with RESTRICTED RIGHTS. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph ©(1)(ii) of The Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or subparagraphs ©(1) and (2) of the Commercial Computer Software Restricted Rights at 48 CFR 52.227-19, as applicable.
• SOFTWARE AND OTHER MATERIALS FROM AMX.COM MAY BE SUBJECT TO EXPORT CONTROL. The United States Export Control laws prohibit the export of certain technical data and software to certain territories. No software from this Site may be downloaded or exported (i) into (or to a national or resident of) Cuba, Iraq, Libya, North Korea, Iran, Syria, or any other country to which the United States has embargoed goods; or (ii) anyone on the United States Treasury Department's list of Specially Designated Nationals or the U.S. Commerce Department's Table of Deny Orders. AMX does not authorize the downloading or exporting of any software or technical data from this site to any jurisdiction prohibited by the United States Export Laws.

This Agreement replaces and supersedes all previous AMX Software License Agreements and is governed by the laws of the State of Texas, and all disputes will be resolved in the courts in Collin County, Texas, USA. For any questions concerning this Agreement, or to contact AMX for any reason, please write: AMX License and Warranty Department, 3000 Research Drive, Richardson, TX 75082.

Table of Contents

Modero 7" Touch Panels ....1

Overview 1

NXD-700i Overview 2

NXD-700i Specifications 2

NXD-700i Panel Connectors.... 4

NXT-CA7 Overview....4

NXT-CA7 Specifications 5

NXT-CA7 Panel Connectors.... 6

NXD-700i - Installation 7

Overview 7

Unpacking the Panel 7

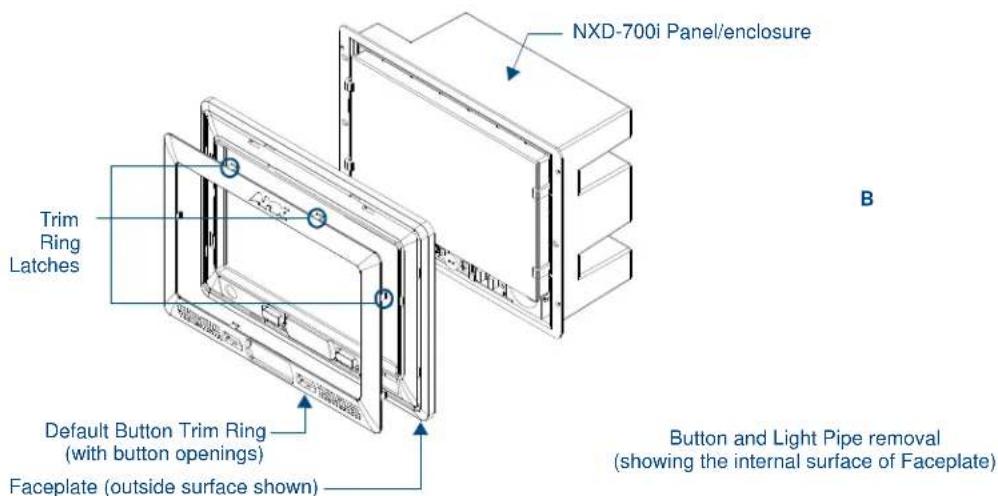

Installing the No-Button Trim Ring 7

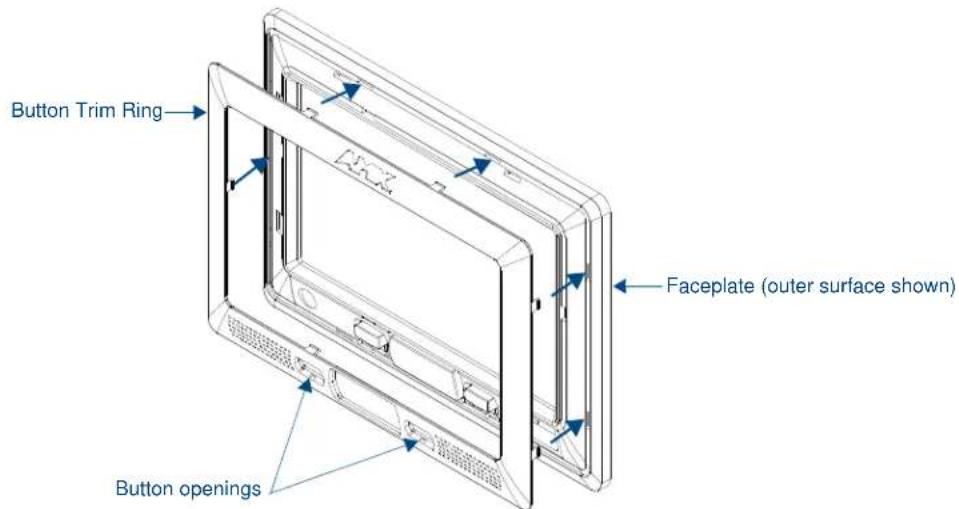

Installing the Button Trim Ring 8

Pre-Wall Installation of the Conduit Box.... 10

Installing the NXD-700i Touch Panel 11

Installing the Panel Within a Conduit Box 11

Installing the Panel Into Drywall Using Expansion Clips 12

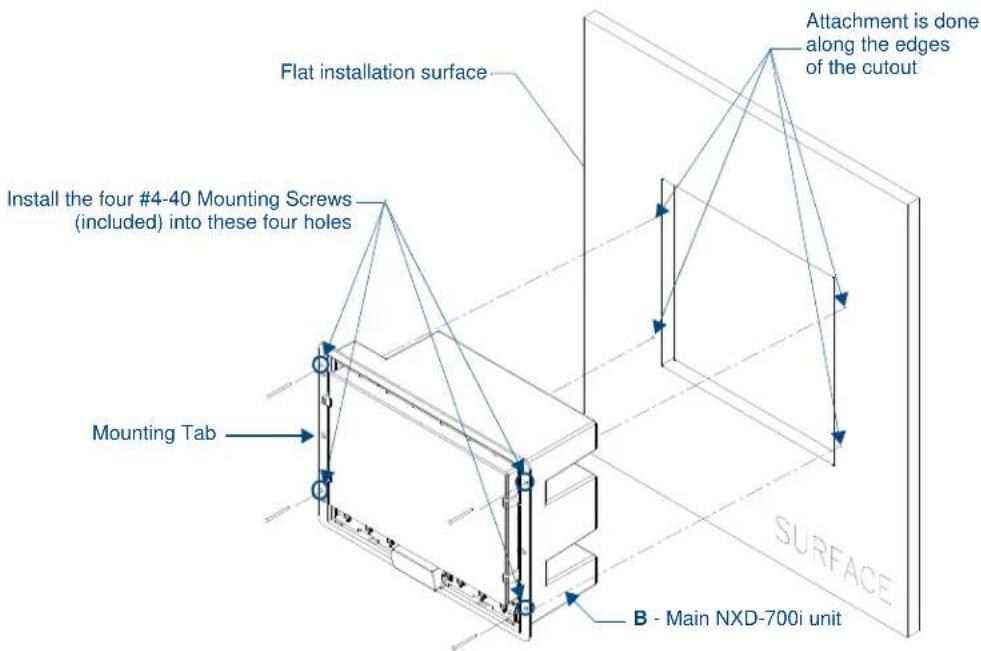

Installing the Panel Into a Flat Surface using #4 screws 14

Installing the Panel into an (optional) Rack Mount Kit (NXA-RK7).... 15

Ethernet/RJ-45 Port: Connections and Wiring 16

NXT-CA7 - Installation 17

Overview 17

Unpacking the Panel 17

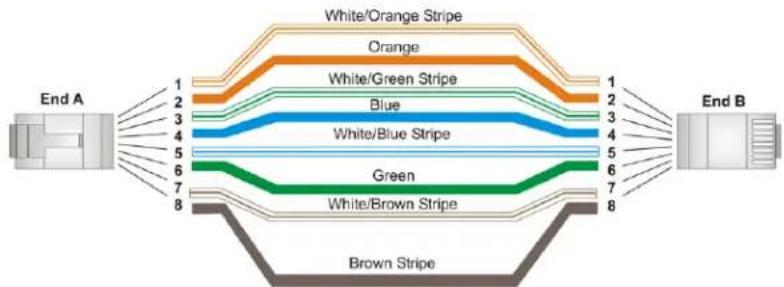

Ethernet/RJ-45 Port: Connections and Wiring 17

PS-POE-AF PoE Injector 19

Overview 19

Panel Calibration 21

Overview 21

Calibrating the Panel 21

Configuring Communication 23

Overview 23

Modero Setup and System Connection 23

Configuring and Using USB with a Virtual Master 25

Step 1: Setup the Panel and PC for USB Communication 25

Step 2: Confirm the Installation of the USB Driver on the PC 25

Step 3: Confirm and View Current AMX USB Device Connections.... 26

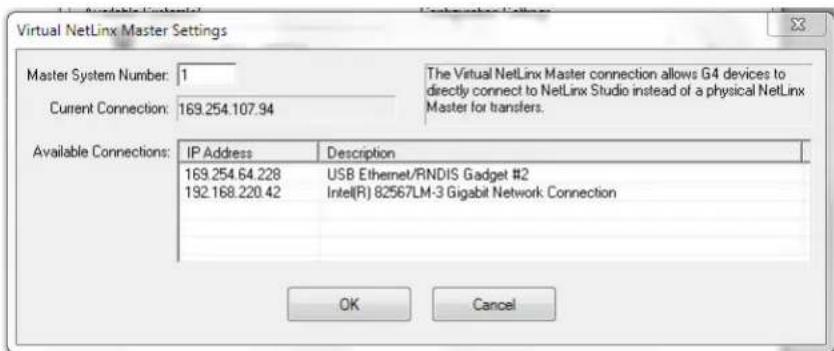

Step 4: Configure a Virtual Master (using NetLinx Studio) for USB.... 27

Step 5: Confirm and View Current AMX USB Device Connections.... 29

Configuring a Wired Ethernet Connection.... 30

Step 1: Configure the Panel's Wired IP Settings.... 30

IP Settings section - Configuring a DHCP Address over Ethernet 30

IP Settings section - Configuring a Static IP Address over Ethernet.... 31

Step 2: Choose a Master Connection Mode Setting .... 31

Step 3: Configure an Ethernet Connection Type 32

Master Connection section - Virtual Master communication over Ethernet.... 32

Master Connection section - NetLinx Master Ethernet IP Address - URL Mode 34

Master Connection section - NetLinx Master Ethernet IP Address - Listen Mode ...... 34

Master Connection section - NetLinx Master Ethernet IP Address - Auto Mode...... 35

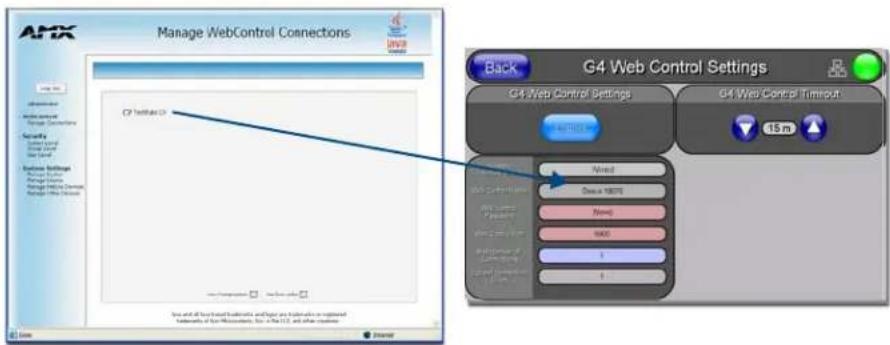

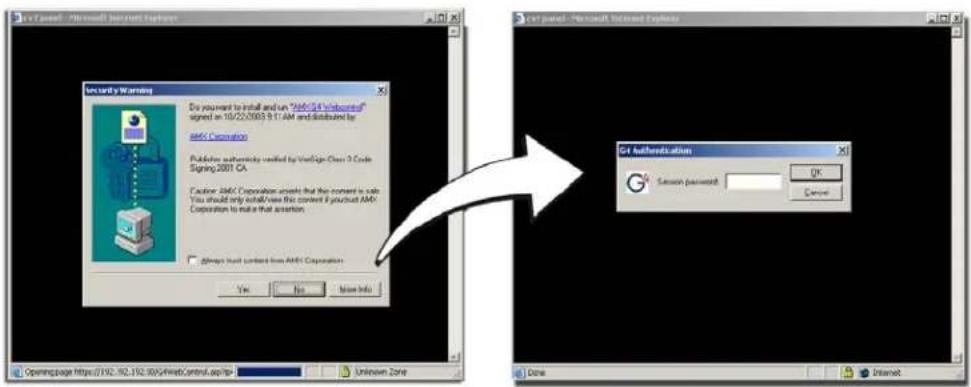

Using G4 Web Control to Interact with a G4 Panel 35

Using the NetLinx Master To Control the G4 panel.... 37

Upgrading Modero Firmware 41

Overview 41

Upgrading the Firmware via the USB port.... 41

Step 1: Configure the panel for a USB Connection Type .... 41

Step 2: Prepare NetLinx Studio for communication via the USB port 42

Step 3: Confirm and Upgrade the firmware via the USB port 43

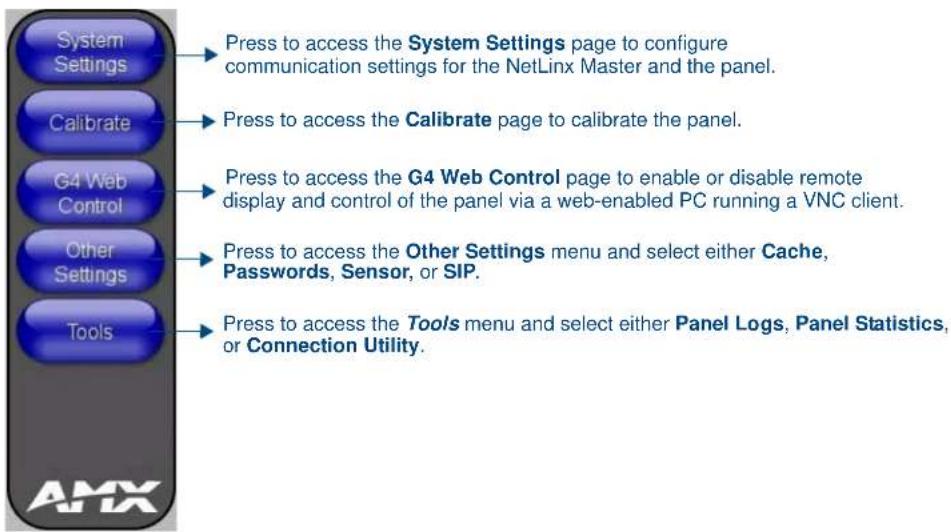

Setup Pages and Descriptions 45

Setup Navigation Buttons.... 45

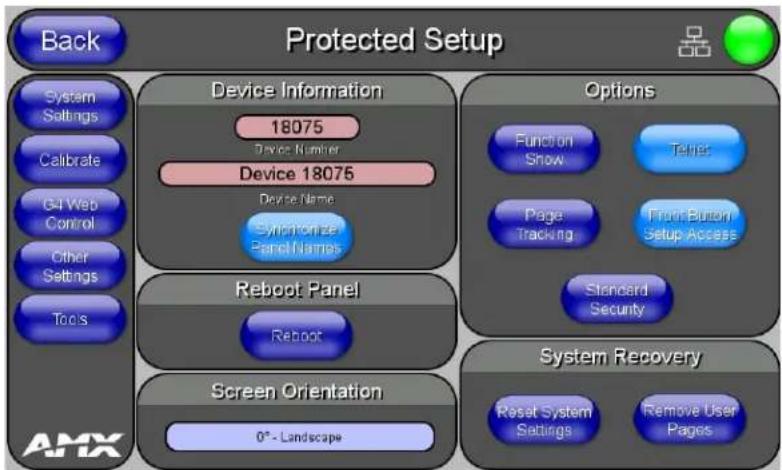

Protected Setup.... 45

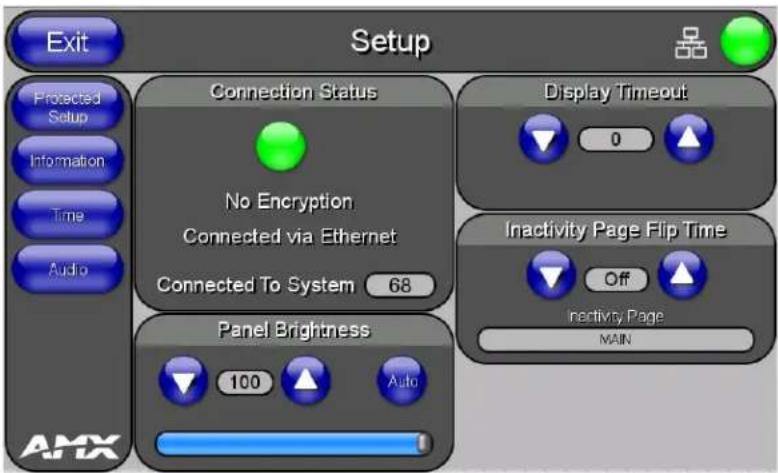

Setup Page 45

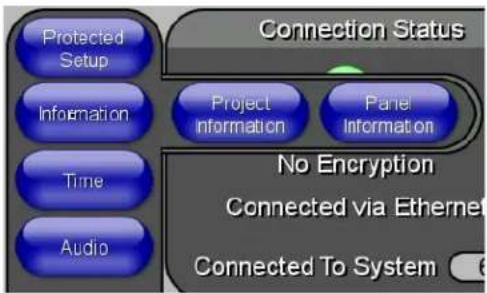

Information 47

Panel Information Page 47

Panel Information Page 48

Time & Date Settings Page 49

Audio Settings Page.... 51

Supported sampling rates for WAV.... 51

Protected Setup Navigation Buttons 52

Protected Setup Page.... 52

Security Settings 54

System Settings Page 55

Calibrate Page 57

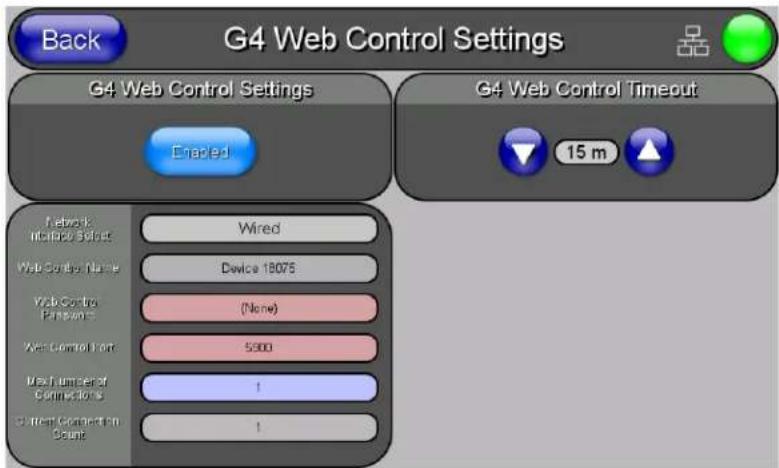

G4 Web Control Settings Page 58

Other Settings 59

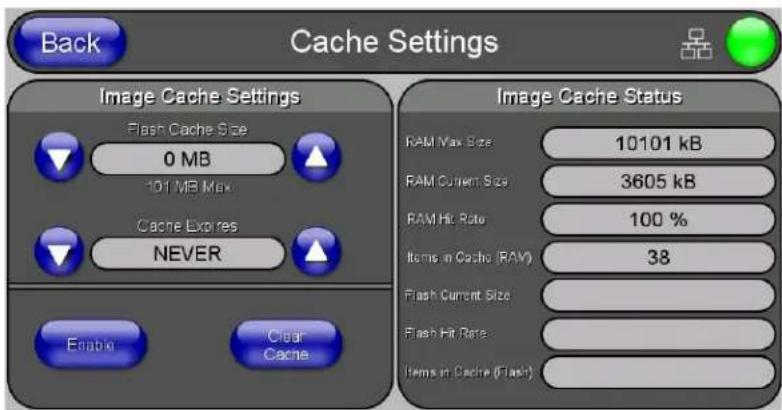

Cache Settings Page.... 60

Setting the image cache.... 61

Clearing the image cache 61

Checking image cache status 62

Password Settings Page 62

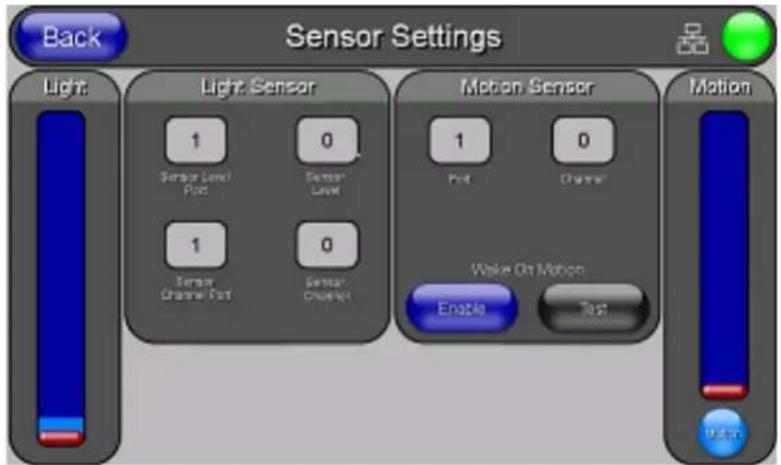

Sensor Settings 63

Making the most of the Light bargraph 64

Making the most of the Motion Sensor feature 64

SIP Settings Page 64

Tools 66

Panel Connection Logs Page 66

Checking the Panel Connection Logs 66

Refreshing the Panel Connections Log.... 67

Clearing the Panel Connections Log 67

Panel Statistics Page 67

Checking the Panel Statistics 69

Refreshing the Panel Statistics 69

Clearing the Panel Statistics.... 69

Connection Utility 69

Using the Connection Utility 70

Programming 71

Overview 71

Button Assignments 71

Page Commands 71

@APG 71

@CPG 71

@DPG 72

@PDR 72

@PHE 72

@PHP 72

@PHT 72

@PPA 73

@PPF 73

@PPG 73

@PPK 73

@PPM 74

@PPN 74

@PPT 74

@PPX 74

@PSE 75

@PSP 75

@PST 75

PAGE 75

PPOF 76

PPOG 76

PPON 76

Programming Numbers for Colors, Fonts, and Borders.... 77

RGB Triplets and Names For Basic 88 Colors 77

Font Styles and ID Numbers 78

Border Styles and Programming Numbers 78

TPD4 Border Styles by Name 79

Telnet Commands 80

set motion beep 80

show sensors 80

cal light 81

Button Commands ("^") 81

^ANI 81

^APF 81

^BAT 82

^BAU 82

^BCB 82

^BCF 83

^BCT 83

^BDO 84

^BFB 84

^BIM 84

^BMC 85

^BMF 86

^BMI 87

^BML 87

^BMP 88

^BNC 88

^BNN 88

^BNT 88

^BOP 89

^BOR 89

^BPP 89

^BRD 90

^BSF 90

^BSM 90

^BSO 90

^BVL 91

^BVN 91

^BVP 91

^BVT 91

^BWW 91

^CPF 92

^DPF 92

^ENA 92

^FON 92

^GDI 93

^GIV 93

^GLH 93

^GLL 93

^GRD 93

^GRU 94

^GSC 94

^GSN 94

^ICO 95

^JSB 95

^JSI 95

^JST 96
^MBT 96
^MDC 96
^SHO 96
^TEC 97
^TEF 97
^TXT 97

Text Effect Names 98

^UNI 98

Button Query Commands 99

?BCB 100
?BCF 100
?BCT 101
?BMP 101
?BOP 102
?BRD 102
?BWW 103
?FON 103
?ICO 104
?JSB 104
?JSI 105
?JST 105
?TEC 106
?TEF 106

Panel Runtime Operations 107

ABEEP 107
ADBEEP 107
?TXT 107
@AKB 108
AKEYB 108
AKEYP 108
AKEYR 108
@AKP 108
@AKR 109
BEEP 109
BRIT 109
@BRT 109
DBEEP 109
@EKP 109
PKEYP 110
@PKP 110
SETUP 110
SLEEP 110
@SOU 110
@TKP 111
TPAGEON 111
TPAGEOFF 111
@VKB 111
WAKE 111

Input Commands.... 112

^CAL 112
^KPS 112
^VKS 112

Embedded codes 113

Panel Setup Commands 114

@PWD 114
^PWD 114
@RPP 114

Dynamic Image Commands.... 115

^BBR 115
^RAF 115
^RFR 115

^RAF, ^RMF - Embedded Codes 116

^RMF 116
^RSR 116

Escape Sequences 117

\$DV 117
\$SY 117
\$IP 117
\$HN 117
\$MC 117
\$ID 117
\$PX 117
\$PY 117
\$ST 117
\$AC 117
\$AP 117
\$CC 117
\$CP 117
\$LC 117
\$LP 117
\$BX 117
\$BY 117
\$BN 117

Intercom Commands 118

^MODEL? 118
^ICM 118
^ICS- 118
^ICE' 119
^ICM-TALK 119
^ICM-LISTEN 119
^ICM-MICLEVEL 119
^ICM-MUTEMIC 119
^ICM-SPEAKERLEVEL 119

Panel IR Commands 120

^IRM 120
^IRS 120

SIP Commands 121

^PHN-AUTOANSWER 121

^PHN-CALL 121

^PHN-DECLINE 121

^PHN-INCOMING 121

^PHN-LINESTATE 122

^PHN-MSGWAITING 122

^PHN-PRIVACY 122

^PHN-REDIAL 122

^PHN-TRANSFERRED 122

^PHN-ANSWER 123

^PHN-AUTOANSWER 123

?PHN-AUTOANSWER 123

^PHN-CALL 123

^PHN-DTMF 123

^PHN-HANGUP 123

^PHN-HOLD 123

^PHN-SETUP-DOMAIN 124

^PHN-SETUP-ENABLE 124

?PHN-LINESTATE 124

^PHN-PRIVACY 124

?PHN-PRIVACY 124

^PHN-REDIAL 124

^PHN-TRANSFER 124

^PHN-SETUP-PASSWORD 125

^PHN-SETUP-PORT 125

^PHN-SETUP-PROXYADDR 125

^PHN-SETUP-STUNADDR 125

^PHN-SETUP-USERNAME 125

Troubleshooting 127

Appendix A - Text Formatting Codes ...... 131

Text Formatting Codes for Bargraphs/Joysticks.... 131

Text Area Input Masking.... 132

Input mask character types 132

Input Mask Ranges 133

Input Mask Next Field Characters 133

Input Mask Operations.... 133

Input Mask Literals 133

Input Mask Output Examples.... 134

URL Resources 134

Special Escape Sequences.... 135

Appendix B - Complex Script Support 137

Overview 137

Table of Contents

Modero 7" Touch Panels

Overview

The Modero® family of 7-inch Touch Panels includes the NXD-700i, and the NXT-CA7 (FIG. 1):

NXD-700i (front view) (FG2258-10)
NXT-CA7 (front view) (FG2258-09)

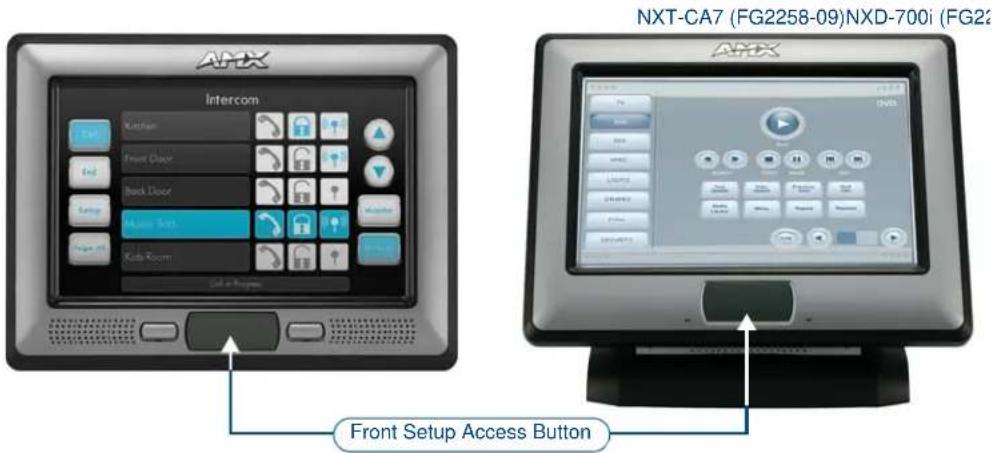

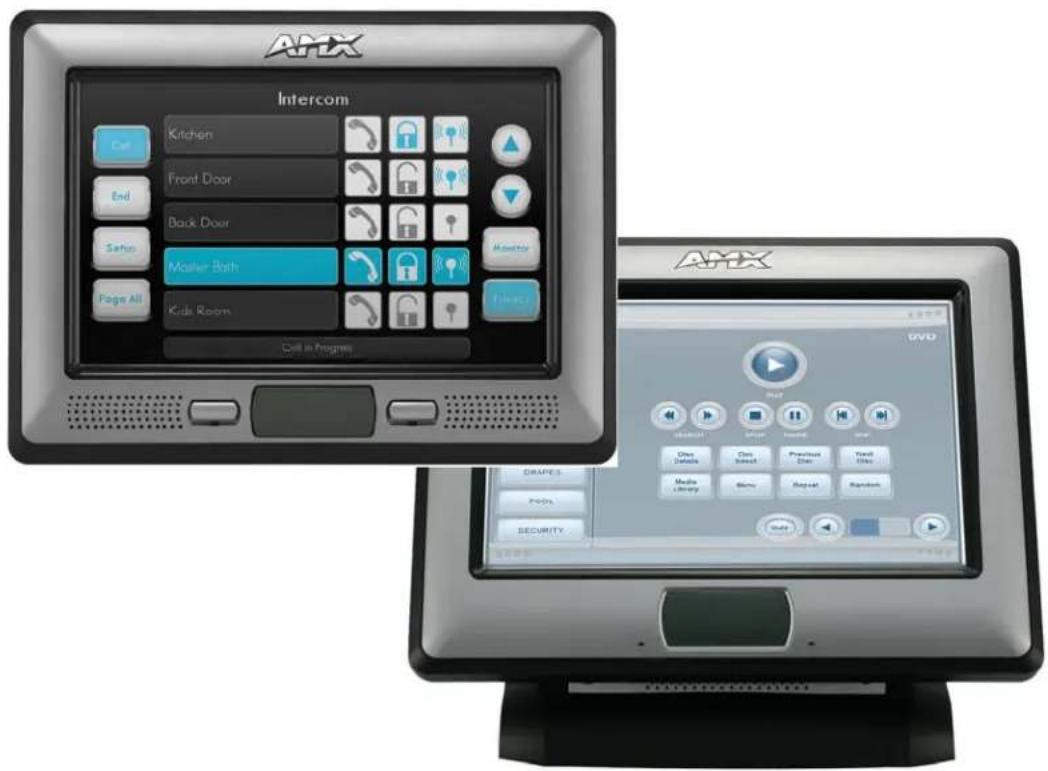

FIG. 1 NXD-700i, and NXT-CA7 7-inch Modero Touch Panels

Product specifications for each panel is provided on the following pages.

NXD-700i Overview

The NXD-700i (FG2258-10) is an incredibly versatile user interface, combining a sleek, compact size, Wall/Flush Mount flexibility and the ability to create a high quality digital home/office intercom network or to make/receive digital local, long distance and international telephone calls.

Simply add the AMX SIP Communications Gateway (FG2182-0x) for calls that sound incredibly clear.

Note: Programmable pushbutton/LEDs available only on Trim Ring 60-2258-26

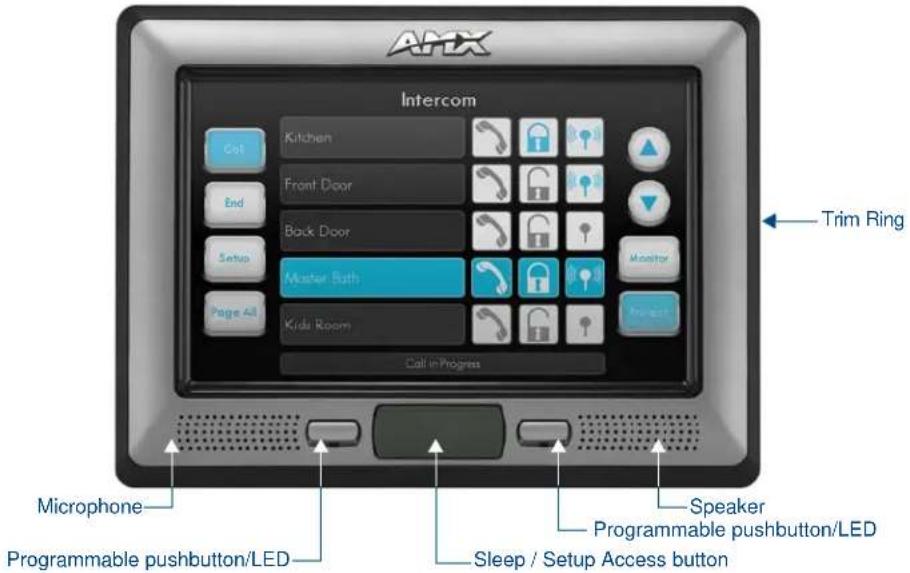

FIG. 2 NXD-700i (shown with Trim Ring 60-2258-26)
NXD-700i Specifications

NXD-700i Specifications
Dimensions (HWD):
NXD-700i (Faceplate included)	5.93" x 7.87" x 3.28" (15.06 cm x 20.00 cm x 8.33 cm)
CB-TP7 (optional Rough-In Box)	5.47" x 7.23" x 3.40" (13.90 cm x 18.40 cm x 8.64 cm)
Power Requirements • PoE Powered	- No local power supply needed• Max power draw: 5.5W
Memory: • 128 MB SDRAM	• 256MB integrated Flash Memory (not upgradeable - factory programmed, firmware upgradeable via a kit file)
Weight: 1lb (0.45kg)
Panel LCD Parameters: • Aspect ratio: 16 x 9• Brightness (luminance): 300 cd/m2• Contrast ratio: 400:1• Display colors: 256 thousand colors (18-bit color depth)• Dot/pixel pitch: 0.19 mm• Panel type: TFT Color Active-Matrix• Screen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
Active Screen Area: 6.00" x 3.60" (15.24cm x 9.14cm)
Viewing Angle: Up/Down/Left/Right: 70/60/70/70
IR Reception Angle: • Horizontal: +	_50° (left and right from center)• Vertical: ±30° (up and down from center)
NXD-700i Specifications (Cont.)
Supported Audio Sample Rates	48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, 11025Hz, and 8000Hz
Intercom Full duplex VoIP capabilities
Front Panel: • Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness• Motion Sensor (PIR): Passive Infrared Detector to wake the panel when panel is approached• Front Bezel Button: Provides both access to the setup and calibration pages and toggles the panel between “sleep” or “wake” state. This button is also user-programmable.• Microphone: Frequency response of 300 to 3400Hz; used for intercom applications.• Speaker: Output of 4Ohm, 2 Watt, with a 300Hz low cutoff frequency• Programmable Front Buttons and Leds used with the Touch Panel Designer
Side Panel Connectors • Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication.• The Ethernet port automatically negotiates the connection speed (10 Mbps or 100 Mbps), and whether to use half duplex or full duplex mode.• Power is supplied through Power Over Ethernet (PoE).• NXD-700i panels communicate with the NetLinx Master using the ICSP protocol over Ethernet.• LEDs show communication activity, connections, speeds, and mode information:L/A- link /activity - Yellow LED lights On when Ethernet cables are connected and terminated correctly and then blinks when receiving Ethernet data packets.SPD-speed - Green LED lights On when the connection is 100 Mbps and turns off when the speed is 10 Mbps.• Mini-USB Connector: 5-pin Mini-USB connector used for programming, firmware update, and touch panel file transfer between the PC and the target panel.This connector is also used for providing audio output for external speakers.
Operating /Storage Environments:	• Operating Temperature: 0°C (32°F) to 40°C (104°F)• Operating Humidity: 20% - 85% RH• Storage Temperature: -20°C (-4°F) to 60°C (140°F)• Storage Humidity: 5% - 85% RH
Certifications: • FCC Part 15 Class B• CE• IEC60950• R o H S
Included Accessories: • Installation Kit for NXD-700i panels (KA2258-02):- 4 Phillips-head screws (#4-40 x 0.250 Black) (80-0112)- 3 Drywall clips (62-5924-05)- 3 #6 sheet metal screws (80-0192)• Trim Ring with button openings (60-2258-26)• Trim Ring without button openings (60-2258-25)
Other AMX Equipment: • NXA-RK7 Rack Mount Kit (FG2904-53)• CB-TP7 Rough-In Box (FG035-10)• PS-POE-AF PoE Injector (FG423-80)• CC-USB Type-A to Mini-B5-wire programming cable (FG10-5965)• USB to Headphone Adaptor (FG5966-23)• AMX SIP Communications Gateway (FG2182-0x)

NXD-700i Panel Connectors

FIG. 3 shows the connectors located on the NXD-700i:

FIG. 3 Connector layout on the NXD-700i

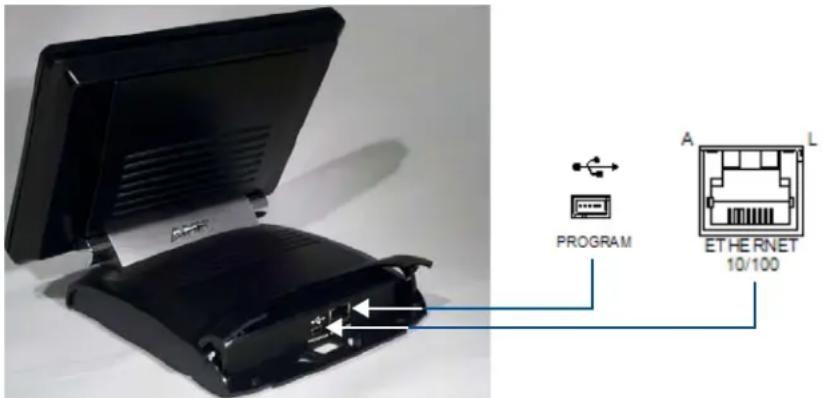

• The mini-USB port is used both for programming the touch panel and for audio output.
• The mini-USB port automatically detects the presence of a headphone adaptor, allowing the port to be used for headphone connectivity.
  ● The Ethernet connector also supports Power over Ethernet (POE)

NXT-CA7 Overview

The NXT-CA7 (FG2258-09) is an incredibly versatile user interface, combining a sleek, compact size and Table Top flexibility.

In places where space is critical, the 7" Modero integrates a small base and an expansive 16x9 aspect ratio for maximum visibility and one-touch control options.

FIG. 4 NXT-CA7 Modero Touch Panel Front View

NXT-CA7 Specifications

NXT-CA7 Specifications
Dimensions (HWD):	Fully raised: 6.86" x 7.96" x 6.93" (17.40 cm x 20.20 cm x 17.60 cm)Fully lowered height: 3.70" (9.40 cm)
Power Requirements: PoE Powered - No local power supply neededMax power draw: 5.5W
Memory: 128 MB SDRAM	256 MB Integrated flash memory (Not upgradable - factory programmed)
Weight: 2.5lb (1.12kg)
Panel LCD Parameters: Aspect ratio: 16 x 9Brightness (luminance): 300 cd/m2Contrast ratio: 400:1Display colors: 256 thousand colors (18-bit color depth)Dot/pixel pitch: 0.19 mmPanel type: TFT Color Active-MatrixScreen Resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
Active Screen Area: 6.00" x 3.60"	(15.24cm x 9.14cm)
Viewing Angle: Up/Down/Left/Right: 70/60/70/70
IR Reception Angle: Horizontal: + _50° (left and right from center)Vertical: ±30° (up and down from center)
Supported Audio Sample Rates: 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz, 11025Hz, and 8000Hz.
Front Panel: Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightnessMotion Sensor (PIR): Passive Infrared Detector to wake the panel when panel is approachedFront Bezel Button: Provides both access to the Setup and Calibration pages and toggles the panel between a "sleep" or "wake" state. This button is also user-programmable.Speaker: Output of 4 Ohm, 2 Watts, and 300Hz low cutoff frequency
Rear Connectors: Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps communication.The Ethernet port automatically negotiates the connection speed (10 Mbps or 100 Mbps), and whether to use half duplex or full duplex mode.Power is supplied through Power Over Ethernet (PoE).CA7 panels communicate with the NetLinx Master using the ICSP protocol over Ethernet.LEDs show communication activity, connections, speeds, and mode information:L/A- link /activity - Yellow LED lights On when Ethernet cables are connected and terminated correctly and then blinks when receiving Ethernet data packets.SPD-speed - Green LED lights On when the connection is 100 Mbps and turns off when the speed is 10 Mbps.Mini-USB Connector: 5-pin Mini-USB connector used for programming, firmware update, and touch panel file transfer between the PC and the target panel.The connector is also used for providing audio output for external speakers.
Certifications: FCC Part 15 Class BCEIEC60950RoHS
Operating /Storage Environments:	• Operating Temperature: 0°C (32°F) to 40°C (104°F)• Operating Humidity: 20% - 85% RH• Storage Temperature: -20°C (-4°F) to 60°C (140°F)• Storage Humidity: 5% - 85% RH
Other AMX Equipment: • PS-POE-AF PoE Injector (FG423-80)• CC-USB Type-A to Mini-B5-wire programming cable (FG10-5965)• USB to Headphone Adaptor (FG5966-23)

NXT-CA7 Panel Connectors

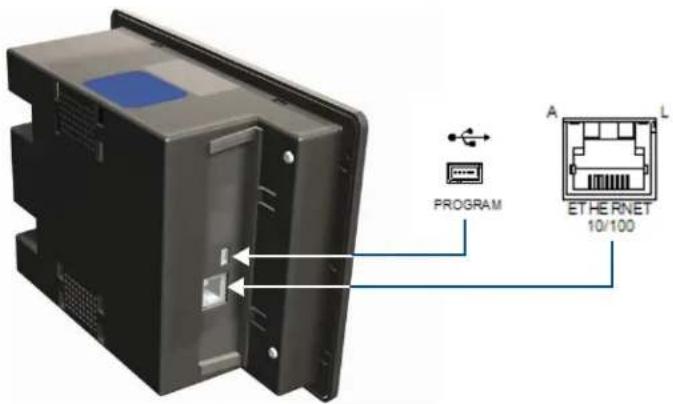

FIG. 3 shows the connectors located on the NXT-CA7 Modero panel. The mini-USB port is used both for programming the touch panel and for audio output.

FIG. 5 Connector layout on the NXT-CA7 Touch Panels

• The mini-USB port is used both for programming the touch panel and for audio output.
• The mini-USB port automatically detects the presence of a headphone adaptor, allowing the port to be used for headphone connectivity.
  ● The Ethernet connector also supports Power over Ethernet (POE)

NXD-700i - Installation

Overview

NXD-700i panels are installed into either a pre-wall surface (using a CB-TP7 conduit/wallbox) or a solid surface (using either solid surface or drywall screws).

Unpacking the Panel

1. Inspect and confirm the contents of the shipment box to verify you have all specified parts.
   Refer to the NXD-700i Specifications table on page 2 for a listing of included accessories and other (optional) AMX equipment.
2. Carefully remove the panel from the shipping box.
3. Carefully peel the protective plastic cover from the LCD.

NOTE

If the protective plastic LCD cover is not removed, the panel may not respond properly to touch points on the LCD or allow proper screen calibration.

Installing the No-Button Trim Ring

The NXD-700i panel is shipped from AMX with the default Button Trim Ring already installed. The unit is also shipped with a a No-Button Trim Ring that provides the option of changing the default configuration of the NXD Faceplate to that with no-button openings.

In order to install this included No-Button Trim Ring, you must first remove the factory-installed default Button Trim Ring, the two small buttons, and associated two clear light pipes.

1. The Faceplate is secured to the panel with plastic latches. To remove the Faceplate, simply pull it away from the panel by gently tugging it outwards until the entire Faceplate comes away from the panel.
2. Turn the Faceplate over to expose the inside surface and view the Trim Ring latches (FIG. 6).
3. In a single motion, press down and then outwards on the three Trim Ring latches located along the top of the internal surface of the Faceplate to begin removing the Button Trim Ring. Removing the Internal Faceplate from the panel exposes the pushbuttons and light pipes along the inside of the Internal Faceplate.
4. Gently tug along the edges of the Button Trim Ring and work your way around the edges to remove it from the Faceplate (FIG. 6).

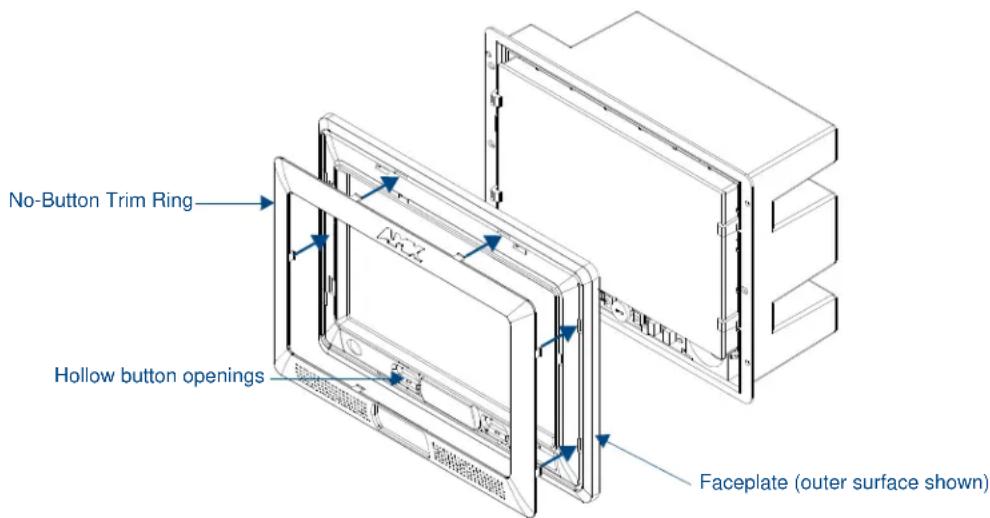

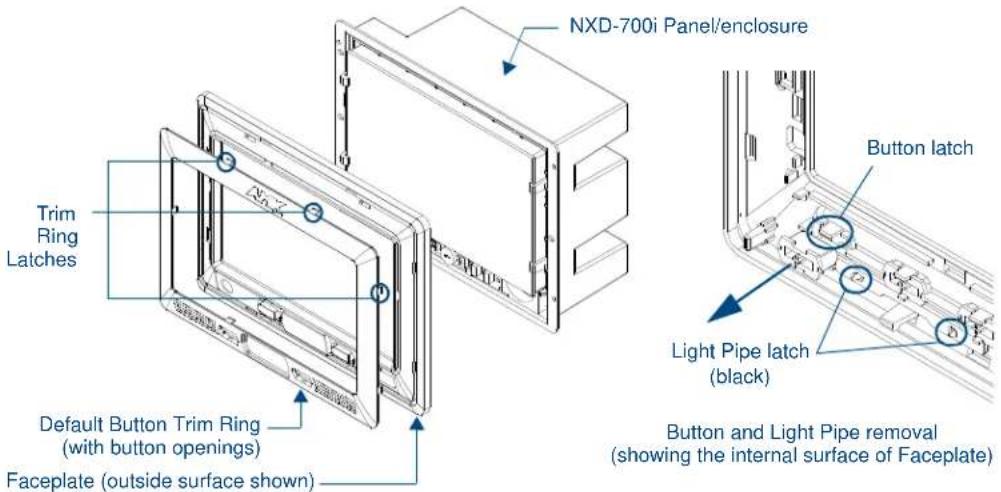

FIG. 6 Removing the default Button Trim Ring

1. From along the internal surface of the Faceplate, remove the six buttons by gently bending each Button latch up and pulling the button outwards.
2. Remove the pair of clear light pipe strips by bending the two black light pipe latches inwards and pulling out the strip.
3. Grasp the No-Button Trim Ring on both sides and fit it into the groove along the outside surface of the Faceplate (made available by the removal of the previous Trim Ring).
4. Gently insert the Trim Ring latches into their corresponding openings on the outer surface of the internal Faceplate (FIG. 7).

FIG. 7 Inserting the No-Button Trim Ring

1. Firmly press down around the No-Button Trim Ring until all of the latches are securely inserted into their openings on the Faceplate, and the No-Button Trim Ring is securely fastened.
   Verify the No-Button Trim Ring is firmly inserted onto the Faceplate and that there are no gaps between this Trim Ring and the outer surface of the Faceplate.

2. Place the Faceplate back onto the main NXD-700i unit.

Make sure to align the Microphone, Light, and PIR Motion sensor locations on the main unit to their respective openings on the Faceplate assembly.

Installing the Button Trim Ring

The outer No-Button Trim Ring is secured to the Faceplate with plastic latches. In order to re-install the Button Trim Ring back onto an NXD panel which has had the default Button Trim Ring features removed; you must first remove the No-Button Trim Ring:

1. To remove the Faceplate, simply pull it away from the panel by gently tugging it outwards until the entire Faceplate comes away from the panel.
2. Turn the Faceplate over to expose the inside surface and view the Trim Ring latches.
3. In a single motion, press down and then outwards on the three Trim Ring latches located along the top of the internal surface of the Faceplate to begin removing the Trim Ring.
   Removing the Internal Faceplate from the panel exposes the pushbuttons openings left from an earlier removal of the pushbuttons and LEDs.
4. Gently tug along the edges of the No-Button Trim Ring and work your way around the edges to remove it from the Faceplate (FIG. 8).

FIG. 8 Removing the No-Button Trim Ring

1. From along the internal surface of the Faceplate, install the two buttons by firmly inserting them into the button openings until the Button latch secures the button in place (FIG. 8).
2. Install the pair of clear light pipe strips by pushing light pipes over the two black light pipe latches.
3. Grasp the Button Trim Ring on both sides and fit it into the groove along the outside surface of the Faceplate (made available by the removal of the previous Trim Ring).
4. Gently insert the Button Trim Ring latches into their corresponding openings on the outer surface of the internal Faceplate (FIG. 9).

FIG. 9 Inserting the Button Trim Ring

1. Firmly press down around the Button Trim Ring until all of the latches are securely inserted into their openings on the Faceplate, and the Button Trim Ring is securely fastened.
   Verify the Button Trim Ring is firmly inserted onto the Faceplate and that there are no gaps between this Trim Ring and the outer surface of the Faceplate.
2. Place the Faceplate back onto the main NXD-700i unit.
   Make sure to align the Microphone, Light, and PIR Motion sensor locations on the main unit to their respective openings on the Faceplate assembly.

Pre-Wall Installation of the Conduit Box

Wall Mount panels (NXDs) are contained within an outer housing (back box).

• This back box is not removed when installing the NXD into a Conduit Box (CB-TP7).
• The back box is only removed to gain access for the replacement of the internal components.

INSTALLER: LEAVE A GAP BETWEEN THE STUD AND CONDUIT BOX MOUNTING TABS TO ACCOMMODATE THE DRYWALL or SHEETROCK.

This gap allows the installation of the drywall or sheetrock after the CB-TP7 Conduit Box has been installed.

The CB-TP7 is an optional metallic box that is secured onto a stud/beam in a pre-wall setting (where no walls are present). Installation procedures and configurations can vary depending on the installation environment. This section describes the installation procedures for the most common installation scenario.

The most important thing to remember when mounting this conduit box is that the NXD-700i Mounting Tabs must lie flush against the outside of the sheetrock (FIG. 10).

• Refer to SP-2258-02 for detailed installation dimensions.
• It is recommended that you cut out the surface slightly smaller than what is outlined in the installation drawings so that you can make any necessary cutout adjustments.

• The wiring knockouts on the left side will be used for the NXD-700i Wall Mount panel connectors, so always secure the conduit box to the stud using the Stud Mounting Holes on the right side of the box.

• Rest the right Stud Mounting tabs onto the stud (keeping the knockouts on the left).

Be sure to leave enough of a gap between the stud and NXD Mounting tabs to accommodate the installation of the drywall or sheetrock after the conduit box has been mounted. Ultimately, the Mounting Tabs should lie flush against the outside of the sheetrock.

1. Fasten the CB-TP7 conduit box to the stud through the holes on the right Stud Mounting tabs (FIG. 10), using either nails or screws.

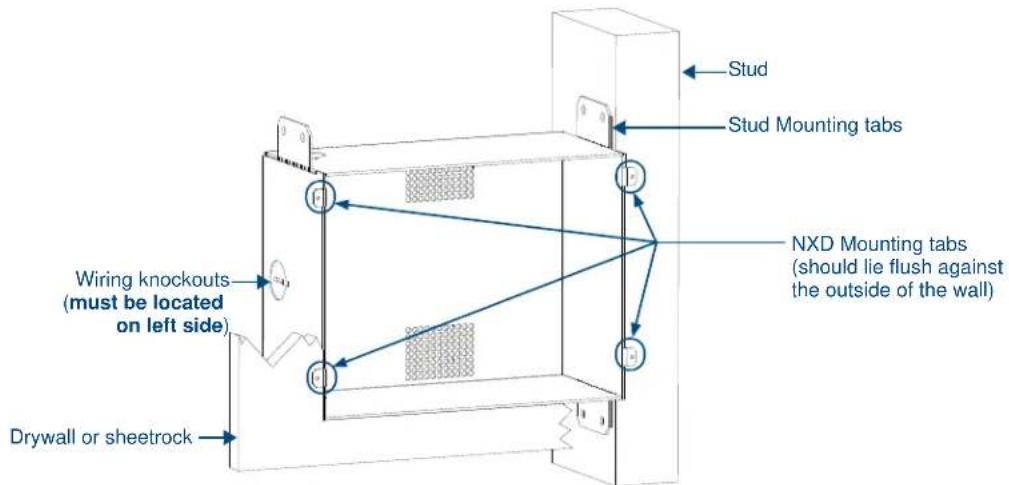

FIG. 10 CB-TP7 conduit box components

1. Remove the wiring knockouts from the left side of the conduit box (CB-TP7) to accommodate the cables being threaded through to the NXD touch panel (FIG. 10).

Remember that when mounting this conduit box, the NXD mounting tabs must lie flush against the outside of the sheetrock.

1. Thread the RJ-45 Ethernet wiring through the knockouts.

2. Use of the left wiring knockouts are recommended with this installation.

3. Leave enough slack in the wiring to accommodate any re-positioning of the panel.

4. Install the drywall/sheetrock before inserting the main NXD unit into the CB-TP7.

Installing the NXD-700i Touch Panel

The NXD-700i can be installed either directly into the (optional) CB-TP7 or other solid surface environment using the two different mounting options: drywall clips or solid surface screws.

The following sections describe mounting the touch panel directly into a pre-wall conduit box, a solid surface or drywall, and optional NXA-RK7 Rack Mount Kit.

Installing the Panel Within a Conduit Box

The conduit box must be mounted prior to continuing this section. Refer to the procedures in the

Pre-Wall Installation of the Conduit Box section on page 10 for detailed pre-wall installation instructions.

Verify that all necessary cables have been threaded through the knockouts on the left of the conduit box and the connections have been tested prior to installation of the NXD-700i.

1. Remove the Faceplate/bezel (A in FIG. 11) from the main NXD unit (B in FIG. 11) by gripping the faceplate and pulling with gentle outward force.

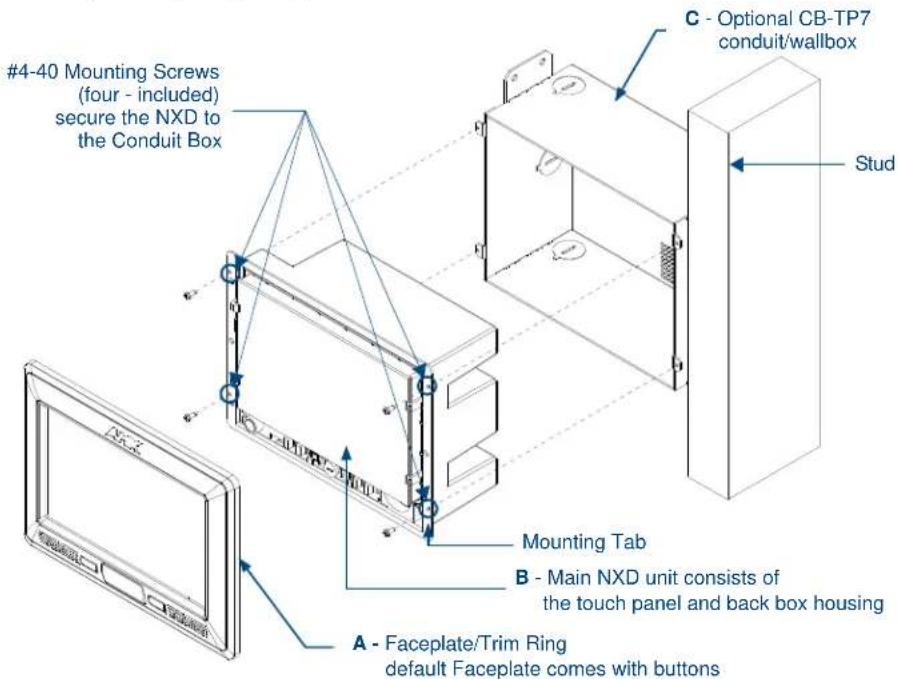

FIG. 11 NXD-700i panel installation into a CB-TP7 (pre-wall construction)

1. Verify the incoming Ethernet, and USB cables have been properly threaded through the wiring knockouts on the left of the conduit box.

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

1. Connect the Ethernet, and USB cables to their corresponding locations along the side of the panel.

2. Test the incoming wiring by connecting the panel connections to their terminal locations and applying power. Verify that the panel is receiving power and functioning properly to prevent repetition of the installation.

Don't disconnect the connectors from the touch panel. The unit must be installed with the attached connectors before being inserted into the conduit box.

1. Carefully slide the main NXD-700i unit (B in FIG. 11) into the conduit box, so that all Mounting Tabs lie flush against the conduit box (C in FIG. 11).
2. Insert and secure four #4-40 Mounting Screws (included) into their corresponding holes located along the sides of the NXD.
3. Place the Faceplate/Trim Ring assembly (A in FIG. 11) back onto the main NXD unit (B in FIG. 11). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front faceplate/bezel.
4. Reconnect the Ethernet and USB cables (outside the conduit box).

Installing the Panel Into Drywall Using Expansion Clips

Expansion clips are mounted through the three oval holes located along the rim of the NXD-700i. As the screw is tightened, the clip bends toward the insertion hole and into the wall. This bending creates a "grip" on the wall by either pressing onto the wall or by securing the drywall between the housing and the drywall clip.

Important - When mounting the NXD, the outer frame (Mounting Tabs) must be installed flush against the mounting surface.

• Refer to SP-2258-01 for detailed installation dimensions (reproduced in FIG. 12).

• It is recommended that you cutout the surface slightly smaller than what is outlined in the installation drawings so that you can make any necessary cutout adjustments.

• Prepare the area by removing any screws or nails from the drywall before beginning the cutout process.

• Cut out the surface for the NXD Wall Mount unit using the dimensions shown in FIG. 12.

Be sure to cut out the three notches along the sides to accommodate the three corresponding drywall expansion clips (included).

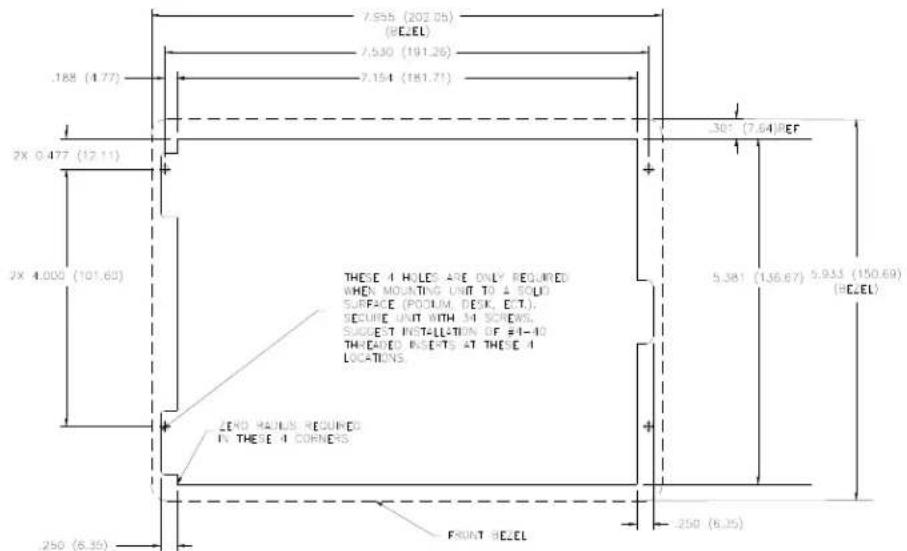

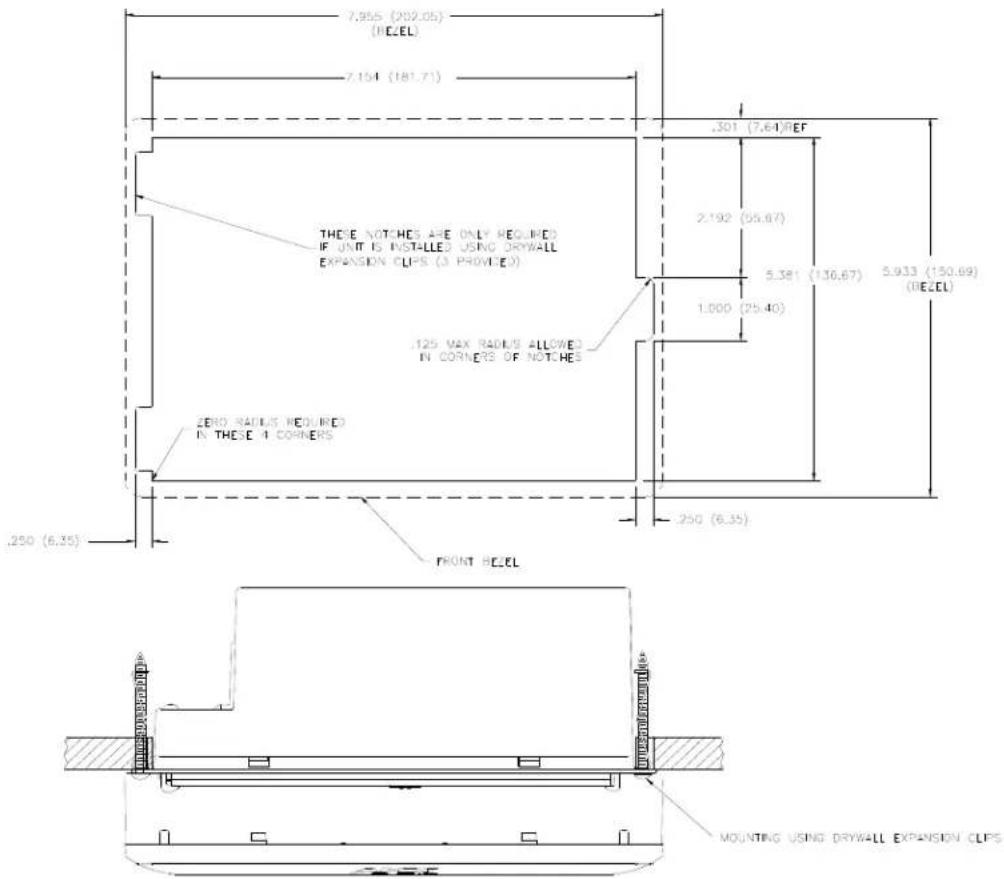

FIG. 12 NXD-700i Wall Mount panel dimensions using expansion clips

1. Remove the Faceplate/bezel (A in FIG. 13) from the main NXD unit (B in FIG. 13) by gripping the faceplate and pulling with gentle outward force.

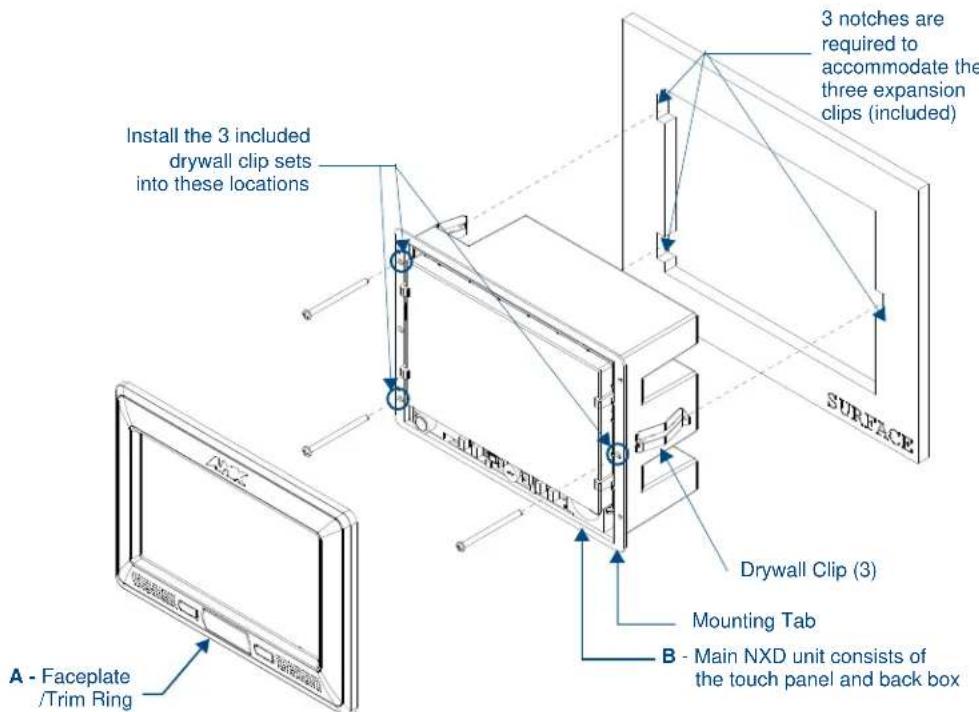

FIG. 13 Wall Mount panel (NXD) installation configuration for drywall surfaces

1. Thread the incoming Ethernet and USB cables through the surface opening. Leave enough slack in the wiring to accommodate any re-positioning of the panel.

2. Connect the incoming Ethernet and USB cables to their corresponding locations along the left side of the panel.

3. Test the incoming wiring by attaching the panel connections to their terminal locations and applying power. Verify the panel is receiving power and functioning properly to prevent repetition of the installation.

Don't disconnect the connectors from the touch panel. The unit must be installed with the attached connectors before being inserted into the drywall.

1. Install the three sets of drywall screws and expansion clips into the three oval notch locations along both sides of the main unit (B in FIG. 13).

2. Carefully insert the main unit (with expansion clips) into the cutout until the Mounting Tabs on the NXD unit lie flush against the wall.

The drywall clip set must be re-ordered from AMX if the drywall clip is bent accidentally during an installation or removed during a re-installation.

1. Tighten all three drywall clip sets (screws and clips) until the entire Mounting Tab is securely fastened and flush against the wall.

2. Place the Faceplate/Trim Ring assembly (A in FIG. 13) back onto the main NXD unit (B in FIG. 13). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front faceplate/bezel.

11. Reconnect the Ethernet and USB.

Installing the Panel Into a Flat Surface using #4 screws

Mounting screws (#4-40, included) are secured through two sets of circular holes located at the left and right sides of the NXD-700i.

Important: When mounting the NXD Wall Mount, the outer frame (Mounting Tabs) must be installed flush against the mounting surface.

• Refer to SP-2258-01 for detailed installation dimensions (reproduced in FIG. 14).

• It is recommended that you cutout the surface slightly smaller than what is outlined in the installation drawings so that you can make any necessary cutout adjustments.

• Prepare the area by removing any screws or nails from the surface before beginning the cutout process.

• Cut out the surface for the NXD Wall Mount unit using the dimensions shown in FIG. 14.

FIG. 14 NXD-700i Wall Mount panel dimensions using #4-40 mounting screws

1. Remove the Faceplate/bezel (A in FIG. 15) from the main NXD unit (B in FIG. 15) by gripping the faceplate and pulling with gentle outward force.
2. Thread the incoming Ethernet and USB cables through the surface opening.

Leave enough slack in the wiring to accommodate any re-positioning of the panel.

1. Connect the Ethernet and USB cables to their corresponding locations along the left side of the panel.
2. Test the incoming wiring by connecting the panel connections to their terminal locations and applying power. Verify that the panel is receiving power and functioning properly before finalizing the installation.

FIG. 15 Wall Mount panel installation configuration for flat surfaces

Don't disconnect the connectors from the touch panel. The unit must be installed with the necessary connectors before being inserted into the solid surface.

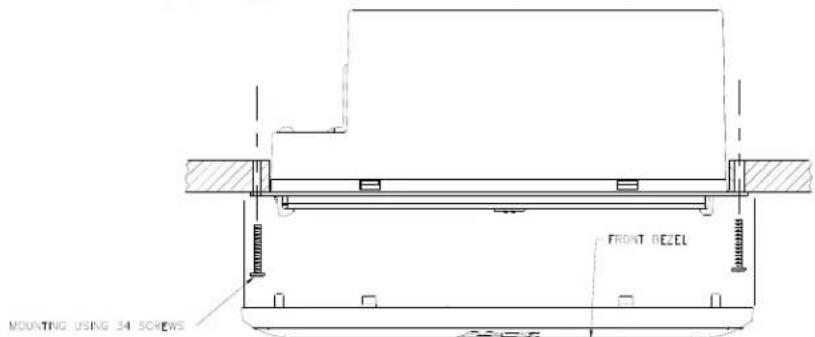

1. Carefully slide the main unit into the cutout until the Mounting Tabs of the NXD-700i unit lie flush against the wall.
2. Insert and secure four #4-40 Mounting Screws (included) into their corresponding holes located along the sides of the NXD-700i (using a grounded Phillips-head screwdriver) until the unit is secure and flush against the wall (FIG. 15).
3. Place the Faceplate/Trim Ring assembly (A in FIG. 15) back onto the main unit (B in FIG. 15). Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front bezel/faceplate.
4. Reconnect the Ethernet and USB.

Installing the Panel into an (optional) Rack Mount Kit (NXA-RK7)

The NXA-RK7 is a 19" (48.3 cm) wide metal rack-mount (with black matte finish) measuring 4 rack units high.

1. Remove the Faceplate/Trim Ring assembly from the main NXD-700i unit.
2. Thread the incoming Ethernet and USB cables through the surface opening, leaving enough slack in the wiring to accommodate any re-positioning of the panel.
3. Connect the Ethernet and USB cables to their corresponding locations along the left side of the panel.
4. Verify that the panel is receiving power and functioning properly to prevent repetition of the installation.

Don't disconnect the connectors from the touch panel. The unit must be installed with the necessary connectors before being inserted into the equipment rack.

1. Carefully insert the NXD-700i panel into the NXA-RK7.

2. Secure the panel to the NXA-RK7 mount by first inserting and then tightening the four #4-40 screws.

3. Insert the NXA-RK7 (with connected NXD unit) into the equipment rack, making sure to align the screw holes along the sides on the NXA-RK7 with the holes in the equipment rack.

4. Use a grounded Phillips-head screwdriver to secure the NXA-RK7 to the equipment rack using #10-32 screws (included).
5. Place the Faceplate/Trim Ring assembly back onto the main NXD unit. Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings on the front faceplate/bezel.
6. Reconnect Ethernet and USB.

Ethernet/RJ-45 Port: Connections and Wiring

FIG. 16 describes the blink activity for the Ethernet 10/100 Base-T RJ-45 connector and cable.

The Ethernet cable is connected to the rear of Table Top and side of the Wall Mount panels.

FIG. 16 Ethernet connector (showing communication and connection LEDs)

The following table lists the pinouts, signals, and pairing associated with the Ethernet connector.

Ethernet RJ-45 Pinouts and Signals

Pin S	gnals Connections Pairing Color
1 TX +	1 ---- 1 1 ---- 2 Orange-White
2 TX -	2 ---- 2 Orange
3 RX +	3 ---- 3 3 ---- 6 Green-White
4 PoE	power 4 ---- 4 Blue
5 PoE	power 5 ---- 5 4 ---- 5 Blue-White
6 RX -	6 ---- 6 Green
7 PoE	power 7 ---- 7 7 ---- 8 Brown-White
8 PoE	power 8 ---- 8 Brown

FIG. 17 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable.

FIG. 17 RJ-45 wiring diagram

NXT-CA7 - Installation

Overview

NXT-CA7 panels are mounted onto flat (horizontal) surfaces in either a stand-alone or combo (NXT atop an NXA-BASE/1 battery base) configuration.

NOTE

It is recommended that if you are planning on upgrading your panel components, you do so before beginning any panel installations.

Unpacking the Panel

1. Inspect and confirm the contents of the shipment box to verify you have all specified parts.
   Refer to the NXT-CA7 Specifications table on page 5 for a listing of included accessories and other (optional) AMX equipment.
2. Carefully remove the panel from the shipping box.
3. Carefully peel the protective plastic cover from the LCD.

NOTE

If the protective plastic LCD cover is not removed, the panel may not respond properly to touch points on the LCD or allow proper screen calibration.

Ethernet/RJ-45 Port: Connections and Wiring

FIG. 18 describes the blink activity for the Ethernet 10/100 Base-T RJ-45 connector and cable. The Ethernet cable is connected to the rear of Table Top and side of the Wall Mount panels.

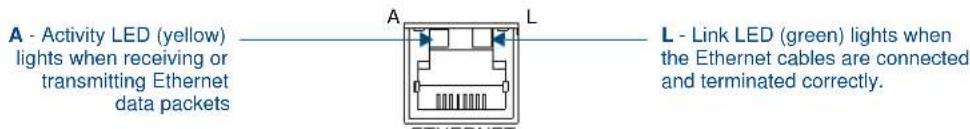

A - Activity LED (yellow) lights when receiving or transmitting Ethernet data packets

L - Link LED (green) lights when the Ethernet cables are connected and terminated correctly.
FIG. 18 Ethernet connector (showing communication and connection LEDs)

The following table lists the pinouts, signals, and pairing associated with the Ethernet connector.

Ethernet RJ-45 Pinouts and Signals

Pin Signals Connections Pairing Color
1 TX + 1 ---- 1 1 ---- 2 Orange-White
2 TX - 2 ---- 2 Orange
3 RX + 3 ---- 3 3 ---- 6 Green-White
4 PoE power	4 ---- 4 Blue
5 PoE power	5 ---- 5 4 ---- 5 Blue-White
6 RX -	6 ---- 6 Green
7 PoE power	7 ---- 7 7 ---- 8 Brown-White
8 PoE power	8 ---- 8 Brown

FIG. 19 diagrams the RJ-45 pinouts and signals for the Ethernet RJ-45 connector and cable.

FIG. 19 RJ-45 wiring diagram

PS-POE-AF PoE Injector

Overview

The PS-POE-AF PoE Injector (FG423-80) is a single-port, self-contained Power-over-Ethernet (PoE) power supply that delivers both DC power and data to PoE-equipped devices by "injecting" DC power through a Cat5 Ethernet cable (FIG. 20).

The PoE Injector allows devices such as the 7" Modero Touch Panels to function without an additional power connection other than an Ethernet connection.

Two black rectangular electronic devices with network ports, no visible text or symbols

FIG. 20 PS-POE-AF Power-Over-Ethernet Power Supply
Power-over-Ethernet (PoE) eliminates the need for an AC outlet at each device installation point, resulting in easier and less expensive installation. It also can be used to extend the distance between the PoE devices and standard power outlets by up to 328 feet (100 meters).

Each PoE Injector may be used for one device's power needs. Multiple devices in a network that require PoE will require multiple Injectors.

NOTE

PS-POE-AF Specifications
Output Specifications
Combined Line and Load Voltage Regulation	Excluding Cord ± 1%
Ripple 1% Vp-p max.
Transient Response • 0.5ms for 50%• Load Change Typical
Protection • Foldback Overcurrent Protection• Short Circuit Protection
Input Specifications
AC Input Voltage Range 100-240VAC -10%, +6%
Line Frequency 47-63Hz
AC Input Current • 90VAC Input• 0 . 6 A max .
Protection • Internal Primary Current Fuse• Inrush Limiting
General Specifications
Topology • Switching-Fixed	• Frequency Flyback
Dielectric Withstand • Primary-Secondary 3000VAC, 4250VDC• Secondary-Ground 500VDC
Spacing 5mm Primary-Secondary
PS-POE-AF Specifications (Cont.)
General Specifications (Cont.)
Leakage Current Less than 250 uA
Efficiency • 65% Typical @ Max. Load• and 120VAC/60 Hz
Weight (excluding cord) 7 Ounces (200 Grams)
Dimension • 5.24L x 2.13W x 1.42H (in)• 133.0L x 54.0W x 36.0H (mm)
Case Material Black 94V0 Polycarbonate
Cord and Connectors Dual RJ 45 jacks built into the enclosure
EMC Information
FCC • Part 15 Class B	• EN55022 Class B
Immunity ESD: EN61000-4-2
RS EN61000-4-3
EFT EN61000-4-4
Surge EN61000-4-5
CS EN61000-4-6
Voltage Dip EN61000-4-11
Harmonic EN61000-3-2
CE CE Compliant
Hold-up Time	• @120VAC 10ms min. typ.• @240VAC 40ms min. typ.
Storage Temperature	-30°C to +85°C
Approvals and Standards - Safety	• cULus: UL/CSA60950• TUV: EN60950• CE: LVD, EMCD
MTBF	100,000 Calculated Hours
Environmental Specifications
Thermal Performance	• Operating Temperature 0°C to 40°C• No Derating• Convectional Cooling• Non Vented Case
Relative Humidity	Non-Condensing 5% to 95%
Altitude	0-10,000 feet

Panel Calibration

Overview

This section outlines the steps for calibrating the touch panel. Calibrating the panel before its initial use and after completing a firmware download is highly recommended.

Modero panels are set up in the factory with specific demo touch panel pages. The first splash screen that appears indicates the panel is receiving power, beginning to load firmware, and preparing to display the default touch panel pages.

When the panel is ready, the AMX Splash Screen is replaced by the Initial Panel Page.

Calibrating the Panel

1. Press and hold the grey Front Bezel button (FIG. 21) for 8 seconds to pass over the Setup page and access the Calibrate setup page (FIG. 22).

2. Single push/release puts the panel to sleep

3. 4-Second press-and-hold: opens the Setup Page
4. 8-Second press-and-hold: opens the Calibrate Page

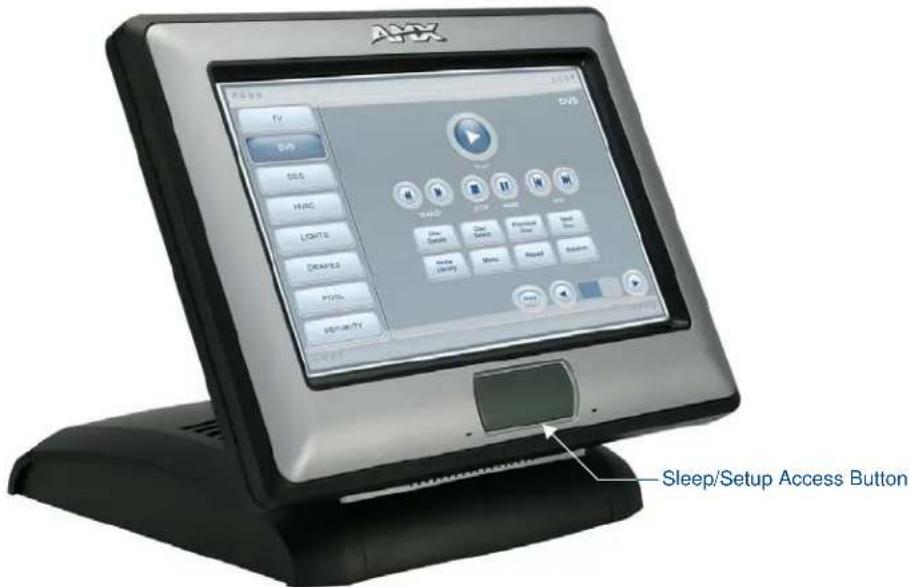

FIG. 21 Location of Front Setup Access button

1. Press the crosshairs (on the Calibration page) to set the calibration points on the LCD (FIG. 22).

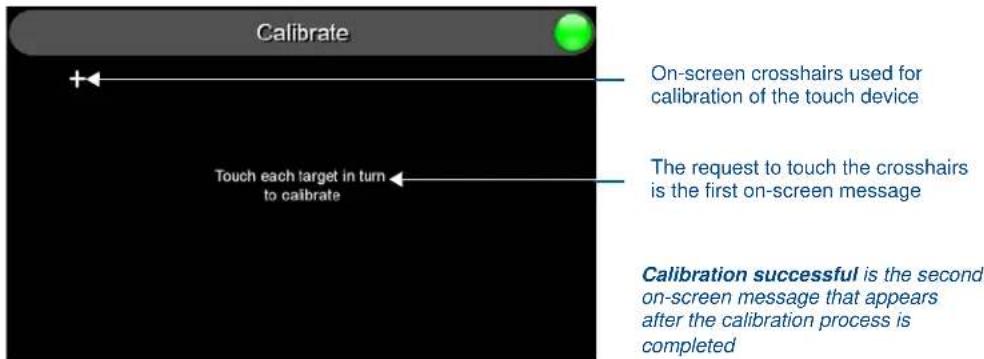

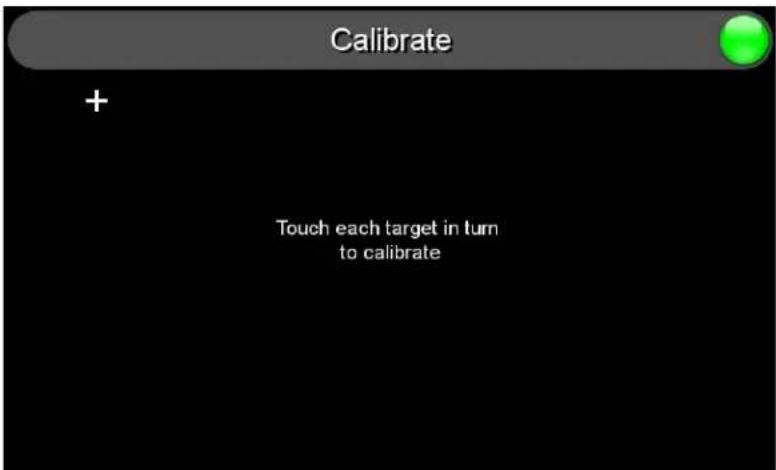

FIG. 22 Touch Panel Calibrate Screens

1. After the "Calibration Successful." message appears, press anywhere on the screen to continue and return to the Setup page.

If the calibration was improperly set and you cannot return to the Calibrate page through the panel's firmware, this firmware page may be accessed via G4 WebControl, where you can navigate to the Protected Setup page and press the Calibrate button through a VNC window.

This action causes the panel to go to the Calibrate page seen above, where the actual touch panel may be physically calibrated again using the above procedures.

Configuring Communication

Overview

Communication between the Modero panel and the Master is done using either USB or ETHERNET (DHCP or Static IP). Ethernet communication can only be achieved via a direct Ethernet connection.

WARNING

Before commencing, verify that you are using the latest NetLinx Master and Modero panel firmware, and also verify you are using the latest versions of AMX's NetLinx Studio and TPDesign4 applications. These are available at www.amx.com.

Modero Setup and System Connection

1. Press the Front Setup Access button for 3 seconds to open the Setup page (FIG. 23).

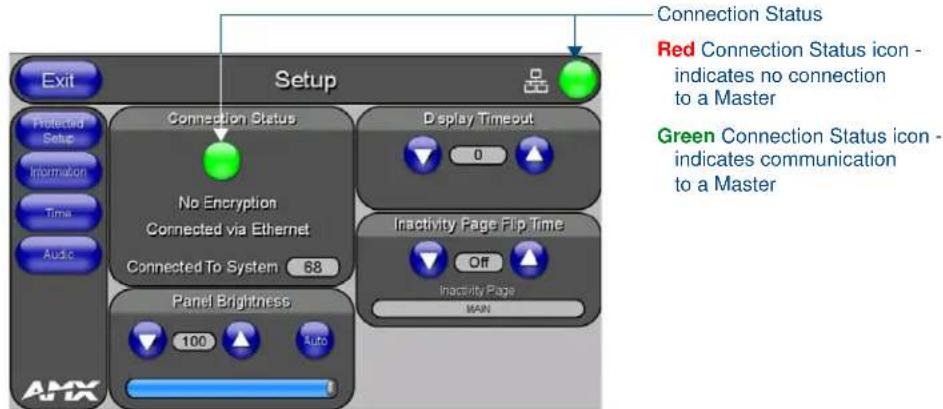

FIG. 23 Setup page

1. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup page and display an on-screen keypad.

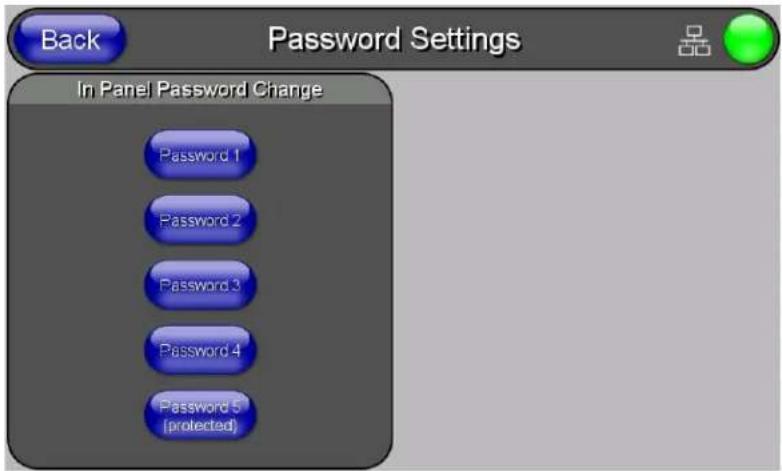

2. Enter 1988 into the keypad's password field and press Done when finished.

NOTE

Clearing Password #5, from the initial Password Setup page, removes the need for you to enter the default password before accessing the Protected Setup page.

1. Press the red Device Number field to open the Device Number keypad.

2. Enter a Device Number for the panel into the Device Number keypad.

3. Default = 0

4. Range = 1 - 32000

NOTE

When using multiple panels within a NetLinx System, remember to assign unique Device Number values to each panel, so that all assigned panels appear in the System listing for the target Master.

1. Press Done to close the keypad, assign the number, and return to the Protected Setup page.
2. Press the on-screen Reboot button to restart the panel and incorporate any changes.

NOTE

Before continuing, open NetLinx Studio. This program assists in developing a System Number, Master IP/URL, and Master Port number. Refer to the NetLinx Master's instruction manual for more information.

1. Obtain the System Number and Master IP Address from NetLinx Studio. This information must be specific for the system used with the configured Modero panel.
2. Press the Front Setup Access button for 4 seconds to open the Setup page.
3. Press the Protected Setup button (located on the lower-left of the panel page) to open the Protected Setup page.
4. Press the System Settings button (located on the Protected Setup page) to open the System Settings page (FIG. 24) and begin configuring the communication settings on the panel to match those of the target Master.

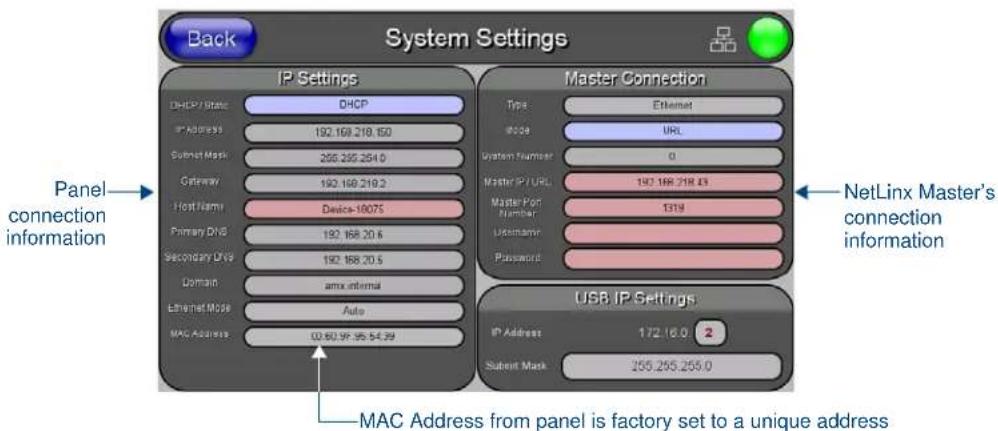

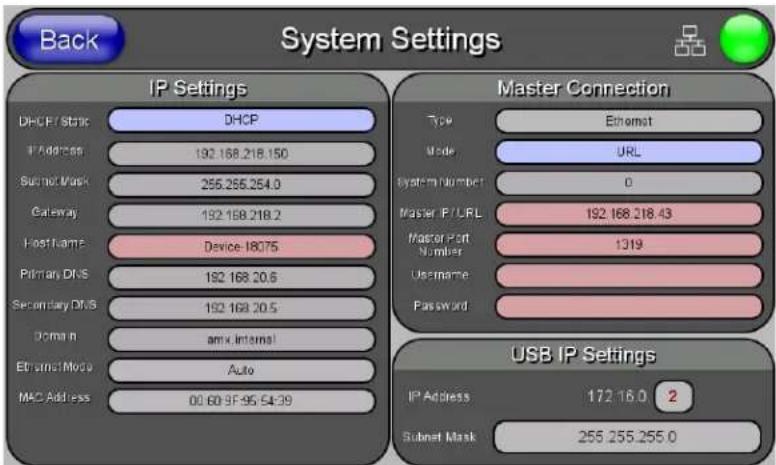

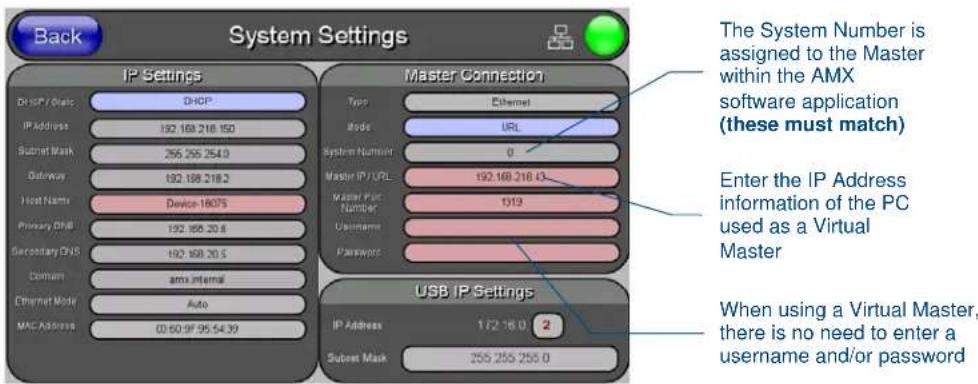

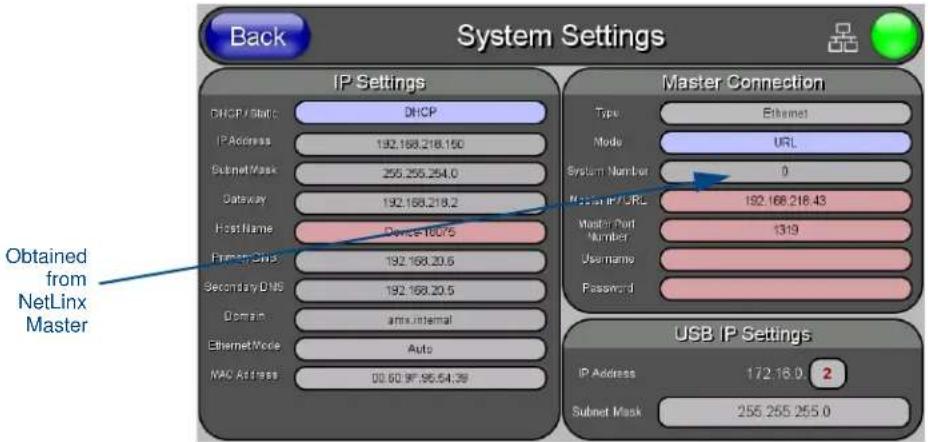

FIG. 24 System Settings page

The two possible Master Connection Types available are USB or Ethernet. A USB connection type is a direct connection from the panel's mini-USB port to a corresponding USB port on the PC, which is acting as a Virtual Master. An Ethernet connection type involves indirect communication from the panel to a Master via an Ethernet connection to the network.

It is recommended that firmware KIT files only be transferred over a direct connection and only when the panel is connected to a power supply.

The mini-USB connector MUST be plugged into a panel that is already active before the PC can recognize the connection and assign an appropriate USB driver.

Configuring and Using USB with a Virtual Master

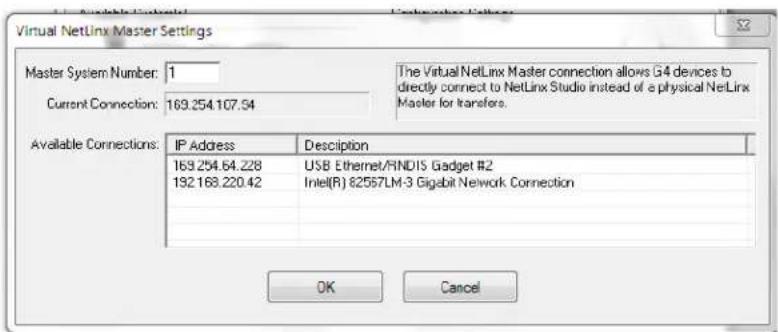

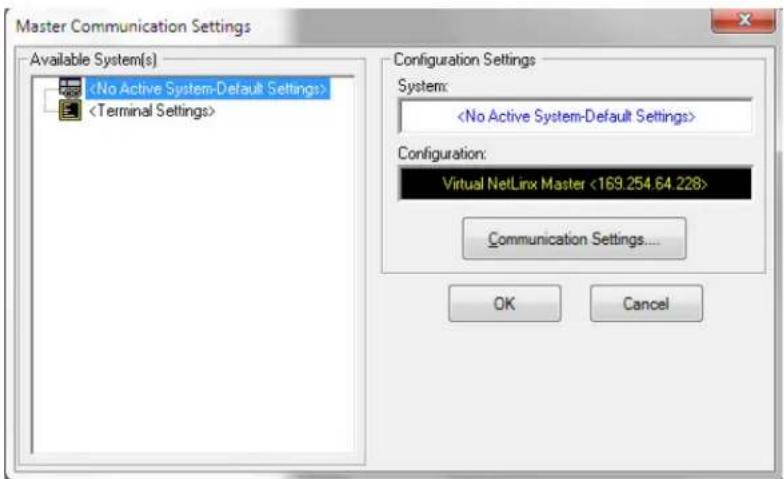

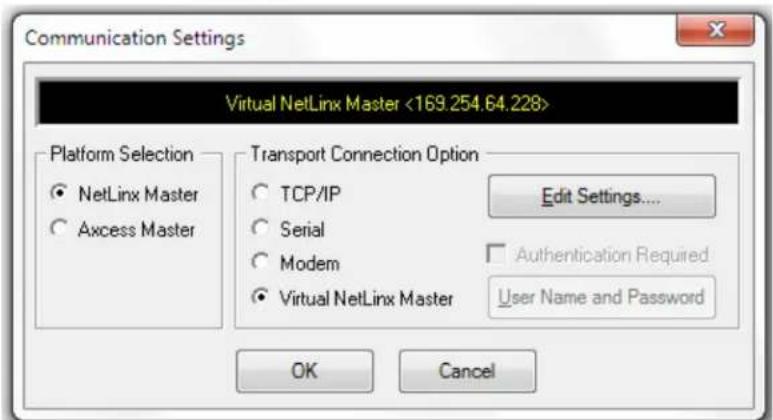

NetLinx Studio can be set up to run a Virtual Master where the PC acts as the Master by supplying its own IP Address for communication to the panel. The PC is first equipped with the USB driver, the panel is then configured for USB communication, and then Studio is configured to act as the Master.

For a personal computer to establish a connection to a Modero panel via USB, the target computer must have the appropriate AMX USB driver installed. This installation is bundled into the latest TPDesign4 software setup process or can be downloaded independently from the main Application Files page on www.amx.com.

Step 1: Setup the Panel and PC for USB Communication

1. If you do not currently have the latest version of TPDesign4, navigate to www.amx.com > Tech Center > Downloadable Files > Application Files > NetLinx Design Tools section of the website and locate the File Transfer 2 executable (FT2Setup.exe).

This will install the native RNDIS USB driver when executed.

1. Download this executable file to a known location on your computer.
2. Launch the Setup.exe file and follow the on-screen prompts to complete the installation.

Step 2: Confirm the Installation of the USB Driver on the PC

The first time each AMX touch panel is connected to the PC, it is detected as a new hardware device and the panel-specific USBLAN driver becomes associated with it.

Each time thereafter, the panel is "recognized" as a unique USBLAN device and the association to the driver is done in the background. When the panel is detected for the first time, some user intervention is required during the association between panel and driver.

1. After the installation of the USB driver has been completed, confirm the proper installation of the large Type-A USB connector to the PC's USB port, and restart the PC.

If the panel is already powered, continue with step 3.

The panel MUST be powered and configured for USB communication before connecting the mini-USB connector to the panel's Program Port.

1. Connect the terminal end of the Ethernet cable to the connector on the side of the touch panel and then apply power.
2. After the panel powers up, press and hold the Front Setup Access button for 4 seconds to continue with the setup process and proceed to the Setup page.
3. Insert the mini-USB connector into the Program Port on the panel.

It may take a minute for the panel to detect the new connection and send a signal to the PC, as indicated by a green System Connection icon. If this is the first time for installing the USB driver, a USB driver installation popup window appears on the PC.

• This window states that the panel has been detected by the PC as a USB-compliant device and the PC is installing an appropriate USB driver to establish a proper communication to the panel.
• This driver was installed on the PC during the installation of the latest NetLinx Studio and TPDesign4 software application installations. These applications should be installed prior to setting up a USB connection to the panel.

• Windows® notes that the driver does not contain a Microsoft® digital signature.

• Click Yes when told that a digital signature was not found.

• This action accepts the installation of the new AMX USB driver. The panel is now configured to communicate directly with the PC.

• This process completes the association between driver and device. Each time the same touch panel is connected to the computer, the driver is automatically loaded (using a unique name - example USB LAN LINK #1, #2).

Each time a different touch panel is connected to the computer, the previous procedures will need to be repeated.

1. Navigate back to the System Settings page.

Step 3: Confirm and View Current AMX USB Device Connections

The USB driver information can be confirmed via two different methods:

• Via the Control panel (previous steps 1 and 2) or

• Via the Unplug or Eject Hardware icon from the Taskbar.

• Navigate to Start > Settings > Control Panel > and double-click the System icon to launch the System Properties dialog.

• Select the Hardware tab and click on the Device Manager button to launch the Device Manager dialog.

• Within the Device Manager dialog, the AMX USBLAN device appears under Network Adapters and has a unique name such as AMX USB LAN LINK #2 (FIG. 25).
  ● The number changes depending on which recognized panel is currently connected.

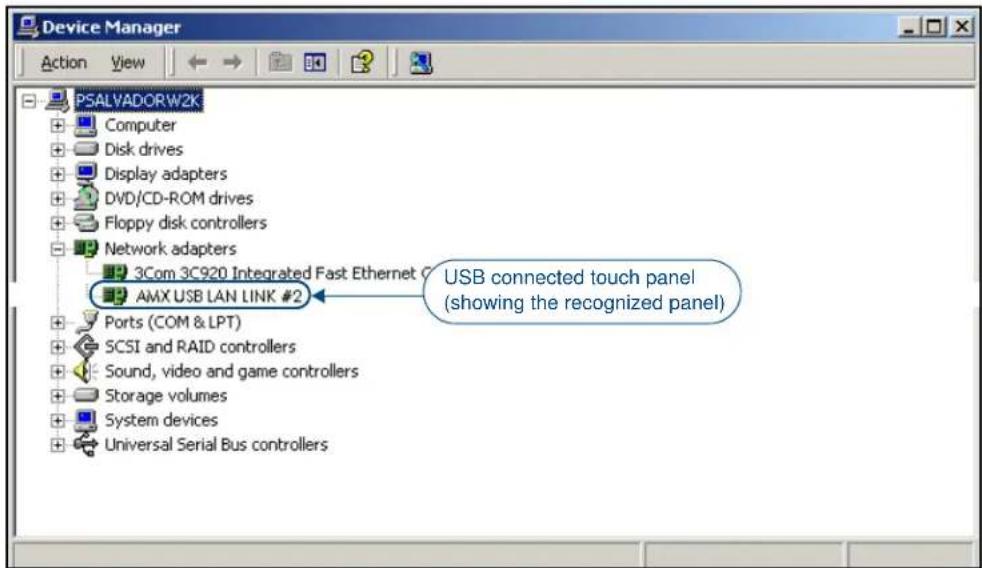

FIG. 25 Device Manager dialog showing USB device

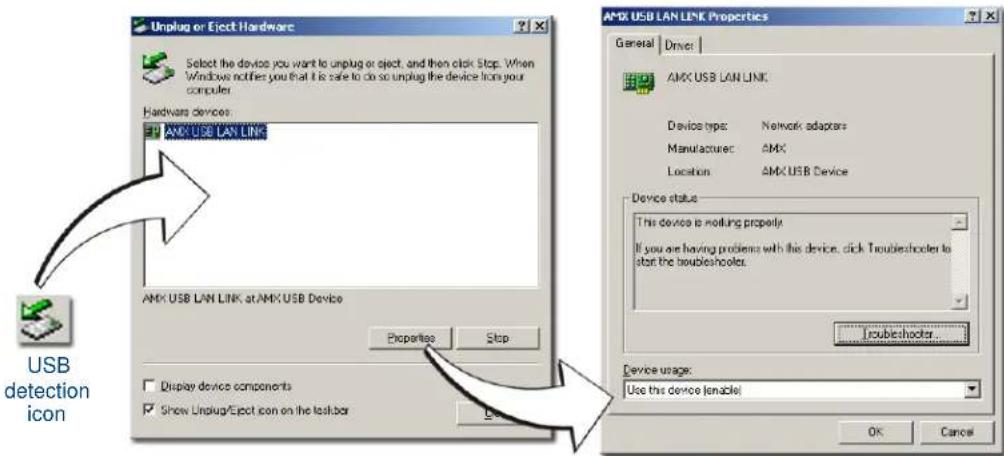

1. Confirm that a new USB detection icon (FIG. 26) appears in the lower-right taskbar on the PC display window.
2. Double-click on the icon to open the Unplug or Eject Hardware window and confirm the AMX USB LAN LINK has been installed and is operating properly.
3. Click the Properties button to view further information about the installed USB driver.

FIG. 26 USB Properties windows

NOTE

If a yellow exclamation point appears next to the AMX USB LAN LINK device (within the hardware devices section of the Unplug or Eject Hardware window), stop and close the USB operation.

Reconnect the USB cable to the panel and repeat the setup procedures.

Refer to the Troubleshooting section on page 127 for more detailed information.

To remove the USB driver association from a previously connected touch panel, navigate back to the Device Manager, right-click on the panel's USB driver (example AMX USB LAN LINK #2) and select Uninstall from the context menu and then OK.

• Once the system completes the removal of the device, the Device Manager window will refresh, and the device will no longer appear.
• The next time this device is connected to the computer, it will appear as a new hardware device and will need to be associated again with the driver (refer to Step 2: Confirm the Installation of the USB Driver on the PC section on page 25 for more information).

NOTE

A Virtual NetLinx Master (VNM) is used when the target panel is not connected to a physical NetLinx Master. In this situation, the PC takes on the functions of a Master via a Virtual NetLinx Master. This connection is made by either using the PC's Ethernet Address, via TCP/IP using a known PC's IP Address as the Master, or using a direct mini-USB connection to communicate directly to the panel.

Step 4: Configure a Virtual Master (using NetLinx Studio) for USB

Before beginning:

1. Verify the panel has been configured to communicate via USB within the System Settings page and that the USB driver has been properly configured. Refer to the previous section for more information.
2. Launch NetLinx Studio (default location is Start > Programs > AMX Control Disc > NetLinx Studio).
3. Select Settings > Master Communication Settings, from the Main menu to open the Master Communication Settings dialog (FIG. 27).

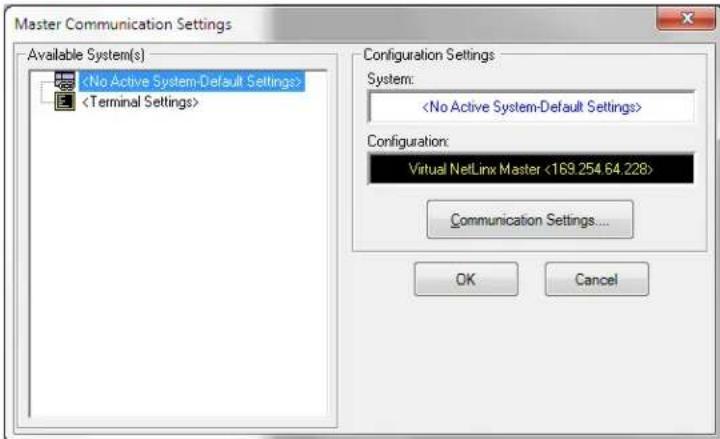

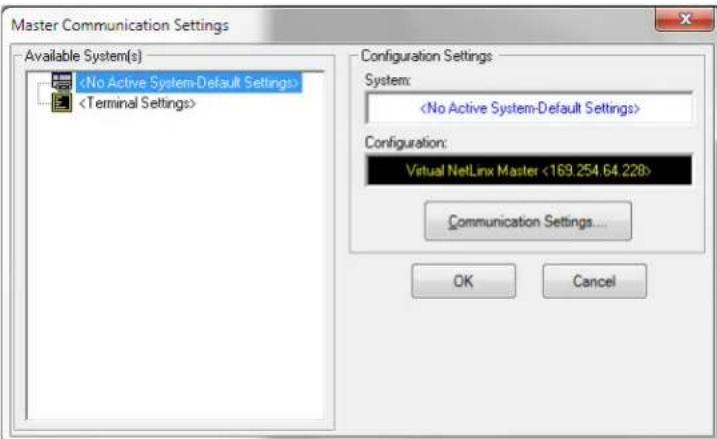

FIG. 27 Master Communication Settings dialog

1. Click the Communications Settings button to open the Communications Settings dialog (FIG. 28).

FIG. 28 Communications Settings dialog box

1. Click on the NetLinx Master radio button in the Platform Selection section to indicate that this is working as a NetLinx Master.
2. Click on the Virtual Master radio box from the Transport Connection Option section to configure the PC to communicate directly with a panel. Everything else, such as the Authentication, is greyed out because this action is not going through the Master's UI.
3. Click the Edit Settings button on the Communications Settings dialog to open the Virtual NetLinx Master Settings dialog (FIG. 29).

FIG. 29 Virtual NetLinx Master Settings dialog box

1. From within this dialog, enter the System number (default is 1).
2. Click OK three times to close the open dialogs, save the settings, and return to the main NetLinx Studio application.

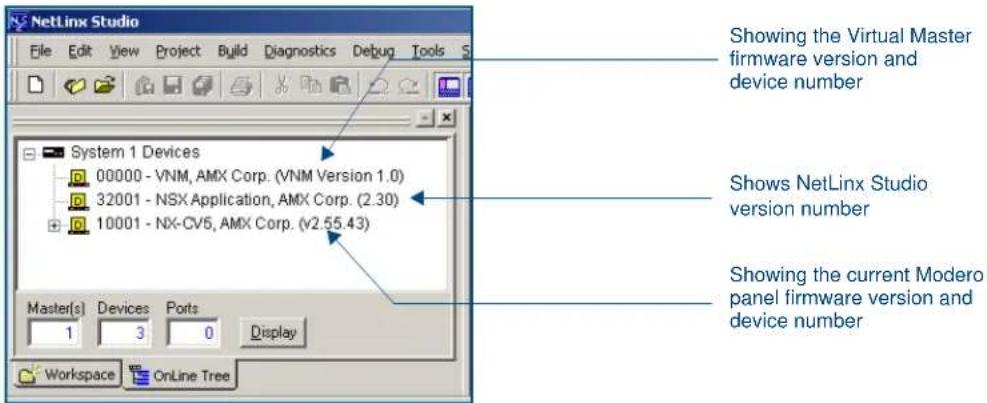

3. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System. The default System value is one.

4. Right-click on the Empty Device Tree/System entry and select Refresh System to re-populate the list. The panel will not appear as a device below the virtual system number (in the Online Tree tab) until the system number used in step 7 for the VNM is entered into the Master Connection section of the System Settings page.

5. The Connection Status icon turns green after a few seconds to indicate an active USB connection to the Virtual Master on the PC. No Lock icon is displayed because this USB connection is not secured and does not require a username and password.

6. If a few minutes have gone by and the Connection Status icon still does not turn green, repeat the USB connection and Virtual Master setup procedures (outlined in this section). Refreshing the System sends out a request to the panel to respond and completes the communication (turning the System Connection icon green).

NOTE

If the G4 panel does not appear, refer to the Troubleshooting section on page 127 for more information.

1. The USB icon will appear to the left of the Connection Status icon to signify an active USB connection (FIG. 30).

FIG. 30 USB icon

Step 5: Confirm and View Current AMX USB Device Connections

Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC.

This method of communication is used to transfer firmware KIT files and TPD4 touch panel files.

NOTE

A mini-USB connection is only detected after it is installed onto an active panel. Connection to a previously powered panel which then reboots, allows the PC to detect the panel and assign an appropriate USB driver.

1. Verify this direct USB connection (Type-A on the panel to mini-USB on the panel) is configured properly using the steps outlined in the previous two sections.
2. With the panel already configured for USB communication and the Virtual Master setup within NetLinx Studio, its now time to verify the panel is ready to receive files.

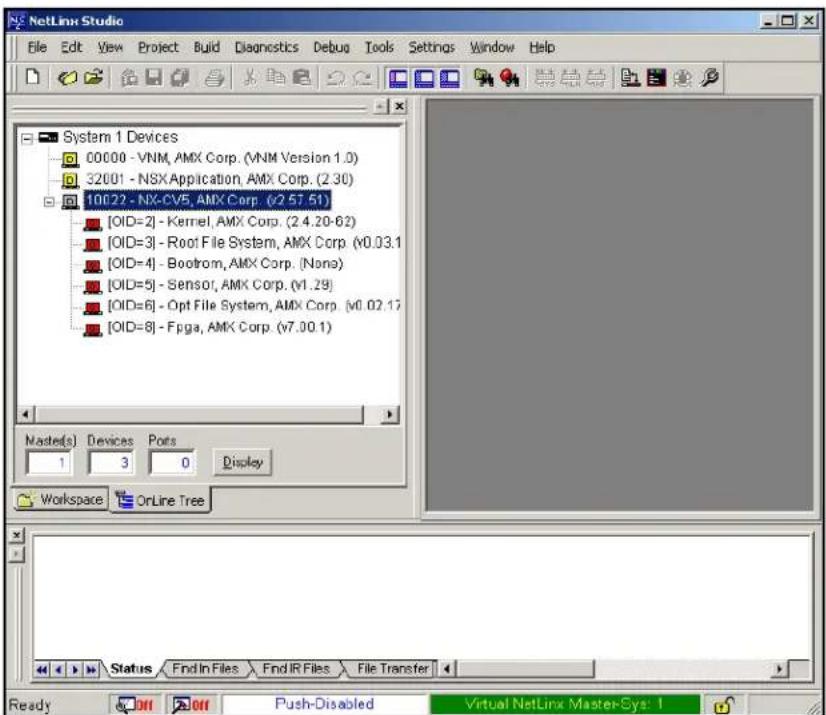

3. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System. The default System value is one.
4. Right-click on the System entry (A in FIG. 31) and select Refresh System. This causes a refresh of all project systems, establishes a new connection to the Virtual Master, and populates the System list with devices on your particular system.

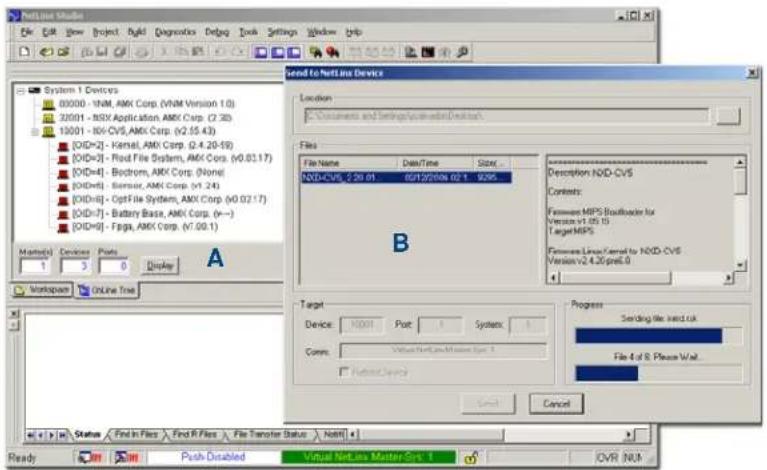

FIG. 31 Repopulating the System List

Configuring a Wired Ethernet Connection

It is necessary to tell the panel as to which Master it should be communicating.

This "pointing to a Master" is done via the System Settings page, where the IP Address, System Number and Username/Password information assigned to the target Master is configured.

Until those parameters are configured, your Connection Status icon will remain red, indicating that it has no current connection to a Master.

Step 1: Configure the Panel's Wired IP Settings

This panel has only one method of communicating to a target Master over the Internet: Wired (direct Ethernet connection, as wireless communication is not available on 7" Modero panels). The connection parameters may only be configured through the System Connection page.

This type of communication can be established either via either a Dynamic IP Address (DHCP) or via a prereserved Static IP Address (typically provided by your System Administrator).

IP Settings section - Configuring a DHCP Address over Ethernet

1. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page.
2. Locate the IP Settings section of this page.

Even though the Host, Gateway, Primary DNS, Secondary DNS, and Domain fields appear on the two separate System Connection and Secondary Connection pages; the information populating these fields is identical.

If the information within one of these fields is altered, the change is reflected on both pages within the altered field.

Example: if the domain is altered on the Secondary Connection page, the value is then also changed within the Domain field of the System Connection page.

1. Toggle the DHCP/Static field (from the IP Settings section) until the choice cycles to DHCP.

DHCP will register the unique factory-assigned MAC Address on the panel, and once the communication setup process is complete, reserve an IP Address, Subnet Mask, and Gateway values from the DHCP Server.

1. Press the optional Host Name field to open a Keyboard and enter the Host Name information.
2. Press Done after you are finished assigning the alpha-numeric string of the host name.
3. Do not alter any of the remaining greyed-out fields in the IP Settings section. Once the panel is rebooted, these values are obtained by the unit and displayed in the DNS fields after power-up.

This information can be found in either the: Workspace- System name > Define Device section of the code that defines the properties for the panel, or in the Device Addressing/Network Addresses in the Tools > NetLinx Diagnostics dialog.

1. Press the Back button to return to the Protected Setup page.
2. Press the on-screen Reboot button to save any changes and restart the panel.

IP Settings section - Configuring a Static IP Address over Ethernet

1. Select Protected Setup > System Settings located on the lower left to open the System Settings page.
2. Locate the IP Settings section of this page.

NOTE

Check with your System Administrator for a pre-reserved Static IP Address assigned to the panel. This address must be obtained before Static assignment of the panel continues.

1. Toggle the DHCP/Static field (from the IP Settings section) until the choice cycles to Static.
2. Press the IP Address field to open a Keyboard and enter the Static IP Address provided by your System Administrator.
3. Press Done after you are finished entering the IP information.
4. Repeat the same process for the Subnet Mask and Gateway fields.
5. Press the optional Host Name field to open the Keyboard and enter the Host Name information.
6. Press Done after assigning the alpha-numeric string of the host name.
7. Press the Primary DNS field to open a Keyboard, enter the Primary DNS Address provided by your System Administrator, and press Done when compete. Repeat this process for the Secondary DNS field.
8. Press the Domain field to open a Keyboard, enter the resolvable domain Address provided by your System Administrator, and press Done when complete.
9. Navigate to the Master Connection section of this page to begin configuring the communication parameters for the target Master.

Step 2: Choose a Master Connection Mode Setting

The Master Connection section of the System Connection page uses three Ethernet MODE settings.

URL is the most common method.

• Master Connection MODE options:

• URL (Uniform Resource Locator) is the address that defines the route to a file on the Web or any other Internet facility. In this system, the panel acts as a "Client" and the Master acts as a Server (in that Clients attach to it).
• LISTEN sets the Modero panel to "listen" for broadcasts from the Master (using the panel IP from its URL list). In this system, the panel acts as a "Server" (in that Clients attach to it) and the Master acts as a "Client".
• AUTO is used to instruct the Modero to search for a Master that uses the same System Number (assigned within the Master Connection section) and resides on the same Subnet as itself. In this case, the Master has its UDP feature enabled.

This UDP (User Datagram Protocol) is a protocol within the TCP/IP protocol suite that is used in place of TCP when a reliable delivery is not required.

This UDP enabling is done through a Telnet session on the Master. Refer to the installation manual for the particular NetLinx Master for more detailed information.

Step 3: Configure an Ethernet Connection Type

When using Ethernet as the selected communication method, the NetLinx Master must first be set up with either a Static IP or DHCP Address obtained from either NetLinx Studio or your System Administrator.

Before beginning:

1. Verify that the panel has been configured to communicate through an Ethernet cable connected from the panel to a valid Ethernet Hub.

Before commencing, verify that the NetLinx Master is using the latest available version of its firmware.

1. Verify that the NetLinx Master is receiving power and is communicating via an Ethernet connection with the PC running NetLinx Studio.
2. Verify that the green Ethernet LED on the rear Ethernet port on the Master is illuminated, indicating a proper connection.
3. Verify that the yellow LED on the rear Ethernet port on the Master is blinking, indicating communication with the device.
4. After the panel powers-up, press and hold the Front Setup Access button for 3 seconds to proceed to the Setup page.
5. Select Protected Setup > System Settings (located on the lower-left) to open the System Settings page (FIG. 32).

FIG. 32 System Connection page

Master Connection section - Virtual Master communication over Ethernet

When configuring the panel to communicate with a Virtual Master (on your PC) via Ethernet, the Master IP/URL field must be configured to match the IP Address of the PC. Make sure to use the Virtual System value assigned to the Virtual Master within NetLinx Studio.

Before beginning:

1. Verify that the panel has been configured to communicate through an Ethernet cable connected from the panel to a valid Ethernet Hub.
2. Launch NetLinx Studio (default location is Start > Programs > AMX Control Disc > NetLinx Studio).

3. Select Settings > Master Communication Settings, from the Main menu to open the Master Communication Settings dialog (FIG. 27).

4. Click the Communications Settings button to open the Communications Settings dialog (FIG. 28).

5. Click on the NetLinx Master radio button from the Platform Selection section to indicate that you are working as a NetLinx Master.

6. Click on the Virtual Master radio box from the Transport Connection Option section to indicate you are wanting to configure the PC to communicate with a panel. All other fields will be greyed out because the Master's UI is not being used.

7. Click the Edit Settings button on the Communications Settings dialog to open the Virtual NetLinx Master Settings dialog (FIG. 29).

8. From within this dialog, enter the System number (default is 1) and note the IP Address of the target PC being used as the Virtual Master. This IP Address can also be obtained by following these procedures:

9. On your PC, click Start > Run to open the Run dialog.

10. Enter cmd into the Open field and click OK to open the command DOS prompt.

11. From the C:> command line, enter ipconfig to display the IP Address of the PC. This information is entered into the Master IP/URL field on the panel.

12. Click OK three times to close the open dialogs, save your settings, and return to the main NetLinx Studio application.

13. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System. The default System value is one.

14. Right-click on the Empty Device Tree/System entry and select Refresh System to re-populate the list.

15. Power-up your panel and press and hold the grey Front Setup Access button (for 3 seconds) to continue with the setup process and proceed to the Setup page.
16. Select Protected Setup > System Settings, located on the lower left, to open the System Settings page (FIG. 33).

FIG. 33 Sample System Connection page (for Virtual Master communication)

1. Press the Master IP/URL field to open a Keyboard and enter the IP Address of the PC used as the Virtual Master.
2. Click Done to accept the new value and return to the System Settings page.
3. Do not alter the Master Port Number value. This is the default value used by NetLinx.
4. Press the Back button to return to the Protected Setup page.

Master Connection section - NetLinx Master Ethernet IP Address - URL Mode

In this mode, enter the System Number (zero for an unknown System Number) and the IP/URL of the Master (the Master Port Number is defaulted to 1319).

1. In the System Settings page, press the Mode field until the choice cycles to URL.

- By selecting URL, the System Number field becomes read-only (grey) because the panel pulls this value directly from the communicating target Master, virtual or not. A Virtual Master system value can be set within the active AMX software applications such as NetLinx Studio, TPD4, or IREdit.

If the panel does not appear within the OnLine Tree tab of the Workspace window of NetLinx Studio, check to make sure that the NetLinx Master System Number from within the Device Addressing dialog is correctly assigned.

1. Press the Master IP/URL field to open a Keyboard and enter the Master IP Address obtained from the Diagnostics - Networking Address dialog of the NetLinx Studio application.
2. Click Done to accept the new value and return to the System Connection page.
3. Do not alter the Master Port Number value. This is the default value used by NetLinx.
4. Enter a username and password (into their respective fields) if the target Master has been previously secured.
5. Press the Back button to return to the Protected Setup page.

Master Connection section - NetLinx Master Ethernet IP Address - Listen Mode

In this mode, add the Modero panel IP Address into the URL List of the Master by using NetLinx Studio. This mode sets the Modero panel to "listen" for broadcasts from the Master (using the panel IP from its URL list).

1. Obtain either a Static IP for the Modero panel (from your System Administrator) or a DHCP Address from the IP Settings of the System Connection page.

2. The DHCP/Static field, in the IP Settings section of the System Settings page, must be set to DHCP to get Dynamic IP information for the panel.

3. Press the on-screen Reboot (from the Protected Setup page) to save any changes and restart the panel.
4. After power-up, press the front button for 3 seconds to access the Setup page.

5. Navigate to the Setup > Protected Setup > System Settings page and note the newly obtained Dynamic IP Address information from the IP Settings section. This information is then entered into the URL List for the connected NetLinx Master.

6. Toggle the Type field until Ethernet is selected (from the Master Connection section of the System Connection page).

7. Press the Mode field (to set the connection Mode) until the choice cycles to Listen. The System Number and Master IP/URL fields are then greyed out.
8. Enter a username and password into their respective fields if the target Master has been previously secured.
9. Select the OnLine Tree tab from the Workspace window.
10. Enter the System and Device number for the specific Master associated with the touch panel as seen in the OnLine Tree tab.
11. Click Add and enter the IP Address of the Modero touch panel into the Add URL dialog.
12. Click OK to enter the IP Address and add it to the list.
13. Click Done when finished adding your panel information to the list.

Master Connection section - NetLinx Master Ethernet IP Address - Auto Mode

In this mode, enter the System Number of the NetLinx Master. This mode instructs the Modero to search for a Master that uses the same System Number (assigned within the Master Connection section) and resides on the same Subnet as itself.

1. In the System Settings page, press the Mode field until the choice cycles to the word Auto.
2. Press the System Number field to launch a Keypad and enter the value for the system number of the NetLinx Master. This value can be obtained from the NetLinx Studio program > OnLine Tree of the Workspace window.
3. Do not alter the IP Settings section of the System Settings page, as these fields are not applicable to this connection mode.
4. Enter a username and password into their respective fields if the target Master has been previously secured.
5. Press the Back button to open the Setup page and confirm an active connection.

The NetLinx Master and the Modero panel must both be on the same Subnet.

Using G4 Web Control to Interact with a G4 Panel

The G4 Web Control feature allows a PC to interact with a G4-enabled panel via the web. This feature works in tandem with the browser-capable NetLinx Security firmware update (build 300 or higher). G4 Web Control is only available with the latest Modero panel firmware. Refer to the G4 Web Control Settings Page section on page 58 for more detailed information on G4 Web control.

Verify that the NetLinx Master (ME260/64 or NI-Series) has been installed with the latest firmware KIT file from www.amx.com. Refer to the NetLinx Master instruction manual for more detailed information on the use of the new web-based NetLinx Security.

1. Press the Front Setup Access button for 3 seconds to open the Setup page.
2. Press the Protected Setup button located on the lower-left of the panel page to open the Protected Setup page and display an on-screen keypad.
3. Enter 1988 into the Keypad's password field (1988 is the default password) and press Done when finished.

Clearing Password #5, from the initial Password Setup page, removes the need to enter the default password before accessing the Protected Setup page.

1. Press the G4 WebControl button to open the G4 Web Control page (FIG. 34).

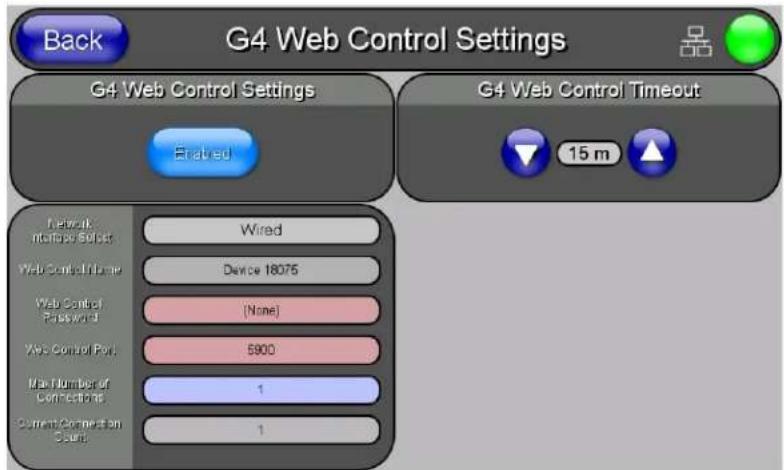

FIG. 34 G4 Web Control page

1. Press the Enable/Enabled button until it toggles to Enabled (light blue color).

2. The Network Interface Select field is read-only and displays the method of communication to the web. Verify the selection of the proper interface connection, as this field does not auto-detect the connection type being used (see below).

3. Wired is used when a direct Ethernet connection is being used for communication to the web. This is the default setting if no wireless interface card is detected or if both an Ethernet and wireless card connection is detected by the panel.

4. Wireless is used when a wireless card is detected within the internal card slot. 7" Modero panels do not provide wireless communication, so this option is not available.

5. Press the Web Control Name field to open the Web Name keyboard.

6. From the Web Name keyboard, enter a unique alphanumeric string to identify this panel and press Done when finished. This information is used by the NetLinx Security Web Server to display on-screen links to the panel. The on-screen links use the IP Address of the panel and not the name for communication (FIG. 35).

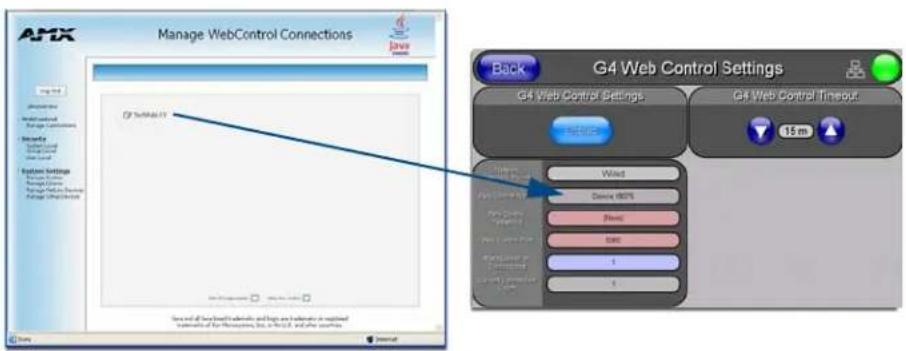

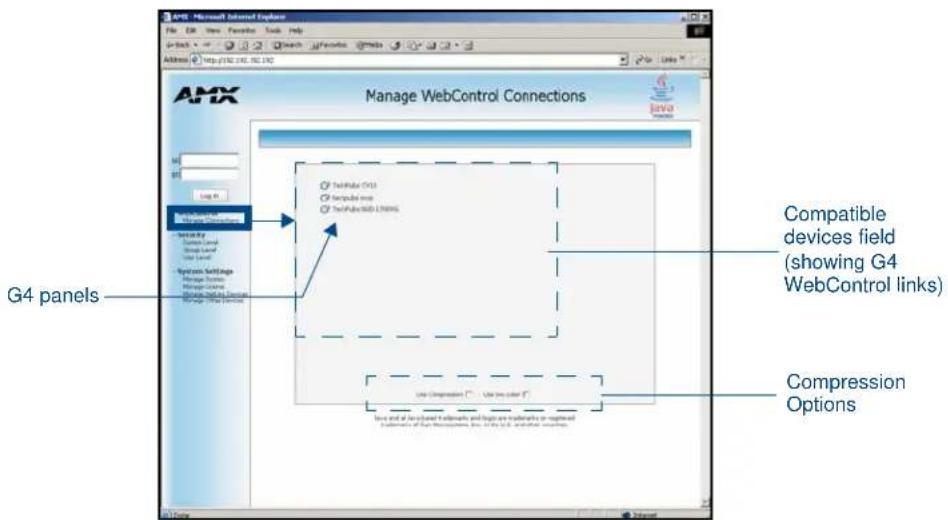

FIG. 35 Sample relationship between G4 Web Control and Mange WebControl Connections window

1. Press the Web Control Password field to open the Web Password keyboard.

2. From the Web Password keyboard, enter a unique alpha-numeric string to be assigned as the G4 Authentication session password associated with VNC web access of this panel. Press Done when finished.

3. Press the Web Control Port field to open the Web Port Number keypad.

4. Within the keypad, enter a unique numeric value to be assigned to the port being used by the VNC Web Server and press Done when finished. The default value is 5900. The remaining fields within the G4 Web Control Settings section of this page are read-only and cannot be altered.

5. Press the Up/Down arrows on either sides of the G4 Web Control Timeout field to increase or decrease the amount of time the panel can remain idle (no cursor movements) before the session is closed and the user is disconnected.

6. Press the Back button to return to the Protected Setup page.
7. Press the on-screen Reboot button to save any changes and restart the panel.

Verify that the NetLinx Master's IP Address and System Number have been properly entered into the Master Connection section of the System Connection page.

Using the NetLinx Master To Control the G4 panel

Refer to the particular NetLinx Master's instruction manual for detailed information on how to download the latest firmware from www.amx.com. This firmware build enables SSL certificate identification and encryption, HTTPS communication, ICSP data encryption, and disables the ability to alter the Master security properties via a TELNET session.

In order to fully utilize the SSL encryption, your web browser should incorporate the an encryption feature. This encryption level is displayed as a Cipher strength.

Once the Master's IP Address has been set through NetLinx Studio:

1. Launch your web browser.
2. Enter the IP Address of the target Master (ex: http://198.198.99.99) into the web browser's Address field.
3. Press the Enter key on your keyboard to begin the communication process between the target Master and your computer.
4. Initially, the Master Security option is disabled from within the System Security page, and no username and password is required for access or configuration.
5. Both HTTP and HTTPS Ports are enabled by default via the Manage System > Server page.

6. If the Master has been previously configured for secured communication, click OK to accept the AMX SSL certificate (if SSL is enabled) and then enter a valid username and password into the fields within the Login dialog.

7. Click OK to enter the information and proceed to the Master's Manage WebControl Connections window.

8. The Manage WebControl Connections page (FIG. 36) is accessed by clicking on the Manage connections link within the Web Control section in the Navigation frame. Once activated, this page displays links to G4 panels running the latest G4 Web Control feature previously setup and activated on the panel.

FIG. 36 Manage WebControl Connections page (populated with compatible panels)

1. Click on the G4 panel name link associated with the target panel. A secondary web browser window appears on the screen (FIG. 37).

FIG. 37 Web Control VNC installation and Password entry screens

1. Click Yes from the Security Alert popup window to agree to the installation of the G4 WebControl application on your computer. This application contains the necessary Active X and VNC client applications necessary to view and control the panel pages from your computer.

The G4 Web Control application is sent by the panel to the computer that is used for communication. Once the application is installed, this popup will no longer appear. This popup will only appear if connecting to the target panel using a different computer.

1. In some cases, a Connection Details dialog (FIG. 38) may appear that requests a VNC Server IP Address. This is the IP address of the target touch panel, not the IP of the Master. The IP address may be found in the System Settings page (for more information, please refer to the System Settings Page section on page 55). If this field does not appear, continue to step 9.

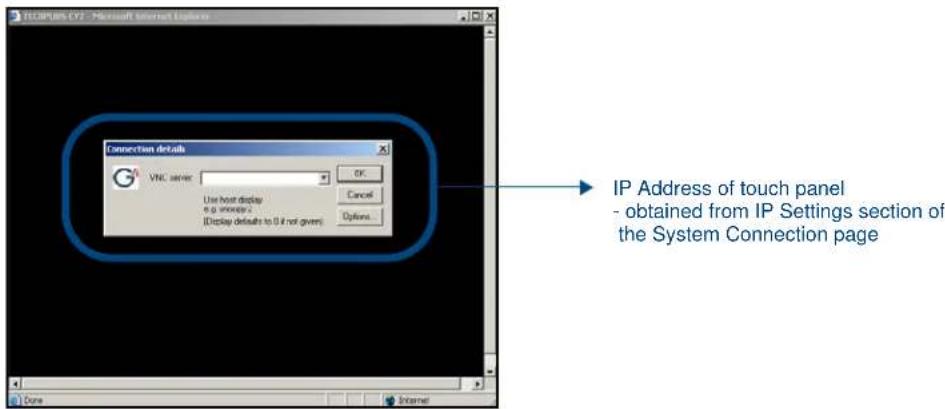

FIG. 38 Connection Details dialog

1. If a WebControl password was set up on the G4 WebControl page, a G4 Authentication Session password dialog box appears on the screen within the secondary browser window.
2. Enter the Web Control session password into the Session Password field (FIG. 37). This password was previously entered into the Web Control Password field within the G4 Web Control page on the panel.
3. Click OK to send the password to the panel and begin the session. A confirmation message appears stating "Please wait, Initial screen loading."

The secondary window then shows the same G4 page being displayed on the target G4 panel. A small circle appears within the on-screen G4 panel page and corresponds to the location of the mouse cursor. A left-mouse click on the computer-displayed panel page is the same as an actual touch on the target G4 panel page.

Configuring Communication

Upgrading Modero Firmware

Overview

Before beginning the Upgrade process:

• Set up and configure your NetLinx Master. Refer to the particular NetLinx Master Instruction Manual for detailed setup procedures.
• Calibrate and prepare the communication pages on the panel for use. Refer to the Panel Calibration section on page 21.
• Refer to the NetLinx Studio version 2.x or higher Help file for more information on uploading files.
• Configure the panel for a direct connection. Refer to the Configuring Communication section on page 23 for more information.

The process of updating firmware involves the use of a communicating NetLinx Master. The required steps for updating firmware to a Modero panel are virtually identical to those necessary for updating Kit files to a NetLinx Master, except the target device is a panel instead of a Master. Refer to either the Master's User Manual or Studio 2.x Help file for those procedures.

WARNING

A touch panel which is not using a valid username and password will not be able to communicate with a secured Master. If you are updating the firmware on or through a panel which is not using a username or password field, you must first remove the Master Security feature to establish an unsecured connection.

Upgrading the Firmware via the USB port

Before beginning with this section, verify your panel is both powered and the Type-A USB connector is securely inserted into the PC's USB port. The panel must be powered on before connecting the mini-USB connector to the panel.

WARNING

Establishing a USB connection between the PC and the panel prior to installing the latest NetLinx Studio and TPDesign4 applications will cause a failure in the USB driver installation.

This driver must first be saved to the PC as part of the new NetLinx Studio and TPDesign4 application installations.

Step 1: Configure the panel for a USB Connection Type

1. After the installation of the USB driver has been completed, confirm the proper installation of the large Type-A USB connector to the PC's USB port and restart your machine.
2. After the NXD-700i/ NXT-CA7 panel powers-up, press and hold the grey Front Setup Access button for 4 seconds to continue with the setup process and proceed to the Setup page.
3. Select Protected Setup > System Settings, located on the lower-left, to open the System Settings page.
4. Insert the mini-USB connector into the Program Port on the panel. It may take a minute for the panel to detect the new connection and send a signal to the PC, indicated by a green Connection Status icon.
5. If a few minutes have gone by and the Connection Status icon still does not turn green, complete the procedures in the following section to set up the Virtual Master and refresh the System from the Online Tree. This action sends out a request to the panel to respond and completes the communication, turning the Connection Status icon green.
6. Navigate back to the System Status page.

Step 2: Prepare NetLinx Studio for communication via the USB port

1. Launch NetLinx Studio (default location is Start > Programs > AMX Control Disc > NetLinx Studio).
2. Select Settings > Master Communication Settings from the Main menu to open the Master Communication Settings dialog (FIG. 39).

FIG. 39 Master Communication Settings dialog box

1. Click the Communications Settings button to open the Communications Settings dialog (FIG. 40).

FIG. 40 Communication Settings dialog box

1. Click on the NetLinx Master radio button from the Platform Selection section to work as a NetLinx Master.
2. Click on the Virtual Master radio box from the Transport Connection Option section to configure the PC to communicate directly with a panel. Everything else, such as the Authentication, is greyed-out because the communication is not going through the Master's UI.
3. Click the Edit Settings button on the Communications Settings dialog to open the Virtual NetLinx Master Settings dialog (FIG. 39).
4. From within this dialog, enter the System number (default is 1).
5. Click OK three times to close the open dialogs, save the settings, and return to the main NetLinx Studio application.
6. Click the OnLine Tree tab in the Workspace window to view the devices on the Virtual System. The default System value is one.
7. Right-click on the Empty Device Tree/System entry and select Refresh System to re-populate the list. The panel will not appear as a device below the virtual system number in the Online Tree tab until the

FIG. 41 Virtual NetLinx Master Settings dialog box

system number used in step 7 for the Virtual NetLinx Master (VNM) is entered into the Master Connection section of the System Settings page.

If the G4 panel does not appear, refer to the Troubleshooting section on page 127 for more information.

Step 3: Confirm and Upgrade the firmware via the USB port

Use the CC-USB Type-A to Mini-B 5-wire programming cable (FG10-5965) to provide communication between the mini-USB Program port on the touch panel and the PC. This method of communication is used to transfer firmware Kit files and TPD4 touch panel files.

A mini-USB connection is only detected after it is installed onto an active panel. This allows the PC to detect the panel and assign an appropriate USB driver.

1. Verify that the direct USB connection (Type-A on the panel to mini-USB on the panel) is configured properly using the steps outlined in the previous two sections.
2. After the Communication Verification dialog window verifies active communication between the Virtual Master and the panel, click the OnLine Tree tab in the Workspace window (FIG. 42) to view the devices on the Virtual System. The default System value is one.
3. Right-click on the System entry (FIG. 42) and select Refresh System to re-populate the list.
4. Verify the panel appears in the OnLine Tree tab of the Workspace window. The default Modero panel value is 0.

FIG. 42 NetLinx Workspace window (showing the panel connection via a Virtual NetLinx Master)

The panel firmware is shown on the right of the listed panel.

Download the latest firmware file from www.amx.com and then save the Kit file to your computer.

1. If the panel firmware being used is not current, download the latest Kit file by first logging in to www.amx.com and then navigate to Tech Center > Firmware Files and from within the Modero section of the web page locate your Modero panel.
2. Click on the desired Kit file link and after you've accepted the Licensing Agreement, verify you have downloaded the Modero Kit file to a known location.
3. From within Studio, select Tools > Firmware Transfers > Send to NetLinx Device from the Main menu to open the Send to NetLinx Device dialog (B in FIG. 43). Verify the panel's System and Device number values match those values listed within the System folder in the OnLine Tree tab of the Workspace window (A in FIG. 43).

FIG. 43 Using USB for a Virtual Master transfer

1. Select the panel's Kit file from the Files section.
2. Enter the Device value associated with the panel and the System number associated with the Master listed in the OnLine Tree tab of the Workspace window. The Port field is greyed-out.
3. Click the Reboot Device checkbox. This causes the touch panel to reboot after the firmware update process is complete. The reboot of the panel can take up 30 seconds after the firmware process has finished.
4. Click Send to begin the transfer. The file transfer progress is indicated on the bottom-right of the dialog (B in FIG. 43).
5. As the panel is rebooting, temporarily unplug the USB connector on the panel until the panel has completely restarted.
6. Once the first panel page has been displayed, reconnect the USB connector to the panel.
7. Right-click the associated System number and select Refresh System. This causes a refresh of all project systems, establishes a new connection to the Master, and populates the System list with devices on your particular system.
8. Confirm that the panel has been properly updated to the correct firmware version.

Setup Pages and Descriptions

This section describes the Setup and Protected Settings pages and their specific functional elements.

Setup Navigation Buttons

The Setup Navigation Buttons (FIG. 44) appear on the left of the panel screen when the Setup page is currently active.

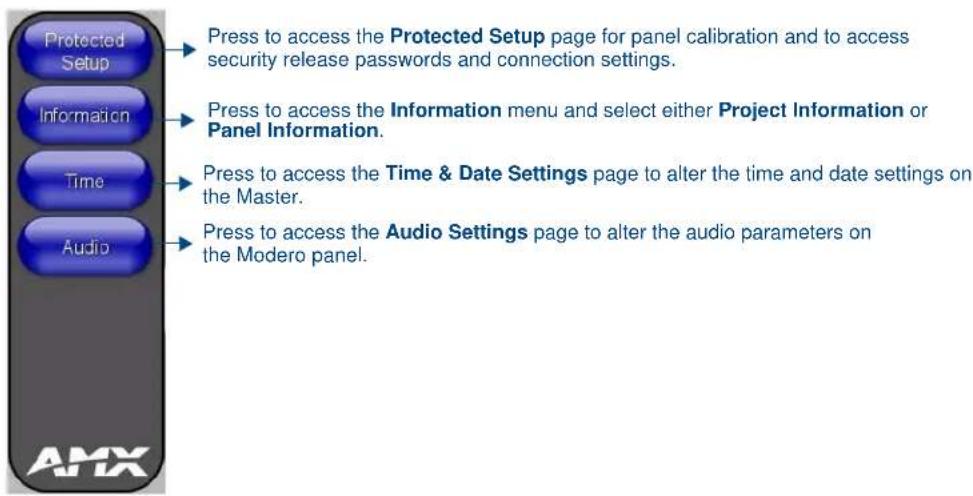

FIG. 44 Setup Navigation Buttons

Protected Setup

The Protected Setup button opens the Protected Setup page, which centers around the properties used by the panel to communicate with the NetLinx Master. Refer to both the Protected Setup Navigation Buttons section on page 52 and the Protected Setup section on page 45 for more detailed information.

Setup Page

The Setup page (FIG. 45) centers around basic Modero panel properties, such as the Connection Status of the panel, Display Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness.

FIG. 45 Setup page

The elements of the Setup page are described below:

Setup Page
Exit: Returns to the Main touch	panel page. In this case, the previous page is the default Main page.
Wired icon: The icon to the left	of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current update of the panel's connection status regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master (requiring a username and password).
Connection Status:	Displays whether the panel is communicating externally, the encryption status of the communicating Master, what connection type is being used (Ethernet or USB), and of what System the panel is a part.This visual display of the connection status is also reflected at the upper-right of each firmware page. This allows the user to have a current visual update of the panel's connection status regardless of what page is currently active.When a connection is established, the message displayed is either:"Connected via Ethernet" or "Connected via USB".If no connection can be established by the Modero panel, it will continue to try and establish a connection while displaying: "Attempting via...".The word "Encrypted" appears only when an encrypted connection is established with a target Master.The panel must be rebooted before incorporating any panel communication changes and detecting any active Ethernet connections.The Ethernet connection is only detected after the panel is rebooted.
Display Timeout:	Sets the length of time the panel can remain idle before activating the sleep mode. When the device goes into sleep mode, the LCD is powered down.Press the UP/DN buttons to increase/decrease the time until the panel times out. Range = 0 - 240 minutes.Use this button to set the timeout value to zero and disable the sleep mode.
Inactivity Page Flip Time:	Sets the number of minutes of inactivity before the panel automatically flips to a pre-selected touch panel page. When the device goes into this inactivity mode, the LCD does not power down.Press the UP/DN buttons to increase/decrease the time the panel can remain inactive before it flips to the preset page. Range = 0 - 240 minutes.Use this button to set the timeout value to zero and disable the inactivity page flip mode.The touch panel page used for the Inactivity page flip is shown within a small Inactivity Page field.
Panel Brightness: Sets the display brightness level of the panel.Press the UP/DN buttons to adjust the brightness level. Range = 0 - 100.The on-screen bargraph can be dragged to adjust the Brightness level which is then reflected as a corresponding numeric value within the Panel Brightness field.The Auto Brightness button, when selected, will cause the panel to dim as the light level decreases, in order to reflect the brightness level of the room. If the panel is touched, the backlight will temporarily brighten the panel more than the previously selected level.

Information

Pressing and holding the Information button provides a menu to select either the Panel Information page or the Panel Information page (FIG. 46). Select either option to access that page.
        G["Connected via Ethernet"]
        H["Connected To System"]
    end

FIG. 46 Information menu

Panel Information Page

The Project Information page displays the TPDesign4 (TPD4) project file properties currently loaded on the selected Modero panel (FIG. 47). Refer to the TPDesign4 Touch Panel Program instruction manual for more specific information on uploading TPDesign4 files to a panel.

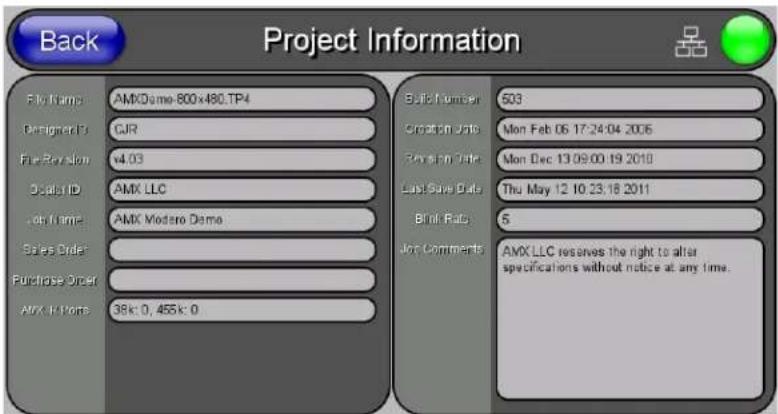

FIG. 47 Project Information page

The elements of the Project Information page are described in the table below:

Project Information Page
Back: Returns to the previously active touch panel page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master (requiring a username and password).
File Name: Displays the name of the TPDesign4 project file downloaded to the panel.
Designer ID: Displays the designer information.
File Revision: Displays the revision number of the file.
Dealer ID:	Displays the dealer ID number (unique to every dealer and entered in TPD4).
Job Name: Displays the job name.
Sales Order: Displays the sales order information.
Purchase Order: Displays the purchase order information.
Project Information Page (Cont.)
AMX IR Port: Displays the AMX 38 kHz IR channel port used by the IR receiver on the panel.	This information is pulled by the panel from AMX IR Receivers section of the TPD4 Project Properties > IR Emitters & Receivers tab.For IR reception, this is the port that reports a push on for the corresponding IR code.IR receivers and transmitters on G4 panels share the device address number of the panel.
Build Number: Displays the build number information of the TPD4 software used to create the project file.
Creation Date: Displays the project creation date.
Revision Date: Displays the last revision date for the project.
Last Save Date: Displays the last date the project was saved.
Blink Rate: Displays the feedback blink rate (10th of second).
Job Comments: Displays any comments associated to the job. These comments are taken from the TPD4 project file.

Panel Information Page

The Panel Information page (FIG. 48) centers around Modero panel properties that include resolution used, on-board memory, firmware, address/channel information, and string information.

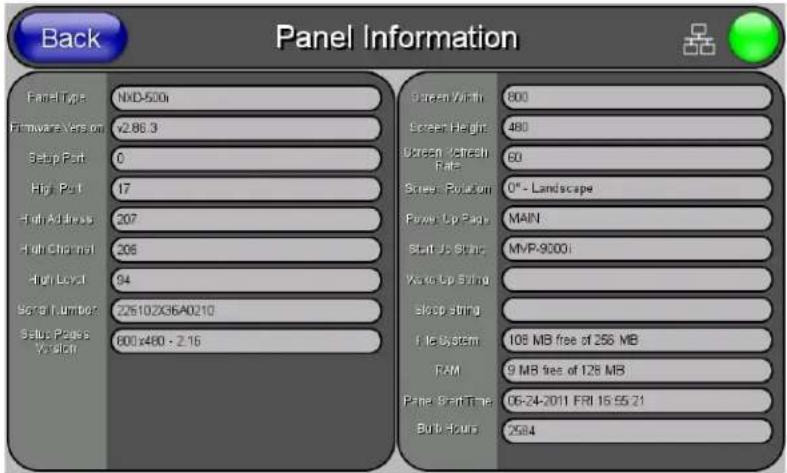

FIG. 48 Panel Information page

The elements of the Panel Information page are as follows:

Panel Information Page
Back: Returns to the previously active touch panel page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status, regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master requiring a username and password.
Panel Type: Displays the model of the Modero panel being used.
Firmware Version: Displays the G4 firmware version being used by the panel.Verify that the panel has the latest version from www.amx.com.
Setup Port: Displays the setup port information/value being used by the panel.
High Port:	Displays the high port (port count) value for the panel.
Panel Information Page (Cont.)
High Address: Displays the high address (address count) value for the panel.
High Channel: Displays the high channel (channel count) value for the panel.
High Level: Displays the high level (level count) value being used by the panel.
Serial Number: Displays the specific serial number value assigned to the panel.
Setup Pages Version:	Displays the type and version of the Setup pages being used by the panel.
Screen Width: Displays the pixel width being used to display the incoming signal on the Modero panel.• The maximum available screen width on a NXD-500i panel is 800 pixels.
Screen Height: Displays the pixel height being used to display the incoming signal on the Modero panel.• The maximum available screen height on a NXD-500i panel is 480 pixels.
Screen Refresh Rate:	Displays the refresh rate applied to the incoming signal from the panel. Default rate is 60.
Screen Rotation: Displays the degree of rotation applied to the on-screen image.
Power Up Pages:	Displays the first touch panel page assigned for display after the device is powered-up.• This information is taken from the TPD4 project file.• Most projects begin with a Main page.
Start Up String: Displays the start-up string.
Wake Up String: Displays the wake up string used after an activation from a timeout.
Sleep String: Displays the sleep string used during a panel's sleep mode.
File System: Displays the amount of Flash memory available on the Modero panel.
RAM:	Displays the available RAM (or Extended Memory module) on the Modero panel.
Panel Start Time:	Displays the last time the panel booted.
Bulb Hours:	Displays the total time that the panel has been at full brightness.

Time & Date Settings Page

The Time & Date Settings page (FIG. 49) allows setting and alteration of the time and date information on the NetLinx Master. If either the Time or Date is modified on this page and then updated to the Master by pressing the Set Time button, all devices communicating to that target Master will then be updated to reflect the new information.

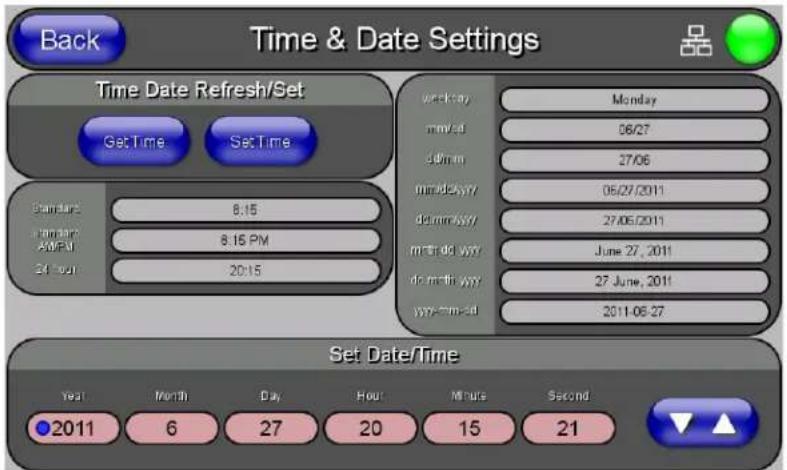

FIG. 49 Time and Date Settings page

NOTE

The only way to modify a panel's time, without altering the Master, is through NetLinx code.

The elements of the Time & Date Settings page are as follows:

Time & Date Settings Page
Back: Returns to the previously active touch panel page without saving changes.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master (requiring a username and password).
Time Date Refresh/Set: This section provides two options:The Get Time/Date button retrieves the Time and Date information from the Master.The Set Time/Date button sets the Master to retain and save any time/date modifications made on the Time & Date Setup page.
Time Display fields: • These fields display the time in three formats: STANDARD, STANDARD AM/PM, and 24 HOUR.
Date Display fields:	• These fields display the calendar date information in several different formats.
Set Date/Time: This section provides a user with both UP/DN arrow buttons to alter the Master's calendar date and time. The blue circle indicates which field is currently selected.Select the Year field and use the UP/DN buttons to alter the year value (range = 2000 - 2037).Select the Month field and use the UP/DN buttons to alter the month value (range = 1 - 12).Select the Day field and use the UP/DN buttons to alter the day value (range = 1 - 31).Select the Hour field and use the UP/DN buttons to alter the hour value (24-hour military).Select the Minute field and use the UP/DN buttons to alter the minute value (range = 0 - 59).Select the Second field and use the UP/DN buttons to alter the second value (range = 0 - 59).

NOTE

NXD-500i touch panels do not have an onboard clock. This page both receives and sets the time and date of the NetLinx Master.

Audio Settings Page

The Audio Settings page (FIG. 50), accessed by pressing the Audio button on the Setup page, allows adjustment of the master volume parameters and default panel sounds on the panel.

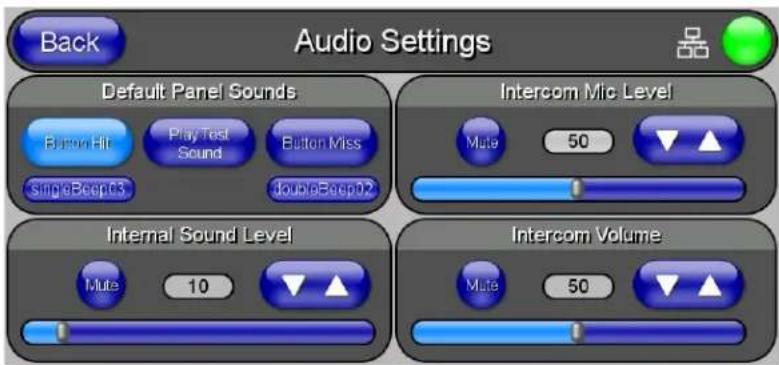

FIG. 50 Audio Settings page

The elements of the Audio Settings page are as follows:

Audio Settings Page
Back: Saves the changes and	returns to the previously active touch panel page.
Wired icon: The icon to the left	of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status, regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master, requiring a username and password.
Default Panel Sounds: Sets the	panel to play various sounds.Activating the Button Hit button plays a default sound when touching an active button.Activating the Button Miss button plays a default sound when touching a non-active button or any area outside of the active button.The Play Test Sound button plays a test WAV/MP3 file over the panel's internal speakers.
Intercom Mic Level: Allows adjustment of the current Microphone volume level being received from the intercom.Use the UP/DN buttons to adjust the Microphone volume level (range = 0 - 100).The Mic Out Level bargraph indicates the current Mic Out level.
Internal Sound Level: This section allows you to adjust the current sound level on the internal panel speaker:Use the UP/DN buttons to adjust the volume output on the internal speakers (range = 0 - 100).The Internal Sound Level bargraph indicates the current sound level.The Mute button mutes the volume.
Intercom Volume: This section allows alteration of the current intercom volume level:Use the UP/DN buttons to adjust the volume level (range = 0 - 100).The Master Volume bargraph indicates the current volume level.The Mute button toggles the Mute feature.

Supported sampling rates for WAV

The following is a listing of supported sampling rates associated for WAV files played on a NXD-500i panel. Some WAV files currently played on other Modero panels may not work on a NXD-500i. The supported sampling rates for WAV files are:

Supported WAV Sampling Rates
• 48000 Hz • 16000 Hz
• 44100 Hz • 12000 Hz
• 32000 Hz • 11025 Hz
• 24000 Hz • 8000 Hz
• 22050 Hz

Protected Setup Navigation Buttons

The Protected Setup navigation buttons (FIG. 51) appear on the left of the panel screen when the Protected Setup page is currently active.

FIG. 51 Protected Setup Navigation Buttons

Protected Setup Page

The Protected Setup page (FIG. 52) centers around the properties used by the panel for proper communication with the NetLinx Master. Enter the factory default password (1988) into the password keypad to access this page.

FIG. 52 Protected Setup page-showing default values

The elements of the Protected Setup page are described in the table below:

Protected Setup Page
Back: Saves the changes and returns to the previously active touch panel page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master, requiring a username and password.
Device ID:	Number: Opens a keypad that is used to set and display the current device number.Name: Opens a keypad that is used to set and display the current device name.
Options: Allows selection of various touch panel features:The Function Show button enables the display of the channel port and channel code in the top left corner of the button, the level port and level code in the bottom left corner, and the address port and address code in the bottom right corner.Use the Page Tracking button to toggle page tracking. When enabled, the touch panel sends page data back to the NetLinx Master, or vice versa depending on the touch panel settings.Use the Telnet button to enable or disable the telnet server on the panel. This feature focuses on direct telnet communication to the panel.Use the Front Button Setup Access button to activate the grey Front Setup Access button (located below the LCD) to access the firmware pages. - Default condition is On.- Press and hold this grey button for 3 seconds to access the Setup page.- Press and hold this grey button for 6 seconds to access the Calibration page.Use the Security button to display one of three security settings: Standard, Secure, and DoD. Pressing this button opens a popup window allowing changes to the Security Profile.Note: Refer to the Security Settings section on page 54 for very important information on using this feature.
System Recovery:	Either resets the touch panel to factory default settings and/or wipes out all existing touch panel pages:The Reset System Settings button allows a user to wipe out all current configuration parameters on the touch panel (such as IP Addresses, Device Number assignments, Passwords, and other presets).- Pressing this button launches a Confirmation dialog (FIG. 53) which asks you to confirm your selection.- This dialog is configured with a delay timer that does not enable the YES button for 5 seconds. This delay provides an additional amount of time for the user to confirm their decision.The Remove User Pages button allows the removal of all current TPD4 touch panel pages currently on the panel (including the pre-installed AMX Demo pages).- Pressing this button launches a Confirmation dialog (FIG. 53) which asks to confirm your selection.- This dialog is configured with a delay timer that does not enable the YES button for 5 seconds. This delay provides an additional amount of time for the user to confirm their decision.
Reboot/Shutdown Panel:	Reboot: Pressing this button causes the panel to restart after saving any changes.Shutdown: Pressing this button causes the panel to shut down after saving any changes.

This dialog has a wait time of 5 seconds before the YES option is enabled.

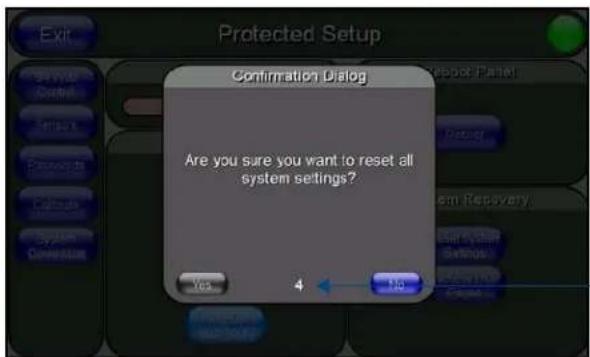

FIG. 53 Protected Setup page-System Recovery confirmation dialog

Security Settings

The Security button on the Protected Setup page has three settings: Standard, Secure, and DoD. Pressing the button opens the Panel Security Setting popup window (FIG. 54)

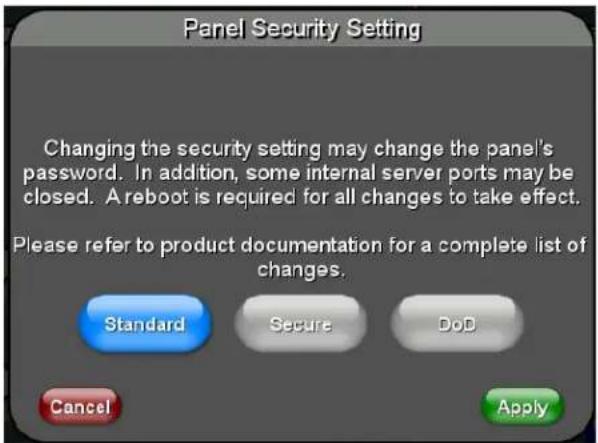

FIG. 54 Panel Security Setting popup window

Each of the settings has different features for touch panel security:

Security Profile Features
Standard: • Factory	default, shipped in this configuration.• Default Protected Setup Password is "1988".• Remote login uses Telnet.
Secure: • Default	Protected Setup Password is "Amx1234!".Minimum password requirement is 8 characters with at least one numeric character.Remote login uses SSH.Remote login user name is "amx".Login failure attempt pauses 4 seconds before another login attempt is allowed.After 3 consecutive unsuccessful SSH login attempts, login lockout is enabled for 15 minutes.Login and logout audit logging is enabled.
Security Profile Features (Cont.)
DoD: • Default Protected Setup Password is “Amx1234!”.Minimum password requirement is 8 characters with at least one numeric character, one uppercase character, one lower case character, and one special character, with no duplicate adjacent characters.Remote login uses SSH.Remote login user name is “amx”.Login failure attempt pauses 4 seconds before another login attempt is allowed.After 3 consecutive unsuccessful SSH login attempts, login lockout is enabled for 15 minutes.Login and logout audit logging is enabled.DoD login banner is enabled.

A transition from one security mode to another will reset the Protected/Web Control/remote login password to the default value for the current security mode (please refer to the default passwords above). A transition to Secure or DoD mode will disable G4 Web Control. Although the security password features are immediate, a reboot must occur for all the new security mode features to fully take effect.

For more information on configuring AMX devices for a secure environment, please refer to the guide Security Profiles: Configuring AMX Devices For Installation Into a Secure Environment, available at www.amx.com.

System Settings Page

The System Settings page (FIG. 55) sets the Secondary DNS Address information with its corresponding IP communication parameters, NetLinx Master communication settings, and reads the device number assigned to the Modero panel.

FIG. 55 System Settings page)

The elements of the System Settings page are as follows:

System Settings Page
Back: Saves the changes and	returns to the previously active touch panel page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status, regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master, which requires a username and password.
System Settings Page (Cont.)
IP Settings:
DHCP/Static: Sets the pane	to either DHCP or Static communication modes.DHCP (Dynamic Host Configuration Protocol) assigns IP Addresses from client stations logging onto a TCP/IP network via a DHCP server.Static IP is a permanent IP Address that is assigned to a node in a TCP/IP network.
IP Address: Sets the secondary IP Address assigned to the panel.
Subnet Mask: Sets a subnet	work address to the panel.Subnetwork mask is the technique used by the IP protocol to filter messages into a particular network segment (Subnet).
Gateway: Sets a gateway value	value to the panel.Gateway is a computer that either performs protocol conversion between different types of networks/applications or acts as a go-between two or more networks that use the same protocols.
Host Name: Sets the host name	name of the panel.
Primary DNS: Sets the address of the primary DNS server used for host name lookups.
Secondary DNS: Sets a second	DNS (Domain Name System) is software that lets users locate computers on a local network or the Internet (TCP/IP network) by host and domain. The DNS server maintains a database of host names for its domain and their corresponding IP Addresses.
Domain: Sets the unique name	ordinary DNS value to the panel.
	name on the Internet to the panel for DNS look-up.The panel belongs to the DNS domain.
Ethernet Mode: Sets the speed of the Ethernet connection to the panel.Choices are: Auto, 10 Half Duplex, 10 Full Duplex, 100 Half Duplex, or 100 Full Duplex.
MAC Address:	Displays a read-only field that is factory set by AMX for the built-in Ethernet interface.
Master Connection: Sets the NetLinx Master communication values:
Type: Sets the NetLinx Master	ter to communicate with the panel via either USB or Ethernet. This is based on the cable connection from the rear. The Type field is read-only and cannot be set. ICSNet is not a supported option on this panel.Ethernet is a CAT-5 cable (10/100Base T terminated in an RJ-45 connector) used to network computers together and is used in most LAN (local area networks). This description is also used to refer to both wired and wireless communication.USB is a connection through the mini-USB port to a host computer.
Mode: Cycles between the d	different connection modes (URL, Listen, and Auto)(ETHERNET Only - disabled when USB is selected)URL - In this mode, enter the IP/URL, Master Port Number, and username/password (if used) on the Master.- The System Number field is read-only because the panel obtains this information from the communicating Master.Listen - In this mode, add the Modero panel address into the URL List in NetLinx Studio and set the connection mode to Listen. This mode allows the Modero touch panel to "listen" for the Master's communication signals.- The System Number and Master IP/URL fields are red-only.Auto - In this mode, enter the System Number and a username/password (if applicable). This mode is used when both the panel and the NetLinx Master are on the same Subnet and the Master has its UDP feature enabled.- Master IP/URL field is read-only.
System Number: Allows you	to enter a system number. Default value is 0 (zero).(ETHERNET Only - disabled when USB is selected)
Master IP/URL: Sets the Master IP or URL of the NetLinx Master.
Master Port Number: Enters	(ETHERNET Only - disabled when USB is selected)
	the port number used with the NetLinx Master.• Default value is 1319. (ETHERNET Only - disabled when USB is selected)
Username/Password:	If the target Master has been previously secured, enter the alphanumeric string (into each field) assigned to a pre-configured user profile on the Master.This profile should have the pre-defined level of access/configuration rights.
USB IP Settings: Sets IP settings through the mini-USB port.
DHCP/Static: Switches between HDHCP and Static connections.
IP Address: The IP address of the device

Calibrate Page

The Calibrate page (FIG. 56) allows you to calibrate the touch panel for maximum sensitivity.

• Press and hold the Front Setup Access button for 6 seconds to access the Calibrate page.
• Press the crosshairs to calibrate the panel and return to the last active firmware page.

FIG. 56 Calibrate page

NOTE

If the calibration was improperly set and the Calibrate page cannot be reached through the panel's firmware, this firmware page may be accessed via G4 Web Control. Navigate to the Protected Setup page and press the Calibrate button through the VNC window. This action causes the panel to go to the Calibrate page seen above, where the touch panel may be physically re-calibrated again using the above procedures.

G4 Web Control Settings Page

The G4 Web Control Settings page (FIG. 57) centers around enabling and disabling both the display and control of your panel (via the web). An external PC running a VNC client, installed during the initial communication to the G4 panel, makes this possible.

FIG. 57 G4 Web Control page

Each panel supports the open standard Virtual Network Computing (VNC) interface. These panels contain a VNC server that allows them to accept a connection from any other device running a VNC client. Once a connection is established to that target device, the client can control the touch panel remotely.

G4 Web Control Settings Page
Back: Saves the changes and	returns to the previously active touch panel page.
Wired icon: The icon to the left	of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status regardless of what page is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master (requiring a username and password).
G4 Web Control Settings:Enable/Enabled: • The Enable	Sets the IP communication values for the touch panel and contains:
	Enabled button allows you to toggle between the two G4 activation settings:- Enable - deactivates the G4 Web Control feature on the panel.- Enabled - activates the G4 Web Control feature on the panel and allows an external PC running a VNC client to access the panel after the remaining fields are configured.
Network Interface Select: Dis	plays the detected method of communication to the web:Wired is used when a direct Ethernet connection is being used for communication to the web. This is a default setting.
Web Control Name:	Allows entry of a unique alphanumeric string used as the display name of the panel within the Manage WebControl Connections window of the new NetLinx Security browser window.This Web Control tab displays a G4 icon alongside the link to the Web Control Name given to this panel (FIG. 58).
Web Control Password:	Allows entry of the G4 Authentication session password associated for VNC web access of this panel.
G4 Web Control Settings Page (Cont.)
G4 Web Control Settings (Cont.):
Web Control Port: Allows entry of the VNC Web Server's port value.
Maximum Number of Connections:	Default value is 5900.
	This read-only field displays the maximum number of users that can be simultaneously connected to the target panel via the Web. Default value is 1.
Current Connection Count:	This read-only field displays the current number of users connected to the target panel via the Web. This value cannot exceed the Maximum number field.
G4 Web Control Timeout: Sets the length of time (in minutes) the panel can remain idle (no cursor movements) before the session is closed and the user is disconnected. Minimum value = 0 minutes (panel never times-out) Maximum value = 240 minutes (panel times-out after 240 minutes/4hours)

FIG. 58 Sample relationship between G4 Web Control and Mange WebControl Connections window

Refer to the Using G4 Web Control to Interact with a G4 Panel section on page 35 for more detailed instructions on how to use the G4 Web Control page with the new web-based NetLinx Security application.

Other Settings

Holding down the Other Settings button provides a menu to select the Image Caching page, the Password Settings page, the Sensor Settings page, or the SIP Settings page (FIG. 59). Select either option to access that page.

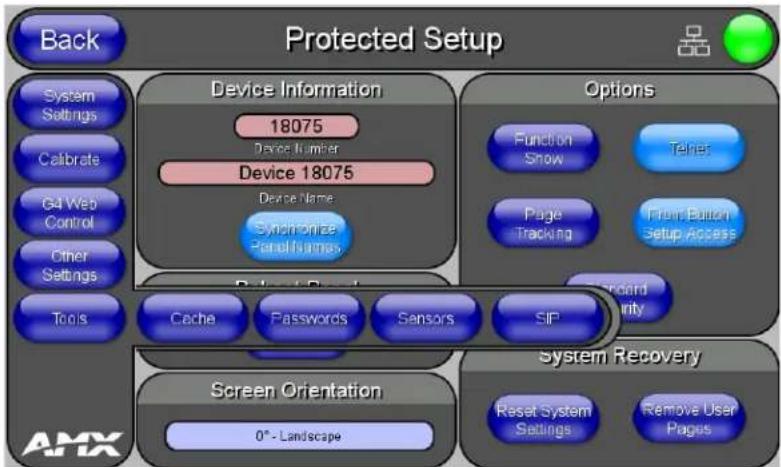

FIG. 59 Other Settings popup menu

Cache Settings Page

The Cache Settings page (FIG. 60) configures the allocation of memory for image caching. The G4 graphics engine caches images to decrease load time of previously viewed images. RAM caching is always enabled, and both static and dynamic images are stored in the RAM cache as they are viewed.

The size of RAM cache is automatically configured to take into account available memory versus memory that may be needed by the panel later. As the RAM cache approaches its maximum size, the oldest items in the cache may be discarded to make room for newer items.

If Flash caching is enabled, dynamic images that would have been discarded will actually be moved to Flash, since retrieving images on Flash is typically faster than across a network, although it is slower than using a RAM cache.

Note that since static images are already stored on Flash, they are never moved to the Flash cache, so Flash caching applies only to dynamic images. Images in Flash cache are moved back to RAM cache the next time they are viewed. As the Flash cache approaches its maximum size, the least recently used items may be discarded to make room for new items.

FIG. 60 Cache Settings Page

The elements of this page are as follows:

Cache Settings Page
Back: Saves all changes and returns to the previous page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	The icon in the upper-right corner of each Setup page shows online/offline state of the panel to the master.Bright red - disconnectedBright green - connected. Blinks when a blink message is received to dark green every 5 seconds for half a second then go back to bright green.Bright yellow - panel missed a blink message from the master. It will remain yellow for 3 missed blink messages and then turn red. It will return to green when a blink message is received.Note:a Lock appears on the icon if the panel is connected to a secured NetLinx Master.
Image Cache Settings: Allocates Flash memory for image caching.
Flash Cache Size Press the Up and Down arrows to add and remove flash memory. Flash memory allocation cannot exceed the amount of Flash memory on the panel.
Cache Settings Page (Cont.)
Flash/RAM Cache Expires	Press the Up and Down arrows to change the amount of time the images stay in cache memory. The options are:Never2 Hours8 Hours1 Day2 Days5 Days
Enable: Press this button to toggle the image Flash cache option On and Off.
Clear Cache: Press this button to clear both the Flash and RAM cache of all stored images.
Image Cache Status: The status of the memory available versus in use.
RAM Max Size The maximum amount of memory available for all image caching.
RAM Current Size The memory currently in use for caching static and dynamic images.
RAM Hit Rate The percentage of image requests (static and dynamic) satisfied by accessing the cache.100 * (# of cache hits) / (# of cache hits + # of cache misses)# of cache hits - the number of times an image was requested that the image was found in the cache# of cache misses - the number of times an image was requested that the image could not be found in the cache, and the image had to either be loaded from flash or obtained via the network (for dynamic images). It is considered a RAM Cache Miss even if the image is subsequently found in flash cache.
Items in Cache (RAM) The number of images that are currently stored in the RAM cache.
Flash Current Size The maximum mum flash space allocated for image caching.
Flash Hit Rate The percentage of image requests (dynamic only) that are satisfied by accessing the flash cache.100 * (# of flash cache hits) / (# of flash cache hits + # of flash cache misses)# of flash cache hits - # of times a dynamic image could not be found in RAM cache but was found in flash cache# of flash cache misses - # of times a dynamic image could not be found in either RAM or flash cache. RAM cache hits are not relevant in this calculation.
Items in Cache (Flash)	The number of images that are currently stored in the Flash cache.

Setting the image cache

In the Protected Setup page:

1. Press the Cache button in the Other Settings popup menu. This opens the Cache Settings page.
2. Set the cache expiration in the field Flash/RAM Cache Expires. The Up and Down arrows increment through the available time frames.
3. Press the Enable button to turn on image caching. The button is illuminated when enabled.
   Flash memory may be allocated for image caching, but RAM cache is always enabled.
   Select the Up and Down arrows for the field Flash Cache Size to increase or reduce the amount of Flash memory used; the maximum amount of flash that can be allocated for caching is 75% of available flash.

Clearing the image cache

In the Protected Setup page:

1. Press the Cache button in the Other Settings popup menu. This opens the Cache Settings page.
2. Press Clear Cache. This clears all image cache currently stored on the panel (both Flash and RAM).

Checking image cache status

In the Protected Setup page:

Press the Cache button in the Other Settings popup menu. This opens the Cache Settings page. All status information is located in the Image Cache Status section of the page.

Password Settings Page

The options on the Password Settings page allow you to assign the passwords required for users to access the Protected Setup page (FIG. 61).

FIG. 61 Password Settings page

Features on this page include:

Password Settings Page
Back: Saves all changes and	returns to the previous page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	The icon in the upper-right corner of each Setup page shows online/offline state of the panel to the master.Bright red - disconnectedBright green - connected. Blinks when a blink message is received to dark green every 5 seconds for half a second then go back to bright green.Bright yellow - panel missed a blink message from the master. It will remain yellow for 3 missed blink messages and then turn red. It will return to green when a blink message is received.Note:a Lock appears on the icon if the panel is connected to a secured NetLinx Master.
In Panel Password Change:	Accesses the alphanumeric values associated to particular password sets.The PASSWORD 1, 2, 3, 4 and 5 (protected) buttons open a keyboard to enter alphanumeric values associated to the selected password group.Note: Clearing Password #5 removes the need to enter a password before accessing the Protected Setup page.

Sensor Settings

The Sensor Settings page (FIG. 62) allows adjustment of the Light and Motion Sensor parameters on a Modero touch panel.

FIG. 62 Sensor Settings page

The elements of the Sensor Settings page are described in the table below:

Sensor Settings Page
Back: Saves the changes and	returns you to the previously active touch panel page.
Wired icon: The icon to the left	of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	This visual display of the connection status allows the user to have a current visual update of the panel's connection status regardless of the page that is currently active.A Lock only appears on the icon if the panel has established a connection with a currently secured target Master requiring a username and password.
Light: The Light bargraph displays	plays a vertical bargraph indicating the light level detected by the on-board photo-sensor.
Light Sensor: Allows the user to review the Modero panel light sensor port and channel settings:The Sensor Level field indicates the level used to report the light sensor level back to the NetLinx Master (set in TPD4) (read-only).The Sensor Level Port field indicates the port used to report the light sensor level back to the NetLinx Master (set in TPD4) (read-only).The Sensor Channel field indicates the level used to report the sensor channel back to the NetLinx Master (set in TPD4). It is On when below the Light Sensor threshold level (read-only).The Sensor Channel Port field indicates the port used to report the sensor channel back to the NetLinx Master (set in TPD4) (read-only).
Motion Sensor: Provides the following fields:The Motion Detection field displays a reactive button that changes color (illuminates) when motion is detected by the Modero panel's front motion sensor.The Motion Sensor Port field indicates the port used to report the motion sensor channel back to the NetLinx Master (set in TPD4) (read-only).The Motion Sensor Channel field indicates the channel used to report the motion sensor channel back to the NetLinx Master (set in TPD4) (read-only).
Sensor Settings (Cont.)
Wake On Motion:	The Wake Panel Sensitivity relates to the sensitivity of the motion sensor to detect motion and wake the panel accordingly.Toggle the Enable/Enabled button to either active/inactive this feature:- Enable - activates this feature. Activating this feature reactivates the panel from a panel timeout (sleep) mode.- Enabled - (illuminated when selected) deactivates this feature and makes the panel use the specified Display Timeout value set on the Setup Page.Use the Wake Panel UP/DN buttons to alter the sensitivity value.- Range = 0 - 100.The horizontal WAKE PANEL SENSITIVITY bargraph indicates the current motion sensitivity value associated with waking the panel from a timeout.
IR Receive Selection:	Press either of the two buttons to enable or disable 38 KHz or 455 KHz IR signals to be received by the panel.
Motion:	The Motion bargraph displays a vertical bargraph indicating the current value of the motion detected by the on-board motion detector.

Making the most of the Light bargraph

By setting a certain minimum or maximum amount of light to be received by the device, the Light bargraph may be used to trigger particular commands in NetLinx. The red line on the Light Sensor bargraph is the threshold level. It is used to determine the level of light at which to activate the Light Sensor Channel. The channel is activated when the light level is below the threshold and deactivated when above the threshold. For more information, refer to the Programming section on page 71.

Making the most of the Motion Sensor feature

The motion sensor works by detecting the heat of objects passing by the front of the touch panel. Because of this, the sensor works best when detecting lateral movement, such as when a person walks in front of the touch panel from left to right. This appears in the Motion Sensor bar based on the signal strength: a hand waved directly in front of the motion sensor is going to produce a stronger signal than a person walking by at the outer range of the sensor. The sensitivity may be modified by environmental conditions, such as increased body heat or outside heat sources such as sunbeams or heater vents. To set the Motion Sensor to best effect:

1. Ascertain the intended sensitivity of the Motion Sensor. For instance, check to see if commands are to be initiated by someone walking past the touch panel, if someone enters the room at the edge of the touch panel's range, or if someone specifically reaches for the panel's face.
2. Open the Sensor Settings page (FIG. 62) from the Protected Setup menu section.
3. Watch the movement of the Motion Sensor bar while holding perfectly still. This allows tracking of other factors that might affect the Motion Sensor, such as air conditioner vents or moving curtains.
4. Copy the movement intended to set off the Sensor while watching the Motion Sensor bar, such as walking past the device. In particular, watch for the spikes in the bar where the sensor picked up the most movement.
5. Set the Motion Sensor bar to the desired sensitivity, making sure that it is located below the spikes previously noted. If the bar is set above the level of the spikes, the Motion Sensor may never be set off by that level of motion.
6. Repeat the movement and check to see if the movement exceeds the bar setting. Adjust the bar as necessary to set the desired sensitivity.

SIP Settings Page

The options on the SIP Settings page (FIG. 63) enable you to establish network settings for using your touch panel as an IP phone. With a CSG SIP Communications Gateway (FG2182-01, -02, -03), you can use your touch panel to make and receive local, long distance, and international phone calls, and have access to phone features like call waiting, caller ID, call forwarding, call queuing, and voice mail.

Setting up your touch panel as a telephone requires that you set it up as one in the CSG SIP Communications Gateway.

Refer to the CSG SIP Communications Gateway Operation/Reference Guide for information on setting up your touch panel to work as a telephone.

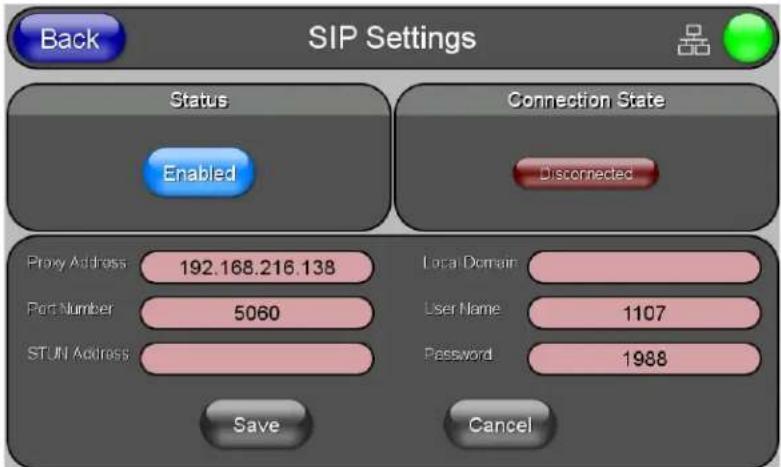

FIG. 63 SIP Settings Page
You may need to load a Duet module to enable the touch panel to receive SIP calls. The Duet module translates between the standard interface and the device protocol. It parses the buffer for responses from the device, sends strings to control the device, and receives commands from the UI module or telnet sessions.

Refer to the documentation supplied with the Duet Module for more details

NOTE
A sample UI module is provided in the module package. It is not intended to cover every possible application, but can be expanded as needed by a dealer to meet the requirements of a particular installation.

Features on this page include:

SIP Settings Page
Back: Saves all changes and	returns to the previous page.
Wired icon: The icon to the left	of the Connection Status Icon displays that the current connection to the Master is Wired(image of three networked computers).
Connection Status icon:	The icon in the upper-right corner of each Setup page shows online/offline state of the panel to the master.Bright red - disconnectedBright green - connected. Blinks when a blink message is received to dark green every 5 seconds for half a second then go back to bright green.Bright yellow - panel missed a blink message from the master. It will remain yellow for 3 missed blink messages and then turn red. It will return to green when a blink message is received.Note:A lock appears on the icon if the panel is connected to a secured NetLinx Master.

SIP Settings Page (Cont.)

Status: This option enables the SIP Stack on startup. If you disable this option, the panel will not attempt to read the rest of the configuration and will not register with a proxy server. However, point-to-point SIP will still be enabled allowing for existing intercom functionality.
Connection State: This option	displays whether you are connected to the proxy server.
Proxy Address: This option enables you to enter the IP address or DNS name of the proxy server that you want to use to register.
Port Number:	The option displays the port you use to connect to the proxy server. The standard SIP port is 5060, but some providers use different ports.
STUN Address: This option enables you to enter the IP address or DNS name of the Simple Traversal of UDP through NATs (STUN) server. This field is optional.
Local Domain: This is the realm used for authentication. This field is optional.
User Name: This option enables you to enter the user name used for authentication to the proxy server. Normally, the user name is the same as the phone number assigned to the extension you are using. This field is optional.
Password: This option enables you to enter the password for the user at the proxy server. This field is optional.

Tools

The Tools button provides a menu to select either the Panel Connection Logs Page section on page 66, the Panel Statistics Page section on page 67, or the Connection Utility section on page 69. Select any of the options to access that page.

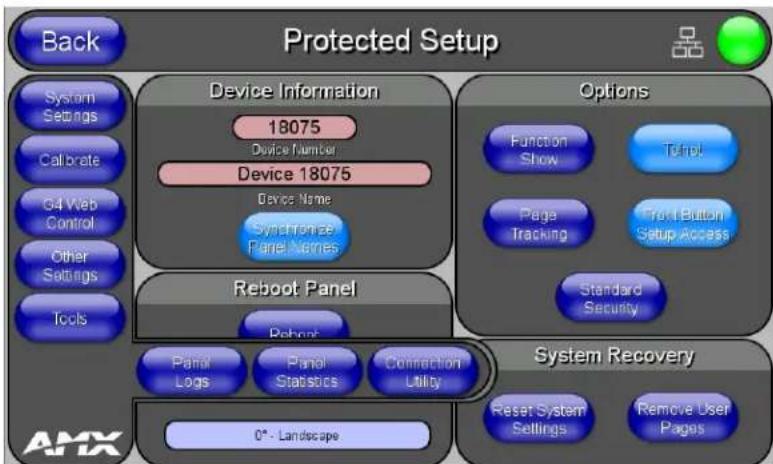

FIG. 64 Tools popup menu

Panel Connection Logs Page

The options on the Panel Connection Logs page allows viewing and tracking of the connection history for the panel (FIG. 65).

Features on this page are as follows:

Checking the Panel Connection Logs

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.

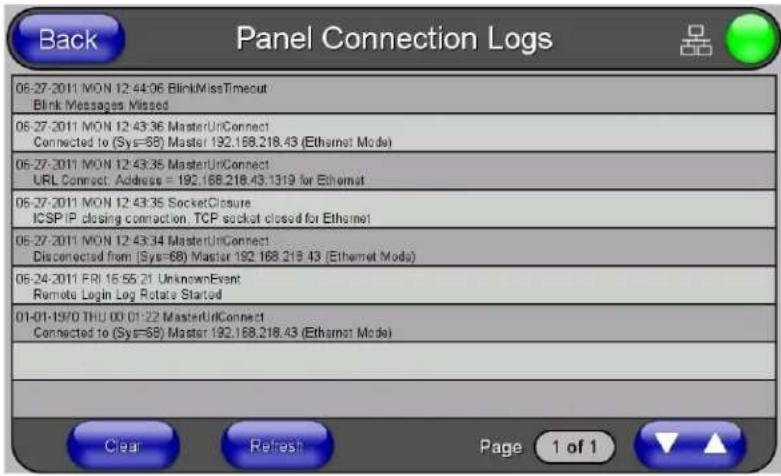

FIG. 65 Panel Connection Logs page

Panel Connection Logs Page
Back: Saves all changes and returns to the previous page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current connection to the Master is Wired(image of three networked computers).
Connection Status icon:	The icon in the upper-right corner of each Setup page shows online/offline state of the panel to the master.Bright red - disconnectedBright green - connected. Blinks when a blink message is received to dark green every 5 seconds for half a second then go back to bright green.Bright yellow - panel missed a blink message from the master. It will remain yellow for 3 missed blink messages and then turn red. It will return to green when a blink message is received.Note:a Lock appears on the icon if the panel is connected to a secured NetLinx Master.
Connection Logs: A history of all connections, attempts, and failures for the panel.
Clear: Clears the Connection Logs history.
Refresh: Refreshes the Connection Logs history.
Page: Indicates the current page of the Connection Logs.Use the Up and Down arrows to move from one page to the next.

1. Within the Tools menu, press the Panel Logs button. All connection data is contained in the section Connection Logs.

Refreshing the Panel Connections Log

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Logs button.
3. Push the Refresh button.

Clearing the Panel Connections Log

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Logs button.
3. Push the Clear button and confirm your selection.

Panel Statistics Page

The options on the Panel Statistics page allow you to track the connection status for the panel. The Panel Statistics page tracks ICSP messages, Blink messages, and Ethernet connection statistics (FIG. 66).

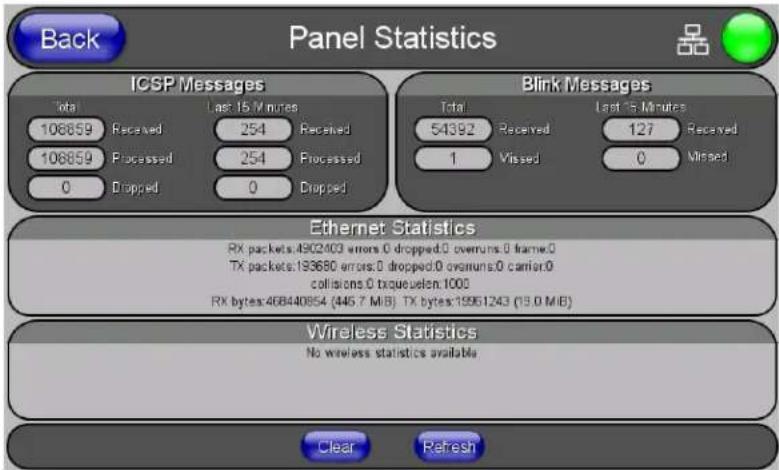

FIG. 66 Panel Statistics page

Features on this page are as follows:

Panel Statistics Page
Back: Saves all changes and returns to the previous page.
Wired icon: The icon to the connection to the Master is Wired (image of three networked computers).	left of the Connection Status Icon displays that the current connection to the Master is Wired (image of three networked computers).
Connection Status icon:	The icon in the upper-right corner of each Setup page shows online/offline state of the panel to the master.Bright red - disconnectedBright green - connected. Blinks when a blink message is received to dark green every 5 seconds for half a second then go back to bright green.Bright yellow - panel missed a blink message from the master. It will remain yellow for 3 missed blink messages and then turn red. It will return to green when a blink message is received.Note:a Lock appears on the icon if the panel is connected to a secured NetLinx Master.
ICSP Messages	Messages sent between the master and the touch panel; it is the protocol they use to communicate to each other.
Total • Received - The total ICSP messages received by the panel.Processed - The total ICSP messages processed by the panel.Dropped - The total ICSP messages dropped by the panel.
Last 15 Minutes • Received	- The total ICSP messages received by the panel in the last 15 minutes.Processed - The total ICSP messages processed by the panel in the last 15 minutes.Dropped - The total ICSP messages dropped by the panel in the last 15 minutes.

Panel Statistics Page (Cont.)
Blink Messages	The master sends this message once every 5 seconds to all connected devices.
Total • Received - The total	Blink messages received by the panel.Missed - The total Blink messages missed by the panel.
Last 15 Minutes	Received - The total Blink messages received by the panel in the last 15 minutes.Missed - The total Blink messages missed by the panel in the last 15 minutes.
Ethernet Statistics The Ethernet connection statistics for the panel.
Wireless Statistics	Since the NXD-500i does not have wireless capability, this field is disabled.
Clear Clears all panel connection statistics.
Refresh Refreshes all panel connection statistics.

Checking the Panel Statistics

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Statistics button. All connection statistics are contained on this page, e.g., Received, Processed, and Dropped ICSP Messages.

Refreshing the Panel Statistics

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Statistics button.
3. Push the Refresh button.

Clearing the Panel Statistics

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Panel Statistics button.
3. Push the Clear button.
4. Confirm the selection.

Connection Utility

The options on the Connection Utility popup window allow you to verify connection information and statistics for the panel (FIG. 67).

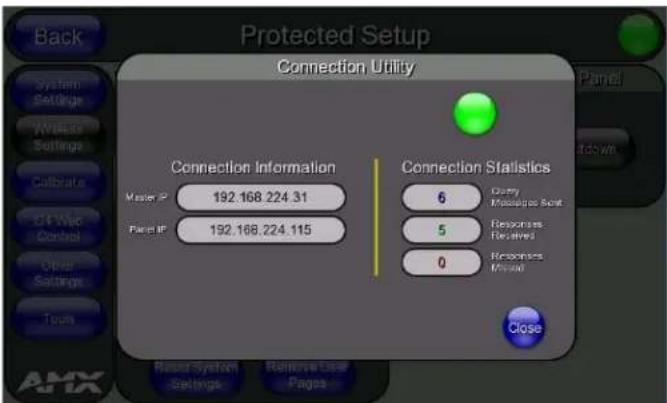

FIG. 67 Connection Utility popup window

Connection Utility Window
Close: Closes the Connection	Utility popup.
Wired icon: The icon to the left	of the Connection Status Icon displays that the current connection to the Master is Wired(image of three networked computers).

Connection Utility Window (Cont.)

Connection Status icon:	The icon in the upper-right corner of the utility provides a constant visual i indication of current connection status.A message is sent to the master once per second and expects a response.If it is received, the button stays green.If it is missed, the button goes yellow.After three misses (3 seconds), it will go red until a response from the master is received, and then it will be green again.Once per second, a user can know if the immediate area is a good wireless area (all green), an area of limited coverage (lots of yellow, some green, some red), or an area with no coverage (all red).
Connection Information
Master IP The IP Address for	the connected master.
Panel IP The IP Address for	the panel.
Connection Statistics
Messages Sent The number	of messages sent from the panel to the master.
Responses Received The num	number of responses the panel has received from the master.
Responses Missed The num	ber of expected responses from the master to the panel missed.
Close: Press this button to close	the popup window and return to the Protected Setup page.

Using the Connection Utility

1. From the Protected Setup page, press the Tools button. This opens the Tools menu.
2. Within the Tools menu, press the Connection Utility button to launch the Connection Utility popup.
3. The Connection Information notes the IP of the connected master and the IP of the panel. The Connection Statistics show the current quality of the panel connection.
4. Push Close when finished.

Programming

Overview

The NXD-500i may be programmed, using the commands in this section, to perform a wide variety of operations using Send_Commands and variable text commands.

A device must first be defined in the NetLinx programming language with values for the Device: Port: System. In all programming examples - Panel is used in place of these values and represents all Modero panels).

Verify that you are using the latest NetLinx Master and Modero firmware, and verify that you are using the latest version of NetLinx Studio and TPD4.

Button Assignments

• Button Channel Range: 1 - 4000 Button push and Feedback (per address port)
• Button Variable Text range: 1 - 4000 (per address port)
• Button States Range: 1 - 256 (0 = All states, for General buttons 1 = Off state and 2 = On state).
• Level Range: 1 - 600 (Default level value 0 - 255, can be set up to 1 - 65535)
• Address port Range: 1 - 100

These button assignments can only be adjusted in TPD4 and not on the panels themselves.

Page Commands

These Page Commands are used in NetLinx Programming Language and are case insensitive.

Page Commands
@APG Add a spec	fic popup page to a specified popup group.Add the popup page to a group if it does not already exist. If the new popup is added to a group which has a popup displayed on the current page along with the new pop-up, the displayed popup will be hidden and the new popup will be displayed.Syntax:" '@APG-;'"Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.popup group name = 1 - 50 ASCII characters. Name of the popup group.Example:SEND_COMMAND Panel," '@APG-Popup1;Group1'"Adds the popup page 'Popup1' to the popup group 'Group1'.
@CPG Clear all pop	poup pages from specified popup group.Syntax:" '@CPG-'"Variable:popup group name = 1 - 50 ASCII characters. Name of the popup group.Example:SEND_COMMAND Panel," '@CPG-Group1'"Clears all popup pages from the popup group 'Group1'.
Page Commands (Cont.)
@DPG Delete a specific popup page from specified popup group if it exists. Syntax:"'@DPG-;;"Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page. popup group name = 1 - 50 ASCII characters. Name of the popup group. Example:SEND_COMMAND Panel,"'@DPG-Popup1;Group1'"Deletes the popup page 'Popup1' from the popup group 'Group1'.
@PDR	Set the popup location reset flag. If the flag is set, the popup will return to its default location on show instead of its last drag location. Syntax:"'@PDR-;;"Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.reset flag = 1 = Enable reset flag0 = Disable reset flagExample:SEND_COMMAND Panel,"'@PDR-Popup1;1'"Popup1 will return to its default location when turned On.
@PHE Set the hide effect for the specified popup page to the named hide effect. Syntax:"'@PHE-;;"Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.hide effect name = Refers to the popup effect names being used. Example:SEND_COMMAND Panel,"'@PHE-Popup1;Slide to Left'"Sets the Popup1 hide effect name to 'Slide to Left'.
@PHP	Set the hide effect position. Only 1 coordinate is ever needed for an effect; however, the command will specify both. This command sets the location at which the effect will end. Syntax:"'@PHP-;,"Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,"'@PHP-Popup1;75,0'"Sets the Popup1 hide effect x-coordinate value to 75 and the y-coordinate value to 0.
@PHT Set the hide effect time for the specified popup page. Syntax:"'@PHT-;;"Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.hide effect time = Given in 1/10ths of a second.Example:SEND_COMMAND Panel,"'@PHT-Popup1;50'"Sets the Popup1 hide effect time to 5 seconds.
@PPA Close all popups on a specified page.	If the page name is empty, the current page is used.This command works in the same way as the 'Clear Page' command in TPDesign4. Syntax:"'@PPA-''Variable:page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,"'@PPA-Page1''Close all popups on Page1.
@PPF	Deactivate a specific popup page on either a specified page or the current page.If the page name is empty, the current page is used (see example 2). If the popup page is part of a group, the whole group is deactivated.This command works in the same way as the 'Hide Popup' command in TPDesign4. Syntax:"'@PPF-;;""Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,"'@PPF-Popup1;Main''Deactivates the popup page 'Popup1' on the Main page.Example 2:SEND_COMMAND Panel,"'@PPF-Popup1''Deactivates the popup page 'Popup1' on the current page.
@PPG	Toggle a specific popup page on either a specified page or the current page.If the page name is empty, the current page is used (see example 2). Toggling refers to the activating/deactivating (On/Off) of a popup page.This command works in the same way as the 'Toggle Popup' command in TPDesign4. Syntax:"'@PPG-;;""Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,"'@PPG-Popup1;Main''Toggles the popup page 'Popup1' on the 'Main' page from one state to another (On/Off).Example 2:SEND_COMMAND Panel,"'@PPG-Popup1''Toggles the popup page 'Popup1' on the current page from one state to another (On/Off).
@PPK	Kill a specific popup page from all pages. Kill refers to the deactivating (Off) of a popup window from all pages. If the pop-up page is part of a group, the whole group is deactivated.This command works in the same way as the 'Clear Group' command in TPDesign 4. Syntax:"'@PPK-''Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.Example:SEND_COMMAND Panel,"'@PPK-Popup1''Kills the popup page 'Popup1' on all pages.
@PPM	Set the modality of a specific popup page to Modal or NonModal.A Modal popup page, when active, only allows use of the buttons and features on that popup page. All other buttons on the panel page are inactivated.Syntax:"'@PPM-;''Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.mode = NONMODAL converts a previously Modal popup page to a NonModal.MODAL converts a previously NonModal popup page to Modal. modal = 1 and non-modal = 0Example:SEND_COMMAND Panel,"'@PPM-Popup1;Modal'"Sets the popup page 'Popup1' to Modal. SEND_COMMAND Panel,"'@PPM-Popup1;1'"Sets the popup page 'Popup1' to Modal.
@PPN	Activate a specific popup page to launch on either a specified page or the current page.If the page name is empty, the current page is used (see example 2). If the popup page is already on, do not re-draw it.This command works in the same way as the 'Show Popup' command in TPDesign4.Syntax:"'@PPN-;''Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,"'@PPN-Popup1;Main'"Activates 'Popup1' on the 'Main' page.Example 2:SEND_COMMAND Panel,"'@PPN-Popup1'"Activates the popup page 'Popup1' on the current page.
@PPT	Set a specific popup page to timeout within a specified time. If timeout is empty, the popup page will clear the timeout.Syntax:"'@PPT-;''Variable:popup page name = 1 - 50 ASCII characters. Name of the popup page.timeout = Timeout duration in 1/10ths of a second.Example:SEND_COMMAND Panel,"'@PPT-Popup1;30'"Sets the popup page 'Popup1' to timeout within 3 seconds.
@PPX Close all popups on all pages.This command works in the same way as the 'Clear All' command in TPDesign4.Syntax:"'@PPX'"Example:SEND_COMMAND Panel,"'@PPX'"Close all popups on all pages.
@PSE Set the show effect for the specified popup page to the named show effect. Syntax:"'@PSE-;','''Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.show effect name = Refers to the popup effect name being used.Example:SEND_COMMAND Panel,''@PSE-Popup1;Slide from Left'"Sets the Popup1 show effect name to 'Slide from Left'.
@PSP	Set the show effect position. Only 1 coordinate is ever needed for an effect; however, the command will specify both. This command sets the location at which the effect will begin. Syntax:"'@PSP-;','''Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,''@PSP-Popup1;100,0'"Sets the Popup1 show effect x-coordinate value to 100 and the y-coordinate value to 0.
@PST Set the show effect time for the specified popup page. Syntax:"'@PST-;','''Variable:popup page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.show effect time = Given in 1/10ths of a second.Example:SEND_COMMAND Panel,''@PST-Popup1;50'"Sets the Popup1 show effect time to 5 seconds.
PAGE	Flips to a page with a specified page name. If the page is currently active, it will not redraw the page. Syntax:"'PAGE-;''Variable:page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On.Example:SEND_COMMAND Panel,''PAGE-Papel'"Flips to page1.
PPOF	Deactivate a specific popup page on either a specified page or the current page.If the page name is empty, the current page is used (see example 2). If the popup page is part of a group, the whole group is deactivated.This command works in the same way as the 'Hide Popup' command in TPDesign4. Syntax:" 'PPOF-;'" Variable: popup page name = 1 - 50 ASCII characters. Name of the popup page.page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example:SEND_COMMAND Panel, "'PPOF-Popup1;Main'" Deactivates the popup page 'Popup1' on the Main page.Example 2:SEND_COMMAND Panel, "'PPOF-Popup1'" Deactivates the popup page 'Popup1' on the current page.
PPOG	Toggle a specific popup page on either a specified page or the current page.If the page name is empty, the current page is used (see example 2). Toggling refers to the activating/deactivating (On/Off) of a popup page.This command works in the same way as the 'Toggle Popup' command in TPDesign4. Syntax:" 'PPOG-;'" Variable: popup page name = 1 - 50 ASCII characters. Name of the popup page.page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example:SEND_COMMAND Panel, "'PPOG-Popup1;Main'" Toggles the popup page 'Popup1' on the Main page from one state to another (On/Off).Example 2:SEND_COMMAND Panel, "'PPOG-Popup1'" Toggles the popup page 'Popup1' on the current page from one state to another (On/Off).
PPON	Activate a specific popup page to launch on either a specified page or the current page. If the page name is empty, the current page is used (see example 2). If the popup page is already On, do not re-draw it.This command works in the same way as the 'Show Popup' command in TPDesign4. Syntax:" 'PPON-;'" Variable: popup page name = 1 - 50 ASCII characters. Name of the popup page.page name = 1 - 50 ASCII characters. Name of the page the popup is displayed On. Example:SEND_COMMAND Panel, "'PPON-Popup1; Main'" Activates the popup page 'Popup1' on the Main page.Example 2:SEND_COMMAND Panel, "'PPON-Popup1'" Activates the popup page 'Popup1' on the current page.

Programming Numbers for Colors, Fonts, and Borders

Colors can be used to set the colors on buttons, sliders, and pages. The lowest color number represents the lightest color-specific display and the highest number represents the darkest display. For example, 0 represents light red, and 5 is dark red.

RGB Triplets and Names For Basic 88 Colors

RGB Values for all 88 Basic Colors
Index No.	Name	Red	Green	Blue	Index No.	Name	Red	Green	Blue
00	Very Light Red	255	0	0	50	Blue	0	0	191
01	Light Red	223	0	0	52	Dark Blue	0	0	127
02	Red	191	0	0	53	Very Dark Blue	0	0	95
03	Medium Red	159	0	0	54	Very Light Purple	128	0	255
04	Dark Red	127	0	0	55	Light Purple	112	0	223
05	Very Dark Red	95	0	0	56	Purple	96	0	191
06	Very Light Orange	255	128	0	57	Medium Purple	80	0	159
07	Light Orange	223	112	0	58	Dark Purple	64	0	127
08	Orange	191	96	0	59	Very Dark Purple	48	0	95
09	Medium Orange	159	80	0	60	Very Light Magenta	255	0	255
10	Dark Orange	127	64	0	61	Light Magenta	223	0	223
11	Very Dark Orange	95	48	0	62	Magenta	191	0	191
12	Very Light Yellow	255	255	0	63	Medium Magenta	159	0	159
13	Light Yellow	223	223	0	64	Dark Magenta	127	0	127
14	Yellow	191	191	0	65	Very Dark Magenta	95	0	95
15	Medium Yellow	159	159	0	66	Very Light Pink	255	0	128
16	Dark Yellow	127	127	0	67	Light Pink	223	0	112
17	Very Dark Yellow	95	95	0	68	Pink	191	0	96
18	Very Light Lime	128	255	0	69	Medium Pink	159	0	80
19	Light Lime	112	223	0	70	Dark Pink	127	0	64
20	Lime	96	191	0	71	Very Dark Pink	95	0	48
21	Medium Lime	80	159	0	72	White	255	255	255
22	Dark Lime	64	127	0	73	Grey1	238	238	238
23	Very Dark Lime	48	95	0	74	Grey3	204	204	204
24	Very Light Green	0	255	0	75	Grey5	170	170	170
25	Light Green	0	223	0	76	Grey7	136	136	136
26	Green	0	191	0	77	Grey9	102	102	102
27	Medium Green	0	159	0	78	Grey4	187	187	187
28	Dark Green	0	127	0	79	Grey6	153	153	153
29	Very Dark Green	0	95	0	80	Grey8	119	119	119
30	Very Light Mint	0	255	128	81	Grey10	85	85	85
31	Light Mint	0	223	112	82	Grey12	51	51	51
32	Mint	0	191	96	83	Grey13	34	34	34
33	Medium Mint	0	159	80	84	Grey2	221	221	221
34	Dark Mint	0	127	64	85	Grey11	68	68	68
35	Very Dark Mint	0	95	48	86	Grey14	17	17	17
36	Very Light Cyan	0	255	255	87	Black	0	0	0
37	Light Cyan	0	223	223	255	TRANSPARENT	99	53	99
38	Cyan	0	191	191
39	Medium Cyan	0	159	159
40	Dark Cyan	0	127	127
41	Very Dark Cyan	0	95	95
42	Very Light Aqua	0	128	255
43	Light Aqua	0	112	223
44	Aqua	0	96	191
45	Medium Aqua	0	80	159
46	Dark Aqua	0	64	127
47	Very Dark Aqua	0	48	95
48	Very Light Blue	0	0	255
49	Light Blue	0	0	223

Font Styles and ID Numbers

Font styles can be used to program the text fonts on buttons, sliders, and pages. The following chart shows the default font type and their respective ID numbers generated by TPDesign4.

Default Font Styles and ID Numbers
Font ID #	Font type Size	Font ID #	Font type Size
1 Courier New 9 19 Arial	9
2 Courier New 12 20 Arial	10
3 Courier New 18 21 Arial	12
4 Courier New 26 22 Arial	14
5 Courier New 32 23 Arial	16
6 Courier New 18 24 Arial	18
7 Courier New 26 25 Arial	20
8 Courier New 34 26 Arial	24
9 AMX Bold 14 27 Arial	36
10 AMX Bold 20 28 Arial	Bold		10
11	AMX Bold 36	29 Arial Bold		8
			32 - Variable Fonts start at 32.

Fonts must be imported into a TPDesign4 project file. The font ID numbers are assigned by TPDesign4. These values are also listed in the Generate Programmer's Report.

Border Styles and Programming Numbers

Border styles may be used to program borders on buttons, sliders, and popup pages.

Border Styles and Programming Numbers
No.	Border styles	No.	Border styles
0-1	No border	10-11	Picture frame
2	Single line	12	Double line
3	Double line	20	Bevel-S
4	Quad line	21	Bevel-M
5-6	Circle 15	22-23	Circle 15
7	Single line	24-27	Neon inactive-S
8	Double line	40-41	Diamond 55
9	Quad line

TPD4 Border Styles by Name

The TPDesign4 Touch Panel Design program has pre-set border styles that are user-selectable. The following number values may not be used for programming purposes when changing border styles.

TPD4 border styles may ONLY be changed by using the name.

TPD4 Border Styles by Name

No. Border styles No. Border styles
1 None 27 Cursor Bottom
2 AMX Elite -L 28 Cursor Bottom with Hole
3 AMX Elite -M 29 Cursor Top
4 AMX Elite -S 30 Cursor Top with Hole
5 Bevel -L 31 Cursor Left
6 Bevel -M 32 Cursor Left with Hole
7 Bevel -S 33 Cursor Right
8 Circle 15 34 Cursor Right with Hole
9 Circle 25 35 Custom Frame
10	Circle 35 36 Diamond 15
11 Circle 45 37 Diamond 25
12 Circle 55 38 Diamond 35
13 Circle 65 39 Diamond 45
14 Circle 75 40 Diamond 55
15 Circle 85 41 Diamond 65
16 Circle 95 42 Diamond 75
17 Circle 105		43 Diamond 85
18 Circle 115		44 Diamond 95
19 Circle 125		45 Diamond 105
20 Circle 135		46 Diamond 115
21 Circle 145		47 Diamond 125
22 Circle 155		48 Diamond 135
23 Circle 165		49 Diamond 145
24 Circle 175		50 Diamond 155
25 Circle 185		51 Diamond 165
26 Circle 195		52 Diamond 175
53	Diamond 185	97	Menu Bottom Rounded 185
54	Diamond 195	98	Menu Bottom Rounded 195
55	Double Bevel -L	99	Menu Top Rounded 15
56 Double Bevel -M 100 Menu Top Rounded 25
57	Double Bevel -S	101	Menu Top Rounded 35
58 Double Line		102 Menu Top Rounded 45
59 Fuzzy		103 Menu Top Rounded 55
60 Glow-L		104 Menu Top Rounded 65
61 Glow-S		105 Menu Top Rounded 75
62 Help Down		106 Menu Top Rounded 85
63 Neon Active -L		107 Menu Top Rounded 95
64 Neon Active -S		108 Menu Top Rounded 105
65 Neon Inactive -L		109 Menu Top Rounded 115
66 Neon Inactive -S 110 Menu Top Rounded 125
67 Oval H 60x30		111 Menu Top Rounded 135
68 Oval H 100x50		112 Menu Top Rounded 145
69 Oval H 150x75		113 Menu Top Rounded 155
70 Oval H 200x100		114 Menu Top Rounded 165
71 Oval V 30x60		115 Menu Top Rounded 175
72 Oval V 50x100		116 Menu Top Rounded 185
73 Oval V 75x150		117 Menu Top Rounded 195
74 Oval V 100x200		118 Menu Right Rounded 15
75 Picture Frame		119 Menu Right Rounded 25
76 Quad Line		120 Menu Right Rounded 35
77 Single Line		121 Menu Right Rounded 45

TPD4 Border Styles by Name (Cont.)
78 Windows Style Popup 122 Menu Right Rounded 55
79 Windows Style Popup (Status Bar) 123 Menu Right Rounded 65
80 Menu Bottom Rounded 15 124 Menu Right Rounded 75
81 Menu Bottom Rounded 25 125 Menu Right Rounded 85
82 Menu Bottom Rounded 35 126 Menu Right Rounded 95
83 Menu Bottom Rounded 45 127 Menu Right Rounded 105
84 Menu Bottom Rounded 55 128 Menu Right Rounded 115
85 Menu Bottom Rounded 65 129 Menu Right Rounded 125
86 Menu Bottom Rounded 75 130 Menu Right Rounded 135
87 Menu Bottom Rounded 85 131 Menu Right Rounded 145
88 Menu Bottom Rounded 95 132 Menu Right Rounded 155
89 Menu Bottom Rounded 105 133 Menu Right Rounded 165
90 Menu Bottom Rounded 115 134 Menu Right Rounded 175
91 Menu Bottom Rounded 125 135 Menu Right Rounded 185
92 Menu Bottom Rounded 135 136 Menu Right Rounded 195
93 Menu Bottom Rounded 145 137 Menu Left Rounded 15
94 Menu Bottom Rounded 155 138 Menu Left Rounded 25
95 Menu Bottom Rounded 165 139 Menu Left Rounded 35
96 Menu Bottom Rounded 175 140 Menu Left Rounded 45
141 Menu Left Rounded 55 149 Menu Left Rounded 135
142 Menu Left Rounded 65 150 Menu Left Rounded 145
143 Menu Left Rounded 75 151 Menu Left Rounded 155
144 Menu Left Rounded 85 152 Menu Left Rounded 165
145 Menu Left Rounded 95 153 Menu Left Rounded 175
146 Menu Left Rounded 105 154 Menu Left Rounded 185
147 Menu Left Rounded 115 155 Menu Left Rounded 195
148 Menu Left Rounded 125

Telnet Commands

These Telnet Commands are used in NetLinx Studio and are case insensitive.

Telnet Commands
set motion beep	Enables/disables button beep sound.This will enable/disable the button beep sound when the motion sensor detects a motion level that rises above the threshold set by the user.It is intended to be used as an aid during motion testing.
show sensors	Displays realtime data from motion and light sensors.This command is similar to thebatt moncommandin operation, exceptthat it displays realtime data related to the Motion and Light sensors. Sensor data is displayed as scrolling text at the rate of 200 ms (default).The loop interval is optional and is in units of "100 milliseconds", e.g., interval = 2 results in a loop interval of 200 ms (5 Hz).The following is a description of data items that are displayed:Motion - level:The level of motion detected by the sensor.Motion - threshold:The threshold set by the user for activating the Channel.Light - lux:The amount of lux observed by the light sensor.Light - avg:The average logarithmic value of lux (avg log(lux)).Light - BL lvl:The current backlight level (brightness).Light - BL abs:The backlight level determined by the auto-brightness feature (absolute).This value is a measure of the light sensor calibration.At full brightness (when "BL lvl" = 100), this value should also equal 100.Light - threshold:The light threshold set by the user. When "BL lvl" falls below the threshold the channel is activated with a "push" or "on". Above threshold is "release" or "off".

Telnet Commands (Cont.)

cal light This command initiates a light sensor calibration routine.This routine takes 30 seconds to complete. During this routine, the firmware will record the maximum light value detected and use this value as the normal light level in which the panel will be operating. This will enable the panel's "auto-brightness" feature to operate correctly.Be sure to move away from the front of the panel during the light calibration to allow the light sensor to "see" maximum brightness.The panel should be positioned (installed) and operating in the expected light conditions that the panel will be expected to be used.Note: There is no response to indicate that the command is complete.

Button Commands ("^")

These Button Commands are used in NetLinx Studio and are case insensitive.

All commands that begin with "^" have the capability of assigning a variable text address range and button state range.

A device must first be defined in the NetLinx programming language with values for the Device: Port: System (in all programming examples - Panel is used in place of these values).

● Variable text ranges allow you to target 1 or more variable text channels in a single command.
- Button State ranges allow you to target 1 or more states of a variable text button with a single command.
- "." Character is used for the 'through' notation, also the "&" character is used for the 'And' notation.

"^" Button Commands

^ANI Run a button	animation (in 1/10 second).Syntax:"'^ANI-,,,,',''Variable:variable text address range = 1 - 4000.start state = Beginning of button state (0= current state).end state = End of button state.time = In 1/10 second intervals.Example:SEND_COMMAND Panel, '''^ANI-500,1,25,100''Runs a button animation at text range 500 from state 1 to state 25 for 10 second.
^APF Add page flip	action to a button if it does not already exist Syntax:"'^APF-,,,,''Variable:variable text address range = 1 - 4000.page flip action = Stan[dardPage] - Flip to standard pagePrev[iousPage] - Flip to previous pageShow[Popup] - Show Popup pageHide[Popup] - Hide Popup pageTogg[lePopup] - Toggle popup stateClearG[roup] - Clear popup page group from all pagesClearP[age] - Clear all popup pages from a page with the specified page nameClearA[ll] - Clear all popup pages from all pagespage name = 1 - 50 ASCII characters.Example:SEND COMMAND Panel, '''^APF-400,Stan,Main Page''Assigns a button to a standard page flip with page name 'Main Page'.
"^" Button Commands (Cont.)
^BAT Append non-	unicode text Syntax:"^^BAT-,,,''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).new text = 1 - 50 ASCII characters.Example:SEND_COMMAND Panel,"'^BAT-520,1,Enter City'"Appends the text 'Enter City' to the button's OFF state.
^BAU Append unico	code text.Same format as ^UNI Syntax:"^^BAU-,,,''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).unicode text = 1 - 50 ASCII characters. Unicode characters must be entered in Hex format.Example:SEND_COMMAND Panel,"'^BAU-520,1,00770062'"Appends Unicode text '00770062' to the button's OFF state.
^BCB	Set the border color to the specified color. Only if the specified border color is not the same as the current color.Note: Colors can be set by Color Numbers, Color name, R,G,B,alpha colors (RRGGBBAA) and R, G & B colors values (RRGGBB). Refer to theRGB Values for all 88 Basic Colors table on page 77Syntax:"^^BCB-,,,''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).color value = Refer to theRGB Values for all 88 Basic Colors table on page 77 for more information.Example:SEND_COMMAND Panel,"'^BCB-500.504&510,1,12'"Sets the Off state border color to 12 (Yellow).
^BCF	Set the fill color to the specified color. Only if the specified fill color is not the same as the current color.Note: Colors can be set by Color Numbers, Color name, R,G,B,alpha colors (RRGGBBAA) and R, G & B colors values (RRGGBB). Refer to theRGB Values for all 88 Basic Colors table on page 77Syntax:"'^BCF-,,,"'''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).color value = Refer to theRGB Values for all 88 Basic Colors table on page 77 for more information.Example:SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,12'"SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,Yellow'"SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,#F4EC0A63''"SEND_COMMAND Panel,"'^BCF-500.504&510.515,1,#F4EC0A'"Sets the Off state fill color by color number.
^BCT	Set the text color to the specified color. Only if the specified text color is not the same as the current color.Note: Colors can be set by Color Numbers, Color name, R,G,B,alpha colors (RRGGBBAA) and R, G & B colors values (RRGGBB). Refer to theRGB Values for all 88 Basic Colors table on page 77Syntax:"'^BCT-,,,"''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).color value = Refer to theRGB Values for all 88 Basic Colors table on page 77 for more information.Example:SEND_COMMAND Panel,"'^BCT-500.504&510,1,12'"Sets the Off state border color to 12 (Yellow).
^BDO Determines what order each layer of the button is drawn. Syntax: "'^BDO-,,<1-5><1-5><1-5><1-5>" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). layer assignments = Fill Layer = 1 Image Layer = 2 Icon Layer = 3 Text Layer = 4 Border Layer = 5 Note: The layer assignments are from bottom to top. The default draw order is 12345. Example: SEND_COMMAND Panel, "'^BDO-530,1&2,51432'" Sets the button's variable text 530 ON/OFF state draw order (from bottom to top) to Border, Fill, Text, Icon, and Image. Example 2: SEND_COMMAND Panel, "'^BDO-1,0,12345'" Sets all states of a button back to its default drawing order.
^BFB Set the feedback type of the button. ONLY works on General-type buttons. Syntax: "'^BFB-,,' " Variable: variable text address range = 1 - 4000. feedback type = (None, Channel, Invert, On (Always on), Momentary, and Blink). Example: SEND_COMMAND Panel, "'^BFB-500,Momentary'" Sets the Feedback type of the button to 'Momentary'.
^BIM Set the input mask for the specified address. Syntax: "'^BIM-,,' " Variable: variable text address range = 1 - 4000. input mask = Refer to the Text Area Input Masking section on page 132 for character types. Example: SEND_COMMAND Panel, "'^BIM-500,AAAAAAAAAA'" Sets the input mask to ten 'A' characters, that are required, to either a letter or digit (entry is required).
^BMC	Button copy command. Copy attributes of the source button to all the destination buttons. Note that the source is a single button state. Each state must be copied as a separate command.Thesection represents what attributes will be copied. All codes are 2 char pairs that can be separated by comma, space, percent or just ran together. Syntax:"^^BMC-,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,, Off state and 2 = On state).source port = 1 - 100.source address = 1 - 4000.source state = 1 - 256.codes:BM - Picture/BitmapBR - BorderCB - Border ColorCF - Fill ColorCT - Text ColorEC - Text effect colorEF - Text effectFT - FontIC - IconJB - Bitmap alignmentJI - Icon alignmentJT - Text alignmentOP - OpacitySO - Button SoundTX - TextWW - Word wrap on/offExample 1:SEND_COMMAND Panel,"^^BMC-425,1,1,500,1,BR''orSEND_COMMAND Panel,"^^BMC-425,1,1,500,1,%BR''Copies the OFF state border of button with a variable text address of 500 onto the OFF state border of button with a variable text address of 425.Example 2:SEND_COMMAND Panel,"^^BMC-150,1,1,315,1,%BR%FT%TX%BM%IC%CF%CT''Copies the OFF state border, font, Text, bitmap, icon, fill color and text color of the button with a variable text address of 315 onto the OFF state border, font, Text, bitmap, icon, fill color and text color of the button with a variable text address of 150.

"^^" Button Commands (Cont.)

^BMF Set any/all button parameters by sending embedded codes and data.

Syntax:

"！”^BMF-<vt addr range>,<button states range>,<data>"

Variables:

variable text address char array = 1 - 4000.

button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

level range = 1 - 600 (level value is 1 - 65535).

data:

'\%B' = Set the border style name. See theBorder Styles and Programming Numbers table on page 78.

' %B', = Set the borer style number. See theBorder Styles and Programming Numbers table on page 78.

%DO<1-5><1-5><1-5><1-5><1-5> = Set the draw order. Listed from bottom to top. Refer to the ^BDO command on page 84 for more information.

' %F', = Set the font. See theDefault Font Styles and ID Numbers table on page 78.

%'F' = Set the font. See theDefault Font Styles and ID Numbers table on page 78.

' %MI = Set the mask image. Refer to the ^BMI command on page 87 for more information.

%T = Set the text using ASCII characters (empty is clear).

%R = Sets button location and also resizes the button. Takes four parameters: left, top, right, bottom.

' %P' = Set the picture/bitmap filename (empty is clear).

'%!', ' = Set the icon using values of 01 - 9900 (icon numbers are assigned in the TPDesign4 Resource Manager tab - Slots section).

' % | = Set the icon using values of 01 - 9900 (icon numbers are assigned in the TPDesign4 Resource Manager tab - Slots section).

' %J', = As shown the following telephone keypad alignment chart:

0

1	2	3
4	5	6
7	8	9

Zero can be used for an absolute position

' %JT = As shown the above telephone keypad alignment chart, BUT the 0 (zero) is absolute and followed by ',,'

' %JB' = As shown the above telephone keypad alignment chart BUT the 0 (zero) is absolute and followed by ',,'

' %JI = As shown the above telephone keypad alignment chart, BUT the 0 (zero) is absolute and followed by ',,'

For some of these commands and values, refer to theRGB Values for all 88 Basic Colors table on page 77.

' %CF' = Set Fill Color.

' %CB = Set Border Color.

%CT' = Set Text Color.

%SW<1 or 0> = Show/hide a button.

' %SO' = Set the button sound.

' %EN<1 or 0> = Enable/disable a button.

' %WW<1 or 0> = Word wrap On/Off.

%GH' = Set the bargraph upper limit.

%GL' = Set the bargraph lower limit.

' %GN' = Set the bargraph slider name/Joystick cursor name.

' %GC = Set the bargraph slider color/Joystick cursor color.

"^^" Button Commands (Cont.)
^BMF (Cont.)	' %GI= Set the bargraph invert/noninvert or joystick coordinate (0,1,2,3). See the ^GIV command on page 93 for more information.' %GU= Set the bargraph ramp up time in intervals of 1/10 second.' %GD= Set the bargraph ramp down time in 1/10 second.' %GG= Set the bargraph drag increment. Refer to the ^GDI command on page 93 for more information.' %OT= Set the Feedback (Output) Type to one of the following: None, Channel, Invert, ON (Always ON), Momentary, or Blink.' %SM' = Submit a text for text area button.' %SF<1 or 0> = Set the focus for text area button.' %OP<0-255> = Set the button opacity to either Invisible (value=0) or Opaque (value=255).' %OP#<00-FF> = Set the button opacity to either Invisible (value=00) or Opaque (value=FF).' %UN= Set the Unicode text. See the ^UNI section on page 98 for the text format.' %EF= Set the text effect.' %EC= Set the text effect color.' %ML= Set the maximum length of a text area.' %MK= Set the input mask of a text area.' %VL<0-1> = Log-On/Log-Off the computer control connection.' %VN= Set network connection name.' %VP= Set the network connection password.Example:SEND_COMMAND Panel,"^^BMF-500,1,%B10%CFRed%CB Blue %CTBlack%Ptest.png'"Sets the button OFF state as well as the Border, Fill Color, Border Color, Text Color, and Bitmap.
^BMI	Set the button mask image. Mask image is used to crop a borderless button to a non-square shape. This is typically used with a bitmapSyntax:"^^BMI-,,," Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).mask image = Graphic file used.Example:SEND_COMMAND Panel,"^^BMI-530,1&2,newMac.png'"Sets the button with variable text 530 ON/OFF state mask image to 'newmac.png'.
^BML	Set the maximum length of the text area button. If this value is set to zero (0) there is no max length. The maximum length available is 2000.This is only for a Text area input button and not for a Text area input masking buttonSyntax:"^^BML-,,," Variable: variable text address range = 1 - 4000.max length = 2000 (0=no max length).Example:SEND_COMMAND Panel,"^^BML-500,20'"Sets the maximum length of the text area input button to 20 characters.
"^" Button Commands (Cont.)
^BMP Assign a picture to those buttons with a defined address range. Syntax: "'^BMP-,,," Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). name of bitmap/picture = 1 - 50 ASCII characters. Example: SEND_COMMAND Panel,"^^BMP-500.504&510.515,1, bitmap.png'" Sets the OFF state picture for the buttons with variable text ranges of 500-504 & 510-515.
^BNC Clear current TakeNote annotations. Syntax: "'^BNC-,,," Variable: variable text address range = 1 - 4000. command value = (0= clear, 1= clear all). Example: SEND_COMMAND Panel,"^^BNC-973,0'" Clears the annotation of the TakeNote button with variable text 973.
^BNN Set the Take Note network name for the specified Addresses. Syntax: "'^BNN-,,," Variable: variable text address range = 1 - 4000. network name = Use a valid IP Address. Example: SEND_COMMAND Panel,"^^BNN-973,192.168.169.99'" Sets the TakeNote button network name to 192.168.169.99.
^BNT Set the Take Note network port for the specified Addresses. Syntax: "'^BNT-,,," Variable: variable text address range = 1 - 4000. network port = 1 - 65535. Example: SEND_COMMAND Panel,"^^BNT-973,5000'" Sets the TakeNote button network port to 5000.
^BOP	Set the button opacity. The button opacity can be specified as a decimal between 0 - 255, where zero (0) is invisible and 255 is opaque, or as a HEX code, as used in the color commands by preceding the HEX code with the # sign. In this case, #00 becomes invisible and #FF becomes opaque.If the opacity is set to zero (0), this does not make the button inactive, only invisible.Syntax:"^^BOP-,,,""Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).button opacity = 0 (invisible) - 255 (opaque).Example:SEND_COMMAND Panel,"^^BOP-500.504&510.515,1,200'"Example 2:SEND_COMMAND Panel,"^^BOP-500.504&510.515,1,#C8'"Both examples set the opacity of the buttons with the variable text range of 500-504 and 510-515 to 200.
^BOR	Set a border to a specific border style associated with a border value for those buttons with a defined address range. Refer to theBorder Styles and Programming Numbers table on page 78 for more information.Syntax:"^^BOR-,,,""Variable:variable text address range = 1 - 4000.border style name = Refer to the Border Styles and Programming Numbers table on page 78.border value = 0 - 41.Examples:SEND_COMMAND Panel,"^^BOR-500.504&510.515,10'"Sets the border by number (#10) to those buttons with the variable text range of 500-504 & 510-515.SEND_COMMAND Panel,"^^BOR-500.504&510,AMX Elite -M'"Sets the border by name (AMX Elite) to those buttons with the variable text range of 500-504 & 510-515.Note:The border style is available through the TPDesign4 border-style drop-down list.Refer to theTPD4 Border Styles by Name table on page 79 for more information.
^BPP Set or clear	the protected page flip flag of a button.Zero clears the flag.Syntax:"^^BPP-,,,""Variable:variable text address range = 1 - 4000.protected page flip flag value range = 0 - 4 (0 clears the flag).Example:SEND_COMMAND Panel,"^^BPP-500,1'"Sets the button to protected page flip flag 1 (sets it to password 1).

^BRD

Set the border of a button state/states. Only if the specified border is not the same as the current border.

The border names are available through the TPDesign4 border-name drop-down list.

Syntax:

"！”BRD-<vt addr range>,<button states range>,<border name>"

Variable:

variable text address range = 1 - 4000.

button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

border name = Refer to Border Styles and Programming Numbers table on page 78.

Example:

SEND_COMMAND Panel,"^BRD-500.504&510.515,1&2,Quad Line"

Sets the border by name (Quad Line) to those buttons with the variable text range of 500-504 & 510-515.

Refer to theTPD4 Border Styles by Name table on page 79.

^BSF Set the focus to the text area.

Note: Select one button at a time (single variable text address). Do not assign a variable text address range to set focus to multiple buttons. Only one variable text address can be in focus at a time.

Syntax:

"！”^BSF-<vt addr range>,<selection value>"

Variable:

variable text address range = 1 - 4000.

selection value = Unselect = 0 and select = 1.

Example:

SEND_COMMAND Panel,"^BSF-500,1"

Sets the focus to the text area of the button.

^BSM

Submit text for text area buttons. This command causes the text areas to send their text as strings to the NetLinx Master.

Syntax:

"！”BSM-<vt addr range>"

Variable:

variable text address range = 1 - 4000.

Example:

SEND_COMMAND Panel,"'^BSM-500"

Submits the text of the text area button.

^BSO

Set the sound played when a button is pressed. If the sound name is blank the sound is then cleared. If the sound name is not matched, the button sound is not changed.

Syntax:

"！”^BSO-<vt addr range>,<button states range>,<sound name>"

Variable:

variable text address range = 1 - 4000.

button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).

sound name = (blank - sound cleared, not matched - button sound not changed).

Example:

SEND_COMMAND Panel,"^BSO-500,1&2,music.wav"

Assigns the sound 'music.wav' to the button Off/On states.

"^^" Button Commands (Cont.)
^BVL Log-On/Log-Off the computer control connection. Syntax: "^^BVL-,,,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN - "^^BVL-500,0" "Logs-off the computer control connection of the button.
^BVN Set the computer control remote host for the specified address. Syntax: SEND_COMMAND,","^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-,"^BVN-."Variables: variable text address range = 1 - 4000. connection = 0 (Log-Off connection) and 1 (Log-On connection).Example: SEND_COMMAND Panel,","^BVN-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVL-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "B VI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "B V-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BV-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BIV-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BII-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BIII-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "B VII-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "B VIII-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "B I-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BIX-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "B X-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BX-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BXI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BVI-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ-500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" " BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ -500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" "BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ -500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" "BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ - 500 ,0" " BⅡ -500 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,0" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BII-600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" "BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ -600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 .1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " BⅡ - 600 ,1" " C B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N- 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 600 ,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 599 ,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N - 60 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -2 1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1" " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B VN -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1} " B V N -21 ,1,1}}}
"^" Button Commands (Cont.)
^CPF Clear all page flips from a button. Syntax: "'^CPF-''' Variable: variable text address range = 1 - 4000. Example: SEND_COMMAND Panel,"'^CPF-500'" Clears all page flips from the button.
^DPF Delete page flips from button if it already exists. Syntax: "'^DFP-,,,,'" Variable: variable text address range = 1 - 4000. actions = Stan[dardPage] - Flip to standard page Prev[iousPage] - Flip to previous page Show[Popup] - Show Popup page Hide[Popup] - Hide Popup page Toggle popup state ClearG[roup] - Clear popup page group from all pages ClearP[age] - Clear all popup pages from a page with the specified page name ClearA[ll] - Clear all popup pages from all pages page name = 1 - 50 ASCII characters. Example: SEND COMMAND Panel,"'^DPF-409,Prev'" Deletes the assignment of a button from flipping to a previous page.
^ENA Enable or disable buttons with a set variable text range. Syntax: "'^ENA-,,'" Variable: variable text address range = 1 - 4000. command value = (0= disable, 1= enable) Example: SEND_COMMAND Panel,"'^ENA-500.504&510.515,0'" Disables button pushes on buttons with variable text range 500-504 & 510-515.
^FON	Set a font to a specific Font ID value for those buttons with a defined address range. Note: The Font ID is generated by TPD4 and is located in TPD4 through the Main menu. Panel > Generate Programmer's Report >Text Only Format >Readme.txt.Syntax: "'^FON-,,',','" Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). font value = Range = 1 - XXX. Refer to theDefault Font Styles and ID Numbers table on page 78. Example: SEND_COMMAND Panel,"'^FON-500.504&510.515,1&2,4'" Sets the font size to font ID #4 for the On and Off states of buttons with the variable text range of 500-504 & 510-515.
"^^" Button Commands (Cont.)
^GDI Change the bargraph drag increment.	Syntax:"^^GDI-,,''Variable:variable text address range = 1 - 4000.bargraph drag increment = The default drag increment is 256.Example:SEND_COMMAND Panel,"^^GDI-7,128'"Sets the bargraph with variable text 7 to a drag increment of 128.
^GIV	Invert the joystick axis to move the origin to another corner. Parameters 1,2, and 3 will cause a bargraph or slider to be inverted regardless of orientation. Their effect will be as described for joysticks. Syntax:"^^GIV-,,''Variable:variable text address range = 1 - 4000.joystick axis to invert = 0 - 3. 0 = Normal1 = Invert horizontal axis2 = Invert vertical axis3 = Invert both axis locationsFor a bargraph 1 = Invert , 0 = Non InvertExample:SEND_COMMAND Panel,"^^GIV-500,3'"Inverts the joystick axis origin to the bottom right corner.
^GLH Change the bargraph upper limit.	Syntax:"^^GLH-,,''Variable:variable text address range = 1 - 4000.bargraph limit range = 1 - 65535 (bargraph upper limit range).Example:SEND_COMMAND Panel,"^^GLH-500,1000'"Changes the bargraph upper limit to 1000.
^GLL Change the bargraph lower limit.	Syntax:"^^GLL-,,''Variable:variable text address range = 1 - 4000.bargraph limit range = 1 - 65535 (bargraph lower limit range).Example:SEND_COMMAND Panel,"^^GLL-500,150'"Changes the bargraph lower limit to 150.
^GRD Change the bargraph ramp-down time in 1/10th of a second.	Syntax:"^^GRD-,,''Variable:variable text address range = 1 - 4000.bargraph ramp down time = In 1/10th of a second intervals.Example:SEND_COMMAND Panel,"^^GRD-500,200'"Changes the bargraph ramp down time to 20 seconds.

"^" Button Commands (Cont.)
^GRU Change the	bargraph ramp-up time in 1/10th of a second. Syntax: {{{GRU-,,}}} Variable: variable text address range = 1 - 4000. bargraph ramp up time = In 1/10th of a second intervals. Example: SEND_COMMAND Panel, "^^GRU-500,100'" Changes the bargraph ramp up time to 10 seconds.
^GSC Change the	bargraph slider color or joystick cursor color. Note: Colors can be set by Color Numbers, Color name, R,G,B,alpha colors (RRGGBBAA) and R, G & B colors values (RRGGBB). Refer to the RGB Values for all 88 Basic Colors table on page 77. Syntax: {{{GSC-,,}}} Variable: variable text address range = 1 - 4000. color value = Refer to the RGB Values for all 88 Basic Colors table on page 77. Example: SEND_COMMAND Panel, "^^GSC-500,12'" Changes the bargraph or joystick slider color to Yellow.
^GSN Change the	bargraph slider name or joystick cursor name. Slider names and cursor names can be found in the TPDesign4 slider name and cursor drop-down list. Syntax: {{{GSN-,,}}} Variable: variable text address range = 1 - 4000. bargraph slider name = See table below.
	Bargraph Slider Names:
	None	Ball	Circle -L
	Circle -M	Circle -S	Precision
	Rectangle -L	Rectangle -M	Rectangle -S
	Windows	Windows Active
	Joystick Cursor Names:
	None	Arrow	Ball
	Circle	Crosshairs	Gunsight
	Hand	Metal	Spiral
	Target	View Finder
	Example: SEND_COMMAND Panel, "^^GSN-500,Ball'" Changes the bargraph slider name or the Joystick cursor name to 'Ball'.

"^" Button Commands (Cont.)
^ICO Set the icon to a button.
	Syntax:{{{ICO-,,",''}}Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).icon index range = 0 - 9900 (a value of 0 is clear).Example:SEND_COMMAND Panel,{{{ICO-500.504&510.515,1&2,1''}}Sets the icon for On and Off states for buttons with variable text ranges of 500-504 & 510-515.
^JSB	Set bitmap/picture alignment using a numeric keypad layout for those buttons with a defined address range. The alignment of 0 is followed by ','The left and top coordinates are relative to the upper left corner of the button. Syntax:{{{JSB-,,",''}}Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).new text alignment = Value of 1 - 9 corresponds to the following locations:0Zero can be used for an absolute positionExample:SEND_COMMAND Panel,{{{JSB-500.504&510.515,1&2,1''}}Sets the off/on state picture alignment to upper left corner for those buttons with variable text ranges of 500-504 & 510-515.
^JSI	Set icon alignment using a numeric keypad layout for those buttons with a defined address range. The alignment of 0 is followed by ','The left and top coordinates are relative to the upper left corner of the button. Syntax:{{{JSI-,,",''}}Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).new icon alignment = Value of 1 - 9 corresponds to the following locations:0Zero can be used for an absolute positionExample:SEND_COMMAND Panel,{{{JSI-500.504&510.515,1&2,1''}}Sets the Off/On state icon alignment to upper left corner for those buttons with variable text range of 500-504 & 510-515.
^JST	Set text alignment using a numeric keypad layout for those buttons with a defined address range. The alignment of 0 is followed by ','The left and top coordinates are relative to the upper left corner of the button. Syntax:"^^JST-,,,"New text alignment>"Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).new text alignment = Value of 1 - 9 corresponds to the following locations:0 Zero can be used for an absolute positionExample:SEND_COMMAND Panel,"^^JST-500.504&510.515,1&2,1'"Sets the text alignment to the upper left corner for those buttons with variable text ranges of 500-504 & 510-515.
^MBT Set the Mouse	Use Button mode On for the virtual PC. Syntax:"^^MBT-!"Variable:pass data:0 = None1 = Left2 = Right3 = MiddleExample:SEND COMMAND Panel,"^^MBT-1'"Sets the mouse button mode to 'Left Mouse Click'.
^MDC Turn On the	'Mouse double-click' feature for the virtual PC. Syntax:"^^MDC'"Example:SEND COMMAND Panel,"^^MDC'"Sets the mouse double-click for use with the virtual PC.
^SHO Show or hide	a button with a set variable text range. Syntax:"^^SHO-,,,"Variable:variable text address range = 1 - 4000.command value = (0= hide, 1= show).Example:SEND_COMMAND Panel,"^^SHO-500.504&510.515,0"'Hides buttons with variable text address range 500-504 & 510-515.
"^^" Button Commands (Cont.)
^TEC	Set the text effect color for the specified addresses/states to the specified color. The Text Effect is specified by name and can be found in TPD4.Note: Colors can be set by Color Numbers, Color name, R,G,B,alpha colors (RRGGBBAA) and R, G & B colors values (RRGGBB). Refer to the RGB Values for all 88 Basic Colors table on page 77Syntax:"！”^TEC-,,,,',''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).color value = Refer to theRGB Values for all 88 Basic Colors table on page 77.Example:SEND_COMMAND Panel,"！”^TEC-500.504&510.515,1&2,12'"Sets the text effect color to Very Light Yellow on buttons with variable text 500-504 and 510-515.
^TEF	Set the text effect. The Text Effect is specified by name and can be found in TPD4 Syntax:"！”^TEF-,,,,',''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).text effect name = Refer to theText Effects table on page 98 for a listing of text effect names.Example:SEND_COMMAND Panel,"！”^TEF-500.504&510.515,1&2,Soft Drop Shadow 3'"Sets the text effect to Soft Drop Shadow 3 for the button with variable text range 500-504 and 510-515.
^TXT	Assign a Non-Unicode text string to those buttons with a defined address rangeSyntax:"！”^TXT-,,,,',''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).new text = 1 - 50 ASCII characters.Example:SEND_COMMAND Panel,"！”^TXT-500.504&510.515,1&2,Test Only'"Sets the On and Off state text for buttons with the variable text ranges of 500-504 & 510-515.

"^" Button Commands (Cont.)

^UNI Set Unicode text. For the ^UNI command (%UN and ^BMF command), the Unicode text is sent as ASCII-HEX nibbles. Syntax: "^^UNI-,,," Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).unicode text = Unicode HEX value.Example:SEND_COMMAND Panel, "^^UNI-500,1,0041" Sets the button's unicode character to 'A'.Note: To send the variable text 'A' in unicode to all states of the variable text button 1, (for which the character code is 0041 Hex), send the following command:SEND_COMMAND TP, "^^UNI-1,0,0041" Note: Unicode is always represented in a HEX value. TPD4 generates (through the Text Enter Box dialog) unicode HEX values. Refer to the TPDesign4 Instruction Manual for more information.

Text Effect Names

The following is a listing of text effects names. This list is associated with the ^TEF command on page 97.

Text Effects

• Glow -S • Soft Drop Shadow 1 • Medium Drop Shadow 1 • Hard Drop Shadow 1
• Glow -M • Soft Drop Shadow 2 • Medium Drop Shadow 2 • Hard Drop Shadow 2
• Glow -L • Soft Drop Shadow 3 • Medium Drop Shadow 3 • Hard Drop Shadow 3
• Glow -X • Soft Drop Shadow 4 • Medium Drop Shadow 4 • Hard Drop Shadow 4
• Outline -S • Soft Drop Shadow 5 • Medium Drop Shadow 5 • Hard Drop Shadow 5
• Outline -M • Soft Drop Shadow 6 • Medium Drop Shadow 6 • Hard Drop Shadow 6
• Outline -L • Soft Drop Shadow 7 • Medium Drop Shadow 7 • Hard Drop Shadow 7
• Outline -X • Soft Drop Shadow 8 • Medium Drop Shadow 8 • Hard Drop Shadow 8
	• Soft Drop Shadow 1 with outline • Medium Drop Shadow 1 with outline
	• Soft Drop Shadow 2 with outline • Medium Drop Shadow 2 with outline
	• Soft Drop Shadow 3 with outline • Medium Drop Shadow 3 with outline
	• Soft Drop Shadow 4 with outline • Medium Drop Shadow 4 with outline
	• Soft Drop Shadow 5 with outline • Medium Drop Shadow 5 with outline
	• Soft Drop Shadow 6 with outline • Medium Drop Shadow 6 with outline
	• Soft Drop Shadow 7 with outline • Medium Drop Shadow 7 with outline
	• Soft Drop Shadow 8 with outline • Medium Drop Shadow 8 with outline

Button Query Commands

Button Query commands reply with a custom event. Each button/state combination has one custom event. Each query is assigned a unique custom event type.

The following example is for debug purposes only:
NetLinx Example: CUSTOM_EVENT[device, Address, Custom event type]

DEFINE_EVENT
CUSTOM_EVENT[TP, 529, 1001]    // Text
CUSTOM_EVENT[TP, 529, 1002]    // Bitmap
CUSTOM_EVENT[TP, 529, 1003]    // Icon
CUSTOM_EVENT[TP, 529, 1004]    // Text Justification
CUSTOM_EVENT[TP, 529, 1005]    // Bitmap Justification
CUSTOM_EVENT[TP, 529, 1006]    // Icon Justification
CUSTOM_EVENT[TP, 529, 1007]    // Font
CUSTOM_EVENT[TP, 529, 1008]    // Text Effect Name
CUSTOM_EVENT[TP, 529, 1009]    // Text Effect Color
CUSTOM_EVENT[TP, 529, 1010]    // Word Wrap
CUSTOM_EVENT[TP, 529, 1011]    // ON state Border Color
CUSTOM_EVENT[TP, 529, 1012]    // ON state Fill Color
CUSTOM_EVENT[TP, 529, 1013]    // ON state Text Color
CUSTOM_EVENT[TP, 529, 1014]    // Border Name
CUSTOM_EVENT[TP, 529, 1015]    // Opacity

{
    SEND_STRING 0," 'ButtonGet Id=', ITOA(CUSTOM.ID), ' Type=', ITOA(CUSTOM.TYPE)"
    SEND_STRING 0," 'Flag =', ITOA(CUSTOM.FLAG)"
    SEND_STRING 0," 'VALUE1 =', ITOA(CUSTOM.VALUE1)"
    SEND_STRING 0," 'VALUE2 =', ITOA(CUSTOM.VALUE2)"
    SEND_STRING 0," 'VALUE3 =', ITOA(CUSTOM.VALUE3)"
    SEND_STRING 0," 'TEXT =', CUSTOM.TEXT"
    SEND_STRING 0," 'TEXT LENGTH =', ITOA(LENGTH_STRING(CUSTOM.TEXT))"
}

All custom events have the following 6 fields:

Custom Event Fields
Field Description
Uint Flag 0 means text is a standard string, 1 means Unicode encoded string
slong value1 button state number
slong value2 actual length of string (this is not encoded size)
slong value3 index of first character (usually 1 or same as optional index
string text the text from the button
text length (string encode) button text length

These fields are populated differently for each query command. The text length (String Encode) field is not used in any command.

Button Query Commands

?BCB Get the current border color.
	Syntax:""?BCB-,",
	Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1011:Flag - zeroValue1 - Button state numberValue2 - Actual length of string (should be 9)Value3 - ZeroText - Hex encoded color value (ex: #00000FF)Text length - Color name length (should be 9)Example:SEND COMMAND Panel, ""?BCB-529,1" "Gets the button 'OFF state' border color. information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1011Flag = 0VALUE1 = 1VALUE2 = 9VALUE3 = 0TEXT = #222222FFTEXT LENGTH = 9
?BCF Get the current fill color.
	Syntax:""?BCF-,",
	Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1012:Flag - ZeroValue1 - Button state numberValue2 - Actual length of string (should be 9)Value3 - ZeroText - Hex encoded color value (ex: #00000FF)Text length - Color name length (should be 9)Example:SEND COMMAND Panel, ""?BCF-529,1" "Gets the button 'OFF state' fill color information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1012Flag = 0VALUE1 = 1VALUE2 = 9VALUE3 = 0TEXT = #FF8000FFTEXT LENGTH = 9
?BCT Get the current text color.
	Syntax:""?BCT-,",''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1013:Flag - ZeroValue1 - Button state numberValue2 - Actual length of string (should be 9)Value3 - ZeroText - Hex encoded color value (ex: #000000FF)Text length - Color name length (should be 9)Example:SEND COMMAND Panel, ""?BCT-529,1"Gets the button 'OFF state' text color information.The result sent to Master would be:ButtonGet Id = 529 Type = 1013Flag = 0VALUE1 = 1VALUE2 = 9VALUE3 = 0TEXT = #FFFFFFFTEXT LENGTH = 9
?BMP Get the current bitmap name.
	Syntax:""?BMP-,",''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1002:Flag - ZeroValue1 - Button state numberValue2 - Actual length of stringValue3 - ZeroText - String that represents the bitmap nameText length - Bitmap name text length (should be 9)Example:SEND COMMAND Panel, ""?BMP-529,1"Gets the button 'OFF state' bitmap information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1002Flag = 0VALUE1 = 1VALUE2 = 9VALUE3 = 0TEXT = Buggs.pngTEXT LENGTH = 9
?BOP Get the overall button opacity. Syntax:"?BOP-,",''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1015:Flag - ZeroValue1 - Button state numberValue2 - OpacityValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel,"''?BOP-529,1'"Gets the button 'OFF state' opacity information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1015Flag = 0VALUE1 = 1VALUE2 = 200VALUE3 = 0TEXT =TEXT LENGTH = 0
?BRD Get the current border name. Syntax:"'?BRD-,""Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1014:Flag - ZeroValue1 - Button state numberValue2 - Actual length of stringValue3 - ZeroText - String that represents border nameText length - Border name lengthExample:SEND COMMAND Panel,"''?BRD-529,1'"Gets the button 'OFF state' border information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1014Flag = 0VALUE1 = 1VALUE2 = 22VALUE3 = 0TEXT = Double Bevel Raised -LTEXT LENGTH = 22
?BWW Get the current word wrap flag status. Syntax:"?BWW-,"?BWW-,""Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1010:Flag - ZeroValue1 - Button state numberValue2 - 0 = no word wrap, 1 = word wrapValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel, ""?BWW-529,1" "Gets the button 'OFF state' word wrap flag status information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1010Flag = 0VALUE1 = 1VALUE2 = 1VALUE3 = 0TEXT = TEXT LENGTH = 0
?FON Get the current font index. Syntax:""?FON-,""Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1007:Flag - ZeroValue1 - Button state numberValue2 - Font indexValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel, ""?FON-529,1" "Gets the button 'OFF state' font type index information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1007Flag = 0VALUE1 = 1VALUE2 = 72VALUE3 = 0TEXT = TEXT LENGTH = 0
?ICO Get the current icon index. Syntax:"?ICO-,",''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1003:Flag - ZeroValue1 - Button state numberValue2 - Icon IndexValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel,"'?:ICO-529,1&2'"Gets the button 'OFF state' icon index information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1003Flag = 0VALUE1 = 2VALUE2 = 12VALUE3 = 0TEXT =TEXT LENGTH = 0
?JSB Get the current bitmap justification. Syntax:"'?JSB-,""Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1005:Flag - ZeroValue1 - Button state numberValue2 - 1 - 9 justifyValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel,"'?:JSB-529,1'"Gets the button 'OFF state' bitmap justification information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1005Flag = 0VALUE1 = 1VALUE2 = 5VALUE3 = 0TEXT =TEXT LENGTH = 0
?JSI Get the current icon justification.
	Syntax:""?JSI-,",''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1006:Flag - ZeroValue1 - Button state numberValue2 - 1 - 9 justifyValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel, ""?JSI-529,1"Gets the button 'OFF state' icon justification information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1006Flag = 0VALUE1 = 1VALUE2 = 6VALUE3 = 0TEXT =TEXT LENGTH = 0
?JST Get the current text justification.
	Syntax:""?JST-,",''Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1004:Flag - ZeroValue1 - Button state numberValue2 - 1 - 9 justifyValue3 - ZeroText - BlankText length - ZeroExample:SEND COMMAND Panel, ""?JST-529,1"Gets the button 'OFF state' text justification information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1004Flag = 0VALUE1 = 1VALUE2 = 1VALUE3 = 0TEXT =TEXT LENGTH = 0
?TEC Get the current text effect color.
	Syntax:""?TEC-,",
	Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1009:Flag - ZeroValue1 - Button state numberValue2 - Actual length of string (should be 9)Value3 - ZeroText - Hex encoded color value (ex: #000000FF)Text length - Color name length (should be 9)Example:SEND COMMAND Panel, "'?TEC-529,1"Gets the button 'OFF state' text effect color information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1009Flag = 0VALUE1 = 1VALUE2 = 9VALUE3 = 0TEXT = #5088F2AETEXT LENGTH = 9
?TEF Get the current text effect name.
	Syntax:""?TEF-,",
	Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).custom event type 1008:Flag - ZeroValue1 - Button state numberValue2 - Actual length of stringValue3 - ZeroText - String that represents the text effect nameText length - Text effect name lengthExample:SEND COMMAND Panel, "'?TEF-529,1"Gets the button 'OFF state' text effect name information.The result sent to the Master would be:ButtonGet Id = 529 Type = 1008Flag = 0VALUE1 = 1VALUE2 = 18VALUE3 = 0TEXT = Hard Drop Shadow 3TEXT LENGTH = 18
?TXT Get the current text information. Syntax: " ' ?TXT-,,," Variable: variable text address range = 1 - 4000. button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state). optional index = This is used if a string was too long to get back in one command. The reply will start at this index. custom event type 1001: Flag - Zero Value1 - Button state number Value2 - Actual length of string Value3 - Index Text - Text from the button Text length - Button text length Example: SEND COMMAND Panel, " ' ?TXT-529,1 " " Gets the button 'OFF state' text information. The result sent to the Master would be: ButtonGet Id = 529 Type = 1001 Flag = 0 VALUE1 = 1 VALUE2 = 14 VALUE3 = 1 TEXT = This is a test TEXT LENGTH = 14

Panel Runtime Operations

Serial Commands are used in the AxcessX Terminal Emulator mode. These commands are case insensitive.

Panel Runtime Operation Commands
ABEEP Output a single beep even if beep is Off.
	Syntax:" 'ABEEP ''Example:SEND COMMAND Panel, '''ABEEP''Outputs a beep of duration 1 beep even if beep is Off.
ADBEEP Output a double beep even if beep is Off.
	Syntax:" 'ADBEEP ''Example:SEND COMMAND Panel, '''ADBEEP''Outputs a double beep even if beep is Off.
Panel Runtime Operation Commands (Cont.)
@AKB Pop up the	keyboard icon and initialize the text string to that specified. Keyboard string is set to null on power up and is stored until power is lost. The Prompt Text is optional. Syntax: "'@AKB-;'"Variables: initial text = 1 - 50 ASCII characters. prompt text = 1 - 50 ASCII characters. Example: SEND COMMAND Panel, "'@AKB-Texas;Enter State'" Pops up the Keyboard and initializes the text string 'Texas' with prompt text 'Enter State'.
AKEYB Pop up the	keyboard icon and initialize the text string to that specified. Keyboard string is set to null on power up and is stored until power is lost. Syntax: "'AKEYB-'"Variables: initial text = 1 - 50 ASCII characters. Example: SEND COMMAND Panel, "'AKEYB-This is a Test'" Pops up the Keyboard and initializes the text string 'This is a Test'.
AKEYP	Pop up the keypad icon and initialize the text string to that specified. The keypad string is set to null on power up and is stored until power is lost. Syntax: "'AKEYP-'"Variables: number string = 0 - 9999. Example: SEND COMMAND Panel, "'AKEP-12345'" Pops up the Keypad and initializes the text string '12345'.
AKEYR Remove the	Keyboard/Keypad. Remove keyboard or keypad that was displayed using 'AKEYB', 'AKEYP', 'PKEYP', @AKB, @AKP, @PKP, @EKP, or @TKP commands. Syntax: "'AKEYR'"Example: SEND COMMAND Panel, "'AKEYR'"Removes the Keyboard/Keypad.
@AKP	Pop up the keypad icon and initialize the text string to that specified. Keypad string is set to null on power up and is stored until power is lost. The Prompt Text is optional. Syntax: "'@AKP-;'"Variables: initial text = 1 - 50 ASCII characters. prompt text = 1 - 50 ASCII characters. Example: SEND COMMAND Panel, "'@AKP-12345678;ENTER PASSWORD'" Pops up the Keypad and initializes the text string '12345678' with prompt text 'ENTER PASSWORD'.
@AKR Remove the Keyboard/Keypad.Remove keyboard or keypad that was displayed using 'AKEYB', 'AKEYP', 'PKEYP', @AKB, @AKP, @PKP, @EKP, or @TKP commands.Syntax:" '@AKR'"Example:SEND COMMAND Panel,"'@AKR'"Removes the Keyboard/Keypad.
BEEP Output a beep.Syntax:" 'BEEP'"Example:SEND COMMAND Panel,"'BEEP'"Outputs a beep.
BRIT Set the panel brightness.Syntax:" 'BRIT-''Variable:brightness level = 0 - 100.Example:SEND COMMAND Panel,"'BRIT-50'"Sets the brightness level to 50.
@BRT Set the panel brightness.Syntax:" '@BRT-''Variable:brightness level = 0 - 100.Example:SEND COMMAND Panel,"'@BRT-70'"Sets the brightness level to 70.
DBEEP Output a double beep.Syntax:" 'DBEEP'"Example:SEND COMMAND Panel,"'DBEEP'"Outputs a double beep.
@EKP Extend the Keypad.Pops up the keypad icon and initializes the text string to that specified.The Prompt Text is optional.Syntax:" '@EKP-';"Variables:initial text = 1 - 50 ASCII characters.prompt text = 1 - 50 ASCII characters.Example:SEND COMMAND Panel,"'@EKP-33333333;Enter Password'"Pops up the Keypad and initializes the text string '33333333' with prompt text 'Enter Password'.
PKEYP Present a private keypad.	Pops up the keypad icon and initializes the text string to that specified.Keypad displays a ''' instead of the numbers typed.The Prompt Text is optionalSyntax:" 'PKEYP-''Variables:initial text = 1 - 50 ASCII characters.Example:SEND COMMAND Panel, '' 'PKEYP-123456789'''Pops up the Keypad and initializes the text string '123456789' in '''.
@PKP Present a private keypad.	Pops up the keypad icon and initializes the text string to that specified.Keypad displays a ''' instead of the numbers typed.The Prompt Text is optionalSyntax:" '@PKP-;;"Variables:initial text = 1 - 50 ASCII characters.prompt text = 1 - 50 ASCII characters.Example:SEND COMMAND Panel, '' '@PKP-1234567;ENTER PASSWORD''Pops up the Keypad and initializes the text string 'ENTER PASSWORD' in '''.
SETUP Send pane	to SETUP pageSyntax:" 'SETUP' "Example:SEND COMMAND Panel, '' 'SETUP''Sends the panel to the Setup Page.
SLEEP Force the p	panel into screen saver modeSyntax:" 'SLEEP' "Example:SEND COMMAND Panel, '' 'SLEEP''Forces the panel into screen saver mode.
@SOU Play a sound file.	Syntax:" '@SOU-'''Variables:sound name = Name of the sound file. Supported sound file formats are: WAV & MP3.Example:SEND COMMAND Panel, '' '@SOU-Music.wav''Plays the 'Music.wav' file.
@TKP Present a telephone keypad.Pops up the keypad icon and initializes the text string to that specified.The Prompt Text is optional.Syntax:"'@TKP-;''Variables:initial text = 1 - 50 ASCII characters.prompt text = 1 - 50 ASCII characters.Example:SEND COMMAND Panel,"'@TKP-999.222.1211;Enter Phone Number'"Pops-up the Keypad and initializes the text string '999.222.1211' with prompt text 'Enter Phone Number'.
TPAGEON Turn On page tracking.This command turns On page tracking, whereby when the page or popups change, a string is sent to the Master.This string may be captured with a CREATE_BUFFER command for one panel and sent directly to another panel.Syntax:"'TPAGEON'"Example:SEND COMMAND Panel,"'TPAGEON'"Turns On page tracking.
TPAGEOFF Turn Off page tracking.Syntax:"'TPAGEOFF'"Example:SEND COMMAND Panel,"'TPAGEOFF'"Turns Off page tracking.
@VKB Popup the virtual keyboard.Syntax:"'@VKB'"Example:SEND COMMAND Panel,"'@VKB'"Pops-up the virtual keyboard.
WAKE Force the panel out of screen saver mode.Syntax:"'WAKE'"Example:SEND COMMAND Panel,"'WAKE'"Forces the panel out of the screen saver mode.

Input Commands

These Send Commands are case insensitive.

Input Commands

^CAL Put panel in calibration mode. Syntax: "' ^CAL ' "Example:SEND COMMAND Panel," ' ^CAL ' "Puts the panel in calibration mode.

^KPS Set the keyboard passthru. Syntax: "' ^KPS-="" Variable:pass data:= Disables the keyboard.0 = Pass data to G4 application (default). This can be used with VPC or text areas.1 - 4 = Not used.5 = Sends out data to the Master.Example:SEND COMMAND Panel," ' ^KPS-5 ' "Sets the keyboard passthru to the Master. Option 5 sends keystrokes directly to the Master via the Send Output String mechanism. This process sends a virtual keystroke command (^VKS) to the Master.Example 2:SEND COMMAND Panel," ' ^KPS-0 ' "Disables the keyboard passthru to the Master.The following point defines how the parameters within this command work:• Accepts keystrokes from any of these sources: attached USB keyboard or Virtual keyboard.

^VKS Send one or more virtual key strokes to the G4 application.Key presses and key releases are not distinguished except in the case of CTRL, ALT, and SHIFT.Refer to theEmbedded Codes table on page 113 that define special characters which can be included with the string but may not be represented by the ASCII character set. Syntax:" ' ^VKS-="" Variable:string = Only 1 string per command/only one stroke per command.Example:SEND COMMAND Panel," ' ^VKS- '8 "Sends out the keystroke 'backspace' to the G4 application.

Embedded codes

The following is a list of G4-compatible embedded codes:

Embedded Codes
Decimal numbers	Hexidecimal values	Virtual keystroke
8 (08) Backspace
13 (0D) Enter
27 (1B) ESC
128 (80) CTRL key down
129 (81) ALT key down
130 (82) Shift key down
131 (83) F1
132 (84) F2
133 (85) F3
134 (86) F4
135 (87) F5
136 (88) F6
137 (89) F7
138 (8A) F8
139 (8B) F9
140 (8C) F10
141 (8D) F11
142 (8E) F12
143 (8F) Num Lock
144 (90) Caps Lock
145 (91) Insert
146 (92) Delete
147 (93) Home
148 (94) End
149 (95) Page Up
150 (96) Page Down
151 (97) Scroll Lock
152 (98) Pause
153 (99) Break
154 (9A) Print Screen
155 (9B) SYSRQ
156 (9C) Tab
157 (9D) Windows
158 (9E) Menu
159 (9F) Up Arrow
160 (A0) Down Arrow
161 (A1) Left Arrow
162 (A2) Right Arrow
192 (C0) CTRL key up
193 (C1) ALT key up
194 ($C2) Shift key up

Panel Setup Commands

These commands are case insensitive.

Panel Setup Commands
@PWD Set the page	e flip password. Note: @PWD sets the level 1 password only. Syntax: "'@PWD-''' Variables: page flip password = 1 - 50 ASCII characters. Example: SEND COMMAND Panel,"'@PWD-Main'" Sets the page flip password to 'Main'.
^PWD Set the page	e flip password. Password level is required and must be 1 - 4. Syntax: "'^PWD-,,','' Variables: password level = 1 - 4. page flip password = 1 - 50 ASCII characters. Example: SEND COMMAND Panel,"'^PWD-1,Main'" Sets the page flip password on Password Level 1 to 'Main'.
@RPP Reset the page	e protected password. @RPP resets the protected password to its default (1988). Syntax: "'@RPP'" Example: SEND COMMAND Panel,"'@RPP'" Resets the protected Setup page password to '1988'.

Dynamic Image Commands

The following table describes Dynamic Image Commands.

Dynamic Image Commands
^BBR Set the bitmap of a button to use a particular resource.	Syntax:"'^BBR-,",""Variable:variable text address range = 1 - 4000.button states range = 1 - 256 for multi-state buttons (0 = All states, for General buttons 1 = Off state and 2 = On state).resource name = 1 - 50 ASCII characters.Example:SEND_COMMAND Panel,"'^BBR-700,1,Sports_Image'"Sets the resource name of the button to 'Sports_Image'.
^RAF	Adds any and all resource parameters by sending embedded codes and data.Since the embedded codes are preceded by a '%' character, any '%' character contained in the URL must be escaped with a second '%' character (see example).The file name field (indicated by a %F embedded code) may contain special escape sequences as shown in the ^RAF, ^RMF - Embedded Codes table below. Syntax:"'^RAF-,""Variables:resource name = 1 - 50 ASCII characters.data = Refers to the embedded codes, see the ^RAF, ^RMF - Embedded Codes section on page 116.Example:SEND_COMMAND Panel,"'^RAF-New Image,%P0%HAMX.COM%ALab/Test%%5Ffile%Ftest.jpg'"Adds a new resource.The resource name is 'New Image' %P (protocol) is an HTTP%H (host name) is AMX.COM%A (file path) is Lab/Test_file%F (file name) is test.jpg.Note that the %%5F in the file path is actually encoded as %5F.
^RFR Force a refresh for a given resource.	Syntax:"'^RFR-""Variable:resource name = 1 - 50 ASCII characters.Example:SEND_COMMAND Panel,"'^RFR-Sports_Image'"Forces a refresh on 'Sports_Image'.
^RMF Modify an existing resource.	This command modifies any and all resource parameters by sending embedded codes and data.Since the embedded codes are preceded by a '%' character, any '%' character contained in the URL must be escaped with a second '%' character (see example).The file name field (indicated by a %F embedded code) may contain special escape sequences as shown in the ^RAF, ^RMF - Embedded Codes section on page 116. Syntax:"^^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,"^RMF-,""
	Variables:resource name = 1 - 50 ASCII charactersdata = Refers to the embedded codes, see the ^RAF, ^RMF - Embedded Codes section on page 116.Example:SEND_COMMAND Panel,"^^RMF-Sports_Image,%ALab%%5FTest/Images%Ftest.jpg"Changes the resource 'Sports_Image' file name to 'test.jpg' and the path to 'Lab_Test/Images'.Note that the %%5F in the file path is actually encoded as %5F.
^RSR Change the	refresh rate for a given resource. Syntax:"^^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,"^RSR-,""
	Variable:resource name = 1 - 50 ASCII characters.refresh rate = Measured in seconds.Example:SEND_COMMAND Panel,"^^RSR-Sports_Image,5"Sets the refresh rate to 5 seconds for the given resource ('Sports_Image').

^RAF, ^RMF - Embedded Codes

The ^RAF and ^RMF commands add and modify any and all resource parameters by sending embedded codes and data:

"！”^RAF-<resource name>,<data>！”
"！”^RMF-<resource name>,<data>！”

The variable uses the embedded codes described in the following table:

^RAF, ^RMF - Embedded Codes

Parameter	Embedded Code Description
protocol	' %P <0-1>'	Set protocol. HTTP (0) or FTP (1).
user	' %U '	Set Username for authentication.
password	' %S '	Set Password for authentication.
host	' %H '	Set Host Name (fully qualified DNS or IP Address).
file	' %F '	Full path to the location of the file or program that will return the resource. The path must be a valid HTTP URL minus the protocol and host.The only exception to this is the inclusion of special escape sequences and in the case of FTP protocol, regular expressions.
path	' %A '	Set Directory path. The path must be a valid HTTP URL minus the protocol, host and filename.The only exception to this is the inclusion of special escape sequences and in the case of FTP protocol, regular expressions.
^RAF, ^RMF - Embedded Codes (Cont.)
Parameter	Embedded Code Description
refresh	' %R <refresh 1-65535>'	The number of seconds between refreshes in which the resource is downloaded again. Refreshing a resource causes the button displaying that resource to refresh also.The default value is 0 (only download the resource once).
newest	' %N <0-1>'	Set the newest file. A value of 1 means that only the most recent file matching the pattern is downloaded.The 'newest file' option only applies to FTP Dynamic Images, and only those that have pattern matching as part of their filename.Neither 'newest file' nor pattern matching apply to HTTP Dynamic Images.When set, the panel will first pull a list of files matching the given pattern from the specified FTP server and path. The timestamps of the items in the list will be compared, with the newest one being displayed on the panel. This is useful for source devices that place a uniquely named still image in a folder at constant intervals, allowing the panel always to display the most recent one.
preserve	' %V <0-1>'	Set the value of the preserve flag.Default is 0. Currently preserve has no function.

Escape Sequences

The ^RAF and ^RMF commands support the replacement of any special escape sequences in the filename (specified by the %F embedded code) with the corresponding data obtained from the system as outlined in the table below:

Escape Sequences
Sequence	Panel Information
DV	Device Number
SY	System Number
IP	IP Address
HN	Host Name
MC	Mac Address
ID	Neuron ID (Only supported on panels that use ICSNet; ignored on all other panels)
PX	X resolution of current panel mode/file
PY	Y resolution of current panel mode/file
ST	Current state
AC	Address code
AP	Address port
CC	Channel code
CP	Channel port
LC	Level code
LP	Level port
BX	X Resolution of Current button
BY	Y Resolution of Current button
BN	Name of Button

For instance, http://www.amx.com/img.asp?device=\$DV

would become

http://www.amx.com/img.asp?device=10001.

Intercom Commands

The following is a list of Intercom Commands:

Intercom Commands
^MODEL? Sets model name.	If the panel supports intercom hardware it will respond with its model name as shown in the response below.Older hardware or newer hardware that has intercom support disabled with not respond to this command.Syntax:SEND_COMMAND,"'^MODEL?'"Variables:None.Example:SEND_COMMAND TP1,"'^MODEL?'"Panel response string if intercom enabled:^MODEL-MVP-8400i
^ICM Modifies an intercom call.	The microphone and/or speaker are activated based on the initial mode value of the intercom start command and the audio data packet flow is started upon receipt of this command by the panel.Note: For backwards compatibility, both ^ICM-TALK and ^ICM-LISTEN are supported. However, the TALK and LISTEN subcommands are ignored.Syntax:SEND_COMMAND,"`^ICM-TALK'"Variables:None.Example:SEND_COMMAND TP1,"`^ICM-TALK"
^ICS- Intercom start.	Starts a call to the specified IP address and ports, where initial mode is either 1 (talk) or 0 (listen) or 2 (both). If no mode is specified 0 (listen) is assumed.Note: No data packets will actually flow until the intercom modify command is sent to the panel.Syntax:SEND_COMMAND,"'^ICS-,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,
Intercom Commands (Cont.)
^ICE'	Intercom end - this command terminates an intercom call/connection. Syntax:SEND_COMMAND,"^^ICE"Variables:None.Example:SEND_COMMAND TP1,"^^ICE"SEND_COMMAND TP2,"^^ICE"Terminates an intercom call between two panels.
^ICM-TALK	See ^ICM section on page 118. Syntax:SEND_COMMAND,"^^ICM-TALK"Variables:None.Example:SEND_COMMAND TP1,"^^ICM-TALK"
^ICM-LISTEN	See ^ICM section on page 118. Syntax:SEND_COMMAND,"^^ICM-LISTEN"Variables:None.Example:SEND_COMMAND TP1,"^^ICM-LISTEN"
^ICM-MICLEVEL Set the	microphone level during an intercom call. Syntax:SEND_COMMAND,"^^ICM-MICLEVEL"Variables:MICLEVEL: Range = 0 - 100Example:SEND_COMMAND TP1,"^^ICM-MICLEVEL,40"
^ICM-MUTEMIC Set the	state of the microphone on a panel to muted (1) or unmuted (0).At the start of each call the microphone starts out unmuted. Syntax:SEND_COMMAND,"^^ICM-MUTEMIC"Variables:None.Example:SEND_COMMAND TP1,"^^ICM-MUTEMIC,1"
^ICM-SPEAKERLEVEL	Set the speaker level during an intercom call. Syntax:SEND_COMMAND,"^^ICM-SPEAKERLEVEL,55"Variables:Valid levels are from 0 to 100.Example:SEND_COMMAND TP1,"^^ICM-SPEAKERLEVEL,55"

Panel IR Commands

These commands are used to transmit and receive IR signals from the panel.

Each panel has up to 4 transmit ports specifically defined as IR output ports:

• AMX 38K
• AMX 455K
• User 1
• User 2

The ^IRM command allows the command itself to specify the port number. IRM is needed because commands programmed on the panel itself can only be sent to a single port number.

The ^IRS command is needed to enable the received AMX 38K or 455k. In some cases, both of these ports cannot be enabled at the same time.

Panel IR Commands
^IRM	Pulses the given channel IR on for onTime in tenths of seconds.Delays offTime tenths of seconds before the next IR pulse is allowed.The port for the IR is specified in the command Syntax:SEND_COMMAND,"'^IRM-,,,,""Variables:None.Example:SEND_COMMAND TP1,"'^IRM-,,,,""SEND_COMMAND TP2,"'^IRM-,,,,""Specifies the port number to be used.
^IRS Enable the received AMX 38K or 455KThe RX Ir port is specified in the command Syntax:SEND_COMMAND,"'^IRS-,""Variables:None.Example:SEND_COMMAND,""^IRS-!"

SIP Commands

The following table lists and describes SIP commands that are generated from the touch panel.

SIP Commands
^PHN-AUTOANSWER	Provides the state of the auto-answer feature. Syntax: "^^PHN-AUTOANSWER, ''" Variable: state = 0 or 1 (off or on) Example: SEND_COMMAND Panel,"'^^PHN-AUTOANSWER, 1''
^PHN-CALL Provides call	Call progress notification for a call. Syntax: "'^PHN-CALL,,,'" Variables: status = CONNECTED, DISCONNECTED, TRYING, RINGING, or HOLD. connection id = The identifying number of the connection. Example: SEND_COMMAND Panel"'^PHN-CALL, CONNECTED, 1''Notifies that the call is connected.
^PHN-DECLINE	Decline (send to voice mail if configured) the incoming call onas indicated from the previous PHN-INCOMING message. CallID should be 0 or 1. Syntax: "'^PHN-DECLINE,''' Variable: CallID = The identifying number of the connection. Example: SEND_COMMAND Panel,"^^PHN-DECLINE,0""
^PHN-INCOMING	Provides incoming call notification and the connection id used for all future commands related to this call. The connection id will be 0 or 1. Syntax: "'^PHN-INCOMING,,,', ''' Variables: caller number = The phone number of the incoming call. caller name = The name associated with the caller number. connection id = The identifying number of the connection. timestamp = The current time in MM/DD/YY HH:MM:SS format. Example: SEND_COMMAND Panel,"'^^PHN-INCOMING, 2125551000, AMX, 07/22/08 12:00:00, 1''
SIP Commands (Cont.)
^PHN-LINESTATE	Indicates the current state of each of the available connections used to manage calls Syntax:"'^PHN-LINESTATE,,,,,...'"Variables:connection id = The identifying number of the connection.state = IDLE, HOLD, or CONNECTEDextn = The local extension of this panel (see Example)Example:SEND_COMMAND Panel,"' ^PHN-LINESTATE, 1, IDLE, 2, CONNECTED,SIP,''
^PHN-MSGWAITING Indicates the number of messages waiting the user's voice mail box. Syntax:"'^PHN-MSGWAITING,,,,,"Variables:messages = 0 or 1 (1 indicates new messages)new message count = The number of new messages.old message count = The number of old messages.new urgent message count = The number of new messages marked urgent.old urgent message count = The number of old messages marked urgent.Example:SEND_COMMAND Panel,"' ^PHN-MSGWAITING, 1, 1, 2, 1, 0"
^PHN-PRIVACY Indicates the state of the privacy feature. Syntax:"'^PHN-PRIVACY,''Variable:state = 0 (Disable) or 1 (Enable)new message count = The number of new messages.old message count = The number of old messages.new urgent message count = The number of new messages marked urgent.old urgent message count = The number of old messages marked urgent.Example:SEND_COMMAND Panel,"' ^PHN-PRIVACY, 0"
^PHN-REDIAL Indicates the panel is redialing the number. Syntax:"'^PHN-REDIAL,''Variable:number = The phone number to dial.Example:SEND_COMMAND Panel,"' ^PHN-REDIAL, 2125551000"
^PHN-TRANSFERRED Indicates a call has been transferred. Syntax:"'^PHN-TRANSFERRED'"Example:SEND_COMMAND Panel,"' ^PHN-TRANSFERRED'"

The following table lists and describes SIP commands that are sent to the touch panel to manage calls.

SIP Commands
^PHN-ANSWER Answers the call. Syntax: "^^PHN-ANSWER,'" Variable: connection id = The identifying number of the connection Example: SEND_COMMAND Panel,"^^PHN-ANSWER, 1"
^PHN-AUTOANSWER	Enables (1) or disables (0) the auto-answer feature on the phone. Syntax: "'^PHN-AUTOANSWER,''' Variable: state = 0 (Disable) or 1 (Enable) Example: SEND_COMMAND Panel,"^^PHN-AUTOANSWER, 1"Enables the auto-answer feature.
?PHN-AUTOANSWER	Queries the state of the auto-answer feature. The panel responds with the ^PHN-AUTOANSWER,message. Syntax: "' ?PHN-AUTOANSWER'" Example: SEND_COMMAND Panel,"' ?PHN-AUTOANSWER"
^PHN-CALL Calls the provided number. Syntax: "'^PHN-CALL,''' Variable: number = The provided phone number Example: SEND_COMMAND Panel,"^^PHN-CALL, 2125551000"
^PHN-DTMF Sends DTMF codes. Syntax: "'^PHN-DTMF,''' Variable: DTMF code = 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, POUND, or ASTERISK. Example: SEND_COMMAND Panel,"^^PHN-DTMF, 1234567879ASTERISK"
^PHN-HANGUP Hangs up the call. Syntax: "'^PHN-HANGUP,''' Variable: connection id = The identifying number of the connection Example: SEND_COMMAND Panel,"^^PHN-HANGUP, 1"
^PHN-HOLD Places the call on hold. Syntax: "'^PHN-HOLD,''' Variable: connection id = The identifying number of the connection Example: SEND_COMMAND Panel,"^^PHN-HOLD, 1"
SIP Commands (Cont.)
?PHN-LINESTATE	Queries the state of each of the connections used by the SIP device.The panel responds with the ^PHN-LINESTATE message Syntax:"'?PHN-LINESTATE' "Example:SEND_COMMAND Panel,"'?PHN-LINESTATE' "
^PHN-PRIVACY	Enables or disables the privacy feature on the phone (do not disturb).Syntax:"'^PHN-PRIVACY,'"Variable:state = 0 (Disable) or 1 (Enable)Example:SEND_COMMAND Panel,"'^PHN-PRIVACY, 1'"Enables the privacy feature.
?PHN-PRIVACY Queries	the state of the privacy feature.The panel responds with the ^PHN-PRIVACY,'message. Syntax:"'?PHN-PRIVACY' "Example:SEND_COMMAND Panel,"'?PHN-PRIVACY' "
^PHN-REDIAL Redials	the last number. Syntax:"'^PHN-REDIAL' "Example:SEND_COMMAND Panel,"'^PHN-REDIAL' "
^PHN-TRANSFER Transfers the call to the provided number. Syntax:"'^PHN-TRANSFER,,,' "Variable:connection id = The identifying number of the connection number = The number to which you want to transfer the call.Example:SEND_COMMAND Panel,"'^PHN-TRANSFER, 1, 2125551000' "

The following table lists and describes SIP setup commands. Using any of these commands causes the current user to go offline.

SIP Setup Commands
^PHN-SETUP-DOMAIN Sets the realm for authentication. Syntax: ''^PHN-SETUP-DOMAIN,''' Variable: domain = The realm used for authentication Example: SEND_COMMAND Panel, ''^PHN-SETUP-DOMAIN,asterisk' ''
^PHN-SETUP-ENABLE Registers a new user Once the configuration has been updated, the ENABLE command should be run to re-register the new user. Syntax: ''^PHN-SETUP-ENABLE' ''
SIP Commands (Cont.)
^PHN-SETUP-PASSWORD Sets the	Sets the user password for the proxy server. Syntax:"'^PHN-SETUP-PASSWORD,''' Variable:password = The password for the user nameExample:SEND_COMMAND Panel,'''^PHN-SETUP-PASSWORD,6003''
^PHN-SETUP-PORT Sets the	port number for the proxy server. Syntax:"'^PHN-SETUP-PORT,''' Variable:port = The port for the proxy serverExample:SEND_COMMAND Panel,'''^PHN-SETUP-PORT,5060''
^PHN-SETUP-PROXYADDR	Sets the IP address for the proxy server. Syntax:"'^PHN-SETUP-PROXYADDR,''' Variable:IP = The IP address for the proxy serverExample:SEND_COMMAND Panel,'''^PHN-SETUP-PROXYADDR,192.168.223.111''
^PHN-SETUP-STUNADDR Sets the IP address for the STUN server. Syntax:"'^PHN-SETUP-STUNADDR,''' Variable:IP = The IP address for the STUN serverExample:SEND_COMMAND Panel,'''^PHN-SETUP-STUNADDR,192.168.223.111''
^PHN-SETUP-USERNAME Sets the user name for authentication with the proxy server. Syntax:"'^PHN-SETUP-USERNAME,''' Variable:username = The user name (usually the phone extension)Example:SEND_COMMAND Panel,'''^PHN-SETUP-USERNAME,6003''

Programming

Troubleshooting

This section describes the solutions to possible hardware/firmware issues that could arise during the common operation of a Modero touch panel.

Troubleshooting Information
Symptom Solution
My USB drivers has a yellowexclamation point and doesn'tappear to be working.	The USB driver was incorrectly installed and should be re-installed:Power up the panel without the USB cable connected to the panel.Plug in the USB cable into the G4 panel. You should see a USB iconshow up in the System Tray.Double click on the icon to bring up the list of USB devices (youshould see the "AMX USB LAN LINK" device in the list).If the "Install Driver" dialog doesn't appear automatically, select the"Properties" button and then the "Update Driver" button.When the Install Driver dialog does appear, click Next to accept allthe default prompts.The OS will state that the driver you are installing/updating does nothave a digital signature. This is acceptable, so agree to continue theinstallation.After installation is complete, the exclamation point should disappear.
When using G4 WebControl tocommunicate with a target panel, aVNC Server dialog appears on myscreen.	During a WebControl connection to a target panel, a G4Authentication dialog will ask you to enter the assigned password forthe panel before allowing access.If prompted with a VNC Server dialog, enter the IP Address of thetarget panel. This can be found within the Setup > Protected Setup> System Connection page. This IP Address of the panel appearswithin the IP Settings section of this pageEnter the IP Address and click OK. When prompted with the G4Authentication popup, enter the panel's WebControl password.
While attempting to communicatedirectly with the Virtual Master (onthe PC) via a USB connection, I can'tget my communication icon to turnGreen.	A Green communication icon indicates that a connection has beenestablished to the target Master or target Virtual Master.Launch NetLinx Studio and configure the Master Connectioncommunication settings for a Virtual Master.Navigate to the System connection page and toggle the Type field toUSB.Make sure the Type-A USB connector is securely connected to thePC.Make sure the panel DOES NOT have the mini-USB connected andthen TURN OFF the panel.Once the panel has turned ON, THEN connect the mini-USB to theProgram Port. The USB icon should appear in the system tray. If itdoesn't, refer to the Configuring and Using USB with a VirtualMaster section on page 25.The panel may need a few minutes to detect the connection to thePC.
My Modero panel isn't appearing inmy Workspace window.	Verify that the System number is the same on both the NetLinxWorkspace window and the System Connection page on the Moderopanel.Verify that you have entered the proper NetLinx Master IP andconnection methods into the Master Connection section of theSystem Connection page.
Troubleshooting Information (Cont.)
Symptom Solution
My Modero panel can't obtain a DHCP Address	In requesting a DHCP Address, the DHCP Server can take up to a few minutes to provide the address.· Verify that an active Ethernet connection is attached to the rear of the Modero before beginning these procedures.· Select Diagnostics > Network Address from the Main menu and verify the System number.· If the IP Address field is still empty, give the Modero a few minutes to negotiate a DHCP Address and try again.
My panel is not showing up in the Virtual Master's System list of connected devices.	If a Virtual Master has already connected to the target panel, the G4 device retains the information of the previous Virtual Master System number.· Reboot the panel without plugging the USB cable into the panel.· Configure NetLinx Studio for a Virtual Master connection. Note the System Number used in the Edit Settings window.· Stop communication on the Virtual Master by going to Settings > Stop Communications.· Click Yes to stop communication.· Select the System Number (from the Online Tree tab) and use a right mouse click to select Refresh System. This re-establishes communication with the Virtual Master.· Plug-in the mini-USB cable into the corresponding port on the panel.· Wait a few seconds and refresh the system. This re-establishes communication with the Virtual Master. The panel should now appear in the list of available devices.
My Connection Status button isn't blinking and it says the USB is connecting.	"USB Connecting" is displayed when the panel tries to establish USB communication with the PC, either within the NetLinx Studio or TPDesign4 applications.· Remove the USB connector from the panel and close any AMX applications.· Reboot the panel.· Launch the AMX application and attempt reconnect to the panel.· If using Studio for Virtual Master communication, establish a Virtual Master connection, verify the correct System number, stop communication with the Virtual Master, and then re-establish communication by refreshing the system.· After the panel powers-up, reconnect the USB connector to the panel.· Verify that you have a valid USB connection from within your System Tray.
My on-screen mouse cursor doesn't appear.	· The USB connections are not detected until after the particular USB connection plugged into the corresponding port on the panel and power is cycled to the panel.
Calibration is not working.	· After the Modero touch panel has been updated with a new firmware kit (downloaded to the panel through NetLinx Studio), the calibration could need to be reset.· Cycling power to the panel should provide a baseline calibration for the particular touch panel. Proceed to the Calibration page and reset the on-screen calibration.
Panel doesn't respond to my touches	· The protective cover makes calibration difficult because the user can't calibrate on specific crosshairs when the sheet is pressing on the whole LCD.· Verify that the protective laminate coating on the LCD has been removed before beginning any calibration process.
The left border of the graphics has a crawling, dashed line.	· On some units at some resolutions, wavy lines may appear across the entire screen. This has been seen on middle resolutions and is referred to as the "Mid Range Fallout" problem.· This is due to the graphics controller settings in the firmware.· Update to the latest v2.XX.XX firmware. Visit the www.amx.com > Tech Center > Downloadable Files > Firmware Files > Modero panels, and then download the KIT file to your computer.
NetLinx Studio only detects one of my connected Masters.	Each Master is give a Device Address of 00000.· Only one Master can be assigned to a particular System number. When working with multiple Masters, open different instances of NetLinx Studio and assign each Master its own System value.· Example: a site has an NXC-ME260/64 and an NI-4000. In order to work with both units. The ME260/64 can be assigned System #1 and the NI-4000 can then be assigned System #2 using two open sessions of NetLinx Studio 2.
I can't seem to connect to a NetLinx Master using NetLinx Studio.	· From the Settings > Master Comm Settings > Communication Settings > Settings (for TCP/IP), uncheck the "Automatically Ping the Master Controller to ensure availability" box.· The pinging is to determine if the Master is available, and to reply with a connection failure instantly if it is not. Without using the ping feature, you will still attempt to make a connection, but a failure will take longer to be recognized. Some firewalls and networks do not allow pinging, though, and the ping will then always result in a failure.· When connecting to a NetLinx Master controller via TCP/IP, the program will first try to ping the controller before attempting a connection. Pinging a device is relatively fast and will determine if the device is off-line, or if the TCP/IP address that was entered was incorrect. If you decide NOT to ping for availability and the controller is off-line, or you have an incorrect TCP/IP address, the program will try for 30-45 seconds to establish a connection.Note: When trying to connect to a master controller that is behind a firewall, unchecking this option may be required. Most firewalls will not allow ping requests to pass through for security reasons.
I have more that one Modero panel connected to my System Master and only one shows up.	Multiple NetLinx Compatible devices (such as Modero panels) can be associated for use with a single Master. Each Modero panel comes with a defaulted Device Number value of 10001. When using multiple panels, it can become very easy to overlook the need to assign different Device Number values to each panel.· Press and hold the grey Front Setup Access button for 3 seconds to open the Setup page.· Press the Protected Setup button (located on the lower-left of the panel page), enter 1988 into the on-screen Keypad's password field, and press Done when finished.· Enter a Device Number value for the panel into the Device Number Keypad. The default is 10001 and the range is from 1 - 32000.
After downloading a panel file or firmware to a G4 device, the panel behaves strangely.	Symptoms include:Having to repeat the download.Inability to make further downloads to the panel. May get "directory" errors, "graphics hierarchy" errors, etc.... indicating problems with the Flash memory.Panel will not boot, or gets stuck on "AMX" splash screen.Other problems also started after downloading to a new panel or a panel with a TPD4 file that takes up a considerable amount of the available Flash memory.Cause:If the G4 device already contains a large enough file, subsequent downloads will take up more space than is available and could often corrupt the Flash memory. The demo file that typically ships with G4 panels is one such file.Solution:DO NOT download TPD4 files (of large size) over the demo pages, or any other large TPD4 file.First download a small blank one page file to the G4 panel using the Normal Transfer option to send/download the page. Reboot the device, then do your regular file or firmware download.

Appendix A - Text Formatting Codes

Text Formatting Codes for Bargraphs/Joysticks

Text formatting codes for bargraphs provide a mechanism to allow a portion of a bargraphs text to be provided dynamically generated information about the current status of the level (multistate and traditional). These codes would be entered into the text field along with any other text.

The following is a code list used for bargraphs:

Bargraph Text Code Inputs
Code	Bargraph Multi-State Bargraph
P	Display the current percentage of the bargraph (derived from the Adjusted Level Value as it falls between the Range Values)	Display the current percentage of the bargraph (derived from the Adjusted Level Value as it falls between the Range Values)
V	Raw Level Value Raw Level Value
L	Range Low Value Range Low Value
H	Range High Value Range High Value
S	N/A Current State
A	Adjusted Level Value (Range Low Value subtracted from the Raw Level Value)	Adjusted Level Value (Range Low Value subtracted from the Raw Level Value)
R	Low Range subtracted from the High Range Low Range	subtracted from the High Range
$	Dollar sign Dollar sign

The codes on a button may be modified by changing the text on a button via a VT command. When one of the Text Formatting Codes is encountered by the firmware, it is replaced with the correct value. These values are derived from the following operations:

Formatting Code Operations
Code	Operation
P (Current Value - Range Low Value / Range High Value - Range Low Value) x 100
V Current Level Value
L Range Low Value
H	Range High Value
S Current State (if regular bargraph then resolves to nothing)
A Current Value - Range Low Value
$R	Range High Value - Range Low Value

Given a current raw level value of 532, a range low value of 500, and a high range value of 600, the following text formatting codes would yield the following strings as shown in the table below:

Example
Format	Display
P%	32%
A out of R	32 out of 100
A of 0 - R	32 of 0 - 100
V of L -H	532 of 500 - 600

Text Area Input Masking

Text Area Input Masking can be used to limit the allowed/correct characters that are entered into a text area. For example, in working with a zip code, a user could limit the entry to a max length of only 5 characters but, with input masking, these could be limited to 5 mandatory numerical digits and 4 optional numerical digits. A possible use for this feature is to enter information into form fields. The purpose of this feature is to:

• Force the use of correct type of characters (i.e. numbers vs. characters)
• Limit the number of characters in a text area
• Suggest proper format with fixed characters
• Right to Left
• Required or Optional
• Change/Force a Case
• Create multiple logical fields
• Specify range of characters/number for each field

With this feature, it is NOT necessary to:

• Limit a choice of selections
• Handle complex input tasks such as names, days of the weeks or months by name
• Perform complex validation such as Subnet Mask validation

Input mask character types

These character types define what information is allowed to be entered in any specific instance.

The following table lists what characters in an input mask will define what characters are allowed in any given position.

Character Types

Character Masking Rule

0 Digit (0 to 9, entry required, plus [+] and minus [-] signs not allowed)

9 Digit or space (entry not required, plus and minus signs not allowed)

# Digit or space (entry not required; plus and minus signs allowed)

L Letter (A to Z, entry required)

? Letter (A to Z, entry optional)

A Letter or digit (entry required)

a Letter or digit (entry optional)

& Any character or a space (entry required)

C Any character or a space (entry optional)

NOTE

The number of the above characters used determines the length of the input masking box. Example: 0000 requires an entry, requires digits to be used, and allows only 4 characters to be entered/used.

Refer to the following Send Commands for more detailed information:

• ^BIM - Sets the input mask for the specified addresses. (see the ^BIM section on page 84).
• ^BMF subcommand %MK - sets the input mask of a text area (see the ^BMF section on page 86).

Input Mask Ranges

These ranges allow a user to specify the minimum and maximum numeric value for a field.

Only one range is allowed per field. Using a range implies a numeric entry ONLY.

Input Mask Ranges

Character Meaning

[ Start range

] End range

| Range Separator

An example from the above table:

[0|255] This allows a user to enter a value from 0 to 255.

Input Mask Next Field Characters

These characters specify a list of characters that cause the keyboard to move the focus to the next field when pressed, instead of inserting the text into the text area.

Input Mask Next Field Char
Character	Meaning
{ Start Next Field List
} End Next Field List

An example from the above table:

{.} or {:} or {.}: Tells the system to proceed to the next text area input box after a user hits any of these keys.

Input Mask Operations

Input Mask Operators change the behavior of the field in the following way:

Input Mask Operators

Character Meaning

< Forces all characters to be converted to lowercase

> Forces all characters to be converted to uppercase

^ Sets the overflow flag for this field

Input Mask Literals

To define a literal character, enter any character, other than those shown in the above table (including spaces, and symbols). A back-slash (\') causes the character that follows it to be displayed as the literal character. For example, A is displayed just as the letter A .

To define one of the following characters as a literal character, precede that character with a back-slash. Text entry operation using Input Masks.

A keyboard entry using normal text entry is straightforward. However, once an input mask is applied, the behavior of the keyboard needs to change to accommodate the input mask's requirement. When working with masks, any literal characters in the mask will be "skipped" by any cursor movement, including cursor keys, backspace, and delete.

When operating with a mask, the mask should be displayed with placeholders. The "-" character should display where to enter a character. The arrow keys will move between the "-" characters and allow them to be replaced. The text entry code operates as if it is in the overwrite mode. If the cursor is positioned on a character already entered and you type in a new (and valid) character, the new character replace the old character.

Characters are not shifted.

When working with ranges specified by the [] mask, the keyboard allows entry of a number between the values listed in the ranges. If a user enters a value that is larger than the maximum, the maximum number of rightmost characters is used to create a new, acceptable value.

• Example 1: If typing "125" into a field accepting 0-100, then the values displayed will be "1", "12", "25".
• Example 2: If the max for the field was 20, then the values displayed will be "1", "12", "5".

When data overflows from a numerical field, the overflow value is added to the previous field on the chain if the overflow character was specified. In the above example, if the overflow flag was set, the first example will place the "1" into the previous logical field and the second example will place "12" in the previous logical field.

If the overflow field already contains a value, the new value will be inserted to the right of the current characters and the overflow field will be evaluated. Overflow continues to work until a field with no overflow value is set or no more fields remain (i.e. reached first field).

If a character is typed and that characters appear in the Next Field list, the keyboard should move the focus to the next field. For example, when entering time, a ":" is used as a next field character. When entering "1:2", the 1 is entered in the current field (hours) and then the focus is moved to the next field and 2 is entered in that field.

When entering time in a 12-hour format, entry of AM and PM is required. Instead of adding AM/PM to the input mask specification, the AM/PM should be handled within the NetLinx code. This allows a programmer to show/hide and provide discrete feedback for AM and PM.

Input Mask Output Examples

The following are some common input masking examples:

Output Examples
Common Name Input Mask Input
IP Address Quad [0|255]{} Any value from 0 to 255
Hour [1|12]{:} Any value from 1 to 12
Minute/Second [0|59]{:} Any value from 0 to 59
Frames [0|29]{:} Any value from 0 to 29
Phone Numbers [phone] [phone]
Zip Code 00000-9999 75082-4567

URL Resources

A URL can be broken into several parts. For example, the URL http://www.amx.com/company-info-home.asp indicates that the protocol in use is http (HyperText Transport Protocol) and that the information resides on a host machine named www.amx.com. The image on that host machine is given an assignment name by the program of company-info-home.asp (Active Server Page).

The exact meaning of this name on the host machine is both protocol dependent and host dependent. The information normally resides in a file, but it could be generated dynamically. This component of the URL is called the file component, even though the information is not necessarily in a file.

A URL can optionally specify a port, which is the port number to which the TCP connection is made on the remote host machine. If the port is not specified, the default port for the protocol is used instead. For example, the default port for http is 80. An alternative port could be specified as: http://www.amx.com:8080/company-info-home.asp.

Any legal HTTP syntax can be used.

Special Escape Sequences

The system has only a limited knowledge of URL formats in that it transparently passes the URL information onto the server for translation. A user can then pass any parameters to server side programs such as CGI scripts or active server pages.

However, the system will parse the URL looking for special escape codes. When it finds an escape code, it replaces that code with a particular piece of panel, button, or state information.

For example, "http://www.amx.com/img.asp?device=\$DV" would become

"http://www.amx.com/img.asp?device=10001".

Other used escape sequences include:

Escape Sequences

Sequence Panel Information

DV Device Number

SY System Number

IP IP Address

HN Host Name

MC Mac Address

ID Neuron ID

PX X Resolution of current panel mode/file

PY Y Resolution of current panel mode/file

BX X Resolution of current button

BY Y Resolution of current button

BN Name of button

ST Current state

AC Address Code

AP Address Port

CC Channel Code

CP Channel Port

LC Level Code

LP Level Port

Appendix A - Text Formatting Codes

Appendix B - Complex Script Support

Overview

In many cases, a user needs a touch panel user interface that utilizes a font applicable to the area for which its use is intended, and to accomplish this without needing to resort to images of properly formed text. This includes proper rendering of right-to-left languages such as, but not limited to, Arabic, Hebrew, Thai and Devangari (FIG. 68).

Both the NXD-500i and TPDesign4 (v3.1 or higher) support complex script languages, to the extent that the True Type font currently selected for that state supports the language in question.

TPDesign4 allows the user to type the desired text into a project, view it in G4Panel Preview, and download it to the panel.

Most languages can be entered into the state property field in TPDesign4 via the Windows language bar.

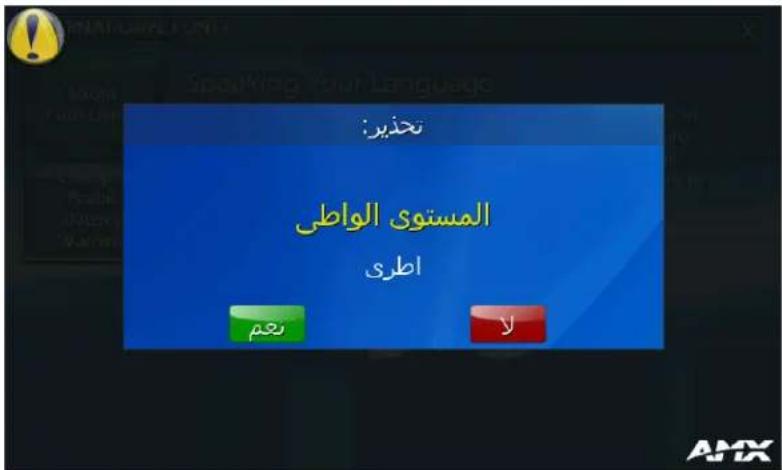

FIG. 68 Warning page in Arabic

In some cases, the user may need correct rendering of mixed left-to-right and right-to-left text, and may display both of these together in the same page (FIG. 69). Text edit boxes only operate left-to-right.

Some languages, notably Hindi and Tamil, are not supported by coded pages. These languages will display “???” for characters entered via the language bar, even if the selected font supports the language. Text in these languages can still be pasted via the clipboard or via the Alt- method.

For more information on TPDesign4 and its complex script support, please refer to the TPDesign4 (v3.0 or higher) Operation Reference Guide, available at www.amx.com.

Appendix B - Complex Script Support

AMX

It's Your World - Take Control™
