Product Type	Digital Photo Frame
Brand	Denver
Model	DPF-742
Display Size	7 inches (diagonal)
Display Type	TFT LCD
Resolution	800 x 480 pixels
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	500:1
Viewing Angle	140° (H) / 120° (V)
Supported Memory Cards	SD, SDHC, MMC
USB Port	USB 2.0 (for PC connection)
Remote Control	Included
Power Supply	DC 5V, 1A
Power Consumption	<5W
Dimensions (WxHxD)	20.5 x 15.2 x 3.0 cm
Weight	350 g
Supported Image Formats	JPEG, BMP, PNG
Slideshow Modes	Various transition effects
Clock/Calendar Display	Yes
Auto Power On/Off	Programmable timer
Wall Mountable	Yes (keyhole)
Color	Black
Accessories	Power adapter, remote control, USB cable, user manual
Cleaning	Wipe with soft dry cloth

Frequently Asked Questions - DPF-742 DENVER

How do I insert an SD card?

Locate the SD card slot on the side or back of the frame. Insert the card with the metal contacts facing down until it clicks into place. To remove, push the card in slightly to release it.

What image formats are supported?

The frame supports JPEG, BMP, and PNG formats. For best results, use JPEG files with a resolution up to 800 x 480 pixels.

Can I connect the frame to my computer?

Yes, use the supplied USB cable to connect the frame to a computer. The frame will appear as a removable drive, allowing you to transfer photos directly.

How do I set up the slideshow?

Press the Slideshow button on the remote or frame. You can adjust transition effects and time intervals via the menu settings. The frame will loop through all images on the inserted memory card.

Does the frame have built-in speakers?

Yes, the frame includes a small built-in speaker to play audio from supported video files or background music during slideshows. Volume can be adjusted via remote.

How do I wall-mount the frame?

The frame has a keyhole mount on the back. Use a screw with a head diameter less than 8mm, leaving it protruding slightly from the wall. Hang the frame onto the screw.

Can I use a USB flash drive?

Yes, the USB port supports flash drives formatted in FAT32. Connect the drive directly to the USB port, and the frame will automatically detect images.

How do I set the clock and calendar?

Go to the Settings menu, select Clock/Calendar. Use the buttons or remote to set date and time. Once set, the display will show time when not in slideshow mode.

What is the resolution of the display?

The display resolution is 800 x 480 pixels. For optimal quality, use images with similar or higher resolution; the frame scales them down automatically.

How do I clean the frame?

Turn off and unplug the frame. Clean the screen and frame with a soft, dry cloth. Avoid using water, cleaning liquids, or abrasive materials to prevent damage.

USER MANUAL DPF-742 DENVER

DENVER DPF-742 User Manual

Digital Photo Frame

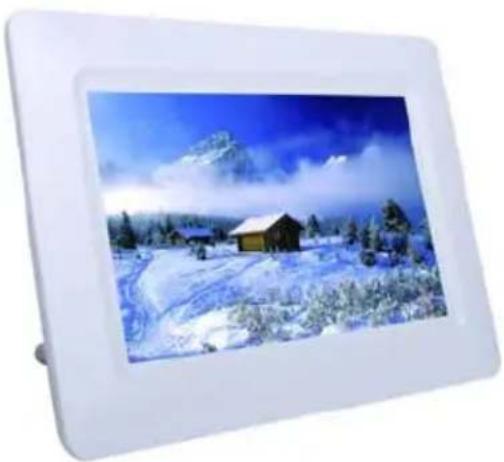

White rectangular display panel showing a snowy landscape with a wooden cabin and distant mountains under a blue sky (no text or symbols visible)

WARNING

The power adapter cable/disconnect device shall remain easy to operate/disconnect.

Introduction

Congratulations on your purchase of Digital Photo Frame.

Before operating the unit, please read this manual thoroughly and keep it for future reference. This manual will help you use many of the exciting features to make your Digital Photo Frame view more enjoyable.

The Digital Photo Frame enables you to view digital pictures directly from your camera's memory card. You can also create a slide show with multiple transition effects. No computer, digital camera, or internet connection is required.

• Play back of photo files stored in data stored devices through USB 2.0 port or various card-reader port, or internal memory.
  ●Supports SD,MMC, MS card.
• Compatible with most digital cameras stored JPEG images files.

●Automatic slide show with multiple transition effects and adjustable display time.
- Insert the memory card with slots facing you. Do not force the memory card in the slot.
- If you are not able to easily insert the memory card completely, you may have inserted it in a wrong way.

Note: DPF = Digital Photo Frame.

Precautions and Maintenance

• For indoor use only
• To avoid risks of file or electric shock; do not expose this appliance to moisture.
• To avoid overheating; do not block the ventilation holes on the back of the DPF at any time.
• Keep your Digital Photo Frame out of sunlight. Direct sunlight may cause damage.
• Do not dismantle the DPF. There is a risk of electric shock, and there are no user serviceable parts inside. Dismantling your Digital Photo Frame will void your

warranty.

- Do not use the Digital Photo Frame if conditions could allow condensation to occur, or damage may result.

DPF Side view

1. USB Host: The socket for DPF player to the USB memory.
2. SD/MMC/ MS card: The socket for DPF player to connect the SD/MMC/MS card.
   3.DC: Input the DC power adapter to the DPF player.

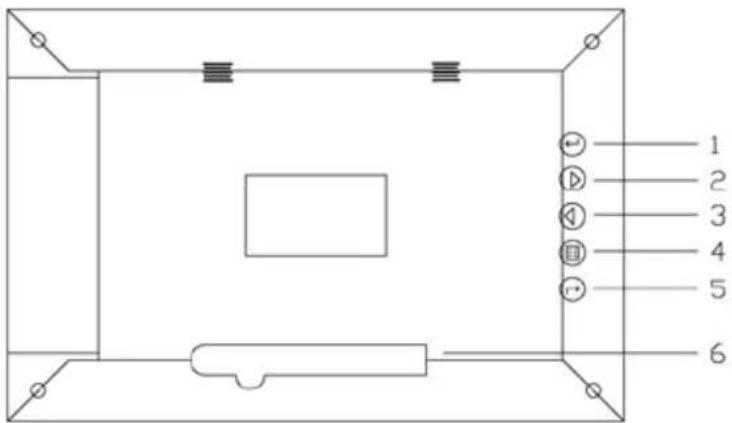

Player Overview

Key control and Key function:

1. ENTER Button: Confirms your selection, and pause or play.
2. LEFT SHIFT Button: Left or Up cursor select function and to view the previous photo.
3. RIGHT SHIFT Button: Right or Down cursor select function and to view the next photo.

4. MENU Button: Press and hold button for two seconds to Displays the photo frames menu options, Press once to go back to the previous menu.

5. STANDBY Button: Turned on or off the power of DPF.

6. Bracket

Getting started

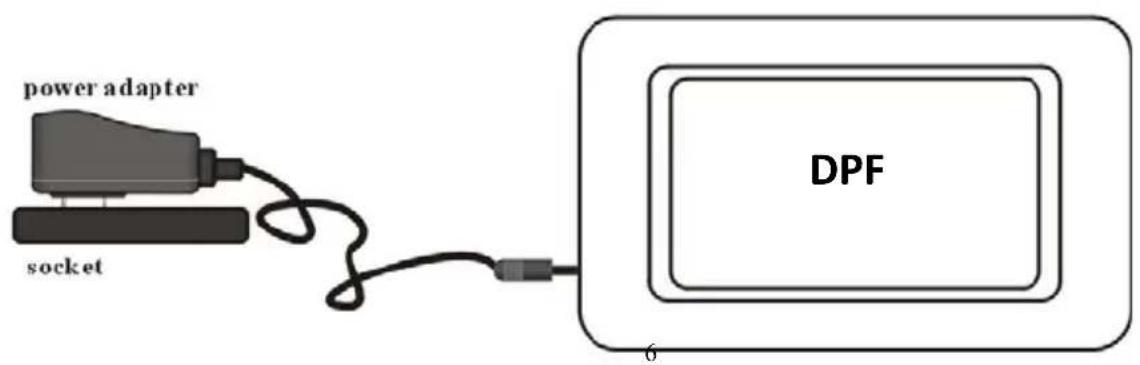

Assemble the Digital Photo Frame bracket to prop the unit up. Insert adapter DC plug into the DPF player first, then plug the power cord to a standard wall outlet. If you insert your memory card or USB flash drive into the frame, the images stored on the memory card or USB flash drive will begin to appear automatically on your screen.

Functions

DPF

ELECT CARD

In

Pre

co

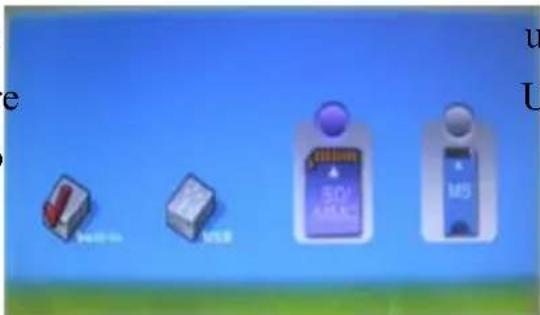

Fig1 Fig2

u button t

U Disc or

7

menu.

n

- MAIN FUNCTIONS

After selected device, you can press arrow buttons to select the main functions, such as Slide Show, Photo and Calendar (Fig2), Press Enter button into the selected function mode.

1. Slide Show: This function menu allows you press Enter button to enter slide show mode, the player will auto show photo.

2. Photo: This function allows you to preview photos in single window or six

windows.

1. Calendar: This function shows calendar and clock to user.

•PHOTO FUNCTION

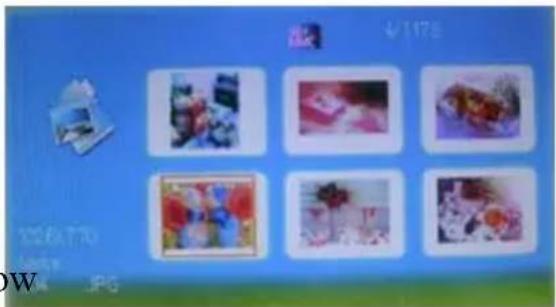

In this function mode (Fig 3).

1. Press arrow buttons to select photos preview in six windows.
2. Press Enter button to display pictures.
3. Press Menu button two seconds to show Setup menu in the pause situation of slide show.
4. Press Menu button to exit to the main function mode.

- CALENDAR FUNCTION

Blue background with six small photo frames arranged in a 2x2 grid, no visible text or symbols.

Fig3

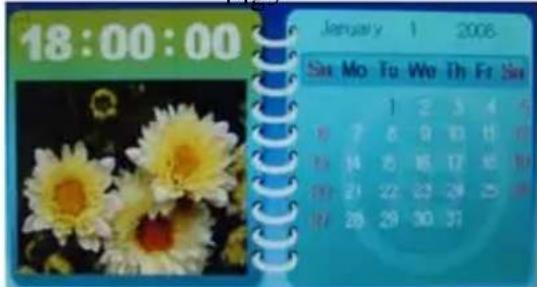

In this function mode, the player shows calendar and clock to user (Fig 4).

1. Use the arrow buttons; you can look up the calendar show on the left of DPF.
2. You can also slide show photo in a small window if the selected card has jpg files.
3. Use Menu button to exit calendar show.
   Fig4

Setup your DPF

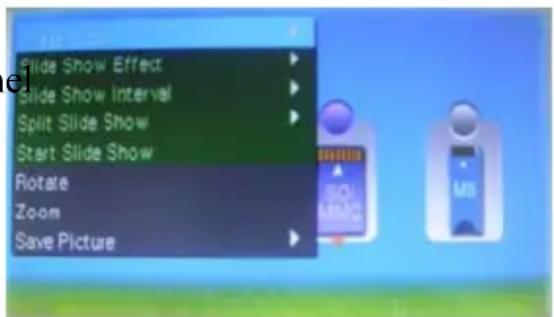

Press Menu button two seconds to enter into setup menu. In the Setup menu, you can use the arrow buttons to select one item to setup or operate. When the item is show in gray color, you cannot deal with it at that moment (Fig 5).

1. Image Size: Setup display mode for slide show. Include Auto Fit, Optimal and Pane Scan three modes.
2. Slide Show Effect: Special effects shown to transition one photo to the next in a slide show.
3. Slide Show Interval: The time amount the

next photo is displayed.

1. Split Slide Show: The picture number of the display model under the Split Slide Show is one or four.
2. Start Slide Show: Starts the slide show.
3. Rotate: Rotate the displayed photo 90 counter-clock-wise (In the pause situation of slide show).
4. Zoom: Zoom in the displayed photo. When in zoom state, you can just do zoom or exit operation (In the pause situation of slide show).
5. Save Picture: Copy selected files or current file from a memory card to built-in memory (In the pause situation of slide show).
6. Delete File: Delete selected files or current file (In the situation of six windows).
   10.Format memory: Formatted in memory all the files.
7. Reset Setting: Reset all settings to factory default values.
8. Language: Change the language for the player.
9. Brightness, Contrast, Color and Tint: Adjust the Brightness, Contrast, Color

and Tint value for screen.

1. Time: Set the internal clock and date.

Specification

Resolution 480*3(RGB)*234 (16:10)

Power adapter Input 100-240V AC, Output DC5V 1A

Working Temperature °C-10 to +50

File Format JPEG

Cards supported SD/MMC/MS/USB

Accessories Power adapter, User's manual

ronic equipment contains materials, components and be hazardous to your health and the environment, if discarded electric and electronic equipment) is not

ic equipment is marked with the crossed out trash ow. This symbol signifies that electric and electronic ot be disposed of with other household waste, but f separately.

All cities have established collection points, where electric and electronic equipment can either be submitted free of charge at recycling stations and other collection sites, or be collected from the households. Additional information is available at the technical department of your city.
