MS 140 - Uncategorized BORA - Free user manual and instructions

Product Type	Multi-drawer (warming drawer)
Model	MS 140
Brand	BORA

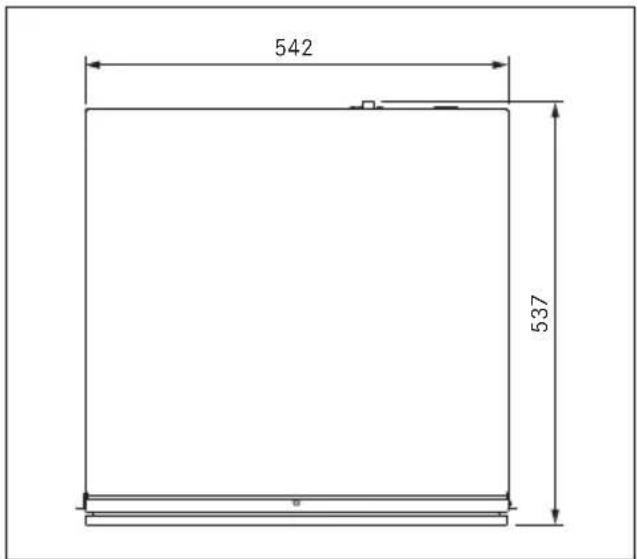

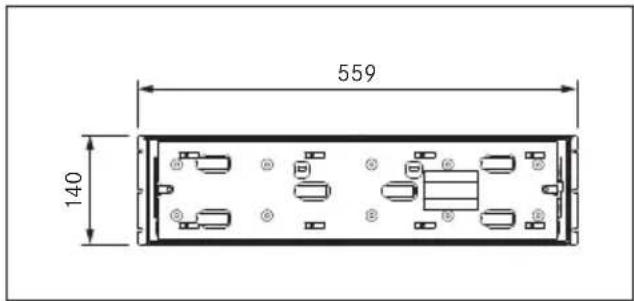

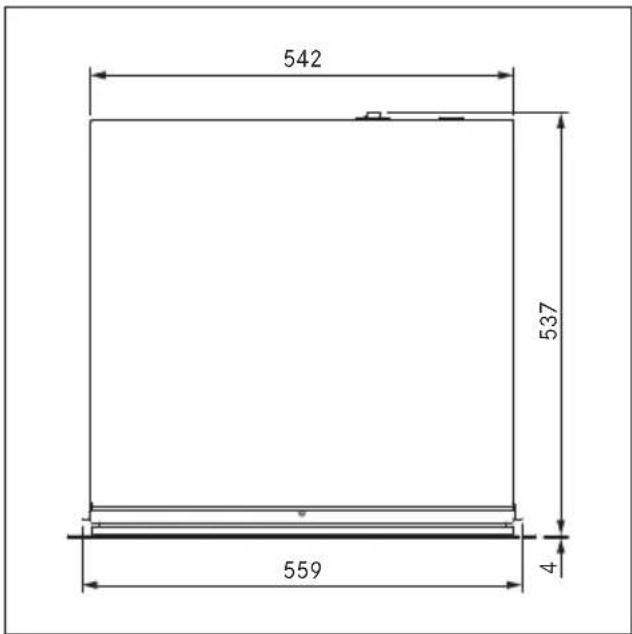

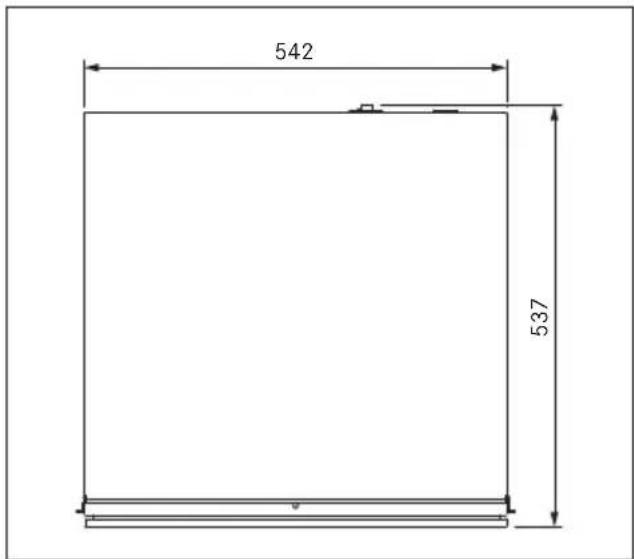

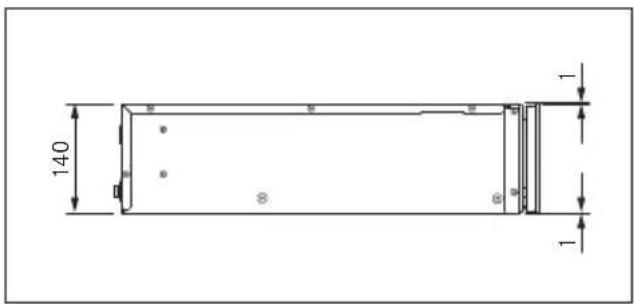

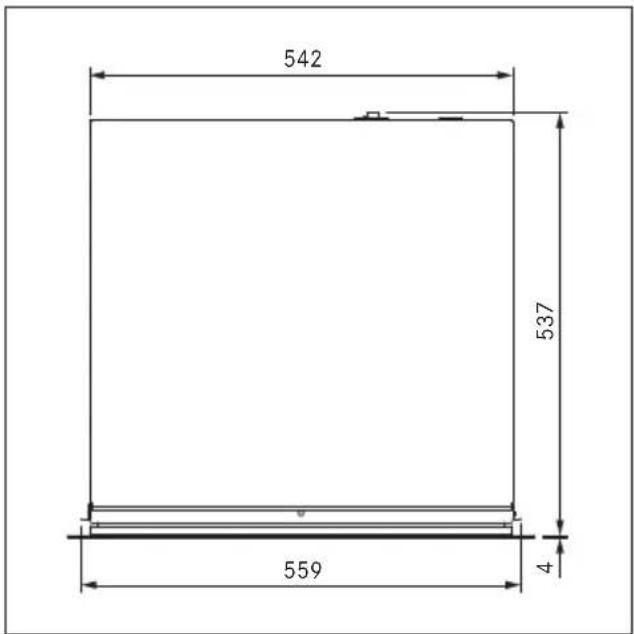

Dimensions (W x D x H)	559 x 537 x 140 mm

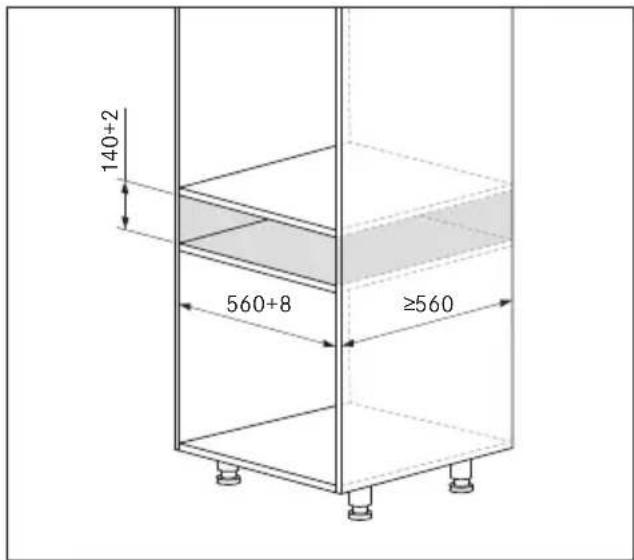

Recess Dimensions (W x D x H)	560 x 560 x 140 mm
Cooking Chamber Dimensions (W x D x H)	525 x 410 x 97 mm
Cooking Chamber Volume	20 L
Maximum Load	25 kg
Net Weight	16.4 kg
Power Supply	220-240 V / 50-60 Hz
Maximum Power Consumption	810 W
Fuse Protection	1 x 16 A
Temperature Control Range	30-100 °C
Temperature Levels	6 (30, 40, 60, 70, 80, 100 °C)
Time Levels	6 (30 min, 1, 2, 3, 4, 6 h)

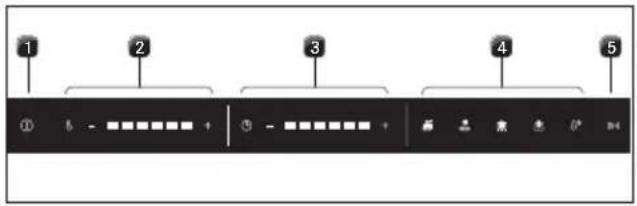

Control Type	Touch operating panel with sensor buttons
Opening Mechanism	Push2Open (touch to open)
Interior Lighting	LED oven chamber lighting
Connectivity	BORA Connectivity (compatible with BORA X BO steam oven)
Preset Programmes	Warm crockery, Reheat food, Keep food warm, Defrost food, Low-temperature cooking
Cleaning	Clean with soft cloth and mild detergent; avoid abrasive cleaners
Safety Certifications	CE, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, RoHS
Warranty	2-year manufacturer's warranty, extendable via registration

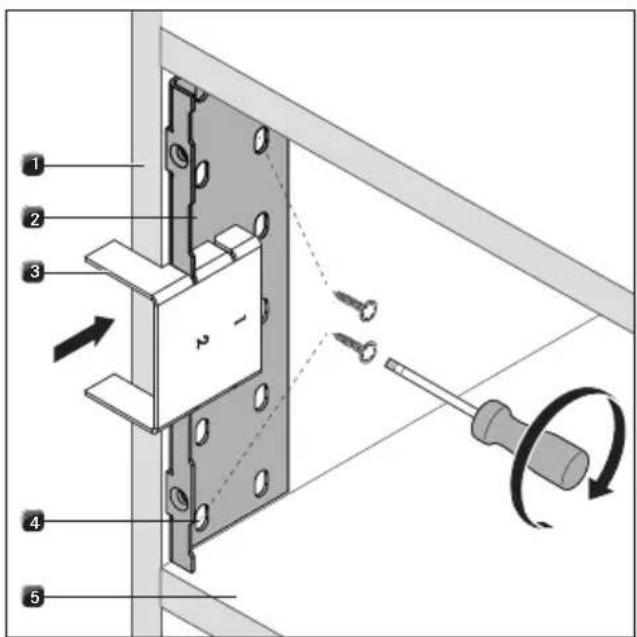

Accessories Included	Mains cable, communication cable, mounting angles, installation jig, screws, sealing lip
Optional Accessories	BORA glass front MSF140, shelf rack MSER

Frequently Asked Questions - MS 140 BORA

What is the maximum load capacity of the BORA MS 140 multi-drawer?

The maximum load capacity is 25 kg. Do not exceed this limit to avoid damage.

Can I use the drawer to store or heat flammable materials?

No. The appliance is intended only for warming crockery and food. Do not use for flambéing, storing flammable items, or heating oils in large quantities.

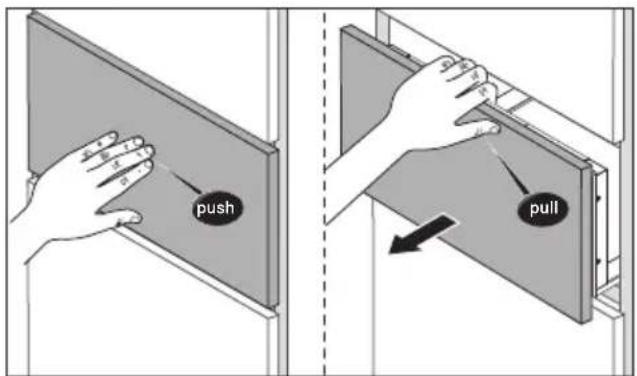

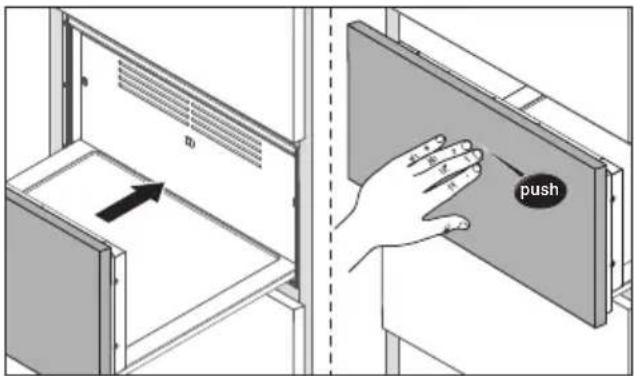

How do I open and close the drawer?

Lightly press the centre of the front panel (Push2Open) to unlock and open. Close by pressing again until it clicks shut. Avoid rough handling.

What temperature and time settings are available?

There are 6 temperature levels: 30, 40, 60, 70, 80, and 100 °C. Time levels: 30 min, 1, 2, 3, 4, and 6 hours. You can also use preset programmes.

How do I activate and deactivate Demo mode?

With the drawer open and in standby, long press (5 s) the minus button on temperature, then long press (5 s) the plus button. All indicators flash to confirm. Repeat to deactivate.

What should I do if the drawer does not heat up?

Check that the drawer is fully closed, the appliance is switched on, and the power supply is working. If delayed start is active, the display will show a flashing time symbol. Switch off and on again to cancel.

How do I clean the cooking chamber and exterior?

Use a soft cloth dampened with mild washing-up water. Dry with a soft cloth. Never use abrasive sponges, steam cleaners, or aggressive chemicals. The shelf rack (if equipped) is dishwasher safe.

Can I install the MS 140 together with other BORA appliances?

Yes. You can stack up to 3 multi-drawers directly, or place a BORA X BO steam oven on top. Ensure total load on the multi-drawer does not exceed 105 kg. Follow the installation dimensions in the manual.

What does the BORA Connectivity feature do?

It allows the multi-drawer to be networked with a BORA X BO steam oven via a communication cable. The X BO display can then control additional multi-drawer functions.

How long is the warranty and how can I extend it?

The standard manufacturer's warranty is 2 years. You can extend it by registering your product at www.bora.com/registration.

USER MANUAL MS 140 BORA

EN MS290/MS140, MSS290/MSS140 operating and installation instructions

BORA multi-drawer 290 mm/140 mm

BORA multi-drawer set 290 mm/140 mm including glass front

Exterior view of a black server or optical drive unit with multiple ports and mounting holes (no visible text or labels)

Exterior view of a black rectangular electronic device with ports and connectors (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a black rectangular electronic device casing (no text or symbols visible)

MSXUMIMEN-100

Table of Contents

1 General information 49

1.1 Liability 49
1.2 Validity of the operating and installation instructions....49
1.3 Product conformity.... 49
1.4 Presentation of information......49

2 Safety 51

2.1 Use as intended....51
2.2 People with limited abilities.... 51
2.3 General safety instructions.... 52
2.4 Safety instructions for installation....53
2.5 Safety instructions – operation......54
2.6 Safety instructions – cleaning and maintenance 56
2.7 Safety instructions – repairs, servicing and spare parts....57
2.8 Safety instructions – disassembly and disposal....57

3 Technical data 58

4 Appliance description 61

4.1 Model description......61
4.2 Structure 61
4.3 How it works 62
4.4 Touch operating panel....62
4.5 LED oven chamber lighting....63
4.6 Shelf rack 63

5 Functions and operation 64

5.1 Opening and closing the drawer 64

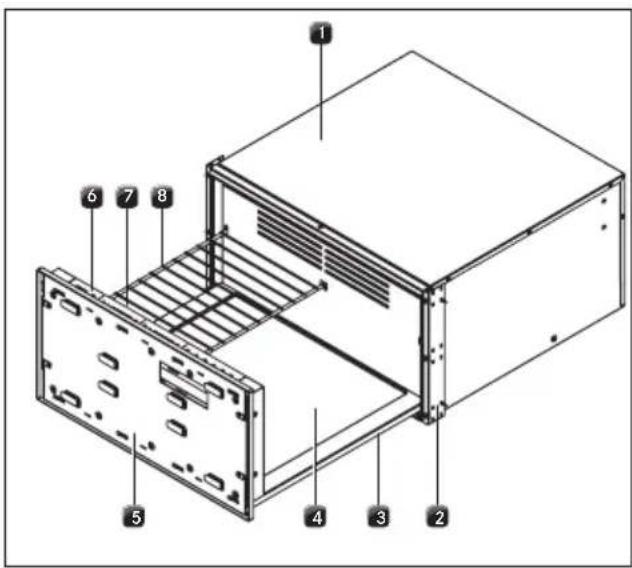

5.2 Touch control 64
5.3 Initial operation....65
5.4 Load capacity....65
5.5 Switching on and off 65
5.6 Manual operation.... 66
5.7 Using preset programmes 66
5.7.1 Preset programmes....66
5.7.2 Using preset programmes....68
5.8 Delayed start....68
5.9 Standby mode....68
5.10 BORA Connectivity 68
5.11 Demo mode....68
5.12 Factory settings....69

6 Applications 70

7 Cleaning and maintenance 72

7.1 Cleaning agents 72
7.2 Cleaning the exterior....72
7.3 Cleaning the cooking chamber......72

8 Troubleshooting 73

9 Installation 74

9.1 Scope of delivery....74
9.2 Tools and aids 74
9.3 Assembly instructions....75

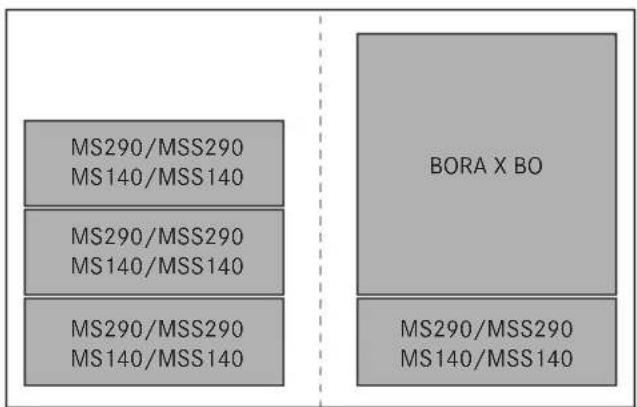

9.3.1 Possible appliance combinations....75
9.3.2 Fitted unit (single installation)....75
9.3.3 BORA multi-drawer fitted unit + BORA X BO steam oven 76
9.4 Installing the appliance....76
9.5 Fitting the front....78

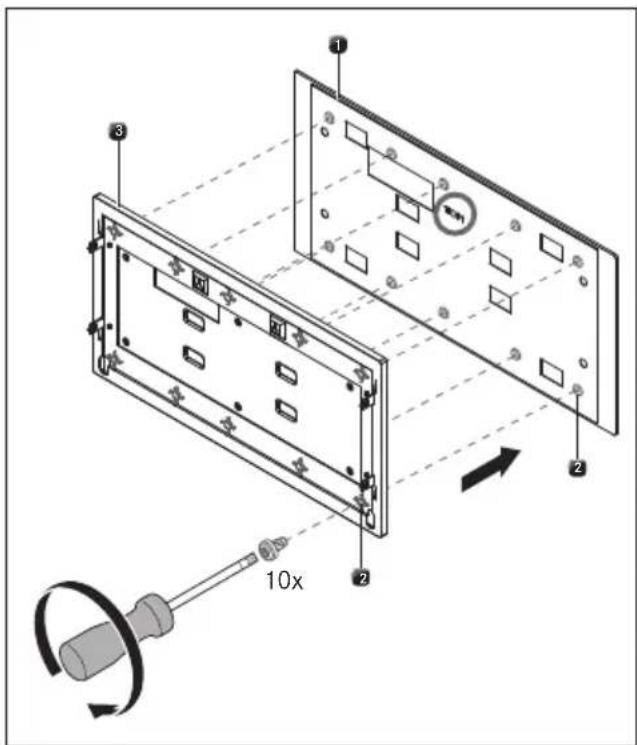

9.5.1 Fitting the unit front 78
9.5.2 Fitting the BORA glass front (MSF290/MSF140)....80
9.5.3 Completing installation....81
9.6 Function test....82
9.7 Handover to user 82

10Decommissioning,disassembly anddisposal83

10.1 Decommissioning....83
10.2 Disassembly....83
10.3 Environmentally-friendly disposal 83

11 Warranty, technical service, spare parts, accessories 84

11.1 BORA manufacturer's warranty....84
11.2 Service....85
11.3 Spare parts.... 85
11.4 Accessories....85

1 General information

These instructions contain important information to protect you from injury and prevent damage to the appliance.

Please read these instructions carefully before installing or using the appliance for the first time.

Other documents apply alongside these instructions. Please by all means adhere to all documents that form part of the scope of delivery.

Assembly and installation may only be carried out by trained specialists and taking into account the applicable laws, regulations and standards. All safety and warning information as well as the handling instructions in the accompanying documents must be observed.

1.1 Liability

BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH – hereinafter referred to as BORA – does not assume any liability for damage arising from disregard for or non-adherence to the documents included in the scope of delivery!

Furthermore, BORA shall not be held liable for damage caused by improper installation or failure to observe the safety and warning instructions!

1.2 Validity of the operating and installation instructions

These instructions apply to several appliance versions. It is therefore possible that some of the features described do not apply to your appliance. The details of the figures contained herein may differ from some appliance versions and are to be understood as schematic diagrams.

1.3 Product conformity

Directives

The appliances meet the following EU/EC directives:

2014/30/EU EMC Directive

2014/35/EU Low Voltage Directive

2009/125/EC Ecodesign Directive

2011/65/EU RoHS Directive

1.4 Presentation of information

We use standard formatting, numbering, symbols, safety instructions, terms and abbreviations so that you can work quickly and safely when using this manual.

The term “appliance” is used to refer to cooktops, cooktop extractors or cooktops with integrated cooktop extractor.

Instructions are indicated with an arrow.

▶ Always follow all instructions in the prescribed order.

Enumerations are indicated with a bullet point at the start of the line:

- Enumeration 1

- Enumeration 2

i Information notes point to special features that must be taken into account.

Safety and warning instructions

The safety and warning instructions in this manual are emphasised with symbols and signal words.

Safety and warning instructions are structured as follows:

WARNING SYMBOL AND SIGNAL WORD!

Type and source of danger

Results of non-compliance

Measures to minimise risk

Please note:

• warning symbols draw attention to a high risk of injury.
• The signal word indicates the severity of that risk.

Warning symbol Signal word Risk

Danger Indicates an

immediate, hazardous situation which causes death or serious injury if not respected.

Warning Indicates a potentially hazardous situation which can cause death or serious injury if not respected.

Caution Indicates a potentially hazardous situation which can cause minor injury or damage to property if not respected.

Tab. 1.1 Meaning of the warning symbols and signal words

2 Safety

The appliance complies with the stipulated safety requirements. The user is responsible for the safe use of the appliance, cleaning and maintenance. Improper use can lead to personal injury and damage to property.

2.1 Use as intended

The appliance can be used to warm crockery and prepare food in private households. Under no circumstances should the heat drawer be used for flambéeing or heated up with large amounts of oil or fat inside.

This appliance is not intended for:

● drying animals, textiles or paper
- outdoor use
- heating rooms
● cooling, ventilating or dehumidifying rooms
● use in mobile installation sites such as motor vehicles, ships or aeroplanes
- use with an external timer or a separate remote control system (except for emergency shutdown)
● use at altitudes of over 2,000 m (metres above sea level)

Any other use or any use that goes beyond that which is described here is classed as unintended.

BORA does not assume any liability for damages caused by improper use or incorrect operation.

All misuse is prohibited!

2.2 People with limited abilities

Children

The appliance can be used by children aged 8 and over if they are supervised or have been instructed how to use the appliance safely and understand the resultant risks.

Children must not play with the appliance.

Supervise children in the vicinity of the appliance.

i Any work involving cleaning and maintenance must not be carried out by children unless they are supervised at all times while doing so.

People with reduced physical, sensory or mental capacities

The appliance can be used by people with reduced physical, sensory or mental capacities or a lack of experience and/or knowledge if they are supervised or have been instructed how to use the appliance safely and understand the resultant risks.

2.3 General safety instructions

ANGER!

Packaging components are a choking hazard

Packaging components (e.g. film, polystyrene) can be life-threatening for children.

Store all packaging components out of reach of children.

Dispose of the packaging properly and immediately.

ANGER!

Risk of electric shock or injury from damaged surfaces

The underlying electronics can be exposed or damaged due to fissures, fractures or cracks in appliance surfaces (e.g. damaged glass), particularly in the vicinity of the operating unit. This can cause an electric shock. Furthermore, a damaged surface can cause injuries.

Do not touch the damaged surface.

If there are any cracks, fissures or fractures, switch the appliance off immediately.

Safely disconnect the appliance from the mains using the LS switch, fuses, automatic circuit breakers or contactor.

Contact BORA Service.

WARNING!

Risk of injury from damaged components

Damaged components that cannot be removed without tools can cause injuries.

Try not to repair or replace damaged components yourself.

Contact BORA Service.

WARNING!

Risk of injury or damage due to incorrect components or unauthorised modifications

Incorrect components can lead to personal injury or damage to the appliance. Modifications, additions or alterations to the appliance can lead to safety risks.

Only use original components.

Do not make any modifications, additions or alterations to the appliance.

CAUTION!

Appliance components can cause injury if dropped

Appliance components can cause injury if dropped.

Place any appliance components that have been removed in a safe place near the appliances.
Ensure that no components removed from the appliances can fall on the floor.

CAUTION!

Risk of injury from heavy lifting

If not handled correctly, carrying and installing appliances can cause injury to the limbs or torso.

If necessary, carry and install the appliance with another person.
Use appropriate aids to prevent damage or injury.

CAUTION!

Damage from improper use

The appliance surfaces must not be used as work surfaces. This can damage the appliances (particularly in the case of hard and sharp objects).

Cutting with knives or cutting wheels in the drawer causes visible damage.

Do not use the appliance as a worktop.
Keep hard or sharp objects away from the appliance surfaces.
Do not sit or lean on the drawer.

Faults and errors

In the case of faults and errors, follow the instructions in the “Troubleshooting” chapter.
In the event of any faults or errors that are not mentioned, switch the appliance off and contact BORA Service.

Pets

Keep pets away from the appliance.

2.4 Safety instructions for installation

The appliance must only be installed and assembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies.
i Work on electrical components must only be conducted by trained electrical personnel.

The electrical safety of the appliance is only guaranteed if it is connected to a protective conductor system that has been installed in line with regulations. Ensure that this basic safety precaution is met.

The appliance must be suitable for the regional voltage and frequency.

Check the information on the identification plate and in the event of deviations, do not connect the appliance.
Conduct all work extremely attentively and conscientiously.
Only use the connection cables supplied. Where necessary these are included in the scope of delivery.
Do not use the appliance until installation is complete. This is the only way to ensure safe operation.

ANGER!

Risk of electric shock from damaged appliance

A damaged appliance can cause an electric shock.

Check the appliance for visible damage prior to installation.
Do not install or connect any damaged appliances.
Do not operate any damaged appliances.

DANGER!

Risk of electric shock from damaged power supply cable

If the power supply cable is damaged (e.g. during installation or by coming into contact with hot cooking surfaces), this can cause an (lethal) electric shock.

Make sure that the power supply cable does not become trapped or damaged.
Make sure that the power supply cable does not come into contact with hot cooking surfaces.

2.5 Safety instructions – operation

Do not use the appliance as a storage surface.
Switch off the appliance after use.

WARNING!

Risk of burns from hot surfaces.

The appliance and exposed parts (heating elements, oven chamber, inside of the door, accessories) become hot during use. Touching hot surfaces can cause serious burns.

Do not touch hot surfaces.
Please use suitable accessories when needed (pot holders, oven gloves).

WARNING!

Risk of burns due to power cut

During or after a power cut a cooktop that was previously in operation may still be hot.

Do not touch the appliance while it is still hot.

Keep children away from the hot appliance.

DANGER!

Risk of fire from overheated oil or fat

Oil or fat in the pot can quickly heat up and ignite.

Never extinguish oil and fat fires with water.

Switch off the appliance.

Extinguish the fire using a pan lid or a fire blanket, for example.

DANGER!

Risk of fire from overdrying

When food is overdried there is a risk of fire.

Do not leave the appliance unattended if you are dessicating or drying herbs, bread, mushrooms, etc.

If you see smoke, keep the appliance closed and switch off the electricity supply.

WARNING!

Risk of burning and fire from hot objects

The appliance and its exposed parts are hot during operation and the cooling phase. Objects in contact with hot appliance components heat up very quickly and can cause severe burns (this particularly applies to metal objects such as knives, forks, spoons, lids or appliance components) or catch fire.

Please use suitable accessories (pot holders, oven gloves).

DANGER!

Risk of burns or explosion caused by flammable liquids

Flammable liquids can be ignited by hot food or explode and cause serious injuries.

Do not pour flammable liquids (e.g. spirits) over hot food.

WARNING!

Risk of injury from moving appliance parts

There is a risk of injury when opening and closing the door/drawer.

Ensure that nobody reaches into the appliance when the door/drawer is being opened or closed (children in particular).

WARNING!

Risk of injury from open door/drawer

When the door/drawer is open there is a risk of tripping or crushing.

Close the door/drawer after use.

CAUTION!

Damage caused by opening the drawer brusquely

If the drawer is not opened carefully, this can cause damage.

Do not open the drawer brusquely.

Only open the drawer as described in the “Operation” chapter.

2.6 Safety instructions – cleaning and maintenance

The appliance must be cleaned at regular intervals. Dirt can lead to damage, restriction of functions, or bothersome odours. In the worst case scenario, this can become a hazard.

Remove dirt immediately.

When cleaning, only use non-abrasive detergents to prevent scratching and abrasion on the surface.

When cleaning, ensure that no water penetrates the appliance. Use only a slightly damp cloth. Never spray the device with water. Water penetration can cause damage!

Do not use a steam cleaner for cleaning. Steam can cause a short circuit on live parts and thus lead to property damage.

Please follow all instructions in the “Cleaning and Maintenance” chapter.

CAUTION!

Risk of corrosion

Moisture may form during operation.

Leave the drawer slightly open after use (during the cooling phase).

Do not use any objects in the multi-drawer that may rust.

2.7 Safety instructions – repairs, servicing and spare parts

The appliance must only be repaired and serviced by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies.
i Work on electrical components must only be conducted by trained electrical personnel.
Before any repair work, safely disconnect the appliance from the mains supply.

WARNING!

Risk of injury or damage from improper repairs

Incorrect components can lead to personal injury or damage to the appliance. Modifications, additions or alterations to the appliance can lead to safety risks.

Only use original spare parts for repairs.
Do not make any modifications, additions or alterations to the appliance.

A damaged power supply cable must be replaced by a suitable power supply cable. This may only be done by an authorised member of the After Sales Service team.

2.8 Safety instructions – disassembly and disposal

The appliance must only be disassembled by trained specialists who are familiar with and comply with the standard national regulations and supplementary regulations of the local utility companies.

i Work on electrical components must only be conducted by trained electrical personnel.

Before disassembly, safely disconnect the appliance from the mains supply.

3 Technical data

MS290/MSS290

Parameter Value
Supply voltage 220-240 V
Frequency 50/60 Hz
Maximum power consumption 810 W
Fuse protection 1 x 16 A
Dimensions(width x depth x height)
MS290	559 x 537 x 290 mm
glass front (included with MSS290)	595 x 4 x 288 mm

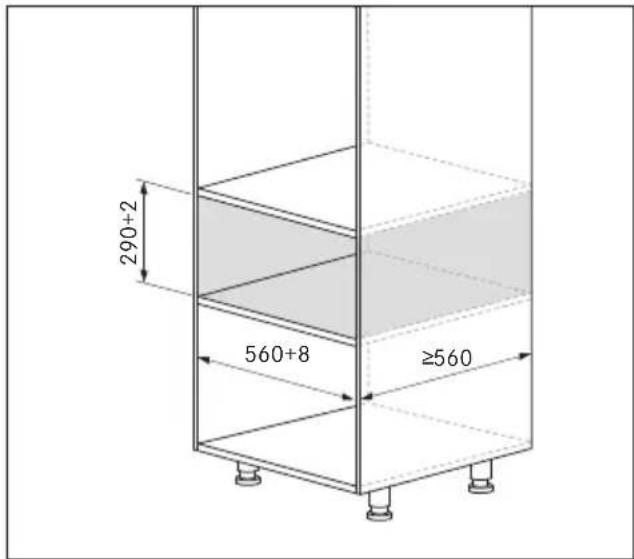

Recess dimensions(width x depth x height)	560 x 560 x 290 mm
Cooking chamber dimensions(width x depth x height)	525 x 410 x 247 mm
Cooking chamber volume 50 l
Maximum load 25 kg
Weight(incl. accessories/packaging)
MS290	24 kg
MSS290	27.6 kg
Weight
MS290	20.7 kg
MSS290	23.9 kg
Time levels 1-6
Temperature levels 1-6
Temperature control range 30-100°C
Mains supply cable length 180 cm
Mains supply cable plug type C13/E+F

Tab. 3.1 MS290/MSS290 technical data

MS140/MSS140

Parameter Value
Supply voltage 220-240 V
Frequency 50/60 Hz
Maximum power consumption 810 W
Fuse protection 1 x 16 A
Dimensions(width x depth x height)
MS140	559 x 537 x 140 mm
glass front (included with MSS140)	595 x 4 x 138 mm
Recess dimensions(width x depth x height)	560 x 560 x 140 mm
Cooking chamber dimensions(width x depth x height)	525 x 410 x 97 mm
Cooking chamber volume 20 l
Maximum load 25 kg
Weight(incl. accessories/packaging)
MS140	19.2 kg
MSS140	21.3 kg
Weight
MS140	16.4 kg
MSS290	18.2 kg
Time levels 1-6
Temperature levels 1-6
Temperature control range 30-100°C
Mains supply cable length 180 cm
Mains supply cable plug type C13/E+F

Tab. 3.2 MS140/MSS140 technical data

MS290 appliance dimensions

Fig. 3.1 MS290 appliance dimensions top view

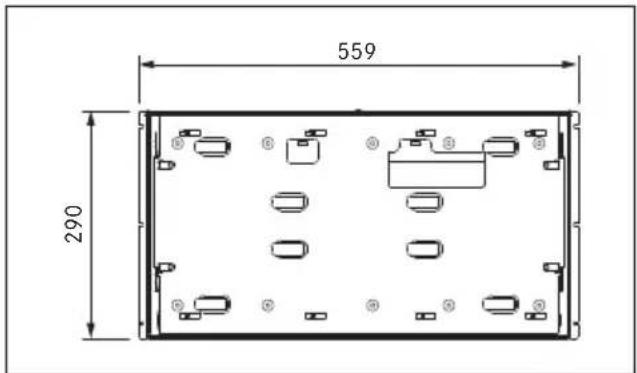

Fig. 3.2 MS290 appliance dimensions front view

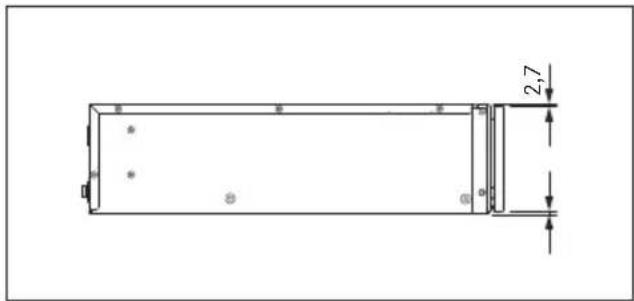

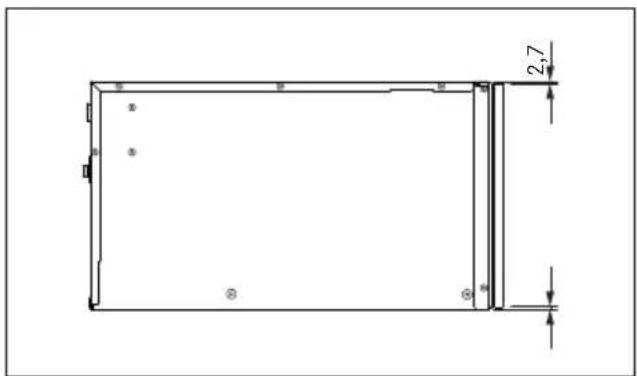

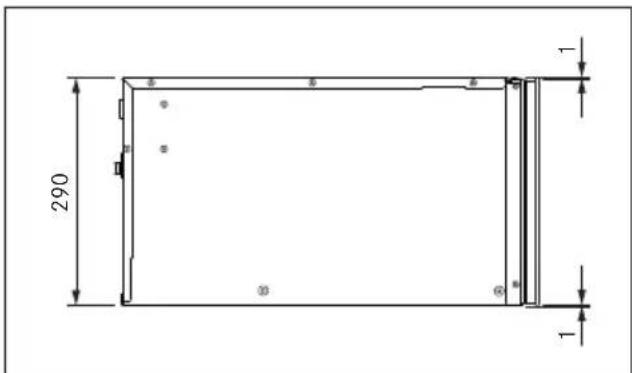

Fig. 3.3 MS290 appliance dimensions side view

MSS290 appliance dimensions

Fig. 3.4 MSS290 appliance dimensions top view

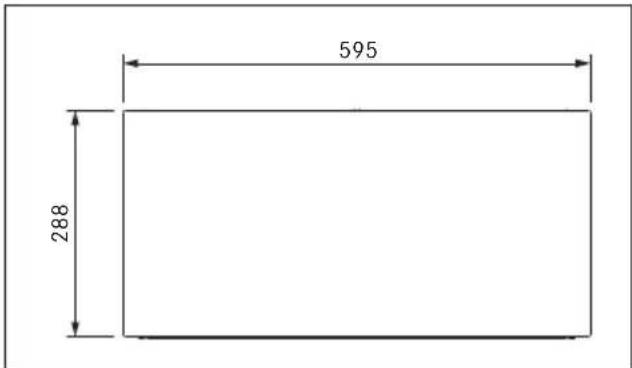

Fig. 3.5 MSS290 appliance dimensions front view

Fig. 3.6 MSS290 appliance dimensions side view

MS140 appliance dimensions

Fig. 3.7 MS140 appliance dimensions top view

Fig. 3.8 MS140 appliance dimensions front view

Fig. 3.9 MS140 appliance dimensions side view

MSS140 appliance dimensions

Fig. 3.10 MSS140 appliance dimensions top view

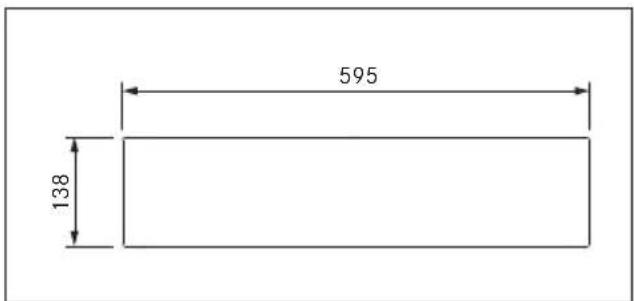

Fig. 3.11 MSS140 appliance dimensions front view

Fig. 3.12 MSS140 appliance dimensions side view

4 Appliance description

Appliance features

• Individual control options – operation possible via manual temperature and time control or preset programmes.
• Push2Open – easy opening by lightly pressing the front of the drawer.
• BORA Connectivity – expanded operating options and range of functions thanks to networking with BORA X BO steam oven.
• LED oven chamber lighting – the contents of the drawer are illuminated even when the drawer is fully extended.

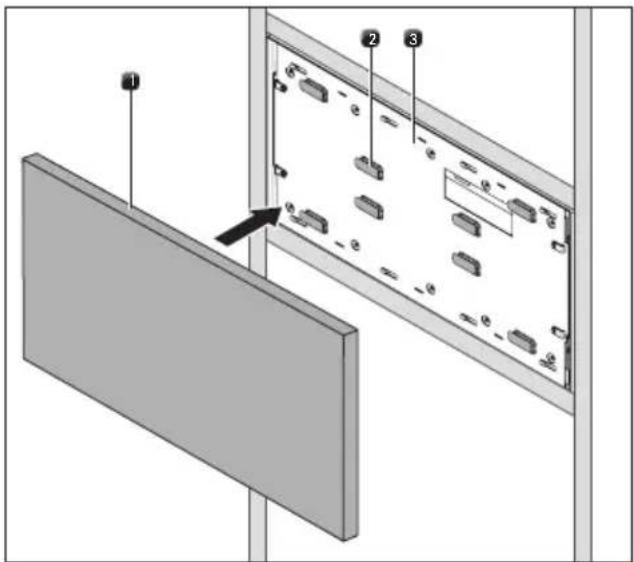

• Changeable drawer front – can be fitted with a unit front or BORA glass front.

4.1 Model description

Model Long description

MS290 BORA multi-drawer 290 mm

MSS290 BORA multi-drawer set 290 mm incl. glass front (1x MS290, 1x MSF290)

MS140 BORA multi-drawer 290 mm

MSS140 BORA multi-drawer set 140 mm incl. glass front (1x MS140, 1x MSF140)

Tab. 4.1 Model description

4.2 Structure

Fig. 4.1 Multi-drawer structure

[1] Housing

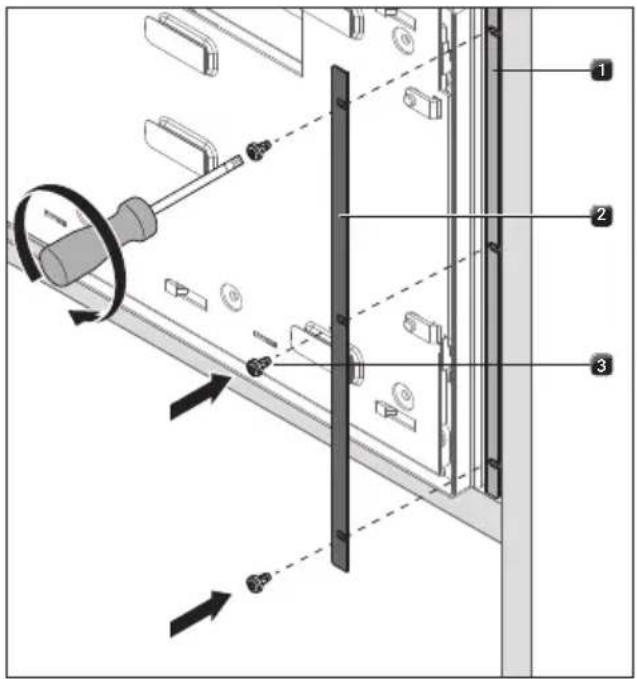

[2] Mounting angle with decorative trim (left and right)
[3] Drawer
[4] Heated glass base
[5] Front support
[6] Touch operating panel
[7] LED oven chamber lighting
[8] Shelf rack (in MS290, MSS290)

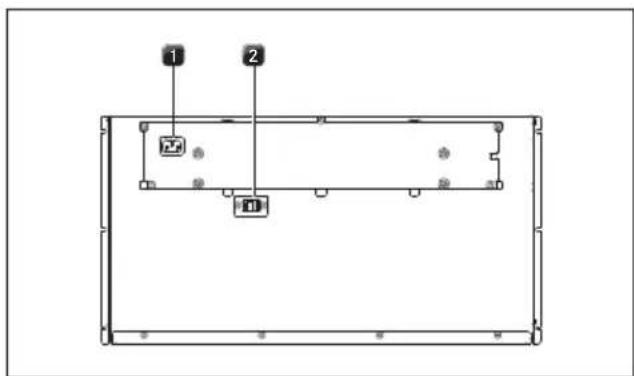

Fig. 4.2 Back of multi-drawer

[1] Mains supply cable socket
[2] Communication cable socket

4.3 How it works

The appliance has two heating systems:

• drawer with heated glass base
  • recirculation heating

The appliance does not heat up until the drawer is completely closed.

4.4 Touch operating panel

Fig. 4.3 Touch operating panel

[1] Power button
[2] Temperature settings
[3] Time settings
[4] Preset programmes
[5] BORA Connectivity (active connection to BORA X BO)

The multi-drawer is operated via a central operating panel. The operating panel is equipped with indicators and controls (electronic sensor buttons). The sensor buttons respond to finger contact.

Indicator symbols

	Temperature display
	Time display
B»	BORA Connectivity active
Temperature levels
	30°C
	40°C
	60°C
	70°C
	80°C
	100°C
Time levels
	30 min.
	1 hr
	2 hrs
	3 hrs
	4 hrs
	6 hrs

Tab. 4.2 Indicators

Control symbols

1	Power button Switch on/off
-	Minus button Reduce the temperature or time
+	Plus button Increase the temperature or time
Presets (programmes)
	Warm crockery Temperature 60°C Time 1 hr
	Reheat food Temperature 100°C Time 1 hr
	Keep food warm Temperature 70°C Time 3 hrs
	Defrost food Temperature 30°C Time 4 hrs
	Cook at low-temperature	Temperature 80°C Time 6 hrs

Tab. 4.3 Controls

The temperatures refer to the surface of the heated glass base when the appliance is empty. Measurements by the user can be inaccurate and are not suitable for checking the exact temperature.
On certain temperature settings, the appliance automatically overheats to start with. This enables target temperatures to be reached faster.

4.5 LED oven chamber lighting

The LED oven chamber lighting is activated when the drawer is opened.

If the open drawer is not operated in standby mode, the LED oven chamber lighting is deactivated after 5 minutes.

4.6 Shelf rack

In the case of the BORA multi-drawer MS290/MSS290, the loading area can be extended using the shelf rack provided.

The shelf rack is also suitable for dishes that should be heated at a lower temperature than those being kept warm on the BORA multi-drawer's heated glass base. The shelf rack can also be used to preheat crockery, whereas food can be heated at a higher temperature on the heated glass base.

Up to 2 shelf racks can be used in the drawer at the same time.

The MSER shelf rack is available as an accessory.

5 Functions and operation

Observe all safety and warning information during Closing operation (see „2 Safety“).

If the drawer is opened during operation, it will stop working. The remaining time and set temperature level will be displayed. As soon as the drawer is closed again, operation will be resumed on the previously active settings.
Risk of burns! The surfaces inside the appliance may still be hot after use.

5.1 Opening and closing the drawer

Opening

Fig. 5.1 Opening the drawer

▶ Press the front of the drawer lightly in the centre with one hand (Push2Open).
- This unlocks and opens the drawer. It can then be fully opened by hand.
• The oven chamber lighting is activated.

Fig. 5.2 Closing the drawer

▶ Press the front of the drawer lightly in the centre with one hand until the drawer is closed and clicks into place.

If the drawer is not opened or closed carefully, this can cause damage. Do not open or close the drawer roughly. Never yank the drawer open.

5.2 Touch control

Operate the appliance by tapping the corresponding symbol (control) on the touch operating panel with your finger (see „4.4 Touch operating panel“). The controls react to different touch commands:

Command Contact Time

Tap brief touch < 1 s

Long press long touch 1–5 s

Tab. 5.1 Touch commands

The touch operating panel must be clean and dry in order for it to work.

If touch commands do not work or are not working properly, the following should be noted:

• Tap the touch zones with only one finger.
• Do not rest the heel of your hand on the touch operating panel.
• Keep the contact area as small as possible when using the touch zones.
• Ensure that your fingers are clean and dry.

5.3 Initial operation

▶ Clean the appliance, particularly the interior.
▶ Ensure that there are no objects inside the drawer.
▶ Heat up the appliance before using for the first time (temperature level 6, time level 3).

When heated for the first time, odours may form.

5.4 Load capacity

The multi-drawer can hold a maximum load of 25 kg. If this weight is exceeded, it may damage the appliance.

▶ Only use suitable, heat-resistant containers.

Examples of load capacity for crockery

Load capacity Crockery MS140 MS290

A 12 pcs. 40 pcs.

A/B/C 6 pcs. 20 pcs.

A/B/C	4 pcs.	12 pcs.
D/E	1 pc.	1 pc.
F	1 pc.	2 pcs.

A = plates (27 cm)

B = soup dishes (23 cm)

C = cups (9 cm)

D = bowls (17 cm)

E = bowls (19 cm)

F = trays (34 cm)

Tab. 5.2 Examples of load capacity

The maximum load capacity depends on the amount of crockery and its weight.

5.5 Switching on and off

Switching on

▶ Long press on the power button( ).

- The operating panel lights up and an acoustic signal can be heard.

Switching off

▶ Long press on the power button( ).

- The display goes out and an acoustic signal can be heard.

5.6 Manual operation

When operated manually, the temperature and time can be set freely.

The following standard settings are displayed:

• temperature level: 3 (factory setting)
• time level: 3 (factory setting)

Setting the temperature and time

▶ Tap the corresponding plus or minus button (✗).—
▶ Tap until the required temperature level or time has been selected.

Start the appliance

▶ Close the drawer.
- The appliance is activated and starts working on the settings applied.

The time has lapsed

• An acoustic signal can be heard.
• The appliance automatically switches to standby mode.
  ▶ Open the drawer.

Permanently changing standard settings

The standard temperature and time settings can be permanently changed:

▶ switch on the appliance.
▶ Long press (5 s) on the temperature setting plus button ( ).

- An acoustic signal can be heard.

- The temperature and time symbols flash.

▶ Select the desired temperature and time.

▶ Long press (5 s) on the temperature setting plus button ( ).

- An acoustic signal can be heard.

- The setting is confirmed and saved.

5.7 Using preset programmes

The temperature and time are predefined and tailored to specific uses.

5.7.1 Preset programmes

The appliance has 5 preset programmes:

Warming crockery

If the temperature is set too high there is a risk of burns.

The crockery on the outside will become hotter than the crockery in the middle. Always remove crockery with oven gloves or pot holders.

Heated crockery cools down quickly. Do not remove it until shortly before serving.

▶ Distribute the crockery evenly in the drawer.
▶ Do not place any large trays upright in front of the recirculation heating ventilation grilles.
▶ Do not heat crockery to over 60^ C.

Reheating food

The BORA multi-drawer is suitable for reheating meat, vegetables and casseroles. Soups and stews should preferably be reheated on the stove.

To prevent food from drying out, it should be covered when reheated. It is also recommendable to place a suitable container with a little water inside the oven chamber.

▶ To reheat meat, set the temperature to 60^ C max.
▶ Cover the food (e.g. with heat-resistant foil or a suitable lid).

Keeping food warm

To prevent food from drying out, it should be covered when kept warm. Exception: crusty and crisp foods (such as fried foods) should not be covered.

▶ Use suitably sized containers to keep food warm.
▶ If necessary, cover the food with a lid or heat-resistant foil.

Defrosting food

The cooking process is started at temperatures over 50°C (fish 40 °C).

▶ Choose suitable containers for defrosting, preferably with drainage.
▶ Dispose of the water from defrosting.

Low-temperature cooking

For optimum results, food cooked at low temperatures should be covered.

Low-temperature cooking is a gentle way of preparing high-quality food and keeps it tender. Very little is lost during the roasting process and food stays nice and moist. The cooking time is longer than conventional cooking processes.

Example of use: meat

Preparation

Use crockery made of suitable glass, porcelain or ceramic, with a lid (e.g. a casserole dish with a lid).

▶ Preheat the crockery.
▶ Heat oil or fat in a frying pan.
▶ Sear the meat.

For the searing time see the „6 Applications chapter
Alternatively, the meat can be seared after low-temperature cooking (reverse searing).

Cooking

Place the seared meat in the preheated crockery in the drawer.
▶ Put a lid on the crockery.
▶ Start low-temperature cooking.

i Cooking takes from 1 to 6 hours depending on the amount of food to be cooked.
Use of a suitable thermometer is recommended to check the core temperature during cooking (see the „6 Applications“ chapter).
Dishes cooked at low temperatures are not as hot as food cooked conventionally. Preheat the plates and dishes before serving (approx. 45–60 min.).
You can keep food cooked at low temperatures warm. To do this, the temperature of the drawer must be lowered after low-temperature cooking. Small amounts can be kept warm for up to 45 minutes and large amounts for up to 2 hours.

5.7.2 Using preset programmes

Selecting a programme

▶ Tap the required programme symbol.

- The set temperature and time light up.

Modifying programmes

If necessary, the temperature and duration of the programme can be modified manually once (see „Setting the temperature and time“). The programme symbol will then flash.
A long press on the flashing programme symbol will save the new settings in the programme permanently during the one-off change.

Starting the programme

▶ Close the drawer.

- The appliance is activated and starts working on the settings applied.

End of programme

• An acoustic signal can be heard.
• The appliance automatically switches to standby mode.
  ▶ Open the drawer.

5.8 Delayed start

The programme start can be delayed by up to 6 hours. Once the delayed start time is reached, the appliance will start automatically.

Preparation

• Place the crockery or food in the drawer.
• Select the required programme.
• Set the temperature and time.

Activating the delayed start

▶ Long press (3 s) on the time setting plus button (+).
- The time and time level display flashes.
Tap the plus or minus button ( ) until the required delayed start time is set (see “Appliance description”, “Time levels”).
- The selected time indicator flashes.
▶ Close the drawer.
● The delayed start function has been activated.

When the delayed start is active, it is no longer possible to change the settings. In this case, the drawer must be switched off and on again.

If opened when the delayed start function is active, the time symbol will flash and the remaining time until the programme starts will be displayed.

5.9 Standby mode

In standby mode the appliance functions are temporarily deactivated. After opening the drawer, the appliance can be reactivated at any time by touching the power button.

5.10 BORA Connectivity

The BORA multi-drawer can be networked with the BORA X BO steam oven and operated via the X BO display. This also provides access to additional multi-drawer functions. The appliances are connected using the communication cable.

5.11 Demo mode

In demo mode, all functions are available on the operating panel but the appliance heating function is deactivated. Demo mode is used, for example, for exhibitions.

The demo mode can only be activated and deactivated in standby mode. Do not switch on the appliance.

Activating/deactivating the demo mode

▶ Open the drawer.
▶ Long press (5 s) on the temperature setting minus button (☐).

- An acoustic signal can be heard.

▶ Long press (5 s) on the temperature setting plus button ( ).

- An acoustic signal can be heard and the indicators flash in sequence.

● The demo mode is activated/deactivated.

The demo mode also remains active when the drawer is switched off and on again.

5.12 Factory settings

The appliance configuration can be reset to factory settings at any time.

The appliance can only be reset to factory settings in standby mode. Do not switch on the appliance.

Resetting the appliance to factory settings

▶ Open the drawer.
▶ Long press (5 s) on the time setting minus button (-).

- An acoustic signal can be heard.

- All indicators flash three times.

- All values are reset to the factory settings.

6 Applications

▶ Observe all safety and warning information (see „2 Safety“).

Temperature level Time Activity Note
		Defrosting delicate frozen foods	Only vacuum-packed food should be left in its packaging. Otherwise, remove the packaging.
		Melting chocolate Use suitable crockery (metal bowls for optimum heat transfer) and do not cover.
		Keeping baked goods warm Place the food directly on the heating plate and do not cover.
		Proofing yeast dough Use suitable crockery and cover with a damp cloth.
		Making yoghurt One large or several small containers can be used. Do not cover.
		Drying Cut food into thin, even slices, place on the shelf rack (only in MS290) and turn over if necessary.
		Heating dry cakes (e.g. crumble cake, muffins)	If necessary, moisten cakes to prevent them from drying out and cover them.
		Heating drinking vessels (e.g. espresso cups)	Only use suitable crockery
		Preheating serving dishes (e.g. soup dishes, dinner plates, bowls)	Distribute the crockery over as large an area as possible so that it heats up faster.
		Keeping delicate foods warm (e.g. fish)	Preheat crockery and cover the food.
		Keeping food warm (e.g. roasts, sauce, omelettes, pancakes, tacos, tortillas, fajitas)	Preheat crockery and cover moist dishes.
		Confiting (cooking in oil) (e.g. meat, fish, vegetables or fruit)	Spices and condiments should be added.
		Low-temperature cooking	Preheat crockery and cover meat.
		Reheating food (e.g. roasts, omelettes, pancakes, tacos, tortillas, fajitas)	Preheat crockery and cover moist dishes.

Tab. 6.1 Applications

Low-temperature cooking

Small pieces of meat Sear on the cooktop	Continue cooking in the multi-drawer
Small escalopes 1–2 minutes each side	### to ###
Steaks/medallions 1–2 minutes each side	### to ###
Medium-sized pieces of meat Sear on the cooktop	Continue cooking in the multi-drawer
Pork fillet approx. 400–600 g Around 4–5 minutes in total	### to ###
Lamb (fillet, sirloin) approx. 150–300 g 2–3 minutes each side	### to ###
Beef/veal (rump, sirloin, flank) up to 900 g Around 10–15 minutes in pork (sirloin, flank) up to 900 g total	### to ###

Tab. 6.2 Low-temperature cooking

Recommended core temperatures for low-temperature cooking

Meat rare medium well done
Beef (fillet/sirloin) 45-49°C 50-64°C 65-75°C
Veal (fillet/sirloin) - 60°C from 65°C
Pork (fillet/sirloin)	- 58 °C	from 65°C
Lamb (fillet/sirloin)	- 55-62°C from 65°C

Tab. 6.3 Core temperatures

7 Cleaning and maintenance

▶ Observe all safety and warning information (see „2 Safety“).
Follow the enclosed manufacturer's information.
When conducting scheduled cleaning and maintenance, ensure that the appliance is switched off and cooled (see „5.5 Switching on and off“).
▶ Do not use any high-pressure or steam cleaning appliances.
▶ Adhere to the following cleaning and maintenance cycles:

Component Cleaning cycle

Drawer front Remove any dirt or residualcleaning agents immediately.

Cooking chamber Remove any dirt immediatelyafter use, if possible when thedrawer is still warm to the touch.

Tab. 7.1 Cleaning cycles

i Regular cleaning and maintenance ensures a long service life and optimum performance.

7.1 Cleaning agents

To clean the appliance, you need a soft cloth and suitable cleaning agents (washing-up water).

▶ Never use steam cleaners, abrasive sponges, scouring pads or chemically aggressive cleaning agents (e.g. oven cleaner spray).
▶ Make sure that the cleaning agent does not contain any sand, soda, acids, lyes or chlorides.
▶ Do not use any aggressive cleaning agents or agents containing acids or lyes.

7.2 Cleaning the exterior

▶ Clean the surfaces with a soft cloth moistened with washing-up water.
▶ Then dry the surfaces with a soft cloth.

7.3 Cleaning the cooking chamber

▶ Clean the glass base, ventilation grilles and operating panel with a soft cloth moistened with washing-up water.
▶ Then dry the surfaces with a soft cloth.

The shelf rack (with MS290/MSS290) can be cleaned in the dishwasher.

8 Troubleshooting

Operating situation Cause Remedy
Crockery or food are still cold. Appliance is switched off. Switch on the appliance.
	Interruption to the power supply. Check the power supply.
	Drawer is not closed properly. Close the drawer.
	Drawer is in demo mode. Deactivate demo mode.
	The delayed start function is active. Switch the appliance off and on again.
Crockery or food are not warm enough.	The set heating time is too short. Increase the heating time.
	The set temperature is too low. Choose a higher temperature setting.
	Drawer is not closed properly. Close the drawer.
The time symbol flashes constantly when the drawer is open.	The delayed start function is active. Close the drawer (the appliance will work with a delayed start).
The temperature indicator flashes slowly when the drawer is open.	The temperature sensor is faulty. Contact the BORA After Sales Service.
The drawer cannot be opened or closed.	The opening mechanism is faulty. Contact the BORA After Sales Service.
	The distance between the front of the drawer and the unit is too small.	Check the distance between the front of the drawer and the unit; at least 3 mm required.

Tab. 8.1 Resolving a fault

In all other instances, contact BORA After Sales Service (see „11 Warranty, technical service, spare parts, accessories“).

9 Installation

▶ Observe all safety and warning information (see „2 Safety“).

Follow the enclosed manufacturer's information.

The appliance may only be installed with the power disconnected. Do not, under any circumstances, connect the appliance to the mains prior to installation.

9.1 Scope of delivery

MS290/MSS290

Name Quantity
BORA multi-drawer MS290 1
Shelf rack	1
Mains supply cable with type E + F plugs 1
Communication cable (connection to BORA X BO)	1
Installation jig 1
Mounting angles 2
M4 x 8, TX20 screws, black 6
4 x 16, TX20 screws, silver 14
Sealing lip 1
Decorative trim 5 pairs
Operating and installation instructions 1
Additional scope of delivery for MSS290
BORA multi-drawer glass front MSF290 1
M4 x 6, TX20 screws, silver 10

Tab. 9.1 MS290/MSS290 scope of delivery

MS140/MSS140

Name Quantity
BORA multi-drawer MS140 1
Mains supply cable with type E + F plugs 1
Communication cable (connection to BORA X BO)	1
Installation jig 1
Mounting angles 2
M4 x 8, TX20 screws, black 6
4 x 16, TX20 screws, silver 14
Sealing lip 1
Decorative trim 5 pairs
Operating and installation instructions 1
Additional scope of delivery for MSS140
BORA multi-drawer glass front MSF140 1
M4 x 6, TX20 screws, silver 10

Tab. 9.2 MS140/MSS140 scope of delivery

▶ Make sure the delivery is complete and check it for damage.
▶ If there are any missing or damaged parts, please notify BORA After Sales Service immediately.
▶ Do not under any circumstances install parts which are damaged.
▶ Dispose of transport packaging accordingly (see „10.3 Environmentally-friendly disposal“).

9.2 Tools and aids

The following special tools are required to correctly install the appliance:

• screwdriver (Torx 20)
• installation jig (included in the scope of delivery)
• 5 mm Allen key

9.3 Assembly instructions

The back panel of the kitchen unit must not be fitted behind the appliance.
The construction base must be permanently installed and designed to withstand the appliances' weight (for weights see „3 Technical data“).

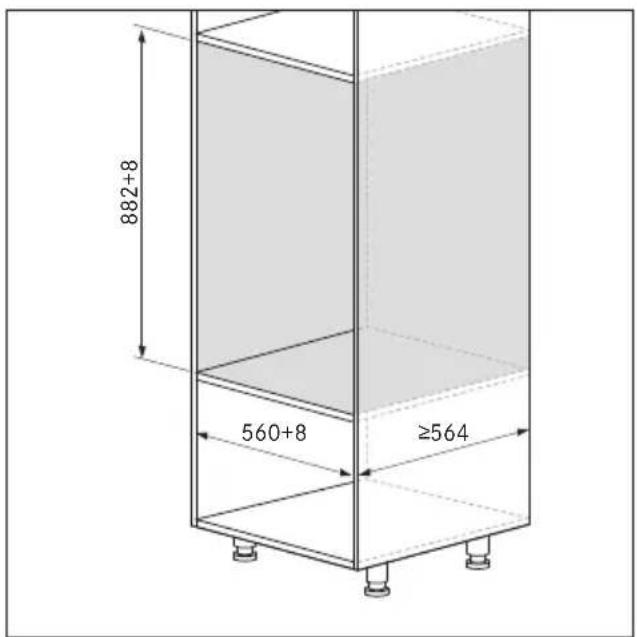

9.3.1 Possible appliance combinations

i Up to 3 BORA multi-drawers can be installed on top of each other without intermediate shelving. The appliances can be directly stacked on top of each other.
A BORA X BO steam oven can be placed directly on top of the multi-drawer without a false floor.
If intermediate shelving is installed, this changes the clearance between the appliances.

Fig. 9.1 Maximum appliance combinations

▶ Please observe the maximum permitted weight load:
- On the BORA multi-drawer: 105 kg max.

9.3.2 Fitted unit (single installation)

MS290/MSS290

Fig. 9.2 MS290/MSS290 installation dimensions

MS140/MSS140

Fig. 9.3 MS140/MSS140 installation dimensions

9.3.3 BORA multi-drawer fitted unit + BORA X BO steam oven

The BORA X BO assembly instructions must be observed here.

MS290/MSS290 + BORA X BO

Fig. 9.4 MS290/MSS290 + BORA X BO installation dimensions

MS140/MSS140 + BORA X BO

Fig. 9.5 MS140/ MSS140 + BORA X BO installation dimensions

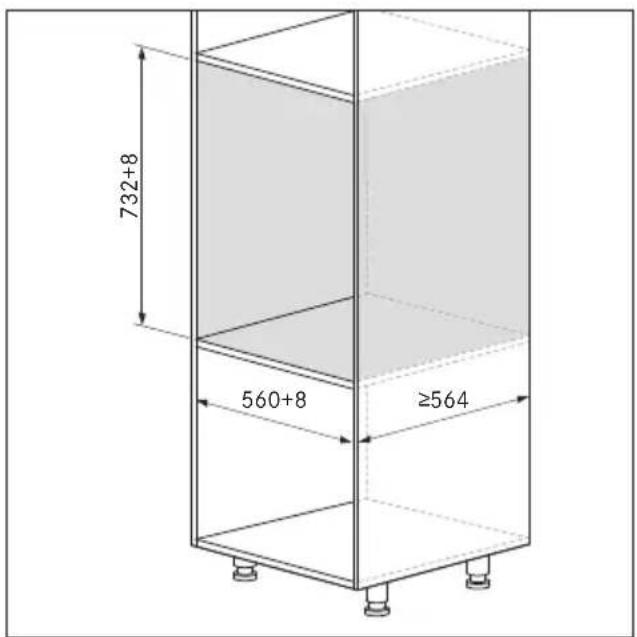

▶ Prepare the fitted unit taking into account the dimensions specified.
Remove the back panel of the unit to the rear of the installation recess.

9.4 Installing the appliance

To ensure that the Push2Open mechanism works correctly, there must be at least 3 mm of clearance between the unit and the panel.

Working with the installation jig

The installation jig provided is used to position the mounting angle in the unit, allowing for a clearance of 3 mm between the unit and the panel for the Push2Open mechanism. The installation jig enables the mounting angle to be fitted in 2 different positions:

• Position 1: drawer with unit front
• Position 2: drawer with BORA multi-drawer glass front, flush to the front in the case of an 18–20 mm thick unit front

Fig. 9.6 Installation jig

[1] Installation position 1 for unit front
[2] Installation position 2 for BORA glass front

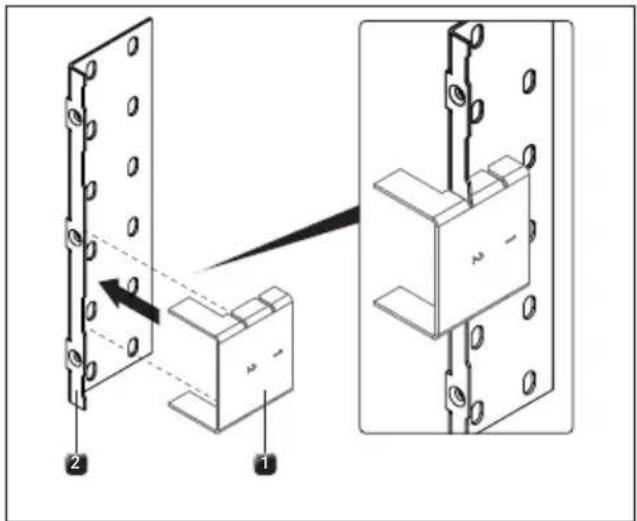

Fig. 9.7 Using the installation jig

[1] Installation jig
[2] Mounting angle

▶ Select the appropriate installation position.
▶ Slot the installation jig onto the mounting angle.

Attaching the mounting angle

Fig. 9.8 Attaching the mounting angle

[1] Unit
[2] Mounting angle (1 x right, 1 x left)
[3] Installation jig
[4] Screw hole
[5] Construction base

▶ Attach the installation jig [3] and mounting angle [2] to the unit [1].

▶ Position the mounting angle [2] in the unit [1] with the help of the installation jig [3].
- The mounting angle [2] must be surface mounted on the construction base [5]
▶ Select 2 suitable screw holes [4] on the mounting angle [2].
▶ Screw the mounting angle [2] into place with two silver 4 x 16, TX20 screws (included in the scope of delivery).
▶ Repeat these steps on the other side with the second mounting angle.

Connecting the connection cables to the appliance

When installing the appliance, please note that the connection cables will need to be connected to the appliance before installation as the back of the appliance will no longer be accessible once installed (single installation).
i However, the appliance must not be connected to the mains before installation is complete.

▶ Connect the mains supply cable to the back of the appliance.
▶ Where applicable, connect the communication cable to the back of the appliance (only if used with the BORA X BO steam oven).
▶ Do not connect the appliance to the mains.

Installing the appliance

Fig. 9.9 Securing the appliance

[1] Mounting angle (1 x right, 1 x left)
[2] Decorative trim (1 x right, 1 x left)
[3] Black M4 x 8, TX20 screws (3 x right, 3 x left)

▶ Insert the appliance in the installation recess.
▶ Align the appliance in the centre of the installation recess.
▶ Select decorative trim [2] of an appropriate width.
▶ Attach the appliance and decorative trim [2] to the mounting angles [1] on each side with three black M4 x 8, TX20 screws [3] (included in the scope of delivery) (torque: 2.2 Nm ±10%).

9.5 Fitting the front

If the BORA multi-drawer is installed with a BORA X BO steam oven, the BORA X BO must be installed before fitting the front.

When fitting the front, two different procedures must be taken into account:

• fitting the unit front
• fitting the BORA multi-drawer glass front

9.5.1 Fitting the unit front

Positioning the unit front

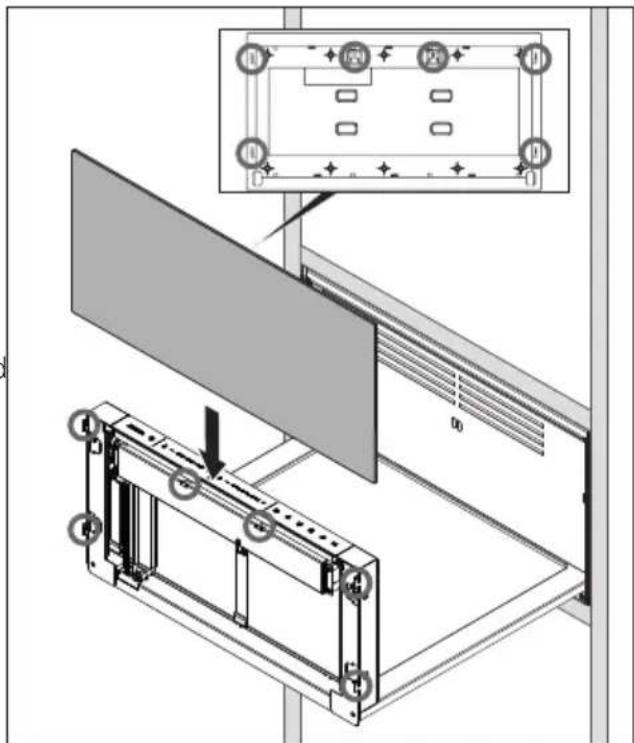

Fig. 9.10 Adhesive pads on the front support

[1] Unit front
[2] Adhesive pads
[3] Front support

Remove the protective strips from the adhesive pads [2] on the front support [3].
▶ With the drawer installed and closed, position the unit front [1] correctly on the front support.
▶ Please observe the clearance when doing so.
▶ Press lightly on the unit front [1].

- The unit front will stick to the front support.

To correct the position, the unit front can be removed by cutting the adhesive pads from the sides.

This adhesive seal is only temporary and may become unstuck in time. Therefore, the front must be screwed into place.

Removing the front support

Technical diagram showing a mechanical assembly with a rotating component and directional arrows indicating motion (no text or symbols present)

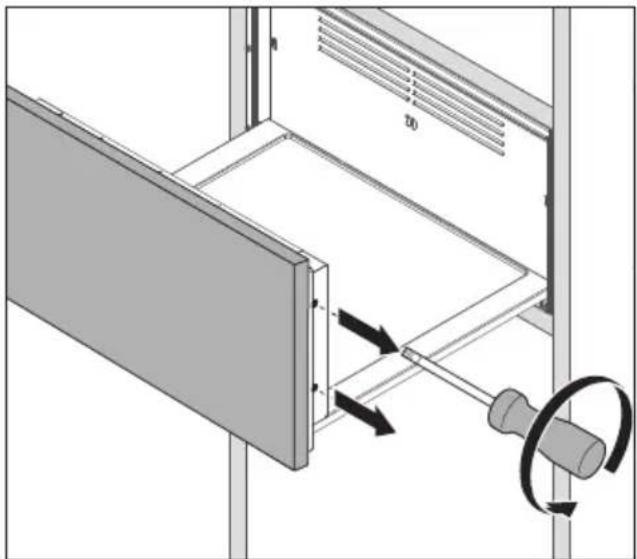

Fig. 9.11 Removing the front support

▶ Open the drawer.
Remove the two screws on the left and right-hand side of the front support.
▶ Push the front support and unit front up until it can be removed from the retaining lugs.

Securing the unit front

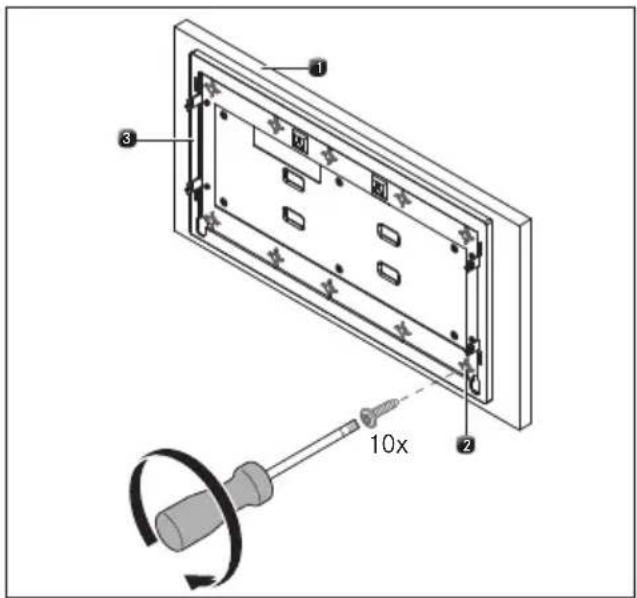

Fig. 9.12 Securing the unit front

[1] Unit front
[2] Screw guides (x 10)
[3] Front support

▶ Using ten silver 4 x 16, TX20 screws (included in the scope of delivery), screw the unit front [1] to the front support [3].
▶ To do this, use the 10 screw guides [2] on the front support [3].
▶ Check the length of the screws before you start. If necessary, replace them with shorter screws of the same kind.

Fitting the front support

Fig. 9.13 Fitting the front support

▶ Slide the front support and front onto the lugs from above.

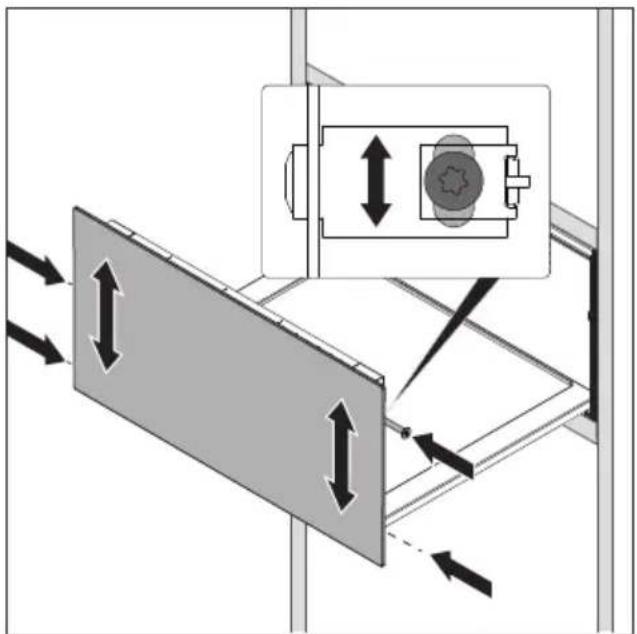

Horizontal adjustment of the front

The front fastenings enable the horizontal clearance to be adjusted after fitting (top and bottom).

Diagram showing airflow or movement between two panels with directional arrows and a device component (no text or symbols)

Fig. 9.14 Adjusting the horizontal clearance

▶ Insert the two screws on the left and right-hand side of the front support but do not tighten.
▶ Close the drawer.
Even out any visual differences in the clearance.
▶ To do this, slide the front panel to the correct position using your hands.
▶ Open the drawer and tighten the screws on the sides (torque: 1.8 Nm ±10%).

If not screwed in correctly, the front can become loose and fall off. Ensure that all screws are used and are tightened accordingly.

Adjusting the depth of the front

The opening mechanism can be used to move the front forwards or backwards (up to 3 mm).

Technical diagram showing a screwdriver inserted into a flatboard with a bracket and directional arrows indicating movement (no text or symbols)

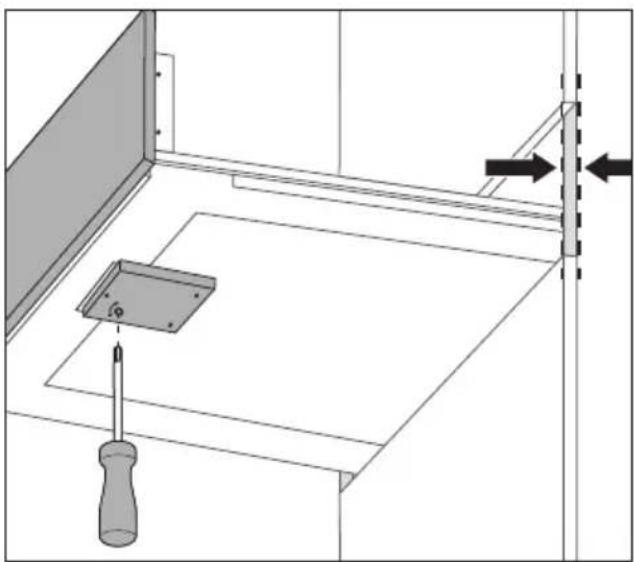

Fig. 9.15 Adjusting the depth of the front

▶ Adjust the depth of the front.
▶ To do this, turn the mechanism on the bottom of the drawer using a 5 mm Allen key.

9.5.2 Fitting the BORA glass front (MSF290/MSF140)

If the BORA multi-drawer is installed with a BORA X BO steam oven, the BORA multi-drawer glass front can only be fitted after installing the BORA X BO.
To fit the glass front, do not under any circumstances remove the protective strips from the adhesive pads on the front support. The glass front is only to be attached with screws.

Removing the front support

Diagram of a server rack with a screwdriver inserted, showing internal components and directional arrows (no text or symbols)

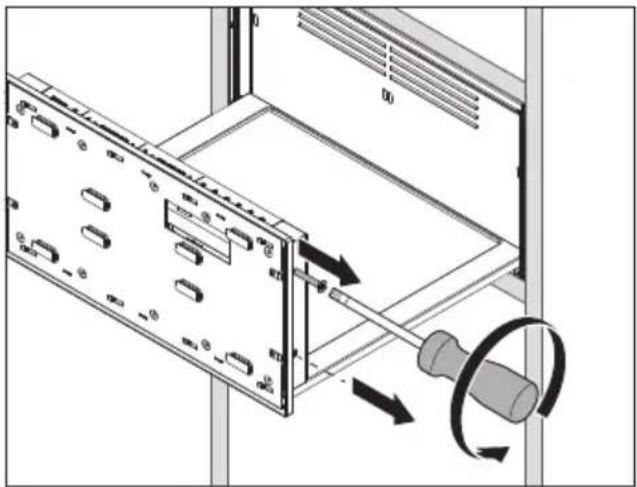

Fig. 9.16 Removing the front support

▶ Open the drawer.
Remove the two screws on the left and right-hand side of the front support.
of the retaining lugs.

▶ Push the front support up until it can be taken out9.5.3 Completing installation

Securing the glass front

Fig. 9.17 Securing the glass front

[1] Back of the BORA multi-drawer glass front
[2] Screw guides [x 10]
[3] Front support

▶ Lay the glass front face down on a soft surface.
▶ Be careful not to scratch the glass front in doing so.
▶ Position the front support [3] on the back of the BORA multi-drawer glass front [1] so that the 10 screw guides [2] are aligned.
Using a screwdriver, attach the glass front to the 10 screw guides [2] on the front support [3]. Do not use a battery-operated screwdriver to do this or the screws could be overtightened (torque: 1.8 Nm ±10%).
▶ Only use the screws (DIN 7500 C M4 x 6 mm) provided with the BORA multi-drawer glass front. The use of other screws may cause the glass front to break. This poses a risk of injury.

▶ Follow the installation steps under "Fitting the front support" (see „9.5.1 Fitting the unit front“).

.5.3 Completing installation

▶ Connect the appliance to the mains.
▶ If necessary, connect the communication cable to the BORA X BO steam oven.
Place the shelf rack in the drawer (only with MS290/MSS290).
▶ Remove the protective film from the operating panel.

Fitting the sealing lip (optional)

i Particularly where condensation forms, or if a fragile unit front or sensitive appliance is installed above the multi-drawer, we recommend fitting the sealing lip included in the scope of delivery.
The sealing lip must be fitted when the drawer is installed together with the BORA X BO steam oven.

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

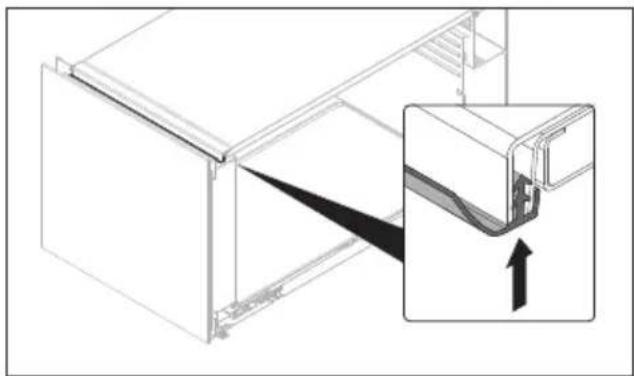

Fig. 9.18 Fitting the sealing lip

▶ Open the drawer.
▶ Clean the housing frame and the sealing lip.
▶ Guide the sealing lip into the gap at the front from bottom to top and press the sealing lip evenly along its length.
▶ Ensure that the sealing lip is not stretched during installation.
▶ Check that it is positioned correctly.

9.6 Function test

Carry out a thorough function test on the appliance.

In the event of error messages, see the "Troubleshooting" chapter.

9.7 Handover to user

Once installation is complete:

Explain the main functions to the user.
Explain all safety-related aspects of operation and handling to the user.
▶ Provide the user with the accessories and operating and installation instructions to be kept in a safe place.

10 Decommissioning, disassembly and disposal

▶ Observe all safety and warning information (see „2 Safety“).

Follow the enclosed manufacturer's information.

10.1 Decommissioning

Decommissioning is understood as final shutdown and disassembly. Following decommissioning, the device can either be installed into other units, sold on privately or disposed of.

▶ To decommission, switch the device off (see „6 Functions and operation“).

▶ Disconnect the device from the power supply.

10.2 Disassembly

For removal, the device must be accessible for disassembly and disconnected from the power supply.

▶ Disassemble the appliance.
▶ Remove any other accessories.
▶ Dispose of the old device and any contaminated accessories as described under “Environmentally-friendly disposal”.

10.3 Environmentally-friendly disposal

Disposal of transport packaging

The packaging protects the device from damage in transport. The packaging materials have been selected from environmental and disposal perspectives and are therefore recyclable.

Returning the packaging to the materials cycle saves resources and reduces waste volumes. Your specialist supplier will take the packaging back.

▶ Give the packaging to your specialist supplier or
▶ Dispose of the packaging properly in line with local regulations.

Disposal of old appliance

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Electrical devices marked with this label may not be disposed of in domestic waste at the end of their service life. They must be disposed of at a collection point for the recycling of old electrical or electronic devices. You can find information from your city or district council.

Many electrical and electronic devices still contain valuable materials. But they also contain damaging materials which were necessary for them to function properly and safely. These can damage human health or the environment if disposed of improperly or incorrectly handled.

▶ Never put your old appliance in domestic waste.
▶ Take the old appliance to a regional collection point for return and recycling electrical and electronic components and other materials.

11 Warranty, technical service, spare parts, accessories

▶ Observe all safety and warning information (see „2 Safety“).

11.1 BORA manufacturer's warranty

BORA provides its end customers with a 2-year manufacturer's warranty for its products. The end customer is entitled to this warranty in addition to the statutory claims for defects against the sellers of our products.

The manufacturer's warranty applies to all BORA products sold by authorised BORA dealers or BORA-trained salespeople within the European Union, with the exception of products labelled by BORA as Universal products or accessories.

The manufacturer's warranty starts as soon as the BORA product is handed over to the end customer by an authorised BORA dealer and is valid for 2 years. By registering on www.bora.com/registration the end customer has the possibility of extending the manufacturer's warranty.

The manufacturer's warranty requires expert (in accordance with the valid BORA ventilation handbook and operating instructions at the time of installation) installation of the BORA products by an authorised BORA dealer. During use, the end customer is to adhere to the specifications and instructions in the operating manual.

In order to file a warranty claim, the end customer is to notify their dealer or BORA of the fault and must present the receipt. Alternatively, the end customer can provide proof of purchase by registering on www.bora.com.

BORA guarantees that all BORA products are free from material and product defects. The defect must exist prior to delivery of the product to the end customer. In the event that a warranty claim is filed, the warranty shall not commence anew.

BORA will correct defects in BORA products at its own discretion by repairing or replacing the product. All costs for the correction of defects under the manufacturer's warranty shall be assumed by BORA. Expressly not covered by the BORA manufacturer's warranty are:

• BORA products that were not sold by authorised BORA dealers or from BORA-trained salespeople.
• Damage caused by non-adherence to the operating instructions (including product care and cleaning) This represents improper use.
• Damage caused by normal use, e.g. traces of usage on the cooktop
• Damage caused by external influences (such as transport damage, ingress of condensation, damage caused by the elements such as a lightning strike)
• Damage caused by repairs or attempts to repair not made by BORA or persons authorised by BORA
  • Damage to the glass ceramic
• Voltage fluctuations
• Secondary damage or claims for damages beyond the defect
• Damage to plastic parts

Legal claims, such as particularly statutory claims for defects or product liability are not limited by the warranty.

If a defect is not covered by the manufacturer's warranty, the end customer can employ the services of the BORA technical service, however, they must cover the costs themselves.

The laws of the Federal Republic of Germany apply to these warranty conditions.

You can contact us by:

- Telephone: [phone] Monday to Thursday from 08:00-18:00 and Friday from 08:00-17:00

- Email: [e-mail]

11.1.1 Warranty extension

You can extend the guarantee by registering at www.bora.com/registration.

11.2 Service

BORA Service:

see reverse side of operating and assembly instructions

[phone]

In the case of faults you cannot fix yourself, contact your BORA specialist supplier or the BORA Service Team.

The BORA Service Team will require the type designation and serial number of your device (FD number).

You can find both details inside the drawer.

11.3 Spare parts

▶ Only use original spare parts for repairs.
▶ Repairs may only be carried out by the BORA Service Team.

i Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided.

11.4 Accessories

● BORA multi-drawer glass front 140 mm MSF140
● BORA multi-drawer glass front 290 mm MSF290
● BORA multi-drawer power supply cable Type J (CH) MSNLJ
● BORA multi-drawer power supply cable Type G (UK, IE) MSNLG

Special accessory for MS290:

● BORA multi-drawer shelf rack MSER

Operating and installation instructions:

○ Original

- Translation

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.

[e-mail]

www.bora-australia.com.au

[phone]
