USER MANUAL CTAPR2/0-2 Panduit

INSTALLATION INSTRUCTIONS
T-PMPI-327-PC

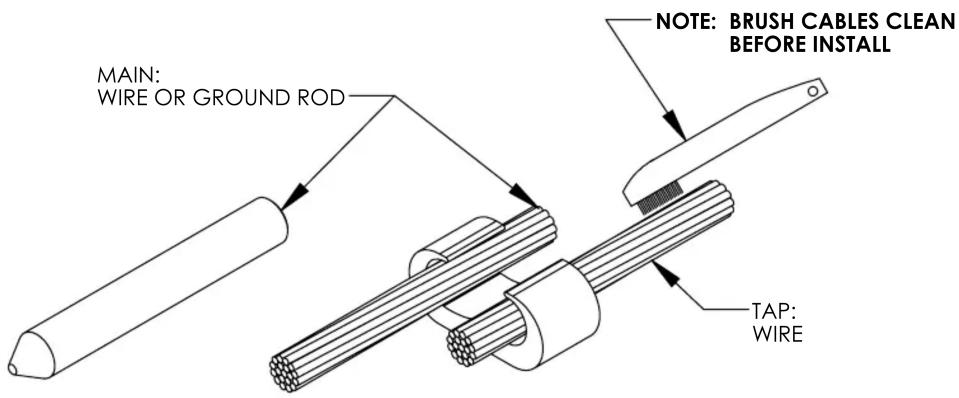

PART NUMBER	MAIN (AWG)		TAP (AWG)	MAIN (METRIC)		TAP (METRIC)
	COPPER CONDUCTOR RANGE	ROD DIAMETER	COPPER CONDUCTOR RANGE	COPPER CONDUCTOR RANGE	ROD DIAMETER	COPPER CONDUCTOR RANGE
CTAPR2-2	6 STR - 2 STR6 SOL - 1 SOL	1/4"COPPER GROUND ROD	6 STR - 2 STR6 SOL - 1 SOL	16mm^2 - 25mm^2 16mm^2 SOL - 35mm^2 SOL	6.4 mm COPPER GROUND ROD	16mm^2 - 25mm^2 16mm^2 SOL - 35mm^2 SOL
CTAPR2/0-2	1 STR - 2/0 STR	3/8"COPPER CLAD GROUND ROD	6 STR - 2 STR6 SOL - 1 SOL	50mm^2	9.0 mm COPPER CLAD GROUND ROD	16mm^2 - 25mm^2 16mm^2 SOL - 35mm^2 SOL
CTAPR2/0-2/0	1 STR - 2/0 STR	3/8"COPPER CLAD GROUND ROD	1 STR - 2/0 STR	50mm^2	9.0 mm COPPER CLAD GROUND ROD	50mm^2
CTAPR250-2/0	3/0 STR - 250 kcmil	1/2" - 5/8"COPPER CLAD GROUND ROD	6 STR - 2/0 STR6 SOL - 3/0 SOL	95mm^2 - 120mm^2	12.8 mm - 14.2 mm COPPER CLAD GROUND ROD	16mm^2 - 50mm^2 16mm^2 SOL - 70mm^2 SOL
CTAPR250-250	3/0 STR - 250 kcmil	1/2" - 5/8"COPPER CLAD GROUND ROD	3/0 STR - 250 kcmil	95mm^2 - 120mm^2	12.8 mm - 14.2 mm COPPER CLAD GROUND ROD	95mm^2 - 120mm^2
CTAPR500-2/0	300 kcmil - 500 kcmil	3/4"COPPER GROUND ROD	6 STR - 2/0 STR6 SOL - 3/0 SOL	185mm^2 - 240mm^2	17.2 mm COPPER GROUND ROD	16mm^2 - 50mm^2 16mm^2 SOL - 70mm^2 SOL
CTAPR500-250 300	kcmil - 500 kcmil	3/4"COPPER GROUND ROD	3/0 STR-250 kcmil*	185mm^2 - 240mm^2	17.22 mm COPPER GROUND ROD	95mm^2 - 120mm^2
CTAPR500-500 300	kcmil - 500 kcmil	---	300 kcmil - 500 kcmil	185mm^2 - 240mm^2	---	185mm^2 - 240mm^2

*GROUND ROD MAY ONLY BE ASSEMBLED WITH 4/0 STR WIRE

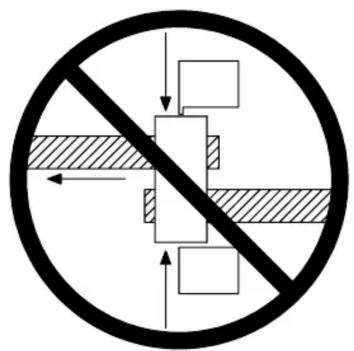

Pure mechanical assembly diagram showing two shafts and a central block with directional arrows (no text or symbols)

WHEN CRIMPING WITH CD-930G-250 DIE, ORIENT PART AS SHOWN

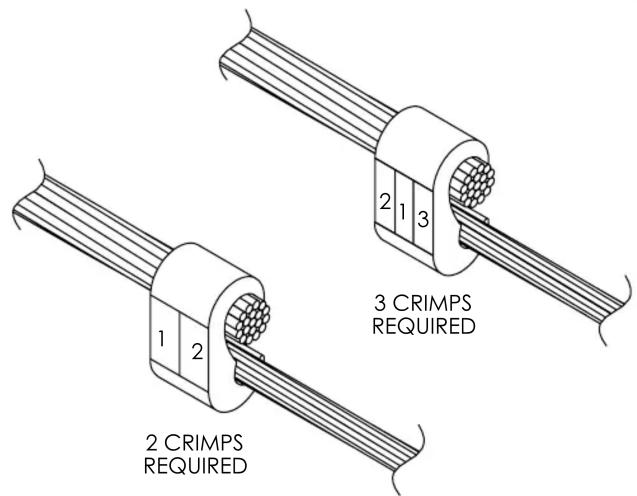

ORIENT CRIMPS AS SHOWN WHEN CRIMPING WITH THE CD-920C-500 DIE

PANDUIT PART NUMBER	PANDUIT TOOL
	12-TON 14-	TON 15-TON
	ASEE TOOL LIST BELOW	BSEE TOOL LIST BELOW	CSEE TOOL LIST BELOW
	DIE PART NUMBER DIE INDEX(# OF CRIMPS)
CTAPR2-2	CD-920-CPC(1)
CTAPR2/0-2	CD-920-OPO(1)
CTAPR2/0-2/0	CD-920-OPO(1)
CTAPR250-2/0	CD-930G-250PG25(1)
CTAPR250-250	CD-930G-250PG25(1)
CTAPR500-2/0	CD-920C-500P500(2)
CTAPR500-250	CD-920C-500P500(2)
CTAPR500-500	CD-920C-500P500(3)

A CT-920, CT-920/CV, CT-920CH, CT-920CH/CV, CT-920CH/CCP, CT-2920, CT-2920/CCP, CT-2920/CCPINT, CT-2920/CCPUK, CT-2920/CCPAUS, CT-2920/CCPTO, CT-2920/CCPBT, CT-2931, CT-2931/ST, CT-2931/STINT, CT-2931/STUK, CT-2931/STAUS, CT-2931/TO, CT-2931/STCV, CT-2931/STCVINT, CT-2931/STCVUK, CT-2931/STCVAUS, CT-2931/CVTO, CT-2931/STBT NOTE: CTAPR500-500 AND CTAPR500-250 CAN NOT BE INSTALLED WITH CT-2920, CT-2920/CCP, CT-2920/CCPINT, CT-2920/CCPUK, CT-2920/CCPAUS, CT-2920/CCPTO WHEN INSTALLING THE CTAPR PARTS WITH THE CT-920CH, USE BLACKFIN TOOL ONLY
B CT-930, CT-930CH, CT-2930, CT-2930/L, CT-2930/LE NOTE: CTAPR500-500 CANNOT BE INSTALLED WITH THE CT-930CH OR THE CT-930
C USE DIE ADAPTOR CD-940-DA: CT-940CH/BJO, CT-2940, CT-2940/L, CT-2940/LE
