Product Type	Treadmill
Brand	Toorx
Model	TRX Smart Compact
Category	Compact Treadmill
Dimensions (L x W x H)	150 x 70 x 120 cm
Net Weight	45 kg
Max User Weight	100 kg
Power Supply	220-240 V, 50/60 Hz
Motor Power	2.0 CHP
Speed Range	0.5 - 12 km/h
Incline	Manual, 3 levels
Display	LCD with time, distance, speed, calories, pulse
Programs	12 preset programs
Folding Design	Yes, with soft drop system
Pulse Measurement	Hand grip sensors
Safety Key	Included
Warranty	2 years
Maintenance	Lubricate belt every 3 months; clean after use
Spare Parts Available	Yes, through Toorx service centers

Frequently Asked Questions - TRX Smart Compact Toorx

How do I fold the Toorx TRX Smart Compact treadmill?

To fold, turn off the treadmill and unplug it. Lift the deck until it locks into the upright position. Ensure the latch is secure before moving.

What should I do if the treadmill belt slips?

Check belt tension by turning both rear adjustment bolts equally. Tighten if loose. Also inspect the belt for wear and replace if damaged.

How to lubricate the running belt?

Use a silicone-based lubricant. Lift the belt and apply lubricant to the deck. Run the treadmill at low speed for a few minutes to distribute evenly.

The display shows an error code. What should I do?

Refer to the user manual for specific error codes. Common codes include E1 (motor fault) and E2 (overload). Unplug for 5 minutes and restart. If persists, contact support.

What is the maximum weight capacity?

The maximum user weight is 100 kg (220 lbs). Exceeding this may damage the treadmill and void the warranty.

How do I use the pulse sensors?

Grip the hand sensors on the handlebars. The heart rate will appear on the display after a few seconds. For accurate readings, hold lightly and avoid moving hands.

Can I use the treadmill without the safety key?

No, the safety key is required to start the treadmill. Attach the clip to your clothing; if you fall, the key will pull out and stop the belt.

How to clean the treadmill?

Unplug and wipe with a damp cloth. Do not use abrasive cleaners. Clean under the belt occasionally by vacuuming the deck area.

What is the warranty period?

Toorx offers a 2-year warranty for the TRX Smart Compact. It covers motor and frame defects. Wear items like belt and deck are not covered.

The treadmill is noisy. What can I do?

Check for loose screws, lubricate the belt, and ensure the treadmill is on a level surface. If noise persists, inspect the motor for debris.

USER MANUAL TRX Smart Compact Toorx

Black treadmill with visible branding and control panel, no readable text or symbols on the device itself.

TRX SMART COMPACT

INTRODUCTION

The treadmill has been designed and constructed to provide trouble free usage and enjoyable exercise. You can greatly improve your understanding and benefits of exercising by carefully reading the instructions given in this manual. Please familiarize yourself with the maintenance advice provided for you.

SPECIFICATIONS

• Drive Motor: 1.2 HP
  • Speed Range: 1.0 –12kmph
• Running Surface: 420 ~m / m × 1200 ~m / m
• Folding Design: Yes

MAX.USER WEIGHT 100 KGS

ASSEMBLY PACK CHECK LIST

ASSEMBLY

PACK

CHECK

LIST

99. M5 × P0.8 × 12L

Phillips Head Screw (2 pcs)

111. Lubricant (1 pc)

Simple line drawing of a bent right-angle pipe or support structure (no text or symbols)

112. L Allen Wrench (1pc)

Simple line drawing of a tool or plunger (no text or symbols)

115. Short Phillips Head Screw Driver (1pc)

ASSEMBLY

Step 1.

Place the treadmill on level ground.

Technical line drawing of a mechanical assembly with rollers and levers (no text or symbols)

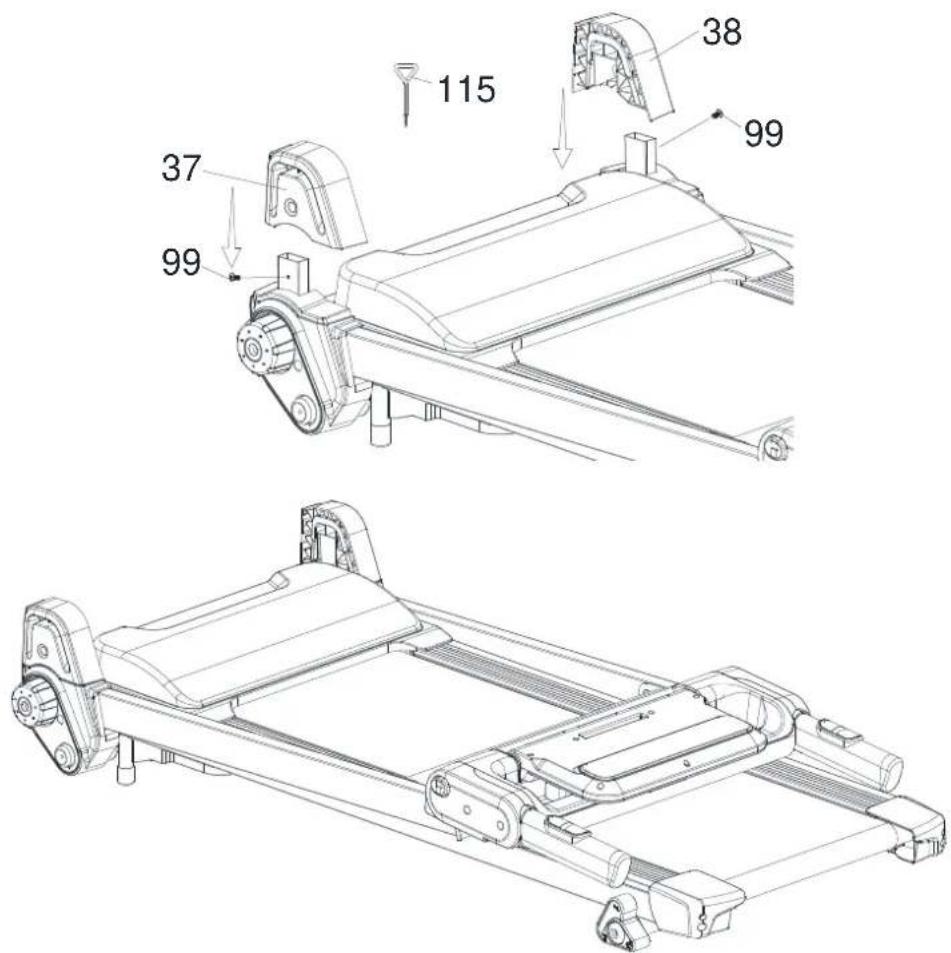

Step2.

Install Front Frame Base Cover (L)(R) (37) and (38) on the treadmill and use Short Phillips Head Screw Driver (115) to tighten 2 pcs of M5 × P0.8 × 12L_Phillips Head Screw.

NOTE: Please Tighten All Screw After All Components Assembly Complete.

Unfolding Procedure

Step 1.

Place the treadmill on level ground.

Technical line drawing of a mechanical assembly with rollers and mounting brackets (no text or symbols)

Step 2.

Press and hold the Release To Push A Button (Bottom)(48) and pull Uprights (L, R) (3,2) as the arrow indicates to the end position.

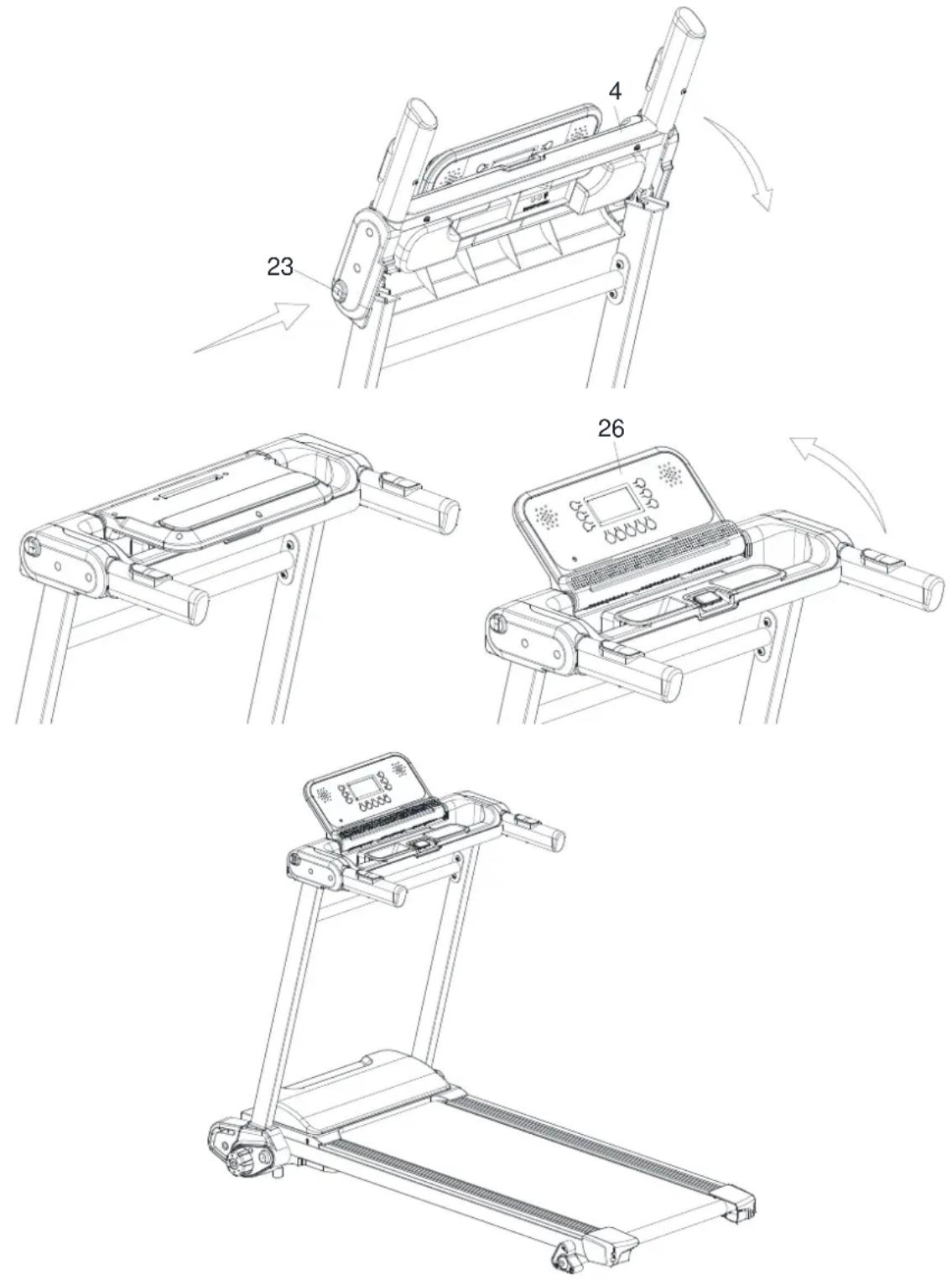

Step 3.

Press and hold Release To Push A Button (Top) (23) and turn Console Support (4) as indicated below and unfold console Assembly (26) into place.

Folding Procedure

Step 1.

Fold Console Assembly (26).

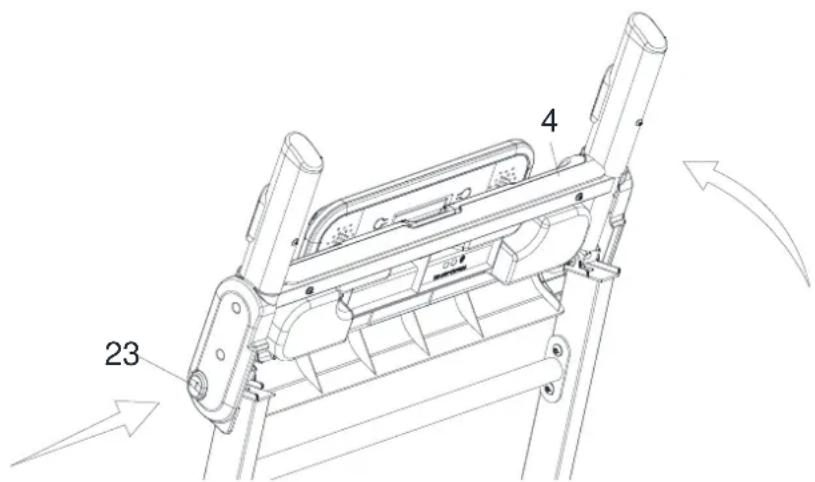

Step 2.

Press and hold the Release To Push A Button (Top) (23) and pull Console Support (4) up to the end.

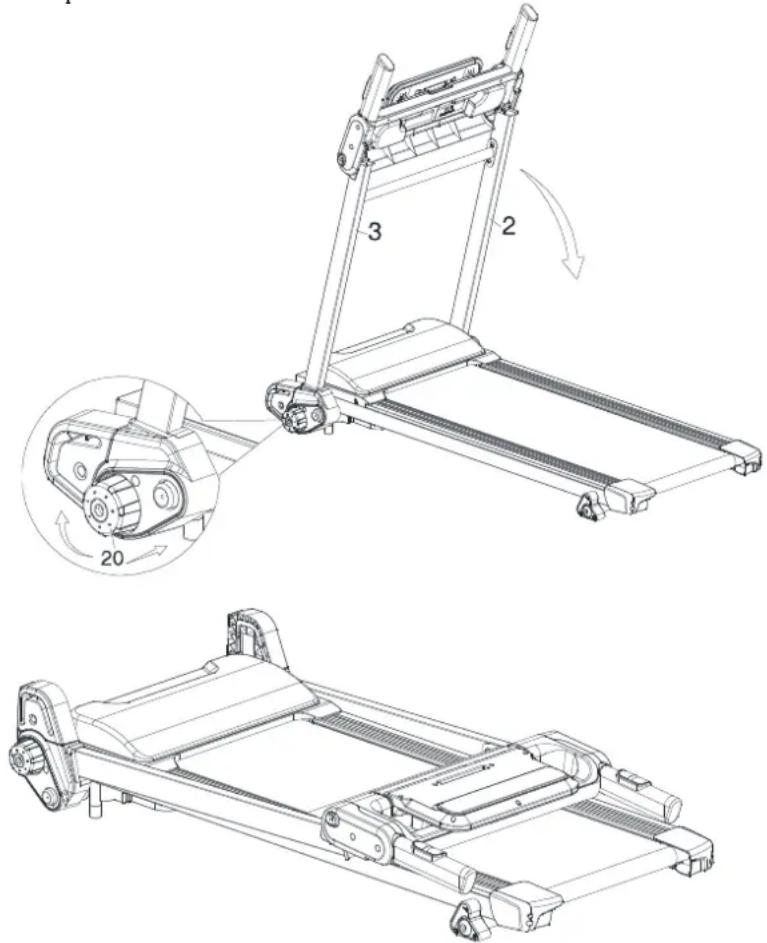

Step 3.

Press and turn Brake Tension Knob (20) clockwise and pull Uprights (L, R) (3,2) as the arrow indicates to the end position.

Step 4.

Pull up the Main Frame (1) to fold up the treadmill.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

COMPUTER OPERATION INSTRUCTIONS

Button Function

A > "START/ STOP" Button

Press this button to start the operation of the treadmill with the starting speed at 1.0 KPH. Press it again to stop the treadmill with the speed gradually slow down until full stop.

B > "CLEAR/SET" Button

Pressing this button resets TIME, DISTANCE, CALORIE. When in the manual mode, press this button to set parameters TIME, DISTANCE, CALORIE. Although three parameters can be set, only the last parameter set is accepted. press mode key will reset and go to idle mode.

D > "MODE" Button

In ready mode, Press "MODE" button to select the training mode. There are 12 built-in programs to select.

E > "FAST" Button

1. Press the "FAST" button to increase the speed until the proper speed. Hold this key for 3 seconds will quickly increase the speed.

2. In setting mode, pressing "FAST" button changes the parameter (increases).

F> "SLOW" Button

1. Press the "SLOW" button to decrease the speed until the proper speed. Hold this key for 3 seconds will quickly decrease the speed.

2. In setting mode, pressing "SLOW" button to change the parameter (decreases).

G> "RAPID SPEED" Button

Press quick buttons 3, 6 and 9(KPH) or WALK for low speed, JOG for medium speed and RUN for high speed,

Get prepared before using the treadmill

Be sure that the power complies with product specification prior to turning on the treadmill. The red light of the switch comes on and the console shows E0 when the treadmill turns on. Put the safety key in place and clip on the other end to the cloth and be ready for the workout.

Quick Start

1. Place the safety key and the treadmill is in manual mode. Press START/STOP button to begin the workout.
2. The initial speed is 1.0KPH. You can adjust the speed by pressing "FAST", "SLOW" and "RAPID SPEED" buttons.
3. You can press START/STOP button or pull out the safety key, in case of emergency, any time when the treadmill is operating. The speed will slow down gradually till fully stop.
4. While in manual mode, pressing “CLEAR/SET” button sets time, distance and calorie. Pressing FAST and SLOW buttons changes the value. When finish setting, press START/STOP to begin the workout. (The system accepts only the last item set. When the value of the set item is reached, the treadmill stops.)

Handgrip pulse feature

Any time when the treadmill is operating, grasping handgrip shows treadmill pulse feature and the heart beat value is displayed. Grasp firmly while using this feature otherwise the value fluctuates.

Calorie Display

The calorie display shows the value of heat energy consumed during the workout.

Built-in programs

Pressing MODE and there are 12 build-in programs, P1, P2, P3 ... and P12, to choose. The speed varies automatically and hence these programs are not recommended for the beginners or children.

BELT TRACKING ADJUSTMEANT

Close-up of a hand adjusting a treadmill on a carpet (no visible text or symbols)

If during use you notice that walking belt either shifts to the right or the left of center, first remove "Safety Key" and unplug equipment from AC power source. Using M5 Allen wrench provided, turn left rear roller adjustment as indicated below clockwise no more the 1/4" of a turn. Remove M5 Allen wrench, insert "Safety Key" and insert AC power cord into AC outlet. Turn on your treadmill and observe after running a few minutes to see if problem has been corrected. This may take several adjustments, so repeat the above procedure.

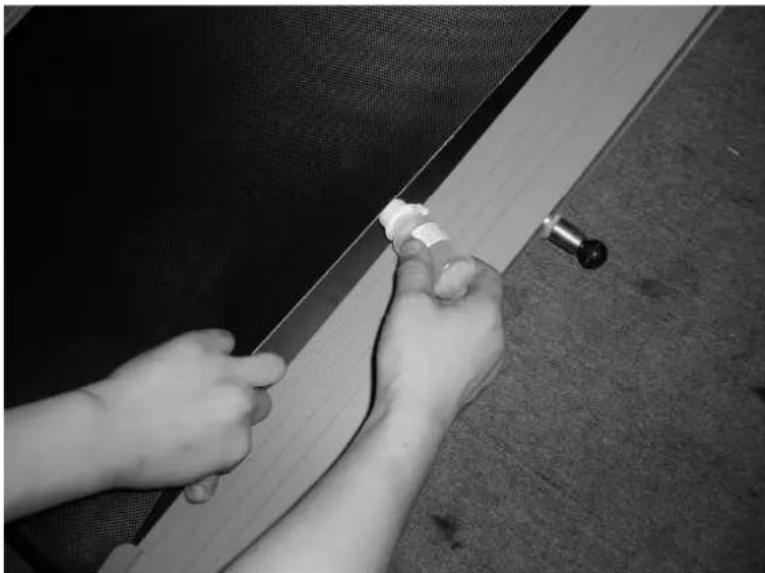

TREADMILL LUBRICATION

Close-up of hands installing a wall-mounted cable or panel on a dark surface, no visible text or symbols

Your treadmill should require little maintenance other than periodically applying lubricant. Lubricating under the treadbelt will ensure superior performance and extend its life expectancy.

HOW TO CHECK TREADBELT FOR PROPER LUBRICATION?

Lift one side of the treadbelt and feel the top surface of the treadboard.

If the surface is slick to the touch, then no further lubrication is required.

If the surface is dry to the touch, apply one packet of lubricant or half of the bottle of lubricant.

HOW TO APPLY LUBRICANT?

1. Lift one side of treadbelt.
2. Pour one half of the lubricant bottle under the center of the treadbelt on the top surface of the treadboard.
3. Walk on the treadmill at a slow speed for 3 to 5 minutes to evenly distribute lubricant.

NOTE: DO NOT over lubricate treadboard. Any excess lubricant that comes out should be wiped off.

IMPORTANT: ONLY USE HALF THE BOTTLE OF LUBRICANT PER APPLICATION LUBRICATION SCHEDULE.

1. If it's necessary, it's better to lubricate half a bottle when user open carton to use at first time.
2. We suggest if user doesn't apply lubricant at first time, after the first 25 hours of use (2-3 months) need to apply one half bottle of lubricant.
3. Every 100 hours or 300 km of use apply one half bottle of lubricant per exact situation.

NO. DESCRIPTION Q'TY

1 Main Frame 1

2 Right Upright 1

3 Left Upright 1

4 Console Support 1

5 Inclination Adjustor Bushing Assembly 1

6 Upright Support Axle 2

7 Sprung Latch 2

8 Releasing Bracket Axle 1

9 Handrail Support 1

10 Brake Tension Knob Axle 1

11 Rear Roller Cover 2

12 Front Roller W/Pulley 1

13 Rear Roller 1

14 Motor Bracket 1

15 Motor 1

16 Drive Belt 1

17 Running Deck 1

18 Running Belt 1

19 Foot Rail 2

20 Brake Tension Knob 1

21 Rear Frame Base Cover (L) 1

22 Rear Frame Base Cover (R) 1

23 Release To Push A Button (Top) 1

24 Handgrip Side Cap(L) 1

25 Handgrip Side Cap(R) 1

26 Console Assembly 1

26\~1 Console Top Cover 1

26\~2 Console Bottom Cover 1

27 Knob Bushing 1

28 Constrict Spring 4

29 Wheel Sleeve 2

30 Beverage Holder Anchor 2

31 Release Spring 1

32\~1 Beverage Holder 1

32\~2 Safety Key Cover 1

32\~3 Safety Switch Module W/ Cable 1

32\~5 ∅3 × 10L_Sheet Metal Screw 2

33 Square Safety Key 1

34 Sensor Rack 1

35 1000m/m_Sensor W/Cable 1

36 Motor Controller 1

37 Front Frame Base Cover (L) 1

38 Front Frame Base Cover (R) 1

39 Bushing 1

40 Handpulse Sensor (w/o wire) 2

41\~1 1000m/m_Handpulse Wire 1

41\~2 700m/m_Handpulse Wire 1

41 1000m/m_Handpulse Wire 2

NO. DESCRIPTION Q'TY

42 Deck stopper (L) 1

43 Deck stopper (R) 1

44 Handgrip End Cap 2

45 Motor Top Cover 1

46 Frame Cover 1

47 Handgrip Foam 2

48 Release To Push A Button (Bottom) 1

49 Rear Adjustment Base (L) 1

50 Rear Adjustment Base (R) 1

51 Inclination Adjustor (L) 1

52 Inclination Adjustor (R) 1

53 Bolt Cap 2

54 Inclination Adjustor Bushing 2

55 Transportation Wheel 2

56 Rubber Foot 6

57 Foot Pad 2

58 Outer End Cap 2

59 25 × 50m/m_Square End Cap 2

60 Motor Cover Anchor 4

61 On/Off Switch 1

62 Breaker 1

63 Power Socket 1

64 100m/m_Connecting Wire (Black) 1

65 250m/m_Connecting Wire (White) 1

66 250m/m_Connecting Wire (Black) 1

67 Power Cord 1

68 600m/m_Computer Cable(Upper) 1

69 950m/m_Computer Cable(Lower) 1

70 3/8" × UNC16 × 7.0T_Nyloc Nut 2

71 5/16" × UNC18 × 7.0T_Nyloc Nut 2

72 M8 × P1.25 × 7.0T_Nyloc Nut 1

73 M10 × P1.5 × 8T_Nyloc Nut 3

74 08 × 035 × 1.5T_Flat Washer 2

75 08 × 016 × 1.5T_Flat Washer 2

76 ∅10 × ∅35 × 2.0T_Flat Washer 4

77 ∅8.5 × ∅25.4 × 1.5T_Flat Washer 2

78 ∅10 × ∅25 × 2.0T_Flat Washer 4

79 ∅19 × ∅10 × 1.5T_Flat Washer 3

80 ∅5 × 1.5T_Split Washer 2

81 ∅8 × 1.5T_Split Washer 2

82 ∅10 × 2T_Split Washer 4

83 3/8" × UNC16 × 7T_Nut 1

84 M6 × P1.0 × 5.0T_Nut 1

85 ∅3 × 10L_Sheet Metal Screw 2

86 3/8" × UNC16 ×1-1/4"_Hex Head Bolt 1

87 3/8" × UNC16 × 3-1/2"_Hex Head Bolt 2

88 3/8" × UNC16 × 3/4"_Hex Head Bolt 4

89 M8 × P1.25 × 60L_Hex Head Bolt 1

NO. DESCRIPTION Q'TY

90 M8 × P1.25 × 12L_Hex Head Bolt 2
91 1/4" × UNC20 × 60L_Socket Head Cap Bolt 2
92 M5 × P0.8 × 10L_Flat Phillips Head Screw 4
93 ∅3.5 × 12L_Sheet Metal Screw 19
94 M10 × P1.5 × 50L_Button Head Socket Bolt 3
95 5/16" × UNC18 × 1" _Button Head Socket Bolt 2
96 5/16" × UNC18 × 42L_Button Head Socket Bolt 2
97 5/16" × UNC18 × 3/4"_Button Head Socket Bolt 4

98 Fastening Bushing 1

99 M5 × P0.8 × 12L_Phillips Head Screw 5

100 M4 × P0.7 × 12L_Phillips Head Screw 1

101 M6 × P1.0 × 15L_Phillips Head Screw 1

102 ∅5 × 16L_Tapping Screw 4

103 ∅5 × 16L_Tapping Screw 28

104 ∅5 × 25L_Tapping Screw 2

105 ∅4 × 56L_Sheet Metal Screw 2

106 Wire Tie Mount 6

107 ∅3.5 × 16L_Tapping Screw 6

108 M6 × P1.0 × 20L_Flat Head Socket Screw 6

109 M5 × P0.8 × 15L_Flat Head Socket Screw 4

110 M6 × P1.0 × 25L_Flat Head Socket Screw 2

111 Lubricant 1

112 L Allen Wrench 1

113 M5_Star Washer 2

114 Belt Guide 2

115 Short Phillips Head Screw Driver 1

116 ∅5 × 19L_Tapping Screw 1

118 ∅4 × 12L_Sheet Metal Screw 4

119 1200m/m_Safety Switch Wire 1

129 Rubber Pad 2
