Product Type	Air Curtain Heater
Model	HC1500
Brand	N'oveen
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W
Dimensions (Width)	385 mm
Installation Height	Min. 2 m above floor
Heating Levels	3 modes: Cold Air, Warm Air (1000W), Hot Air (2000W)
Timer	24-hour timer, programmable weekly timer
Thermostat	Adjustable 10°C - 49°C
Window Open Function	Energy-saving mode that detects temperature drop
Child Lock	Yes, via remote control
Overheat Protection	Automatic shut-off in case of overheating
Remote Control	CR2025 3V lithium battery
Fan Delay	30-second cool-down after switching off
Cleaning	Wipe with damp cloth; do not use water or solvents directly
Spare Parts Availability	Parts list provided: cover, display, panel, motor, PTC element, etc.
Safety Compliance	Designed for wall mounting; keep away from combustible materials

Frequently Asked Questions - HC1500 N'oveen

How do I set the real-time clock on the HC1500?

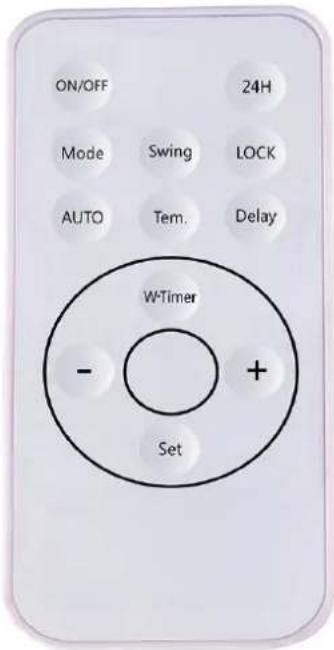

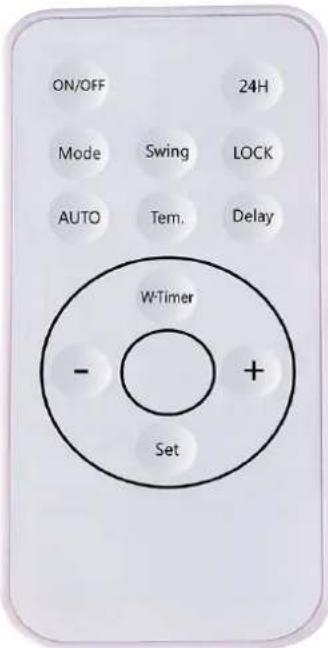

Press the 'Set' button on the remote control. The 'I/W' light will turn on. Use the '+' and '-' buttons to set the week (1-7). Press 'Set' again, then set the hours (01-00) when 'II/H' lights up. Press 'Set' again, then set minutes (00-59) when 'Fan/M' lights up. The display will blink for 5 seconds during each step.

How do I use the 24-hour timer?

Turn on the appliance in fan, warm, or hot mode. Press the 'TIMER' button on the control panel or remote control. Each press increases the timer by 1 hour, from 00 (off) to 24 hours. The 'TIMER' light will stay on while a timer is set.

How do I switch between cooling, warm, and hot air?

Press the 'MODE' button repeatedly. The first press gives cold air (only fan). Second press gives warm air (1000W), indicated by 'I/W' and 'Fan/M' lights. Third press gives hot air (2000W), indicated by 'II/H' and 'Fan/M' lights. Fourth press returns to cold air.

How do I clean and maintain the air conditioner?

Always unplug the unit and let it cool down. Wipe the exterior with a damp cloth and mild cleaner. Never immerse in water or use harsh chemicals like gasoline or benzene. Ensure the air outlet is free from obstructions before next use.

What should I do if the appliance overheats?

The unit has an overheat protector that shuts it off automatically. Unplug the appliance, wait about 30 minutes for it to cool, and remove any obstructions from the grids. Then plug it back in and restart. The fan will run for 30 seconds after shutdown to cool down.

How do I activate the child lock?

Press the 'LOCK' button on the remote control. All LED lights will turn off except the 'Power' light. The control panel and remote control will be disabled. Press 'LOCK' again to unlock.

How do I set the weekly timer?

Turn on the appliance, then press the 'W-Timer' button on the remote control. Follow the prompts to set open and close times for each day (Monday to Sunday). You can also set different temperatures for each day. Up to 6 pre-set models (P1-P6) are available, or you can manually program P6.

How do I use the thermostat function?

While the appliance is running in any mode, press the '+' or '-' buttons on the remote control to set the desired temperature (10-49°C). The heater will automatically maintain the temperature: it will start heating at 1000W when the room drops 2°C below set temp, and at 2000W when it drops 4°C below. It will stop heating when the room is 1°C above set temp.

Why does the fan continue running after I turn off the heater?

This is normal. The fan runs for about 30 seconds to cool down the internal components before shutting off completely. Do not unplug the unit during this cool-down cycle unless necessary.

What type of battery does the remote control use?

The remote control uses a CR2025 3V lithium battery. Replace the battery when the remote becomes unresponsive.

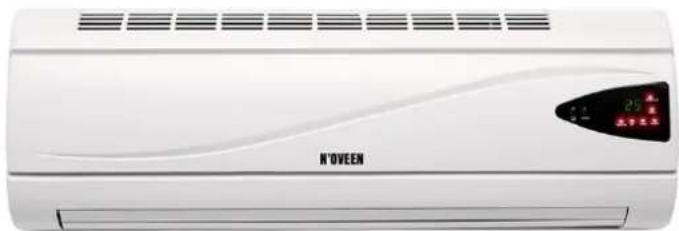

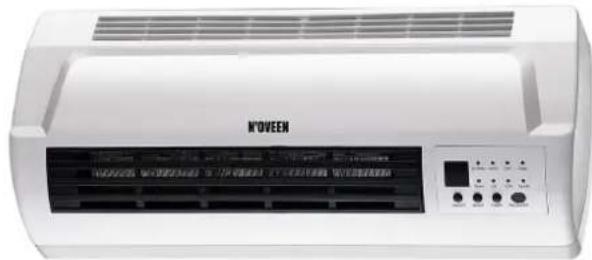

USER MANUAL HC1500 N'oveen

AIR CURTAIN – USER MANUAL

LUFTSCHLEIER - BENUZERHANDBUCH

Front view of a white Kwein air conditioner unit with ventilation grille and control panel (no visible text or symbols)

Front view of a white K'OVEEN air conditioner unit with control panel and ventilation grille (no visible text or symbols on body)

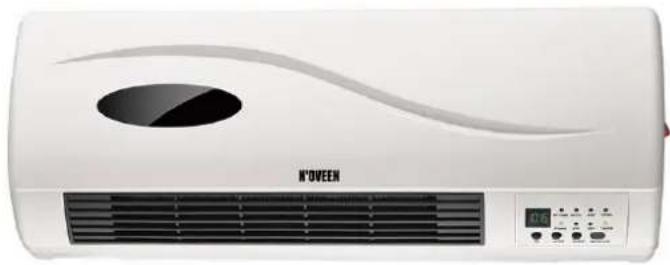

White N'OVEEN air conditioner unit with control panel and ventilation grille (no visible text or symbols)

Front view of a white N'OVEEN air conditioner unit with visible grille and control panel (no text or symbols on body)

White N°OVEEN air conditioner unit with digital display and logo (no text or symbols on body)

White rectangular air conditioner unit with digital display and 'NOVEEN' branding (no text-heavy elements)

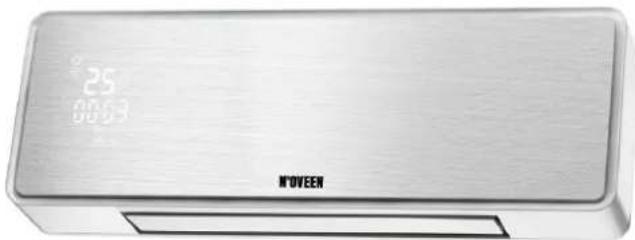

Exterior view of a modern stainless steel air conditioner unit with digital display (no text or symbols visible)

HC1500 / HC2000 / HC2050 / HC2100 / HC2200 / HC2500 / HC3100/3200

POLSKI....s. 9

ENGLISH....p. 25

DEUTSCH....s. 41

ESPAÑOL....p. 56

PORTUGUÊS....p. 71

ΕΛΛΗΝΙΚΑ....Σ. 86

ROMÂNĂ....p. 102

ČEŠTINA....s. 117

SLOVENSKÝ....S. 131

УКРАЇНСЬКА....C. 144

HC1500/HC2000

HC2050

HC2100

HC2200

HC2500

HC3100/3200

1

2

3

4

5

6

WAŻNE ŚRODKI BEZPIECZEŃSTWA

Diagram showing a circular arrow pointing to a rectangular grid with irregular polygonal cells and scattered dark triangular markers (no text or symbols)

Diagram of a mechanical or structural component with hexagonal pattern and a central rod (no text or symbols)

OBSŁUGA URZĄDZENIA

Thank you for buying our product. Please read this instruction carefully before operating the heater. Keep this operating instruction for future reference.

1. The heater should be hung on the wall and make the wind outlet down. You must not place it precipitantly or tipsily.
2. Please do not use the heater in the place where full of combustible or explosive gas. Don't cover the wind outlet.
3. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
4. The heater must not be located immediately below an electrical socket. The electrical socket must be equipped with earth wire, its capacity should be 220-240 V \~10A. The socket and the power plug should be in good connecting condition.
5. If nobody is in using or you are repairing the heater, please pull off the plug.
6. Please don't touch the heater by the wet hand or other conductor.
7. If motor is not working properly, please stop it immediately.
8. During using the heater, please do not open the door or window continually otherwise it will influence the heating effect.
9. If want to shut off the heater, press the on/off switch to off, then the heater will keep the fan working 30 seconds until it blowing out cool wind, then the heater will stop working, and you may pull off the plug.
10. Do not use this heater in bathroom.
11. Timer sets the heater working time.
12. Remote control, please use 1 battery.
13. The heater must be installed at least 2 m above the floor.
14. If the heater needs repair, please ask for special person or our company authorized maintenance department.
15. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
16. Children of less than 3 years should be kept away unless continuously supervised.
17. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8

years shall not plug in, regulate and clean the appliance or perform user maintenance.

1. CAUTION — some parts of this product can become very hot and cause burns.

Particular attention has to be given where children and vulnerable people are present.

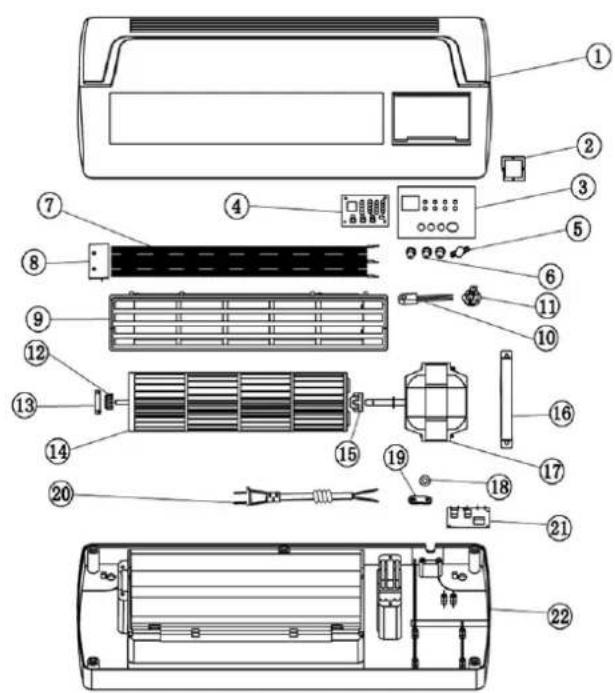

PARTS DESCRIPTION HC1500/HC2000

No Part name No Part name
1 Cover 12 Ring
2 Display 13 Bearing bar
3 Panel 14 Wheel
4 Control board 15 Locating ring
5 Receiving window 16 Motor trim
6 Button 17 Shaded pole motor
7 PTC heating element 18 Protective coil
8 PTC flap 19 Plate
9 Wind outlet	20 Power cord
10	Ceramics thermal protection	21 Power board
11	Thermostat	22 Base

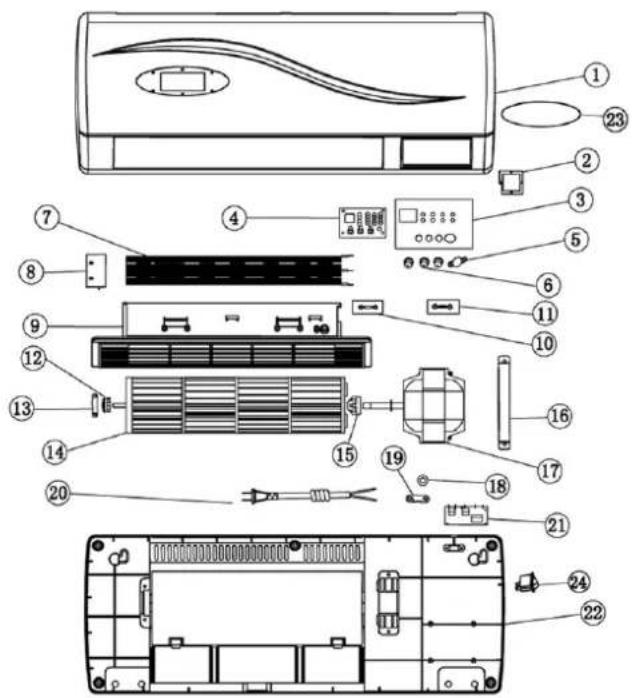

PARTS DESCRIPTION HC2050

No Part name No Part name
1 Cover 12 Ring
2 Display 13 Bearing bar
3 Panel 14 Wheel
4 Control board 15 Locating ring
5 Receiving window 16 Motor trim
6 Button 17 Shaded pole motor
7 PTC heating element 18 Protective coil
8 PTC flap 19 Plate
9 Wind outlet	20 Power cord
10 Ceramics thermal protection		21 Power board
11 Thermostat		22 Base

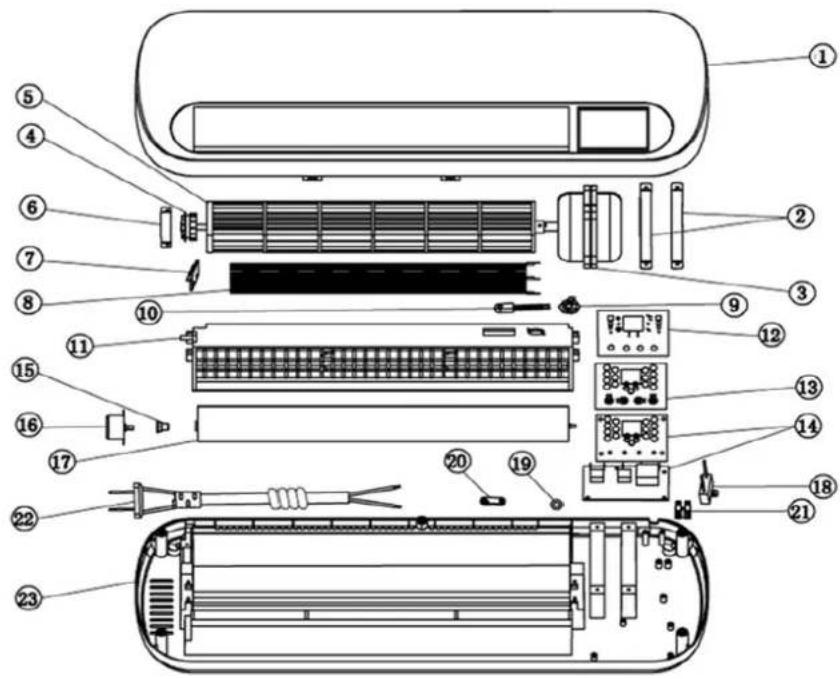

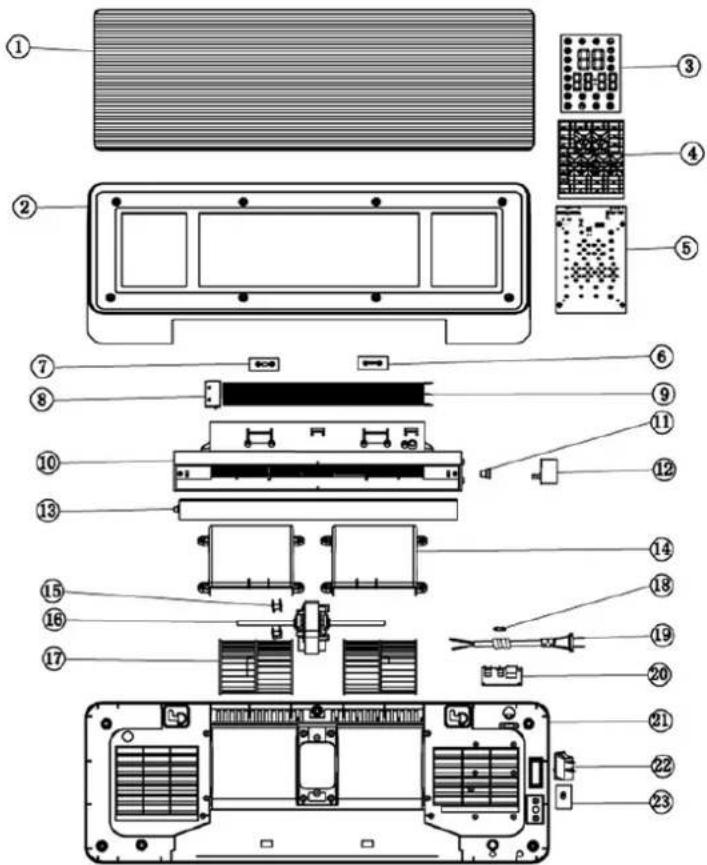

PARTS DESCRIPTION HC2100

No Part name No Part name
1 Cover 13 Control board
2 Motor plate 14 Circuit board
3 Motor 15 Stepping motor sleeve
4 Bearing sleeve 16 Stepping motor
5 Wheel 17 Shutter
6 Bearing plate 18 Capacitance
7 PTC board 19 Protective coil
8 PTC heating element 20 Board
9 Thermostat 21 Terminals
10	Ceramic thermal protection	22 Power cord
11	Wind outlet 23 Base
12	PVC sticker

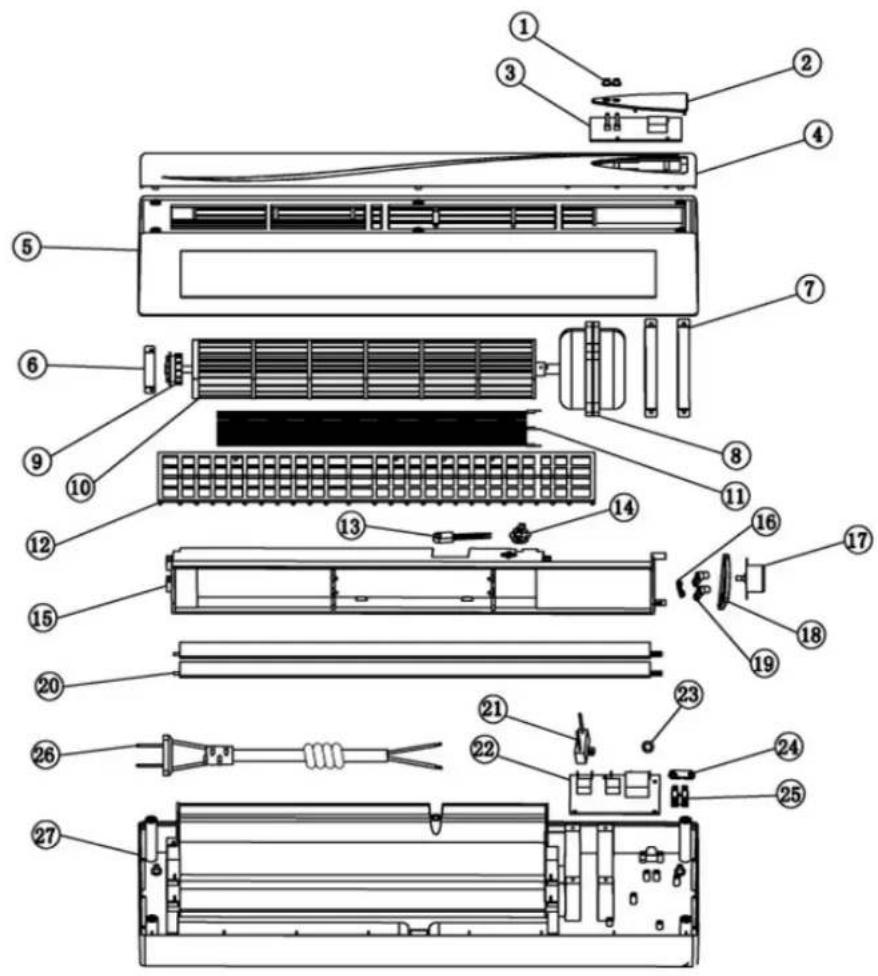

PARTS DESCRIPTION HC2200

No Part name No Part name
1 Button	15	PTC fixed frame
2 Control panel	16	Link
3 Circuit board	17	Stepper motor
4 Decorative plates	18	Stepper motor baffle
5 Top cover	19	Swing	leaf guide shaft
6 Bearing bead	20	Pendulum
7 Motor bead 21 Capacitance
8 Fan motor	22	Power	board
9 Bearing base 23 Protective coil
10	Wheel 24 Crimping board
11	PTC heating element 25 Terminal
12	Mesh	26 Power cord
13	Ceramic heat protection	27 Lower cover
14	Thermal thermostat

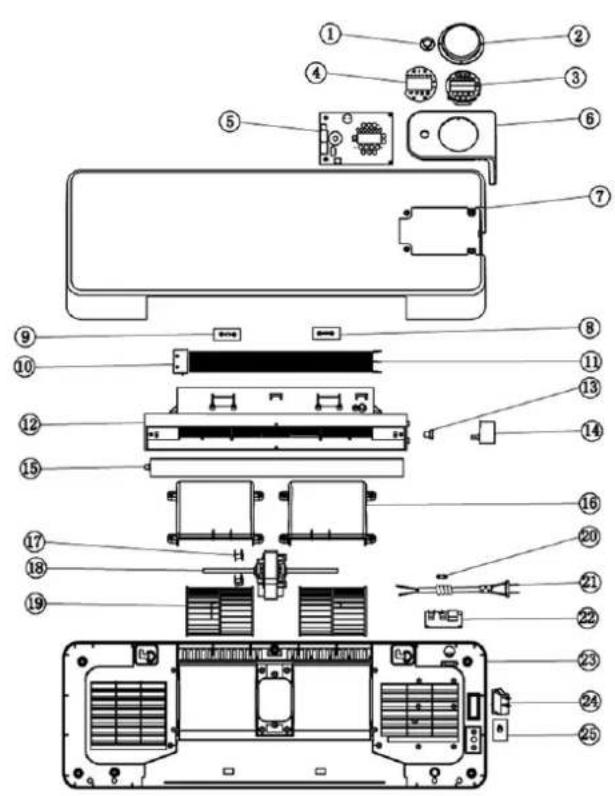

HC2500

No Part name No Part name
1 Light cover 14 Stepper motor
2 Display 15 Pendulum
3 Decorative screen 16 Wind wheel cover
4 Sticker 17 Motor support
5 Power control board 18 Motor
6 Control board 19 Wind wheel
7 Panel 20 Crimping board
8 Resettable thermal 21 Power cord
9 Thermal protection 22 Power board
10 PRC baffle	23 Base
11	PTC heating element	24 Power switch
12 Air outlet	25 Button ON / OFF
13 Stepper motor bushing

HC3100/3200

No Part name No Part name
1 Panel 14 Wind wheel cover
2 Front cover	15	The motor bracket
3 PVC sticker	16	Fan motor
4 Inner screen	17	Wind wheel
5 PCB (Control panel) 18 Fixed plate for power supply cord
6 Thermostat	19	Power plug
7 Thermal fuse	20	PCB (main power)
8 PTC fixer	21	Base
9 PTC heating element	22	Power switch
10 Air outlet	23	One touch button
11	Locating ring for DC motor
12 DC motor
13 Louver

INSTALLATION OF THE APPLIANCE

The heater should be installed and used according to the safe standard.

To avoid all dangers, follow the safety instructions.

• The installation must be done by the service agent or similarly qualified persons in order to avoid a hazard.
• Important! Make sure that there are no electric cables or other installations (for example water pipes) near the drill holes. Make sure that the appliance is securely and vertically fitted to the wall.

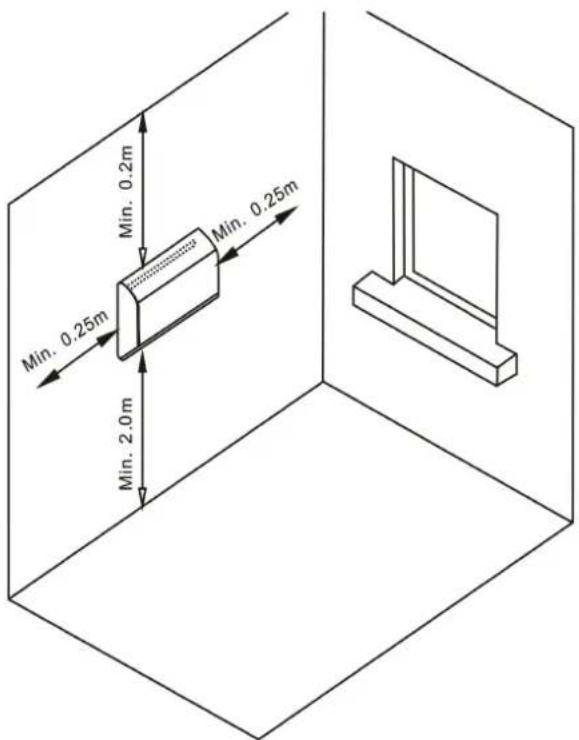

Get two holes on the wall 2 ~m above the floor and near the corner more 0,25 ~m , be sure to make the diameter just as same as the expanding pipe. Fix two screws on the expanding pipe, keep the tips of the screws out for 10 ~mm , and hang up the machine after the screws are fixed enough.

HC1500/HC2000/HC2050:

385 mm

HC2100: 535 mm

HC2200: 545 mm

HC2500: 330 mm

HC3100/3200: 330 mm

→See Picture 1

Diagram showing a container with hexagonal cells and a directional arrow, no text or symbols present

Diagram of a hexagonal grid structure with a vertical rod and arrow, no text or symbols present

OPERATION INSTRUCTIONS

1. Before inserting the plug into an electrical outlet, make sure that the electrical supply in your area matches that on the rating label on the unit.
2. Carefully remove the heater from the plastic bag and the carton.
3. Place the heater on the wall, setting the master button to “-” position. Plug the cord set into a AC220-240V\~ electrical outlet, with “BEE” sounds the “Power” light is on and the heater will shows the default temperature, it will twinkle 3 seconds.

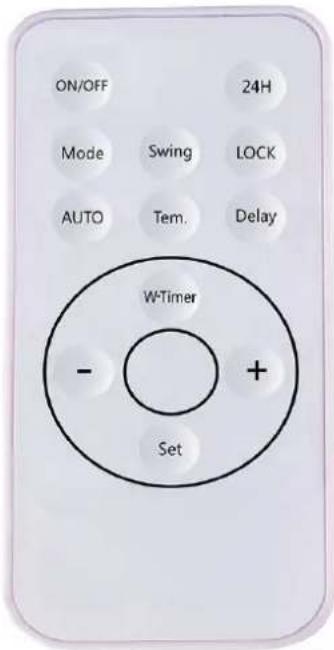

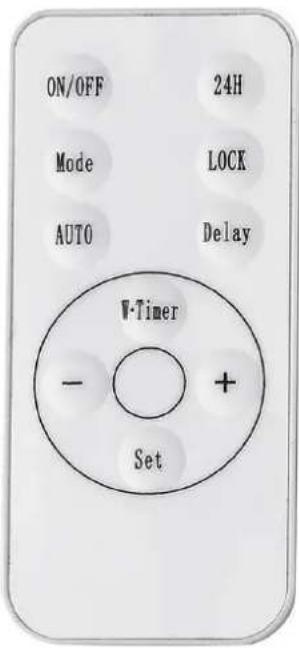

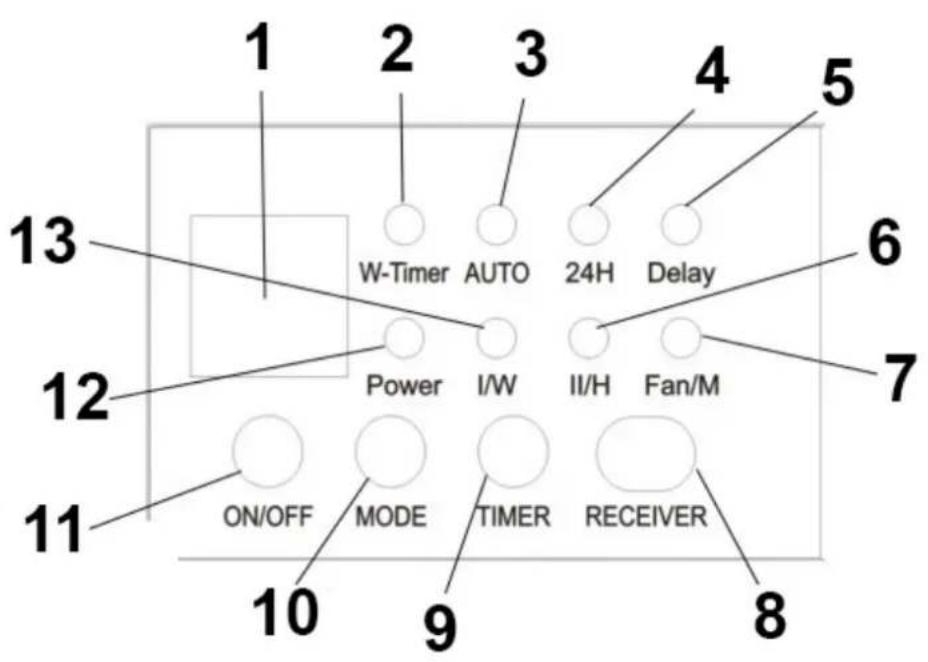

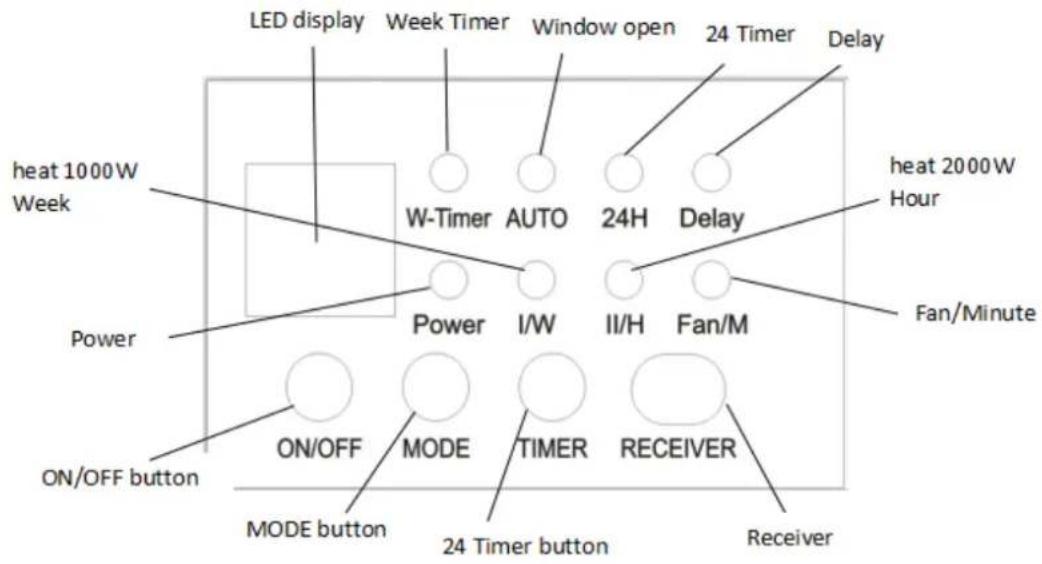

1) SET TIME HC1500/HC2000 / HC2050 / HC2200

Before turn on the heater, set the right time. Press remote control "button", control panel shows current room temperature.

WEEK Press "Set" button one time, "I/W" (HC1500/HC2000/HC2050) or "W-Timer/W"

(HC2200) lights on, press “” buttons to set the week from 1-7 (1=Monday, 2=Tuesday...7=Sunday)

HOUR Press "Set" button again, "II/H" (HC1500/HC2000/HC2050) or "24h/H" (HC2200) lights on, press "buttons to set the Hours from 01--00 (01=1 o'clock, 02=2 o'clock...00=24 o'clock)

MINUTE Press "Set" button again, "Fan/M" (HC1500/HC2000/HC2050) or "Auto/M" (HC2200) lights on, press "buttons to set the Minutes from 00--59 (01=1 Minute, 02=2 Minute etc.)

PS: Press "Set" button, screen shows number that will twinkle for 5 seconds, you should operate in time, otherwise appliance will get back to standby. (Appliance will keep the right time until power off)

SET TIME HC2100/HC2500/HC3100/3200

Before turning on the heater, set the time as right time. Press “” button on remote control, LED display shows 00:00 and “Mo” lights on.

HOUR Press "Set" button one time, LED displays "00:00" twinkling, press "− + buttons to set the Hours from 01—00 (01=1 o'clock, 02=2 o'clock...00=24 o'clock)

MINUTE Press "Set" button again, LED displays "00:00" twinkling, press "⊖⊕" buttons to set the minutes from 00—59 (01=1 Minute, 02=2 Minute etc.)

WEEK Press "Set" button again, "Mo" light twinkles, press "buttons to set the week from Mo--Su (Mo=Monday...Su=Sunday etc.)

PS (HC1500/HC2000/HC2050/HC2100/HC2200/HC2500/HC3100/3200): Press "Set" button, screen shows number that will twinkle for 5 seconds, you should operate in time, otherwise appliance will get back to standby. (Appliance will keep the right time until power off)

1. Turn the heater ON by pressing the ON/OFF main button, the unit will blow the cold air and "Fan/M" (HC1500/HC2000/HC2050) “(HC2100/HC2500) or “Power/Fan” in red color (HC2200) light is on.

2. Press the "MODE" button, the unit will blow the warm air and both "I/W" and "Fan/M" (HC1500/HC2000/HC2050) "①and " " (HC2100/HC2500) or "I/II" in green color (HC2200) or (HC3100/3200) lights are on.

3. Press the "MODE" button second time, the unit will blow the hot air and both "II/H" and "Fan/M" (HC1500/HC2000/HC2050) "①and " " (HC2100/HC2500) or "I/II" in red color

(HC2200) or (HC3100/3200) lights are on.

1. Press the "MODE" button third time, the unit will blow the cold air and "Fan/M" light is on. PS: Control panel and remote control are operated the same way.

PS (HC2100): On control panel “ button, press 1 ^st time: COOL AIR; 2 ^nd time: WARM AIR; 3 ^rd time: HOT AIR; 4 ^th time: SWING FUNCTION; 5 ^th time: OFF.

3) 24H TIMER FUNCTION

1. Turn on the appliance in fan, warm, hot mode. Control panel "TIMER" button (HC1500/HC2000/HC2050/HC2200) or “”(HC2100) and remote control “” work the same way.

2. Press “TIMER” button (HC1500/HC2000/HC2050/HC2200) or “(HC2100) or (HC2500/HC3100/3200), set the timer up to 24 hours, keep pressing “TIMER” button to increase the hours from 00--24 (00= off, 01=1hour, 02=2 hours...24=24 hours) and the “TIMER” (HC1500/HC2000/HC2050) or “(HC2100/HC2500/HC3100/3200) or “24h/H” (HC2200) light is on.

PS: “00” set means no timer is set, the “TIMER” (HC1500/HC2000/HC2050) or “(D) (HC2100/HC2500/HC3100/3200) or “24h/H” (HC2200) light is off.

4) THERMOSTAT INSTRUCTIONS

1. Turn on the appliance in fan, warm, hot mode. This function only works through remote control.
2. To adjust temperature, press “☐” to set the desired temperature between 10-49 .°C
3. When the air temperature drops 2 degree below the set temperature, the heater will start heating with "I/W" (1000W).
4. When the air temperature drops 4 degree below the set temperature, the heater will start heating with "II/H" (2000W).
5. When the air temperature 1 degree higher than set temperature, the heater will blow the cold air.

5) WEEK TIMER FUNCTION (HC1500/HC2000/HC2050/HC2200)

1. Turn on the appliance in fan, warm, hot mode. This function only works through remote control.
2. WEEK Press “” button, "I/W" and "W-Timer" lights are on, "1" means "Monday".

HOUR Press "” button 2nd time, "II/H" (HC1500/HC2000/HC2050) or "24h/H" (HC2200)

lights on, press “” to set the Hours from 01--00 (01=1 o'clock, 02=2 o'clock...00=24

o'clock)

MINUTE Press “” button 3rd time, "Fan/M" (HC1500/HC2000/HC2050) or "Auto/M" (HC2200) lights on, press “” to set the Minutes from 00--59 (01=1 Minute, 02=2 Minute etc.)

This is open time

HOUR Press “” button 4th time, "II/H" (HC1500/HC2000/HC2050) or "24h/H" (HC2200) lights on, press “” to set the Hours from 01--00 (01=1 o'clock,02=2 o'clock...00=24 o'clock)

MINUTE Press "button 5th time,"Fan/M" (HC1500/HC2000/HC2050) or "Auto/M" (HC2200) lights on, press "to set the Minutes from 00--59 (01=1 Minute, 02=2 Minute etc.)

This is close time

The above settings are finised for Monday Timer.

1. Press “” button once more, "I/W" (HC1500/HC2000/HC2050) or "W-Timer/W" (HC2200) lights on, "2" means "Tuesday". Please note that the setting for open time HOUR/MINUTE and close time HOUR/MINUTE are the same as for Monday.

2. When 1-7 (1=Monday, 2=Tuesday...7=Sunday) settings are all set, press “button on remote control 7th times to set from Monday to Sunday’s temperature and press “” to select the temperature which you need, the temperature range is from 10 to 49.℃℃

PS: In Week timer function, when you set today's temperature, the thermostat function will start and function the same as in 4) THERMOSTAT INSTRUCTIONS.

You can set different open time, close time and temperature within the whole week.

WEEK TIMER FUNCTION (HC2100/HC2500/HC3100/3200)

1. Turn on the appliance in fan, warm, hot mode. This function only works through remote control.

2. Frist press “” button, then press “” buttons to select which model you want. This function have 6 models, P1-P5 is smart model where appliance have it's own schedule, check the details below:

Week	Mo Tu	We Th	Fr Sa Fr
Model
P1	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00
P2	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00
P3	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	OFF OFF
P4	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	18:00-07:00	OFF OFF
P5	OFF OFF	OFF OFF	OFF 00:00-			24:00	00:00-24:00

1. P6 is user-defined, press "” buttons to select P6 model:

WEEK Press "button 1 st time," lights on, means "Monday".

HOUR Press "Set" button 2^nd time, LED displays "00:00" twinkling, press "buttons to set the Hours from 01—00 (01=1 o'clock, 02=2 o'clock...00=24 o'clock)

MINUTE Press "Set" button 3^rd time, LED displays "00:00" twinkling, press "−⊕ buttons to set the minutes from 00—59 (01=1 Minute, 02=2 Minute etc.)

With the “ON” light on, it means open time.

HOUR Press "Set" button 4^th time, LED displays "00:00" twinkling, press "buttons to set the Hours from 01—00 (01=1 o'clock, 02=2 o'clock...00=24 o'clock)

MINUTE Press "Set" button 5^th time, LED displays "00:00" twinkling, press "buttons to set the minutes from 00—59 (01=1 Minute, 02=2 Minute etc.)

With the “ ^9 FF” light on, it means close time.

The above settings are finised for Monday Timer.

1. Press “” button once more, ” lights on, means Tuesday”. Please note that the operations with open time HOUR/MINUTE and close time HOUR/MINUTE are the same as for Monday.
2. When Monday-Sunday timers are all set, press “Delay” button on remote control 7 ^th times to set from Monday to Sunday’s temperature and press “” buttons to select the temperature which you need, the temperature range is 10°C to 49°C

PS: In Week timer function, when you set today's temperature, the thermostat function will start with the rules same as 4) THERMOSTAT INSTRUCTIONS.

You can set different open/close time and temperature within the whole week.

6) WINDOW OPEN FUNCTION

1. Turn on the appliance in fan, warm, hot mode. This function only works through remote control.

2. Press “AUTO” button, the “AUTO” (HC1500/HC2000/HC2050) or “” (HC2100/HC2500/HC3100/3200) “Auto/M” (HC2200) light is on. The appliance is working as smart saving energy models. (In this function, the appliance is checking and recording environment temperature. It will stop working, when the temperature drops 3 . The user ≥°C should restart the appliance with “ON/OFF” button)

3. Press “AUTO” button again, the “AUTO” (HC1500/HC2000/HC2050) or “ ” (HC2100/HC2500/HC3100/3200) light is off. Window Open Function is off.

7) DELAY FUNCTION (HC1500/HC2000/HC2100/HC2500/HC3100/3200)

1. This function can be used in when:

- the appliance is in the standby state.

- before the appliance working.

- this function only works through remote control.

1. Press “” button, the LED light is on display, then press “” button one time, the “Delay” light and “I/W” light are on. Press “” to set the Hours from 01-24 (01=1 o’clock, 24=24 o’clock...00=off) This is open time

2. Press “” button again, the “Delay” light and “II/H” light are on. Press “” to set the Hours from 01--24 (01=1 o'clock, 24=24 o'clock...00=off) This is close time

PS: Press "button", screen shows number that will twinkle for 5 seconds, you should operate in this time, otherwise appliance will get back to standby. (This function is one-time and must be reset after the power is cut off.)

8) CHILD-LOCK FUNCTION

1. This function works only through remote control. When appliance is plugged in, this function can be used in any mode.

2. Press "button one time, all lights and LED display are closed, only "Power" light is on. In this condition, both control panel and remote control are inactive.

3. Press "button again, all lights are on and control panel and remote control are active.

CONTROL PANEL

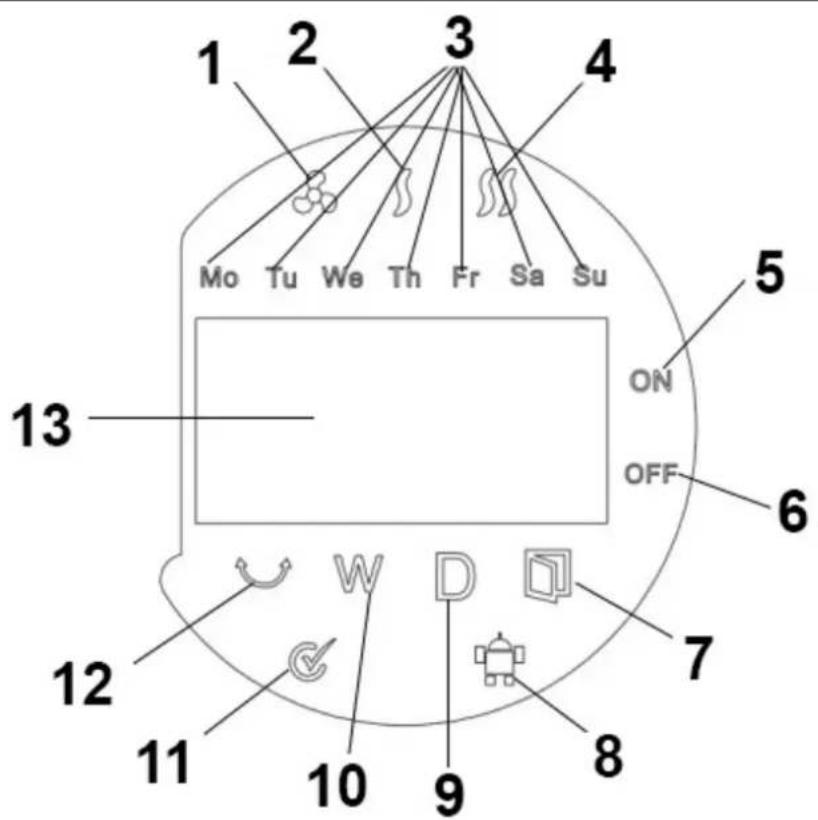

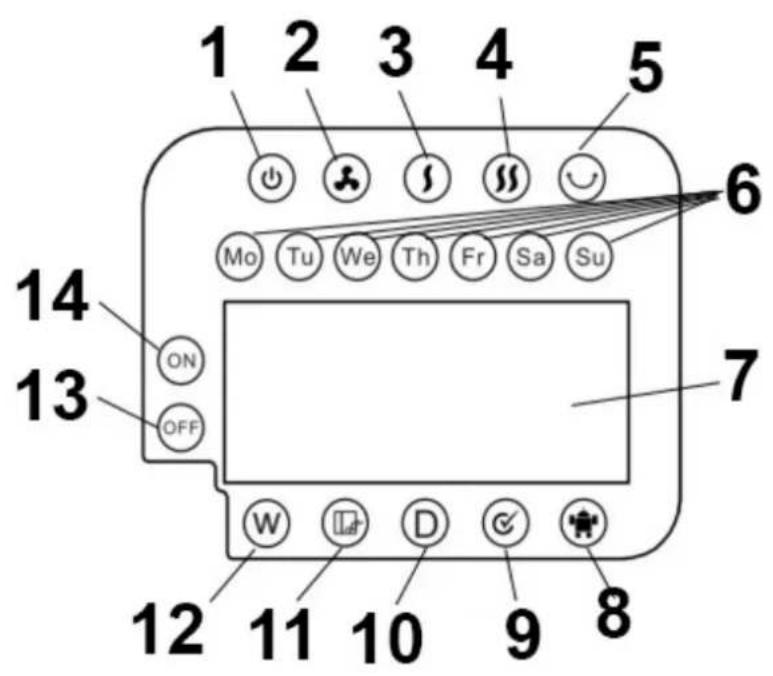

HC1500/HC2000/HC2050:

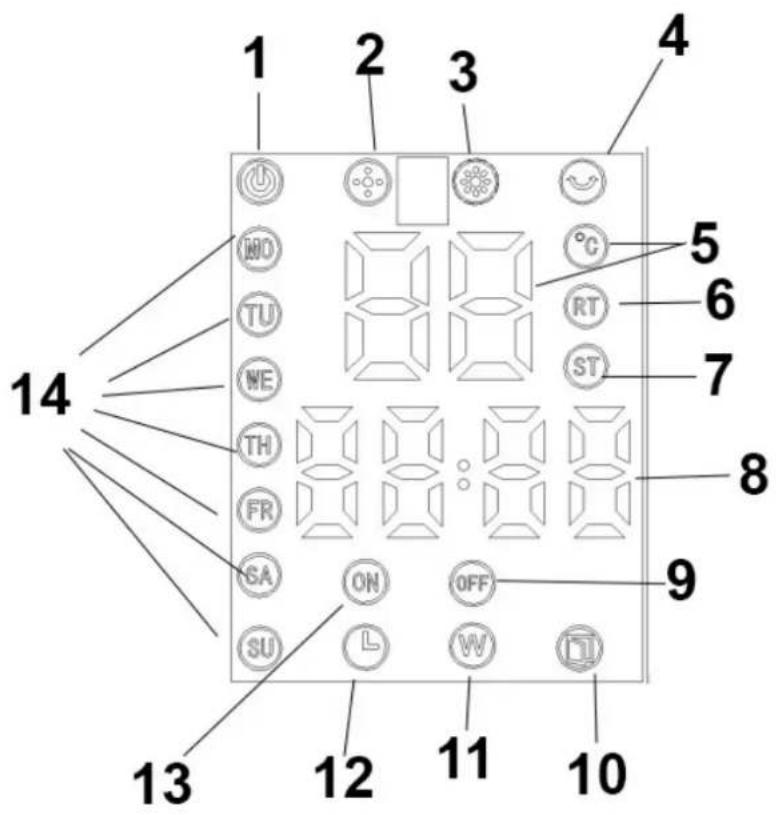

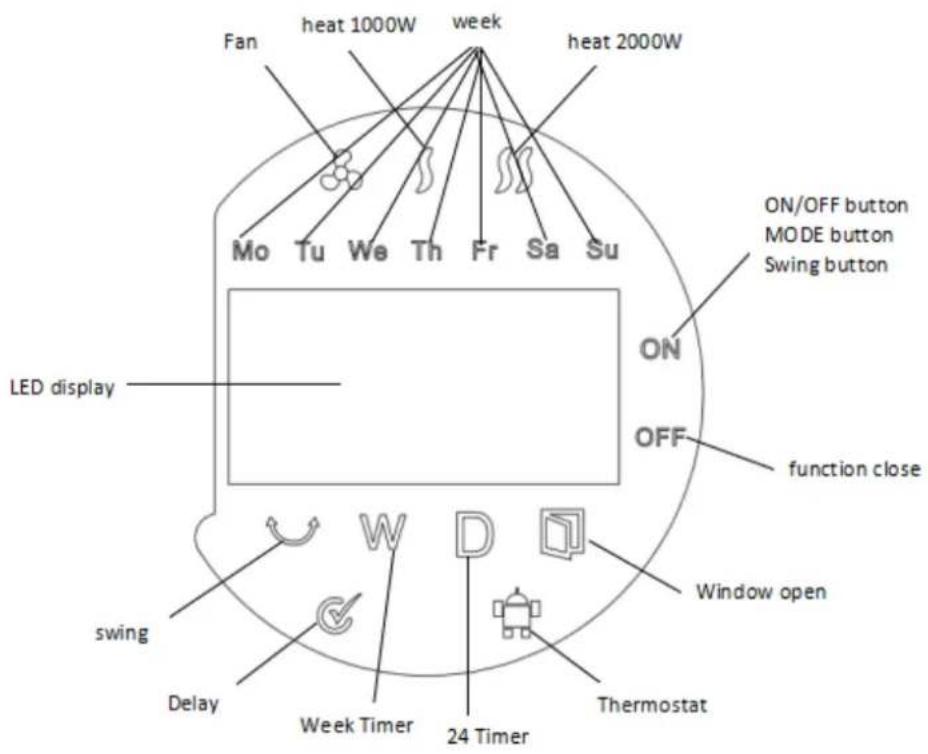

HC2100:

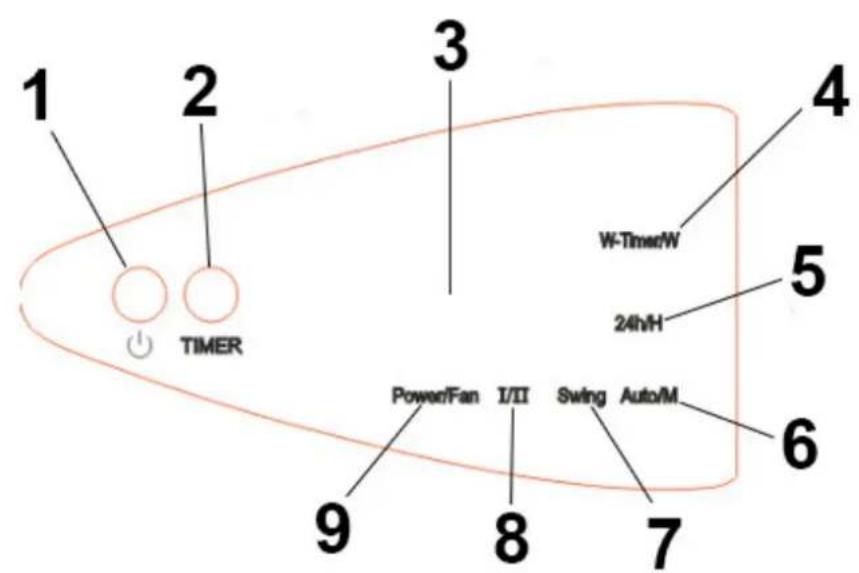

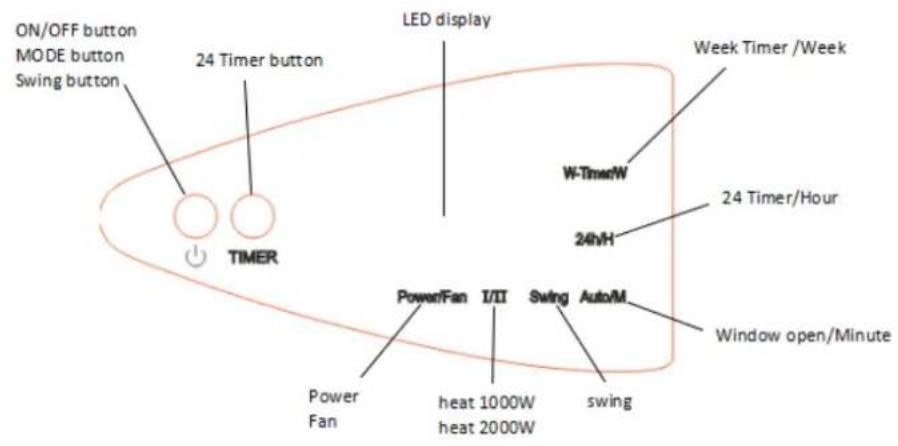

HC2200:

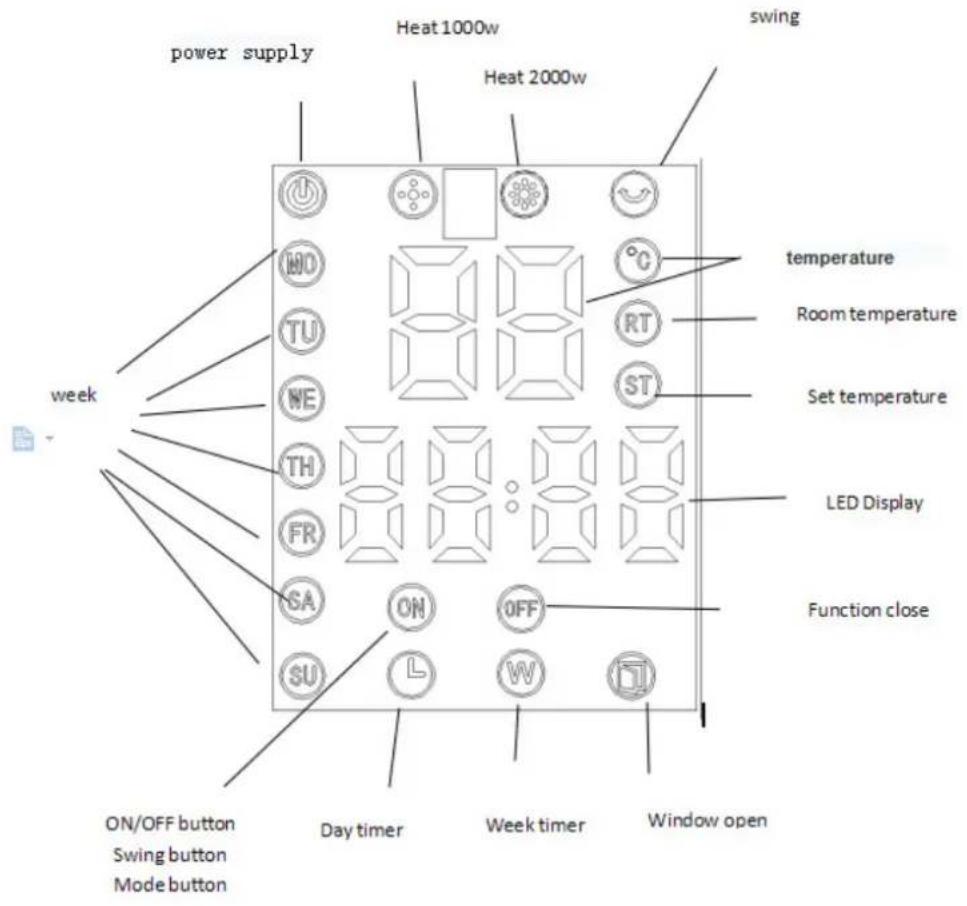

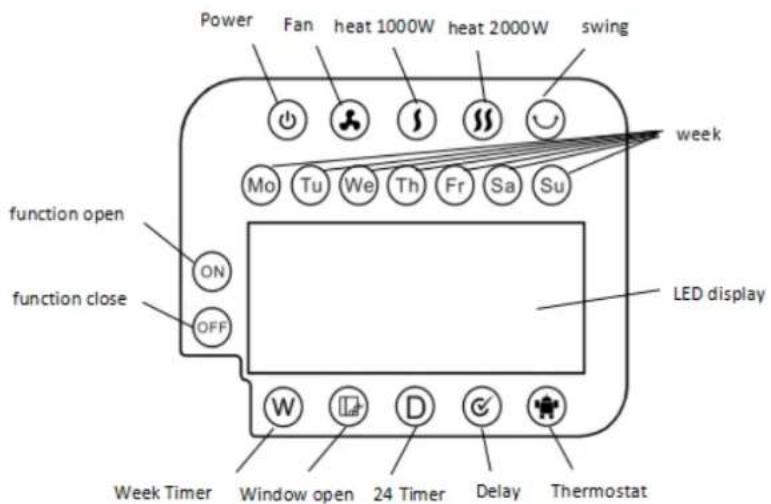

HC2500:

HC3100/3200:

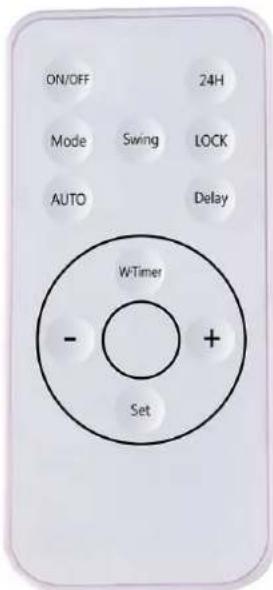

REMOTE CONTROL HC1500/HC2000/HC2050

Remote control works with Lithium battery CR2025 3V.

1. "ON/OFF" Main power button
2. "24H" Setting timer from 1-24 hours
3. "MODE" 3 settings selection: COLD, WARM, HOT
4. "LOCK" Child-Lock function for heater
5. "AUTO" Window Open Function
6. "Delay" Set the open and closed time of heater
7. "W.Timer" Set the timer for one week
8. “+” Increase temperature
9. “-” Decrease temperature
10. "Set" Set real time

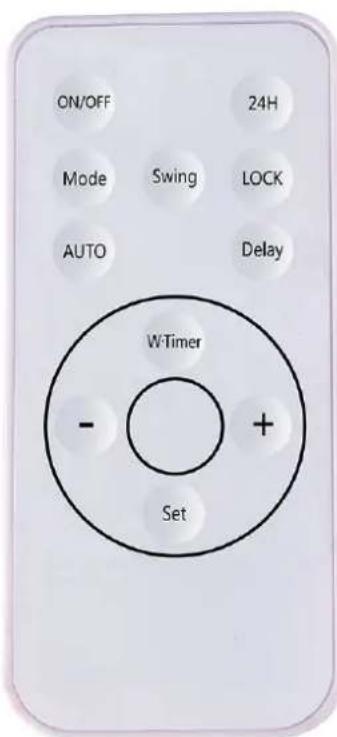

REMOTE CONTROL HC2100

Remote control works with Lithium battery CR2025 3V.

1. "ON/OFF" Main power button
2. “24H” Setting timer from 1-24 hours
3. "MODE" 3 settings selection: COLD, WARM, HOT
4. "Swing" Louver swing up and down
5. "LOCK" Child-Lock function for heater
6. "AUTO" Window Open Function
7. "Tem." Display room temperature
8. "Delay" Set the open and close time of heater
9. "W.Timer" Set the timer of one week
10. “+” Increase temperature
11. “-” Decrease temperature
12. "Set" Set real time

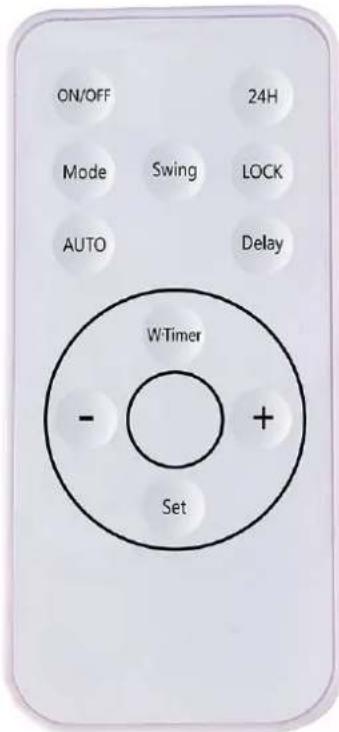

REMOTE CONTROL HC2200

Remote control works with Lithium battery CR2025 3V.

1. "ON/OFF" Main power button
2. “24H” Setting timer from 1-24 hours
3. "MODE" 3 settings selection: COLD, WARM, HOT
4. "Swing" Louver swing up and down
5. "LOCK" Child-Lock function for heater
6. "AUTO" Window Open Function
7. "Delay" Set week temperature
8. "W.Timer" Set the timer of one week
9. “+” Increase temperature
10. “-” Decrease temperature
11. "Set" Set real time

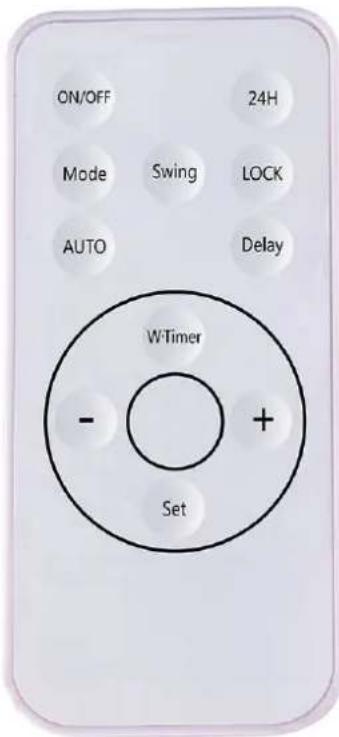

REMOTE CONTROL HC2500

Remote control works with Lithium battery CR2025 3V.

1. "ON/OFF" Main power button
2. “24H” Setting timer from 1-24 hours
3. "MODE" 3 settings selection: COLD, WARM, HOT
4. "Swing" Louver swing up and down
5. "LOCK" Child-Lock function for heater
6. "AUTO" Window Open Function
7. "Tem." Display room temperature
8. "Delay" Set the open and close time of heater
9. "W.Timer" Set the timer of one week
10. “+” Increase temperature
11. “-” Decrease temperature
12. "Set" Set real time

REMOTE CONTROL HC3100/3200

Remote control works with Lithium battery CR2025 3V.

1. "ON/OFF" Main power button
2. “24H” Setting timer from 1-24 hours
3. "MODE" 3 settings selection: COLD, WARM, HOT
4. "Swing" Louver swing up and down
5. "LOCK" Child-Lock function for heater
6. "AUTO" Window Open Function
7. "Delay" Set the open and close time of heater
8. "W.Timer" Set the timer of one week
9. “+” Increase temperature
10. “-” Decrease temperature
11. "Set" Set real time

OVERHEAT PROTECTION

The heater is protected with an overheat protector that switches off the heater automatically in case of overheat. e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 30 minutes for it to cool and remove the object which is obstructing the grids. Then switch it back on as described above.

NOTE: After switching off, the fan runs for about 30 seconds to cool down the appliance.

CLEANING AND MAINTENANCE

1. If you don't use the heater for a long time, please wipe the surface and put it into the box. Lay the carton on the ventilated and dry place.
2. Wait for the machine being cool and pull out the plug, then clean it. Wipe it clean with wet washcloth or cleaner. Never directly wash with water; do not drop the water into the machine. Never clean it with acids, chemical thinner, gasoline, benzene etc.
3. Before use it again, please check it and make sure the outlet ventilation have no any sundries.

TECHNICAL SPECIFICATION

Power: 2000 W

Voltage: 220-240 V \~ 50 Hz (HC1500/HC2000) / 220-240 V \~ 50/60 Hz (HC2100/HC2200) Remote control

Remote control works with Lithium battery CR2025 3V.

Remote control works with Lithium battery CR2025 3V.

Remote control works with Lithium battery CR2025 3V.

Diagram showing a container with granular material and a circular arrow pointing to it (no text or symbols)

Diagram of a hexagonal grid structure with a vertical rod and curved arrow, no text or symbols present

INSTRUCCIONES DE USO

Diagram showing a hexagonal grid pattern with a small circular arrow pointing to it, no text or symbols present.

Diagram of a rectangular structure with a hexagonal pattern and a curved line, no text or symbols present.

ΧΡΗΣΗ ΤΗΣ ΣΥΣΚΕΥΗΣ

Diagram of a microstructure with hexagonal cells and a directional arrow, no text or symbols present

Diagram of a hexagonal grid structure with a vertical bar and arrow, no text or symbols present

NÁVOD NA OBSLUHU
