Product Type	Wall-mount control module
Brand	Extron
Model	CPM 103
Recommended Junction Box	Raco 4S (3-1/2" deep) or equivalent
Compatible Plaster Rings	Raco 4S 1-gang or 2-gang, 5/8" or 1/2" raised
Mounting Orientation	Horizontal or vertical
Depth Requirement	Check product specification; typically 1.5" to 2.5"
Power Supply	12V DC, 1A (typical)
Input Connections	HDMI, USB, or proprietary (varies by configuration)
Output Connections	HDMI, audio, control signals
Control Interface	RS-232, IR, Ethernet
Operating Temperature	32 to 122°F (0 to 50°C)
Dimensions (approx.)	4.0" x 2.0" x 1.5" (101 x 50 x 38 mm)
Weight	0.5 lb (0.23 kg)
Compliance	UL, CE, FCC Class A
Included Accessories	Mounting bracket, screws, quick start guide
Maintenance	Wipe with dry cloth; avoid liquids
Safety Notes	Install in accordance with local electrical codes
Spare Parts	Contact Extron support for replacement brackets or faceplates
Repairability	Field-replaceable modules; refer to service manual

Frequently Asked Questions - CPM 103 Extron

What type of junction box is recommended for the Extron CPM 103?

A Raco 4S junction box, 3-1/2" deep (part number 256) or equivalent is recommended for most Extron products, including the CPM 103. For shallow installations, a 2-1/8" deep box or Extron JB 125/225 boxes may be used.

Can the CPM 103 be mounted directly to a junction box?

No, the product requires a plaster ring. The Raco 4S junction box must use an appropriate plaster ring before mounting the device.

What plaster ring sizes are compatible with the CPM 103?

Compatible plaster rings include Raco 4S 1-gang or 2-gang rings with 5/8" or 1/2" raised heights, depending on wall thickness.

What is the depth requirement for installing the CPM 103?

The total depth requirement varies by product. Check the specification for the CPM 103 to ensure the junction box and plaster ring provide sufficient depth. A 3-1/2" deep box is typically recommended.

Can the CPM 103 be installed horizontally or vertically?

Yes, the device can be mounted either horizontally or vertically, depending on the junction box and plaster ring orientation as shown in the manual.

What type of faceplate does the CPM 103 use?

The CPM 103 typically uses a decorator-style faceplate, which is included or available separately.

Where can I find the full installation instructions for the CPM 103?

Refer to www.extron.com for detailed installation instructions for Extron JB Series junction boxes and MR Series mud rings, as well as the product-specific manual.

What safety guidelines should I follow when installing the CPM 103?

Always follow local electrical codes. See the Extron Safety and Regulatory Compliance Guide on the Extron website for information on safety, EMI/EMF, and accessibility.

The CPM 103 is not powering on. What should I check?

Ensure the power supply is correctly connected and provides 12V DC. Check that the device is properly seated in the mounting bracket and that all cables are secure. If issues persist, consult the troubleshooting section of the manual.

How do I clean and maintain the CPM 103?

Wipe the exterior with a soft, dry cloth. Do not use liquids or abrasive cleaners. Keep ventilation openings clear of dust.

USER MANUAL CPM 103 Extron

Recommended Junction Boxes for In-wall Installation of Extron Products

This reference guide lists US-standard junction boxes and plaster rings that can be used to mount Extron products within a wall.

ATTENTION:

Check the specification of each product to verify the total depth requirement for installation.

Raco 4S junction box, 3-1/2" deep (part number 256) or equivalent	Recommended for most Extron products. Ensure this box fits inside the wall cavity.
Raco 4S junction box, 2-1/8" deep (part number 232)Extron JB 125/225 boxes or equivalent	Recommended for shallow products only and where there is in-wall space limitations.
Extron MR Series mud rings Ideal for retrofit applications and	where building code allows.

Refer to www.extron.com for installation instructions of Extron JB Series junction boxes and Extron MR Series mud rings.

Plaster Rings for Raco 4S Junction Boxes

The recommended Raco 4S junction boxes must use a plaster ring that is appropriate for the drywall thickness and width of product being installed. The product cannot mount directly to the Raco 4S junction box without the plaster ring.

Raco 4S plaster ring, 1-gang, 5/8" raised (part# 768) or equivalent	Use with 5/8" wall thicknesses
Raco 4S plaster ring, 2-gang, 5/8" raised (part# 769) or equivalent	Use with 5/8" wall thicknesses
Raco 4S plaster ring, 1-gang, 1/2" raised (part# 772) or equivalent	Use with 1/2" wall thicknesses
Raco 4S plaster ring, 2-gang, 1/2" raised (part# 778) or equivalent	Use with 1/2" wall thicknesses

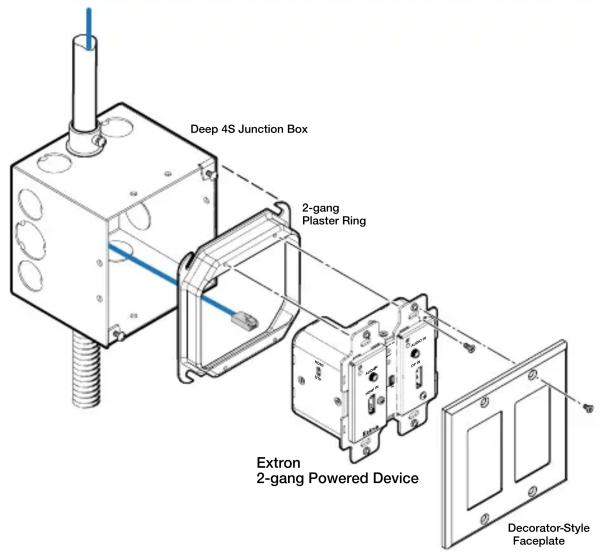

Figure 1. Mounting Vertically into Junction Box and 2-gang Plaster Ring

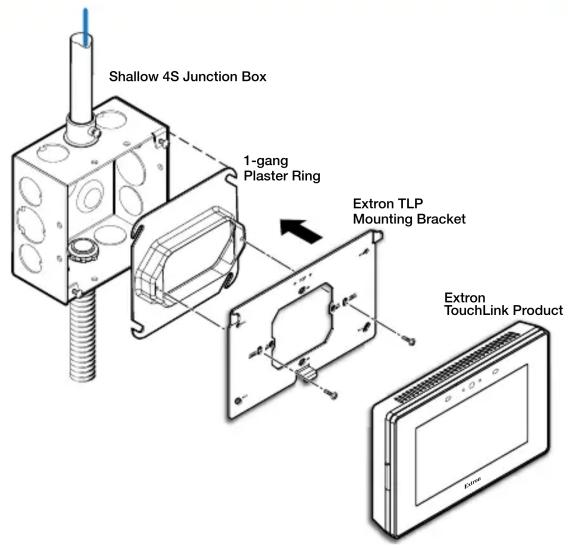

Figure 2. Mounting Horizontally to Junction Box and 1-gang Plaster Ring

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
