USER MANUAL FZD 5012-E Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Exterior view of a modern office building (no signage)

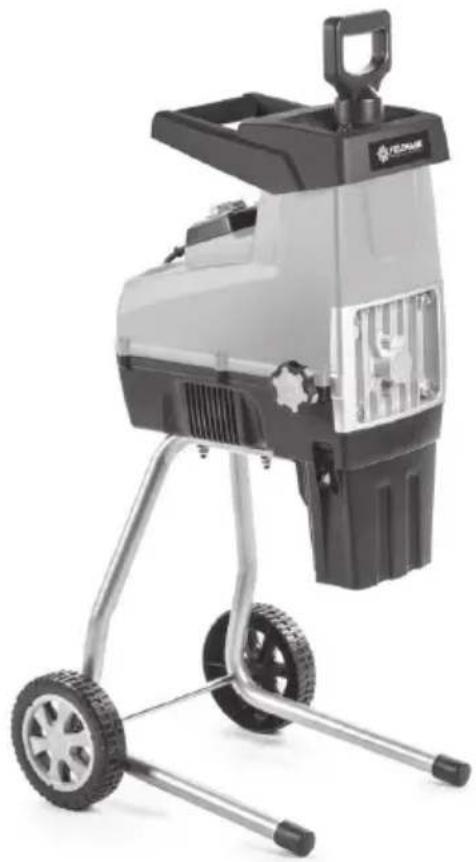

FZD 5012-E

English 3-18

Češina....19-34

Slovenština 35–50

Magyarul....51-66

Polski 67-82

Garden Shredder

USER MANUAL

Dear customer, thank you very much for your trust!

Before putting this machine into operation, it is imperative to read this user's manual! In it, you will find all the instructions for normal operation and for achieving a long lifetime of the machine. It is imperative to adhere to all safety instructions contained in this user's manual.

TABLE OF CONTENTS

1. GENERAL SAFETY REGULATIONS ....4
   Important safety notice....4
   Packaging 4
   User Manual....4
2. SYMBOLS....5
3. BEFORE YOU BEGIN....6
   Operation within the scope of intended use 6
4. FOR YOUR SAFETY....6
   General safety instructions ....6
   Electrical Safety....7
   Maintenance 7
   Notifications specific to this machine....7
5. DESCRIPTION OF THE POWER TOOL....9
6. ASSEMBLING THE SHREDDER....10
7. OPERATING THE SHREDDER....11
   Turning the shredder on and off (Fig. 6)....11
   Forward / reverse rotation switch (Fig. 6, point 3)....11
   Overload protection....12
8. SETTING UP AND WORKING WITH THE SHREDDER....13
   Setting the counter-blade distance....13
   Before turning on....13
   Material that the shredder can process....13
9. OPERATION 14
10. MAINTENANCE....14
11. TROUBLESHOOTING....15
12. TECHNICAL SPECIFICATIONS....16
13. DISPOSAL....16
14. DECLARATION OF CONFORMITY....17

1. GENERAL SAFETY REGULATIONS

IMPORTANT SAFETY NOTICE

* Unpack the product carefully and do not throw away any of the packaging until you have found all the parts of the product.
Store the product in a dry place out of reach of children.
Read all the warnings and instructions. Failure to comply with the warnings and instructions may lead to electric shock, fire and/or serious injuries.

PACKAGING

The product's packaging prevents damage during transport. This packaging is a resource and can be recycled.

USER MANUAL

Before starting to work with the machine, please read the following safety regulations and instructions for use. Get familiar with the controls and correct use of the equipment. Keep the user's manual in a safe place for easy future reference. Save the original packaging, including the internal packing material, guarantee card and proof of purchase receipt for at least the time of the guarantee. If you need to transport this power tool, pack it in the original cardboard box for maximum protection during shipping or transport (e.g. when moving or when you need to send this power tool to a service centre for repair).

Note: If you hand over the appliance to somebody else, do so together with this user's manual. Make sure you use the appliance properly by following the instructions in the included User manual. The user's manual also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions.

2. SYMBOLS

Follow the safety instructions prior to putting into operation.

Prior to putting into operation, read the user's manual and adhere to it.

Danger of amputation.

Do not reach into the funnel.

Risk from deflected objects.

Maintain a safe distance from bystanders.

If the cable is damaged or interrupted, immediately disconnect the plug from the mains.

Machine noise level.

ATTENTION: Do not use the shredder in humid or rainy weather and protect it against moisture.

Wait for all parts of the shredder to come to a stop.

Personal protective work aids

Use hearing protection and wear safety glasses when working with the machine.

Use solid footwear when working with the machine.

Use safety gloves when working with the machine.

Use close-fitting work clothes when working with the machine.

3. BEFORE YOU BEGIN...

OPERATION WITHIN THE SCOPE OF INTENDED USE

it complies with the state of science and technology and safety provisions in force at the time that it is put into operation within the scope of its intended use. The machine is intended for shredding fibrous and woody organic household and garden material. It cannot be filled with rocks, glass, metals, bones, plastic or textile waste materials.
it is not designed for professional use. Any other use is in contradiction with the designated purpose. Operation in contradiction with the determined intended use, modifications made to the machine or the use of parts that were not pre-tested and approved by the manufacturer, may result in unforeseeable damage! All inappropriate use or any activities not described in this user's manual performed with the machine are considered to constitute prohibited misuse that is beyond the legal boundaries for the warranty of the manufacturer.

4. FOR YOUR SAFETY

GENERAL SAFETY INSTRUCTIONS

For the safe operation of this machine, its users must read this user's manual and understand it before first use.
Respect all safety instructions! If you do not adhere to the safety instructions, you are endangering yourself and others.
* Carefully store all user's manuals and safety instructions for future reference.
If you sell or hand the machine over to somebody, unconditionally also hand over this user's manual.
The machine must only be used when it is free of defects. If the machine or its part is damaged, it must be repaired by a professional.
Do not use the machine in places where there is a risk of explosion or in the vicinity of flammable fluids or gasses!
* Always secure a turned off machine against it being turned on accidentally.
Do not use a machine on which its On/Off switch does not work.
* Prevent children access to the machine! Store the machine so that it is secured against children and unauthorised persons.
Do not overload the machine. Only use the machine for the purposes for which it was designed.
* Always use the required protective safety equipment.
* Always work very carefully and be in good physical condition: Working when tired or ill, after consuming alcohol, under the influence of medication or narcotics is dangerous because you cannot operate the machine safely.
Do not use a heating element with a timer switch or another type of switch that automatically switches on the machine, this would represent a fire hazard.
Take steps to ensure that children do not play with the product.
* Always adhere to valid national and international safety, health and work regulations.

ELECTRICAL SAFETY

The machine may only be connected to a power socket with a properly installed protective contact.
The machine must be protected by a residual current device (FI switch) with a rated false current not exceeding 30 mA.
* Prior to connecting the machine it is necessary to ensure that the mains connection corresponds to the values for the connection of the machine.
The machine may only be used within the indicated current, power and speed limits (see rating label).
Do not touch the power plug with wet hands! Always pull the plug holding the connector, not the cable.
Do not bend, crimp, clamp, pull or drive over the power cord; protect it against sharp edges, oil and heat.
Do not lift the machine by the power cord and do not use the power cord for any other purposes.
* Prior to every use, inspect the plug and power cord.
In the event that the power cord is damaged, immediately unplug the plug. Do not use a machine with a damaged power cord.
If the machine is not being used, the power plug must always be unplugged.
- Ensure that the machine is turned off before plugging in the power plug.
* Always turn off the machine before unplugging the power plug.
Make sure there is not current in the machine before transporting it.

MAINTENANCE

* Pull the power plug out of the power socket before performing any type of work on the machine.
Only the maintenance and troubleshooting described in this user's manual may be performed. All other work must be performed by a professional.
Use only original spare parts. Only these spare parts are designed for the machine and appropriate. Other spare parts will not only result in the warranty becoming void but may also endanger you and your surroundings.

NOTIFICATIONS SPECIFIC TO THIS MACHINE

Do not reach into the filling funnel or the ejection chute while it is running. The machine continues to run down for approx. 5 seconds after it is turned off.
The machine must be assembled according to the instructions before it is turned on.
* Check that all screws, bolts, nuts and other fastening components are firmly tightened and that protective elements are properly installed before turning it on.
When working with the machine, make sure to maintain a stable and natural stance.
Work only under good light and visibility conditions.
The operator's clothing must be tight-fitting. Loose clothing must be eliminated. Wear solid footwear and long work pants.
Only use the machine outdoors on a firm even surface.
Leave sufficient free space around the machine when using it. Do not stand the machine close to a wall.
Do not lift, tilt or transport the machine when it is running.
Before starting the machine, check that the insertion funnel is empty.
* Never leave a running machine without supervision.
Make sure that no foreign objects enter the machine when it is running, e.g. rocks, glass, metal, soil, plastic, etc. The could damage the motor and the cutting roller.

If foreign objects enter the cutting mechanism or the machine makes unusual noises or vibrates unusually, immediately stop the motor and allow the machine to come to a complete stop.
* Never use the machine without the inserting funnel.
If the shredder becomes clogged, first turn the machine off and pull the plug out of the socket and wait for the machine to come to a complete stop before removing the clogged material. Keep the On/Off switch clean and free of foreign objects.
* Never attempt to hold or remove shredded material while the cutting roller is in motion.
Remove clogged shredded material only when the machine is turned off.
* Prevent direct contact with the rotating cutting roller. Keep hands and feet away from the openings when the machine is running.
Do not insert your hands or other body parts or clothing into the filling chamber, ejection chute or in the vicinity of other moving parts.
* Always remove shredded material from the ejection zone before it accumulates. This will prevent the shredder from clogging and prevent the shredded material from entering the filling funnel by recoil and causing injuries.
* No other persons or animals may stand within the radius of 3 m around the work area as they could be injured by deflected objects.
Do not use the machine on a tiled or concrete floor. The shredded material could deflect and cause injury.
The symbols found on your machine must not be removed or covered over. Notifications on the machine that are no longer legible must be replaced with new ones without delay.

5. DESCRIPTION OF THE POWER TOOL

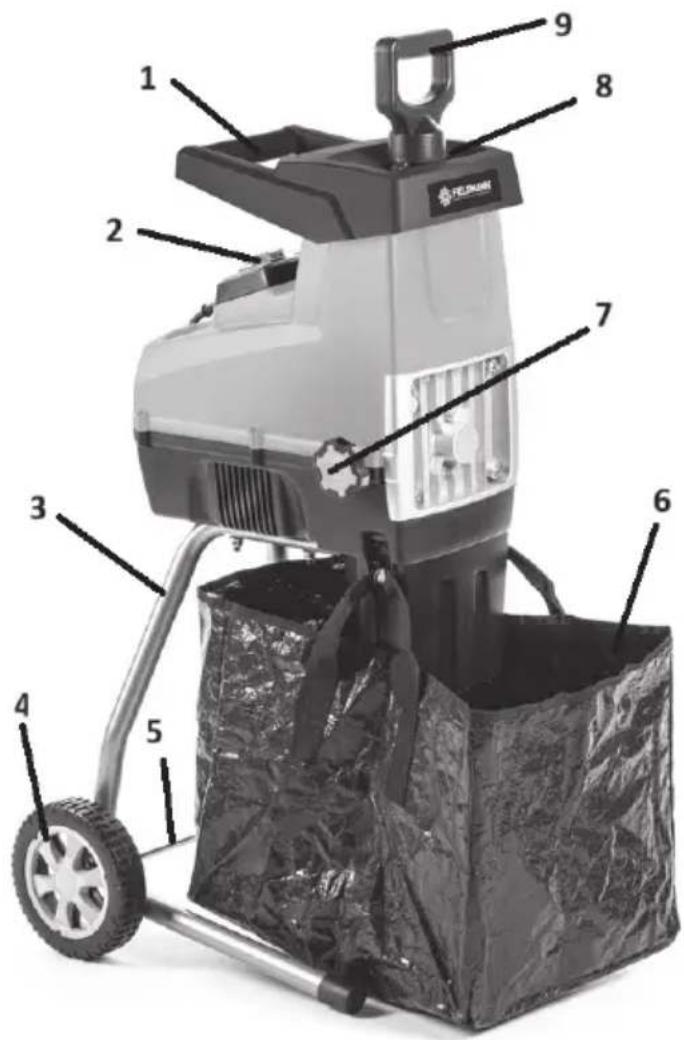

Description of the machine (see Fig. 1)

1. Handle
2. Control panel
3. Frame
4. Wheel with lid
5. Wheel axle
6. Collection bag
7. Cutting adjustment screw
8. Filling funnel
9. Stamper

Fig. 1

6. ASSEMBLING THE SHREDDER

ATTENTION: Prior to performing any work on the machine, check that it is turned off and disconnected from the power supply.

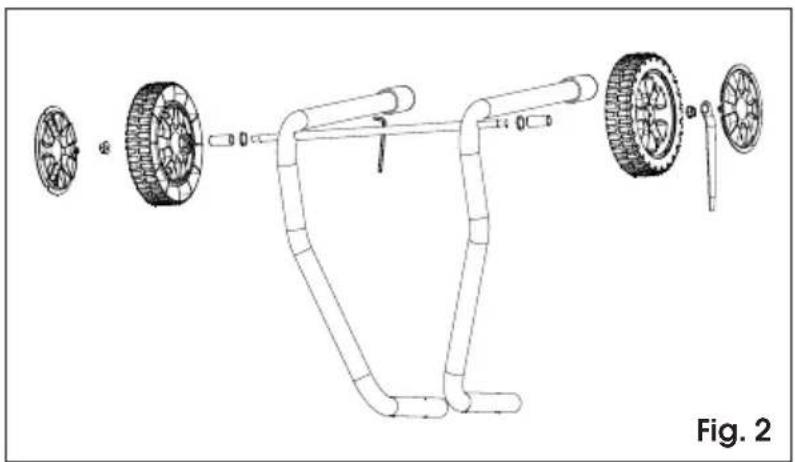

1. Mounting the wheels on the shredder structure (Fig. 2):

— Push the wheel axle through the holes in the frame.
— Put a washer and a wheel bushing on each side of the axle.
— Put on the wheel and secure in place using a nut.
— Insert a hex key through the opening in the wheel's axle and tighten the wheel nut.

— Finally put on the wheel cover.

— Repeat this procedure for both wheels.

Diagram of a mechanical assembly with wheels and a handle, labeled as Fig. 2 (no text or symbols on the diagram itself)

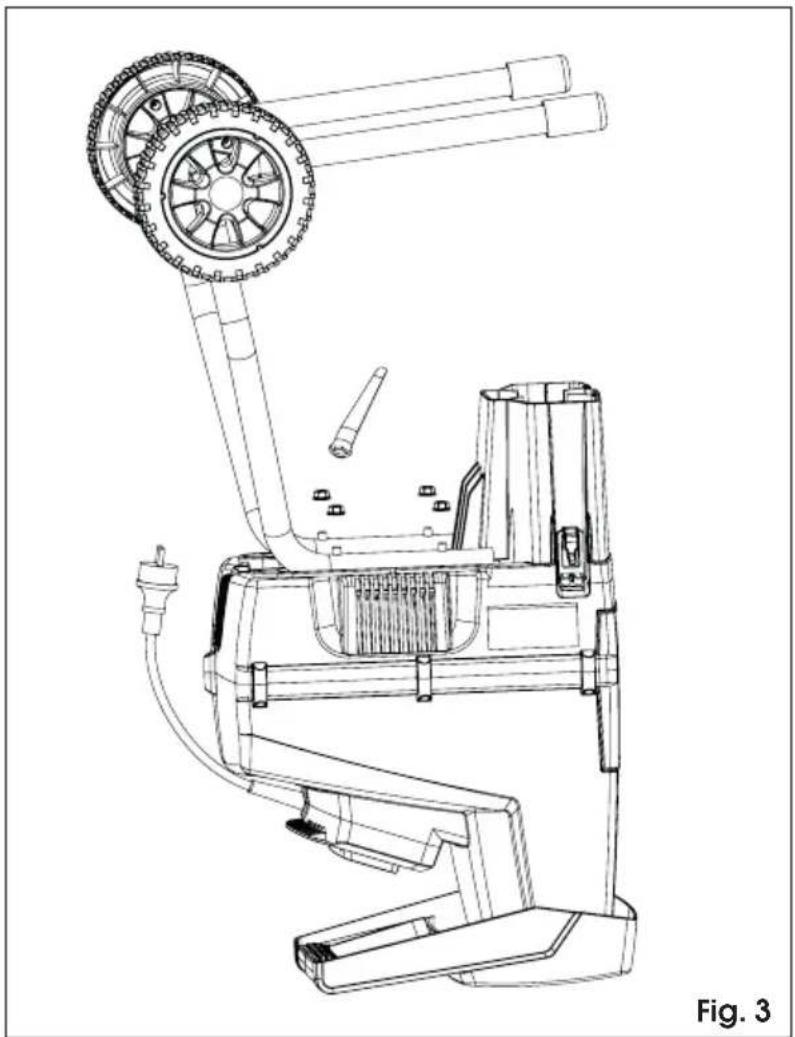

1. Turn the shredder unit upside down and place it on an even floor. Then take the already assembled structure with the mounted wheels (point 1) and fix it to the shredder body using the nuts provided (Fig. 3)

Technical line drawing of a mechanical device with gears and shafts, labeled as Fig. 3 (no text or symbols on the diagram itself)

WARNING: Before connecting the machine to a power source, always check that the switch is turned off. Connecting the machine with the switch in the on position may cause it to turn on unexpectedly and result in a serious injury.

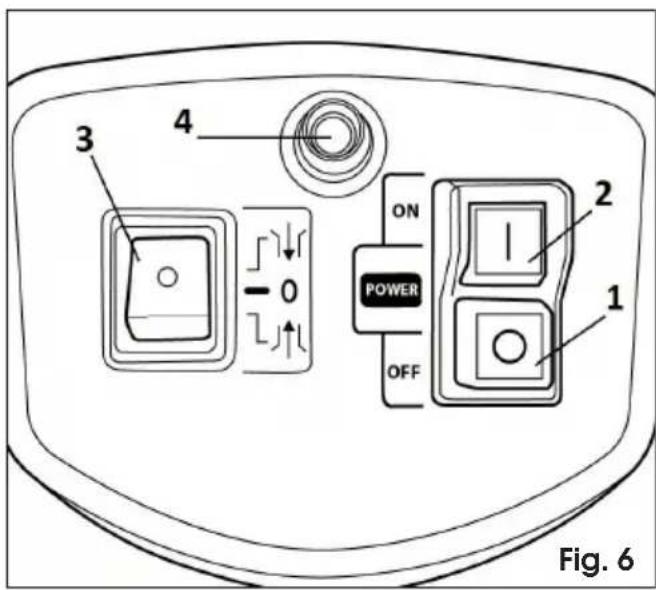

TURNING THE SHREDDER ON AND OFF (FIG. 6)

ATTENTION: If it is not possible to turn the switch on the machine on and off, do not work with the machine. Have faulty switches replaced at an authorised service centre.

To turn on the shredder, press the button with the "I" symbol. Fig. 6., point 2

To turn off the shredder, press the button with the "0" symbol. Fig. 6., point 1

ATTENTION: In the event of a power outage, the machine will turn off automatically. To turn on the shredder again, press the button with the "I" symbol.

FORWARD / REVERSE ROTATION SWITCH (FIG. 6, POINT 3)

ATTENTION: Turn the shredder off before switching the forward / reverse rotation.

Forward position

* Standard operation of the shredder. The cutting roller rotates forwards.

Reverse position

The cutting roller rotates in the opposite direction for the purpose of releasing jammed material.

* To change to the reverse rotation direction it is necessary to intermittently press the button with the "l" symbol so that the roller rotates. The roller will stop automatically when the button is released.

Note: To shred large branches it may be necessary to repeat the forward and reverse procedure several times. Prior to changing the rotation direction again, always wait until the shredder comes to a complete stop.

OVERLOAD PROTECTION

The shredder is equipped with overload protection (Fig. 6, point 4)
In the event of an overload, the motor protection will automatically disconnect the electrical circuit.

* To renew functionality, proceed as follows:

1. Turn off the machine so that it is without voltage.
2. Remove the material that clogged the shredder.
3. Allow the motor to cool down for at least five minutes!
4. Press the safety fuse button (Fig. 6, point 4).
5. Reconnect the electrical power supply.
6. Turn on the shredder.

ATTENTION: To prevent accidents, to remove jammed objects, always use a hook or a stick.

8. SETTING UP AND WORKING WITH THE SHREDDER

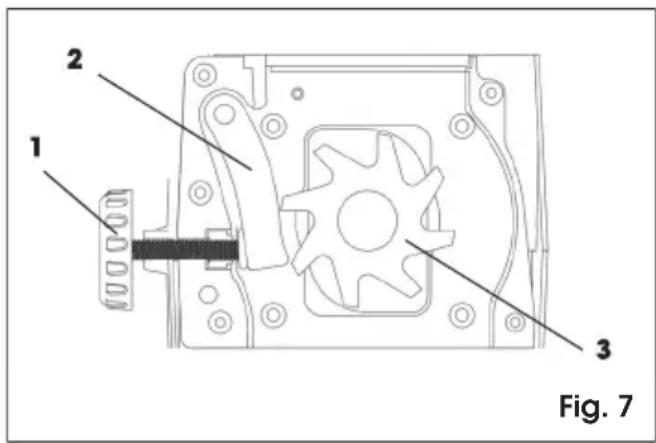

SETTING THE COUNTER-BLADE DISTANCE

For efficient operation it is necessary to set the distance between the counter-blade (Fig. 7, point 2) and the cutting roller (Fig. 7, point 3). The gap between the cutting roller and the counter-blade should be as small as possible.
A correct setting will enable the effective shredding of all branch diameters.

Distance setting:

Turn on the machine.
To pull the counter-blade towards the cutting roller, slowly turn the setting screw clockwise (Fig. 7, point 1). Keep turning the screw until fine aluminium fillings start falling out of the ejection chute.

Note: Soft material or wet branches may be torn instead of being cut. This problem may also be caused by the counter-blade, which wears out after frequent use.

BEFORE TURNING ON

Make sure that:

Power cords are not damaged. If there are slits or cracks on a power cord, stop work and replace it immediately.
The machine is not damaged and all the screws are pulled tight.
The machine is completely and correctly assembled.

Check the power supply:

Make sure that the supply voltage corresponds to the rated voltage on the rating label and that the machine is properly grounded.
* Only use extension cords that have wires with a sufficient cross-section.

MATERIAL THAT THE SHREDDER CAN PROCESS

The shredder can process the following types of materials:

All types of branches up to the maximum diameter specified in the technical specifications.
* Garden waste such as wilted plants or wet grass (shred alternatively with branches).

The shredder MUST NOT process the following types of materials:

Glass, metals, plastics, rocks, ceramics, branches thicker than specified in the technical specifications, hard wood, thick wooden boards, fabrics, plastic bags, roots with soil.
Wastes that are almost in liquid form, e.g. kitchen scraps.

9. OPERATION

Place the material into the funnel from the right side.
Shred branches immediately after they are cut. When they dry out, they may become very hard.
Remove all lateral shoots from the branches if it is not possible to insert them into the shredder.
Avoid too much shredded material from accumulating in the collection box. Regularly empty the box because accumulated shredded material may block the ejection chute.
Do not insert material that is larger than the maximum branch diameter specified in the technical specifications.
Shredding wet garden waste (fallen leaves) will result in clogging. To prevent clogging, alternate the waste with material containing wood.
* Soft materials or wet branches may be torn instead of being cut. This problem may also be caused by a worn out counter-blade.
Before cleaning out the ejection chute, turn off the motor and disconnect the machine from the power supply.

10. MAINTENANCE

CAUTION:

* Prior to inspecting or performing maintenance on the machine, check that it is turned off and disconnected from the power supply. Be careful, the cutting roller will not stop immediately after the machine is turned off, wait for all the parts to stop moving.
* Put on protective gloves before inspection or carrying out maintenance.
* Never use petrol, thinners, alcohol, etc. for cleaning. This could result in discolouration, deformation or cracking.
Only use a damp cloth and soft brush for cleaning the machine.
Do not use a hose or wash the machine with pressurised water.

After every work session, carry out the following maintenance:

* Check that all fastening screws and bolts are tightened (tighten them if necessary).

* Lubricate metal components to protect against corrosion.

* Maintain holes clean and free of dust.

The cutting roller and counter-blade wear out over time. If necessary, inform yourself about replacement at you nearest authorised service centre.

11. TROUBLESHOOTING

WARNING: Prior to troubleshooting, turn the machine off, disconnect it from the power supply and wait for it to come to a complete stop.

Problem Possible Cause	Solution
The motor will not start	No power supply Check the power supply.
	Faulty power cord	To check, inform yourself at an authorised service centre
	Fuse against overloading was activated	Wait until the machine cools down and press the fuse button.
The motor can be heard, but is not working	The cutting roller is blocked	Turn off the machine.
		Switch the forward/reverse switch to reverse rotation.
		Turn the machine on until the blockage is cleared.
		Again turn the machine off.
		Switch back to the forward rotation.
	Malfunction of a capacitor	Take the machine to an authorised service centre for repair.
The shredded material is not being pulled into the shredder	The reverse rotation direction is set.	Turn the machine off and switch the rotation direction using the switch.
	The shredded material is jammed in the filling funnel	Turn the machine off. Switch the forward/ reverse switch to reverse rotation. Turn on the machine to release the shredded material, remove undesired material.
		Turn the machine off again.
		Switch back to the forward rotation.
	The shredded material is too soft or wet	Push the material into the shredder
	Incorrectly set counter-blade / cutting roller	Set the counter-blade as described in "Setting up and working with the shredder".
		In the event that the cutting roller / counter-blade is heavily worn out, replace it.
The shredded material is not cleanly chopped up	The counter-blade is not set properly	Set the counter-blade as described in the previous paragraph
The machine turns on but is blocked even by a small load and is soon shut off by the motor protection switch.	The extension cord is too long or the cross-section of its wires is too small. The power socket is too far from the power source or the cross-section of the wires in the power cord is too small	Check that the wire cross-section of the extension cord is at least 1.5 mm2, and no longer than 25 m. If a longer power cord is used then the minimum wire cross-section is 2.5 mm2

12. TECHNICAL SPECIFICATIONS

Rated voltage 230–240 V /50 Hz	~
Rated power input 2800 W
Protection class II
Cover IPX4
Idling speed 60 RPM
Maximum branch diameter 44 mm
Capacity of the collection bag 60 l
Sound pressure level (LPA)* 70,3 dB(A)
Level of acoustic power (LWA)* 92 dB(A)
Weight 17.5 kg

13. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING MATERIAL

Dispose of used packaging material at the location designated by the municipality for waste disposal.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

The appliance and its accessories are manufactured from various materials, e.g. metal and plastic.

Take damaged parts to a recycling centre. Inquire at the relevant government department.

This product meets all the basic requirements of the applicable EU directives.

The text, design and technical specifications may be changed without prior notice and we reserve the right to make these changes.

User manual in the original language.

14. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Electric Shredder / FIELDMANN

Type / model: FZD 4014-E as factory model GY6701 AC 230-240V; 50Hz; 2800W (P40); Class II, IPX4 L_PA = 70,3 dB(A), L_WA = 92 dB(A)

Manufacturer: FAST ČR, a.s. U Sanitasu 1621, 251 01 Řičany, Czech Republic VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer. Person in charge of completing the technical documentation: FAST ČR, a.s.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU + (EU)2015/863

The relevant harmonized standards and the other technical specifications:

EN 60335-1:2012+A11+A13+A1+A14+A2+A15 EN IEC 55014-1:2021

EN 50434:2014 EN IEC 55014-2:2021 EN 62233:2008 EN IEC 61000-3-2:2019+A1

EN 61000-3-11:2019

Place of issuance: Ríčany

Date of issuance: 28.8.2024

Name: Miroslav Vácha

Responsible Person

Signature: FAST FAST CR, a.s. 87 U Sanitasu 1621, 251 01 Ríčany tel.: [phone] ICO: 247 77 749, DIO CZ 247 77 749
