Product Type	Built-in Dishwasher
Brand	Philco
Model	PD 1046 D TOW
Dimensions (W x H x D)	59.8 cm x 81.5 cm x 57.5 cm (adjustable height)
Weight	Approx. 48 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Efficiency Class	E (EU energy label)
Water Consumption per Cycle	9.5 L (approx.)
Noise Level	49 dB(A)
Number of Place Settings	10 (standard)
Wash Programs	Intensive, Eco, Normal, Quick, Rinse & Hold
Drying System	Condensation drying
Adjustable Upper Basket	Yes (height adjustable)
Cutlery Basket	Fold-down shelves
Salt and Rinse Aid Dispenser	Yes
Detergent Dispenser	Yes, with pre-wash compartment
Self-Cleaning Filter	Yes (manual cleaning required)
Overflow Protection	Yes (AquaStop)
Child Lock	Yes
Display Type	LED indicator lights
Installation Type	Under-counter built-in
Water Inlet Hose	1.5 m
Drain Hose	1.5 m
Power Cord Length	1.5 m
Spare Parts Availability	7 years (EU regulation)

Frequently Asked Questions - PD 1046 D TOW Philco

How do I install the built-in dishwasher?

Ensure the cutout dimensions match: 60 cm width, 82-86 cm height, 60 cm depth. Connect the water inlet to a cold water supply (3/4 inch thread), drain hose to a siphon, and plug into a grounded outlet. Level the appliance using adjustable feet. Secure with brackets to adjacent cabinets.

What wash programs are available on the PD 1046 D TOW?

The dishwasher offers five programs: Intensive for heavily soiled pots and pans, Eco for energy-efficient washing, Normal for mixed loads, Quick for lightly soiled dishes, and Rinse & Hold to prevent odors before a full wash.

How do I clean the filter?

Turn off and unplug the dishwasher. Remove the lower spray arm. Unscrew the coarse filter (cylinder) and fine filter (flat mesh). Rinse under running water with a soft brush. Reassemble in reverse order. Clean monthly to maintain performance.

Why is my dishwasher not draining?

Check if the drain hose is kinked or clogged. Clean the pump filter (located under the lower basket). Ensure the sink drain is not blocked. If the problem persists, the drain pump may be faulty.

Can I use regular dish soap instead of dishwasher detergent?

No, regular dish soap causes excessive suds and may damage the appliance. Always use dishwasher-specific detergent (powder, gel, or tablets) along with rinse aid for best results.

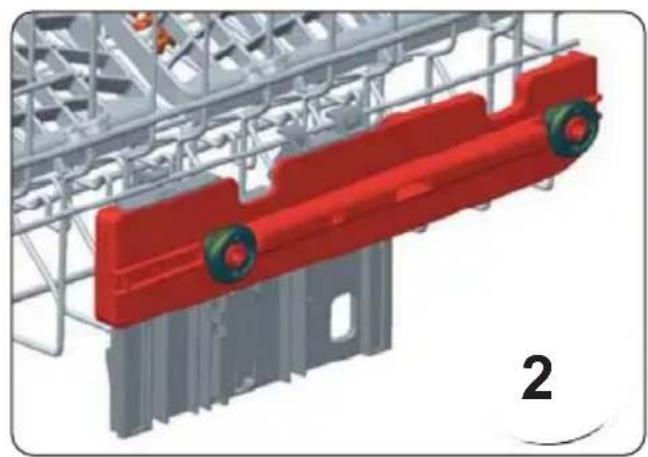

How do I adjust the upper basket height?

Pull out the upper basket to the stop. Lift the basket side rails by pressing the tabs and raising or lowering the basket to the desired level. Ensure it clicks into place.
There are typically two heights: lower for large plates in bottom basket, higher for tall glasses.

What does the salt indicator mean?

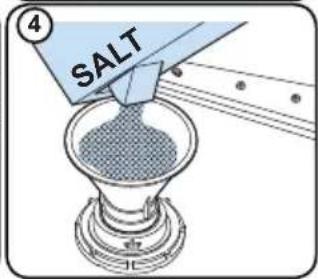

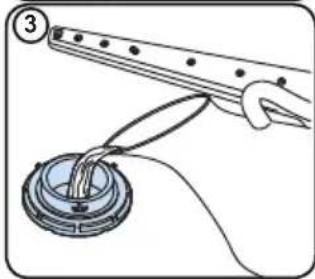

The salt indicator lights up when the water softener needs regeneration. Fill the salt dispenser with dishwasher salt (not table salt). Unscrew the cap, use a funnel to fill, then replace cap tightly. The indicator will turn off after a cycle.

Why are my dishes not drying completely?

Check if rinse aid is full. Use a higher temperature in the final rinse (e.g., intensive cycle). Ensure the drying option is selected. Leave the door slightly open for 15 minutes after the cycle to release steam.

How do I activate the child lock?

Press and hold the Delay Start or Program button for 3-5 seconds until a lock symbol appears on the display (if present) or beeps. To deactivate, repeat the same step.

What spare parts are available for this model?

Common spare parts include: spray arms, filters, detergent dispenser, door hinges, and salt cap. According to EU regulations, spare parts (including motor, pump, and electronic board) are available for at least 7 years after the last unit is produced.

USER MANUAL PD 1046 D TOW Philco

Famous for Quality the World Over

PD 1046 D TOW

PD 1046 D TOX

Vážený zákazníku,

Illustration of a hand holding a faucet with a valve, no text or symbols present

VAROVÁNÍ!

Simple line drawing of a faucet with a valve and base (no text or symbols)

Close-up of a mechanical component with a circular component and numbered label 13 (no readable text or symbols)

Technické údaje

Diagram showing a mechanical component with a gear-like base and a lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a bearing (no text or symbols)

Illustration of a hand holding a stringed musical instrument above a circular device with wires (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container (no text or symbols)

Illustration of a hand pressing down on a blue notebook with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

3D architectural or engineering diagram showing structural framework with red arrows indicating upward motion (no text or symbols present)

3D model of a red and gray industrial vehicle chassis inside a metal cage structure (no text or symbols visible)

3D rendering of a red and gray mechanical component with wheels, mounted on a metal frame structure (no text or symbols visible)

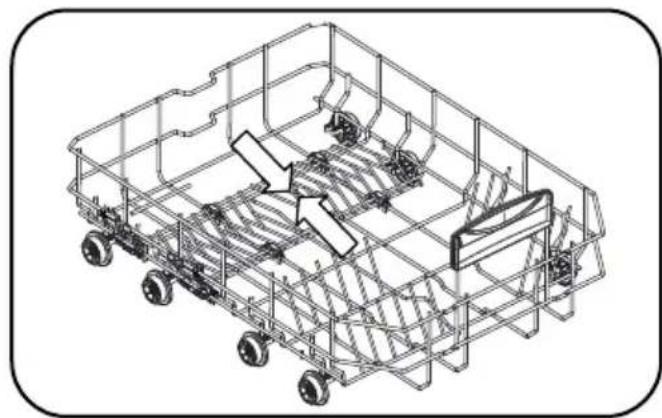

Dva sklopné rošty

Technical line drawing of a wireframe container with internal components and directional arrows indicating flow or movement (no text or symbols)

Isometric line drawing of a multi-wheeled cart with wheels and internal components (no text or symbols)

3D rendering of a washing machine's internal components, showing internal grid structure and mounting brackets (no text or symbols visible)

Exterior view of a modern building roof with a black plastic grid structure against a clear blue sky (no signage or text visible)

Technical illustration of a mechanical component with internal structure and grid overlay (no visible text or symbols)

3D rendering of two black-framed headphones with attached case cover, shown in a grid layout (no text or symbols)

Horní košík

Diagram of a grid-based appliance or cleaning device with multiple circular components and a coiled spring (no text or symbols)

Nesprávné plnění

Four-panel technical illustration showing a 3D mechanical assembly with internal components and crosshair indicators (no text or symbols)

Diagram of a mechanical assembly with a coiled spring and housing (no text or symbols)

Diagram of a mechanical component with a central hub and a circular base, no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Vypouštěcí čerpadlo
