PD 1046 D TOX - Dishwasher Philco - Free user manual and instructions

Product Type	Built-in Dishwasher
Model	PD 1046 D TOX
Brand	Philco
Place Settings	10
Width	60 cm
Height	85 cm
Depth	60 cm
Weight	50 kg
Energy Class	A+
Water Consumption per Cycle	12 L
Energy Consumption per Cycle	1.05 kWh
Noise Level	49 dB(A)
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Rinse, Soak
Drying System	Condensation Drying
Water Connection	Cold water only
Safety Features	Child lock, Flood protection
Display	LED
Cutlery Basket	Yes
Upper Basket Height Adjustable	Yes
Salt and Rinse Aid Indicators	Yes

Frequently Asked Questions - PD 1046 D TOX Philco

How do I install the dishwasher?

Ensure the dishwasher is placed on a level floor. Connect the water inlet hose to a cold water supply with a 3/4 inch thread. Insert the drain hose into a standpipe or sink waste pipe with a minimum height of 40 cm. Plug the power cord into a grounded outlet.

What detergent should I use?

Use only dishwasher detergent (powder, gel, or tablets). Do not use regular dish soap. Fill the detergent dispenser according to the program length: for longer cycles, add detergent to both the main and pre-wash compartments.

How do I adjust the water softener?

Check the water hardness in your area. The water softener setting can be adjusted using the buttons on the control panel. Refer to the manual for setting values. The factory setting is usually for medium hardness. Use dishwasher salt to regenerate the softener.

Why is my dishwasher not cleaning properly?

Possible causes: spray arms blocked, filter dirty, wrong program selected, overloaded basket, or insufficient detergent. Clean the filters and spray arms regularly. Ensure dishes are not blocking the spray arms. Use the correct program for the soil level.

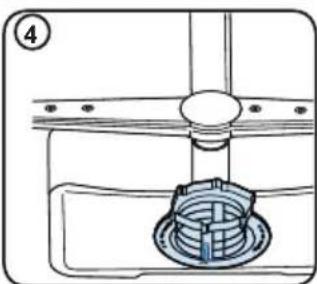

How do I clean the filters?

Turn off the dishwasher. Remove the lower basket. Unlock the filter assembly (turn and lift). Rinse the filters under running water. Use a soft brush if needed. Reassemble and ensure the flat filter is under the microfilter. Replace the basket.

What does the error code E1 mean?

Error code E1 indicates a water inlet issue. Check that the water tap is fully open, the inlet hose is not kinked, and the water supply pressure is adequate. If the problem persists, the inlet valve may be faulty and require service.

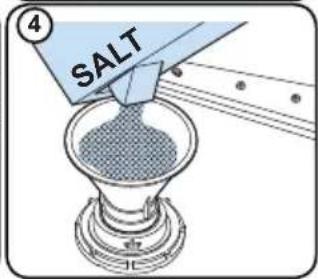

Can I use the dishwasher without salt?

Dishwasher salt is essential for the water softener to prevent limescale buildup. Without salt, the dishwasher may not clean effectively and components may scale. Always keep the salt reservoir filled.

How do I cancel a running program?

Press and hold the Start/Reset button for about 3 seconds. The dishwasher will drain and then turn off. You can then open the door and select a new program.

Why is there water left at the bottom after a cycle?

A small amount of water is normal to keep the seals moist. If water is excessive, check if the filter is clogged, the drain hose is kinked, or the drain pump is obstructed. Clean the filters and inspect the drain pump for foreign objects.

How do I maintain the dishwasher?

Monthly: run a cleaning cycle with an empty dishwasher using a dishwasher cleaner. Clean the door seal and edges with a damp cloth. Periodically clean the spray arm nozzles with a toothpick. Check and clean the filters every few weeks.

USER MANUAL PD 1046 D TOX Philco

Famous for Quality the World Over

PD 1046 D TOW

PD 1046 D TOX

Vážený zákazníku,

Illustration of a hand holding a faucet with a valve, no text or symbols present

VAROVÁNÍ!

Simple line drawing of a faucet with a valve and base (no text or symbols)

Close-up of a mechanical component with a circular component and numbered label 13 (no readable text or symbols)

Technické údaje

Diagram showing a mechanical component with a gear-like base and a lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a cylindrical part (no text or symbols)

Illustration of a hand holding a stringed musical instrument above a circular device with wires (no text or symbols)

Illustration of a hand placing a blue object onto a tray, with an arrow indicating the process (no text or symbols present)

Illustration of a hand pressing down on a closed notebook with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

3D architectural or engineering diagram showing structural framework with red arrows indicating upward motion (no text or symbols present)

3D model of a red and gray industrial vehicle chassis inside a metal cage structure (no text or symbols visible)

3D rendering of a red and gray mechanical component with wheels, mounted on a metal frame structure (no text or symbols visible)

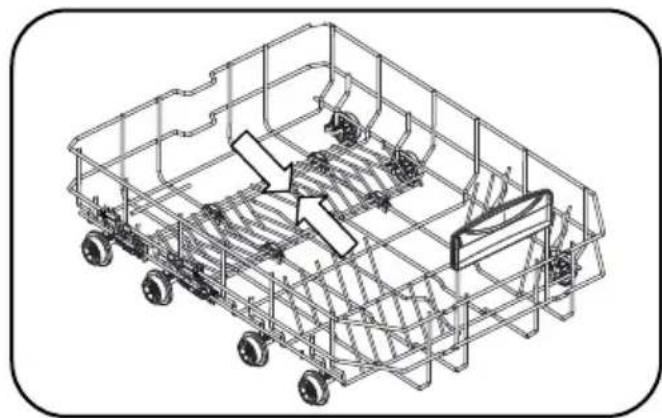

Dva sklopné rošty

Isometric line drawing of a multi-wheeled cart with internal structural components and directional arrows (no text or symbols)

Isometric line drawing of a multi-wheeled cart with wheels and internal components (no text or symbols)

3D rendering of a washing machine's internal components, showing internal grid structure and mounting brackets (no text or symbols visible)

Exterior view of a modern building roof with a black plastic grid structure against a clear blue sky (no signage or text visible)

Technical illustration of a mechanical component with internal structure and grid overlay (no visible text or symbols)

3D rendering of two black-framed headphones with attached case cover, shown in a grid layout (no text or symbols)

Horní košík

Diagram of a grid-based appliance or cleaning device with multiple circular components and a coiled spring (no text or symbols visible)

Nesprávné plnění

Four-panel technical illustration showing 3D model of a mechanical assembly in a grid, with no visible text or symbols.

Diagram of a mechanical assembly with a coiled spring and housing (no text or symbols)

Diagram of a mechanical component with a central hub and a circular base, no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Vypouštěcí čerpadlo
