ECD25 TIMER - Tumble dryer N'oveen - Free user manual and instructions

Brand	N'oveen
Model	ECD25 TIMER
Product Type	Tumble Dryer
Energy Class	C
Drying Capacity	2.5 kg
Drum Volume	25 L
Power Supply	220-240 V, 50 Hz
Power Consumption	1500 W
Dimensions (H x W x D)	65 x 50 x 45 cm
Net Weight	20 kg
Drying Programs	Timer-controlled, heat settings (low/high)
Timer Range	0-120 minutes
Loading Type	Front-loading
Reversible Door	Yes
Lint Filter	Removable, washable mesh filter
Condenser	Air-vented type (requires vent hose)
Noise Level	65 dB(A)
Safety Features	Overheat protection, child lock
Maintenance	Clean lint filter after each use; empty water tank if applicable
Accessories Included	Vent hose, instruction manual

Frequently Asked Questions - ECD25 TIMER N'oveen

How do I clean the lint filter of my N'oveen ECD25 TIMER tumble dryer?

The lint filter is located behind the door. Open the door, pull the filter upward, remove the lint by hand or with a soft brush, and rinse under running water if needed. Dry thoroughly before reinserting. Clean after every use for optimal performance.

What is the maximum drying capacity of the ECD25 TIMER?

The maximum drying capacity is 2.5 kg (dry laundry weight). Do not overload to ensure efficient drying and avoid damage to the appliance.

How do I set the timer on my N'oveen ECD25 TIMER dryer?

Turn the timer dial clockwise to the desired drying time (up to 120 minutes). Select the heat setting (low or high) using the separate switch. The dryer starts automatically when the door is closed and the timer is set.

Why is my dryer not heating?

Common causes: timer not set, heat setting on 'cool', or overheating protection tripped. Check that the timer is set to a drying cycle and the heat switch is on low or high. If overheating, clean the lint filter and ensure proper ventilation.

Can I install the ECD25 TIMER as a ventless dryer?

No, this model is air-vented. It requires connection to a vent hose that expels moist air outside. Do not use indoors without proper ventilation to avoid moisture damage.

How often should I clean the condenser (if applicable)?

The ECD25 TIMER does not have a condenser; it is a vented dryer. There is no condenser to clean. Only the lint filter needs regular cleaning.

What should I do if the dryer stops mid-cycle?

Check if the timer has run down (cycle complete). Also, verify power supply, door closure, and if the overload protection has tripped. Wait a few minutes for the dryer to cool down and restart. If the problem persists, consult a technician.

Is the door reversible on the N'oveen ECD25 TIMER?

Yes, the door is reversible. To change the opening direction, refer to the instruction manual for step-by-step instructions. It involves unscrewing hinges and moving the door catch to the opposite side.

What do the different heat settings mean?

The dryer has two heat settings: 'low' for delicate fabrics (synthetics, mixed loads) and 'high' for cottons and heavy items. Use the timer to control drying duration.

Where can I find spare parts for the ECD25 TIMER?

Spare parts such as lint filters, door seals, and timer knobs can be ordered from N'oveen's official website or authorized dealers. Use the model number ECD25 TIMER for accurate parts.

USER MANUAL ECD25 TIMER N'oveen

3D rendering of a vertical metal ladder structure with support legs (no text or symbols)

White metal folding chair with ladder and support frame (no text or symbols visible)

Modern metal folding chair with slatted backrest and diagonal arms (no text or symbols visible)

Exterior view of a multi-tiered metal shelving unit (no text or symbols visible)

ECD25 ECD30 ECD35 ECD50

ELEKTRYCZNA SUSZARKA NA PRANIE - INSTRUKCJA OBSŁUGI ELECTRIC CLOTHES DRYER – USER MANUAL ELEKTRISCHER WÄSCHETROCKNER – BENUTZERHANDBUCH STENDINO ELETTRICO - ISTRUZIONE D'USO

POLSKI....S. 5

ENGLISH....P. 9

DEUTSCH....S. 13

ITALIANO....P. 18

Close-up of a white electrical outlet with a black cable and red indicator light (no visible text or symbols)

Technical line drawing of a rectangular grid structure with side supports (no text or symbols)

Diagram of a folding table with two arrows indicating movement or direction (no text or symbols)

Rysunek 5 (Figure 5, Zeichnung 5)

Rysunek 6 (Figure 6, Zeichnung 6)

Close-up of a medical or laboratory device control panel with digital display, two circular buttons, and a blue button (no visible text or symbols)

PLEASE SAVE THESE INSTRUCTIONS AND READ IT CAREFULLY

Thank you for choosing our product. Read carefully before assembling, installing, turning on or maintaining this device. Protect yourself and others by following the safety instructions.

The electric dryer is intended for indoor use.

Warnings and general information:

1. Read all instructions before using this device.
2. Special care is required when the dryer is used by children or near them or by disabled people and whenever the device is switched on and remains unattended.
3. Always unplug the device when not in use.
4. Do not start the device with a damaged cord or plug, after malfunction, or when dropped or damaged in any way. Return the device to an authorized service center for checking and electrical adjustment or mechanical repairs.
5. Do not use outdoors.
6. Never place the device where it may fall into a bathtub or other water container.
7. Do not route the cord under the carpet. Do not cover the cord with rugs etc.
   Lay the cord away from the traffic area and where no one will trip over it.
8. Remove the plug from the socket to disconnect the device.
9. Do not allow foreign objects to get into the ventilation or outlet openings, because it may cause electric shock, fire or damage.
10. Do not use in places with gasoline, paints or flammable liquids.
11. Use the dryer only as described in this manual. Every other use not recommended by the manufacturer may cause fire, electric shock or injury.
12. Keep these instructions for later reference.
13. This device is not intended for use by persons (including children) with limited or no physical, sensory or mental abilities, experience and knowledge, unless they are supervised or instructed in the scope of use of the device by the person responsible for their safety. Children should be supervised to ensure that they do not play with the device.

ATTENTION:

• THE DRYER WORKS ONLY IN VERTICAL POSITION.
• WHEN IT IS NOT USED, STORE IN COOL AND DRY PLACE.
• DO NOT STORE THIS APPLIANCE UNTIL IT HAS COMPLETELY COOLED DOWN.
• SERVICE SHOULD BE PERFORMED BY AN AUTHORIZED MANUFACTURER'S REPRESENTATIVE.
• THE DRYER CANNOT BE INSTALLED DIRECTLY BELOW SOCKET-OUTLET.

OPERATING INSTRUCTION (ECD30 / ECD50)

1) Please read the installation instructions carefully to understand how to install device.

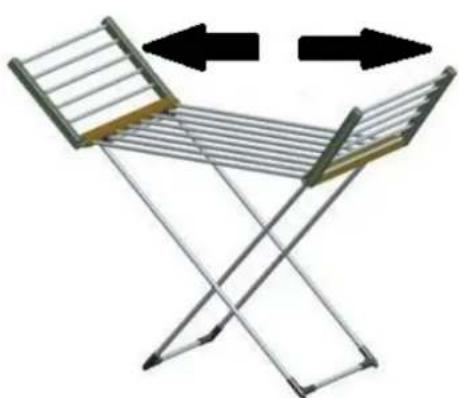

2) Remember that the device must be unfolded to start working. Press the switch to (0) position (Power indicator is off)
3) Plug the power cord into an electrical outlet.
4) Press the switch to (1) position (power indicator will light up), then the device will start working.

OPERATING INSTRUCTION (ECD25)

1) Plug the power cord into an electrical outlet.
2) (Timer)

Press the ON/OFF button, the red indicator will light up - the device is working continuously.

Press the upper button once, the blue 2H indicator will light up - the timer is set for 2 hours.

Press the upper button twice, the blue indicator 4H will light up - the timer is set to 4 hours.

OPERATING INSTRUCTION (ECD35)

1) Plug the power cord into an electrical outlet.
2) Press button, product will start to work, to turn it off just press it again and the LED will show "OF".

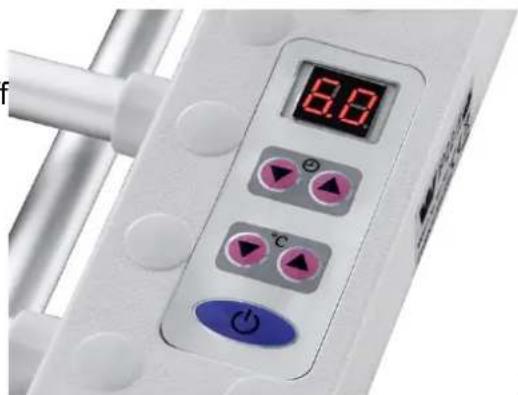

3) TEMPERATURE CONTROL“▼°C▲”: There are 3 modes: “01”, “02”, “03”, when LED shows 01, it means low temperature, when you press “▲” button, LED will change to mode 02 and temperature will be moderate.

Press it again for mode 03, it will be high temperature. Press “▼” button, the mode and product temperature will decrease.

Close-up of a medical or electrical device control panel with display, buttons, and power button (no readable text or symbols)

4) TIMER “▼ ⊕▲”: the timer can be adjusted from 0.5H(hour) to 7H. When product starts to work, the timer is originally set to continuous operation, press “▲” button for first time, LED will show 0.5 and it means after half an hour, product will stop. Each time you the button, time will increase by half an hour, the longest setting is 7 hours. After pressing “▼” the time setting will decrease.
5) Please turn the appliance off and take the plug out from the outlet if not in use.

MAINTENANCE

If the supply cord is damaged, it must be replaced by the manufacturer, its agent or similarly qualified persons in order to avoid hazard.

WARNING

This appliance is intended only for drying textiles washed in water.

THE CLOTHES DRYER IS ONLY ALLOWED TO BE INSTALLED AT A DISTANCE OF AT LEAST 0.6M FROM BATH TUBES SHOWERS.

PLS DO NOT PUT HEAVY OR MORE THAN 5KGS PRODUCTS ON THE CLOTHES DRYER.

PLS DO NOT PUT THE QUILT COVER THE WHOLE PRODUCT'S SURFACE TO AVOID HIGH TEMPERATURE INSIDE.

INSTALLATION (ECD25)

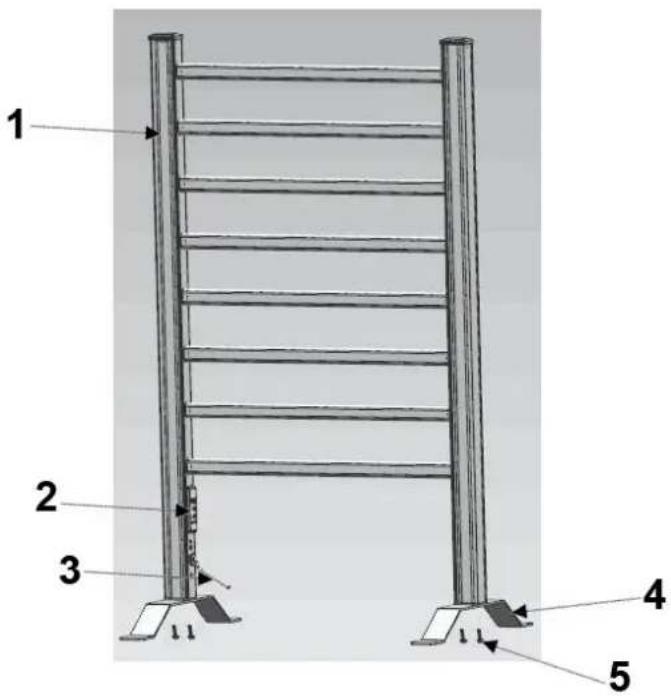

1) Free standing See Figure 1

1. Towel rail
2. Timer setting indicator (2/4 godziny)
3. Power cord
4. Foot base
5. Secure by screw

2) Wall mounted See Figure 2

1. Put on the decorative cover
2. Mount the wall brackets with screws

Caution: in order to avoid a hazard for very young children, this appliance should be installed so that the lowest heated rail is at least 600 mm above the floor.

ECD30 / ECD35 DESCRIPTION

ECD30 ON/OFF switch See Figure 3

Scheme See Figure 4:

1. On/off switch (ECD30) | Control panel (ECD35)
2. Power cord
3. Move sliding rod

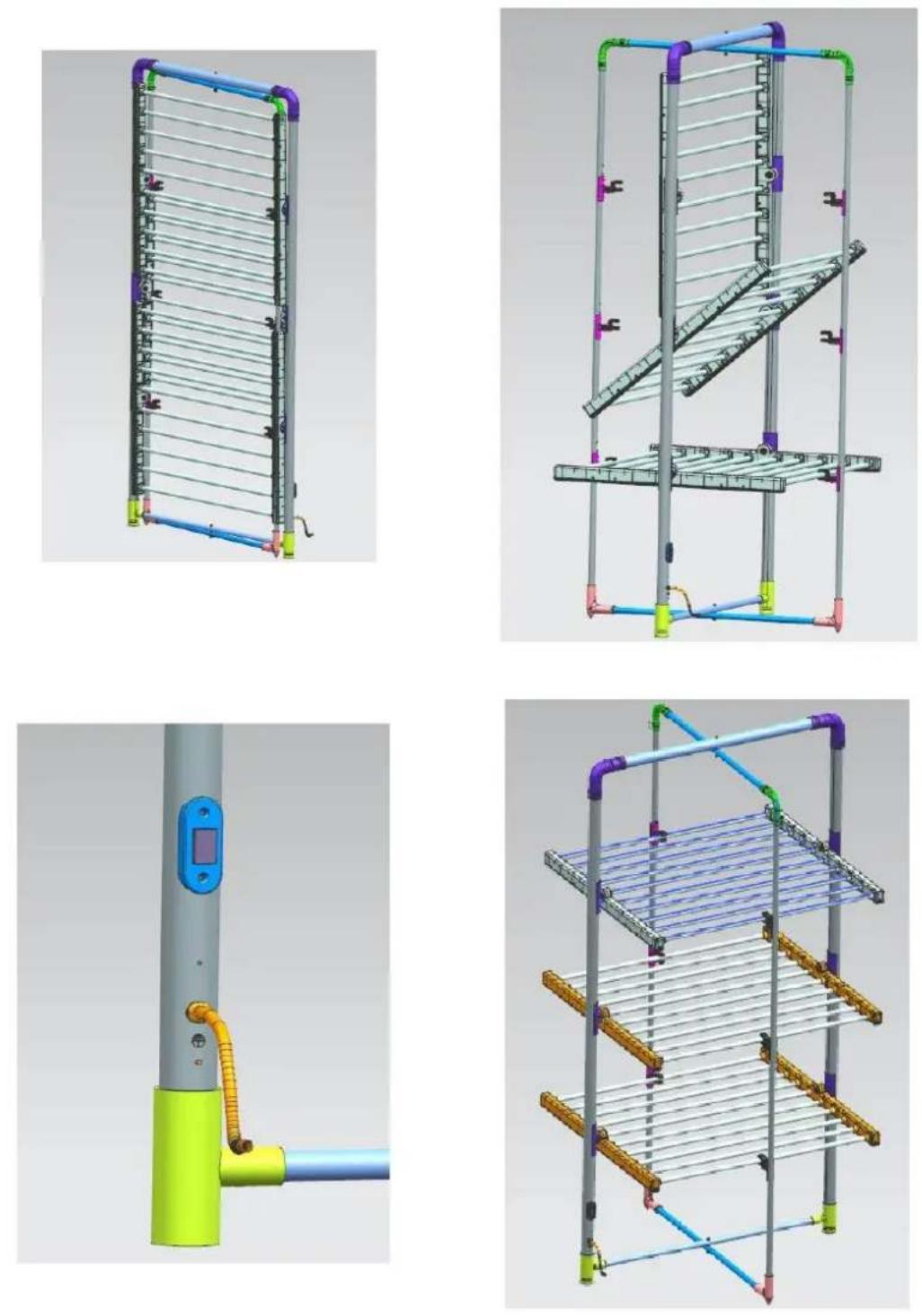

INSTALLATION INSTRUCTIONS ECD50 See Figure 6

TECHNICAL DATA

Model	ECD25	ECD30	ECD35	ECD50
Voltage	220-240 V	220-240 V	220-240 V	220-240 V
Frequency	50 Hz	50 – 60 Hz	50 Hz	50 – 60 Hz
Rated power	125W	220W	220W	300W
Dimensions	900 x 530 x 355 mm (standing)860 x 530 x 100 mm (wall maounted)	1480 x 525 x 900 mm	1480 x 525 x 900 mm	1435 x 730 x 680 mm

Close-up of a medical or electrical device control panel with digital displays and function buttons (no readable text or symbols)

Close-up of a white electronic device control panel with digital displays and control buttons (no readable text or symbols)

INSTALLAZIONE (MODELLO ECD25)

1) Versione autonoma Vedi Figura 1
