PDI 1468 C3OX - Dishwasher Philco - Free user manual and instructions

Product Type	Dishwasher
Brand	Philco
Model	PDI 1468 C3OX
Capacity	14 place settings
Energy Efficiency Class	A+
Annual Energy Consumption	266 kWh/year
Water Consumption per Cycle	10 L
Noise Level	49 dB(A)
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Power Supply	220-240 V, 50 Hz
Rated Power	1900 W
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Soak, Glass
Control Type	Electronic with LED display
Salt and Rinse Aid Indicator	Yes
Child Lock	Yes
Overflow Protection	Yes
Self-Cleaning Filter	Yes
Spare Parts Availability	10 years after production

Frequently Asked Questions - PDI 1468 C3OX Philco

How do I install the dishwasher?

Ensure the appliance is level and connected to water supply (cold water only), drainage, and power. Refer to the installation diagram in the manual. Use the supplied hoses and secure them properly.

How do I set the water softener?

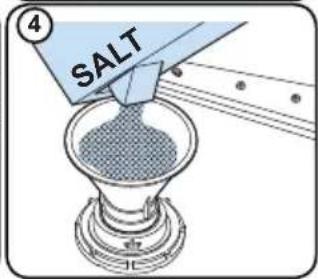

Adjust the water hardness setting according to your local water hardness. Use the button combination specified in the manual. Fill the salt reservoir with dishwasher salt before starting.

What detergents should I use?

Use only dishwasher-specific detergent (powder, gel, or tablets). Use rinse aid for better drying. Do not use hand dishwashing liquid as it causes excessive suds.

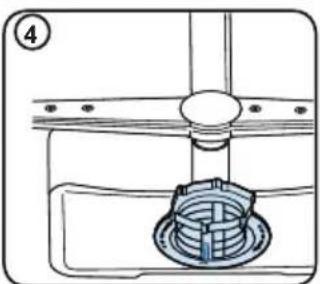

How do I clean the filters?

Remove the lower spray arm and unscrew the filter assembly. Rinse under running water, brush if necessary. Reassemble securely. Clean filters monthly to maintain performance.

What does error code E1 mean?

Error code E1 indicates a water supply issue. Check that the water inlet hose is not kinked and the water tap is fully open. If problem persists, contact service.

How can I save energy?

Use the Eco program for normally soiled dishes. Run the dishwasher only when full. Do not pre-rinse dishes. Ensure the rinse aid dispenser is filled for efficient drying.

Can I put pots and pans in the dishwasher?

Yes, place them face down in the lower basket. Avoid items with wooden handles, non-stick coatings (if not marked dishwasher safe), or aluminum that may discolor.

How do I activate the child lock?

Press and hold the ‘Start’ button for 3 seconds to lock the control panel. Repeat to unlock. The indicator light will show lock status.

What is the maximum load capacity?

The dishwasher holds up to 14 place settings as per standard load. Do not overload; ensure water jets can reach all surfaces.

How do I maintain the dishwasher?

Regularly clean the filters and spray arms. Run a monthly cleaning cycle with a dishwasher cleaner. Wipe the door seals and exterior. Leave the door ajar after use to prevent odors.

USER MANUAL PDI 1468 C3OX Philco

Famous for Quality the World Over

PDI 1468 C 30W

PDI 1468 C 30X

Vážený zákazníku,

Illustration of a hand holding a faucet with a valve, no text or symbols present

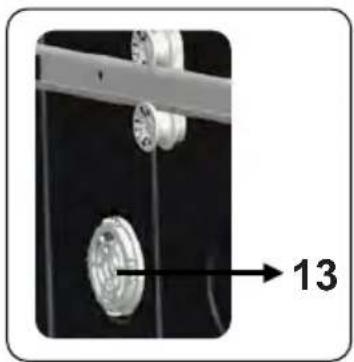

VAROVÁNÍ!

Simple line drawing of a pipe fitting with a valve and base plate (no text or symbols)

Close-up of a mechanical component with a circular component and a numbered arrow pointing to it (no text or symbols visible)

Technické údaje

Diagram showing a mechanical component with a gear-like base and a lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a cylindrical part (no text or symbols)

Illustration of a hand holding a stringed musical instrument above a circular device with wires (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container (no text or symbols)

Illustration of a hand pressing down on a blue notebook with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

3D mechanical assembly diagram showing a red component with two circular ends, surrounded by steel framework and gray components (no text or symbols)

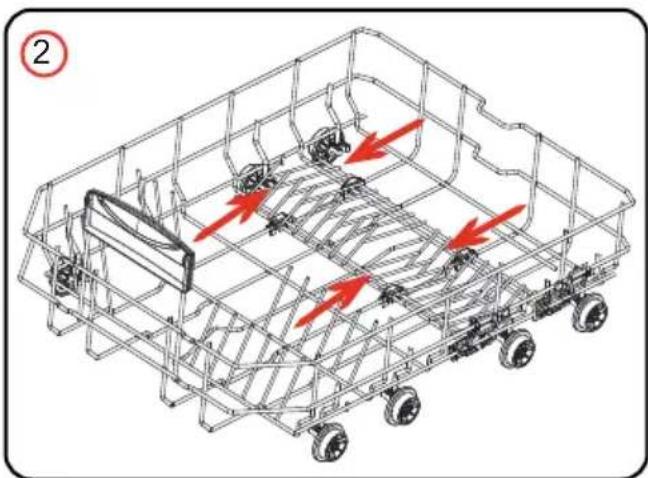

Čtyři sklopné rošty

3D mechanical assembly diagram showing red and gray components with no visible text or symbols

Isometric line drawing of a toy car chassis with red arrows indicating motion or movement (no text or symbols)

3D mechanical assembly diagram showing a red component with two red wheels, surrounded by steel frameworks and pipes (no text or symbols)

3D wireframe model of a mechanical or structural component with internal grid and red arrows indicating flow or movement (no text or symbols)

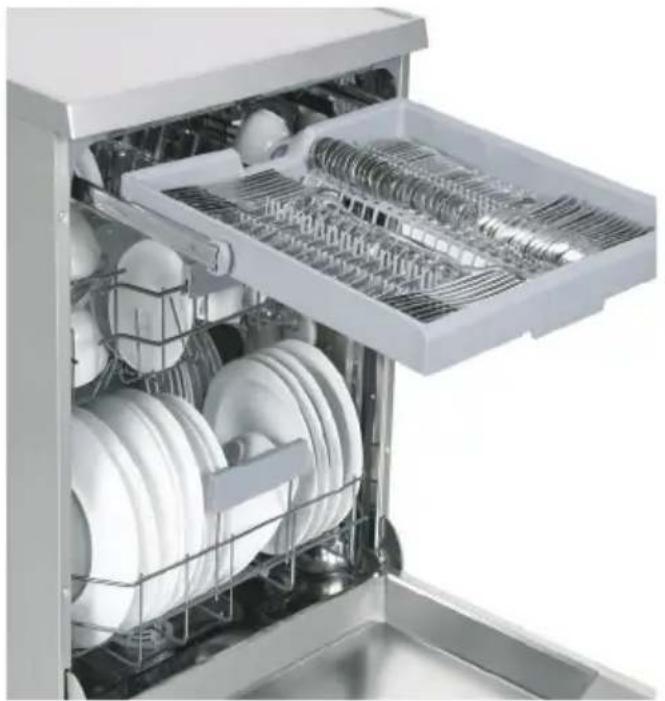

) PSOÓLPYÓLÓBÓQDzÓCPSZ

) PSO□LPY□OB□QDz□CPSZ□KF□VSIFO□QSP□VN ▽TUǔO□WF□LāDI □JN B■āDI □QDz□CPS∅□B□OÈEPC∅

Interior view of a modern kitchen appliance showing multiple white plates and a rack with cutlery (no text or symbols visible)

7"307«/ PäF□B□KJOÏ □PTUSÏ □QDzFEN μUZ□NVTÓ□Câu□W□LPYÓLV□OB□QDzÓCPSZ□VNÓTUÓOZ□WPEPSPWOǔ□

Illustration of a kitchen sink with three circular containers and a grater inside, no text or symbols present.

Illustration of kitchen utensils arranged in a grid (no text or symbols)

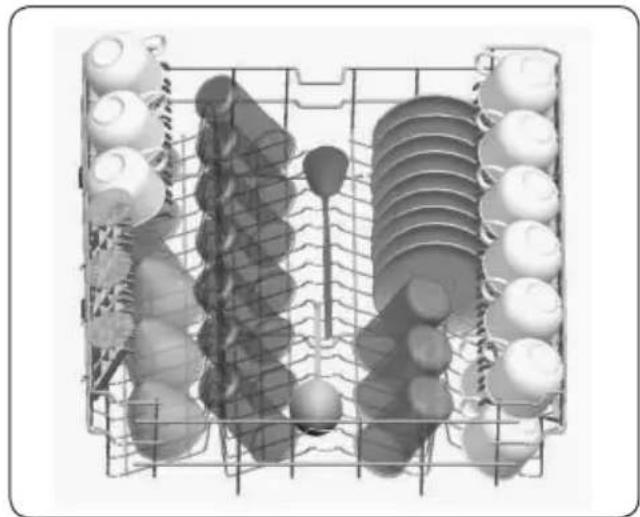

Horní koš

Diagram of a multi-tiered storage or processing unit with cylindrical tanks and insulators (no text or labels)

Nesprávné plnění

Black X symbol crossed over a grid of circular objects, no text or symbols present

Industrial machinery diagram showing components like gears and valves (no text or labels)

Abstract grayscale image with a grid overlay and a black 'X' symbol (no readable text or symbols)

3D wireframe model of a mechanical component with a black 'X' mark overlay (no text or symbols)

Diagram of a mechanical assembly with a coiled spring and housing (no text or symbols)

Diagram of a mechanical component with a central hub and a circular base, no text or symbols present

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Vypouštěcí čerpadlo
