Brand	Philco
Model	PDI 1468 C3OW
Product Type	Freestanding Dishwasher
Energy Efficiency Class	A++
Number of Place Settings	14
Noise Level	44 dB(A)
Annual Energy Consumption	260 kWh
Annual Water Consumption	2660 L
Drying Efficiency Class	A
Wash Programs	Intensive, Eco, Normal, Quick, Glass, Pre-Rinse
Delay Start	Up to 24 hours
Child Lock	Yes
Overflow Protection	AquaStop
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	45 kg
Electrical Connection	220-240 V, 50 Hz, 10 A
Adjustable Upper Basket	Yes (3 levels)
Cutlery Basket	Yes, removable

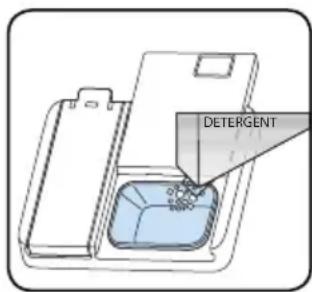

Automatic Detergent & Rinse Aid Dispenser	Yes
Salt Indicator Light	Yes
Remaining Time Display	Digital
Self-Cleaning Filter	No (manual cleaning required)
Spare Parts Availability	Spray arms, filters, seals, heating element
Repairability Index	8.2/10

Frequently Asked Questions - PDI 1468 C3OW Philco

How do I start the dishwasher?

Press the Power button, select a program, then press Start. Ensure water supply is open.

What does error code E1 mean?

Error E1 indicates a water intake issue. Check water tap, inlet hose, and filter.

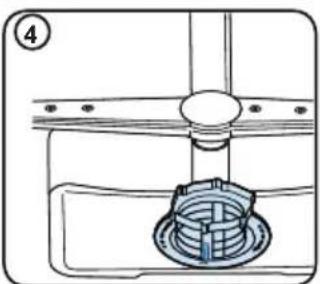

How often should I clean the filter?

Clean the filter assembly after every 5-6 washes to prevent clogs.

Can I use regular dish soap?

No, use only dishwasher detergent. Regular soap causes excess foam and damage.

Why is my dishwasher not drying?

Ensure rinse aid is filled, select a drying program, and avoid overloading.

How do I adjust the upper basket?

Pull out the basket, adjust side rails to desired height (3 levels), then push back.

What is the capacity in place settings?

The PDI 1468 C3OW can hold up to 14 place settings.

Is child lock available?

Yes, press and hold the Child Lock button for 3 seconds to activate.

How do I add salt?

Open the salt container cap, add dishwasher salt, and close tightly. Use a funnel to avoid spillage.

What to do if the dishwasher is noisy?

Check for obstructions like silverware hitting spray arms, or items blocking the pump.

USER MANUAL PDI 1468 C3OW Philco

Famous for Quality the World Over

PDI 1468 C 30W

PDI 1468 C 30X

Vážený zákazníku,

Illustration of a hand holding a faucet with a valve, no text or symbols present

VAROVÁNÍ!

Simple line drawing of a faucet with a valve and base (no text or symbols)

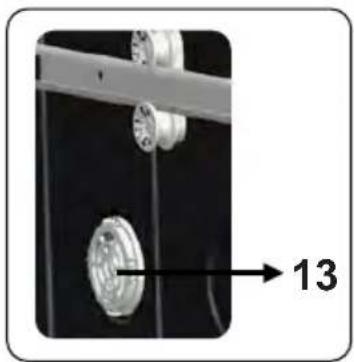

Close-up of a mechanical component with a circular component and a numbered arrow pointing to it (no text or symbols present)

Technické údaje

Diagram showing a mechanical component with a gear-like base and a lever mechanism (no text or symbols)

Technical line drawing of a mechanical component with a circular inset showing a cylindrical part (no text or symbols)

Illustration of a hand holding a stringed musical instrument above a circular device with wires (no text or symbols)

Illustration of a hand pressing down on a blue liquid in a container (no text or symbols)

Illustration of a hand pressing down on a blue notebook with an arrow indicating rotation (no text or symbols)

Line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

3D mechanical assembly diagram showing a red component with two circular ends, surrounded by steel framework and gray components (no text or symbols)

Čtyři sklopné rošty

3D mechanical assembly diagram showing red and gray components with no visible text or symbols

Isometric line drawing of a car chassis with wheels and internal components, marked with red arrows indicating motion or movement (no text or symbols present)

3D mechanical assembly diagram showing a red component with two red wheels, surrounded by steel frameworks and pipes (no text or symbols)

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

) PSOÓLPYÓLÓBÓQDzÓCPSZ

) PSO□LPY□OB□QDz□CPSZ□KF□VSIF0□QSP□VN□TUǔO□WF■LāDI □J□N B■āDI □QDz□CPS∅□B□OÈEPC□

Interior view of a kitchen appliance showing open door, white rack, and multiple white plates (no text or symbols visible)

7"307«/ PäF□B□KJOÏ □PTUSÏ □QDzFEN üUZ□NVTÖ□CÂU□W□LPYÓLV□OB□QDzóCPSZ□VN ÓTUÜOZ□WPEPSPWOÜ□

Illustration of a kitchen sink with three circular kitchen items and a mesh grid background (no text or symbols)

Illustration of kitchen utensils arranged in a grid (no text or symbols)

Horní koš

Diagram of a multi-tiered storage rack with circular components and a central rod (no text or labels)

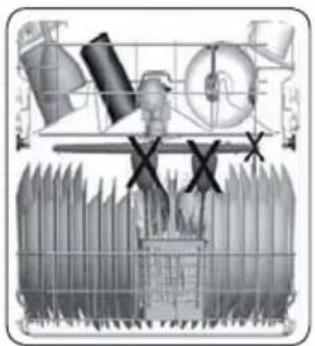

Nesprávné plnění

Black X symbol crossed over a grid of circular objects, no text or symbols present

Industrial machinery diagram showing components like gears and valves (no text or labels)

Abstract grayscale image with a grid overlay and a black 'X' symbol (no readable text or symbols)

3D wireframe model of a mechanical component with a black 'X' mark overlay (no text or symbols)

Diagram of a mechanical assembly with a coiled spring and housing (no text or symbols)

Diagram of a mechanical component with a central hub and base plate (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Vypouštěcí čerpadlo
