EWF-7400 X - Washing machine EDESA - Free user manual and instructions

Product Type	Freestanding Washing Machine
Brand	Edesa
Model	EWF-7400 X
Capacity	7.0 kg
Dimensions (W x D x H)	595 x 495 x 850 mm
Net Weight	60 kg
Rated Power	2000 W
Power Supply	220-240 V ~ 50 Hz
Max Current	10 A
Water Pressure Range	0.05 MPa – 1 MPa
Maximum Spin Speed	1400 rpm
Energy Efficiency Class (New EU)	B
Energy Consumption (ECO 40-60)	0.516 kWh/cycle
Water Consumption (ECO 40-60)	45 L/cycle
Noise Level (Wash/Spin)	57 dB / 79 dB
Programmes	Cotton, Quick 15', Rapid 45', 60' Wash, ECO 40-60, Intensive, Rinse & Spin, Sterilization, Sport Wear, Synthetic, Mix, Delicate, Wool, 20°C, Spin Only
Additional Functions	Delay Start, Pre-Wash, Extra Rinse, My Cycle, Child Lock, Reload, Mute Buzzer
Door Type	Front-loading
Display	LED Display with time, temperature, and error codes
Safety Features	Child Lock, Door Lock, Overload Protection, Anti-flood
Maintenance Intervals	Clean inlet filter, detergent drawer, and drain pump filter every 3 months
Spare Parts Availability	Minimum 10 years

Frequently Asked Questions - EWF-7400 X EDESA

How do I remove the transport bolts?

Use a spanner to loosen the 4 transport bolts at the back of the machine, then remove the bolts and rubber parts. Close the holes with the supplied cover caps.

What should I do if the door does not open after a cycle?

Wait for the door lock to release automatically after the programme ends. If it still does not open, disconnect the power and restart. Never force the door.

How do I calibrate the washing machine?

After first installation, empty the drum and close the door. Press Delay and Speed simultaneously for 10 seconds until 't19' appears. Press Start/Pause and wait until '*****' is displayed.

Why is the machine not starting?

Check that the door is properly closed and no clothes are stuck. Ensure the water tap is open and the machine is plugged in. If the error code E30 appears, close the door firmly.

How do I clean the drain pump filter?

Unplug the machine and let the water cool. Open the lower cover cap, turn the filter counterclockwise to open, remove any debris, then reinstall and close the cap. Do this every 3 months.

What does error code E10 mean?

E10 indicates a water injection problem. Check that the water tap is fully open, the water pressure is sufficient, and the inlet hose is not kinked. Also clean the inlet filter.

Can I use my own detergent?

Yes, but use only detergents suitable for automatic washing machines. For best results, follow the detergent recommendation table in the manual based on fabric type and soiling level. Avoid overdosing.

How do I activate the Child Lock?

Press Temp. and Speed simultaneously for 3 seconds until the buzzer sounds and the child lock indicator lights up. To deactivate, press the same two buttons again for 3 seconds.

What is the maximum water temperature?

The machine can heat water up to 90°C, but the maximum temperature depends on the selected programme. For the Cotton programme, you can select up to 90°C.

How do I clean the detergent dispenser?

Press the release button on the softener cover and pull out the dispenser drawer. Remove the softener cover, wash both parts under water, clean the recess with a soft brush, and reinsert.

USER MANUAL EWF-7400 X EDESA

Illustration of a washing machine with sound waves above it, symbolizing sound or audio (no text or symbols present)

Three simple line drawings: three with dollar signs and two with a magnifying glass, one open with a gavel (no text or symbols)

Diagram showing two hands performing a valve adjustment, one with a bolt and the other with a handle (no text or symbols)

Line drawing of a stainless steel sink with faucet and faucet (no text or symbols)

¡Advertencia!

Line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Two handbags with circular designs, one wrapped in a blanket and the other in a patterned case (no text or symbols)

Simple line drawing of a bag with an open lid and internal objects (no text or symbols)

Line drawing of a traditional East Asian-style jacket with three arms (no text or symbols)

Diagram showing a mechanical or architectural component with curved arrows indicating motion (no text or symbols)

Line drawing of a hand holding a curved object (no text or symbols)

MANTENIMIENTO

Diagram of a drawer with internal compartments and an arrow pointing to a section (no text or symbols)

Line drawing of a person standing on a boat hull with no text or symbols

Simple line drawing of a hand opening a window with a dark screen, no text or symbols present

Line drawing of a refrigerator drawer with handle and drawer slot (no text or symbols)

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a plate, sink, and spoon (no text or symbols)

Hand holding a rotary dial next to a tray, no text or symbols visible

Diagram of a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of a washing machine with labeled dimensions (W, D, H) and a circular vent on top (no text or symbols beyond labels)

Modelo	Capacidad de lavado	Dimensiones (ancho x fondo x alto mm)	Peso neto	Potencia nominal
EWF-7400 X	7,0kg	595 x 495 x 850	60kg	2000W
EWF-8401 WH	8,0kg	595 x 565 x 850	68kg	2000W

■ Cleaning and Care 28

■ Trouble Shooting 31

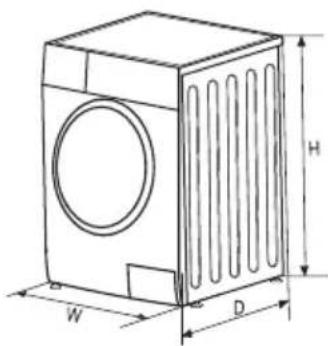

■ Technical Specifications .... 32

■ Product Fiche 33

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

⚠ Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

① Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

•The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.

• Children 3 years and under shall be kept away from the appliance or continuously supervised.

• Animals and children may climb into the machine. Check the machine before every operation.

- Do not climb or sit on the appliance.

- All washing and additional substances are to be kept in a safe place out of the reach of children.

- Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.

- Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.

- Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

•The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

- Do not operate the machine in rooms with a temperature of below 5^ C . This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see "Maintenance - Cleaning of drain pump filter") to avoid damages caused by frost.

- Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
  • This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
  • Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
  •Always pull at the plug, not at the cable.
  •Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
  • Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
  • The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

- Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.

• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.

- Remove all objects from pockets such as lighters and matches before use the appliance.

• Thoroughly rinse items that have been washed by hand.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.

- Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine

- Fabric softeners or similar products should be used as recommended in their instructions.

- Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.

- Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
• Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person
-Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

• This appliance is intended to be used in household and similar applications such as:
  -Staff kitchen areas in shops, offices and other working environments;
  -Farm houses;
  -By clients in hotels, motels and other residential type environments;
  -Bed and breakfast type environments;
  -Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

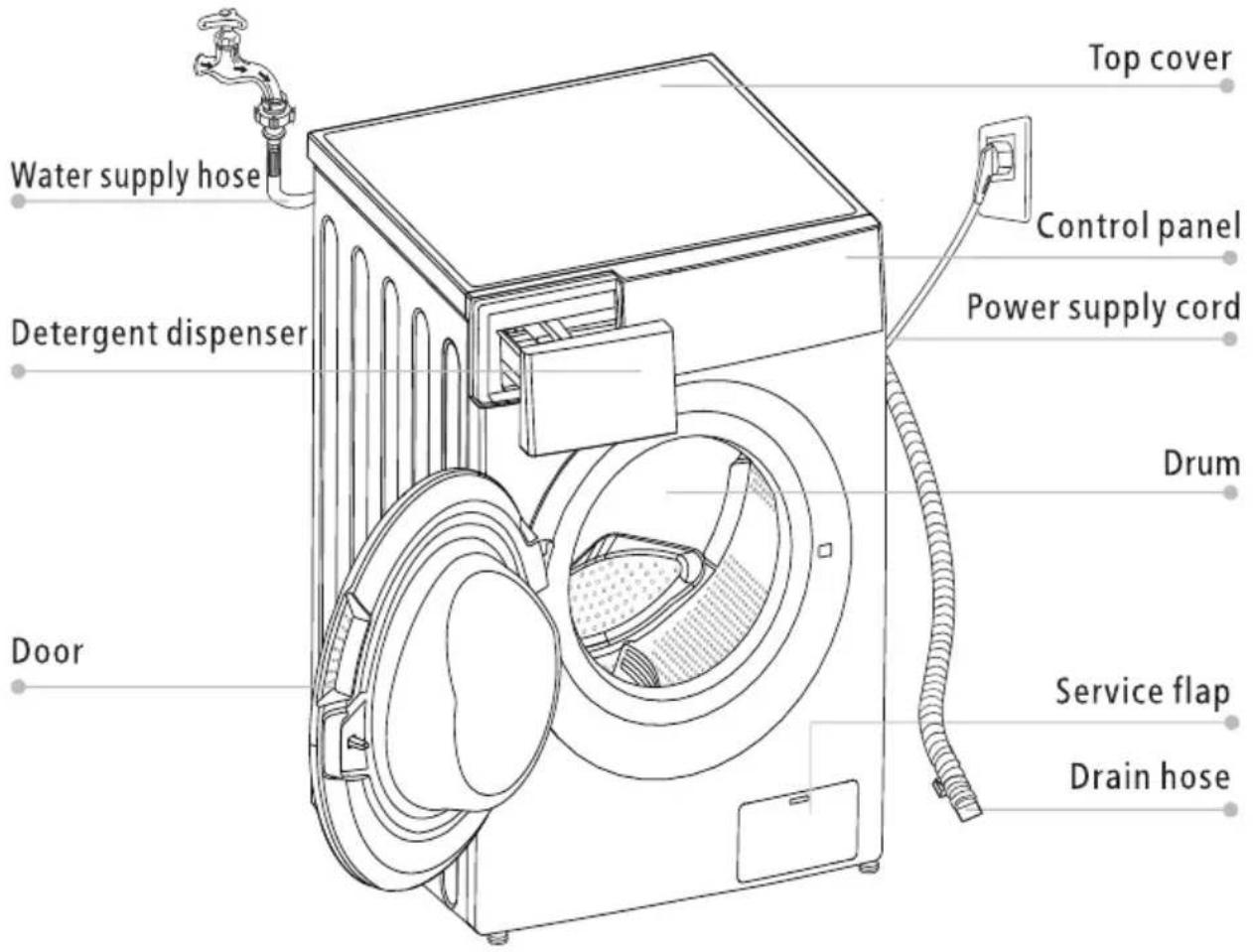

■ Product Description

Note!

- The product picture is for illustration only, please refer to real product as reference.

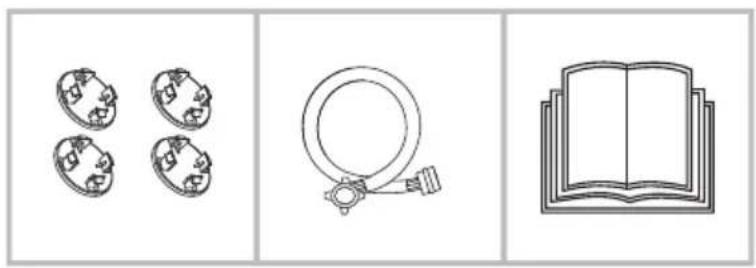

Accessories

Three-panel image showing a group of face cutouts, a magnifying glass, and an open book (no text or symbols)

4 x Cover caps
1 x Supply hose cold water
1 x Owner's manual

■ Installation

Installation area

⚠ Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.

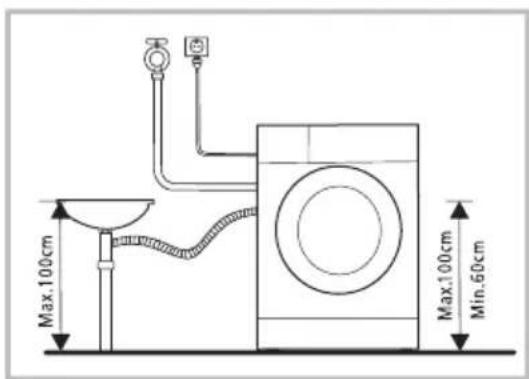

• Make sure to maintain the minimum distances from the walls as shown in the picture

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight
3. Sufficient ventilation

4. Room temperature is above 0°C

5. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a box with a cross mark on the front face (no text or symbols)

Unpacking the washing machine

⚠ Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Diagram showing a 3D box with an upward arrow and a magnified inset of a cityscape labeled 'a' (no text or symbols on the diagram itself)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and circular knob, no visible text or symbols

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a small metallic part (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a medical device with a blue arrow pointing to a dark circular component (no text or symbols visible)

Close the holes using the cover caps.

Levelling the washing machine

⚠ Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a white mechanical component with a blue circular base and a blue curved arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Illustration of a person with arrows indicating motion or direction (no text or symbols)

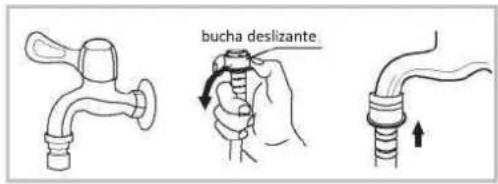

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a faucet with blue directional arrows indicating flow or movement (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

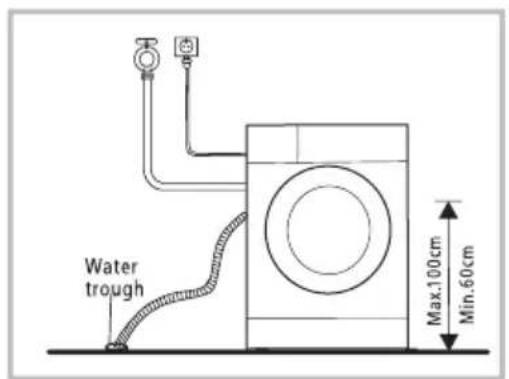

There are two ways to place the end of drain hose:

1. Put it into the water trough.

2. Connect it to the branch drain pipe of the trough.

Quick Start

! Caution!

• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washing machine, so that provide the best performance. The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1 - Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washing machine and press "Delay" and "Speed" simultaneously for 10 seconds until "t19" is displayed;
4- Press [▷II] to start the appliance and wait till "*****" is displayed.

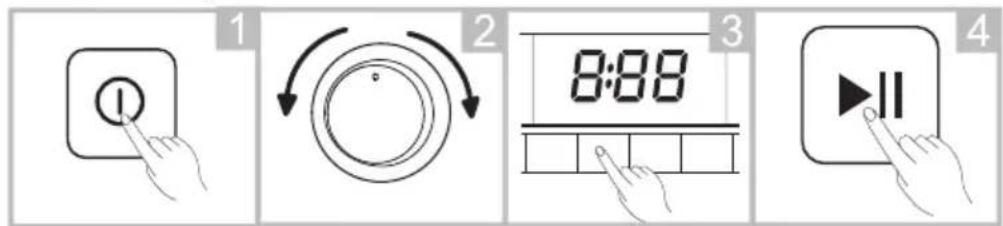

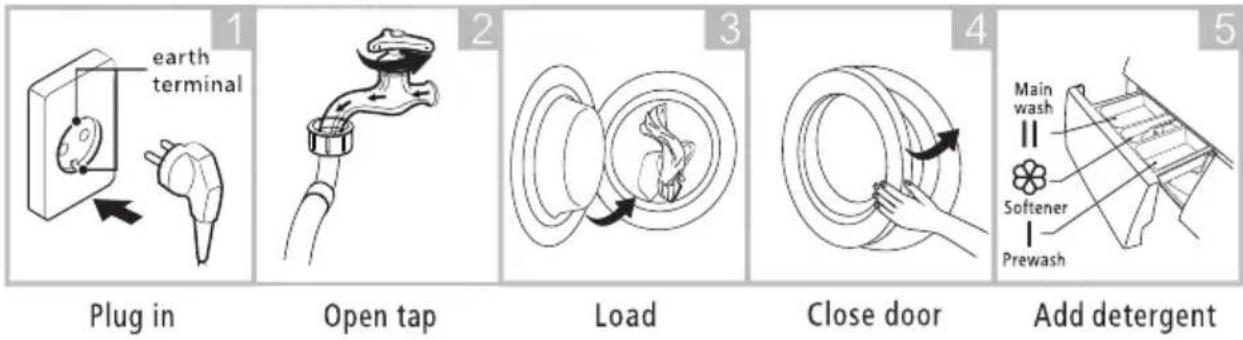

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

2. Washing

Power On
Select programme
Select function or remain default settings
Press
Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Check the care label

Simple line drawing of a bag being folded into a basket (no text or symbols)

Sort laundry according to color and textile type

Take all items out of the pockets

Two handbags with circular designs, one tied with a ribbon and the other with a ring (no text or symbols)

Tie together long textile strips and belts, close zips and button

Simple line drawing of a bag with a small object inside, no text or symbols present

Put small items into a laundry bag

Line drawing of a traditional East Asian-style jacket with patterned backrest and sleeve (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

⚠ Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

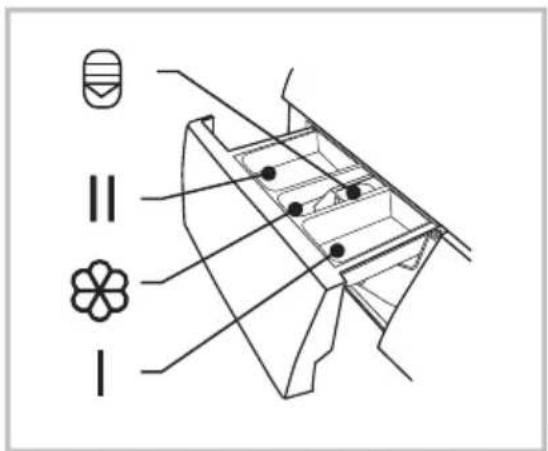

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II		Programme	I	II
Cotton	○	●	○	Sport Wear	○	●	○
Quick 15'		●	○	Synthetic	○	●	○
Rapid 45'		●	○	Mix	○	●	○
60'Wash		●	○	Delicate		●	○
ECO 40-60		●	○	Wool		●	○
Intensive		●	○	20°C		●	○
Rinse &Spin			○	Spin Only
Sterilization		●	○

● Means must ○ Means optional

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60, Mix, Intensive	20/30/40/60	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Cotton, ECO40-60, Mix, Intensive, 20°C	Cold/20/30/40	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C, Synthetic	Cold/20/30/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Delicate	20/30	Delicate textiles, silk, viscose
Special wool detergent	Wool	20/30	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
  • Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

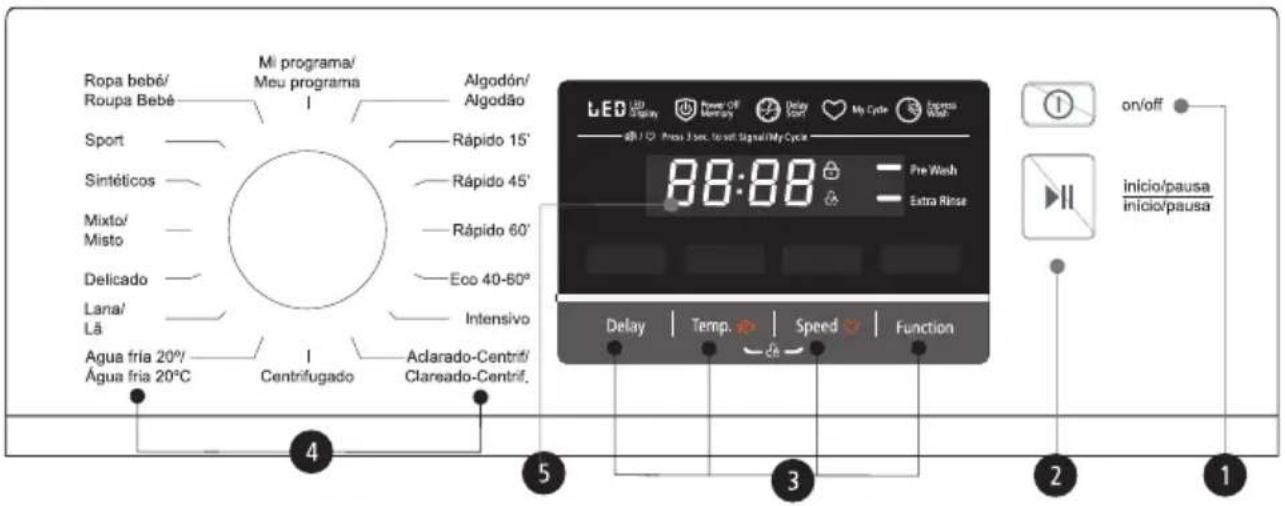

■ Control Panel

1 On/Off

Turn the appliance on and off.

3 Option

This allows you to select additional functions and will light when selected.

5 Display

The display shows settings, estimated remaining time, options and status messages.

2 Start/Pause

Start or pause your programme.

4 Programmes

Available according to the laundry type.

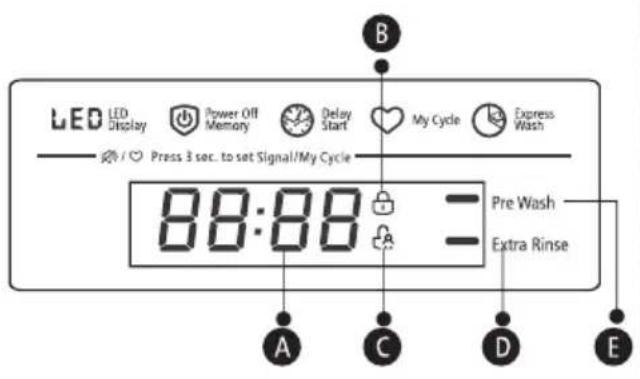

A Display

Wash Time Delay Time

125 2h

Speed Error

400 E30

End Temp.

End 30

B Door Lock C Child Lock

D Extra Rinse E Pre wash

Programmes

EWF-7400 X

EWF-8401 WH

Programme	Load(kg)		Display Time
	7.0	8.0	7.0/8.0
Cotton	7.0	8.0	3:39
Quick 15'	2.0	2.0	0:15
Rapid 45'	2.0	2.0	0:45
60' Wash	3.5	4.0	1:00
ECO 40-60	7.0	8.0	3:13/3:32
Intensive	7.0	8.0	3:48
Rinse&Spin	7.0	8.0	0:20
Sterilization	3.5	4.0	2:27
Sport Wear	3.5	4.0	0:45
Synthetic	3.5	4.0	3:18
Mix	7.0	8.0	1:20
Delicate	2.0	2.0	0:50
Wool	2.0	2.0	1:07
20°C	3.5	4.0	1:01
Spin Only	7.0	8.0	0:12

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

EWF-7400 X
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature ^C1)	Residual moisture in % / Spin speed in rpm ^2)
ECO 40-60 ^3)	7.0	-	3:28	0.775	55	36	53% / 1400
	3.5	-	2:42	0.470	45	34	53% / 1400
	2.0	-	2:42	0.200	36	21	53% / 1400
20°C	3.5	20	1:01	0.100	45	20	65% / 1000
Cotton (60°C)	7.0	60	3:44	1.392	65	60	55% / 1400
Mix	7.0	40	1:20	0.710	60	40	65% / 1000
Quick 15'	2.0	Cold	0:15	0.030	40	Cold	75% / 800
Intensive	7.0	40	3:48	1.000	68	40	70% / 800

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016 With (EU) 1061/2010,(EU) 1015/2010, The EU energy efficiency class is: A+++

Energy test program: Intensive 60/40 °C; Speed:The highest speed;

Other as the default.

Half load for 7.0kg machine:3.5kg.

- Concerning to EN 60456:2016+A11:2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341

The EU energy efficiency class is: B

Energy test program: ECO 40-60. Other as the default.

Half load for 7.0kg machine:3.5kg.

Quarter load for 7.0kg machine:2.0kg.

Programmes

EWF-8401 WH
Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in h:min	Energy consumption in KWh/cycle	Water consumption in L/cycle	Highest washing temperature (°C 1)	Residual moisture in % / Spin speed in rpm 2)
ECO 40-603)	8.0	-	3:38	0.857	59	34	53% / 1400
	4.0	-	2:48	0.504	46	29	53% / 1400
	2.0	-	2:48	0.240	37	21	53% / 1400
20°C	4.0	20	1:01	0.15	50	20	65% / 1000
Cotton (60°C)	8.0	60	3:44	1.498	70	60	55% / 1400
Mix	8.0	40	1:20	0.75	65	40	65% / 1000
Quick 15'	2.0	Cold	0:15	0.030	40	Cold	75% / 800
Intensive	8.0	40	3:48	1.100	70	40	70% / 800

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456: 1206162010 (EU) 1015/2010, The EU energy efficiency class is: A+++ Energy test program: Intensive 60/40 °C; Speed: The highest speed; Other as the default. Half load for 8.0kg machine: 4.0kg.
• Concerning to EN 60456:2016+A11:2020 With(EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341. The EU energy efficiency class is: B Energy test program: ECO 40-60. Other as the default. Half load for 8.0kg machine:4.0kg. Quarter load for 8.0kg machine:2.0kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

① Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Mix	Mixed load consisting of textiles made of cotton and synthetics.
20°C	20°C default, can choose cold water.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Rapid45'	This programme is suitable for washing not very dirty clothes, save more energy and washing.
60' Wash	This programme is suitable for daily wash,for daily laundry,to achieve a good washing performance about 60min.
ECO 40-60	Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage,longer programme pauses (textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.
Intensive	To increase the washing effects, washing time is increased.
Sterilization	Keep the washing temperature above 60 degrees for more than 30 minutes, effectively remove harmful bacteria.
Delicate	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.
Sport Wear	This programme is suitable for wash the sportwear.
Rinse&Spin	Extra rinse with spin.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm		Additional functions
Wash cycles		1400	1500
Cotton	40	1400	1500	➊,➁,➌,
Quick 15'	Cold	800	800	➊,
Rapid 45'	20	800	800	➊,
60' Wash	30	1000	1000	➊,
ECO 40-60	--	1400	1500	➊,
Intensive	40	800	800	➊,
Rinse&Spin	--	1000	1000	➊,➌,
Spin Only	--	1000	1000	➊,
20°C	20	1000	1000	➊,➌,
Wool	40	600	600	➊,➌,
Delicate	30	800	800	➊,➌,
Mix	40	1000	1000	➊,➂,➌,
Synthetic	40	1200	1200	➊,➂,➌,
Sport Wear	20	800	800	➊,➂,➌,
Sterilization	70	800	800	➊,➌,

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Delay

Set the Delay function:

1. Select a programme; 2. Press the Delay button to choose the time (the delaying time is 0-24 H.); 3. Press [Start/Pause] to commence the delay operation

Choose the Programme

Setting time

Start

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should switch off programme to reset a new one.

Pre Wash

Extra washing function before the main washing cycle starts to increase the washing performance.

Note: Detergent needs to be added to the compartment I.

Extra Rinse

The laundry will undergo an extra rinse after selecting this function.

My Cycle

To memory the frequently used programme.

After choosing the programme and setting the options, press [Speed] 3 sec. before start to wash. The default setting course is Cotton.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

Spin Speed

When needed, the spinning speed can be adjusted pressing the Speed button in the following steps:

1400:0-400-600-800-1000-1200-1400 1500:0-400-600-800-1000-1200-1400-1500

Reload

This operation can be executed during the washing progress. When the drum is still rolling and there is large amount of water with high temperature in the drum. The state is unsafe and the door cannot be opened forcefully. To press [Start/Pause] for 3 sec. to reload, and start the clothes adding in the midway function. Please follow the steps as bellow:

1. Wait until the drum stops rotation.
2. The door lock is unlocked.
3. Close the door when the clothes are reloaded and press the [Start/Pause] button.

Press[Start/Pause]3sec.

Reload the clothes

Start/Pause

! Caution!

- Don't use the Reload function when the water level over the edge of the inner tub or the temperature is higher.

Child Lock

This function is meant to keep children from misusing the controls.

Press [Temp.] and [Speed] simultaneously for 3 sec until the buzzer beep. The child lock indicator switches on.

① Caution!

When the Child Lock is activated, the display will alternately show "CL" and the remaining time.

Pressing any other button will cause the Child Lock indicator to flash for 3 sec. When the program ends, "CL" and "END" will alternate on the display for 10 sec, then the indicator will flash for 3 sec.

The Child Lock deactivates the function of all buttons except the On/Off button and the Child lock button!

Only the simultaneous pressing of the two buttons [Temp.] and [Speed] can deactivate the Child Lock!

Please deactivate the Child Lock before selecting a new program!

Mute the buzzer

Temp.

[NO TEXT]

Choose the Programme

Press the [Temp.]button for 3sec., the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

① Caution!

• After Muting the buzzer function, the sounds will not be activated any more.

■ Cleaning and Care

⚠ Warning!

• Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

① Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

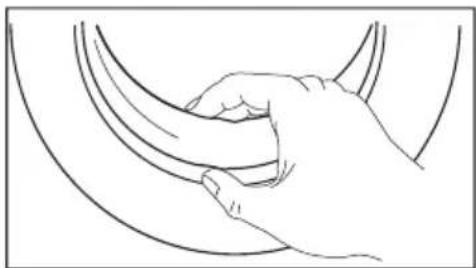

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

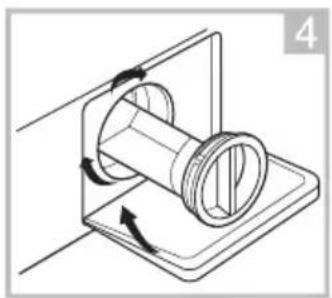

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram of a mechanical valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a tool with a screwdriver inserted (no text or symbols)

Hand holding a small electronic device with a magnified inset showing the internal mechanism (no text or symbols visible)

Line drawing of a tennis racket being inserted into a table tennis bench (no text or symbols)

Clean The Detergent Dispenser

1. Press down the release [ ] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.
2. Lift the softener cover off the dispenser drawer and wash both items with water.
3. Restore the softener cover and push the drawer back into the recess.

Technical line drawing of a mechanical component with a circular feature and a base, no visible text or symbols

Press the release and remove the dispenser drawer

Line drawing of a mechanical device with a lever and internal compartments (no text or symbols)

Clean the dispenser drawer and the softener cover under water

Line drawing of a hand inserting a small object into a container (no text or symbols)

Clean the recess with an soft brush

Technical line drawing of a mechanical device with internal components and a handle (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

⚠ Warning!

• Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

Technical line drawing of a mechanical component with a circular feature and rotation arrow (no text or symbols)

Open the lower cover cap

Hand placing a button into a tray with an arrow indicating rotation (no text or symbols)

Open the filter by turning to the counter clockwise

Remove extraneous matter

Technical diagram of a mechanical assembly with rotating components and directional arrows (no text or labels)

Close the lower cover cap

① Caution!

- When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can't be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

■ Customer service

Spare part for your appliance are available for a minimum of 10 years. In case of questions please contact our customer service at:

Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

Technical line drawing of a washing machine with labeled dimensions (W, D, H) and a circular vent on the front panel (no text or symbols beyond labels)

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
EWF-7400 X	7.0kg	595*495*850	60kg	2000W
EWF-8401 WH	8.0kg	595*565*850	68kg	2000W

■ Product Fiche

Product fiche concerning to Regulation (EU) No 1061/2010

Trade mark
Model identifier	EWF-7400 X
Rated capacity in kg of cotton laundry	7
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 155 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.75kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.70kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.57kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 9900 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the 'Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	280min
Programme time of the standard 60°C cotton programme at half load	270min
Programme time of the standard 40°C cotton programme at half load	270min
duration time of left-on mode	1min
Airborne acoustical noise emissions during washing phase	57dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Intensive 60/40 °C; Speed: the highest speed; Other as the default.

Supplier's name or trade mark( ^a ) ^(c) :

Supplier's address( ^a )'( ^c ):

Model identifier ^(a) : EWF-7400 X

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	7.0		Dimensions in cm (a)' (°)	Height	85
				Width	60
				Depth	50
Energy efficiency index (b)(EEIw)	59.9		Energy efficiency class (b)	B (d)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.516		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.	45
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	36	Weighted remaining moisture content (b) (%)	53.9
	Half	34
	Quarter	21
Spin speed (b) (rpm)	Rated capacity	1400	Spin-drying efficiency class (b)	B (d)
	Half	1400
	Quarter	1400
Programme duration (b) (h:min)	Rated capacity	3:28	Type	free-standing
	Half	2:42
	Quarter	2:42
Airborne acoustical noise emissions in the spinning phase (a)(dB(A) re 1 pW)	76		Airborne acoustical noise emis-sion class (b) (spinning phase)	B (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 is found:

(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.

(b) for the eco 40-60 programme.

(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(d) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

Product fiche concerning to Regulation (EU) No 1061/2010

Trade mark
Model identifier	EWF-8401 WH
Rated capacity in kg of cotton laundry	8
Energy efficiency class on a scale from A+++ (most efficient) bis D (least efficient)	A+++
Energy consumption 175 kWh per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
Energy consumption of the standard 60°C cotton programme at full load	0.82kwh
Energy consumption of the standard 60°C cotton programme at partial load	0.75kwh
Energy consumption of the standard 40°C cotton programme at partial load	0.73kwh
Weighted power consumption of the off-mode	0.50W
Weighted power consumption of the left-on mode	1.00W
Water consumption 11000 litres per year, based on 220 standard washing cycles for the standard cotton programmes at 60 °C and 40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.
spin-drying efficiency class B on a scale from G (least efficient) to A (most efficient)
maximum spin speed	1400
Remaining moisture content	53%
'Intensive 60°C programme' and the 'Intensive 40°C programme' are the standard washing programmes to which the information in the label and the fiche relates, that these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumption.
Programme time of the standard 60°C cotton programme at full load	280min
Programme time of the standard 60°C cotton programme at half load	270min
Programme time of the standard 40°C cotton programme at half load	270min
duration time of left-on mode	1min
Airborne acoustical noise emissions during washing phase	57dB
Airborne acoustical noise emissions during spinning phase	79dB
'built-in' washing machine	no

Energy test program: Intensive 60/40 °C; Speed: the highest speed; Other as the default.

Supplier's name or trade mark( ^a )'( ^c ):

Supplier's address( ^a )'( ^c ):

Model identifier ^(a) : EWF-8401 WH

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (b) (kg)	8.0		Dimensions in cm (a)' (°)	Height	85
				Width	60
				Depth	57
Energy efficiency index (b)(EEIw)	60.0		Energy efficiency class (b)	B (d)
Washing efficiency index (b)	1.031		Rinsing effectiveness (g/kg) (b)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 pro-gramme. Actual energy consump-tion will depend on how the appli-ance is used.	0.545		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.	48
Maximum temperature inside the treated textile (b) (°C)	Rated capacity	34	Weighted remaining moisture content (b) (%)	53.9
	Half	29
	Quarter	21
Spin speed (b) (rpm)	Rated capacity	1400	Spin-drying efficiency class (b)	B (d)
	Half	1400
	Quarter	1400
Programme duration (b) (h:min)	Rated capacity	3:38	Type	free-standing
	Half	2:48
	Quarter	2:48
Airborne acoustical noise emissions in the spinning phase (a)(dB(A) re 1 pW)	76		Airborne acoustical noise emis-sion class (b) (spinning phase)	B (d)
Off-mode (W) (if applicable)	0.50		Standby mode (W) (if applicable)	N/A
Delay start (W) (if applicable)	4.00		Networked standby (W) (if applicable)	N/A

Minimum duration of the guarantee offered by the supplier (a)(c):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 is found:

(a) this item shall not be considered relevant for the purposes of Article 2(6) of Regulation (EU) 2017/1369.

(b) for the eco 40-60 programme.

(c) changes to this item shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

(d) if the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

CONTEÚDO

INSTRUÇÕES DE SEGURANÇA

Three-panel image showing a grid of circular objects, a magnifying glass, and an open book (no text or symbols)

Illustration of a faucet being inserted into a socket (no text or symbols present)

Line drawing of a kitchen sink with faucet and faucet (no text or symbols)

Aviso!

Line drawing of a sweater with a tag and belt (no text or symbols)

Verifique a etiqueta

Two handbags with circular designs, one wrapped in a blanket and the other in a patterned case (no text or symbols)

Simple line drawing of a bag with an animal inside, no text or symbols present

Line drawing of a traditional-style jacket with textured body and side connectors (no text or symbols)

Diagram showing a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

Programa	Carga (kg)		Temp. (°C)	Tempo predefinido
	7,0	8,0	Predefinição	7,0/8,0
Algodão	7,0	8,0	40	03:39
Rápido 15'	2,0	2,0	Frio	00:15
Rápido 45'	2,0	2,0	20	00:45
Lavagem 60'	3,5	4,0	30	01:00
ECO 40-60	7,0	8,0	-	3:13/3:32
Intensivo	7,0	8,0	40	03:48
Enxaguar ecentrifugar	7,0	8,0	-	00:20
Esterilização	3,5	4,0	70	02:27
Roupa de desporto	3,5	4,0	20	00:45
Sintético	3,5	4,0	40	03:18
Misturar	7,0	8,0	40	01:20
Delicado	2,0	2,0	30	00:50
Lã	2,0	2,0	40	01:07
20 °C	3,5	4,0	20	01:01
Centrifugar apenas	7,0	8,0	-	00:12

Line drawing of a hand holding a curved object (no text or symbols)

MANUTENÇÃO

Diagram of a mechanical component with labeled section A, showing internal structure without any text or symbols

Line drawing of a person standing on a wooden boat hull (no text or symbols)

Simple line drawing of a hand opening a rectangular panel with a dark interior (no text or symbols)

Line drawing of a drawer with an arrow pointing to the interior panel (no text or symbols)

Insira a gaveta do doseador

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Abra a tampa inferior

Simple line drawing of a laboratory setup with a monitor, cup, and tubing (no text or symbols)

Hand placing a rotary dial into a control panel (no text or symbols visible)

Mechanical diagram showing a cylindrical component mounted on a base plate with directional arrows indicating motion (no text or symbols)

Three simple line drawings: three round objects, a magnifying glass, and an open book (no text or symbols)

Diagram showing two pipe fittings with a valve, one being inserted and the other being inserted (no text or symbols present)

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Avertissement!

Line drawing of a sweater with a tag and tie, no text or symbols present

Lisez l'étiquette

Two handbags with circular designs, one open and one closed, shown in line drawing style (no text or symbols)

Simple line drawing of a bag with a bag inside, containing a small object (no text or symbols)

Line drawing of a traditional East Asian-style garment with patterned collar and shoulder detail (no text or symbols)

Simple line drawing of a bag with an arrow indicating rotation or folding process (no text or symbols)

Line drawing of a hand holding a curved object (no text or symbols)

MAINTENANCE

Diagram of a drawer with an arrow pointing to a slot, no text or symbols present

Line drawing of a person standing on a wooden shelf with shelves and legs (no text or symbols)

Hand inserting a small dark object into a rectangular frame (no text or symbols visible)

Line drawing of a refrigerator drawer with an arrow pointing to the drawer (no text or symbols)

Insérez le bac

Remarque!

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a bowl and a fan (no text or symbols)

Hand placing a circular component into a tray with a compass (no text or symbols visible)

Diagram of a mechanical component with directional arrows indicating movement (no text or symbols)

Simple line drawing of a person using a device to interact with another person (no text or symbols)

Ablassschlauch

⚠ Warning!

Line drawing of a kitchen sink with faucet and faucet (no text or symbols)

Line drawing of a sweater with a bag attached to it (no text or symbols)

Two handbags with circular designs, one open and one closed, drawn in line drawing style (no text or symbols)

Simple line drawing of a bag with a bag inside, containing no text or symbols

Line drawing of a traditional East Asian garment with patterned sleeves and shoulder straps (no text or symbols)

Diagram showing a mechanical or structural assembly with two components moving in a container (no text or symbols)

Line drawing of a hand gripping a curved object (no text or symbols)

Line drawing of a mechanical component with a labeled section (A), no readable text or symbols present.

Simple line drawing of a person standing on a boat-like structure with no text or symbols

Simple line drawing of a hand opening a window frame (no text or symbols)

Line drawing of a mechanical component with internal channels and a bracket (no text or symbols)

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

Simple line drawing of a kitchen appliance with a plate, sink, and spoon (no text or symbols)

Hand holding a rotary dial with directional arrows, mounted on a tray (no text or symbols visible)

Mechanical diagram showing a cylindrical component mounted on a base with directional arrows indicating motion (no text or symbols)

Illustration of a washing machine with sound waves above it, symbolizing sound or audio (no text or symbols present)

Sticker RATING PLATE

Sticker

MANUAL REFERENCE
