Product Type	Vacuum Generator
Model	OVEL-7-H-15-PQ-VQ4-UA-C-A-B2V-H3
Operating Pressure	2 … 7 bar (0.2 … 0.7 MPa)
Nominal Operating Pressure	4 bar (0.4 MPa)
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]; lubricated operation not possible
Ambient Temperature	0 … 50 °C
Medium Temperature	0 … 50 °C
Storage Temperature	-20 … +60 °C
Operating Voltage (Solenoid Valve)	24 V DC
Operating Voltage (Vacuum Sensor)	10 … 30 V DC (variant B), 18 … 30 V DC (variants V and PNLK)
Duty Cycle (Solenoid Valve)	100%
Response Time	≤ 12 ms
Degree of Protection	IP40
Corrosion Resistance Class (CRC)	2
Vibration Resistance	10 … 60 Hz: 0.35 mm; 60 … 150 Hz: 5 g
Shock Resistance	30 g acceleration with 11 ms duration (half-sine)
Mounting Position	Any
Valve Function	2/2-way, closed monostable, towards outside
Electrical Connection	H3 plug or M8 plug (depending on variant)
Manual Override	Yes, for solenoid valves
Intended Use	Generate vacuum in industrial environments
Certifications	UL/CSA (UL 61010-1, CAN/CSA C22.2 No. 61010-1)
Accessories and Spare Parts	www.festo.com/catalogue and www.festo.com/spareparts

Frequently Asked Questions - OVEL-7-H-15-PQ-VQ4-UA-C-A-B2V-H3 Festo

What is the intended use of the Festo OVEL-7 vacuum generator?

The vacuum generator is intended to generate a vacuum in industrial environments. It should be used only in its original condition, inside buildings, and by qualified personnel familiar with electropneumatic control technology.

What is the operating pressure range for the OVEL-7?

The operating pressure range is 2 to 7 bar (0.2 to 0.7 MPa). The nominal operating pressure is 4 bar (0.4 MPa). The operating medium must be compressed air to ISO 8573-1:2010 [7:4:4]; lubricated operation is not possible.

How do I adjust the ejector pulse intensity?

The ejector pulse intensity is adjusted using the flow control screw (item 5 in the product design). To increase intensity, unscrew the flow control screw slightly. To decrease, screw it in. The screw should be fully screwed in to close the ejector pulse channel if no pulse is desired.

How do I replace the air filter on the OVEL-7?

To replace the air filter, first exhaust the vacuum generator. Pull out the clamp strap on the vacuum generator cartridge (do not lose it). Pull out the cartridge. Place the cartridge with the jet nozzle on a flat surface and press the filter down until the snap hook unlatches. Remove the old filter. Push the new filter onto the jet nozzle until the snap hook engages. Reinsert the cartridge and push the clamping strap until it locks.

What are the electrical supply requirements?

The solenoid valve requires 24 V DC. The vacuum sensor operates on 10 to 30 V DC (for variant B) or 18 to 30 V DC (for variants V and PNLK). The power supply must be a PELV circuit that provides reliable disconnection from the mains (IEC 60204-1). Max. line length is 30 m.

How do I clean and maintain the vacuum generator?

Before cleaning, switch off the operating voltage and compressed air. Clean the device with non-abrasive cleaning agents. Clean the air filter and replace if necessary. For disassembly, disconnect all connections, loosen mountings, and remove the device. Store in a cool, dry environment protected from UV and corrosion.

What should I do if the workpiece is not released from the suction cup?

First, check if the ejector pulse is activated. If not, activate it when lifting the suction gripper. Increase the intensity of the ejector pulse by adjusting the flow control screw. Ensure tubing is correctly dimensioned and not kinked. Clean or replace the silencer and filter if clogged.

What are the operating temperature conditions?

The ambient and medium temperature range is 0 to 50 °C. Storage temperature range is -20 to +60 °C. The device should be operated within these limits to ensure proper function.

Is the OVEL-7 vacuum generator UL/CSA certified?

Yes, when marked with the UL inspection mark, the product complies with UL 61010-1 and CAN/CSA C22.2 No. 61010-1. It must be powered by a limited-energy circuit (LPS or Class 2) as per the standards. File number E322346.

How do I mount the vacuum generator?

Mounting can be done directly using two M3 screws with a tightening torque of 0.6 Nm ± 20%. Alternatively, it can be mounted on a common supply manifold using the OABM-MK-G3 mounting kit. Ensure the mounting position avoids condensate accumulation and allows unhindered exhaust airflow.

USER MANUAL OVEL-7-H-15-PQ-VQ4-UA-C-A-B2V-H3 Festo

Technical line drawings of two identical mechanical valve assemblies (no text or symbols visible)

FESTO

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

[phone]

www.festo.com

Operating instruction

8194696

2023-08b

[8194698]

8194696

Translation of the original instructions

© 2023 all rights reserved to Festo SE & Co. KG

IO-Link is a registered trademark of its respective trademark holder in certain countries.

1 Applicable documents

All available documents for the product → www.festo.com/sp.

Documents Product Content
Operating instructions Pressure transmitter SPTE –
Operating instructions Pressure sensor SPAE –

Tab. 1: Applicable documents

2 Safety

2.1 Safety instructions

-Only use the product in its original condition without unauthorised modifications.
-Before working on the product: switch off the power supply.
-Use the product only inside buildings.
- Take into account the ambient conditions at the location of use.
–The product is intended for use in industrial environments.

The product may generate high frequency interference, which may require interference suppression measures in residential areas.

-Observe the specifications on the product labelling.

2.2 Intended use

The vacuum generator is used to generate a vacuum.

2.3 Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can evaluate the work and detect dangers. The qualified personnel have skills and experience in dealing with electropneumatic (open-loop) control technology.

2.4 UL/CSA certification

In combination with the UL inspection mark on the product, the information in this section must also be observed in order to comply with the certification conditions of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL/CSA approval information

Product category code QUYX, QUYX7
File number E322346
Considered standards UL 61010-1, CAN/CSA C22.2 No. 61010-1
UL mark	c US LISTED

Tab. 2: UL/CSA certification information

WARNING

The unit shall be supplied by a power source which fulfils the requirements on a limited-energy circuit in accordance to IEC/EN/UL/CSA 61010-1 or on a Limited Power Source (LPS) in accordance to IEC/EN/UL/CSA 60950-1 or IEC/EN/UL/CSA 62368-1 or a Class 2 circuit in accordance to NEC or CEC.

3 Additional information

- Contact the regional Festo contact if you have technical problems

→ www.festo.com.

-Accessories and spare parts → www.festo.com/catalogue.

4 Product design

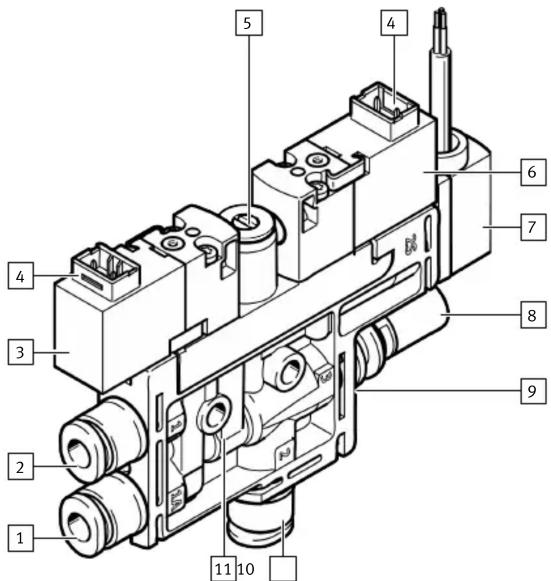

Fig. 1: Product design OVEL-...-H3

1 Supply port for ejector pulse, optional
2 Supply port
3 Solenoid valve for vacuum generation
4 Electrical connection, H3
5 Flow control screw to adjust the intensity of the ejector impulse
6 Solenoid valve for ejector pulse, optional

7 Vacuum sensor, pressure sensor optional
8 Exhaust port, optional silencer
9 Vacuum generator cartridge
10 Vacuum port
11 Housing with mounting holes

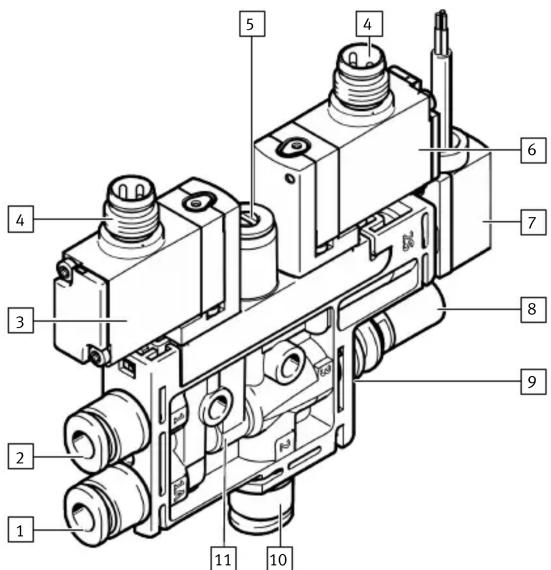

Fig. 2: Product design OVEL-...-R8

1 Supply port for ejector pulse, optional
2 Supply port
3 Solenoid valve for vacuum generation
4 Electrical connection, M8
5 Flow control screw to adjust the intensity of the ejector impulse
6 Solenoid valve for ejector pulse, optional

7 Vacuum sensor, pressure sensor optional
8 Exhaust port, optional silencer
9 Vacuum generator cartridge
10 Vacuum port
11 Housing with mounting hole

5 Function

• The solenoid valve for vacuum controls the supply of compressed air for generating vacuum. A vacuum is generated so long as the vacuum solenoid valve is in the switching position.
• The ejector pulse solenoid valve generates an ejector pulse to release the workpiece safely from the suction cup with connector and to purge the vacuum quickly. A separate operating pressure can be created for the ejector pulse through the optional supply port.
• The vacuum sensor monitors the setpoint value for the generated vacuum.

6 Transport and storage

- Store the product in a cool, dry environment protected from UV and corrosion. Keep storage times short.

7 Assembly

An unfavourable mounting position may impair the function of the product.

- Avoid condensate accumulation in the device through a suitable mounting position.

- Exhaust air must be able to flow out unhindered.

Direct mounting

- Fasten the vacuum generator with 2 M3 screws.

- Tightening torque: 0.6 Nm ± 20 %

Mounting on common supply manifold

The QS fittings are not included with common supply manifold port.

The vacuum generator can be fastened to common supply manifolds with max. 8 positions.

Use mounting kit OABM-MK-G3 → www.festo.com/spareparts.

The vacuum generators with an additional port for ejector pulse (OVEL-...-Z-C-A) cannot be combined with vacuum generators without an additional port (OVEL-...-C-A).

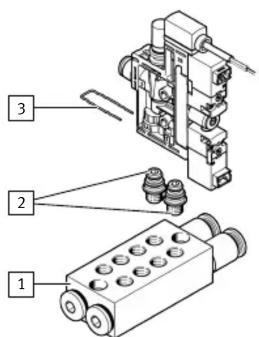

1 Common supply manifold
2 Connecting adapter
3 Supply port clamping clip

Fig. 3: Mounting on common supply manifold

1. Screw the connecting adapter [2] into the common supply manifold [1].
2. Plug the vacuum generator to the connecting adapter and lock it with the included clamping clip [3].
3. Seal unused positions of the common supply manifold with blanking plugs.

An allocation with OVEL-5 and OVEL-7/-10 is possible only with size 15 common supply manifolds.

Installation

8.1 Pneumatic installation

- Connect tubing to the vacuum generator. Recommendation: use PUN type tubing www.festo.com/catalogue.

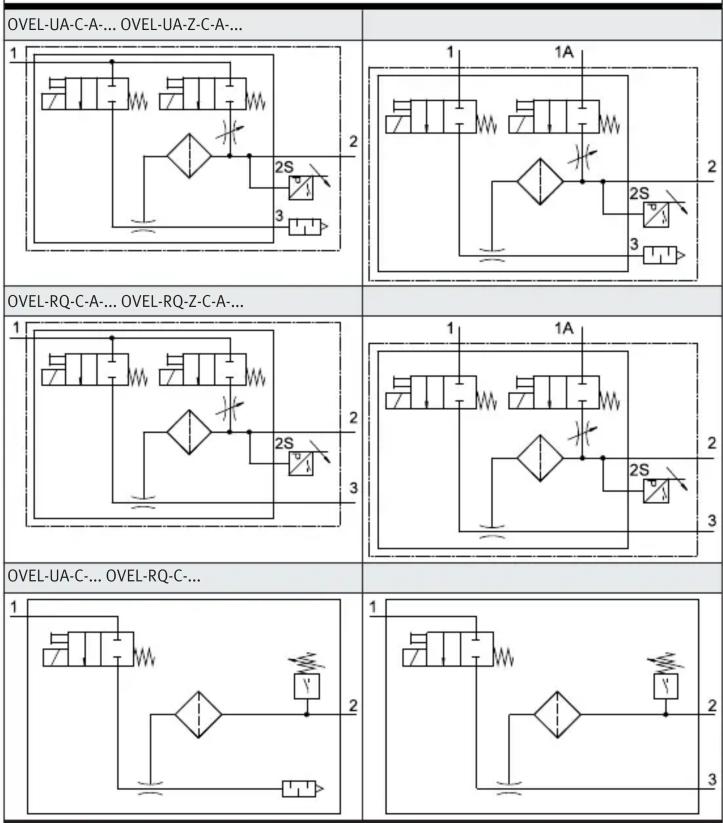

Circuit symbols of the vacuum generators with vacuum sensor

    K["OVEL-RQ-C-A-... OVEL-RQ-Z-C-A-..."] --> L["1"]
    L --> M["2S"]
    M --> N["3"]
    N --> O["2A"]
    O --> P["2S"]
    P --> Q["3"]
    Q --> R["2A"]
    R --> S["2S"]
    S --> T["3"]

Tab. 3: Circuit symbols

Circuit symbols for the vacuum generators without vacuum sensor

OVEL-UA-C-A OVEL-UA-Z-C-A
1	1 1A 2 2S 3
OVEL-RQ-C-A OVEL-RQ-Z-C-A-...
1	1 1A 2 2S 3
OVEL-UA-C OVEL-RQ-C
1	1 2 2 3

Tab. 4: Circuit symbols

8.2 Electrical installation

WARNING

Risk of injury due to electric shock.

• For the electric power supply, use PELV circuits that guarantee a reliable electric disconnection from the mains network.
• Observe IEC 60204-1/EN 60204-1.
• Connect all circuits for the operating and load voltage supply.

- Connect the vacuum generator to the electrical connection. - Max. permissible line length: 30 m.

Pin allocation

H3 plug Pin Allocation
2-+ + -1	1 +/-
	2 -/+

Tab. 5: Pin allocation of H3 plug

M8 plug Pin Allocation
41 + + 3	1 Not assigned
	3 +/-
	4 -/+

Tab. 6: Pin allocation of M8 plug

Circuit diagrams

OVEL-...B/V OVEL-...PNLK
P BN +24 VBU 0 V	P P1 BN +24VBN 4 BK 3 BU 0VPNP/IO-Link NPN

Tab. 7: Circuit diagrams

9 Commissioning
• Install the device description file IODD.

iFirmware, software or configuration files → www.festo.com/sp.
Files Product Content
Device description file IODD Vacuum generator OVEL IO-Link parameters

Tab. 8: Device description file
9.1 Commissioning the vacuum generator

Requirement: the vacuum generator is fully mounted and connected 7 Assembly.

1. Check the operating conditions and critical limits 13 Technical data.

2. Apply the operating pressure to the supply port.

3. Switch on the operating voltage.

4. Activate suction: apply the voltage to both pins of the solenoid valve.

Negative pressure is generated at the vacuum port.

The vacuum generator is ready for operation.

9.2 Setting the intensity of the ejector pulse

Requirement: the vacuum generator is fully commissioned.

1. Screw in the flow control screw completely.

The channel for the ejector pulse is closed. An ejector pulse is not generated. Leakage is possible.

1. Switch on the vacuum generation.

A negative pressure is generated at the vacuum port.

1. Switch off the vacuum generation.

2. Unscrew flow control screw slightly.

3. Actuate the ejector pulse.

4. Screw the flow control screw out or in to adjust the ejector pulse to the required intensity.

9.3 Commissioning the vacuum sensor

Commissioning the pressure transmitter SPTE 1 Applicable documents.

Commissioning the pressure sensor SPAE 1 Applicable documents.

10 Operation

Fig. 4: Manual override of the solenoid valves

1 Manual override of the vacuum solenoid valve

2 Manual override of the ejector pulse solenoid valve

1. Press in the manual override plunger [1] or [2] with a blunt pin.

The solenoid valve switches.

1. Remove the pin.

The manual override plunger is automatically reset. The solenoid valve returns to the initial position.

11 Maintenance

11.1 Disassembly

1. Switch off the power supply:

- Operating voltage

Compressed air

1. Disconnect the electrical and pneumatic connections from the device.

2. Loosen the mountings and remove the device.

11.2 Replacement

Replacing air filter on OVEL-5

Technical line drawing of a flashlight component with an arrow indicating assembly (no text or symbols present)

Fig. 5: Replacing air filter

Replacing air filter on OVEL-7/-10

Illustration of a hand holding a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Fig. 6: Replacing air filter

1. Exhaust the vacuum generator.
2. Pull out the clamp strap on the vacuum generator cartridge. Do not lose the clamp strap.
3. Pull out the vacuum generator cartridge Fig. 5.
4. For OVEL-7/-10 only → Fig. 6: place the vacuum generator cartridge with the jet nozzle on a flat surface and press the filter down.
   The snap hook unlatches.
5. Remove the filter.
6. Push the new filter on the jet nozzle.
   For OVEL-7/-10 only: the snap hook engages.
7. Push in the vacuum generator cartridge.
8. Push the clamping strap on the vacuum generator cartridge until it locks.

Replacing vacuum sensor on OVEL-5

Fig. 7: Replacing vacuum sensor - OVEL-5

1 Vacuum sensor
2 Clamp strap at vacuum sensor port

1. Pull out the clamp strap on the vacuum generator cartridge. Do not lose the clamp strap.

2. Pull out the vacuum generator cartridge.

3. Pull out the clamp strap on the vacuum sensor port.
4. Replace the vacuum sensor and lock it with the clamp strap.
5. Push in the vacuum generator cartridge.
6. Push in the clamp straps at the vacuum sensor port until they lock.

Replacing vacuum sensor on OVEL-7/-10

Fig. 8: Replacing vacuum sensor - OVEL-7/-10

1 Vacuum sensor
2 Clamp strap at vacuum sensor port

1. Pull out the clamp strap on the vacuum sensor port.
2. Replace the vacuum sensor and lock it with the clamp strap.

11.3 Cleaning the device

1. Switch off the power supply:

- Operating voltage

Compressed air

1. Clean the device with non-abrasive cleaning agents.

2. Clean the air filter and replace it if necessary.

12 Fault clearance

Fault description Cause Remedy
The workpiece is not released from the suction cup with connector.	A device-independent vacuum between the workpiece and the suction gripper.	Activate the ejector pulse when lifting the suction gripper.
	The ejector pulse is not activated or is not sufficiently dimensioned.
	A device-independent vacuum between the workpiece and the suction gripper.	Increase the intensity of the ejector pulse.
	The ejector pulse is not activated or is not sufficiently dimensioned.
	The tubing is incorrectly dimensioned.	Replace the tubing.
	The flow control screw is closed.	Open the flow control screw.
	The silencer is clogged. Clean the filter is clogged. Clean the filter	silencer and replace if necessary.
	The filter is clogged. Clean the filter	replace if necessary.
	The pneumatic line at the vacuum port is kinked.	Avoid kinking the pneumatic lines.

Tab. 9: Fault clearance

13 Technical data

Technical data, general
OVEL -5 -7 -10
Valve function 2/2-way, closed monostable, toward outside
Mounting position any
Degree of protection	IP40
Corrosion resistance class (CRC)	2
Vibration resistance in accordance with IEC 60068	10 ... 60 Hz: 0.35 mm
	60 ... 150 Hz: 5 g
Shock resistance in accordance with IEC 60068	30 g acceleration with 11 ms duration (half-sine)

Tab. 10: Technical data, general

Operating conditions
OVEL -5 -7 -10
Operating pressure	[MPa]	0.2 ... 0.7
	[bar]	2 ... 7
	[psi]	29 ... 102
Nominal operating pres-sure	[MPa]	0.4
	[bar]	4
	[psi]	58
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information on the oper-ating medium		Lubricated operation not possible

Tab. 11: Operating conditions

Temperature ranges
OVEL -5 -7 -10
Ambient temperature	[°C]	0 ... 50
Temperature of medium	[°C]	0 ... 50
Storage temperature	[°C]	-20 ... +60

Tab. 12: Temperature ranges

Electrical characteristic values
OVEL-5-7-10
Vacuum sensor [V DC] OVEL-...-...B	10 ... 30
Vacuum sensor [V DC] OVEL-...-...V	18 ... 30
Vacuum sensor [V DC] OVEL-...-...PNLK	18 ... 30

Electrical characteristic values

Operating voltage [V DC] Solenoid valve	24
Duty cycle Solenoid valve	100%
Characteristic coil data [W] 1 24 V DC
Response time [ms]	≤ 12	≤ 22
Protective circuit Solenoid valve	no
Conformity	→ www.festo.com/sp

Tab. 13: Electrical characteristic values
