Product Type	Wood Stove
Brand	Jøtul
Model	602A
Material	Cast iron
Fuel Type	Wood (logs up to 40 cm / 16 in)
Log Capacity	Approx. 5 kg (11 lb)
Combustion Type	Front combustion
Back Clearance to Combustibles	625 mm (24.5 in)
Side Clearance to Combustibles	510 mm (20 in)
Front Clearance to Combustibles	815 mm (32 in)
Hearth Extension Material	Asbestos millboard or equivalent, min. 3/8 in thick
Hearth Extension Size	16 in front and sides, 8 in back beyond stove
Chimney Connector Diameter	6 in (adapter from 5 to 6 in included)
Chimney Connector Material	24 gauge steel or refractory masonry
Minimum Chimney Height	10 ft (3.05 m)
Minimum Chimney Flue Size	6x6 in square or 7 in diameter round
Included Accessories	Legs, baffle plate, burn plates, door knob, 5-6 in adapter, hearth extension shield
Safety Features	Do not overfire; keep combustibles 90 cm away; use only wood
Maintenance	Regular cleaning of stove and chimney; check creosote buildup
Warranty	Not specified in manual

Frequently Asked Questions - 602a JOTUL

What type of fuel can I use in the Jøtul 602A?

Only dry wood (air-dried for at least 4-6 months) should be used. Never use liquid fuels such as gasoline, kerosene, or charcoal lighter fluid.

What are the minimum clearances to combustible materials?

For rear outlet: back clearance 625 mm (24.5 in), side clearance 510 mm (20 in), front clearance 815 mm (32 in). For top outlet: same plus additional side clearance 460 mm (18 in).

How do I start a fire in the stove?

Place kindling sticks at the front, add full-length logs, ensure sufficient draft, then reduce air intake once wood is glowing.

How often should I clean the chimney?

At least once a year, or more frequently if creosote buildup is observed. Inspect regularly during heating season.

What should I do if creosote builds up?

Remove creosote immediately to reduce chimney fire risk. Consult a professional chimney sweep if needed. Burn the stove intensely for a few days to burn off pitch.

Can I burn charcoal in the stove?

Yes, a basket grate can be placed on the hearth to hold charcoal, but the stove is primarily designed for wood. Follow local regulations.

Is the stove safe for continuous day and night use?

Yes, it can burn continuously with even, rough logs. However, fire intensely at regular intervals to prevent pitch buildup.

How should I dispose of ashes?

Place ashes in a metal container with a tight-fitting lid and store on a noncombustible surface away from materials until completely cool.

What if the enamel on the stove gets damaged?

Avoid overfiring (red glow) to prevent enamel damage. For unenamelled stoves, use the included Senotherm paint to patch scratches.

Can I install the stove by myself?

Installation must comply with local regulations and NFPA standards. It is recommended to have a professional installer ensure correct clearances and chimney connection.

USER MANUAL 602a JOTUL

This installation and operating instruction is divided in 5 parts:

1. GENERAL INFORMATION

2. HAZARDS CONNECTED TO THE USE OF CLOSED FIREPLACES

3. INSTALLATION

4. OPERATION OF THE STOVE

5. SWEEPING AND MAINTENANCE

6. GENERAL INFORMATION

1.1 Jotul's boxstove 602A is a cast iron stove, designed for use of wood as fuel. Logs up to a length of appr. 40cm (16") can be utilized, and it can be filled with appr. 5 kgs. (17) of wood.

1.2 Jotul's woodstove 602A has front combustion, i.e. the wood is ignited in front and burns slowly towards the rear, thus avoiding that all the wood will burn at the same time. The wood will burn longer and the stove will radiate an even heat.

1.3 When installing, operating and maintaining this stove, please follow the guide-lines given in these instructions. Save these instructions and keep them so that they are always available for everybody using the stove.

1. HAZARDS CONNECTED TO THE USE OF CLOSED FIREPLACES

2.1 Any use of fire, also in connection with closed fireplaces, represent a certain danger.

2.2 With intense firing, the temperature of the cast iron can exceed 500^ C ( 900^ F). The following factors must always be considered.

a. The stove should not be mounted in parts of the room where there is a lot of traffic.
b. Loose inflammable material must be kept in a safe distance from the stove, i.e. minimum 90 cm (36").
c. Children must be taught that the stove is hot and must not be touched.
d. Clothes must not be dried over the stove. They can fall down and be ignited.
e. The stove must be mounted in accordance with the local regulations, and according to the instructions given

f. The stove must be used and maintained in accordance with these instructions.

2.3 Never use the stove if there are combustible gases in the room..

2.4 Poisonous gases can come out into the room if for example the ventilation system creates a low pressure in the room where the stove is places.

2.5 Make sure that sparks and embers don't get out of the stove when the door is opened.

2.6 Be aware that even if the ashes look cold, there might still be some burning embers left. Avoid placing the ashes close to combustible materials before you are positive that all burning embers are out.

2.7 Do not use the stove with an open door. The stove can then be overheated.

2.8 The stove, chimney connector and chimney must be inspected and cleaned frequently, i.e. at least once a year.

2.9 Creosote - formation and need for removal

When wood is burned slowly, it produces acetic and pyroligneous acids, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow-burning fire. As a result, creosote residue accumulates on the flue lining. When ignited this creosote makes an extremely hot fire.

The chimney connector and chimney should be inspected frequently during the heating season to determine if a creosote buildup has occurred.

If creosote has accumulated it should be removed to reduce the risk of a chimney fire. Experienced chimney servicing personnel should be consulted.

2.10 Utilize wood as only fuel, and never liquid fuels. Liquid fuel utilized in a stove for solid fuel can result in an explosion and fire.

Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid, or similar liquids to start or "freshen up" a fire in this heater. Keep all such liquids well away from the heater while it is in use.

Never use or store flammable liquids, especially gasoline, in the vicinity of the stove.

2.11 Andirons may be used with this unit to support the logs when building a fire. If charcoal is burned, a basket grat may be placed on the hearth to hold it.

3. INSTALLATION

3.1 All installation of Jøtul's boxstove 602A must be according to the local regulations. If nothing else is stated, the stove should be installed according to the guide-lines given by the National Fire Protection Association in NFPA No. 89M. Heat producing appliance clearances 1976, and NEPA No. 211 Chimneys, fireplaces and vents 1972.

The inside dimension of a square masonry chimney should be minimum 6 inch. x 6 inch. For a circular approved insulated chimney a diameter of 7 inch. is recommended. The minimum height of the chimney should be 10 feet.

3.2 Chimneys. The stove can be connected to Masonry Chimneys for residential Type Appliances, or an approved Metal Chimney for residential type appliances. Single wall metal chimneys shall not be used inside 1- and 2-family dwellings.

3.3. The stove can be installed in different ways, but the installation must be in accordance with the UL-listing.

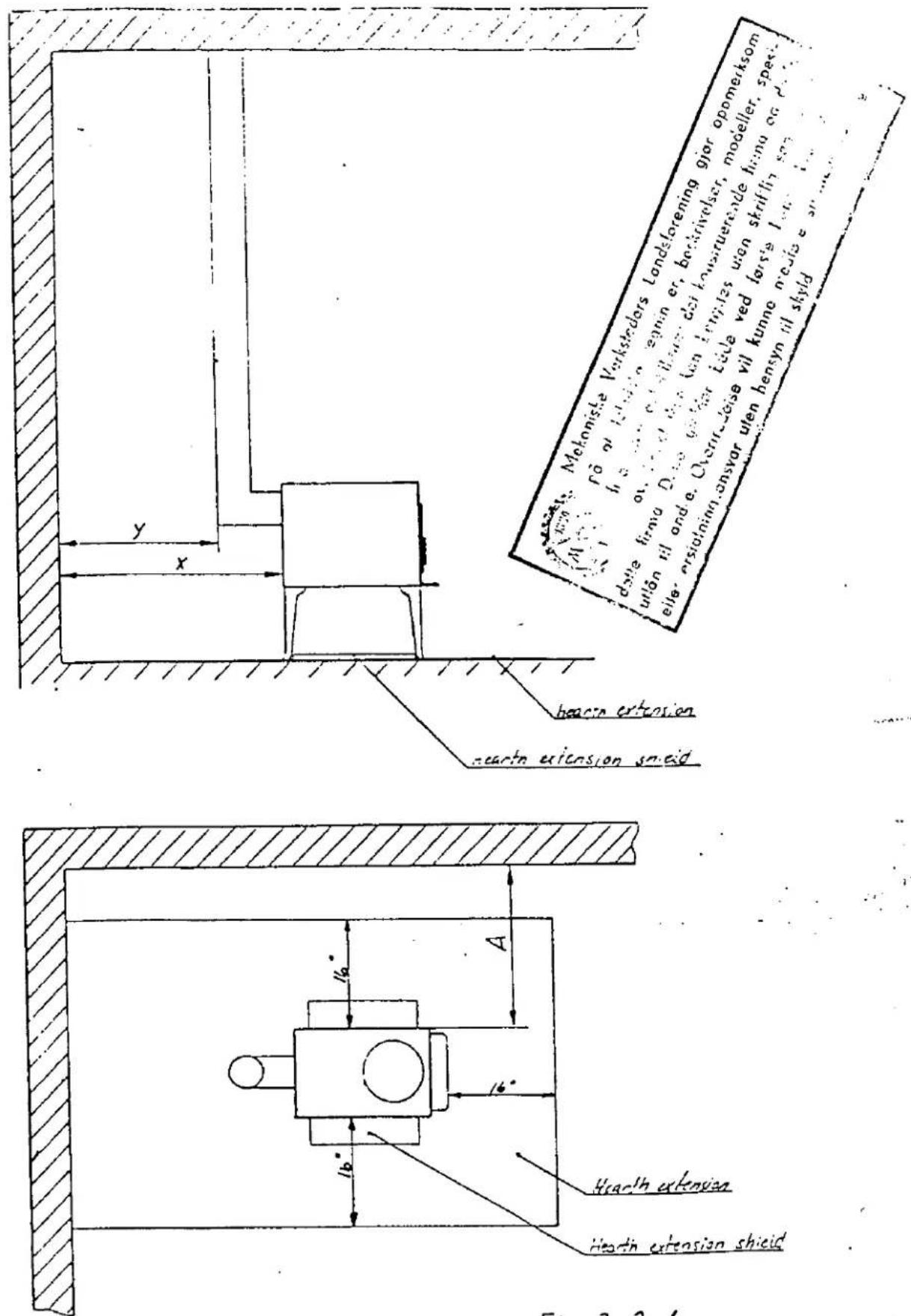

3.4.1. Installation to smoke outlet at the back.and top.

If the installation is made as in figure 3.4.1, the distance from the stove and the chimney connection to combustible material must be:

x = minimum ..... 625 mm (..... 24 1/2 in.)
y = minimum ..... 510 mm (..... 20 in.)
A = minimum ..... 815 mm (..... 32 in.)

If the installation is made as in figure 3.3.4, the distance from the stove and the chimney connection to combustible materials must be:

x = minimum ..... 625 mm (..... 24 1/2 in.)
y = minimum ..... 510 mm (..... 20 in.)
z = minimum ..... 460 mm (..... 18 in.)
A = minimum ..... 815 mm (..... 32 in.)

3.4 Make a hearth extension

The stove shall be placed on a hearth extension not less than 3/8 inches thick of asbestos millboard or equivalent.

The hearth extension shall extend at least 16 inches in front and to each side of, and at least 8 inches beyond the back of the boxstove.

If the floor projection of the chimney connector is extending beyond the sides of the boxstove, the hearth extension should be expanded in that direction in its full width to cover the floor at least 2 in. beyond the projected area.

If possible, the hearth extension should cover the floor in this direction just up to the wall.

The hearth extension may be placed on the sub or finish flooring, whether the flooring is combustible or not.

The hearth extension shall be readily distinguishable from the surrounding floor.

3.5 Assemble the stove

Put the four legs on with screws and washers which are delivered with the stove. There is one leg in each corner of the stove.

Put the baffelplate and burnplates in position. Screw on the knob to the door.

Place your stove on the hearth extension according to the distances given in the previous sections.

Place the hearth extension shield between the legs of the stove with the painted side visible, as shown in figure 3.3.1 to figure 3.3.4.

3.6 Install the chimney connector

With the stove in place you can now determine the path of the chimney connector. The connector shall be used to connect the stove to the chimney. The connector shall be made of no combustible corrosion resistant material such as steel or refractory masonry. If a steel connector is to be used, it

should be 24 gauge or thicker. A connector shall be as short and straight as possible.

A 6" chimney connector should be used. The stove is delivered with a 5" - 6" adapter which may be attached to the smoke outlet of the stove. At every joint, use sheet metal screws to get a good joint. Some cement can be used to seal each joint.

The 5" - 6" adapter is secured to the smoke outlet by a 6 mm screw which is delivered with the stove.

A connector to a masonry chimney shall extend through the wall to the inner face or liner, but no beyond, and shall be firmly cemented to masonry. A thimble may be used to facilitate removal of the chimney connector for cleaning, in which case the thimble shall be permanently cemented in place with high-temperature cement.

A chimney connector shall not pass through any floor or ceiling, nor through a fire wall or fire partition.

3.7 Before building a fire.

With the chimney connector properly secured to the smoke outlet, your J∅TUL STOVE No. 602A is ready for use. Please read the following section carefully upon using the stove.

4.1 Use always wood as fuel. The wood should be air dried for at least 4 - 6 months.

Kindle some sticks at the front of the stove, then put in some full-length logs. At the beginning see that the draught is sufficient, and then regulate it down towards the combustion desired.

The fire will now slowly spread inwards. When the wood has turned to glowing, the air intake should be reduced. The wood then burns rather like coke or charcoal.

In place of constant rekindling, the stove should be kept continuously burning day and night on even, rough logs. When the wood has burnt almost completely and only the necessary glows remain for continued burning these are poked to the front using the poker. The stove is then refilled. The draught is increased, and then regulated down to the combustion desired.

4.2 Enamelled stoves must not be fired to the extent that they assume a red glow. The enamel may then be damaged.

4.3 During the first few times you use a new stove, the stove may become somewhat damp. In order to prevent this condensate from running down the face of the stove, open the door slightly during the first firing. As soon as the stove is warm, this condensate will evaporate and the door may be closed.

On enamelled stoves, this condensate should be wiped off

5. SWEEPING AND MAINTENANCE

5.1 When wood burns, soot and creosote may develop and could, together with other incombustible particles settle in the chimney and the chimney connectors. If this deposit increase it will be necessary to have it removed. This ought to be done by sweeping the chimney and chimney connector regularly. How often depends on the use of the stove. As a rule, the chimney and the chimney connector should be swept at least once a year.

If the chimney and the chimney connector is not swept regularly, a chimney fire may develop. A chimney which is built according to the regulations, or one which has prior approval will withstand a chimney fire. However, if a fire should erupt, the chimney should be inspected by professionals before it is taken into use again..

5.2 The stove may burn "continuously" (day and night), even on small loads. Should pitch develop during such continuous burning, the stove should be fired intensely with regular intervals.

This repeated a few days in succession will burn away possible pitch.

5.3 To give the maximum amount of heat, the stove and the chimney connector should be swept regularly. Figure 5.3.1 illustrates how the stove should be swept. By removing the top lid sweeping can easily be carried out everywhere in the stove.

When sweeping the chimney connector it may be convenient to disconnect the stove. The chimney connector must be cleaned in its full length to assure a safe removal of all creosote which have condensed on the inner surfaces.

After sweeping it is important to assure that the baffle and the burnplates are replaced as in figure 5.2.1. The burnplate increases the temperature, during combustion and protects the side plates. The baffle guides the hot gases in such a way that maximum heat dissipation is attained. A bottle of black Senotherm is enclosed for unenamelled stoves. It may be used for patching up possible scratches in the varnish.

Be sure to install the chimney connector properly after sweeping and secure it with the screw.

5.4 Disposal of ashes

Ashes should be placed in a metal container with a tight fitting lid. The closed container of ashes should be placed on a noncombustible floor or on the ground, well away from
