PA0220 - Mobile Device Charger LOGILINK - Free user manual and instructions

Product Type	Mobile Device Charger
Brand	LogiLink
Model	PA0220
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	5 V DC
Output Current	2 A (max)
Power	10 W
Connector Type	USB-A
Dimensions (approx.)	5.0 x 4.0 x 3.0 cm
Weight (approx.)	50 g
Cable Length	Not included (charger only)
Compatible Devices	Smartphones, tablets, power banks, and other USB-charged devices
Protection Features	Overcurrent, overvoltage, short circuit, and overtemperature protection
Charging Indicator	LED indicator (if present)
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Housing Material	ABS plastic
Certifications	CE, RoHS
Energy Efficiency	Level V (typical)
Maintenance	Wipe with a dry cloth; avoid moisture and dust
Safety Warnings	Do not use if damaged; unplug during storms; keep away from water
Spare Parts Availability	Not applicable (integrated unit)
Repair Information	No user-serviceable parts; contact manufacturer for issues

Frequently Asked Questions - PA0220 LOGILINK

Can I use the LogiLink PA0220 charger for fast charging?

The PA0220 provides a standard 5V/2A output, which supports normal charging speeds. It does not support fast charging protocols like Quick Charge or USB-PD.

Is the charger compatible with all smartphones?

Yes, it works with any device that charges via USB-A, including Android and iPhone (with appropriate cable). The maximum current is 2A, so devices drawing more may charge slower.

Does the PA0220 come with a charging cable?

No, the charger unit does not include a cable. You need to use your own USB-A to Micro-USB, USB-C, or Lightning cable.

Can I charge a tablet with this charger?

Yes, most tablets accept 5V input and will charge, though at a slower rate than their original charger if they require more than 2A.

Is it safe to leave the charger plugged in when not in use?

For safety and energy savings, it is recommended to unplug the charger when not in use. It consumes a small amount of standby power.

What should I do if the charger gets warm during use?

Some warmth is normal. If it becomes extremely hot, unplug immediately and stop using. Ensure proper ventilation.

Can I use the PA0220 overseas?

Yes, it supports input voltages of 100-240V AC, so it works worldwide. You may need a plug adapter for the outlet shape.

How do I clean the charger?

Unplug the charger, then wipe the exterior with a soft, dry cloth. Do not use liquids or chemicals.

What does the LED indicator mean?

If the charger has an LED, it typically lights up when plugged in and goes off when no device is connected. Refer to the manual for specific behavior.

Is the charger repairable if it stops working?

The charger has no user-serviceable parts. Do not open it. If faulty, contact LogiLink support or replace the unit.

USER MANUAL PA0220 LOGILINK

Black LogiLink device with ports and a connector, no visible text or symbols on the device itself.

LogiLink®

USB-C™ 2-Port Wall Charger, 18W

1 x USB-C™ PD Port & 1 x QC USB Port

Art. No.: PA0220

Black LogiLink device with ports and a connector, no visible text or symbols on the device itself.

LogiLink®

USB-C™ 2-Port Wall Charger, 18W

1 x USB-C™ PD Port & 1 x QC USB Port

Art. No.: PA0220

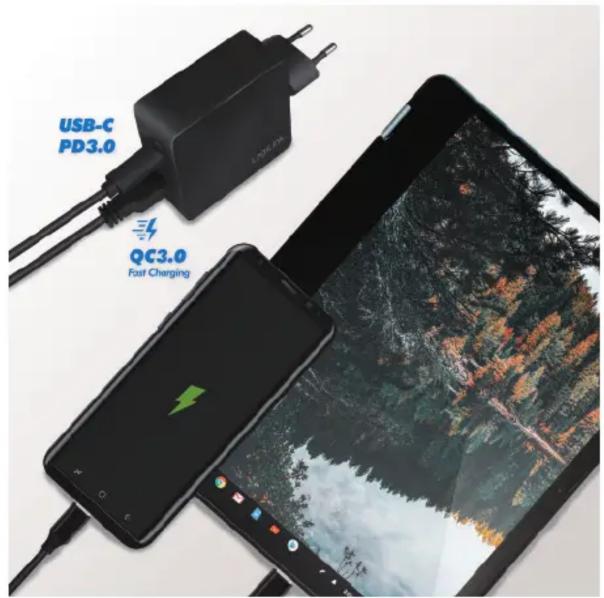

Rapid Charging with PD3.0 and QC3.0

Charge your power-hungry devices with one USB-C PD port and one USB-A fast charging port.

Close-up of a black electronic device with a PD button (no text or symbols visible)

3D rendering of a dark gray rectangular device with a red-lit window (no text or symbols visible)

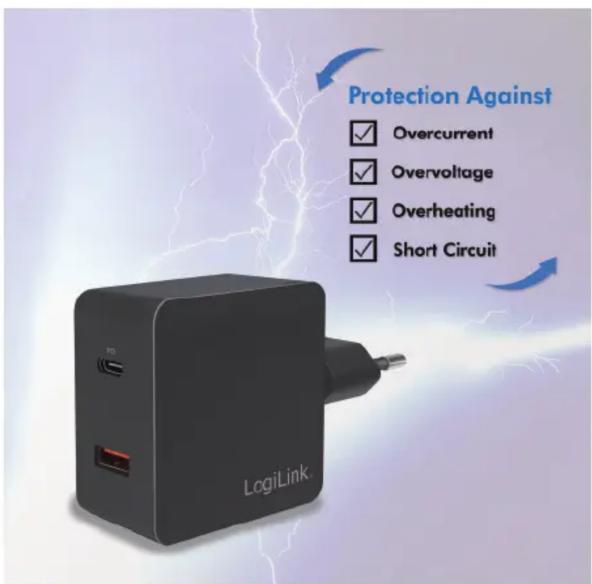

Multiple Protection

Supports overcurrent, overvoltage, overheating and short circuit protections.

Black LogiLink device with a USB port and external cable, no visible text or symbols on the device body.

LogiLink®

USB-C™ 2-Port Wall Charger, 18W

1 x USB-C™ PD Port & 1 x QC USB Port

Art. No.: PA0220

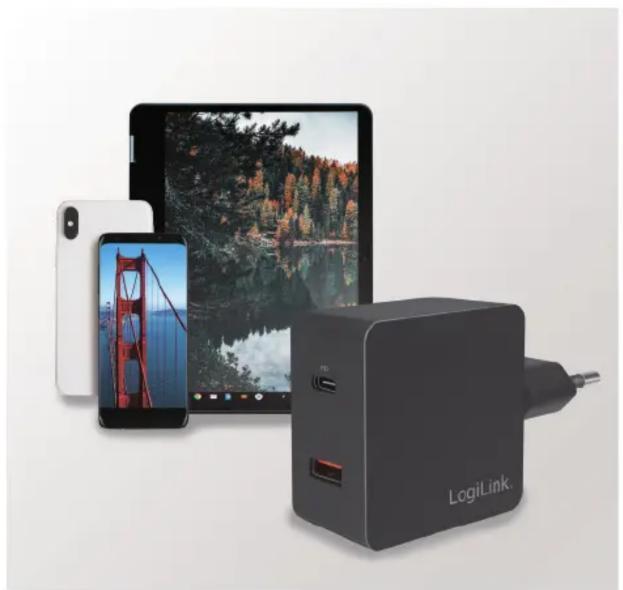

Product photo of a LogiLink device connected to a smartphone displaying a scenic landscape, with no visible text or symbols on the devices themselves.

Wide Compatibility

Compatible with most mobile devices: smartphones, tablets and much more.

Top-down view of a brown leather handbag with earphones, smartphone, and accessories (no text or symbols visible)

Travel-Ready

Compact size easily fit in to laptop bag or backpack.

Black LogiLink device with ports and a connector, no visible text or symbols on the device itself.

LogiLink®

USB-C™ 2-Port Wall Charger, 18W

1 x USB-C™ PD Port & 1 x QC USB Port

Art. No.: PA0220

Specification:

Input	100 - 240V AC 50/60Hz 1A max.
Output	USB-A port: 5V 3A (15W) / 9V 2A (18W) / 12V 1.5A (18W)USB-C port: 5V 3A (15W) / 9V 2A (18W) / 12V 1.5A (18W)*Max. Total Output 18W
Protections Overcurrent, overvoltage, overheating and short circuit
Efficiency Level V
Operating Temperature Range	0~40°C
Storage Temperature Range	-40°C ~ 85°C
Relative Humidity	25% ~ 90% (non-condensing)
Storage Humidity	10%~90% (non-condensing)
Dimension	89 x 51 x 29mm

Weight 62g

Package Contents:

» 1 x USB Wall Charger
» 1 x User Manual

Package Information:

» Packing Dimension: 138 x 75 x 45mm
» Packing Weight: 0.107kg
» Carton Dimension: 465 x 315 x 167mm
» Carton Q'ty: 40pcs
» Carton Weight: 4.98kg
