Product Type	Wireless Hygro-Thermo Outdoor Sensor
Model	SWS TH5051
Brand	SENCOR
Temperature Measurement Range	-20°C to 60°C (-4°F to 140°F)
Temperature Resolution	0.1°C
Humidity Measurement Range	20% to 90% RH
Humidity Resolution	1% RH
RF Transmission Frequency	433 MHz
Number of Channels	3
RF Transmission Range	Maximum 30 meters (in open area)
Power Supply	2 x 1.5V AA batteries (alkaline recommended)
Dimensions (W x H x D)	65 x 100 x 35 mm
LED Indicator	Flashes when transmitting
Display Type	LCD, alternates temperature and humidity every 4 seconds
Low Battery Indication	Icon displayed on LCD
Controls	RESET button, CHANNEL slide switch
Mounting	Wall mounting holder included
Operating Temperature	-20°C to 60°C (for sensor operation)
Warranty	24 months
Care Instructions	Avoid direct sunlight, rain, high humidity; do not immerse in water; avoid corrosive materials
Safety Precautions	Do not open inner case; do not dispose in fire; keep away from excessive force or shock
Disposal	Dispose as electronic waste at designated collection points

Frequently Asked Questions - SWS TH5051 SENCOR

How do I insert batteries into the outdoor sensor?

Remove the battery door, insert 2 AA batteries (alkaline recommended) according to polarity, then replace the battery door. The LED will flash to indicate transmission.

How do I pair the outdoor sensor with the main unit?

First power up the sensor, then on the main unit press the [RESET] key (do not press reset on the sensor). Ensure the sensor channel matches the main unit.

What is the maximum transmission range of the sensor?

The effective transmission range is up to 30 meters in open area. Building materials and interference may reduce range. Try different locations for best result.

How do I change the channel of the sensor?

Use the [CHANNEL] slide switch inside the battery compartment to select channel 1, 2, or 3. To reassign after setup, remove batteries or reset the sensor, then press the [SENSOR] key on the main unit to pair.

What does the flashing LED on the sensor mean?

The LED indicator flashes when the sensor is transmitting data to the main unit. This is normal operation.

How does the LCD display work on the sensor?

The sensor's LCD alternates between showing the current temperature and humidity every 4 seconds.

What does the low battery icon on the sensor LCD mean?

When the batteries are low, a low battery icon will appear on the sensor's LCD. Replace the batteries with new ones promptly.

Can the sensor be used outdoors in rain?

Avoid placing the sensor in direct sunlight, rain, or moist environments. It is not waterproof. Use under a covered area if placed outdoors.

How should I dispose of the sensor when no longer needed?

Do not dispose as household waste. Take it to a collection point for recycling of electrical and electronic equipment. Dispose of batteries separately in an ecologically safe manner.

What is the warranty period for this product?

The product is warranted for 24 months from the date of purchase for domestic use. Claims must be made with proof of purchase at the dealer or authorized service center.

USER MANUAL SWS TH5051 SENCOR

WIRELESS HYGRO-THERMO

OUTDOOR SENS User Manual

VÝMĚNA BATERIE

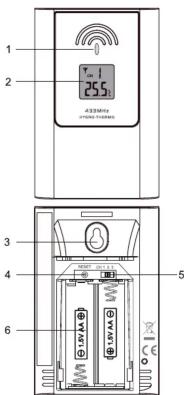

1. LED indicator
2. Flashes when the remote unit is transmitting.
3. LCD display to show the detected temperature or humidity of the sensor.
4. Wall mounting holder 6. Battery compartment
5. [RESET] key
6. Press to restart the sensor
7. [CHANNEL] slide switch
8. Assign the transmitter to Channel from 1 to 3.
9. Battery compartment

- Accommodates 2 × AA size batteries.

BEFORE USING THE OUTDOOR SENSOR

1. Remove the battery door.

2. Insert 2 × AA size batteries into the battery compartment.

Make sure you insert them the right way according to the polarity information marked on the battery compartment.

1. Replace the battery door.

The sensor will now start transmitting signals, and LED indica-

tor flashes.

Note:

- Once the channel is assigned to a sensor, you can only change it by removing the batteries or resetting the sensor, you also need to press the [SENSOR] key on main unit to pair this sensor.

- Avoid placing the transmitter in direct sunlight, rain or

- To avoid the wireless sensor and main unit pairing failure.

to avoid the wireless sensor and main unit pairing failure, please power up the sensor/s first, and then press [ RESET ]

key on the main unit (no need on sensors).

- The building material and the position of the receiver and transmitter affect the effective range. So try various

and transmitter affect the effective range. So try various locations to obtain the best result.

- Place the units away from metal objects and electrical

appliances to minimize the interference. Position the

receiver and transmitter within the effective transmission range: 30m in usual circumstances.

range. 30m in usual circumstances.

The LCD of sensor will altera

The LCD of sensor will alternate display temperature and

tely display temperature and humidity in about every 4 se-

conds.

When the batteries in the sensor are low, the low battery icon

will displayed on its LCD.

Please replace with new batteries.

IMPORTANT NOTE

• Do not subject the unit to excessive force or shock.

- Do not expose the unit to extreme temperatures, direct

sunlight, dust or moist environment.

- Do not immerse in water.

- Avoid contact with any corrosive materials.

Do not dispose this unit in a fire as it may explode. Do not open the inner back area as temper

- Do not open the inner back case of tamper with any components of this unit.

- Please dispose of used unit or batteries in an ecologically

safe manner

SPECIFICATION

Operating temperature range:	-20°C ~ 60°C-4°F ~ 140°F
Temperature resolution:	0.1°C
Display humidity range:	20% ~ 90% RH
Humidity resolution:	1% RH
RF transmission frequency:	433MHz
Remote sensors channel:	3 channels
RF transmission range:	maximum 30 meters
Power:	1.5V, AA × 2 (alkaline battery recommended)
Dimension:	65(W) × 100(H) × 35(D) mm

INSTRUCTIONS AND INFORMATION REGARDING THE

DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC

APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.

Please, dispose of this product at your applicable collection point for the recycling of electrical electronic equipment

SENCOR

SWS TH5051-5451-5551

BEZDRÔTOVÝ VONKAJŠÍ SNÍMAČ

VLHKOSTI A TEPLOTY

waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fail subject to national regulations for fines.

For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

The product meets EU requirements.

Hereby, FAST CR, a.s. declares that the radio equipment type SWS THS051-54S1-55S1 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.sencor.eu

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

The original version is in the Czech language.

Address of the manufacturer: FAST ČR, a.s.,

Warranty conditions EN

Warranty card is not a part of the device packaging.

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end user is obligated to cooperate to certify the claiming defects. Only completed the claim of an offer to buy a claim against the end-user. This document must be issued and is subject to the extent of a eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation.

This warranty is void especially if apply as follows:

■ Selects which were put on sure ■ Wear-out or damage caused by

■ The product was damaged by unprofessional or wrong installation, used in contrary to

the applicable instruction manual, used in contrary to legal enactment and common

process of use or used for another purpose which has been designed for.

■ The product was damaged by dirt, accident of force maieure (natural disaster, fire

and flood).

■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc.

■ The product was mechanically damaged (e.g. broken button, fall).

■ Damage caused by use of unsuitable media, fillings, expendable supplies

(batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity levels).

■ Repair, modification or other failure action to the product by unauthorized person.

■ End-user did not prove enough his right to claim (time and place of purchase).

■ Data on presented documents differs from data on products.

■ Cases when the claiming product cannot be identified according to the preserved documents (e.g., the serial number on the warranty and has been damaged).

Authorized service centers

Visit www.sencor.eu for detailed information about authorized service centers.
