SES 9020NP - Coffee maker SENCOR - Free user manual and instructions

Product Type	Bean-to-cup coffee machine with milk frother
Model	SES 9020NP
Brand	Sencor
Dimensions (W x H x D)	Approximately 28 x 34 x 43 cm
Weight	Approximately 9 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1450 W
Water Tank Capacity	1.8 L
Bean Hopper Capacity	250 g
Milk System	Integrated micro-foam milk dispenser
Grinder Type	Ceramic burr grinder, adjustable grind size
Grind Settings	Adjustable coarseness
Control Panel	Touch control with LCD display
Programmable Functions	Coffee strength, temperature, cup size, pre-ground coffee option
Brewing System	15 bar pump pressure
Water Filtration	Replaceable water filter
Descaling	Automatic descaling program with indicator
Cleaning	Removable brew unit for easy cleaning; drip tray and cup holder removable
Safety Features	Auto shut-off after 30 minutes of inactivity
Accessories	Measuring spoon, water hardness test strip
Repairability	Spare parts available; user replaceable brew unit and water filter

Frequently Asked Questions - SES 9020NP SENCOR

How do I descale the Sencor SES 9020NP?

Use a descaling solution according to the manufacturer's instructions. The machine has an automatic descaling program; fill water tank with descaling solution and water, then activate the program. Rinse thoroughly afterward.

Can I use pre-ground coffee instead of beans?

Yes, you can add pre-ground coffee using the bypass chute. Ensure not to overfill and use the correct grind size for optimal extraction.

How do I adjust the grind size?

Turn the grind adjustment dial (located on the bean hopper) before grinding. Finer for espresso, coarser for filter coffee. Adjust gradually and test.

What type of milk can be used for the frother?

Cold cow's milk works best. Whole milk produces thicker foam, while skim milk yields more but lighter foam. Plant-based milks may vary.

How often should I clean the brew unit?

The brew unit should be removed and rinsed under cold water weekly. Use a soft brush for crevices. Allow to dry before reinserting. Lubricate as per manual.

Why is my coffee not hot enough?

Check the temperature setting in the menu. Ensure the machine is preheated. Also, cold cups reduce temperature; pre-warm cups with hot water.

How do I replace the water filter?

Remove the old filter from the water tank, insert a new one, and flush with fresh water. Reset the filter counter in the settings menu.

What does the alarm symbol mean?

The alarm indicates a maintenance need such as descaling, cleaning, or empty water tank. Check the display message and follow instructions.

Can I adjust the cup volume?

Yes, you can program the cup size for each recipe. During brewing, press and hold the button to set volume; the machine will remember.

How do I clean the milk system?

After each use, activate the steam wand cleaning cycle (automatic) or manually rinse with hot water. Periodically disassemble the milk frother and wash parts.

USER MANUAL SES 9020NP SENCOR

Modern coffee machine with a glass mug and milk dispenser, next to a glass of milk labeled 'MICRO-FOAM MILK' (no visible text on device or background)

SENCOR®

SES 9020NP

POPIS DOTYKOVÉHO OVLÁDACÍHO PANELU S DISPLEJEM....7

PŘED PRVNÍM POUŽITÍM SPOTŘEBIČE 8

NAPLNĚNÍ ZÁSOBNÍKU NA VODU....8

NAPLNĚNÍ ZÁSOBNÍKU NA KÁVOVÁ ZRNA....9

NASTAVENÍ HRUBOSTI MLETÍ 9

Line drawing of a hand washing a water bottle with a faucet, no text or symbols present

2

Line drawing of a toaster oven with a black X symbol crossed out, no text or symbols present

Line drawing of a hand placing a small object into a container filled with gravel (no text or symbols)

Line drawing of hands installing or adjusting a component in a container (no text or symbols)

2

Line drawing of hands using a tool to lift a component into a container (no text or symbols)

3

Hand holding a tool near a vertical object, with an arrow indicating direction (no text or symbols)

4

Line drawing of a hand using a sewing machine to press or install a piece of material (no text or symbols present)

5

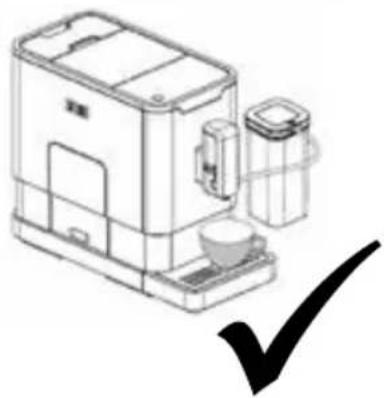

Line drawing of a kitchen appliance with a checkmark indicating inspection (no text or symbols present)
