KC2294J - Uncategorized Kluge - Free user manual and instructions

Product Type	Built-in Refrigerator
Brand	Kluge
Model	KC2294J
EAN Code	8588008223901
Color	White
Installation Type	Built-in (Vestavná)
Energy Efficiency Class	E
Annual Energy Consumption	290 kWh/year
Net Capacity - Fridge	200 L
Net Capacity - Freezer	15 L (4-star)
Climate Class	SN-N-ST-T
Noise Level	38 dB(A)
Dimensions (H x W x D)	1770 x 540 x 545 mm
Weight	55 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	0.8 kWh/24h
Adjustable Shelves	3 glass shelves
Door Reversible	Yes
Interior Lighting	LED
Temperature Control	Electronic (digital display)
Defrost System	Automatic (fridge), manual (freezer)
Spare Parts Availability	Essential parts available for 10 years after discontinuation
Cleaning Recommendation	Interior with mild detergent, exterior with damp cloth

Frequently Asked Questions - KC2294J Kluge

What are the dimensions of the Kluge KC2294J?

The dimensions are 1770 mm in height, 540 mm in width, and 545 mm in depth.

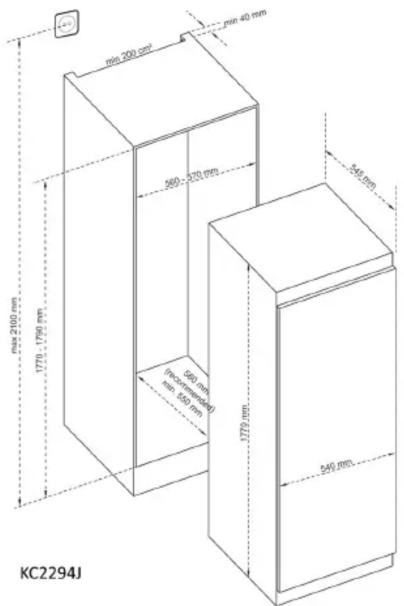

How do I install the refrigerator as a built-in model?

Ensure proper ventilation clearance around the appliance, typically at least 200 cm² for air circulation. Use the provided mounting brackets to secure it in the cabinet recess.

How do I adjust the temperature?

Use the electronic control panel inside the fridge. Press the '+' or '-' buttons to set the desired temperature between 2°C and 8°C for the fridge compartment.

Does the KC2294J have a freezer compartment?

Yes, it includes a 15-liter freezer compartment with a 4-star rating, suitable for storing frozen food and making ice cubes.

What should I do if the refrigerator is too noisy?

Check if it is level on the floor, ensure no internal parts are loose, and that it is not touching the walls. Normal noise level is 38 dB(A). If persistent, contact support.

How do I reverse the door opening direction?

Refer to the manual: remove the door hinges, swap the door handle and hinge brackets to the opposite side, then reattach the door. Ensure the appliance is unplugged during this process.

What is the energy class of this refrigerator?

The energy efficiency class is E, with an annual consumption of approximately 290 kWh.

How do I clean the refrigerator interior?

Unplug the fridge, remove shelves and drawers, wash them with warm soapy water, rinse and dry. Wipe interior surfaces with a solution of water and mild detergent. Do not use abrasive cleaners.

What should I do if the refrigerator is not cooling enough?

Check the temperature setting, ensure the door closes properly, clean the condenser coils at the back, and allow adequate ventilation. If the problem persists, contact a technician.

Where can I find spare parts for the Kluge KC2294J?

Spare parts can be ordered from authorized Kluge service centers or online spare parts retailers. Use the model number KC2294J and EAN 8588008223901 for precise identification.

USER MANUAL KC2294J Kluge

Interior view of a white refrigerator with open doors and visible door covers (no text or symbols)

CHLADNIČKA VESTAVNA KC2294J

Výrobce: Kluge

Kód EAN: 8588008223901

Popis
