NUC 13 Extreme - Desktop computer INTEL - Free user manual and instructions

Product Type	Desktop Computer / Mini PC
Model	Intel NUC 13 Extreme Kit (NUC13RNGi9/i7/i5) / Compute Element (NUC13SBBi9/i7/i5)
Processor	13th Gen Intel Core i9/i7/i5 (depending on model)
Memory	2 x DDR5 SO-DIMM slots, up to 64 GB, non-ECC, supports XMP 3.0
Storage	3 x M.2 slots (NVMe/SATA), 1 x 2.5” and 1 x 3.5” SATA SSD bay
Expansion Slot	1 x PCIe x16 slot for external GPU
Graphics	Integrated Intel Iris Xe Graphics (CPU dependent)
Power Supply	External power adapter, 500 W (typical)
Dimensions (approx.)	357 x 189 x 120 mm (14.0 x 7.4 x 4.7 in)
Weight (approx.)	3.5 kg (7.7 lb)
Operating System	Windows 10/11, Linux (compatibility list)
Connectivity	Intel Gigabit Ethernet, Intel Wi-Fi 6E, Bluetooth 5, Thunderbolt 4 (via PCIe)
Audio	Realtek ALC1220 High Definition Audio
Cooling	Active fan + heatsink, chassis ventilation
Safety	Disconnect power before opening; observe ESD precautions; avoid sharp edges and hot components
Cleaning	Use a dry, lint-free cloth; do not use liquids or sprays
User-Replaceable Parts	Memory, M.2 SSDs, 2.5”/3.5” SSD, PCIe card, power adapter
Driver Updates	Use Intel Driver & Support Assistant or download from Intel Download Center

Frequently Asked Questions - NUC 13 Extreme INTEL

How do I install memory on the Intel NUC 13 Extreme?

To install memory, first disconnect power and open the chassis. Then insert the DDR5 SO-DIMM module into the socket at a vertical angle and push down until the retaining clips snap. For a single module, use the lower socket.

How do I install an M.2 SSD?

Remove the M.2 cover, insert the SSD at a 45-degree angle into the slot, then press down and secure with the screw. Ensure the metal standoff matches the SSD length.

How do I install a 2.5 or 3.5 inch SSD?

Remove the bottom cover, unscrew the SSD panel, attach the drive to the panel, connect the signal and power cables, then secure the panel back into the chassis.

What type of memory is supported?

The system supports DDR5 SO-DIMM modules at 4000, 4400, 4800, 5200, and 5600 MHz, up to 64 GB total, non-ECC, with Intel XMP 3.0 support.

How do I open the chassis?

First disconnect all cables. Then unscrew the thumb screw on the rear, lift the top cover, remove side panels by pulling outward, and remove the front cover.

What power cord is included with the NUC 13 Extreme?

Depending on the product code, either no power cord is included (you need a C13 type) or a regional cord (US, EU, UK, Australia/NZ, China) is supplied.

How do I install an operating system?

Refer to Supported Operating Systems on Intel's website. You can install Windows or Linux using a bootable USB drive. Ensure you have the latest drivers after installation.

How do I update drivers and BIOS?

Use the Intel Driver & Support Assistant (Intel DSA) to automatically detect outdated drivers, or manually download from the Intel Download Center for your specific model.

What safety precautions should I take before opening the device?

Always disconnect the power cord and any network cables. Use an antistatic wrist strap and work on a conductive foam pad to avoid ESD damage. Be careful of sharp edges and hot components.

Can I install a dedicated graphics card?

Yes, the system has a PCIe x16 slot for an external GPU. Follow the instructions to remove the back panel brackets, insert the card, secure it, and connect power.

USER MANUAL NUC 13 Extreme INTEL

Intel® NUC 13 Extreme Kit - NUC13RNGi9
Intel® NUC 13 Extreme Kit - NUC13RNGi7
Intel® NUC 13 Extreme Kit - NUC13RNGi5
Intel® NUC 13 Extreme Compute Element - NUC13SBBi9
Intel® NUC 13 Extreme Compute Element - NUC13SBBi7
Intel® NUC 13 Extreme Compute Element - NUC13SBBi5

User Guide

October 2022

You may not use or facilitate the use of this document in connection with any infringement or other legal analysis concerning Intel products described herein. You agree to grant Intel a non-exclusive, royalty-free license to any patent claim thereafter drafted which includes subject matter disclosed herein.

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

All information provided here is subject to change without notice. Contact your Intel representative to obtain the latest Intel product specifications and roadmaps.

The products described may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Copies of documents which have an order number and are referenced in this document may be obtained by calling 1-800-548-4725 or by visiting: http://www.intel.com/design/literature.htm.

Intel technologies' features and benefits depend on system configuration and may require enabled hardware, software or service activation. Performance varies depending on system configuration. No computer system can be absolutely secure.

Intel and the Intel logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2022, Intel Corporation. All rights reserved.

Contents

1.0 Introduction 5

1.1 Before You Begin 5
1.2 Installation Precautions....6
1.3 Observe Safety and Regulatory Requirements....6

2.0 Open the Chassis....7

3.0 System Memory....13

4.0 M.2 SSD 16

5.0 2.5" and 3.5" SSD....18

6.0 External PCIe card....22

7.0 Close the Chassis....27

8.0 Connect Power 29

9.0 Install an Operating System....30

10.0 Install the Latest Device Drivers and Software 31

Revision History

Date	Revision	Description
October 2022	1.0	Initial release.

1.0 Introduction

This User Guide provides step-by-step installation instructions for these products:

• Intel® NUC 13 Extreme Kit - NUC13RNGi9
• Intel® NUC 13 Extreme Kit - NUC13RNGi7
• Intel® NUC 13 Extreme Kit - NUC13RNGi5
• Intel® NUC 13 Extreme Compute Element - NUC13SBBi9
• Intel® NUC 13 Extreme Compute Element - NUC13SBBi7
• Intel® NUC 13 Extreme Compute Element - NUC13SBBi5

1.1 Before You Begin

CAUTIONS

The steps in this guide assume you're familiar with computer terminology and with the safety practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the steps described in this guide.

Failure to disconnect power, telecommunications links, or networks before you open the computer or perform any procedures can result in personal injury or equipment damage. Some circuitry on the board can continue to operate even though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.
- Create a log to record information about your computer, such as model, serial numbers, installed options, and configuration information.
- Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam pad. If such a station isn't available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

1.2 Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors
• Sharp pins on circuit boards
• Rough edges and sharp corners on the chassis
  • Hot components (such as SSDs, processors, voltage regulators, and heat sinks)
  • Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to qualified technical personnel.

1.3 Observe Safety and Regulatory Requirements

If you don't follow these instructions, you increase your safety risk and the possibility of noncompliance with regional laws and regulations.

2.0 Open the Chassis

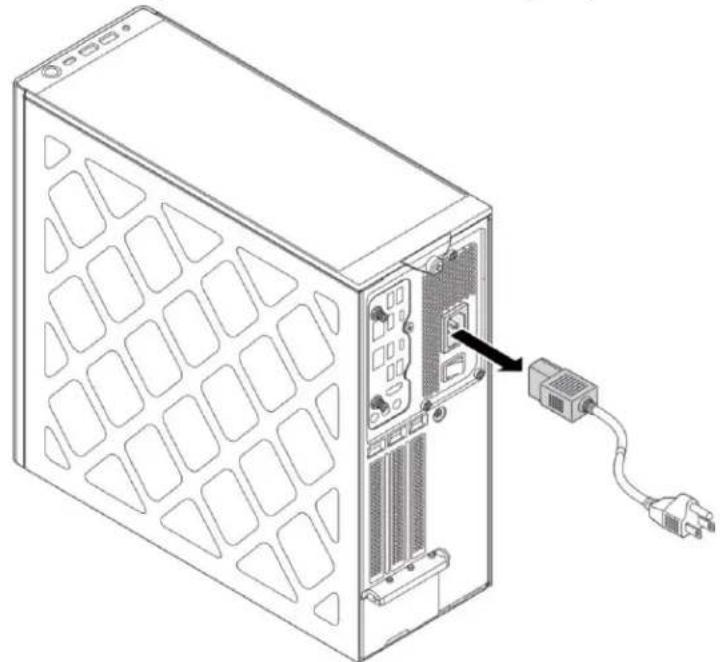

1. Disconnect the power cord, telecommunications systems, networks, antenna, and modems, if any of them are connected, before you open or service the device.

Line drawing of a server rack with an attached cable showing power connection (no text or symbols)

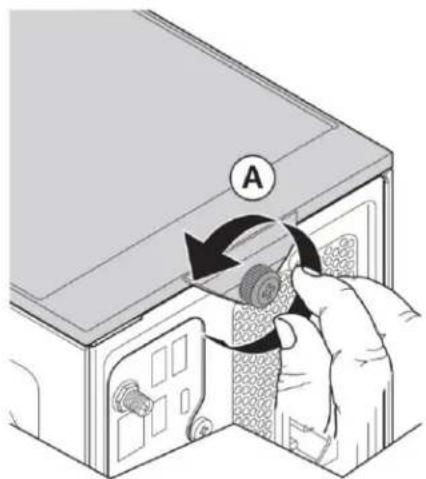

1. Unscrew the thumb screw (A) on the rear side of the chassis.

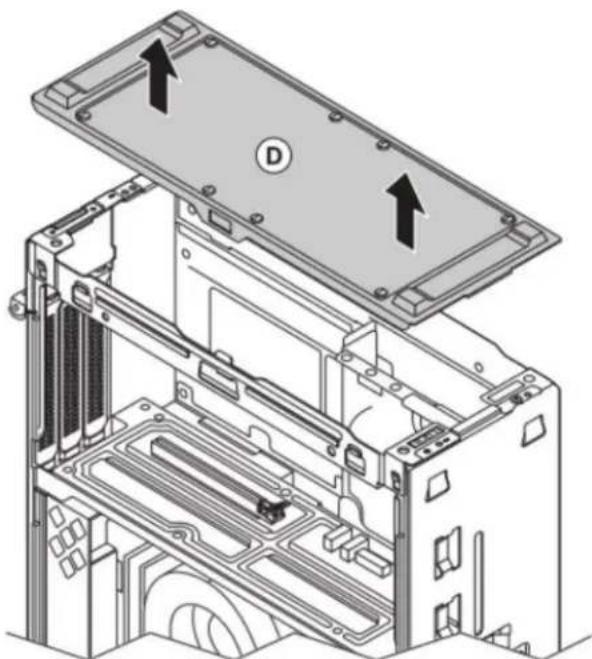

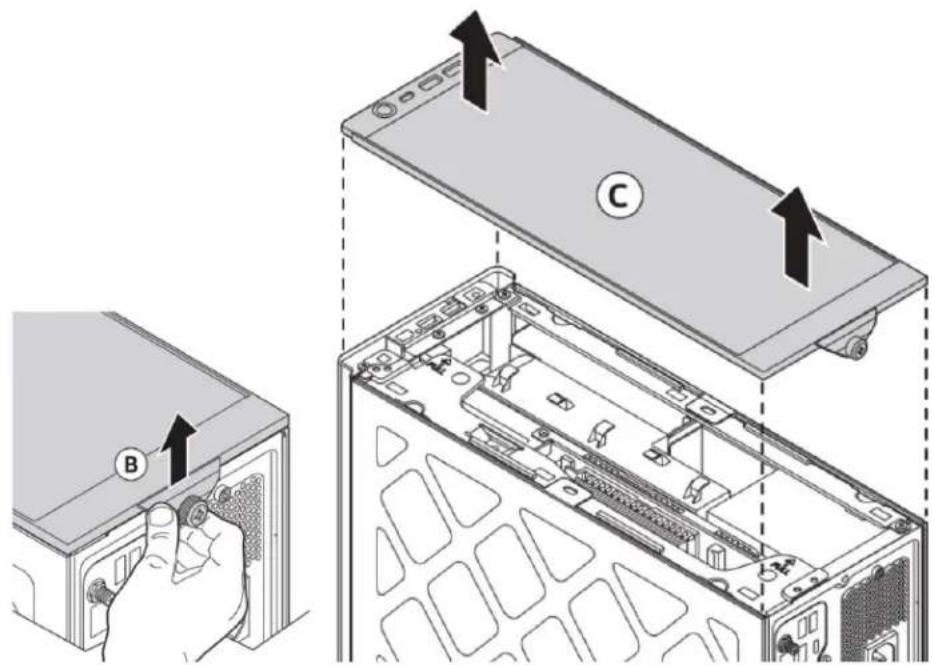

1. Hold (B) and lift to remove the top cover.

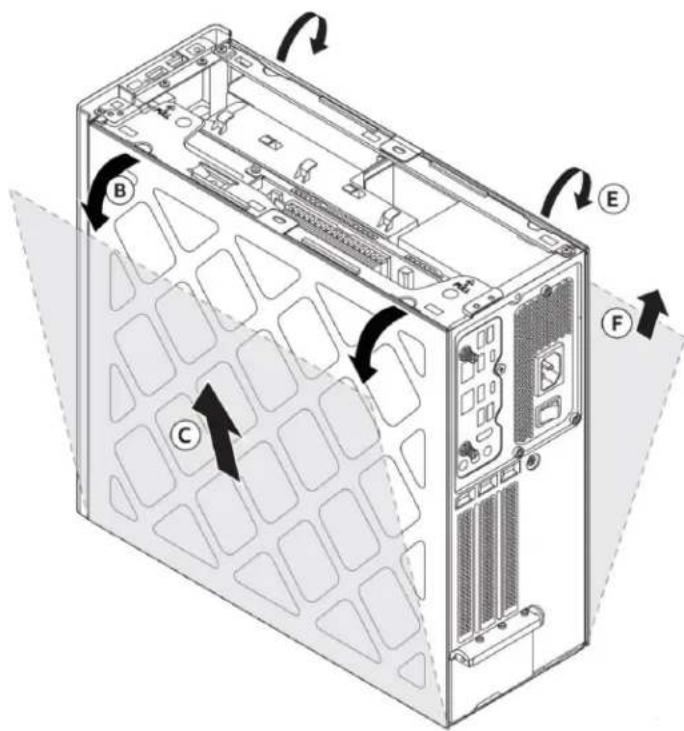

1. Pull (A) (D) outwards to remove the side panels:

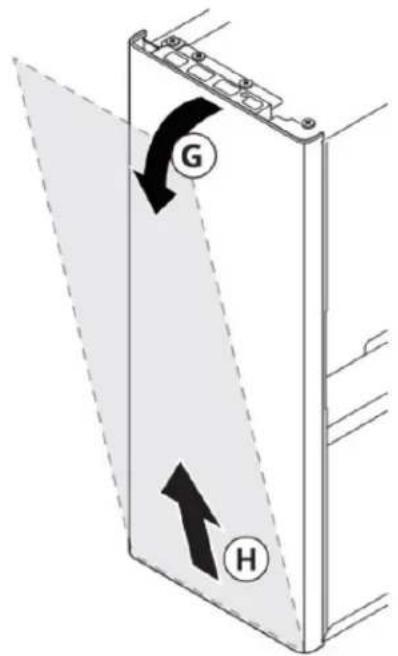

1. Remove the front cover:


1. Unscrew the three screws on the top front, top rear, and back panel:

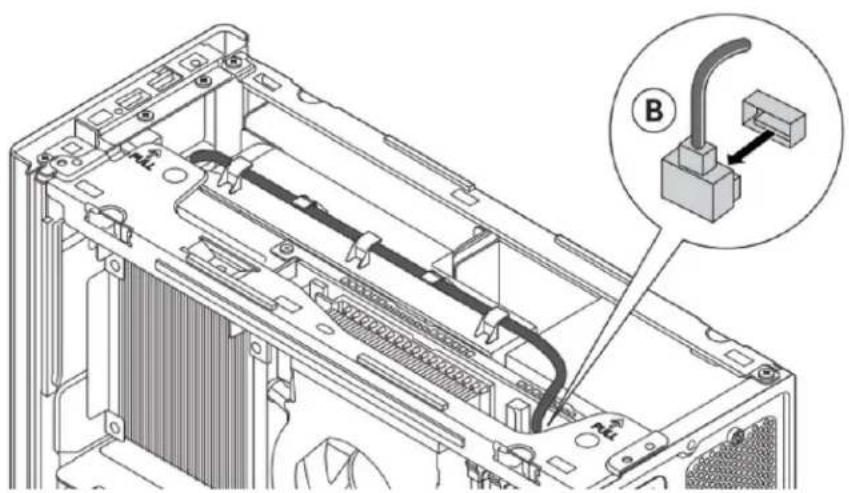

1. Remove the USB Type-C cable (B)

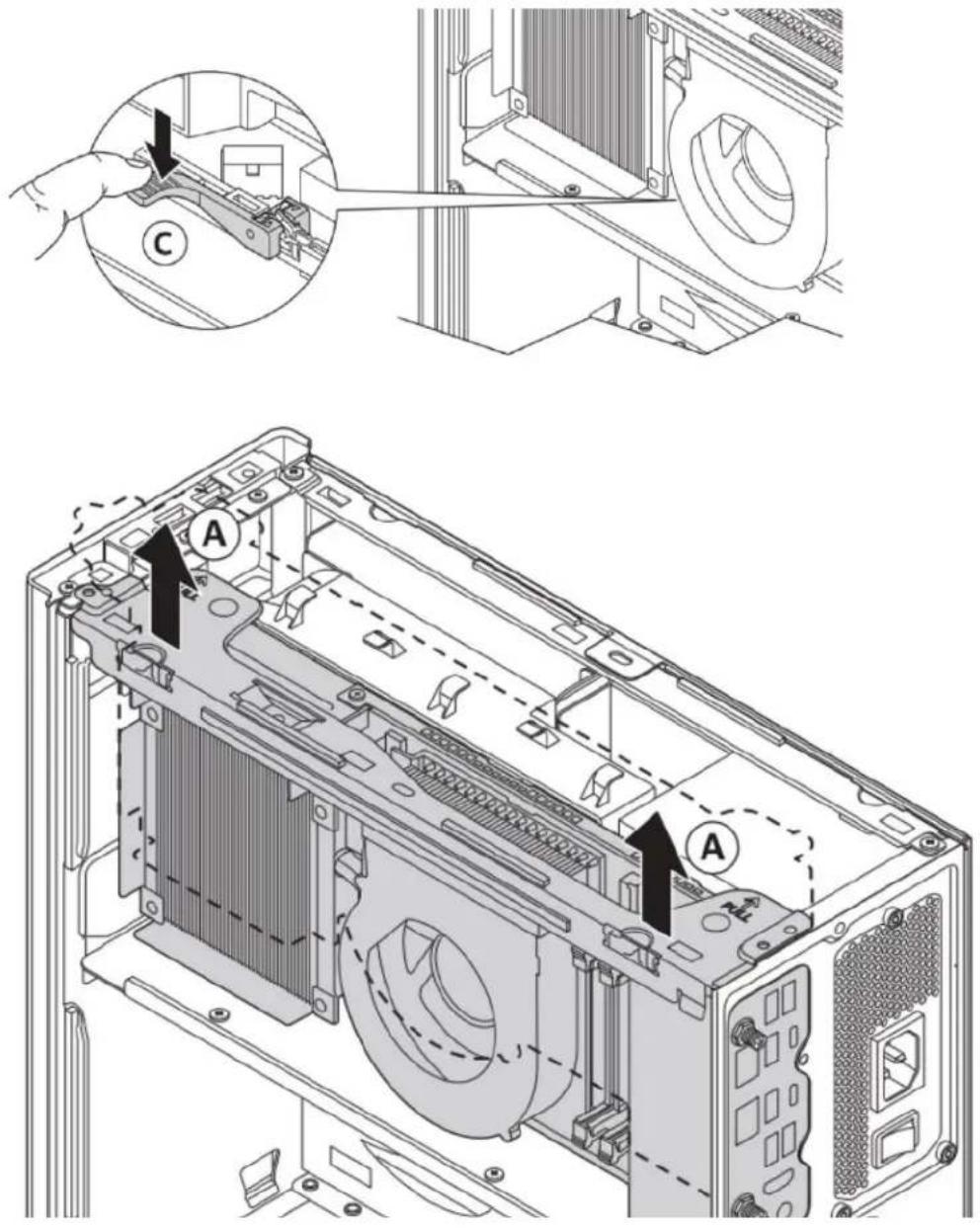

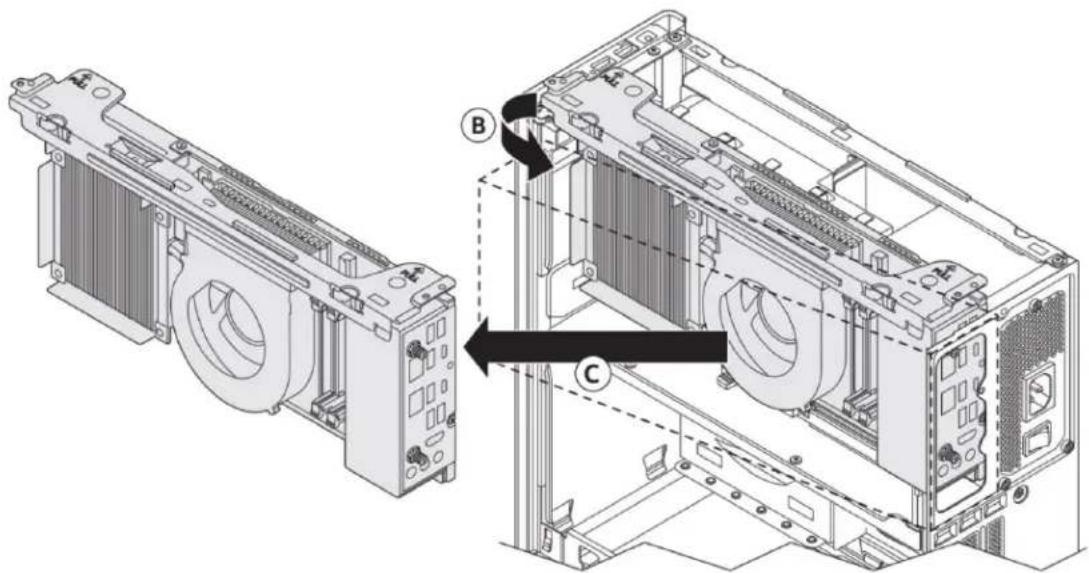

1. Press down the lever on the PCIe x16 connector that holds the Compute Element. Simultaneously, hold the top bar attached to the compute element, pull up and rotate outwards to remove the Compute Element

3.0 System Memory

Intel® NUC 13 Extreme Kit NUC13RNGi9, NUC13RNGi7, NUC13RNGi5 and Intel® NUC 13 Extreme Compute Element NUC13SBBi9, NUC13SBBi7, NUC13SBBi5 have two 262-pin DDR5 SO-DIMM sockets. Be sure to select memory modules that meet these requirements:

• 1.1V and 2.1V (with XMP) low voltage JEDEC memory only
• 4000 MHz, 4400 MHz, 4800 MHz, 5200 MHz, and 5600 MHz SO-DIMMs
• Max capacity - 64GB
- Non-ECC
- Intel® XMP 3.0 support

Find compatible memory modules in the Intel Product Compatibility Tool

• NUC13RNGi9
• NUC13RNGi7
• NUC13RNGi5
• NUC13SBBi9
• NUC13SBBi7
• NUC13SBBi5

NOTE	If you plan to install only one memory module, install it in the lower memory socket.

To install memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 5.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's side and top chassis covers as per the instructions in section 2.0, Open the chassis.
4. Align the small space (key) at the bottom edge of the memory module with the key in the socket.

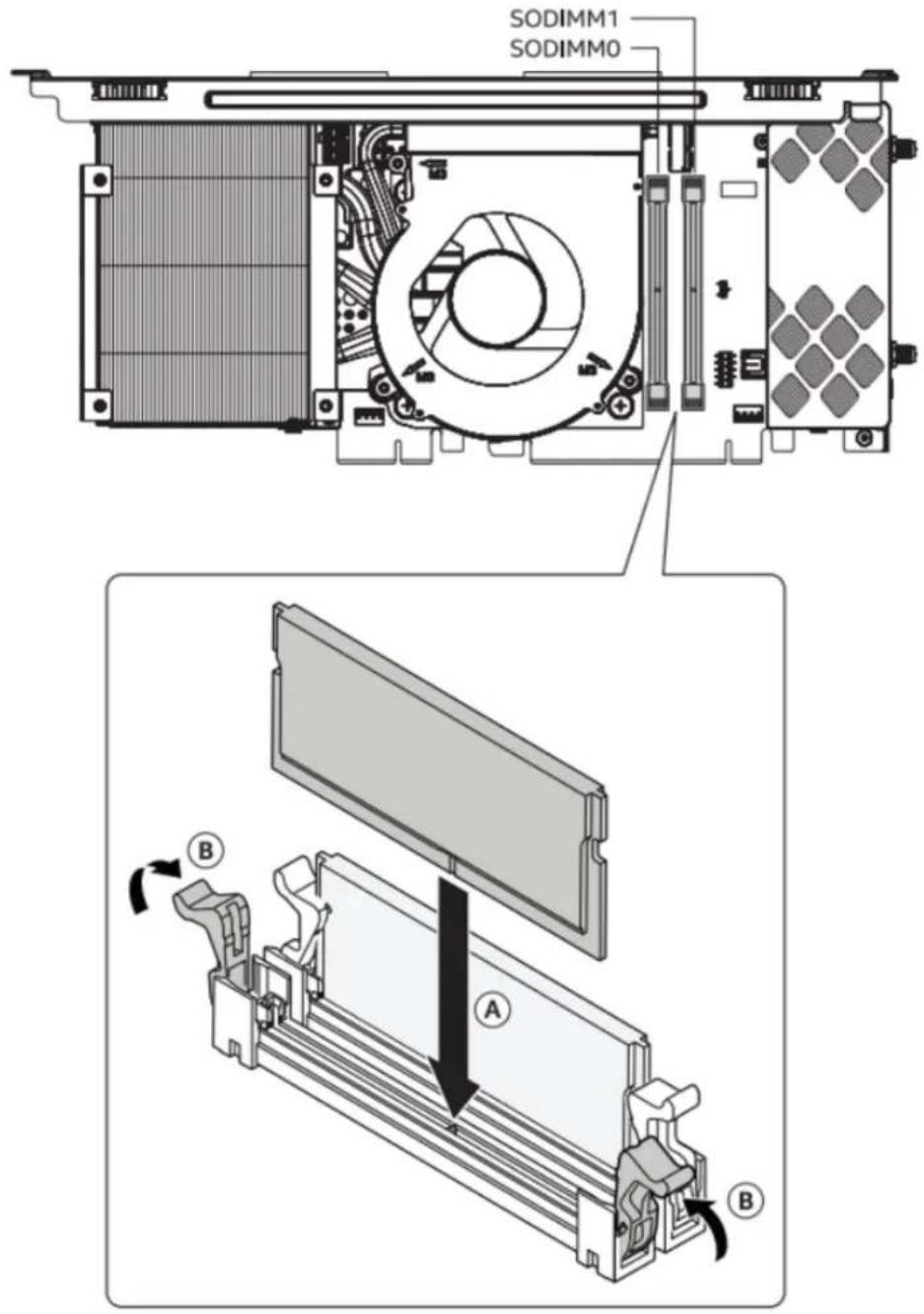

5. Insert the bottom edge of the module vertically into the socket (A)
6. When the module is inserted, push up the retaining clips until they snap into place (B). Make sure the clips are firmly in place.

To remove a SO-DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 5.
2. Turn off all peripheral devices connected to the computer. Turn off the computer and disconnect the power cord.
3. Remove the computer's side and top chassis covers as per the instructions in the section 2.0 Open the chassis.
4. Gently push the retaining clips down at each end of the memory module to get it out of the socket.
5. Holding the module by the edges, lift it away from the socket, and store it in an antistatic package.
6. Reinstall and reconnect any parts you removed or disconnected to reach the memory sockets.
7. Replace the computer's covers and reconnect the power cord as per the instructions from section 5.0 Close the Chassis.

Intel® NUC 13 Extreme Kit NUC13RNGi9, NUC13RNGi7, NUC13RNGi5 and Intel® NUC 13 Extreme Compute Element NUC13SBBi9, NUC13SBBi7, NUC13SBBi5 have the following options:

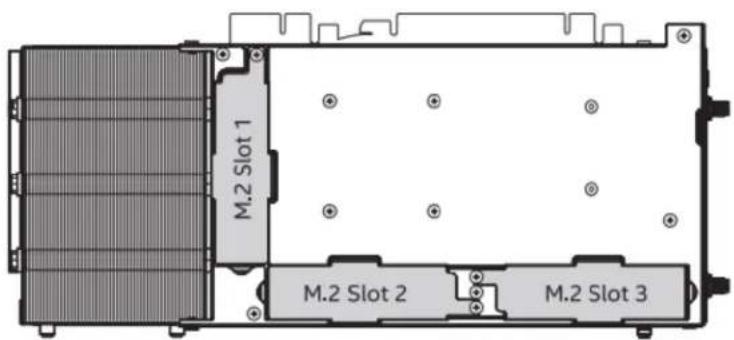

M.2 connector	Controller	Support
Slot 1	CPU	M.2 NVMe
Slot 2	PCH	M.2 NVMe
Slot 3	PCH	M.2 NVMe and SATA

There are no pre-installed SSD available out of the box for the above SKUs.

Find compatible M.2 and SATA SSDs in the Intel Product Compatibility Tool:

• NUC13RNGi9
• NUC13RNGi7
• NUC13RNGi5
• NUC13SBBi9
• NUC13SBBi7
• NUC13SBBi5

To install M.2 SSD:

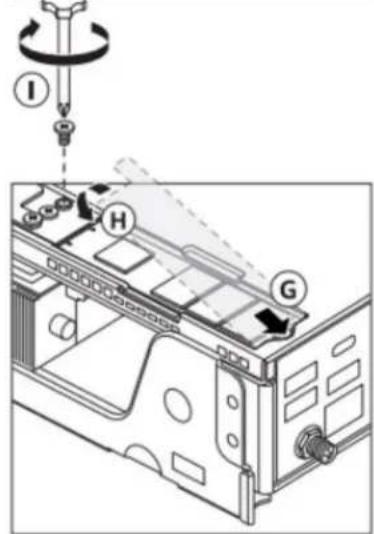

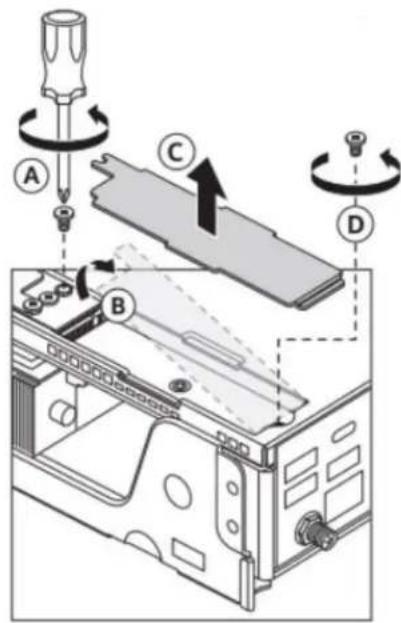

1. Remove the M.2 cover.
2. Remove the pre-installed SSD from the connector if there are any.
3. Make sure there is the metal standoff in the right position, depending on the length of the SSD you are going to install.

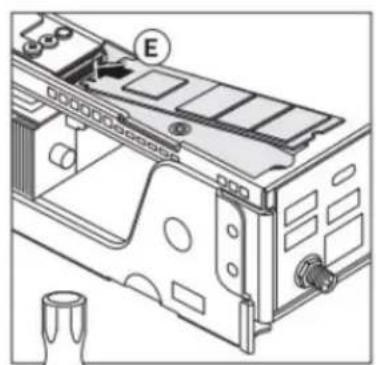

4. Align the space at the bottom of the new M.2 SSD to the key on the connector and slide the SSD into the m.2 slot.

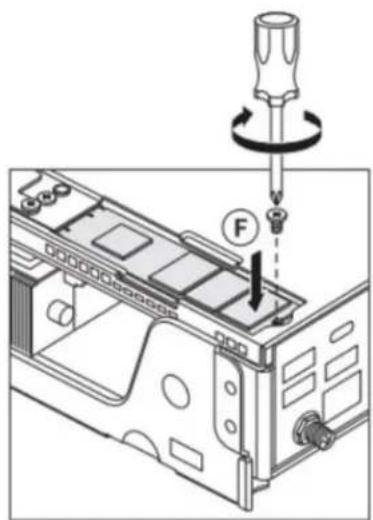

5. Secure SSD with the small screw.
6. Secure the M.2 cover.

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

1. Remove the chassis bottom cover

Technical diagram of an internal computer chassis showing internal components and mounting holes (no text or labels)

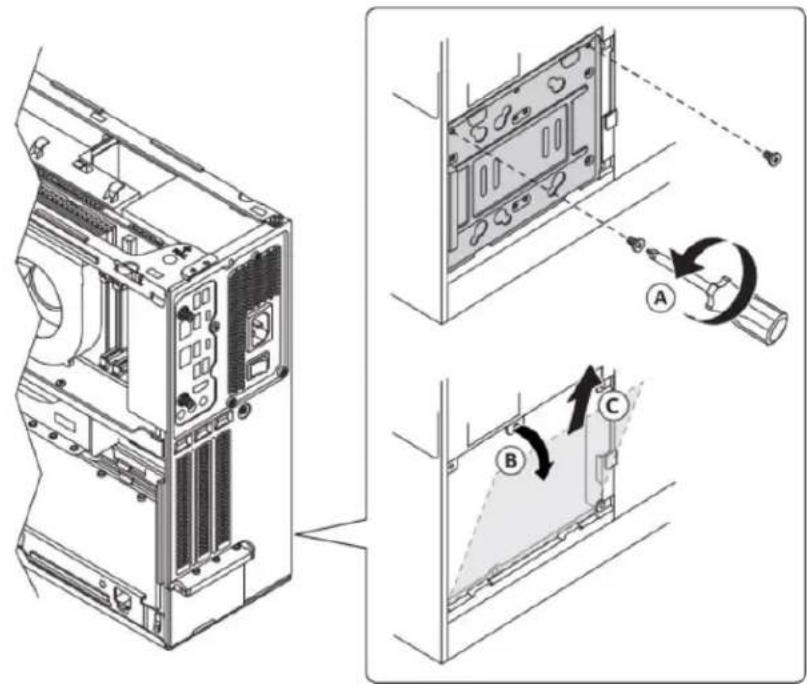

1. Unscrew and remove the SSD panel.

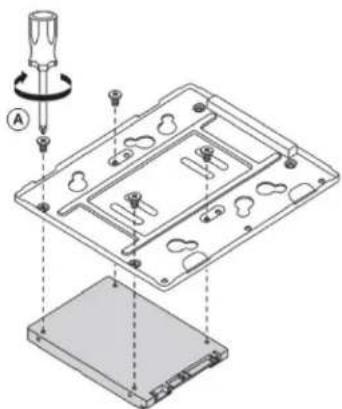

1. Secure the 2.5" or 3.5" SSD to the panel.

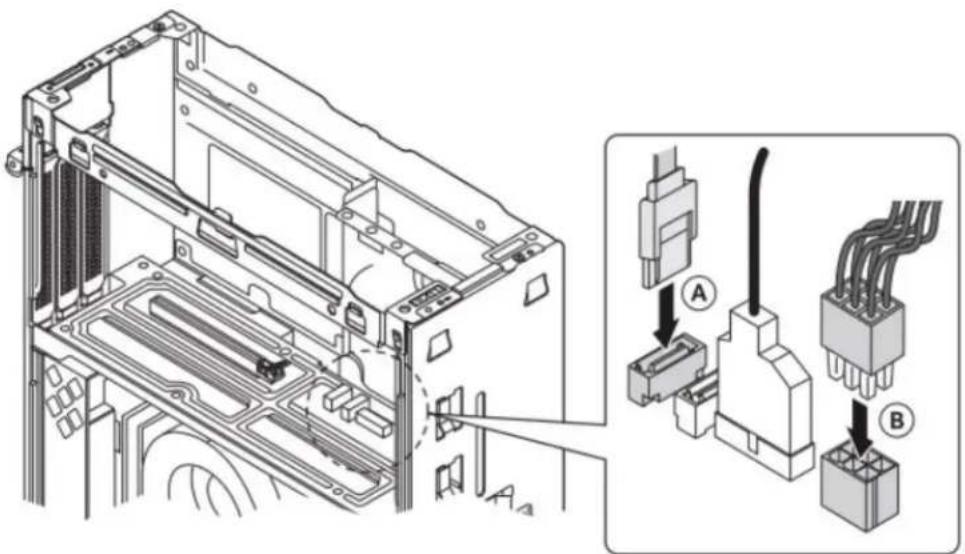

1. Insert the signal and power cables to the SSD

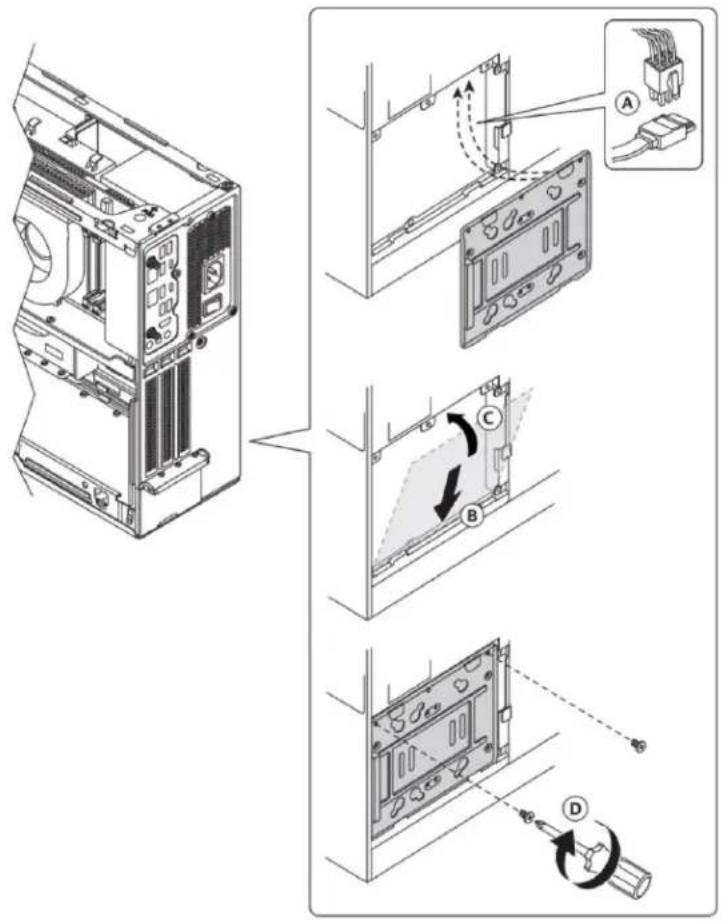

1. Secure the SSD plate to the chassis

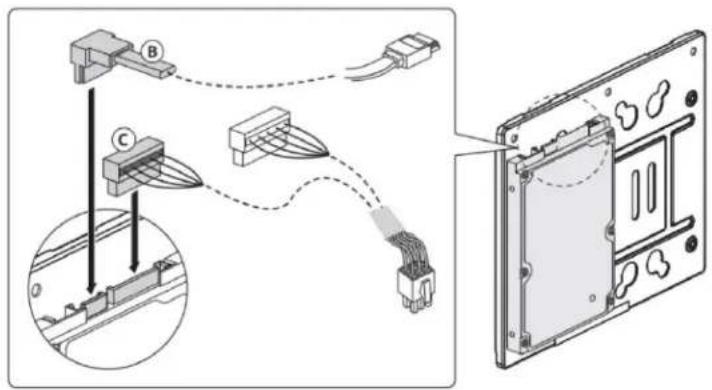

1. Insert the SSD signal and power cable to the baseboard

6.0 External PCIe card

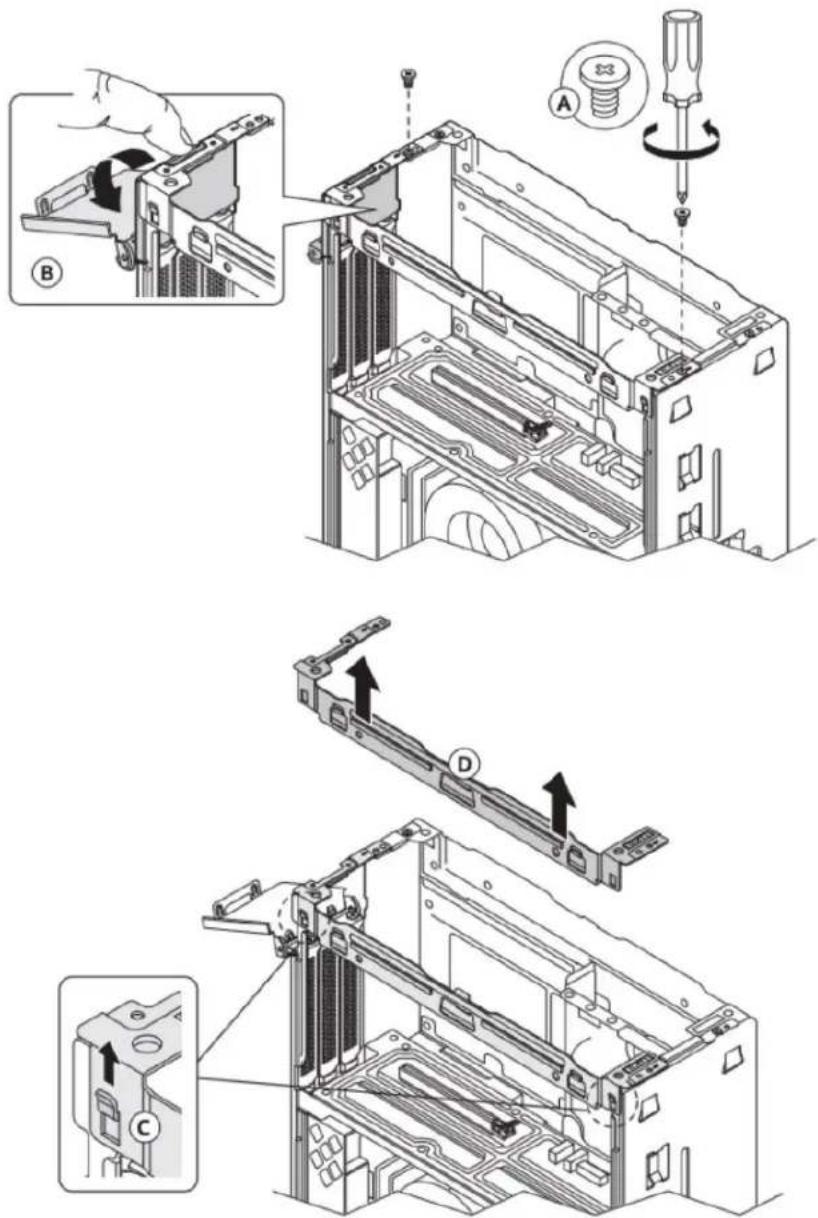

1. Unscrew (A), open the bracket (B) and lift the side bracket.

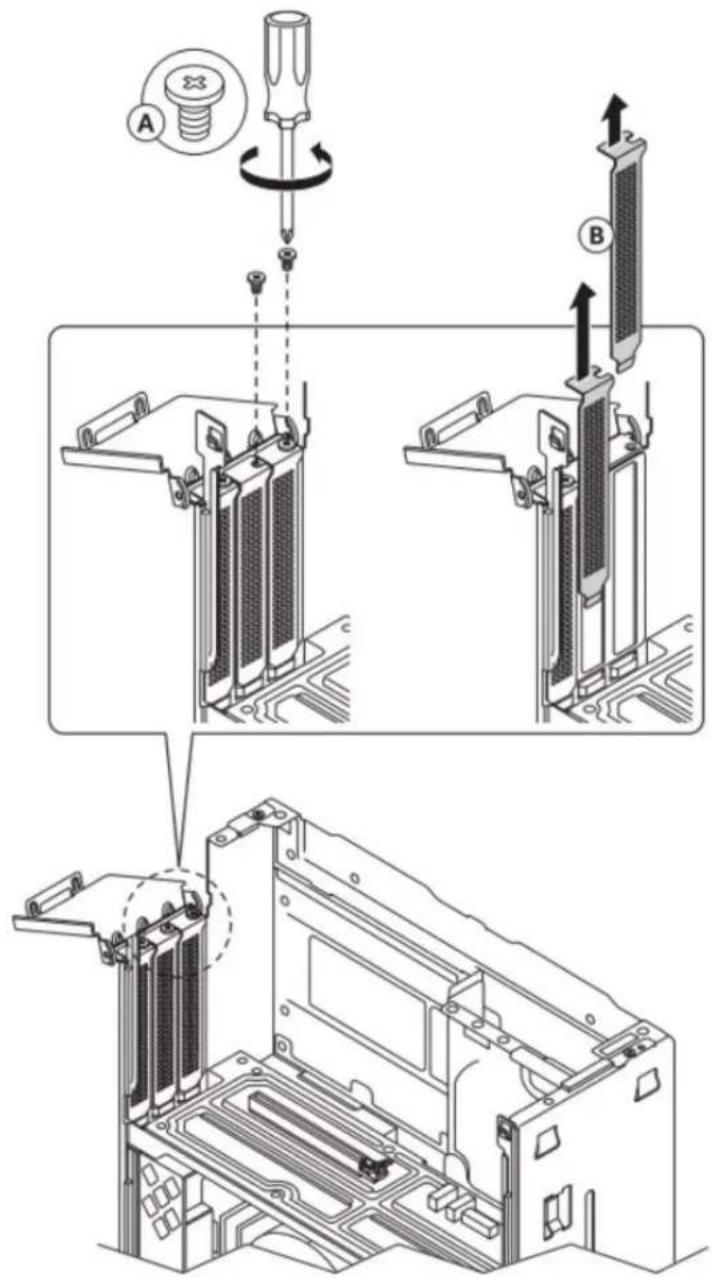

1. Unscrew (A) and lift (B) the metal brackets covering the back panel frames for the PCIe device connectors

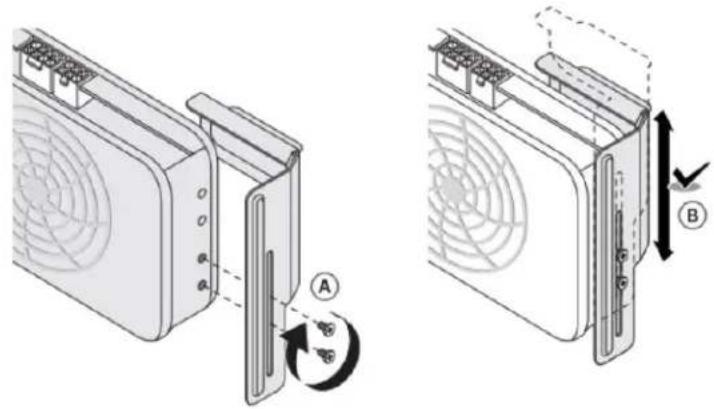

1. Align and secure the bracket (B) to the PCIe card

Technical illustration of a dual-panel air conditioner unit with fan blades and ventilation slots (no text or symbols)

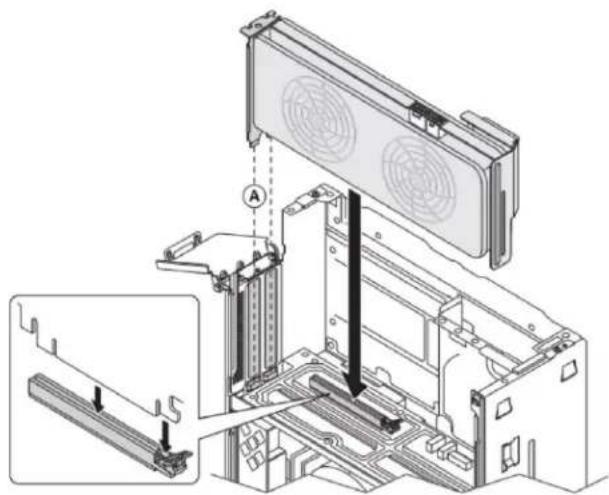

1. Insert the PCIe card to the PCIe connector on the baseboard

Technical diagram of a computer chassis with labeled components and an inset view showing internal structure (no text or symbols present)

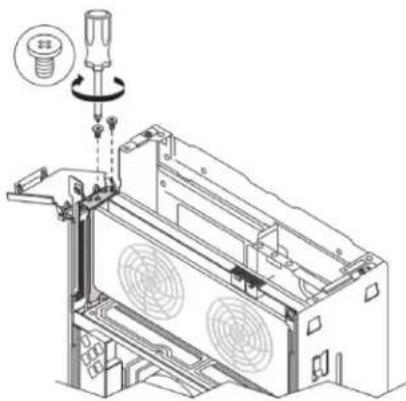

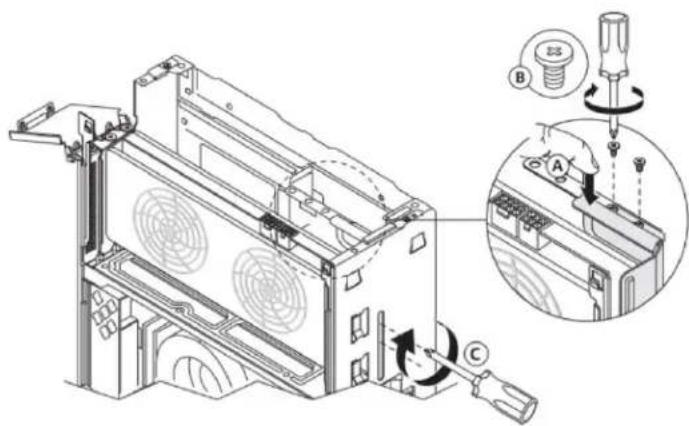

1. Secure the PCIe card to the chassis

Technical line drawing of a computer chassis with screwdriver and fan base (no text or symbols)

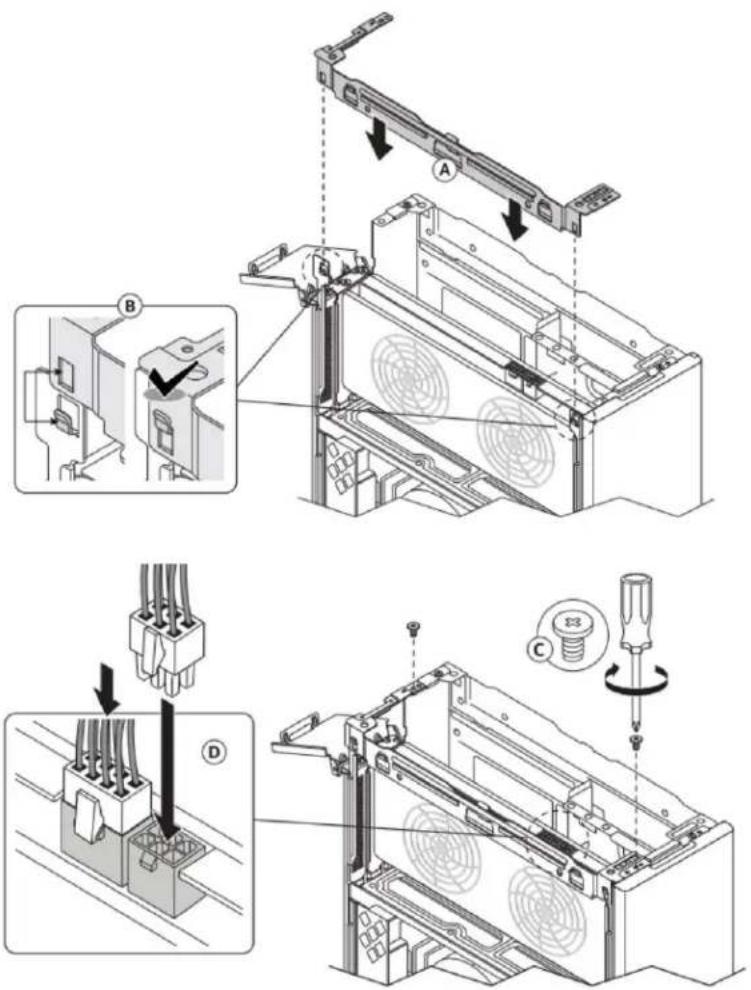

1. Secure the side bracket to the chassis and insert the PCIe cards power cable


1. Close bracket (A) and insert the chassis back panel cover

7.0 Close the Chassis

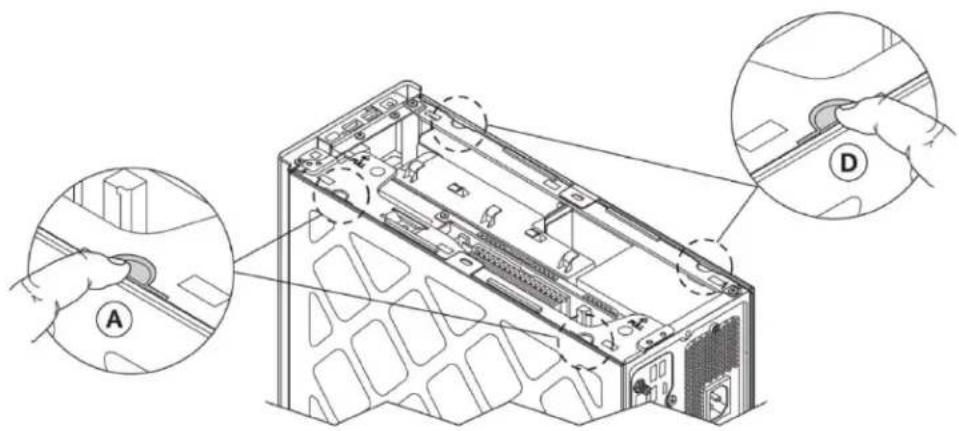

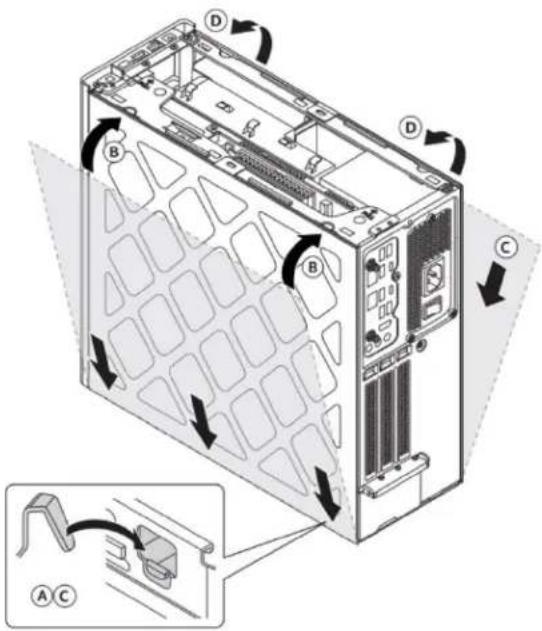

1. Slide down the side cover to latch (A) and (C)
2. Push the side cover towards the chassis to engage the top latches (B) and (D)

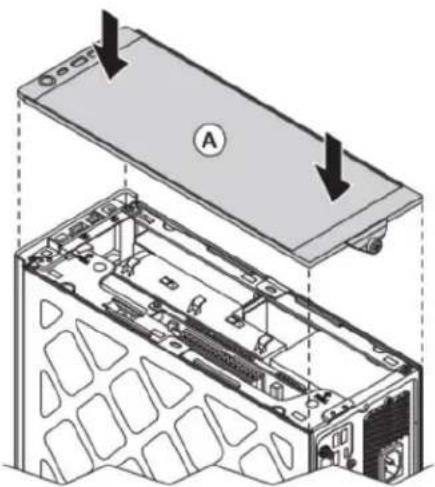

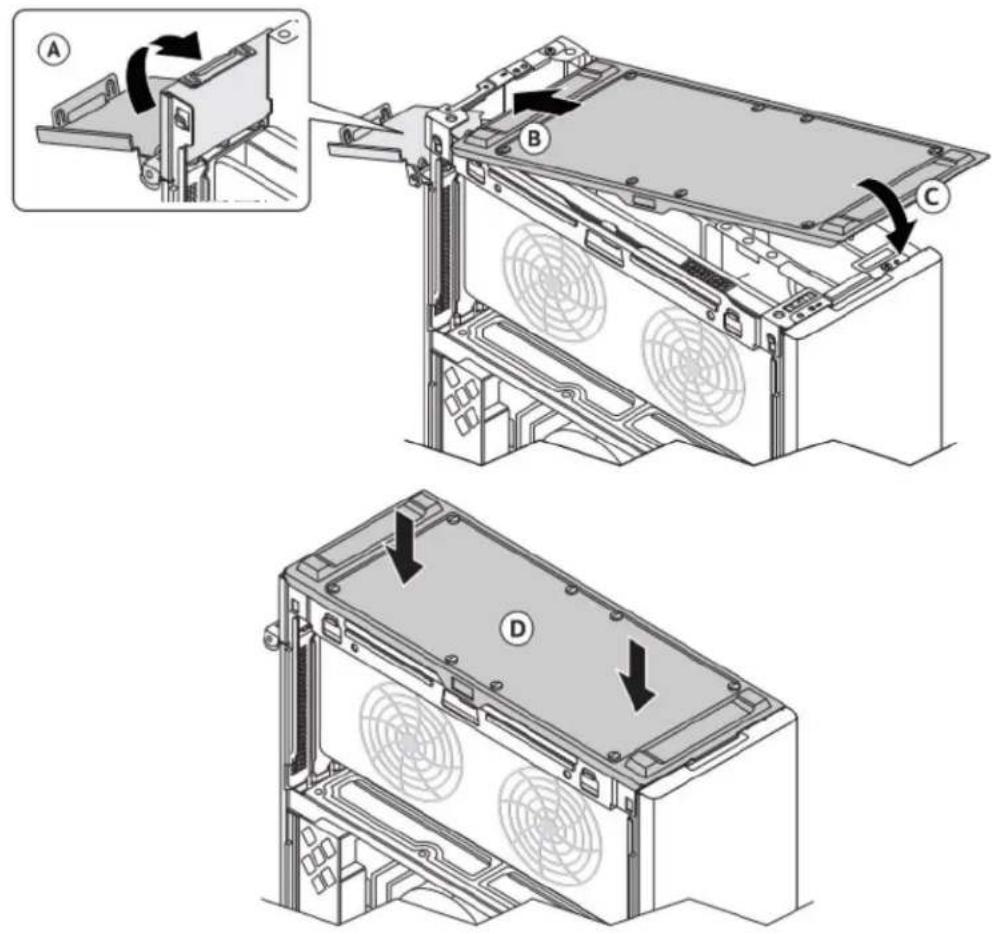

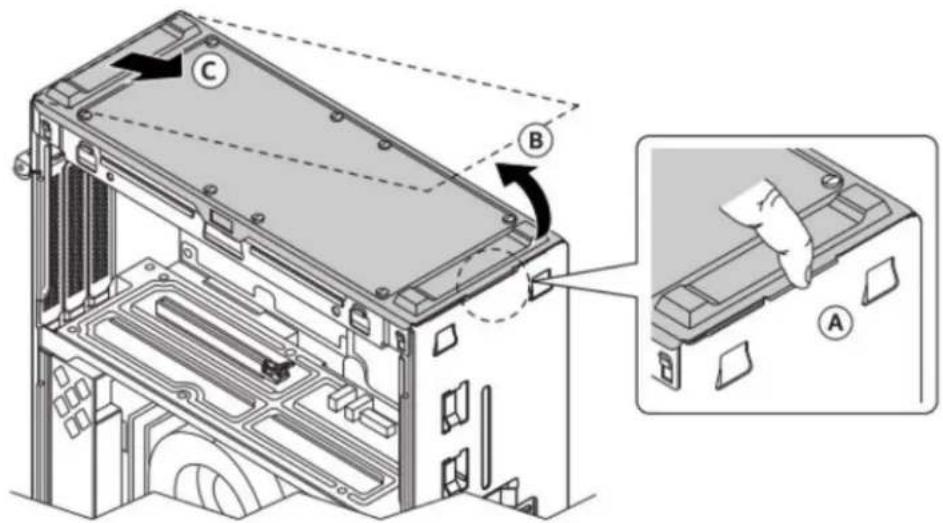

1. Insert the chassis top cover

Technical diagram of an electronic device showing internal components and a labeled section (A), with no readable text or symbols beyond the label.

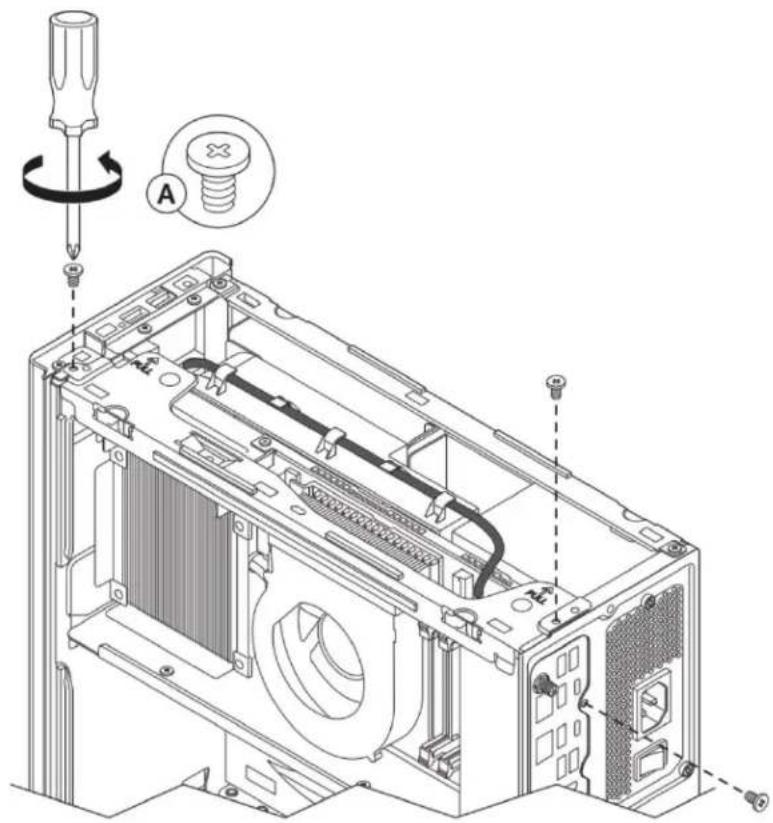

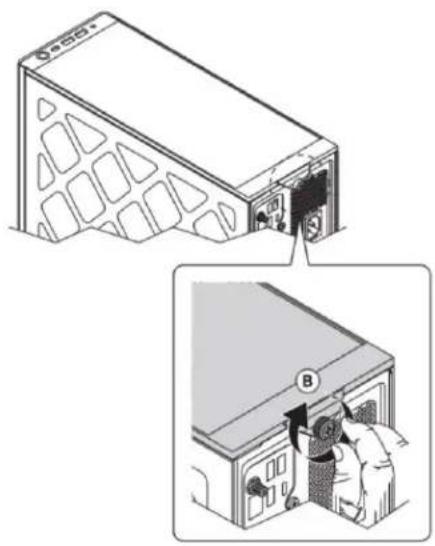

1. Secure screw (B)

Diagram showing a server rack with ventilation slots and a close-up of a person installing or adjusting the back panel (no text or symbols present)

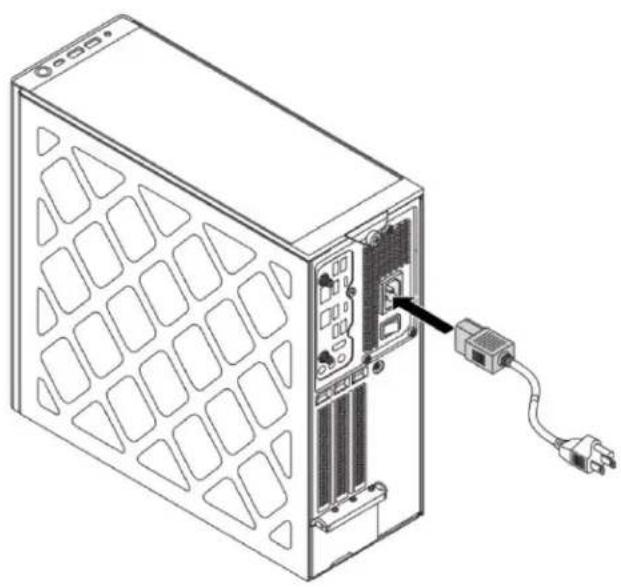

1. Connect the power cord and other devices.

Line drawing of a server rack unit with an attached power outlet and cable (no text or symbols)

8.0 Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord.

Product codes	Power cord type
RNUC13RNGi90000RNUC13RNGi70000RNUC13RNGi50000	No power cord included. An AC power cord needs to be purchased separately. The connector on the power adapter is a C13 type connector.
RNUC13RNGi90001RNUC13RNGi70001RNUC13RNGi50001	US power cord included.
RNUC13RNGi90002RNUC13RNGi70002RNUC13RNGi50002	EU power cord included.
RNUC13RNGi90003RNUC13RNGi70003RNUC13RNGi50003	UK power cord included.
RNUC13RNGi90004RNUC13RNGi70004RNUC13RNGi50004	Australia/New Zealand power cord included.
RNUC13RNGi90006RNUC13RNGi70006RNUC13RNGi50006	China power cord included.

9.0 Install an Operating System

See Supported Operating Systems for a list of Intel-validated Windows* operating systems.

The Intel Product Compatibility Tool lists versions of Linux* that have been reported as compatible by Intel NUC owners. If you need assistance with Linux on your Intel NUC, check the distribution's website and forums for peer assistance.

Refer to Operating System Installation for system requirements and installation steps.

10.0 Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

• Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers
  • Manually download drivers, BIOS, and software from Download Center:

• NUC13RNGi9

• NUC13RNGi7
• NUC13RNGi5
• NUC13SBBi9
• NUC13SBBi7
• NUC13SBBi5

The following device drivers and software are available.

• Intel® Chipset Device Software
• Intel® Graphics
• Intel® Management Engine
• Intel® Gigabit Ethernet
• Intel® Wireless
• Intel® Bluetooth
• Intel® Serial IO
• Intel® GNA
• Marvel Ethernet
  • Realtek* ALC1220 High Definition Audio
• Intel® Rapid Storage Technology
• Thunderbolt® Networking Driver
