Product Type	Moving Head Wash Light
Model	FOCUS WASH 400
Brand	American DJ
Light Source	400W LED (estimated)
Beam Angle	8° to 50° (zoom range)
DMX Channels	16/18/21 channel modes
Control Protocol	DMX512, RDM
Pan Range	540°
Tilt Range	270°
Power Consumption	450W (max)
Input Voltage	AC 100-240V, 50/60Hz
Dimensions (LxWxH)	350 x 280 x 470 mm
Weight	14.5 kg
Housing Material	Aluminum and plastic
IP Rating	IP20 (indoor use)
Cooling	Fan cooled
Noise Level	< 45 dB(A)
Safety Features	Safety cable attachment, automatic power-off on fixture jam
Spare Parts / Repairability	Replaceable LED module, mainboard, power supply, fans
Maintenance	Periodic cleaning of lenses and fans, check connections

Frequently Asked Questions - FOCUS WASH 400 American DJ

How do I set the DMX address for the FOCUS WASH 400?

Use the menu buttons on the rear panel to navigate to 'DMX Address'. Set the desired address using the up/down buttons, then press Enter.

What is the recommended distance for safety cable attachment?

Attach the safety cable to the designated anchor point on the base of the fixture. Ensure the cable is taut and secured to a truss or support structure.

How do I clean the lens and optics?

Use a soft, lint-free cloth slightly dampened with a mild glass cleaner. Gently wipe the lens surface. Do not use abrasive cleaners or solvents.

What should I do if the fixture does not power on?

Check the power cord and connection. Verify the power outlet is live. If using a DMX controller, ensure the fixture is not in standby mode. If the issue persists, consult the manual for fuse replacement.

How many DMX channels does the FOCUS WASH 400 use?

The fixture supports multiple channel modes: 16, 18, or 21 channels. Refer to the manual to select the appropriate mode for your controller.

Can I use this fixture outdoors?

The FOCUS WASH 400 is rated IP20, meaning it is suitable for indoor use only. Do not expose it to rain, moisture, or extreme temperatures.

How do I update the firmware?

Firmware updates are performed via the DMX data link using a compatible updater device. Visit the American DJ website for the latest firmware and instructions.

What is the zoom range of the fixture?

The FOCUS WASH 400 features a motorized zoom with a range of 8° to 50°, allowing for both narrow spot and wide wash effects.

How do I reset the pan/tilt to factory defaults?

Navigate to the menu and select 'Factory Reset'. Confirm to reset all settings including pan/tilt limits, DMX address, and channel mode.

Are spare parts available for this model?

Yes, spare parts such as LED modules, fans, power supplies, and mainboards can be ordered through American DJ authorized dealers.

USER MANUAL FOCUS WASH 400 American DJ

Black industrial radar or wind turbine with blue-lit overhead light, mounted on a control panel (no visible text or symbols)

FOCUS WASH 400

User Manual

©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies.

ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

ADJ PRODUCTS LLC World Headquarters

6122 S. Eastern Ave. | Los Angeles, CA 90040 USA

Tel: [phone] | Fax: [phone] | www.adj.com |[e-mail]

ADJ Supply Europe B.V.

Junostraat 2 | 6468 EW Kerkrade | Netherlands

Tel: [phone] | Fax: [phone] | www.americandj.eu | [e-mail]

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or programming.

Date	Document Version	Software Version	DMX Channels Notes
05/05/2021	1.0 1.1.1 16 / 21 / 23 ch	Initial Release
06/25/2021	2.0 1.1.2		Update DMX Traits, System Menu, added Color Swatch Table, add Snoot and Linear Lens Installation
08/09/2021	3.0 N/C No Ch	Change Updated Dimensional Drawings
08/25/2021	4.0 N/C No Ch	Change Corrected DMX Traits
08/31/2021	5.0 N/C No Ch	Change
01/27/2022	6.0 1.1.4	No Change Updated System Menu, DMX Traits
11/02/2022	7.0 N/C No Ch	Change Add RDM Information

CONTENTS

General Information 4
Limited Warranty (USA Only) 5
Warranty Registration | Key Features 6
Safety Guidelines 7
Overview 8
DMX Set Up 9
Installation 11
Remote Device Management (RDM) 17
Control Panel 18
System Menu 19
DMX Addressing 23
DMX Traits 24
Color Macros Chart 31
Virtual Swatch Colors	33
Color Temperature Chart	34
Dimmer Modes & Curves	35
Cleaning & Maintenance	36
Fuse Replacement | Software Updates	37

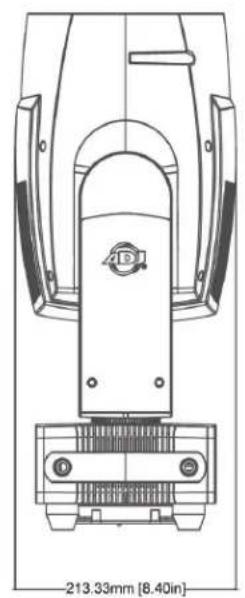

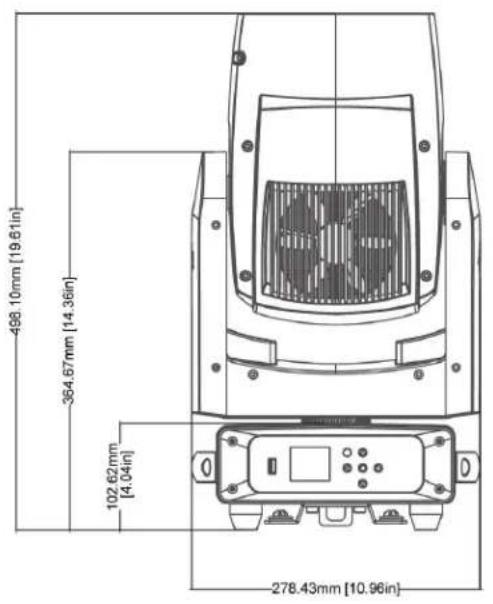

Dimensional Drawings	38
Specifications	39

GENERAL INFORMATION

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information.

This product is intended for use by professionally trained personnel only, and is not suitable for private use.

UNPACKING

Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install and operate the device have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this device to your dealer without first contacting customer support. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

CUSTOMER SUPPORT

Contact ADJ Service for any product related service and support needs.

Also visit forums.adj.com with questions, comments or suggestions.

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

323-582-2650 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

[phone] | Fax: [phone] | [e-mail]

REPLACEMENT PARTS please visit parts.adj.com

IMPORTANT NOTICE!

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER'S WARRANTY AND ARE NOT SUBJECT TO WARRANTY CLAIMS AND/OR REPAIRS.

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending back the product-please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.
C. This warranty is void of the serial number has been altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product, if the product has been repaired or service by anyone other than ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contact, and this warranty does not include maintenance, cleaning or periodic check up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warrant service and repair labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer's and/or Dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

LIMITED WARRANTY PERIODS

• Non L.E.D. Lighting Products = 1-year (365 days) Limited Warranty (Such as: Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
• Laser Products = 1 Year (365 Days) Limited Warranty (excludes laser diodes which have 6 month limited warranty)
• L.E.D. Products = 2-year (730 days) Limited Warranty (excluding batteries which have a 180 day limited warranty) Note: 2 Year Warranty only applies to purchases within the United States.
  • StarTec Series = 1 Year Limited Warranty (excluding batteries which have a 180 day limited warranty)
  • ADJ DMX Controllers = 2 Year (730 Days) Limited Warranty

WARRANTY REGISTRATION

Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre-paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief description of the problem as well as the R.A. number must also be written down on a piece of paper included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. You may obtain an R.A. number by contacting our customer support team on our customer support number. All packages returned to the service department not displaying an R.A. number on the outside of the package will be returned to the shipper.

KEY FEATURES

• 10 to 46-degree motorized zoom
- Flicker free operation for TV and film
• 16-bit pan/tilt movement
- RGBACL color mixing
• Variable dimming modes/curves and strobe effects
• DMX and RDM protocol support
• DMX and power in/out connections
• LCD menu display with 6 button control panel
• Multiple unit power linking
- Multi-voltage universal auto switching power supply (AC100-240V)

INCLUDED ITEMS

• Twist-lock power cable (x1)
• Omega brackets (x2)
• Snoot (x1)
• Linear Lens (x1)
• Screws (x4)

SAFETY GUIDELINES

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before You Attempt To Install Or Operate This Unit!

• Be sure to save the packing carton in the unlikely event the device may have to be returned for service
• Do not spill water or other liquids into or on to the device
• Be sure that the local power outlet matches the required voltage for the device
• Do not open up the device for any reason. There are no user serviceable parts inside
• Disconnect the device's main power when left unused for long periods of time
• Never connect this device to a dimmer pack
• Do not attempt to operate this device if it has been damaged in any way
• Never operate this device with the cover removed
  • To reduce the risk of electrical shock or fire, do not expose this device to rain or moisture
• Do not attempt to operate this device if the power cord has been frayed or broken.
• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short
• Disconnect from main power before making any type of connection
• Never block the ventilation holes. Always be sure to mount this device in an area that will allow proper ventilation. Allow about 6" (15cm) between this device and a wall
• This unit is intended for indoor use only. Use of this product outdoors voids all warranties
  • Always mount this unit in a safe and stable matter
• Please route your power cord out of the way of foot traffic. Power cords should be routed so they are not likely to be walked on, or pinched by items placed upon or against them

Maximum ambient operating temperature for this fixture is 113 degrees F (45 degrees C). Do not operate this device when ambient temperature exceeds this value!

Keep flammable materials away from this fixture!

FIXTURE IS DESIGNED FOR INDOOR USE ONLY! DO NOT EXPOSE TO RAIN OR MOISTURE!

The device should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.
B. Objects have fallen on, or liquid has been spilled into, the device.
C. The device has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a marked change in performance.

OVERVIEW

1. Display Screen
2. Left Button
3. Down Button
4. Enter Button
5. Right Button
6. Up Button
7. Carry Handle (x2)
8. Mode Button

9. Service Port

10. Power In

11. Power Out
12. DMX In, 3-pin
13. DMX In, 5-pin
14. DMX Out, 3-pin
15. DMX Out, 5-pin
16. Fuse
17. Mounting Clamp Attachment (x4)
18. Safety Cable Attachment

DMX SETUP

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals located on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): The Focus Wash 400 can be controlled via DMX-512 protocol. The DMX address is set on the front panel of the fixture. Your unit and your DMX controller require a standard 3-pin XLR connector for data input and data output. We recommend Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male XLR connector at one end and a female XLR connector on the other. Also remember that DMX cable must be daisy chained and cannot be split.

Notice: Be sure to follow figures 1 and 2 when making your own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR's outer casing. Grounding the shield could cause a short circuit and may result in erratic behavior.

Figure 1

Figure 2

XLR Pin Configuration

Pin 1 = Ground

Pin 2 = Data Compliment (negative)

Pin 3 = Data True (positive)

DMX SETUP

Special Note: Line Termination. When longer runs of cable are used, you may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

A DMX512 terminator reduces signal errors, avoiding most signal reflection interference. Connect PIN 2 (DMX-) and PIN 3 (DMX+) of the last fixture in series with a 120 Ohm, 1/4 W Resistor to terminate the DMX512.

5-Pin XLR DMX Connectors. Some manufacturers use 5-pin DMX-512 data cables for DATA transmission in place of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables into a 3-pin line, a cable adaptor must be used. These adaptors are readily available at most electronics stores. The chart below details a proper cable conversion.

3-Pin XLR to 5-Pin XLR Conversion
Conductor	3-Pin XLR Female (Out)	5-Pin XLR Male (In)
Ground/Shield	Pin 1	Pin 1
Data Compliment (- signal)	Pin 2	Pin 2
Data True (+ signal)	Pin 3	Pin 3
Not Used		Do Not Use
Not Used		Do Not Use

INSTALLATION

IP RATING

This device is IP30 rated. It is protected against intrusion of solids larger than 2.5mm in size, such as tools and thick-gauge wires. The device is NOT protected against liquid intrusion of any kind.

FLAMMABLE MATERIAL WARNING!

Keep device a minimum of 5.0 feet (1.5m) away from flammable material and/or pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or installations.

MULTI-DEVICE DAISY CHAINING

• When connected to 240V power, up to 3 devices may be daisy chained together.
• When connected to 110V power, daisy chaining is NOT permitted. In this situation, only operate the fixture as a single standalone device!

DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO!

The unit MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.

Before installing or mounting any device, a professional equipment installer MUST be consulted to determine whether the mounting structure or surface is properly certified to safely support the combined weight of the fixture, clamps, cables, and accessories.

Overhead fixture installations must always be secured with a secondary safety attachment, such as an appropriately rated safety cable that meets all local, national, and country codes and regulations.

Maximum ambient operating temperature is 113^ F ( 45^ C). Do not operate this device when ambient temperature exceeds this value.

This fixture should be installed in areas outside walking paths, seating areas, and areas where unauthorized personnel might be able to reach the device by hand.

NEVER stand directly below the fixture when rigging, removing, or servicing.

Allow approximately 15 minutes for the fixture to cool down before servicing.

INSTALLATION

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

External sources of light beams from direct sunlight, lighting moving head fixtures, and lasers which are focused directly towards the exterior housing and/or penetrate the front lens opening of ADJ lighting fixtures can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, irises, shutters, motors, belts, wiring, discharge lamps, and LEDs.

This issue is not unique to ADJ lighting fixtures; it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of any potential damage if followed. Contact ADJ Service for more details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING MOVING HEAD FIXTURES, AND LASERS DURING UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

INSTALLATION

CLAMP INSTALLATION

This fixture features multiple mounting clamp attachment points, as well as a safety cable attachment point, located on the bottom face of the fixture (see the illustration below). When mounting the fixture to a truss or any other suspended or overhead installation, be sure to secure appropriately rated clamps (not included) to the clamp attachment points and attach a separate SAFETY CABLE of the appropriate safety rating to the safety cable rigging point.

SAFETY CABLE

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS.

RIGGING

Overhead rigging requires extensive experience, including but not limited to: calculating working load limits, understanding the installation material being used, and periodic safety inspection of all installation material and the fixture itself. If you lack these qualifications, do not attempt to perform the installation yourself. Improper installation can result in bodily injury.

INSTALLATION

NOTICE: The max suitable environmental temperature for this lighting fixture is 45^ . Do not place this lighting fixture in an environment where the temperatures exceed this rating. This will allow the fixture to run at its best and help prolong the fixture life.

The Focus Wash 400 is fully operational in three different mounting positions: hanging upside-down from a ceiling or trussing, sideways on trussing, or set on a flat level surface. Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.). Always use and install a safety cable (not included) as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Never use the carrying handles for secondary attachment.

INSTALLATION

SNOOT INSTALLATION: This device can be fitted with a removable snoot, which can be installed by following the directions below.

1. Find the four (4) mounting holes located around the frame of the lens.

1. Use a screwdriver to insert and tighten screws into each of the mounting tabs.

Close-up of a black optical spot light fixture with red circular annotations pointing to the lens (no text or symbols visible)

1. Align the mounting tabs on the snoot with the mounting holes on the frame of the lens.

Close-up of a black industrial radar or optical device with red arrows indicating rotation, being handled by a hand (no visible text or symbols)

1. Installation is now complete!

Black industrial lighting fixture with visible fan grille and control panel (no text or symbols)

INSTALLATION

LINEAR LENS INSTALLATION: This device can be fitted with a linear lens, which can be installed by following the directions below.

1. Find the four (4) mounting holes located around the frame of the fixture lens.

1. Use a screwdriver to insert and tighten screws into each of the mounting tabs.

Close-up of a black industrial lighting fixture with red mounting points, held by a hand (no visible text or symbols)

1. Align the mounting tabs on the linear lens with the mounting holes on the fixture lens.

Hand holding a black remote light fixture with red arrows indicating adjustment or movement (no text or symbols visible)

1. Installation is now complete!

Hand holding a black industrial lamp with a circular lens and adjustable base (no text or symbols visible)

REMOTE DEVICE MANAGEMENT (RDM)

NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the device to be managed, modified, and monitored remotely (hence, remote device management). This protocol is ideal for fixtures installed in locations that are not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled controller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known as a GET command). The controller can then use it's SET command to modify settings that would typically have to be changed or viewed directly via the unit's display screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.

FIXTURE RDM INFORMATION:

RDM Code Device ID Device Model ID Personality ID
1900 0000-FFFF 3			Basic standard Extended CMY ST. CMY EXT.

Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all of the features that you require.

The following parameters are accessible in RDM on this device:

[0x0011] Proxied Device Count [0x0032] Clear Status ID [0x0603] Realtime Clock
[0x0200] Sensor Definition [0x0401] Lamp Hours [0x1010] Power State
[0x0201] Sensor Value [0x0402] Lamp Strikes [0x1031] Preset Playback
[0x0080] Device Model Description	[0x0403] Lamp State	[0x0122] Default Slot Value
[0x0081] Manufacturer Label	[0x0404] Lamp Mode	[0x00B0] Language
[0x0082] Device Label	[0x0405] Device Power Cycles	[0x00A0] Language Capabilities
[0x00E0] DMX Personality	[0x0600] Pan Invert	[0x00C2] Boot Software Version Label
[0x00E1] DMX Personality Description	[0x0601] Tilt Invert	[0x00C1] Boot Software Version ID
[0x0400] Device Hours	[0x0602] Pan Tilt Swap	[0x0070] Product Detail ID List
[0x0015] Comms Status	[0x0500] Display Invert	[0x0030] Status Messages
[0x0031] Status ID Description	[0x0501] Display Level	[0x1500] Undefined PID [0x1500,(5376)]

CONTROL PANEL

This fixture includes an easy to navigate control panel display, from which all necessary settings and adjustments can be made. During normal operating, pressing the MODE button once will access the fixture's main menu. Once in the main menu, the UP and DOWN buttons can be used to navigate through the different functions. Press the ENTER button to select the option displayed on the screen, and use the LEFT and RIGHT buttons to adjust the settings for the selected option. Press the ENTER button once more to confirm the setting. Pressing the MODE button at any time to return to the main menu without making any adjustments.

System Menu Access: To access the system menu when the fixture is not running on the internal battery, press and hold the MODE button to illuminate the display screen until the DMX address is displayed. Then navigate to the desired system menu.

SYSTEM MENU

DMX SETTINGS	DMX Address	001 ~ 512
	DMX Channel Mode	Basic
		Standard
		Extended
		CMY St.
		CMY Ext.
	No DMX Status	Hold Last	Fixture adheres to most recent setting
		Hold Last 2	Fixture adheres to most recent setting and Zoom will return to 0
		Blackout	Fixture goes into standby mode
		Manual	Fixture reverts to manual mode settings
PERSONALITY	Primary	On / Off
	Secondary	On / Off
	Status Settings	Pan Degree	630 / 540
		Pan Invert	On / Off
		Tilt Invert	On / Off
		P/T Feedback	On / Off
		P/T Speed	Speed 1 / Speed 2
		Hibernation	Off, 1min ~ 99 min Default 15 min
	Fan Settings Head		Auto
			High
			Low
	Zoom Speed	Standard
		Fast
	Dim Modes	Standard
		Stage
		TV
		Architectural
		Theatre
		Stage 2
		Dim Speed 0.1 s ~ 10 s

SYSTEM MENU

PERSONALITY (cont'd from prev page)	LED Refresh Rate	900 ~ 1500 Hz		Default = 15 KHz
		2500 Hz
		4000 Hz
		5000 Hz
		6000 Hz
		10 kHz
		15 kHz
		20 kHz
		25 kHz
	Dim Curve	Linear
		Square
		Inv Squa
		S Curve
	Reset Motors	Reset All Motors	Yes / No
		Pan/Tilt Reset	Yes / No
		Effect Reset	Yes / No
	Display	Intensity	1 ~ 10
		Display Invert Yes /	No
		Screen Saver Delay	Off ~ 10 min	Default = 5 min
		Key Lock	Off / On / On1
	Service Passcode = 050		Effect Adjust (Calibration) Passcode = 050	Pan -128 ~ 127
				Tilt -128 ~ 127
				...
			USB Port Power Off / On
			Update Software Off / On
			Factory Restore	Off / On Passcode = 011

SYSTEM MENU

MANUAL	Pan 000 ~ 255
	Pan Fine 000 ~ 255
	Tilt 000 ~ 255
	Tilt Fine 000 ~ 255
	... 000 ~ 255
INTERNAL PROGRAMS	Program 1	Speed 000 - 255
		Fade 000 - 255
	Program 2	Speed 000 - 255
		Fade 000 - 255
	Program 3	Speed 000 - 255
		Fade 000 - 255
	Program 4	Speed 000 - 255
		Fade 000 - 255
	Program 5	Speed 000 - 255
		Fade 000 - 255
	Program 6	Speed 000 - 255
		Fade 000 - 255
	Program 7	Speed 000 - 255
		Fade 000 - 255
INFORMATION	Fixture Life Time	Power On Time
		P-On Time-R (Power On Resettable Time)
		P-On Time-Reset (Power On Time Reset)	Passcode = 050
	Total LED Time	LED On Time
		LED On Time-R
		LED Hours Reset Passcode = 050

SYSTEM MENU

INFORMATION (cont'd from prev page)	Fixture Temps	LEDs	Current
			Max Resettable
		Base	Current
			Max Resettable
		Reset LED Temp	Yes / No	Passcode = 050
		Reset Base Temp	Yes / No	Passcode = 050
	Fan Info (RPM)	LED Fan
		Base Fan
	DMX Values	Pan
		Pan Fine
		...
	Error Logs	Fixture Errors		scrolls through error list
		Reset Error Log	Yes / No	Passcode = 050
	Software Version

DMX ADDRESSING

All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. This starting DMX address is assigned by setting the correct DMX address on the digital control display on the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react in the same way. In this case, please note that changing the settings of one channel will affect all the fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to "listen" to the channel number you have set, based on the quantity of DMX channels of each fixture. That means changing the settings of one channel will only affect the selected fixture.

As an example, when operating this fixture model in Basic (17 channel) mode, you should set the starting DMX address of the first unit to 1, the second unit to 18 (1 + 17), the third unit to 35 (1 + 17 + 17), and so on. (See the chart below for more details.)

Channel Mode Unit 1 Address Unit 2 Address Unit 3 Address Unit 4 Address
Basic	1 18 35 52
Standard	1 23 45 67
Extended	1 25 49 73
CMY St.	1 19 37 55
CMY Ext.	1 25 49 73

DMX TRAITS

CHANNEL					VALUES FUNCTION
Basic Standard Ext			CMY St.	CMY Ext
1 1 1	1 1 000 - 255
	2 2 2 2	000 - 255
2 3 3	3 3 000 - 255
	4 4 4 4	000 - 255
3 5 5	000 - 255
4 6 6	000 - 255
5 7 7	000 - 255
6 8 8	000 - 255
7 9 9	000 - 255
8 10	10 000 - 255
			5 5 000 - 255
				6 000 - 255
			6 7 000 - 255
				8 000 - 255
			7 9 000 - 255
				10 000 - 255
9 11	11 8 11 000	- 255
10 12	12 9 12
					Color Temperature Presets
					000 - 031 No Function
					032 - 076 2700K
					077 - 121 3200K
					122 - 166 4000K
					167 - 211 5600K
					212 - 255 6500K
11 13	13 10 13
					000 Open
					001 - 060 Virtual Swatch Colors (seeVirtualSwatch Colorssection)
					061 - 179 Open
					180 - 201 Color Scroll Clockwise, fast to slow

DMX TRAITS

CHANNEL					VALUES	FUNCTION
Basic $	standard Ext		CMY St.	CMY Ext
11 13	13 10 13					Color Wheel (cont'd)
					202 - 207 Stop
					208 - 229	Color Scroll Counter-Clockwise, slow to fast
					230 - 234 Open
					235 - 239 Random Slots Fast
					240 - 244 Random Slots Medium
					245 - 249 Random Slots Slow
					250 - 255 Open
	14 14 11 14					Color Temperature Red to Green
					000 No Function
					001 - 255 Shift CT, Red to Green
12 15	15 15 000 - 255					Color Macros (see Color Macros Chart)
13 16	16 12 16					Shutter
					000 - 031 Shutter Closed (LEDs Off)
					032 - 063 Shutter Open (LEDs On)
					064 - 095 Strobe effect, slow to fast
					096 - 127 Shutter Open (LEDs On)
					128 - 159 Pulse effect in sequences
					160 - 191 Shutter Open (LEDs On)
					192 - 223 Random strobe effect, slow to fast
					224 - 255 Shutter Open (LEDs On)
14 17	17 13 17 000 - 255					Dimmer Intensity, 0 to 100%
	18 18 18 000 - 255					Dimmer Fine
15 19	19 14 19 000 - 255					Zoom, wide to narrow
		20 20 000 - 255				Zoom Fine

DMX TRAITS

CHANNEL					VALUES FUNCTION
Basic Standard Ext			CMY St.	CMY Ext
	20 21 15 21					Dim Modes
					000 - 020 S	standard
					021 - 040 S	stage
					041 - 060 TV
					061 - 080 A	Architectural
					081 - 100 Theatre
					101 - 120 S	stage 2
						Dimming Speed
					121 0.1
					122 0.2
					123 0.3
					124 0.4
					125 0.5
					126 0.6
					127 0.7
					128 0.8
					129 0.9
					130 1.0
					131 1.5
					132 2.0
					133 3.0
					134 4.0
					135 5.0
					136 6.0
					137 7.0
					138 8.0
					139 9.0 $
					140 10.0 s
					141 - 255 D	default

DMX TRAITS

CHANNEL					VALUES	FUNCTION
Basic Standard Ext			CMY St.	CMY Ext
		22 16	22			Dim Curves
					000 - 020 Linear
					021 - 040 Square
					041 - 060 Inv. Squa
					061 - 080 S. Curve
					081 - 255 No Function
16 21	23 17 23 00	0 - 255				Pan/Tilt Speed, max to min
17 22	24 18 24					Special Functions
					000 - 010 D default Refresh Rate (15 KHz)
					011 900 Hz
					012 910 Hz
					013 920 Hz
					014 930 Hz
					015 940 Hz
					016 950 Hz
					017 960 Hz
					018 970 Hz
					019 980 Hz
					020 990 Hz
					021 1000 Hz
					022 1010 Hz
					023 1020 Hz
					024 1030 Hz
					025 1040 Hz
					026 1050 Hz
					027 1060 Hz
					028 1070 Hz
					029 1080 Hz
					030 1090 Hz
					031 1100 Hz

DMX TRAITS

CHANNEL					VALUES FUNCTION
Basic Standard Ext		CMY St.	CMY Ext
17 22 24 18 24					Special Functions (cont'd)
					032 1110 Hz
					033 1120 Hz
					034 1130 Hz
					035 1140 Hz
					036 1150 Hz
					037 1160 Hz
					038 1170 Hz
					039 1180 Hz
					040 1190 Hz
					041 1210 Hz
					042 1220 Hz
					043 1230 Hz
					044 1240 Hz
					045 1250 Hz
					046 1260 Hz
					047 1270 Hz
					048 1280 Hz
					049 1290 Hz
					050 1300 Hz
					051 1310 Hz
					052 1320 Hz
					053 1330 Hz
					054 1340 Hz
					055 1350 Hz
					056 1360 Hz
					057 1370 Hz
					058 1380 Hz
					059 1390 Hz

DMX TRAITS

CHANNEL					VALUES FUNCTION
Basic Standard Ext			CMY St.	CMY Ext
17 22	24 18 24
					060 1400 Hz
					061 1410 Hz
					062 1420 Hz
					063 1430 Hz
					064 1440 Hz
					065 1450 Hz
					066 1460 Hz
					067 1470 Hz
					068 1480 Hz
					069 1490 Hz
					070 1500 Hz
					071 2500 Hz
					072 4000 Hz
					073 5000 Hz
					074 6000 Hz
					075 10 KHz
					076 15 KHz
					077 20 KHz
					078 25 KHz
					079 Disable LED Refresh Rate
					080 - 089 Enable blackout while pan/tilt moving
					090 - 099 Disable blackout while pan/tilt moving
					100 - 105 Fan Mode Low
					106 - 111 Fan Mode High
					112 - 117 Fan Mode Auto
					118 - 139 No function
					140 - 149 Reset all
					150 - 159 Reset pan/tilt
					160 - 169 Reset effect

DMX TRAITS

CHANNEL					VALUES FUNCTION
Basic Standard Ext		CMY St.	CMY Ext
17 22 24 18 24					Special Functions (cont'd)
				170 - 174 Enable Zoom Speed Fast
				175 - 179 Disable Zoom Speed Fast
				180 - 189 Internal Program 1 (Scenes 1-8)
				190 - 199 Internal Program 2 (Scenes 9-16)
				200 - 209 Internal Program 3 (Scenes 17-24)
				210 - 219 Internal Program 4 (Scenes 25-32)
				220 - 229 Internal Program 5 (Scenes 33-40)
				230 - 239 Internal Program 6 (Scenes 41-48)
				240 - 249 Internal Program 7 (Scenes 49-56)
				250 - 255 No Function

COLOR MACROS CHART

MACRO NUMBER	DMX VALUE	RED GREEN BLUE	AMBER CYAN LIME
1 001	004 80 255	234 80 0 0
2 005	008 80 255	164 80 0 0
3 009	012 77 255	112 77 0 0
4 013	016 117 255	83 83 0 0
5 017	020 160 255	77 77 0 0
6 021	024 223 255	83 83 0 0
7 025	028 255 243	77 77 0 0
8 029	032 255 200	74 74 0 0
9 033	036 255 166	77 77 0 0
10 037	040 255 125	74 74 0 0
11 041	044 255 97	77 74 0 0
12 045	048 255 71	77 71 0 0
13 049	052 255 83	134 83 0 0
14 053	056 255 93	182 93 0 0
15 057	060 255 96	236 96 0 0
16 061	064 238 93	255 93 0 0
17 065	068 196 87	255 87 0 0
18 069	072 150 90	255 90 0 0
19 073	076 100 77	255 77 0 0
20 077	080 77 100	255 77 0 0
21 081	084 67 148	255 67 0 0
22 085	088 77 195	255 77 0 0
23 089	092 77 234	255 77 0 0
24 093	096 158 255	144 144 0 0
25 097	100 255 251	153 153 0 0
26 101	104 255 175	147 147 0 0
27 105	108 255 138	186 138 0 0
28 109	112 255 147	251 147 0 0
29 113	116 151 138	255 138 0 0
30 117	120 99 0 255	100 0 0
31 121	124 138 169	255 138 0 0
32 125	128 255 255	255 255 0 0

COLOR MACROS CHART

MACRO NUMBER	DMX VALUE	RED GREEN BLUE	AMBER CYAN LIME
33 129	- 132 254 206	143 0 0 0
34 133	- 136 254 177	153 0 0 0
35 137	- 140 254 192	138 0 0 0
36 141	- 144 254 165	98 0 0 0
37 145	- 148 254 121	0 0 0 0
38 149	- 152 176 17	0 0 0 0
39 153	- 156 96 0 11	0 0 0
40 157	- 160 234 139	171 0 0 0
41 161	- 164 224 5	97 0 0 0
42 165	- 168 175 77	173 0 0 0
43 169	- 172 119 130	199 0 0 0
44 173	- 176 147 164	212 0 0 0
45 177	- 180 88 2	63 0 0 0
46 181	- 184 0 38	86 0 0 0
47 185	- 188 0 142	208 0 0 0
48 189	- 192 52 148	209 0 0 0
49 193	- 196 1 134	201 0 0 0
50 197	- 200 0 145	212 0 0 0
51 201	- 204 0 121	192 0 0 0
52 205	- 208 0 129	184 0 0 0
53 209	- 212 0 83	15 0 0 0
54 213	- 216 0 97	166 0 0 0
55 217	- 220 1 100	167 0 0 0
56 221	- 224 0 40	86 0 0 0
57 225	- 228 209 219	182 0 0 0
58 229	- 232 42 165	85 0 0 0
59 233	- 236 0 46	35 0 0 0
60 237	- 240 8 107	222 0 0 0
61 241	- 244 254 0	0 0 0 0
62 245	- 248 0 254	0 0 0 0
63 249	- 252 0 0 254	0 0 0 0
64 253	- 255 0 0 0	254 0 0

WARNING! DISCONNECT UNIT FROM POWER BEFORE PERFORMING ANY CLEANING OR MAINTENANCE PROCEDURES!

ALWAYS ALLOW THE FIXTURE TO COOL FOR AT LEAST 15 MINUTES BEFORE PERFORMING ANY CLEANING OR MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics. Clean periodically with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from an authorized ADJ dealer.

Please refer to the following points during routine inspections:

• A detailed electrical check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to enter into the fixture. Damaged rigging points or unsecured rigging could cause the fixture to fall and seriously injure a person(s).
  • Electric power supply cables must not show any damage, material fatigue or sediments.

FUSE REPLACEMENT

Disconnect the unit from the power source, then use a flat head screw driver to unscrew the fuse holder located above the DMX ports. Remove the bad fuse and replace with a new one, then screw the fuse holder back in. Replace only with a new fuse of the same type and rating.

SOFTWARE UPDATES

ONLY QUALIFIED TECHNICIANS SHOULD PERFORM THIS FUNCTION! NOTE ALL MENU SETTINGS BEFORE UPDATING SOFTWARE!

FIXTURE SOFTWARE CANNOT BE DOWNGRADED!

DOWNLOAD FIXTURE SOFTWARE TO PC ONLY! (NO MAC SUPPORT)

PLEASE CONTACT ADJ CUSTOMER SERVICE FOR FURTHER INFORMATION.

1. Contact ADJ customer service to obtain the updated software. Download software to a USB flash drive. In order to minimize the risk of downloading the incorrect software to your device, make sure that the desired update files are the only files on the USB flash drive.
2. Disconnect any DMX connections from your device. Insert the USB flash drive into the service port on your device.
3. Use the display screen control panel to navigate to Personality > Service > USB Port Power. See the System Menu section of this manual for detailed instructions. Enter the passcode when prompted, and switch the USB Port Power setting to ON.
4. Highlight the desired file and press ENTER to select it and begin the download.
5. The unit will now update, run an automatic software check, and reset. This may take some time.
6. Repeat this process for each software update file.
7. Verify by navigating to Information > Software Version and confirming that the correct software version number is shown there (see the System Menu section of this manual for detailed instructions).

DIMENSIONAL DRAWINGS

Without Snoot

Snoot Installed

Technical line drawing of a mechanical device with fan and control panel (no text or symbols)

Drawings may not be to scale.

SPECIFICATIONS

SOURCE:

• 400W RGBACL LED

• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA:

• Zoom Range 10^ - 46^
  • Color Temperature: 10000K
  • 4,600 Total Lumen Fixture Output
  • Lux @ 10': 10,384 lx (965 foot candles), 1.8' diameter
  • CRI: 94
  • CRI R9: 87.3
  • TM30 Rf: 90.8
  • TM30 Rg: 99.5

COLOR:

- RGBWACL (Red, Green, Blue, Amber, Cyan, Lime)

EFFECTS:

• RGBACL Color Mixing
  • 10\~46-degree Motorized Zoom
• Electronic Strobe
  • Color Temperature Red to Green control via DMX
  • Linear Color Temperature control, 2700k to 10,000k
• Preset Color Temperatures (2700k, 3200k, 4000k, 5600k and 6500k)

CONTROL / CONNECTIONS:

• 3 DMX Channel Modes (16, 21 & 23 Channel Modes)
- Selectable LED Refresh Rates, 900Hz to 25K Hz.
- Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds
- 6-button Control Panel and LCD Menu Display
• RDM (Remote Device Management)
- Locking 3-pin and 5-pin XLR Connector In/Out
• IP65 Locking Power Connector In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT:

• Length: 10.96" (278.43mm)
• Width: 8.40" (213.33mm)
• Vertical Height (Without Snoot): 19.61" (498.1mm)
• Vertical Height (Snoot Installed): 22.37" (568.1mm)
• Weight: 23.5 lbs. (10.7 kg)

ELECTRICAL / THERMAL:

• Multi-voltage: AC 100-240V - 47/63Hz
  • 438W Max Power Consumption
  • Multiple Unit Power Linking
• 5^ to 113^ (-15°C to 45°C)

APPROVALS / RATINGS:

• CE I cETLus (Pending) I IP20

Specifications and documentation subject to change without notice.
