Product Type	Waterproof Junction Box
Brand	Strong
Model	JB01
Intended Use	Outdoor security camera wiring enclosure
Material	Plastic (PVC or ABS)
Color	White
Dimensions (Approx.)	100 mm x 100 mm x 50 mm
Weight	200 g (approx.)
Ingress Protection Rating	IP65 (waterproof)
Operating Temperature Range	-20°C to 60°C
Main Function	Houses and protects cable connections from moisture and dust
Package Contents	1x Junction box, 1x Cable gland, 2x Set of 4 Screws, 1x Set of 4 Rawl plugs, Warranty and safety instructions
Compatible Cameras	Most Strong security cameras with standard mounting base
Installation	Wall or ceiling mount using provided screws and rawl plugs
Cable Entry	Single cable gland for one cable (included)
Maintenance & Cleaning	Wipe with a damp cloth; do not use solvents
Safety Precautions	Ensure proper sealing; use only with compatible cables; disconnect power before installation
Spare Parts Availability	Cable gland and screws available separately
Repairability	Not user-serviceable; replace if damaged
Warranty	Standard manufacturer warranty (details in box)
Country of Origin	China (typical)
Support Contact	Email: [e-mail], Phone: [phone]
Website	www.strong-eu.com

Frequently Asked Questions - JB01 STRONG

Can I use this junction box with other camera brands?

The JB01 is designed for Strong security cameras, but it may fit other brands with similar mounting holes. Check dimensions and hole pattern before use.

Is the junction box truly waterproof?

Yes, the JB01 has an IP65 rating, meaning it is protected against dust and low-pressure water jets. Ensure the lid and cable gland are properly tightened.

How do I install the junction box?

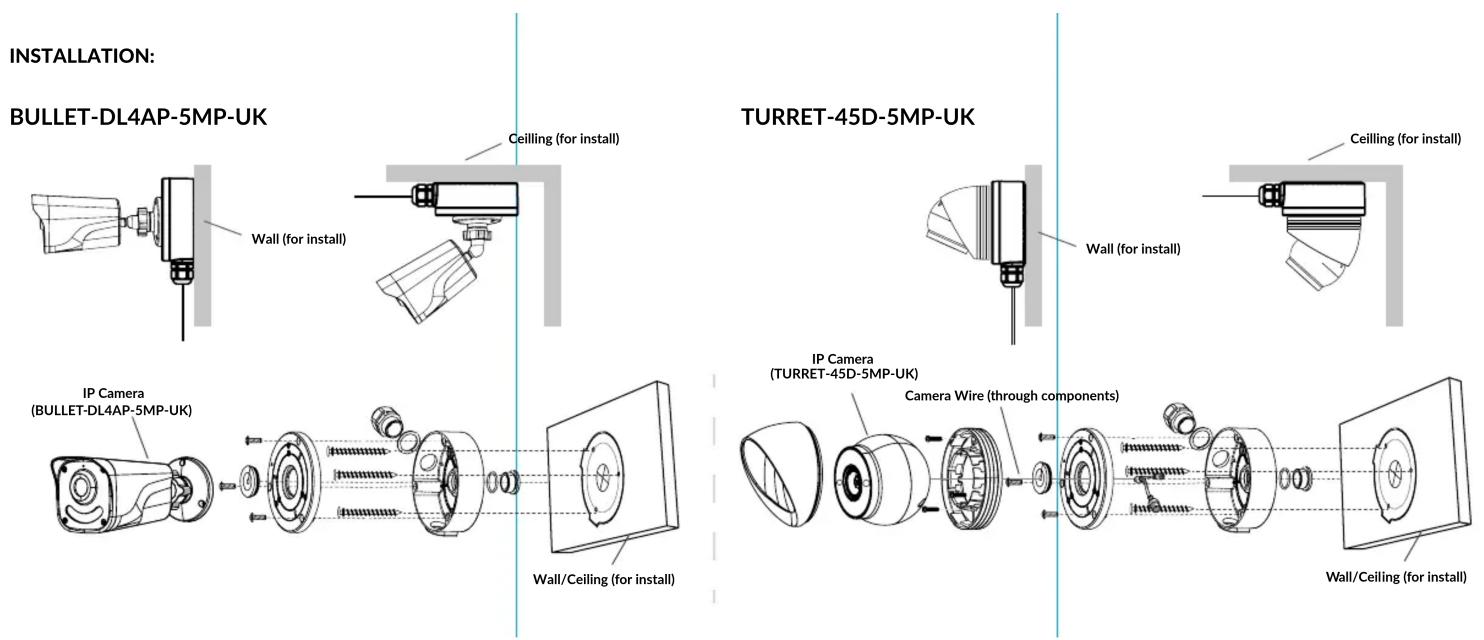

Mount the box to a wall or ceiling using the provided screws and rawl plugs. Route the camera cable through the cable gland, then secure the lid.

Does the box come with the cable gland?

Yes, one cable gland is included in the package. It fits standard security camera cables.

What are the dimensions of the junction box?

Approximately 100 mm x 100 mm x 50 mm (width x height x depth). Verify fit against your mounting surface.

Can I paint the junction box to match my wall?

You can paint it with a water-based exterior paint, but avoid spraying the rubber seal. Do not use solvent-based paints.

What should I do if the cable gland is lost?

Contact Strong support at [e-mail] to order a replacement cable gland.

Is the junction box suitable for underground installation?

No, it is designed for wall or ceiling surface mounting. For underground use, a specialized burial-rated enclosure is required.

How do I clean the junction box?

Wipe with a soft, damp cloth. Do not use abrasive cleaners or solvents. Keep the rubber seal clean and dry.

What is the warranty period?

The junction box comes with a standard 1-year warranty against manufacturing defects. Refer to the included warranty card for details.

USER MANUAL JB01 STRONG

WATERPROOF JUNCTION BOX

JB01

3D rendering of a white cylindrical mechanical component with mounting holes and central hub (no text or symbols visible)

User manual

PACKAGE CONTENT:

1x Junction box
1x Cable gland

1x Warranty
and safety instructions

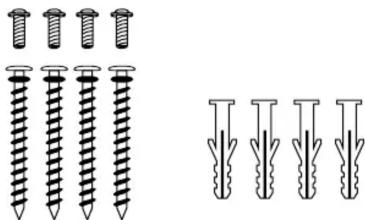

Illustration of screw and nail assembly diagrams (no text or labels)

2x Set of 4 Screws 1x Set of 4 Rawl plugs

SERVICE CENTER

GB

[e-mail]

0800 464 7919

www.strong-eu.com
