Product Type	Hydraulic Floor Jack
Brand	WilTec
Model	50800
Category	Car Jack
Lifting Capacity	2 Ton (4000 lbs)
Minimum Height	135 mm
Maximum Height	385 mm
Weight	22 kg
Material	Steel
Operation Type	Manual Hydraulic
Hydraulic Oil Type	SAE 10 or 20 hydraulic oil
Handle Length	1100 mm
Wheels	2 swivel casters + 2 fixed
Safety Valve	Overload protection valve
Maintenance	Regularly check oil level and purge air
Cleaning	Wipe with dry cloth; avoid water ingress
Storage	Store in dry place, lower the jack
Spare Parts Availability	Contact WilTec support
Warranty	2 years

Frequently Asked Questions - 50800 WilTec

What is the lifting capacity of the WilTec 50800 jack?

The WilTec 50800 has a lifting capacity of 2 tons (4000 lbs). Always ensure the load does not exceed this limit.

How do I use the jack safely?

Always place the jack on a firm level surface. Use the designated lift points on the vehicle. Never work under a vehicle supported only by a jack; use jack stands.

What type of hydraulic oil should I use?

Use SAE 10 or 20 hydraulic oil. Do not use brake fluid or other oils. Check the oil level regularly.

How do I bleed air from the hydraulic system?

To bleed air, turn the release valve counterclockwise. Pump the handle several times, then close the valve. Repeat if necessary until lifting is smooth.

What is the minimum and maximum lifting height?

The minimum height is 135 mm and the maximum height is 385 mm. Ensure the vehicle's clearance matches these values.

How do I maintain the jack?

Periodically check the hydraulic oil level, clean the ram, and lubricate moving parts. Store in a dry place. Follow the manual for detailed maintenance.

Can I use this jack for all types of vehicles?

It is suitable for most passenger cars and light trucks within the 2-ton capacity. Do not use on heavy commercial vehicles.

What should I do if the jack fails to lift?

First, check the oil level. If low, add hydraulic oil. Bleed air from the system. If problem persists, contact WilTec support.

Is the jack portable? How heavy is it?

Yes, it is portable with wheels. The weight is 22 kg. You can move it by the handle.

Where can I find spare parts?

Spare parts can be obtained by contacting WilTec customer support. Provide the model number 50800 and part details.

USER MANUAL 50800 WilTec

Red metal frame device with a vertical support and stand (no text or symbols visible)

Illustration similar, may vary depending on model

Read and follow the operating instructions and safety information before using for the first time.

Technical changes reserved!

Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.

Updating the documentation

If you have suggestions for improvement or have found any irregularities, please contact us.

The information contained in this document may alter at any time without previous notice. It is prohibited to copy or spread any parts of this document in any way without prior written allowance. All rights reserved.

The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.

Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure that the operating manual is complete, faultless, and up to date, mistakes cannot be entirely avoided.

If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing from you.

Send an e-mail to:

[e-mail]

or use our contact form:

https://www.wiltec.de/contacts/

The most recent version of this manual in various languages can be found in our online shop via:

https://www.wiltec.de/docsearch

Our postal address is:

To return orders for exchange, repair, or other purposes, please use the following address. Attention! To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods.

Returns Department

Thank you for purchasing this quality product. To minimise the risk of injury we urge that our clients take some basic safety precautions when using this device. Please read the operation instructions carefully and make sure you have understood its content.

Keep these operation instructions safe.

Attention! Before lifting an object, make sure you are fully aware on how the jack works. The inadequate use can cause serious injury. All other uses than the ones outlined here can damage the device and can be dangerous.

Safety requirements

• Only use the lawn mower jack for lifting.
• Do not allow children to use or play with the device.
  • At no time leave the mower jack unattended and keep children and by-standers away.
• Never overcharge the mower jack. Overcharging may damage the mower jack and/or cause a defect, resulting in serious injury.
• The mower lift is designed for a flat and hard ground. Using it on a soft surface can cause instability, making the whole construct fall over.
• Always secure the load on the lateral reinforcement located on the side opposite the hand crank. The load should always be placed horizontally on the mower jack to avoid damage and sliding or falling of the load.
  • Always visually check the jack before use, without any objects on it.
  • Before lifting a ride-on mower, make sure that the driver has left the seat.

Use

Assembly before use

1. Position the jack on a flat and stable surface.
2. Expand the steel rod and secure it with three screws.
3. Install the handle and tighten it by screwing it on.
4. Remove the locking peg.
5. Place the crankshaft upwards.
6. For a better use we recommend to grease the shaft before use. This should be repeated when required to ensure the smooth functioning of the parts.

Assembly during use

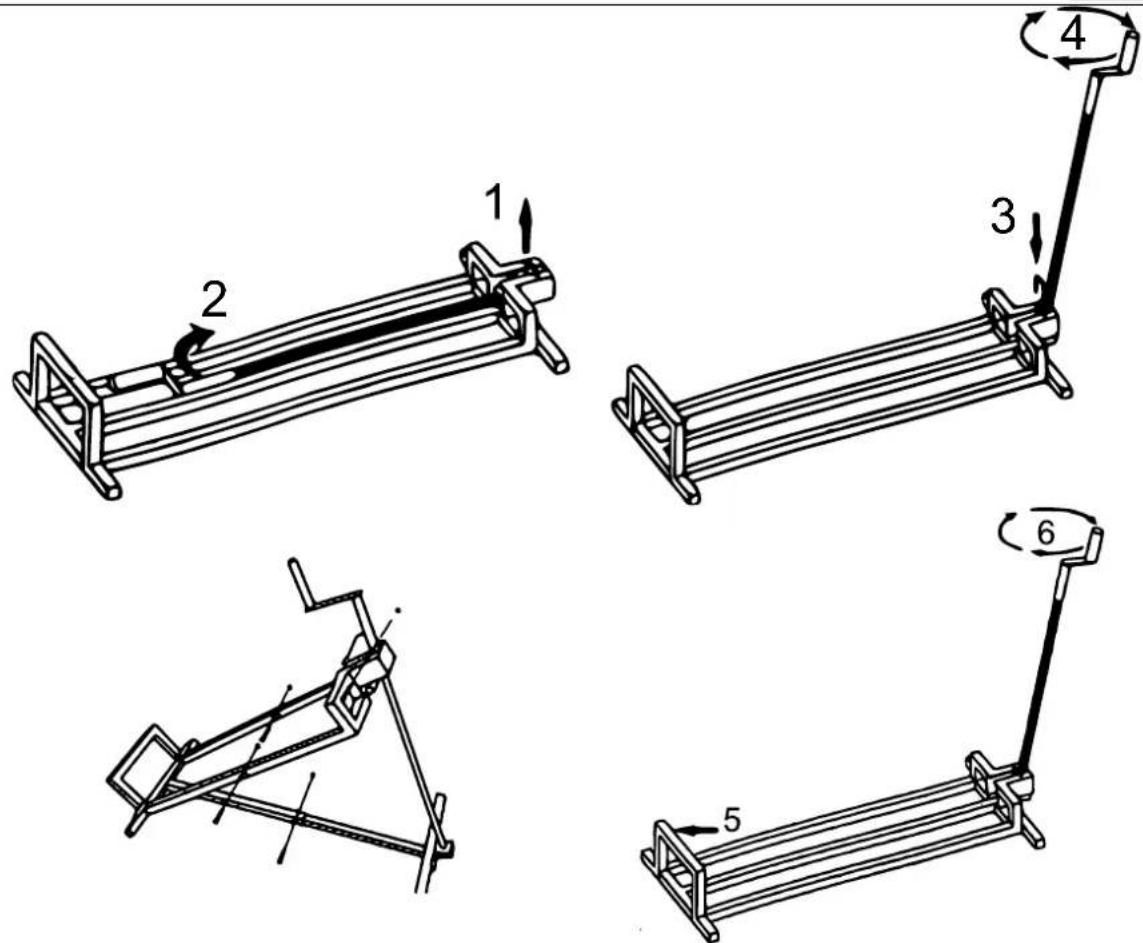

1. Remove the locking bracket (1) to be able to lift the crankshaft into an upright position (2).
2. Then place the locking bracket back into place, allowing the crankshaft to be sturdily positioned upright (3).
3. Then turn the hand crank clockwise enabling for the lawn mower to be lifted (4).

Lifting a lawn mower

1. Place the jack on a flat and hard surface.

2. Position the lawn mower above the jack. The base of the lawn mower needs to be parallel to the lateral reinforcement bar opposite of the crank handle (5).

3. Caution: When lifting a ride-on mower, the back wheels need to be placed on the jack.

4. The wheel of the lawn mower needs to be positioned stably against the lateral reinforcement bar (5).

5. The crank handle needs to be rotated clockwise to lift the mower 2–3 cm.

6. Then ensure that the mower is positioned securely before lifting it even higher.

- In case the mower was placed wrongly, rotate the crank handle counter-clockwise, to place the mower onto the ground again. Reposition the mower and try lifting it up cautiously again.

- Caution: Do not lift the lawn mower too high up, it might fall over. Only lift it as much as necessary and to be able to carry out the required work.

Maintenance

If the jack is not in use, the crank shaft should be folded downward and secured with the bracket. Approximately every three months, the shaft needs to be greased, during this process the jack should be checked for any damage. If rust has collected anywhere, the area needs to be wiped off with an oiled cloth to ensure the jack is still in an adequate condition for use. Storing the jack in a dry and clean place is recommended to prevent rust from collecting or other damages to occur.

Technical specifications

Item number		50800	51157
Max. capacity (kg)		400	250
Weight (kg)		10	approx. 7
Widths (cm)	Ramp	95	98
	Wheel support	24	25
Max. inclination angle (°)		35

Important notice:

The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH.
