Product Type	Manual Sweeper
Brand	DEDRA
Model	DED8802
Sweeping Width	650 mm
Front Wheel Diameter	50 mm
Rear Wheel Diameter	200 mm
Main Brush Diameter	250 mm
Weight	9.4 kg
Power Source	Manual (push)
Primary Function	Sweeping of dirt, leaves, and debris
Brush Type	Rotating main brush
Handle	Ergonomic push handle
Dust Collection	Internal hopper or bag (if equipped)
Maintenance	Regular cleaning of brushes and disposal of collected debris
Storage	Store in dry place, avoid moisture
Safety Precautions	Use on stable surfaces, avoid steep slopes
Spare Parts Availability	Contact manufacturer or authorized dealers
Repariability	Replaceable brushes and wheels
Intended Surfaces	Paved paths, lawns, and hard floors
Warranty	Refer to user manual or manufacturer

Frequently Asked Questions - DED8802 DEDRA

How do I assemble the DEDRA DED8802 sweeper?

Refer to the user manual for assembly steps. Typically, attach the handle to the frame and secure the wheels and brush.

Can I use the sweeper on wet grass?

It is recommended to use on dry surfaces to avoid clogging and damage to the brush.

How do I empty the debris collection container?

Remove the container or open the flap. Dispose of collected debris and clean the container if needed.

What is the maintenance schedule for the brushes?

Inspect brushes after every use. Clean tangled debris. Replace if bristles are worn or damaged.

Are replacement brushes available for this model?

Yes, contact DEDRA customer service or check the DEDRA website for compatible replacement parts.

Why is the sweeper not picking up debris effectively?

Check if the brush is clogged, worn, or incorrectly adjusted. Also ensure the collection container is not full.

Can I use the sweeper on gravel or uneven surfaces?

It is designed for paved or lawn surfaces. On gravel, performance may be reduced and brush wear may increase.

How do I store the sweeper during winter?

Clean thoroughly, dry all parts, and store in a frost-free, dry place to prevent rust.

Is the sweeper safe for use around children?

Supervise children near the sweeper. It has no sharp blades but moving parts can pinch. Keep away from small parts.

What is the weight capacity of the collection hopper?

The hopper capacity is not specified, but avoid overfilling to maintain optimum sweeping performance.

USER MANUAL DED8802 DEDRA

Line drawing of a manual lawn mower with two wheels and handle (no text or symbols)

Kontakt / Kontaktai / Kontakts / Elérhetőség / Contact / Contacto / Contact / Contact / Kontakt

Dedra Exim Sp. z o.o., ul. 3 Maja 8, 05-800 Pruszków

Tel. [phone] wew. 129, 165, fax [phone]

1. Użytkowanie / Použití / Použite / Naudokite / Izmantot / Használat / Utilizare / Benutzen

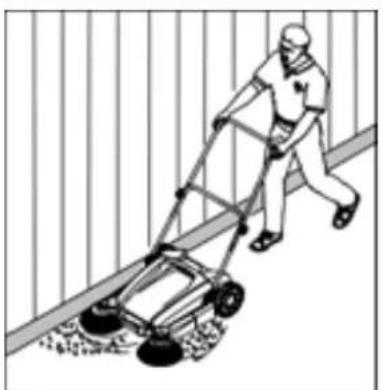

Illustration of a person pushing a lawn mower on a slope (no text or symbols)

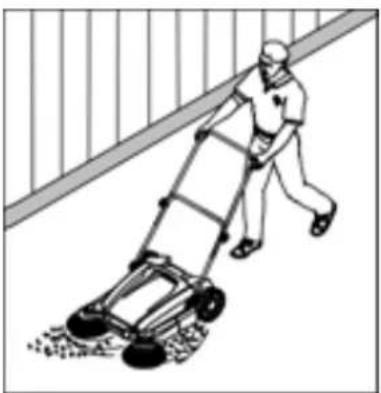

Illustration of a person pushing a lawn mower on a paved surface (no text or symbols)

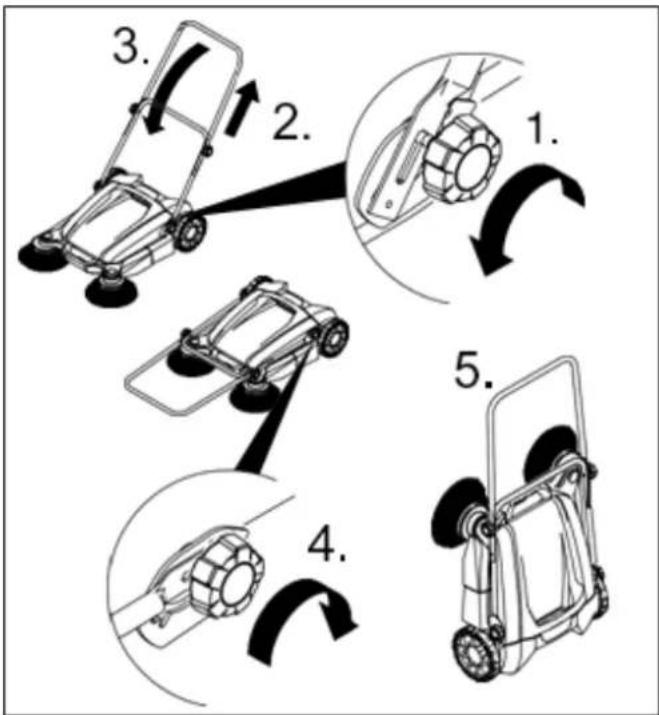

3. Przechowywanie / Úložný prostor / Skladovanie / Sandéliavimas / Uzglabāšana / Tárolás / Depozitare / Lager

Illustration of a four-wheeled lawn mower with a handle and wheels (no text or symbols)

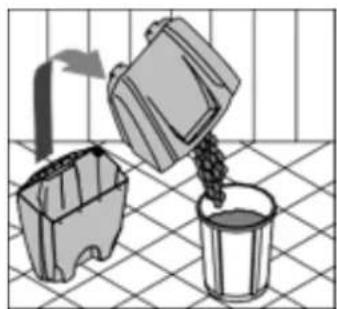

Illustration of a container pouring liquid into a glass with a lid nearby (no text or symbols)

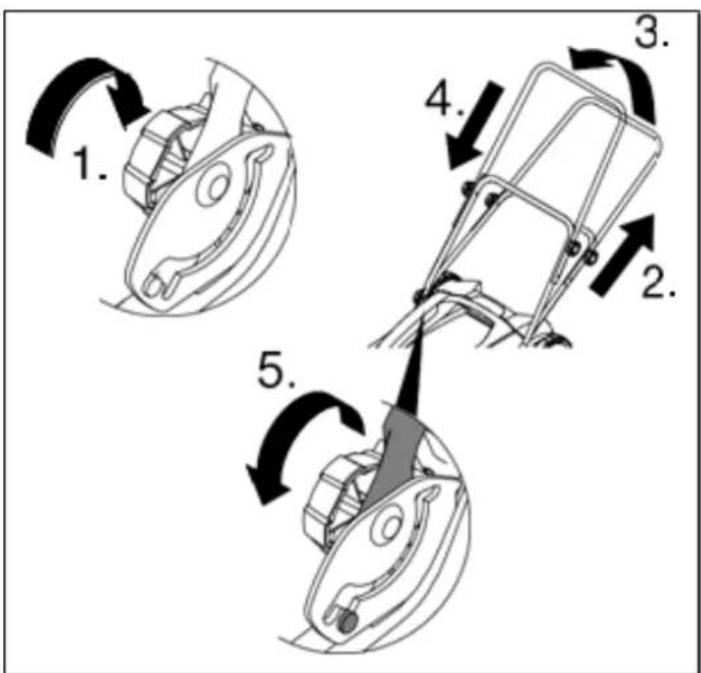


Dane techniczne

Model	Modelka	Model	Modelis	Modelis	Modell	Model	Modell		DED8802
Szerokośćzamiatania	Śirka zametání	Śirka zametania	Ślavimo plotis	Slauciśanasplatums	Seprésiszélesség	Lătîmea demăturat	Kehrbreite	[mm]	650
Koła przednie ∅	∅ přednich kol	Predné kolesá ∅	Priekiniai ratai ∅	Priekšëjie riteni∅	Első kerekek ∅	Roti fata ∅	Vorderräder∅	[mm]	50
Koła tylne ∅	R zadní kola	Zadné kolesá ∅	Galiniai ratai ∅	Aizmugurëjieriteni ∅	Hátsó kerekek ∅	Roți spate ∅	Hinterräder ∅	[mm]	200
Szczotka główna∅	R hlavníhokartáče	∅ hlavnej kefy	Pagrindinisšepetys ∅	Galvenă birste ∅	Fő kefe ∅	Perie principală∅	Hauptbürste∅	[mm]	250
Masa	Hmotnost	Omša	Mišios	Mise	Tömeg	Masa	Masse	[kg]	9,4

PL Przeznaczenie
