| Product Type | Domestic Fan |
| Brand | Kanlux |
| Model | VENETO-15 |
| Power Consumption | 15 W |
| Rated Voltage | 220-240 V~ |
| Frequency | 50/60 Hz |
| Speed Settings | 2 (gentle, strong) |
| Airflow Direction | Adjustable up/down |
| Protection Class | Class II (double insulation) |
| Housing Material | Plastic (likely) |
| Blade Material | Plastic (likely) |
| Front Protective Mesh | Included |
| Base | Stable base included |
| Stand | Included |
| Dimensions (approx.) | Height: 35 cm, Base diameter: 25 cm |
| Weight (approx.) | 1.5 kg |
| Indoor Use | Yes |
| Cleaning Method | Soft dry cloth; do not immerse |
| Safety Features | Automatic shut-off when unplugged; do not cover; keep away from water |
| Warranty | Refer to local regulations |
Frequently Asked Questions - VENETO-15 Kanlux
User questions about VENETO-15 Kanlux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Household Fan in PDF format for free! Find your manual VENETO-15 - Kanlux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VENETO-15 by Kanlux.
USER MANUAL VENETO-15 Kanlux
4.
EN
ATTENTION: Read this user manual carefully before you use the appliance and save it for future reference.
I. INSTRUCTIONS FOR SAFE USE:
-
Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
-
Turn the device off and unplug it before you replace/assemble any parts.
-
The appliance is intended for use indoors.
-
The appliance cannot be used for other purposes than it was designed for.
-
Place the device on a dry, flat and stable surface.
-
Ensure that children do not use the appliance for playing. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Do not touch the mains cord and the appliance with wet or damp hands.
-
Never let the appliance run unattended.
-
Do not cover the appliance during work.
-
Do not move the appliance during work.
-
Unplug the appliance immediately after use.
-
Avoid movable parts of the ventilating fan.
-
Do not put fingers, pencils or other objects in the fan grid when it's connected to power supply, especially when it is in operation.
-
Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc.
-
Do not pull the mains cord when unplugging the appliance.
-
The mains cord must not be in contact with sharp edges or hot surfaces.
-
Check the condition of the mains cord regularly.
-
If the appliance doesn't work properly or any of the parts is damaged, especially the mains cord, stop using the appliance immediately. Any repair of a damaged appliance can only be carried out by an authorized service centre or appropriately qualified person.
-
The ventilating fan must not be used if all the parts have not been assembled according to the manual.
-
Use only accessories designed for this model (included in the set); using other accessories can cause hazardous situation and results in the guarantee becoming invalid.
WEEE label signifies the necessity of selective collection of waste electric and electronic equipment. The products thus marked must not be disposed of to the standard waste bins together with other types of waste. Such products may be environmentally harmful and require special forms of processing, recovery, recycling and neutralization. Products designated in this way should be handed over to a used electronic and electrical equipment collection point. They may also be returned to the seller, in case of purchasing a new similar product; in this case, the number of returned products may not exceed the number of purchased new products of the same kind. More information
on used electronic and electrical equipment collection points may be obtained from city halls and district offices, as well as from local recycling centers or from the shop where this
appliance was bought.
IMPORTANT:
The Importer/Supplier bears no responsibility for damages resulting from inappropriate installation, application of inappropriate components, technical modifications and failure to comply with these instructions.
II. APPLIANCE DESCRIPTION (Img.1):
A - Front protective mesh
B - Propeller
C - Control panel, airflow control switch:
- "0" - device disabled
- "1" - gentle airflow
- "2" - strong airflow
D - Engine casing
E-Screw
F-Base
G - Stand

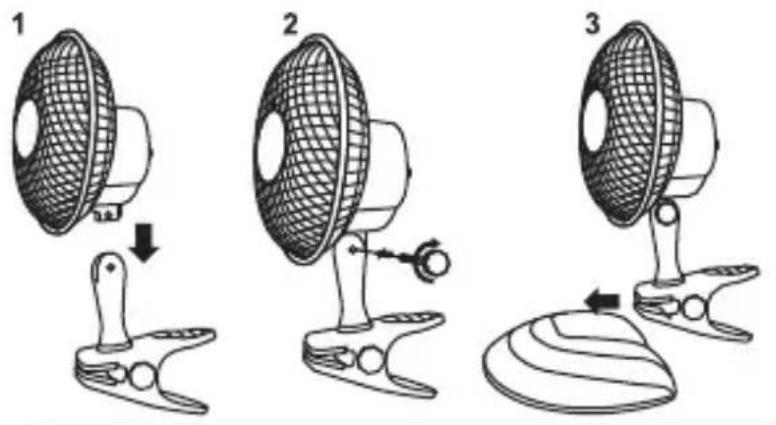

III. ASSEMBLY:
ATTENTION:
Turn the device off and unplug it before
you replace/assemble any parts.
IV. INSTRUCTIONS FOR USE:
-
Set the device on a flat, stable surface. Put the plug in the wall socket.
-
Control panel: press any speed control button to turn the ventilating fan on:
„1“ - gentle airflow,
„2“ – for strong airflow.
„0“ — to turn the fan off
- Position setting: always turn the fan off before adjusting its position.
Air flow can be directed upwards
or downwards by moving the grid down and up.
V. CLEANING AND MAINTENANCE:
ATTENTION:
Turn the device off and unplug it before cleaning.
- do not immerse the appliance in water when cleaning it;
- do not clean with chemicals or corrosive lotions;
- use only soft, dry cloth to clean the appliance.
- in order to protect the fan during storage, it must be thoroughly cleaned,
covered with a plastic bag and kept in a dry place.
VI. TECHNICAL PARAMETERS
Input rated voltage: 220-240V\~
Frequency: 50/60Hz
Power: 15W
II class protection - a product in which protection against electric shock is
provided not only through basic insulation, but also double or reinforced insulation.
Product meets the requirements of EU directives.
