Product Type	Smart TV (LED) with Google TV
Display Diagonal	55 inches
Resolution	4K UHD (3840 × 2160) (typical for model series)
Smart Platform	Google TV with Google Assistant
Wireless Connectivity	Wi-Fi (built-in) and Bluetooth
Ethernet Port	Yes (LAN)
HDMI Ports	3 (typical)
USB Ports	1
Other Ports	ANT/CABLE, Optical Audio Out, Headphone Jack, Mini AV In (composite video + L/R audio)
Remote Control	Voice remote with Google Assistant, button layout as per manual
Remote Batteries	2 × AAA (included)
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption (typical)	120 W (standby <0.5 W)
Stand Dimensions (approx.)	Width: 48.5 in (123 cm), Depth: 10.5 in (27 cm) (estimated)
TV Weight without Stand	Approximately 22 lbs (10 kg)
TV Weight with Stand	Approximately 24 lbs (11 kg)
VESA Wall Mount Pattern	200 × 200 mm (typical for 55-inch)
Antenna Input	Built-in ATSC tuner for over-the-air channels
Warranty	2-year limited warranty upon registration
Cleaning Instructions	Use a soft, dry cloth; avoid liquid cleaners
Safety Note	Never carry by glass; if remote gets hot, discontinue use

Frequently Asked Questions - E450AD55G Element

How do I connect my Element TV to Wi-Fi?

During initial setup, your TV will automatically scan for wireless networks. Select your network from the list, enter the password, and follow on-screen instructions. You can also connect later via Settings > Network & Internet.

How do I pair the remote control?

When the TV prompts you to pair the remote, press and hold the Home and Back buttons simultaneously until the remote's LED starts pulsing. Follow the on-screen instructions to complete pairing.

How can I scan for over-the-air channels?

Press the Input (or Menu) button on your remote, navigate to Channels & Inputs > Channels > Channel Scan. Ensure an antenna is connected to the ANT/CABLE port before scanning.

Can I use Google Assistant on this TV?

Yes, press the Google Assistant button on the remote and speak into the microphone. You can search for content, control playback, and control smart home devices. An internet connection and Google Account are required.

How do I wall mount my TV?

Remove the stands by unscrewing them. Use a VESA-compatible wall mount (200 × 200 mm) and follow the mount's instructions. The TV's VESA pattern is standard for 55-inch models. Always have two people when wall mounting.

How do I register my product for the warranty?

Visit elementelectronics.com/register and provide the required information. Registration extends the warranty to 2 years and provides access to support and updates.

What should I use to clean the TV screen?

Use a soft, dry, microfiber cloth to gently wipe the screen. Do not spray any liquid directly onto the screen. For stubborn smudges, slightly dampen the cloth with water (not wet) and wipe gently.

Can I connect external speakers or a soundbar?

Yes, you can connect via HDMI ARC, Optical Audio Out, or Headphone Jack. For a soundbar, use an HDMI cable to the HDMI ARC port or an optical cable to the optical port.

How do I reset my TV to factory settings?

Go to Settings > System > Reset. Choose Factory reset and confirm. This will erase all personal data and settings, returning the TV to its original state.

What should I do if my remote becomes hot during use?

Stop using the remote immediately and contact customer support at 1.888.842.3577 or email [e-mail]. Do not attempt to repair it yourself.

USER MANUAL E450AD55G Element

2 AAA Remote Batteries

WHAT YOU'LL NEED (NOT INCLUDED)

Screwdriver
Phillips head

Line drawing of a wireless router with a tall antenna and three ports (no text or symbols)

Wireless Router
Needed for streaming

Simple line drawing of a Wi-Fi symbol (no text or labels)

Internet connection
Needed for streaming

Line drawing of a smartphone and a laptop computer (no text or symbols)

Smartphone, computer or tablet
Needed for setup

CONNECT DEVICES TO YOUR TV

Check to ensure that you have selected the right cables for the ports and that they are connected securely (cables and external devices not included). Loose connections can affect your picture and audio quality.

ANT HDMI OPTICAL

Connect an outdoor or indoor antenna.

Connect a Blu-ray or DVD player, gaming console, or other external devices to your TV. Highest quality audio/visual connection.

Connect an optical cable from an external digital audio system.

HEADPHONE LAN

Pure electrical circuit lines without any symbols

Connect headphones or external speakers.

Diagram of a USB port connector with ports and cable (no text or symbols)

Connect an Ethernet cable to access a network or the Internet. The TV also has a wireless connectivity feature.

CONNECT DEVICES TO YOUR TV

(continued)

USB

Simple line drawing of a USB flash drive (no text or symbols)

Connect a

USB device for browsing photos, music, or videos.

MINI AV IN

Diagram of three colored connectors (yellow, white, red) connected by wires to a black connector (no text or symbols)

Connect a composite video cable and left-right audio cables from an external AV device.

SETTING UP YOUR TV

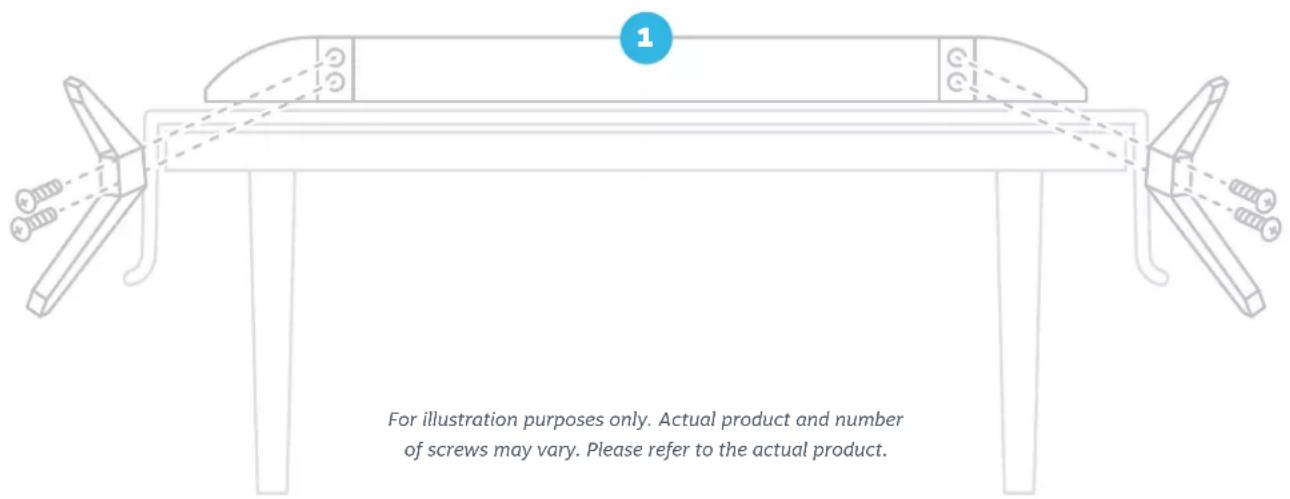

Installing the stands

Do not install the stands if you want to wall mount your TV. See your wall mount instructions for mount installation details.

You will need: Phillips screwdriver (not included)

1. Place the TV screen-down on a clean, flat, soft surface (e.g.: blanket) to prevent scratches or damage to the screen.
2. Use a Phillips screwdriver to attach each stand with the provided screws.
3. Place the TV upright on a stable, level surface.

To avoid damages, never carry your TV by holding or putting pressure onto the glass.

SETTING UP YOUR TV

(continued)

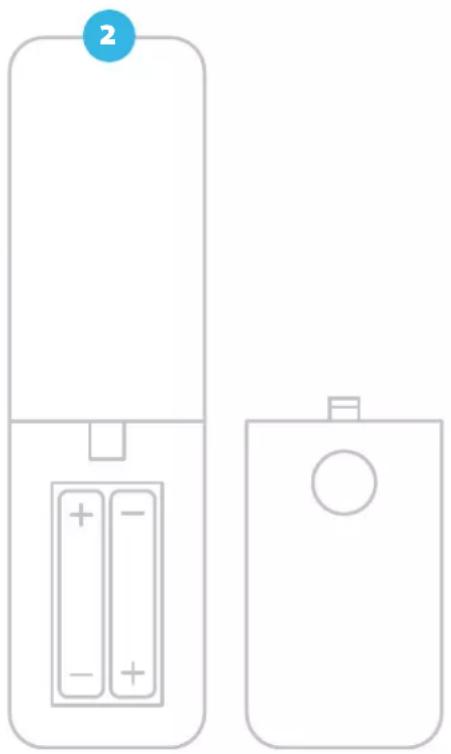

Setting up your remote

Power your TV remote by inserting the included batteries carefully matching (+) and (-) indicated inside the battery compartment.

Pairing your remote

When the TV prompts you to start pairing the remote, press and hold the and buttons on the remote until the light on the remote starts to pulse. Once complete, follow the on-screen instructions.

Note: Internet connection is required in order to use Google Assistant.

TIP: Always replace dead batteries with two brand new batteries from the same manufacturer. Never use damaged batteries.

If your remote gets warm/hot during use, discontinue use and contact customer support immediately.

Two simple line drawings of a mobile phone case with battery and indicator lights, no text or symbols present.

SETTING UP YOUR TV

(continued)

Plug in and turn on TV

Plug your TV into the wall outlet and press the power button on your remote control. Your TV will display a launch screen followed by the first setup screen.

SETTING UP YOUR TV

(continued)

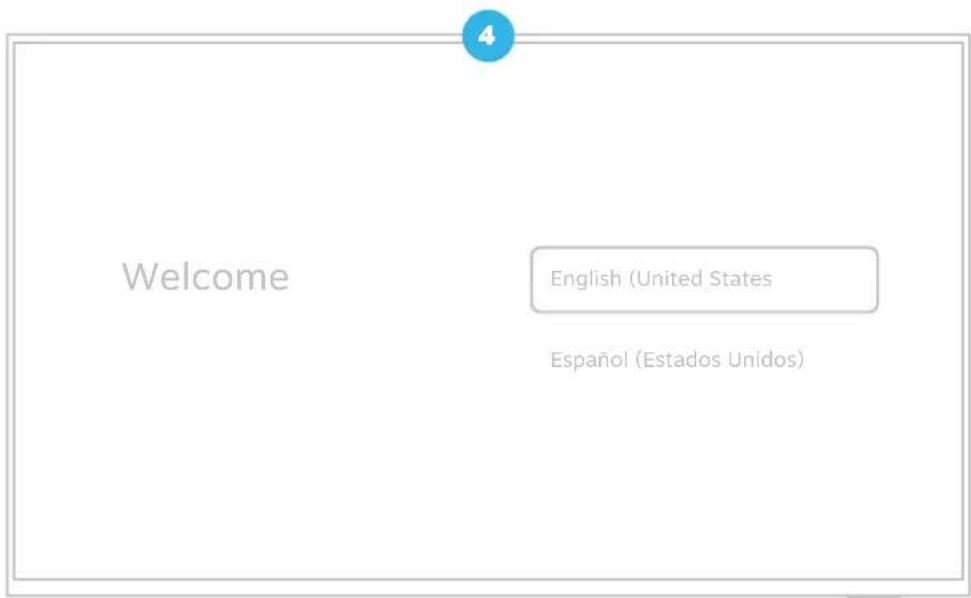

Follow the on-screen instructions

When your TV powers on, follow the easy on-screen instructions for setup.

Connecting your TV to the Internet gives you access to all the things that make your TV smart, including apps, Google Assistant, and more. Your TV will automatically detect wireless networks in your area, so have your network name and password handy. If you aren't ready to connect to a wireless network you can still use it as a basic TV and can connect it later within settings.

SETTING UP YOUR TV

(continued)

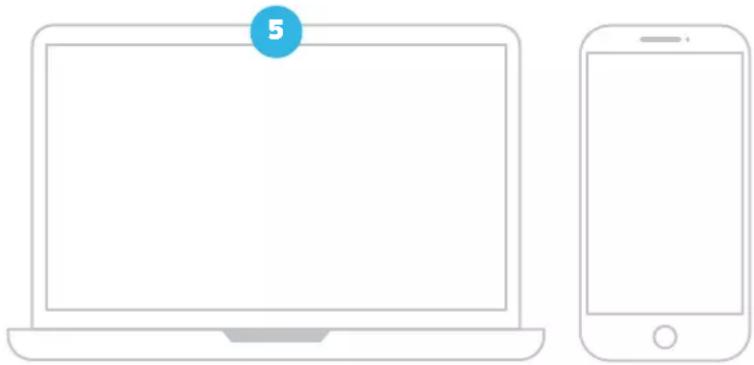

Line drawing of a laptop and smartphone (no text or symbols)

Activate your TV

To activate your TV you'll need a computer, smartphone or tablet. When setup is complete you'll be directed to the home screen.

Set up Google TV ^™ for full access to all of your TVs features like installing apps, personalized entertainment, and Google Assistant. For this selection, a Google Account is required for activation. You can login to an existing Google Account, or create a new one by following the prompts.

TIP: Download the Google Home app for faster set up, or continue set up on the TV using the remote.

Set up Basic TV if you prefer to use your TV without an Internet connection or without a Google Account. Some features aren't available in basic TV (ie: features that require a Google Account, installing apps, Google Assistant, or casting content). You can always setup Google TV later within the TV settings.

A paid subscription or other payments may be required for some streaming channels. Channel availability subject to change and varies by country or region.

USING YOUR REMOTE

A Power Turn your TV on and off
B Microphone Speak into the microphone after pressing the Google Assistant button
c Mute Turn your TV sound on and off
D Profile Select your Google profile
E Google Assistant Ask Google to find movies, stream apps, play music, control the TV, and more – all with your voice. Press the Google Assistant button on the remote to get started.
F Dashboard Display the dashboard menu to access quick TV settings, inputs, and more
G Navigation Pad Select up, down, left and right
H Select Confirm your selection
1 Back Return to the previous screen
Home Return to the home screen
K Guide Display over-the-air live TV channels when the TV is connected to an antenna; or when pressed in DTV mode, the electronic program guide (EPG) will display
Volume Make your TV louder or softer
M Channel Select the channel
N Virtual Keyboard Display the on-screen virtual keyboard
Menu Display the Menu settings
P App shortcuts Launch the labeled app when your TV is connected to the Internet

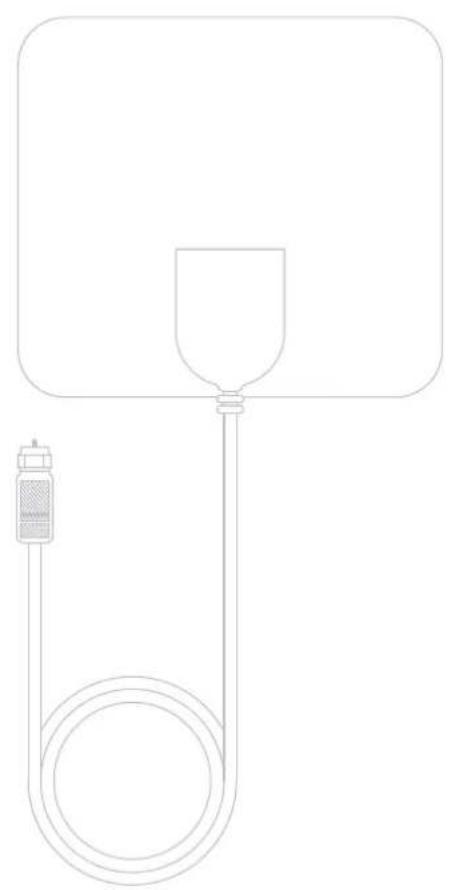

CONNECTING AN ANTENNA

With the built-in tuner you can connect your TV to an antenna and enjoy over-the-air entertainment.

1. To connect your TV to an antenna, connect a coax cable (not included) into your TV's ANT/CABLE port and the other end into your device.
2. Turn your TV on and press the button on your remote and then press Select.
3. Navigate channels & inputs > channels > channel scan
4. Follow the on-screen instructions.

Simple line drawing of a medical or laboratory apparatus with a funnel, tubing, and a connector (no text or symbols)

UNIVERSAL REMOTE SETUP

If you prefer to use your cable set-top box or satellite receiver remote as a universal remote, please refer to the manual your cable or satellite service provided. It includes instructions on how to program your remote to your TV.

LET'S REGISTER YOUR PRODUCT

Icon showing a globe with 'WWW' text and a cursor arrow, no readable text or symbols beyond the graphic elements.

It's super easy, just head on over to elementelectronics.com/register

BENEFITS OF REGISTERING YOUR PRODUCT:

Support

Get assistance quickly by pre-registering your product.

News & Off ers

Take advantage of the latest news and special offers from Element.

Updates

Stay current with important product updates and notifications.

Warranty

Receive a 2-year limited warranty with product registration.*

WE'RE HERE TO HELP

Find resources and get help with product setup, connecting devices, technical issues, downloading manuals and more!

We're available 24 hours a day, 7 days a week

elementelectronics.com

1.888.842.3577

[e-mail]

To learn more about your Google TV, or to review common issues and solutions, visit support.google.com/googletv

We recommend keeping your TV box for the duration of your warranty. See your product warranty for details.
