E450AD70G - Television Element - Free user manual and instructions

Product Type	Smart TV
Brand	Element
Model	E450AD70G
Smart Platform	Google TV
Voice Control	Google Assistant via remote microphone
Remote Control	Yes, with dedicated Google Assistant button, navigation pad, and app shortcuts
Connectivity	HDMI, USB, ANT/CABLE, Optical Audio Out, LAN (Ethernet), Composite AV In, Headphone Jack
Wireless	Wi-Fi (built-in)
Tuner	ATSC (over-the-air)
Power Requirements	AC 100-240V, 50/60Hz (typical)
Stand Included	Yes (screws provided)
Wall Mount Compatible	Yes (remove stands)
Product Registration	Required for 2-year limited warranty
Warranty	2-year limited warranty (upon registration)
User Manual	Free PDF download (16 pages, EN)
Customer Support	24/7 at elementelectronics.com, 1.888.842.3577, [e-mail]

Frequently Asked Questions - E450AD70G Element

How do I set up my Element E450AD70G TV?

Place the TV screen-down on a soft surface, attach the stands using the provided screws and a Phillips screwdriver. Insert the batteries into the remote, plug the TV into a wall outlet, and press the power button on the remote. Follow the on-screen setup instructions, including connecting to Wi-Fi and activating Google TV or Basic TV.

How do I connect my TV to Wi-Fi?

During initial setup, the TV automatically scans for wireless networks. Select your network from the list and enter the password. You can also connect later via Settings > Network & Internet.

How do I pair the remote control?

When prompted on the TV screen, press and hold the Home and Back buttons on the remote until the LED light pulses. The remote will pair automatically. Follow any additional on-screen instructions.

What is the difference between Google TV and Basic TV setup?

Google TV requires a Google Account and internet connection, providing access to apps, Google Assistant, personalized recommendations, and casting. Basic TV works without internet or a Google Account but limits features like app installation and voice control. You can switch to Google TV later in Settings.

How do I scan for over-the-air channels?

Connect an antenna to the ANT/CABLE port. Press the Input button on the remote, select Channels & Inputs > Channels > Channel Scan, and follow the on-screen prompts.

What should I do if the remote gets hot during use?

Discontinue use immediately and contact customer support at 1.888.842.3577 or [e-mail].

How do I activate my TV?

After setup, you'll be directed to the home screen. To activate Google TV, sign in to your Google Account. A computer, smartphone, or tablet may be required for the activation process. You can also use the Google Home app for faster setup.

How do I register my product for warranty?

Go to elementelectronics.com/register and follow the steps. Registration provides a 2-year limited warranty, product updates, and support benefits.

How can I connect external devices?

Use the appropriate cables: HDMI for Blu-ray players/gaming consoles, USB for media drives, Composite AV for older devices (yellow/white/red cables), and Optical for digital audio systems. Ensure cables are securely connected.

How do I use Google Assistant on the TV?

Press the Google Assistant button on the remote and speak into the microphone. You can search for movies, launch apps, control smart home devices, and more. An internet connection is required.

USER MANUAL E450AD70G Element

2 AAA Remote Batteries

WHAT YOU'LL NEED (NOT INCLUDED)

Screwdriver
Phillips head

Line drawing of a wireless router with a tall antenna and three ports (no text or symbols)

Wireless Router
Needed for streaming

Simple line drawing of a Wi-Fi symbol (no text or labels)

Internet connection
Needed for streaming

Line drawing of a smartphone and a laptop computer (no text or symbols)

Smartphone, computer or tablet
Needed for setup

CONNECT DEVICES TO YOUR TV

Check to ensure that you have selected the right cables for the ports and that they are connected securely (cables and external devices not included). Loose connections can affect your picture and audio quality.

ANT HDMI OPTICAL

Connect an outdoor or indoor antenna.

Connect a Blu-ray or DVD player, gaming console, or other external devices to your TV. Highest quality audio/visual connection.

Connect an optical cable from an external digital audio system.

HEADPHONE LAN

Pure diagram of a medical or electrical device with no text, numbers, or symbols

Connect headphones or external speakers.

Diagram of a USB port connector with ports and cable (no text or symbols)

Connect an Ethernet cable to access a network or the Internet. The TV also has a wireless connectivity feature.

CONNECT DEVICES TO YOUR TV

(continued)

USB

Simple line drawing of a USB flash drive (no text or symbols)

Connect a

USB device for browsing photos, music, or videos.

MINI AV IN

Diagram of three colored connectors (yellow, white, red) connected by wires to a black connector (no text or symbols)

Connect a composite video cable and left-right audio cables from an external AV device.

SETTING UP YOUR TV

Installing the stands

Do not install the stands if you want to wall mount your TV. See your wall mount instructions for mount installation details.

You will need: Phillips screwdriver (not included)

1. Place the TV screen-down on a clean, flat, soft surface (e.g.: blanket) to prevent scratches or damage to the screen.
2. Use a Phillips screwdriver to attach each stand with the provided screws.
3. Place the TV upright on a stable, level surface.

To avoid damages, never carry your TV by holding or putting pressure onto the glass.

SETTING UP YOUR TV

(continued)

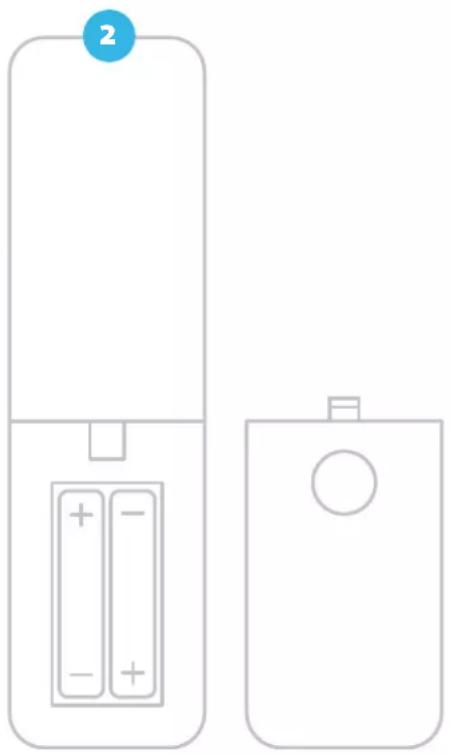

Setting up your remote

Power your TV remote by inserting the included batteries carefully matching (+) and (-) indicated inside the battery compartment.

Pairing your remote

When the TV prompts you to start pairing the remote, press and hold the and buttons on the remote until the light on the remote starts to pulse. Once complete, follow the on-screen instructions.

Note: Internet connection is required in order to use Google Assistant.

TIP: Always replace dead batteries with two brand new batteries from the same manufacturer. Never use damaged batteries.

If your remote gets warm/hot during use, discontinue use and contact customer support immediately.

Two simple line drawings of a mobile phone casing with battery modules and a circular button, no text or symbols present.

SETTING UP YOUR TV

(continued)

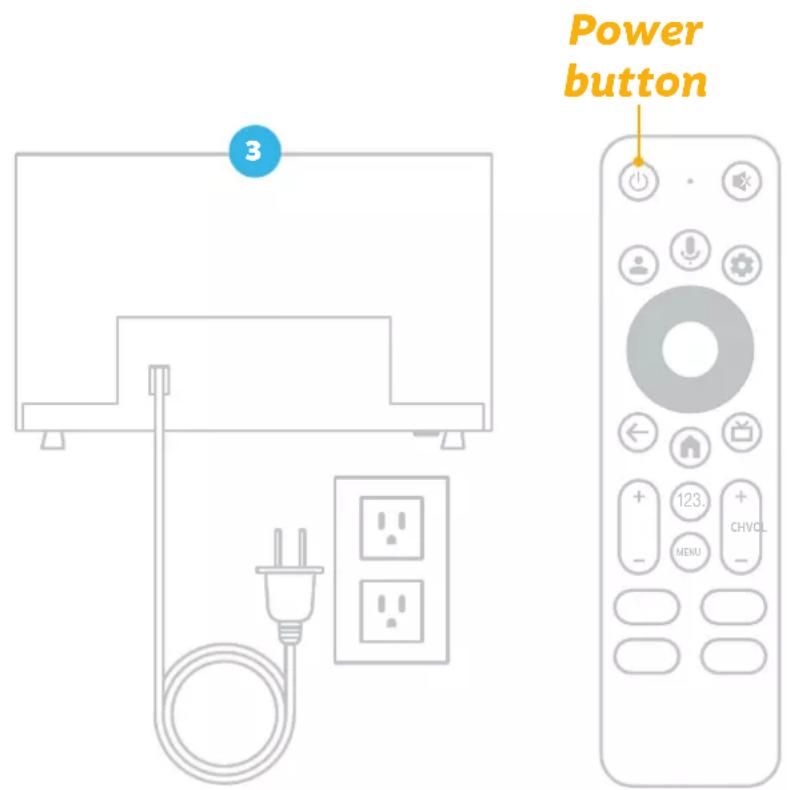

Plug in and turn on TV

Plug your TV into the wall outlet and press the power button on your remote control. Your TV will display a launch screen followed by the first setup screen.

SETTING UP YOUR TV

(continued)

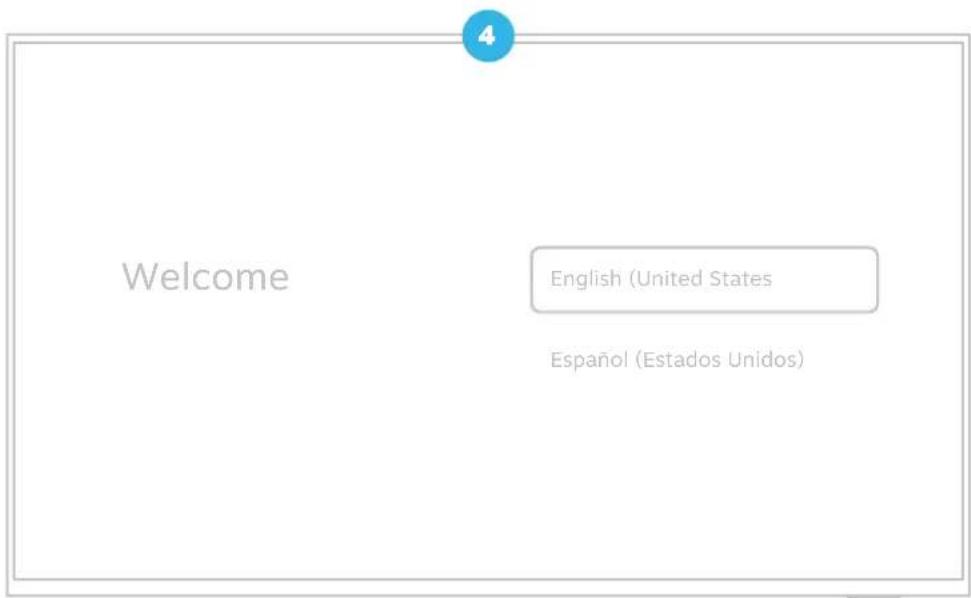

Follow the on-screen instructions

When your TV powers on, follow the easy on-screen instructions for setup.

Connecting your TV to the Internet gives you access to all the things that make your TV smart, including apps, Google Assistant, and more. Your TV will automatically detect wireless networks in your area, so have your network name and password handy. If you aren't ready to connect to a wireless network you can still use it as a basic TV and can connect it later within settings.

SETTING UP YOUR TV

(continued)

Line drawing of a laptop and smartphone, no text or symbols present

Activate your TV

To activate your TV you'll need a computer, smartphone or tablet. When setup is complete you'll be directed to the home screen.

Set up Google TV ^™ for full access to all of your TVs features like installing apps, personalized entertainment, and Google Assistant. For this selection, a Google Account is required for activation. You can login to an existing Google Account, or create a new one by following the prompts.

TIP: Download the Google Home app for faster set up, or continue set up on the TV using the remote.

Set up Basic TV if you prefer to use your TV without an Internet connection or without a Google Account. Some features aren't available in basic TV (ie: features that require a Google Account, installing apps, Google Assistant, or casting content). You can always setup Google TV later within the TV settings.

A paid subscription or other payments may be required for some streaming channels. Channel availability subject to change and varies by country or region.

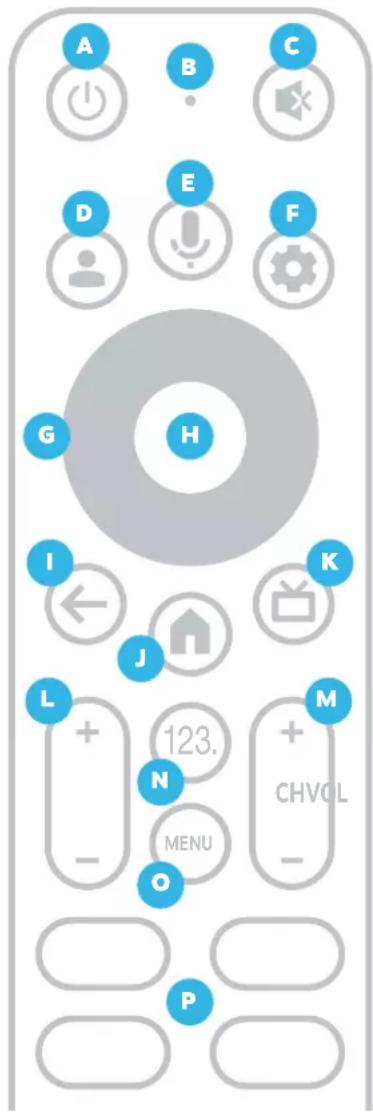

USING YOUR REMOTE

A Power Turn your TV on and off
B Microphone Speak into the microphone after pressing the Google Assistant button
c Mute Turn your TV sound on and off
D Profile Select your Google profile
E Google Assistant Ask Google to find movies, stream apps, play music, control the TV, and more – all with your voice. Press the Google Assistant button on the remote to get started.
F Dashboard Display the dashboard menu to access quick TV settings, inputs, and more
G Navigation Pad Select up, down, left and right
H Select Confirm your selection
1 Back Return to the previous screen
Home Return to the home screen
K Guide Display over-the-air live TV channels when the TV is connected to an antenna; or when pressed in DTV mode, the electronic program guide (EPG) will display
Volume Make your TV louder or softer
M Channel Select the channel
N Virtual Keyboard Display the on-screen virtual keyboard
Menu Display the Menu settings
P App shortcuts Launch the labeled app when your TV is connected to the Internet

CONNECTING AN ANTENNA

With the built-in tuner you can connect your TV to an antenna and enjoy over-the-air entertainment.

1. To connect your TV to an antenna, connect a coax cable (not included) into your TV's ANT/CABLE port and the other end into your device.
2. Turn your TV on and press the button on your remote and then press Select.
3. Navigate channels & inputs > channels > channel scan
4. Follow the on-screen instructions.

Simple line drawing of a medical or laboratory apparatus with a funnel, tubing, and a connector (no text or symbols)

UNIVERSAL REMOTE SETUP

If you prefer to use your cable set-top box or satellite receiver remote as a universal remote, please refer to the manual your cable or satellite service provided. It includes instructions on how to program your remote to your TV.

LET'S REGISTER YOUR PRODUCT

Icon showing a globe with 'WWW' text and a cursor arrow, no readable text or symbols beyond the graphic elements.

It's super easy, just head on over to elementelectronics.com/register

BENEFITS OF REGISTERING YOUR PRODUCT:

Support

Get assistance quickly by pre-registering your product.

News & Off ers

Take advantage of the latest news and special offers from Element.

Updates

Stay current with important product updates and notifications.

Warranty

Receive a 2-year limited warranty with product registration.*

WE'RE HERE TO HELP

Find resources and get help with product setup, connecting devices, technical issues, downloading manuals and more!

We're available 24 hours a day, 7 days a week

elementelectronics.com

1.888.842.3577

[e-mail]

To learn more about your Google TV, or to review common issues and solutions, visit support.google.com/googletv

We recommend keeping your TV box for the duration of your warranty. See your product warranty for details.

element®

Bring it home.

Element, the Element Logo, and Bring it home are trademarks of Element Brand Holding, LLC. ©2023 Element Brand Holding, LLC. All Rights Reserved.

Google TV is the name of this device's soft ware experience and a trademark of Google LLC.

Google and Google Home are trademarks of Google LLC.
