X-Rider - Scooter Manta - Free user manual and instructions

Product Type	Electric Scooter
Brand	Manta
Model	X-Rider
Dimensions (Unfolded)	1100 x 450 x 1200 mm
Dimensions (Folded)	1100 x 450 x 500 mm
Net Weight	12 kg
Max Rider Weight	100 kg
Max Speed	25 km/h
Range	25 km
Battery Type	Lithium-ion
Battery Capacity	36V 10Ah
Charging Time	5 hours
Motor Power	350W Brushless DC
Tire Size	8.5 inches
Brake Type	Rear Disc Brake
Lighting	LED Front Headlight & Rear Reflector
Foldable Mechanism	Yes, with locking latch
Terrain Suitability	Paved roads, slight inclines
Water Resistance	IPX4 (splash resistant)
Recommended Age	14 years and above
Certification	CE, RoHS
Warranty	1 year

Frequently Asked Questions - X-Rider Manta

How do I turn on the X-Rider scooter?

Press and hold the power button on the handlebar for about 2 seconds until the display lights up.

What is the maximum speed and how can I adjust it?

The default maximum speed is 25 km/h. You can adjust speed modes via the button on the handlebar: eco (15 km/h), standard (20 km/h), and sport (25 km/h).

How long does it take to fully charge the battery?

Charging time is approximately 5 hours from empty. Use only the provided charger and avoid charging overnight.

What should I do if the scooter does not start?

Check the battery level, ensure the charger is not connected, and verify that the key (if applicable) is turned on. If the issue persists, reset the scooter by turning it off and on again.

How do I fold and unfold the scooter?

Locate the folding latch on the stem, pull it upward to release, then fold the handlebar down. To unfold, lift the handlebar until the latch clicks securely.

Can I ride the scooter in rainy conditions?

The scooter has an IPX4 rating, meaning it can withstand splashes but should not be submerged or ridden in heavy rain. Avoid water exposure to protect electronics.

What maintenance does the scooter require?

Regularly check tire pressure (recommended 40-50 psi), inspect brake function, clean the scooter with a damp cloth, and lubricate the folding mechanism every 3 months.

How can I extend the battery lifespan?

Avoid complete discharge; recharge when battery level drops to 20-30%. Store at room temperature and charge every 2 months if not in use.

What is the weight limit for the scooter?

The maximum rider weight is 100 kg. Exceeding this limit may cause damage and safety risks.

How do I reset the scooter's control unit?

Turn off the scooter, wait 10 seconds, then press and hold the power button and the mode button simultaneously for 5 seconds. The display will show a reset confirmation.

USER MANUAL X-Rider Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Electric Scooter

MES1002J

PL INSTRUKCJA OBSŁUGI

*EN USER MANUAL

CZ UŽIVATELSKÝ MANUÁL

EE KASUTUSJUHEND

LT VARTOTOJO VADOVAS

LV LIETOTĀJA ROKASGRĀMATA

SK POUŽÍVATELŠKÁ PRÍRUČKA

SI NAVODILA ZA UPORABO

HR KORISNIČKI PRIRUČNIK

Simple line drawing of a person riding a scooter with a warning symbol (no text or labels)

Simple line drawing of a person standing on a slope with a warning symbol (no text or labels)

Simple line drawing of a person riding a scooter with wheels, no text or symbols present

PL-MES1002J

Line drawing of a person standing on a scooter with wheels, no text or symbols present

Line drawing of two people riding a scooter (no text or symbols)

Three identical line drawings of a person in roller skates, arranged vertically with arrows indicating direction (no text or symbols)

Simple line drawing of a person standing on a pole under rain, no text or symbols present

Simple line drawing of a person standing inside an open door, no text or symbols present

Simple line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person riding a scooter (no text or symbols)

Line drawing of a person walking on a path with a car and traffic cone nearby (no text or symbols)

Two cartoon figures riding a scooter with motion lines indicating speed (no text or symbols)

PL-MES1002J

OBSŁUGA

Sprzęt

PL-MES1002J

Pierwsza jazda

Line drawing of a person using a walking pusher with wheels (no text or symbols)

Line drawing of a person riding a scooter with a circular icon showing a vehicle (no text or symbols)

Simple line drawing of a person riding a scooter with a hand gesture and a small inset showing a hand near the seat (no text or symbols)

Line drawing of a scooter with wheels and a curved arrow indicating motion (no text or symbols)

Two identical line drawings of a person standing with arms and legs, holding mechanical components (no text or symbols)

Regulacja hamulców

Line drawing of a person using a scooter with a magnified inset showing wheel details (no text or symbols)

Line drawing of a scooter with wheels and a battery, showing motion lines (no text or symbols)

1. Odchyl zaślepkę.

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

1. Podłącz ładowarkę.

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

UWAGI:

DEKLARACJA ZGODNOŚCI CE DECLARATION OF CONFORMITY

And with following norms:

EMC: EN 61000-6-3:2007+A1:2011

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 61000-6-1:2007

LVD: EN60335-12012+A11:2014+A2:2016

EN60204-1:2006+A1:2009+AC:2010

Machinery: EN ISO 12100:2010

EN 14619: 2015

EN 15194:2009+A1:2011

Person authorized to sign

the CE declaration:

Bogdan Wiciński

CEO for company Manta S.A.

Warszawa

15.02.2023

Please receive our congratulations for your choice of the electric scooter. We kindly ask you to attentively read this instruction before your first ride, to get the utmost pleasure and to use it with the highest efficiency. Please pay a thorough attention to the safety instructions and battery conservation.

The electric scooter has been design and developed according to the latest Production and quali-ty control standards. It is environment friendly and pleasant to use.

The electric scooter has IPX4 protection class - protection against small water spalshes from any direction.

INTRODUCION OVERVIEW

Possible dangers by riding

All units and technologies used in the scooter have been highly thoroughly tested. But if you do not observe the service safety instructions, you may have an accident.

Every time you use the scooter you hazard your health, if you lose control, fall or have a crash, there may happen even a fatal accident.

In order to reduce the health hazard, please get acquainted with all instructions and warnings, both from the instruction and written on the scooter itself.

Preparation to ride

Before you start to use the device, the first thing to do is to get the scooter assembled. The battery must be loaded for at least 10 hours before the first ride. You are going to learn more about the preparation for the ride further on in this instruction.

EN-MES1002J

SAFETY

Safety instruction

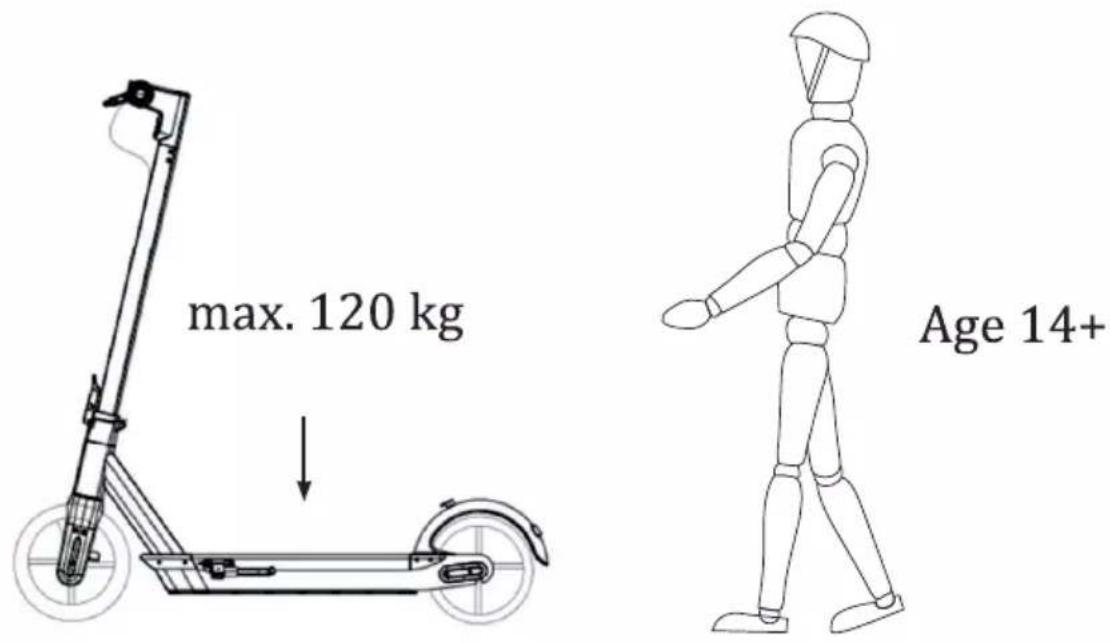

The device cannot be used by children under the age of 14, as well as by people with physical, mental or sensory disabilities, as well as inexperienced and unfamiliar with the scooter. Children should be taught by adults not to treat the device as a toy. Children should not clean or maintain the scooter unsupervised.

Safety measures by riding

Before you start to ride your new bike, please check whether it is unfolded accordingly and whether it has any damages, and after that get acquainted with your environment. You should not wear any sharp jewellery to avoid getting wounded. The scooter is a single-seated electric vehicle, which means that just one person can use it.

ATTENTION: if you press the gas button for about 5 sec, by a stable speed, e.g., 20 km/h, the scooter automatically switch on the Easy Ride function that means your scooter will drive with the same stable speed with which you activated the function. You may switch off Easy Ride by pressing the brake or accelerating.

Safe riding information

1. Always stay with both your feet on the platform.

Simple line drawing of a person riding a scooter with a warning symbol (no text or labels)

1. By riding bend delicately forward, turn easily and delicately.

1. Avoid pits and bumps.

Simple line drawing of a person standing on a hand with a warning symbol (no text or labels)

1. When you walk your scooter, never press the speed button.

1. By riding, delicately press the brake, to feel it.

1. Do not press the speed button when you ride downwards.

Simple line drawing of a person standing on a slope with a warning symbol (no text or labels)

EN-MES1002J

Safe riding information

1. Hang no heavy things on the scooter handlebar.

1. Do not speed up on pits and bumps.

Simple line drawing of a person standing on a scooter with wheels, no text or symbols present

1. E-Scooter is designed for just one user exclusively.

Line drawing of two people riding a scooter, no text or symbols present

1. Do not make abrupt movements by a high-speed riding.

Three identical line drawings of a person in athletic attire standing upright, with arrows indicating motion direction (no text or symbols)

1. Avoid riding under rain.

Simple line drawing of a person standing in water with legs and feet, no text or symbols present

1. Avoid suspended obstacles, both indoors and outdoors.

Simple line drawing of a person standing inside an open door, no text or symbols present

1. Do not ride the municipal roads.

Line drawing of a person riding a scooter on a road with a car in the background (no text or symbols)

1. The e-scooter is not meant for competition riding, jumps, etc.

Line drawing of two people riding a scooter on a track, no text or symbols present

1. Always hold the handlebar with both hands.

Simple line drawing of a person riding a scooter with wheels (no text or symbols)

1. Categorically do not drive through water, puddles, mud and wet surfaces.

Simple line drawing of a person standing on a scooter (no text or symbols)

EN-MES1002J

SERVICE

Equipment

Spare parts:
Service instructions

Allen wrench

Charger

Tire pump extender

Screws

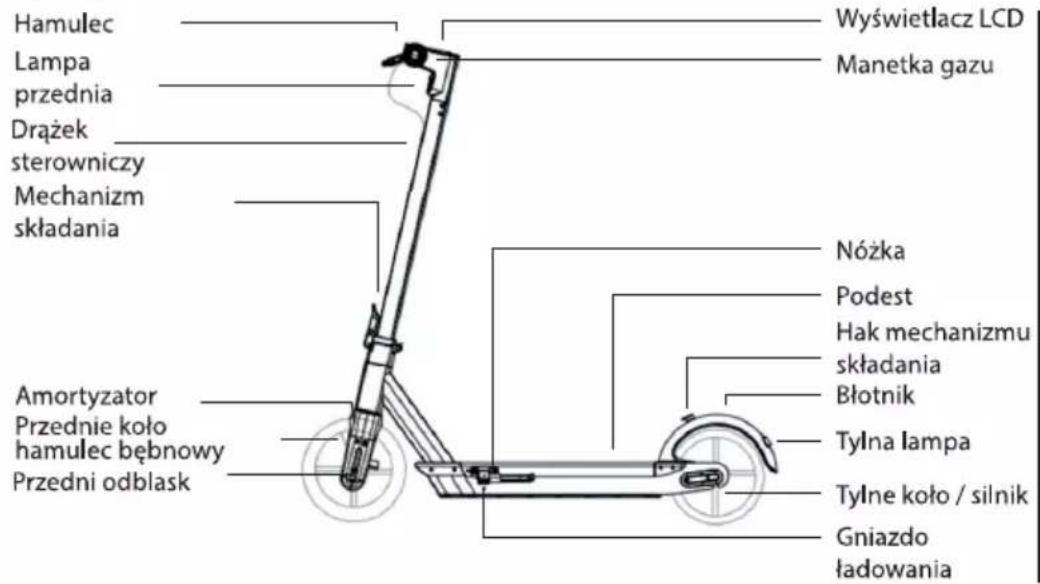

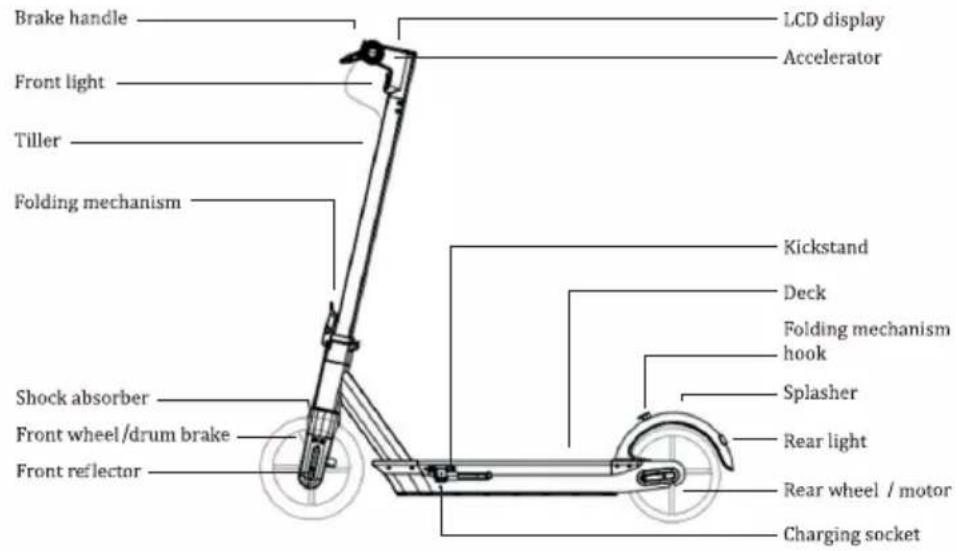

The electric scooter is a vehicle designed for personal transport. It is powered by a electric motor, whose design limits the speed to 20 km/h. The e-scooter should be used in accordance with local regulations.

Assembly

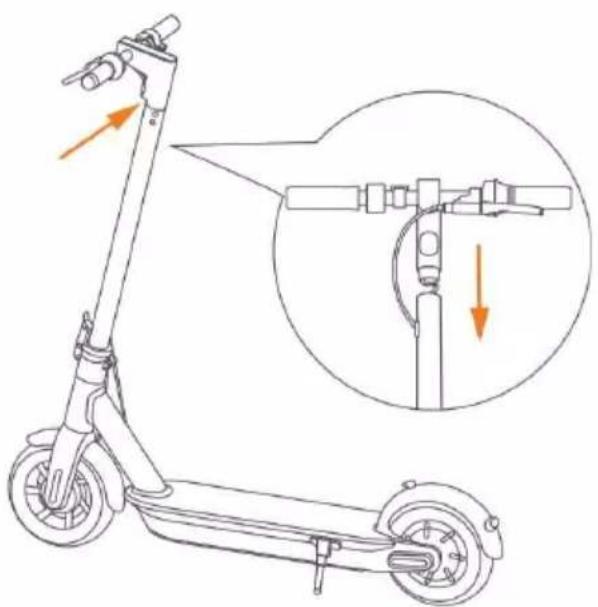

1. Unfold the tube of the folding structure. Close the folding mechanism clamp.

2. Place the handelbar handle horizontally. Use a suitale wrench to tighten the steering wheel bolts. Check tire pressure.

EN-MES1002J

1. Turn on e-scooter and test all functions for proper action.

First ride

Beginners must wear protective shields for the whole body as well as a helmet during the first ride, too reduce the risk of falling.

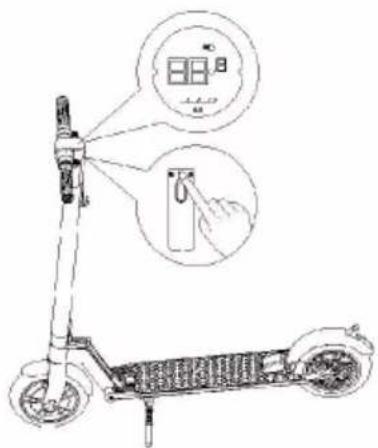

1. Switch on the scooter and check the battery load level.

1. Put one foot on the scooter platform and kick off with the other.

Simple line drawing of a person pushing a scooter with wheels (no text or symbols)

1. When the scooter begins to move, stand on the platform with both your feet and press the gas button.

Simple line drawing of a person riding a scooter with a magnified inset showing hand positioning (no text or symbols)

1. Release the gas button the reduce the speed. Use the brake to stop immediately.

Line drawing of a person riding a scooter with a circular icon showing a train (no text or symbols)

ATTENTION: E-Scooter is equipped kick-to-start technology. The essence of it is that the button switches only after the scooter speed is higher than 5 km/h. Due to that the undesired start just from the spot as well as the motor overload are eliminated.

EN-MES1002J

Transportation

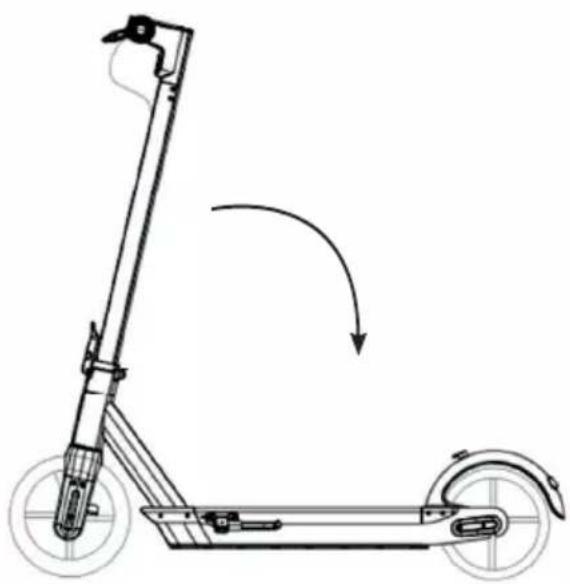

Please ensure that the E-Scooter is switched off and handlebars are folded. Untighten the folding mechanism block. Bend the fold lever and join the handlebar with the rear splasher till you hear the klick of the handlebar fixing with the rear splasher.

Line drawing of a scooter with wheels and a curved arrow indicating motion (no text or symbols)

Carry the e-scooter holding it with your one or two hands.

Two identical line drawings of a person holding a cylindrical object, viewed from the side (no text or symbols)

Brake regulation

Line drawing of a child using a scooter with a magnified inset showing the wheel (no text or symbols)

If the wheel is too tight or too weak by the brake usehand to adjust the screw on the bottom end of brake cable

EN-MES1002J

Tyre inflation

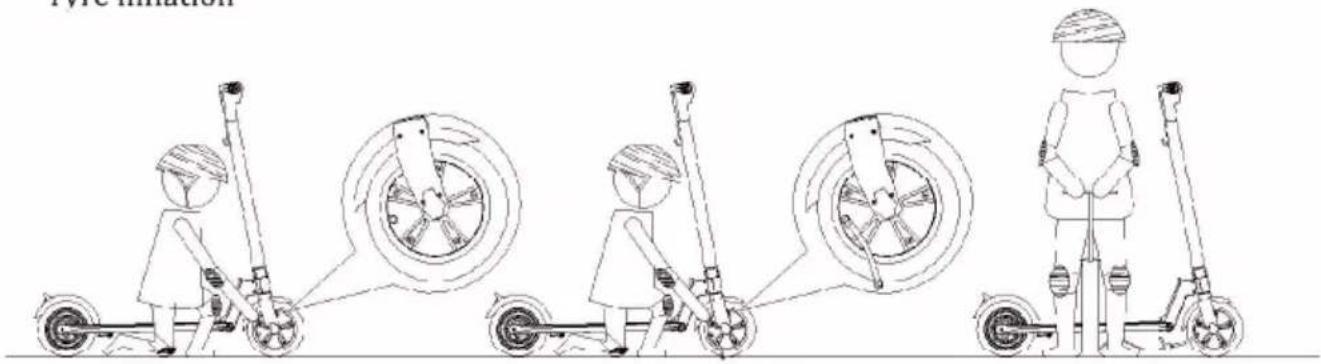

If the pressure in the tyres is reduced, use the bicycle pump to inflate it up to the according values which are given on tyre sides.

DISPLAY LCD

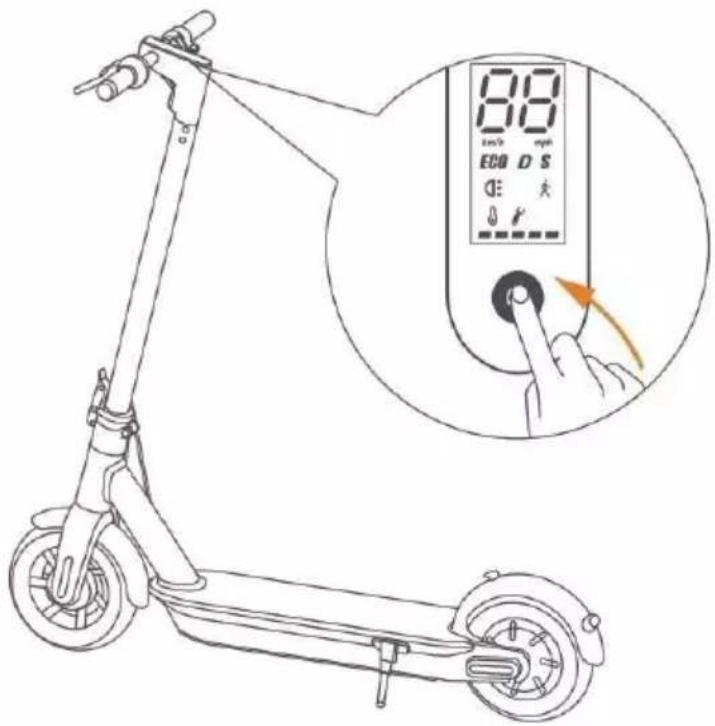

Display LCD - control panel

A. Speed indicator in km/h.

B. Gears (to change press the power button shortly).

• Eco (up to 6 km/h)

• D (up to 15 km/h)

• S (up to 20 km/h)

C. Lights (to turn on, press the power button twice).

D. Warning about wrong temperature for the device.

F. Information about the fault.

E. Battery charge status (each dot accounts for about 20% of the battery capacity).

EN-MES1002J

LITHIUM BASED BATTERY SERVICE INSTRUCTION

Battery safe service

1. Battery life is limited. Should you use it after its life span time, you may notice that the full charged battery function time is reduced significantly.
2. Battery cells contain chemical substances. Do not open them, nor put any things the reinto.
3. If you stick an alien metal object into the battery it may damage you or even lead to an explosion.
4. Use just an original battery charger which is delivered together with the e-scooter.
5. Observe the local transportation instruction during the service and deliver of the battery.
6. It is recommended to keep the product with a 50% up to 80% charge level.
   In case the device is kept unused, check the battery charge level every 3 – 4 week and recharge if necessary. To achieve the better efficiency of the battery it should be used within the range of +5°C up to 40°C
7. Do not keep the product under the temperature below +5°C and higher than 40°C
8. Should you use the e scooter for a longer time the battery will get hot which is normal
9. The battery will become weaker in a cold environment even fully loaded
10. Do not open or modify battery

Before the first usage fully charge the battery

During the next charging the red diode will indicate the charging process

The green diode tells you that the charging process is over and the battery is full

Connect the charger to the e scooter first then to the power socket Be sure it is connected properly

Charging instruction

Line drawing of a scooter with attached cable and power cord (no text or symbols)

1. Open the blind cover.


Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

1. Connect the charger.


Simple line drawing of a mechanical component inside a circular frame (no text or symbols)

1. Close the charge socket again.


Simple line drawing of a paperclip inside a circle (no text or symbols)

EN-MES1002J

Charging instruction

REMARKS:

• When the charging is finished, disconnect the charger from the e-scooter first. Please remember to have dry hands when disconnecting the charger from a power socket.
• Please, note that the charger must remain open throughout the entire process, for it becomes hot and need a natural ventilation.
• Keep the e-scooter during charging in a safe place, far from children.
• Should you notice any discrepancies during charging like too high temperature, or a strange smell, disconnect the charger at once and contact your supplier.
• The charging time takes about 7-8 hours and when the e-scooter is charged fully, the charger switches out by itself.
• The room where you charge your e-scooter should be dry and clean.
• Do not connect the charger if the charge socket is wet.
• Do not put any conducting objects into the charger socket for it may lead to the short circuit and damage the electric units of the e-scooter.

CONSERVATION SCHEDULE

A corresponding care of your e-scooter will ensure you its efficiency and prolong its life span. Store the electric scooter in a dry room. The following tips will help you to keep your e-scooter in the best condition:

Daily care.

After each ride with your e-scooter:

1. Clean your e-scooter on the outside, using the wet smooth cloth. (DO NOT WASH WITH A GARDEN HOSE!)

2. Check if all screws are well tightened.

3. Check the proper function of the charger.

CZ-MES1002J

BEZPEČNOST

LIITIUMAKUDE HOOLDUSJUHISED

Aku ohutushooldus

A. Indikator hitrosti v km/h ali v mph (za spremembo enote kratko trikrat pritisnite tipko za napajanje)
B. Prestave (za menjavo na kratko pritisnite tipko za napajanje).
Eco (do 6 km/h)
D (do 15 km/h)
S (do 20 km/h)
C. Luči (za vklop dvakrat pritisnite tipko za napajanje).
D. Opozorilo o neustrezni temperaturi za napravo.
F. Informacija o nepravilnem delovanju naprave ali o njeni poškodovanosti.
E. Stanje napolnjenosti baterije (vsaka pika predstavlja približno 20 % kapacitete baterije).

NAVODILO ZA SERVISIRANJE LITIJEVIH BATERIJ

A. Indikator brzine u km/h. ili u mph (kratko pritisnite tipku za napajanje tri puta za promjenu)
B. Koraci brzine (kratko pritisnite gumb za uključivanje za promjenu).
Eco (do 6 km/h)
D(do 15 km/h)
. S (do 20 km/h)
C. Svjetla (dvaput pritisnite gumb za uključivanje za uključivanje).
D. Upozorenje o netočnoj temperaturi za opremu.
F. Informacije o kvaru ili oštećenju opreme.
E. Status napunjenosti baterije (svaka točka predstavlja približno 20% kapaciteta baterije).

SERVISNI PRIRUČNIK ZA LITIJSKE BATERIJE

Sigurnosne upute za baterije

1. Trajanje baterije je ograničeno Ako je koristite nakon isteka vijeka trajanja, možete primijetiti da će se vrijeme rada potpuno
2. Baterijske ćelije sadrže kemikalije. Nemojte ih otvarati niti umetati bilo kakve predmete u njih.
3. Umetanje stranog metalnog predmeta u bateriju može je oštetiti ili čak izazvati eksploziju.
4. Koristite samo originalni punjač isporučen sa skuterom.
5. Slijedite lokalne smjernice za otpremu prilikom servisiranja i transporta baterije.
6. Preporuča se skladištenje proizvoda s razinom napunjenosti baterije od 50% do 80% kapaciteta.
   Ako je uređaj pohranjen bez upotrebe, provjerite stanje baterije svaka 3-4 tjedna i po potrebi je napunite.
7. Za bolje performanse baterije koristite je na temperaturi od +5°C do +40°C.
8. Nemojte skladištiti proizvod na temperaturama nižim od +5°C i višim od +40°C.
9. Ako se skuter koristi dulje vrijeme, baterija će se zagrijati, što je normalna pojava.
10. U hladnom okruženju, čak i s potpuno napunjenom baterijom, kapacitet će se smanjiti.
11. Nemojte otvarati niti modificirati bateri

•Prije prve uporabe potpuno napunite bateriju.

The manufacturer reserves the right to make changes to product specifications without notice.

Year of production: 2023

Net weight: 18 kg

Waterproof: IPx4

Max. user weight: 120 kg

Producent: MANTA S.A.
