Product Type	Automatic Food Waste Recycler / Compost Machine
Brand	Nutrichef
Model	NCVK9112BGR
Capacity	3 Liters (max processing volume per cycle)
Power	420W, 110V~50Hz
Dimensions (L x W x H)	11.02 x 13.5 x 12.5 inches
Net Weight	15 lb (6.8 kg)
Material	PP, ABS, Ceramics
Processing Modes	Drying, Crushing, Cooling
Filter Type	Activated Carbon Filter
Processing Time	Approximately 6-10 hours per cycle
Reduction Rate	>90% (volume reduction)
Control	One-button operation with digital display
Safety Features	Micro switch, Hall switch, automatic shutoff, forced shutdown (press and hold power key 3 seconds)
Included Components	Pot, Water Tray, Filter, Filter Holder, Detachable Lid
Maintenance	Filter replacement every 3-6 months; clean water tray every 2-3 weeks; auto clean every 1-2 weeks
Suitable Waste	Fruits, vegetables, rice, meat, fish, lobster, pizza, bread, cake, cheese, eggshell, beans, coffee grounds, tea bags
Not Suitable Waste	Big bones, shells, oils, fats, soup, hard pits, candy, gum
Noise Level	Normal operation includes crushing and fan noise
Installation Clearance	Place on flat surface, 7.87-11.81 inches from wall, at least 23.62 inches clearance above
Certifications	FCC Part 15, California Prop 65 Warning
Customer Support	Phone: [phone], Email: [e-mail]

Frequently Asked Questions - NCVK9112BGR Nutrichef

How do I start the drying process?

Short press the Power key to enter the drying stage. The drying indicator light will turn on, and the buzzer will sound once. To stop or start, short press again; press and hold the power key for 3 seconds to force shutdown.

How do I use the auto clean function?

First, take out the pot and add 1/2 water. Place the pot back, close the cover, and rotate the knob to lock. Then short press the Clean key to start. The machine will automatically turn off after one hour. It is recommended to clean every 1-2 weeks.

How often should I replace the filter?

The filter indicator light will turn on when the filter's service life is reached, typically every 3-6 months. Replace the filter promptly and press and hold the Filter Reset key for 3 seconds to reset the timer.

How do I reset the filter timer after replacement?

After replacing the filter, press and hold the Filter Reset key for 3 seconds. The buzzer will sound once, and the filter indicator light will turn off, indicating the accumulated time has been cleared.

What types of kitchen waste can I put in the machine?

You can dispose of fruits, vegetables, rice, meat, fish, lobster, pizza, bread, cake, cheese, eggshells, beans, coffee grounds, and tea bags. Avoid big bones, shells, oils, fats, soup, hard pits, candy, and gum.

Why is there noise during operation?

Some noise from internal food crushing and the fan is normal during processing. This is a standard part of the drying and grinding cycle.

Why does the machine produce an odor?

Different foods have different odors, and slight smells during processing are normal. If the filter is not replaced for a long time, odors may persist. Ensure timely filter replacement.

How long does one processing cycle take?

The complete cycle (drying, crushing, cooling) typically takes about 6-10 hours. The machine will automatically power off after cooling.

What should I do if the filter indicator light stays on?

The filter indicator light means the filter needs replacement. Replace the filter with a new one, then press and hold the Filter Reset key for 3 seconds to clear the indicator.

Can I open the lid during operation?

No, do not open the cover during operation as it may cause scalding. The interior is hot. Wait until the cycle is complete and the machine has cooled down.

USER MANUAL NCVK9112BGR Nutrichef

White rectangular air fryer with black lid and control buttons, no visible text or symbols on body

NCVK9112BWH

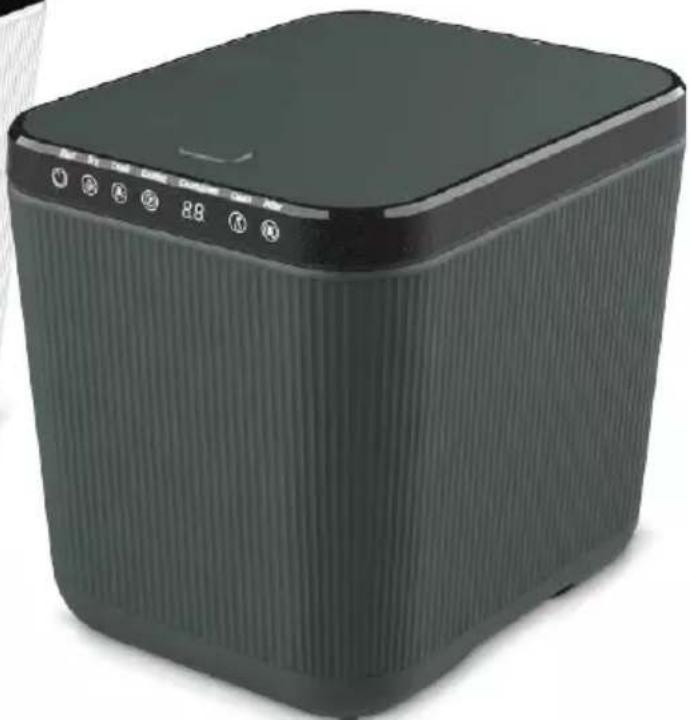

Black rectangular electronic device with ribbed top and control buttons (no visible text or symbols)

NCVK9112BGR

USER GUIDE

Food Waste Bin

3 Liter Compost Machine | Countertop Garbage Bin Automatic Food Recycler

NCVK9112BWH - NCVK9112BGR

Please read and keep these instructions. Indoor use only

CONTENTS

FEATURES 2

SAFETY CAUTION 3

PRODUCT COMPOSITION 4

SPARE PARTS 5

SPECIFICATION 6

INTERFACE 6

HOW TO USE 8

AUTO CLEAN FUNCTION 9

CAUTIONS DURING USE 9

OTHERS 9

REPLACE THE FILTER 10

CAUTIONS WHEN REPLACING THE FILTER 10

REMOVE THE WATER TRAY 11

WHAT CAN BE DISPOSED? 12

INSTALLATION SITE 12

Features:

• Dry, Crush and Cooling Functions
• Efficiently Break Down Kitchen Waste to Pre-compost Material
• Hassle-free and Convenient to Store
• Advanced Odorless Filtration System
- User Friendly and Easy to Operate
- Converts Kitchen Waste to Pre-compost Material
- Compact Design Ideal for Smaller Kitchens or Spaces
• Sustainable and Eco-friendly
• Built-in Safety Mechanisms During Use
- Removable Components and Dishwasher-safe Parts for Easy Cleaning
- Tuning Range: One Button Operation
- Noise Free Operation
• Made with High-quality PP and ABS Plastic Material
- Suitable for a Wide Range of Kitchen Waste, Including Fruit and Vegetable Scraps, Coffee Grounds, Eggshells, and More.

READ ALL INSTRUCTIONS BEFORE USE

Safety Caution

To prevent user safety accidents, property damage and other problems, please read the following content carefully before using.

• Do not install the product near heating appliances or in direct sunlight, which may cause a fire hazard.
• Do not put flammables in the unit for composting, which may cause a fire hazard.
• Do not put other foreign matters in the product except food waste, which may cause product deformation and fault.
• Do not disassemble or transform the product without permission, which may cause electric shock and fire.
• When the product is working, do not put your hand into the machine, which may cause scalding, injury and electric shock.
• The product shall be installed in a flat place to avoid tilting, falling, impact, etc.
• The product shall be installed in a place with good ventilation and exhaust.
• Do not cover within 23.62 inches above the product.
• Shut down and unplug the power cord when going out for a long time.
• Do not store the food waste for a long time, which will produce peculiar smell and decay if power off.
• Do not put too much food waste which exceed the max line.
• Do not touch the pot and handle directly while the product was forced stop to avoid scalding.
• When moving the pot, please pay attention to prevent it falling to avoid injury.
• When the pot falls or is impacted, the deformation of the body or handle will reduce the drying performance.
• Please turn off the power when taking out the pot.
  • The maximum processing volume of the product at one time is 3L.
• This product shall not be connected to an external switch like a timer for power supply.
• The product shall not be connected to the circuit that will be opened/closed regularly.
• Do not allow people and children who are unable to take care of themselves to approach the machine.

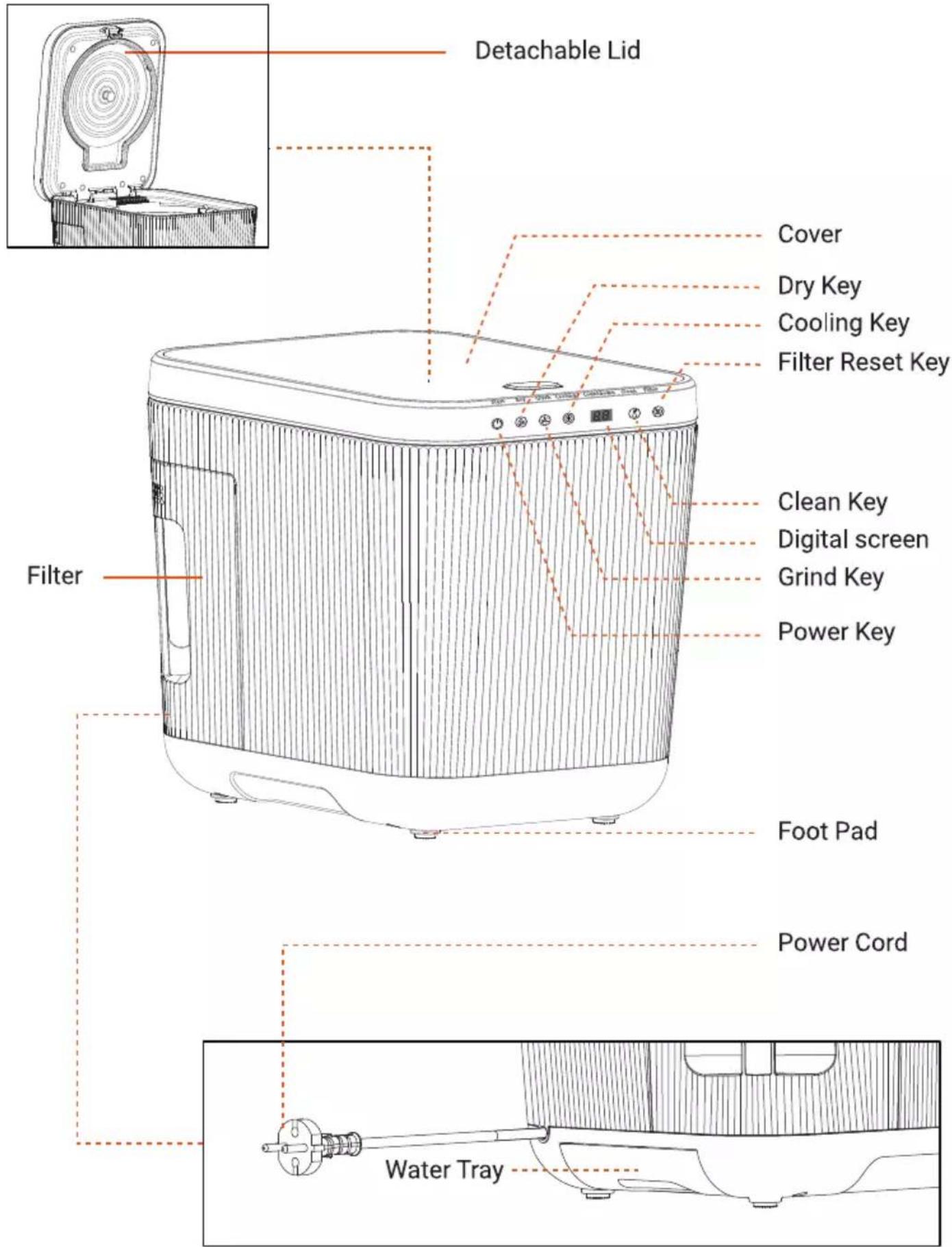

Product Composition

Spare Parts

Technical line drawing of a mechanical component with internal structure and mounting holes (no text or symbols)

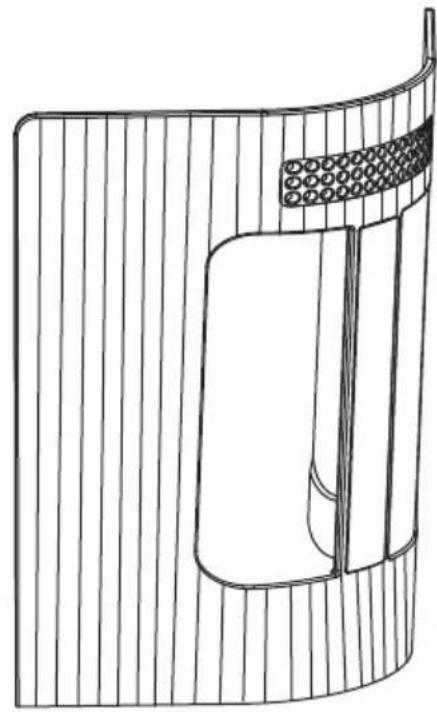

Filter Holder

Line drawing of a rectangular electronic device with a side panel and top panel (no text or symbols)

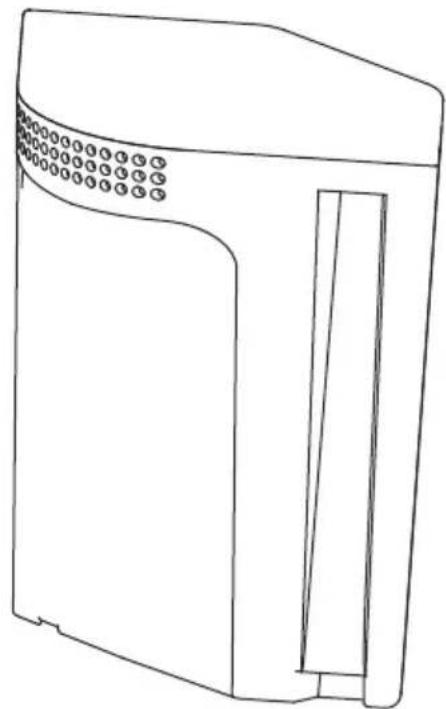

Filter

Line drawing of a mechanical component with a curved base and rectangular opening (no text or symbols)

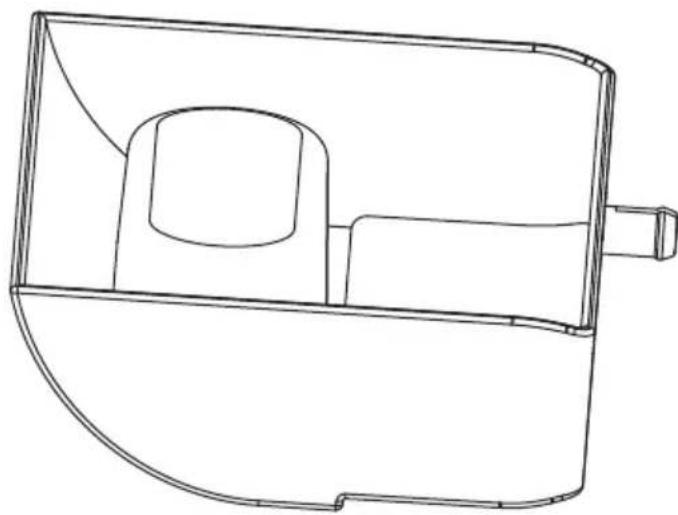

Water Tray

Line drawing of a cylindrical container with a central vertical slot and side supports (no text or symbols)

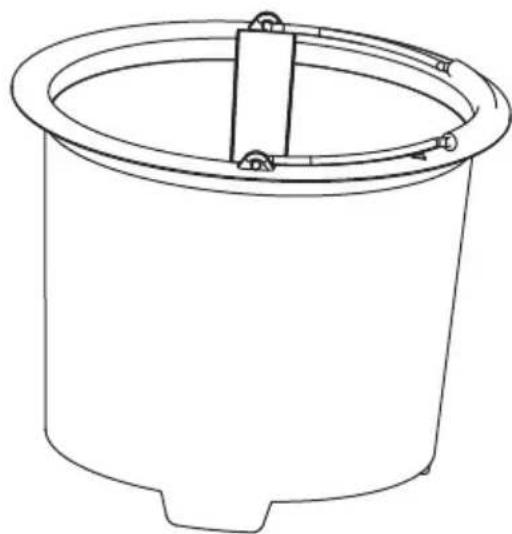

Pot

Diagram of concentric circular wave patterns around a central object (no text or symbols)

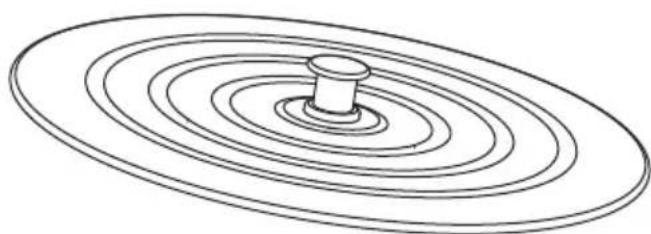

Detachable Lid

Specification

• Product Name: Food Waste Disposer
• Model No. NCVK9112BWH - NCVK9112BGR
• Voltage: 110V \~50Hz
- Power: 420W
- Processing Mode: Drying, Crushing, Cooling
- Capacity: 3L
- Reduce Rate: >90%
- Filter: Activated Carbon
• N.W.: 15lb
• Construction Material: PP, ABS, Ceramics
• Response Time: About 6-10 hours
• Tuning Range: One Button Operation
• Total Item Length: 11.02" -inches
- Product Dimension (L x W x H): 11.02" x 13.5" x 12.5" -inches

Interface

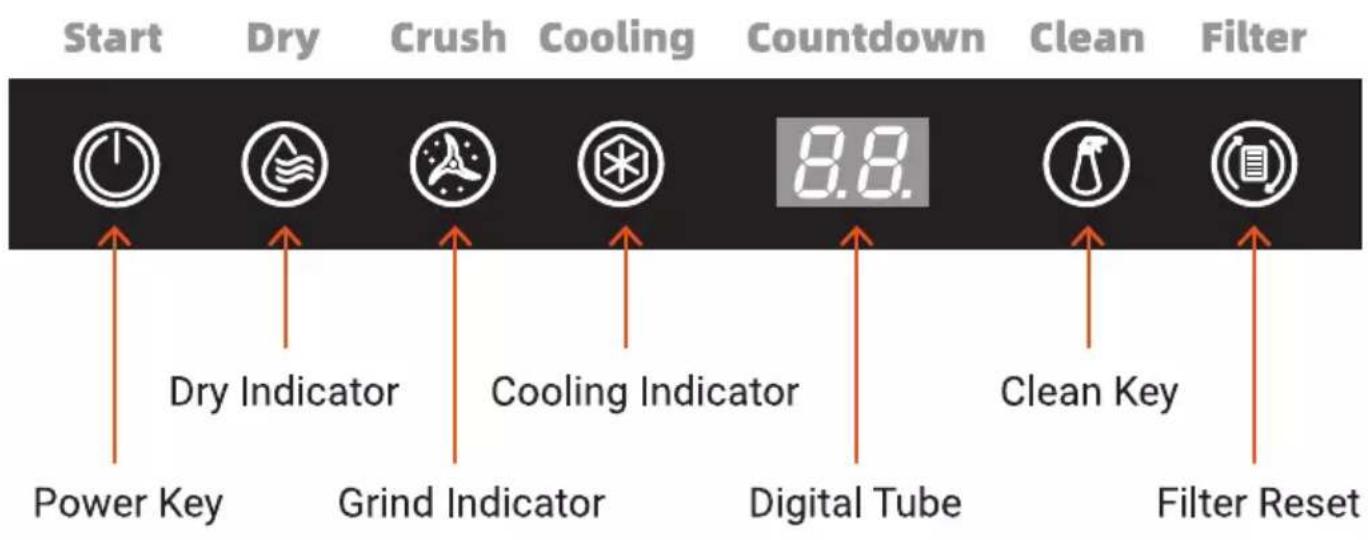

Control Panel

*Short press to start/stop, press and hold for 3 seconds to force shutdown

1. Plug In

• The buzzer will sound once, and all lights will flash 3 times to enter the standby state.
• The buzzer will sound twice if the micro switch and Hall switch is unusual.

2. Processing Mode

• Drying stage: short press power key to enter the drying stage, and the buzzer will sound once. The drying indicator light is on, the crushing and cooling indicator light is off.
• Crushing stage: the crushing indicator light is on, and the drying and cooling indicator light is off.
  • Cooling stage: the cooling indicator light is on, and the drying and crushing indicator light is off, the heating and ozone function will turn off, and the fan will turn on.
  • After the whole process is completed, the buzzer will sound three times and return to the standby state.
• Short press the power key to stop/start the process, press and hold the power key for 3 seconds to force shut down.

3. Auto Clean Mode

• Short press clean key to start the auto clean, the machine will auto off after one hour, and the buzzer will sound three times to return to the standby mode.
• Press and hold the clean key for 3 seconds to shutdown the process.

4. Filter Reset

• The filter indicator light will be on while the filter service life is reached, normally 3\~6 months.
• Press and hold the reset key for 3 seconds after replacing the filter, the buzzer will sound once, and the filter indicator light will be off to recalculate the service time.

How to Use

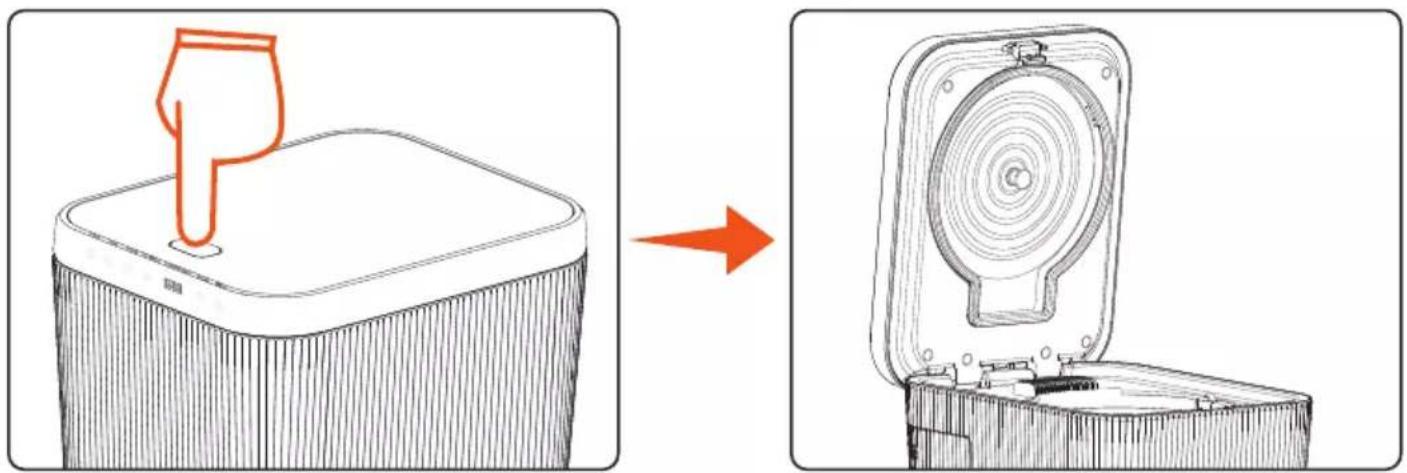

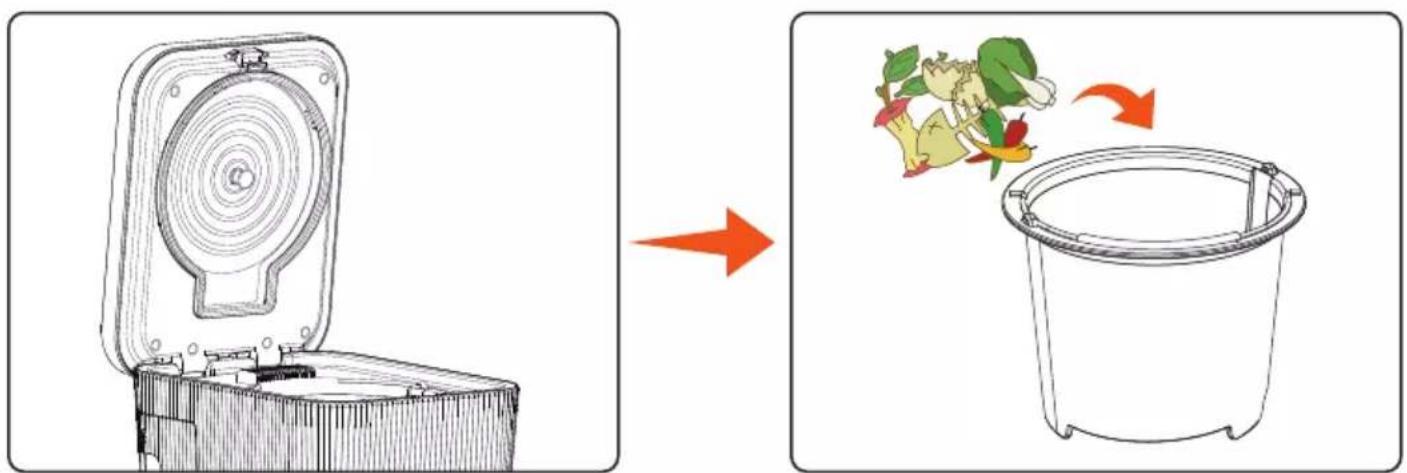

1. Press the button to open the cover.

Diagram showing a device with a handle and a circular component being processed into a tree stump (no text or symbols present)

1. Take out the pot and put in the food waste.

Diagram showing a device with a lid removed and a recycling bin with vegetables being recycled (no text or symbols)

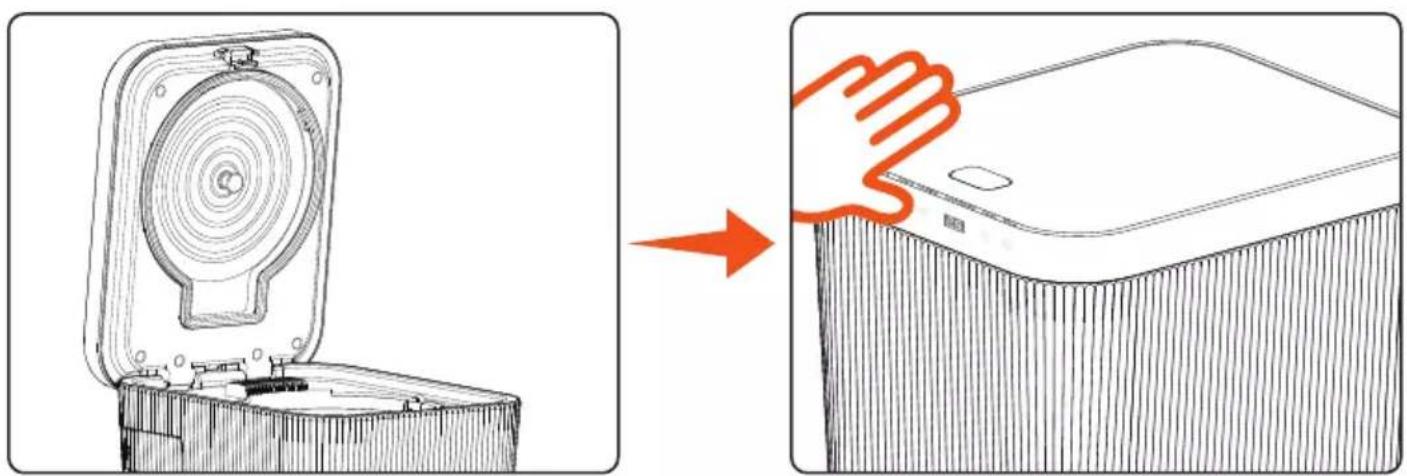

1. Put the pot into the machine, then close the cover.

Diagram showing a device with a circular component being processed into a textured surface, with an orange hand marking the process (no text or symbols present)

Reminder:

The packing materials of the product must be removed before using.

Auto Clean Function

• Take out the pot, add 1/2 water in the pot, then put the pot into machine, close the cover, and rotate the knob to lock the position.
- Press the clean key to start auto clean process.
• The machine will auto off after one hour.
- It is recommended to clean every 1-2 weeks.
- It doesn't need to be cleaned every time after use since the food waste was dried and sterilized at high temperature.

Cautions during Use

• Do not open the cover during operation, which may cause scalding.
• Do not put the starch or sugar and start the machine directly, they may need to be processed together with other food waste.
• Do not put hard non kitchen waste such as plastic, glass, big bones, shells, etc.
• Do not use this machine outdoor to avoid excessive temperature difference between outside and inside the product, resulting in water seepage of filter.
• Do not use it under the shelf or at a place with low ceiling since high temperature operation will produce water vapor.
• Do not put more than 1/2 volume of water into the pot and do not add water into the machine directly to avoid damage.

Others

• 【Auto power off】The product will be auto powered off and shut down after cooling.
• 【Processing】Different kinds of food have different shapes, and the results will be various. Please restart the processing if the food waste was not dry enough.
• 【Noise】During the processing, there will have some noise of internal food crushing and fan operation, which is a normal phenomenon.
• 【Smell】Different kinds of food have different odors, and there will be slight smell when processing the food waste, and it will also have odors if the filter is not replaced for a long time.
  • 【Pot】Different food waste has different hardness, shape and size, the coating may fall off during treatment, but it is not affected the function.

Replace the Filter

Line drawing of a modern water heater with a side view showing internal components (no text or symbols)

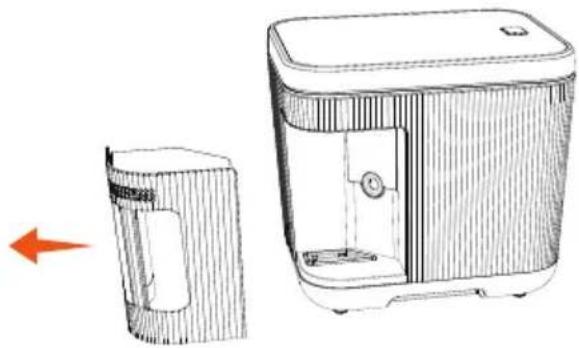

1. Take out the filter assembly from the machine

Diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

1. Remove the filter from the filter holder

Diagram of a mechanical component with a red arrow indicating upward motion (no text or symbols)

1. Insert the new filter

Line drawing of a device with a lid and side panel, showing an orange arrow indicating transformation (no text or symbols present)

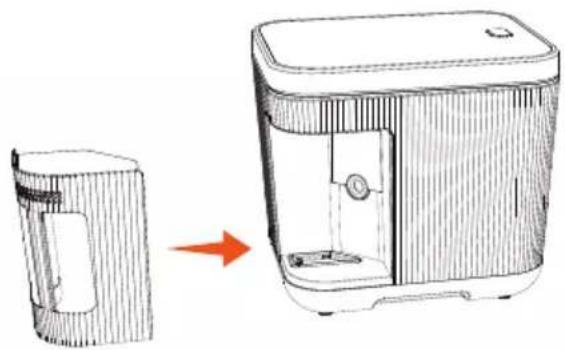

1. Put the filter assembly into the machine

Line drawing of a rectangular electronic device with a lid and internal compartments (no text or symbols)

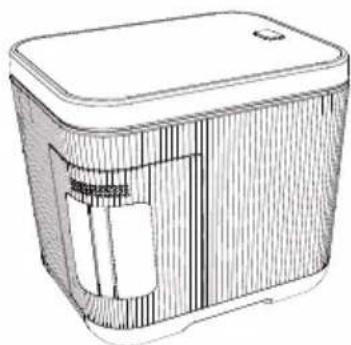

1. Complete the filter replacement

Cautions when Replacing the Filter

• Please unplug the power plug before replacing the filter.
• Please replace the filter in time after the filter indicator light is on.
• When taking out the filter, please pay attention to avoid losing the filter sealing rubber gasket.
• When replacing a new filter, please remove the filter package.
• Press and hold the reset key for 3 seconds to clear the accumulated time of the filter, the buzzer will sound once, and the filter indicator light will off.

Remove the Water Tray

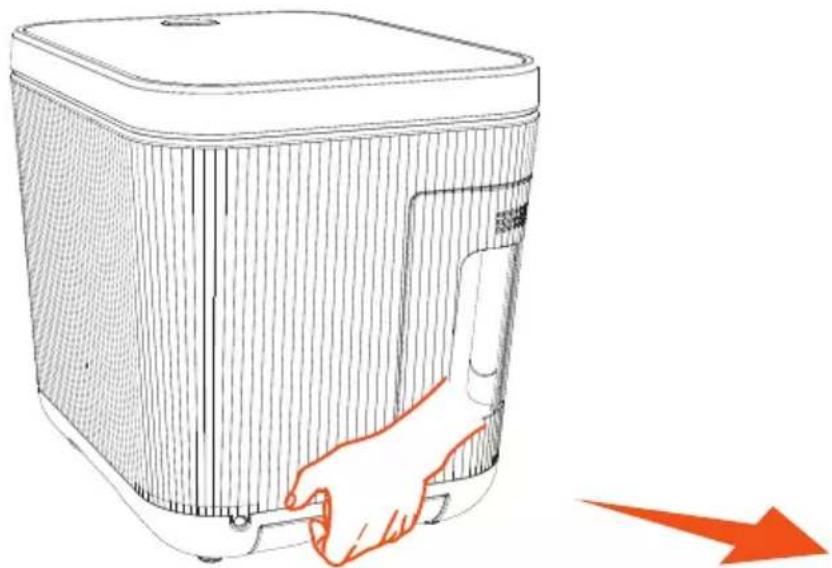

1. Pull out the water tray on the back of the product and pour out the water.

Line drawing of a portable electric heater with a hand inserting a plug, next to a red arrow (no text or symbols)

1. Pay attention to prevent water splashing out when pulling out the water tray.

Illustration of a green liquid-filled rectangular container with water droplets falling out (no text or symbols)

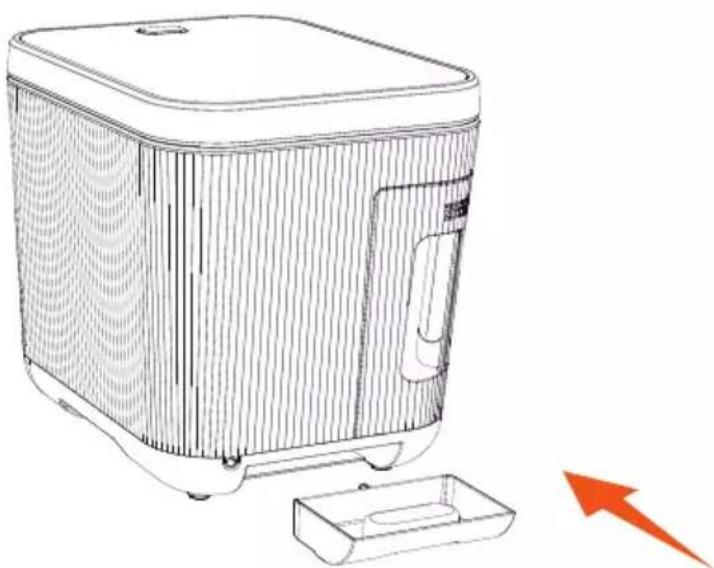

1. Insert the water tray back into the product after the water is poured out.

Line drawing of a modern kitchen appliance with a handle and base, accompanied by a red arrow pointing to it (no text or symbols present)

Reminder: Please check the water tray every 2-3 weeks and clean it if need.

What Can be Disposed?

Yes

Fruits

Vegetables

Rice

Meat

Fish

Lobster

Pizza

Bread & Cake

Cheese

Eggshell

Beans

Coffee Grinds & Teabags

No

Big Bones

Shell

Oils & Fats

Soup

Hard pits

Candy & Gum

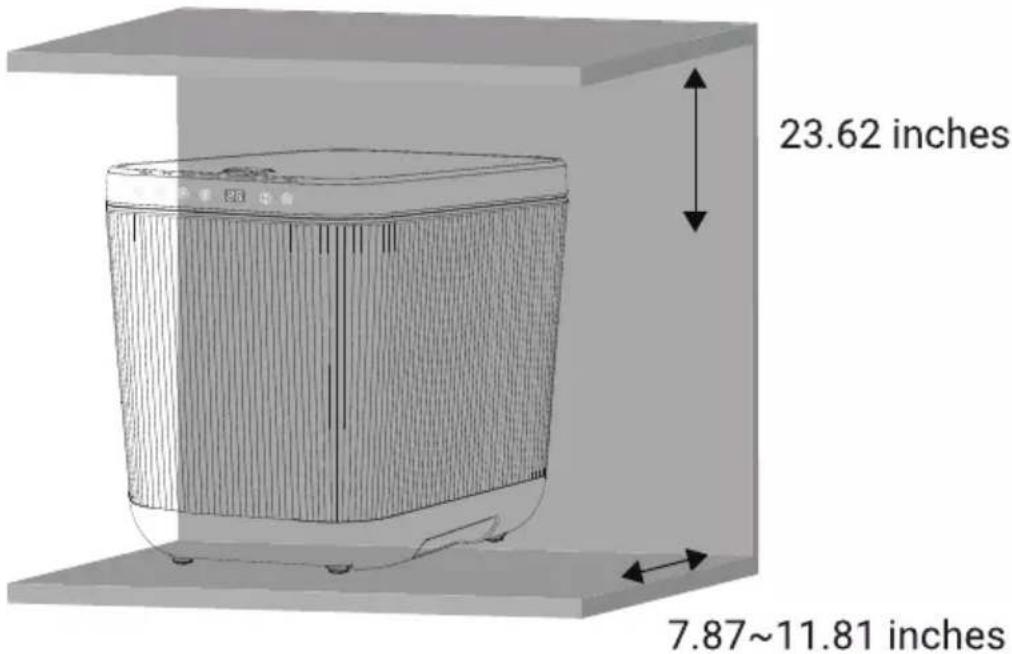

Installation Site

Please put the machine on a place 7.87\~11.81 inches away from the wall and within 23.62 inches from the upper end of the machine (to prevent ponding due to steam).

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or r elocate the receiving antenna.
  – Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a cir cuit different form that witch the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

California Prop 65 Warning

! WARNING:

This product can expose you to chemicals, which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.

For more info go to: www.P65warnings.ca.gov

nutrichef™

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]
