| Brand | ORNO |
| Model | OR-GM-9023 |
| Product Type | Recessed furniture socket |
| Number of Sockets | 3 x 2P+Z |
| Socket Type | French (E-type) |
| Rated Voltage | 230 V~, 50 Hz |
| Max Current | 16 A |
| Max Load | 3680 W |
| Cable Length | 1.5 m |
| Ingress Protection | IP20 |
| Material | Plastic + aluminum |
| Net Weight | 1.53 kg |
| Intended Use | Indoor installation in desk/table holes |
| Installation | Recessed mounting in tabletop (cut-out required) |
| Safety Features | Grounding pin, overcurrent protection |
| Maintenance | Clean with dry cloth; do not use chemical cleansers |
| Power Disconnection | Disconnect power before any maintenance |
| Repair | Do not repair yourself; damaged cable must be replaced by qualified person |
| Disposal | Follow local regulations for WEEE; do not dispose with household waste |
| Manual Download | Available at support.orno.pl |
Frequently Asked Questions - OR-GM-9023 ORNO
User questions about OR-GM-9023 ORNO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wall socket in PDF format for free! Find your manual OR-GM-9023 - ORNO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OR-GM-9023 by ORNO.
USER MANUAL OR-GM-9023 ORNO
(PL) Gniazdo meblowe REDE wpuszczane w blat, 3x 2P+Z
(EN) REDE Recessed furniture socket, 3x 2P+Z
(DE) REDE Versenkbare Möbelsteckdosen, 3x 2P+Z
OR-GM-9023/B
EN
Operating Instruction
PL
Instrukcja obsługi
DE
Bedienungsanleitung
Each household is a user of electrical and electronic equipment, and hence a potential producer of hazardous waste for humans and the environment, due to the presence of hazardous substances, mixtures and components in the equipment. On the other hand, used equipment is valuable material from which we can recover raw materials such as copper, tin, glass, iron and others. The wee sign placed on the equipment, packaging or documents attached to it indicates the need for selective collection of waste electrical and electronic equipment. Products so marked, under penalty of fine, cannot be thrown into ordinary garbage along with other waste.
The marking means at the same time that the equipment was placed on the market after August 13, 2005. It is the responsibility of the user to hand the used equipment to a designated collection point for proper processing. Used equipment can also be handed over to the seller, if one buys a new product in an amount not greater than the new purchased equipment of the same type. Information on the available collection system of waste electrical equipment can be found in the information desk of the store and in the municipal office or district office. Proper handling of used equipment prevents negative consequences for the environment and human health!
ORNO-LOGISTIC Sp. z o.o.
INSTALACJA/ INSTALLATION/ MONTAGE
EN Operating Instruction
SAFETY NOTES
Please read this manual carefully before connecting and using the device. In case of any problems with understanding its contents, please contact the seller. The manufacturer is not responsible for any damage that can result from improper device installation or operation. Any repair or modification carried out by yourselves results in loss of guarantee.
In view of the fact that the technical data are subject to continuous modifications, the manufacturer reserves a right to make changes to the product characteristics and to introduce different constructional solutions without deterioration of the product parameters or functional quality.
The latest version of the Manual can be downloaded from support.orno.pl. Any translation/interpretation rights and copyright are reserved in relation to this Manual.
- Disconnect the power supply before any activities on the product.
- Do not immerse the device in water or other fluids.
- Do not operate the device when its housing or cable is damaged.
- Do not repair the device by yourselves.
- Do not use the device against its intended use.
- This product is intended for indoor use.
- Keep away from children.
- Avoid contact with water and other electric conductors (e.g. metals).
Before connecting the plug to the mains socket, make sure that the mains parameters comply with the technical data. If the cable is damaged, immediately disconnect it from the mains socket in a safe way for the user. Do not use the extension cord with a damaged cable. A damaged cable must be replaced by a qualified person.
INSTALLATION
- Prepare a hole in the tabletop according to the cut-out indicated in the diagram/figure 1.

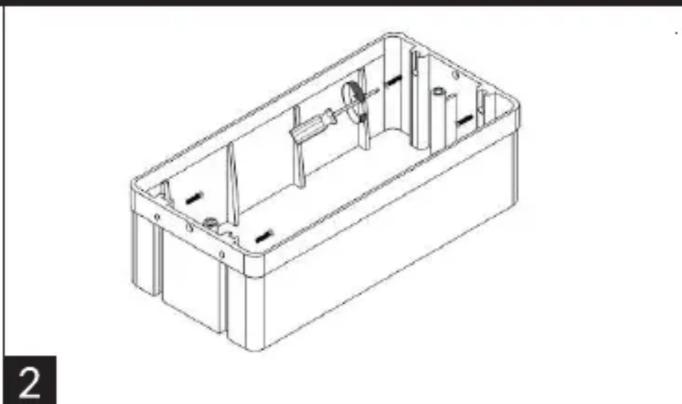

- Place the outer part of the cassette (fig.2) in the prepared hole in the tabletop and then screw it in place using screws.

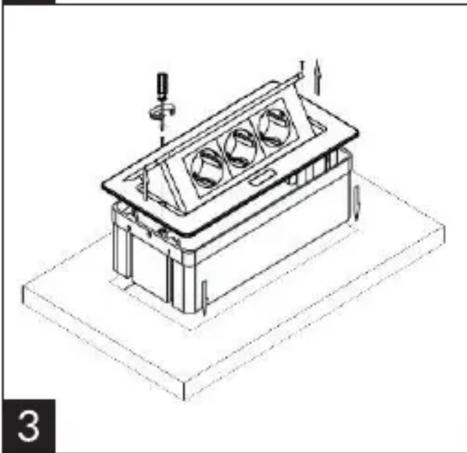

- Place the frame with sockets inside the cassette and fasten with screws (fig.4).
DESTINATION
This device is suitable for indoor installation, inside standard desk/table holes. Any maintenance shall be carried out after the power source has been switched off. Clean with dry cloths only. Do not use chemical cleansers. This product has a grounding pin and current circuit protection.
TECHNICAL DATA
nominal voltage: 230V\~, 50 Hz
max. load: 3680W
current: max. 16A
number of sockets: 3 x 2P+Z
sockets type: french (E-type)
cable length: 1.5m
ingress protection: IP20
material: plastic + aluminium
net weight: 1.53kg
