FVC 5015-EK - Pump Fieldmann - Free user manual and instructions

Product Type	Submersible Garden Pump
Brand	Fieldmann
Model	FVC 5015-EK
Voltage	230 V ~ 50 Hz
Power Input	750 W
Max Flow Rate	14,000 l/h
Max Delivery Height	8 m
Max Submersible Depth	7 m
Max Water Temperature	35 °C
Max Solid Particle Size	16 mm
Max Pressure	0.8 bar
Weight	4.1 kg
Protection Class	IPX8
Hose Connection	1" or 1 1/2"
Switch Modes	Automatic (float) and Manual
Application	Transfer of clean or slightly dirty water, garden ponds, pools (no people or fish)
Safety Features	Protection against dry running; requires circuit breaker near pools
Maintenance	Rinse after use; check float every 3 months
Power Cord Length	Not specified (standard approx. 10 m)

Frequently Asked Questions - FVC 5015-EK Fieldmann

What type of water can I pump with the Fieldmann FVC 5015-EK?

This pump is designed for clean or slightly dirty water with solid particles up to 16 mm. It is not suitable for sewage, salt water, aggressive liquids, or drinking water.

What is the maximum depth the pump can be submerged?

The maximum submersible depth is 7 meters.

How do I switch between automatic and manual operation?

Use the switch on the pump (see Fig. 2). In automatic mode, the float controls start/stop. In manual mode, you need to connect/disconnect the power plug.

Can the pump run dry?

No, the pump must never run dry. It relies on pumped water for cooling. Running dry can burn the motor and void the warranty.

What is the maximum water temperature the pump can handle?

The maximum temperature is 35 °C.

How do I clean the pump?

After each use, rinse the pump with clean water. For permanent installations, check the float switch every 3 months. Remove debris by flushing with water.

Why does the pump stop after a short time?

This may be due to overheating (temperature fuse triggered) caused by dirty water or exceeding max temperature. Clean the pump and check water temperature.

What safety precautions should I take when using the pump near a pool or garden pond?

The electrical supply must be equipped with a circuit breaker. Never use the pump if there are people, fish, or other living creatures in the water.

What does the warranty cover?

The warranty covers 24 months from purchase for domestic use. It does not cover damage from dry running, foreign objects, unauthorized repairs, or improper use.

How should I store the pump during winter?

Store the pump in a dry place out of children's reach, after thoroughly cleaning it. Protect from frost.

USER MANUAL FVC 5015-EK Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

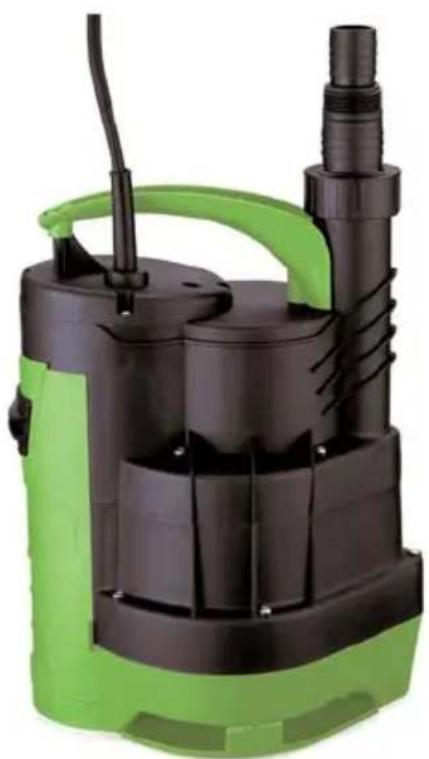

Green and black industrial water purifier device (no visible text or symbols)

FVC 5015 EK

Submersible Garden Pump USER'S MANUAL

Thank you for purchasing this pump. Before using it, please carefully read this User manual and keep it in a safe place for further use.

TABLE OF CONTENTS

1. GENERAL SAFETY REGULATIONS....2
   Important safety notice 2
   Packaging 2
   User manual....2
   Electrical safety 2
2. DESCRIPTION OF THE MACHINE AND CONTENTS....3
   Description of the machine (see Fig. 1.)....3
3. OPERATING INSTRUCTIONS....4
   Purpose of use 4
4. PUTTING INTO OPERATION....4
   Selecting automatic/manual pump switching function (fi g. 2)....5
5. MAINTENANCE AND STORAGE 5
   Maintenance 5
   Storage 5
6. WHAT TO DO "WHEN..." 6
7. TECHNICAL SPECIFICATIONS....7
8. DISPOSAL....7
   INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS ...... 7
9. DECLARATION OF CONFORMITY 8

1. GENERAL SAFETY REGULATIONS

Important safety notice

Carefully unpack the product and take care not to throw away any part of the packaging until all the product parts have been identified.
Read all warnings and instructions. Not following warnings or instructions may lead to injury from an electric shock, fire and/or serious injuries.

ATTENTION! Protect yourself against electric shock!

Packaging

The device is contained in a package intended to prevent any damage during transport. This package is a resource and so it can be handed over for recycling.

User manual

Before first using the pump, please read the following safety instructions and the User manual. Learn about all the parts and the correct use of the device. Keep the user's manual in a safe place for easy future reference. If giving the device to somebody else, do so together with the User manual. Following the instructions in the included User manual is a prerequisite for safe use of the garden appliance. The user's manual also contains operating, maintenance, and repair instructions.

NOTE: If you hand over the appliance to somebody else, do so together with this user's manual. Make sure you use the appliance properly by following the instructions in the included User manual. The user's manual also contains operating, maintenance, and repair instructions.

Electrical safety

The pump can be connected to any power plug installed according to the given norms. The plug must be powered at 230 V \~ 50 Hz.

ATTENTION! Important for the protection of your personal safety. Before first starting your new submersible pump, have a professional check the following items:

• Grounding
• Neutral conductor

The current circuit breaker must conform to energy safety norms and must fully function correctly.

The electrical connection must be protected against moisture.

If there is a risk of the electrical connection being flooded, it must be moved higher.

- In all situations, prevent the circulation of aggressive liquids and coarse materials.

The submersible pump must be protected against frost.

The pump must be protected against running when empty.

Prevent children from accessing parts of the pump by taking the appropriate measures.

The manufacturer will not accept any responsibility for accidents or damage resulting from not following the instructions in this manual.

2. DESCRIPTION OF THE MACHINE AND CONTENTS

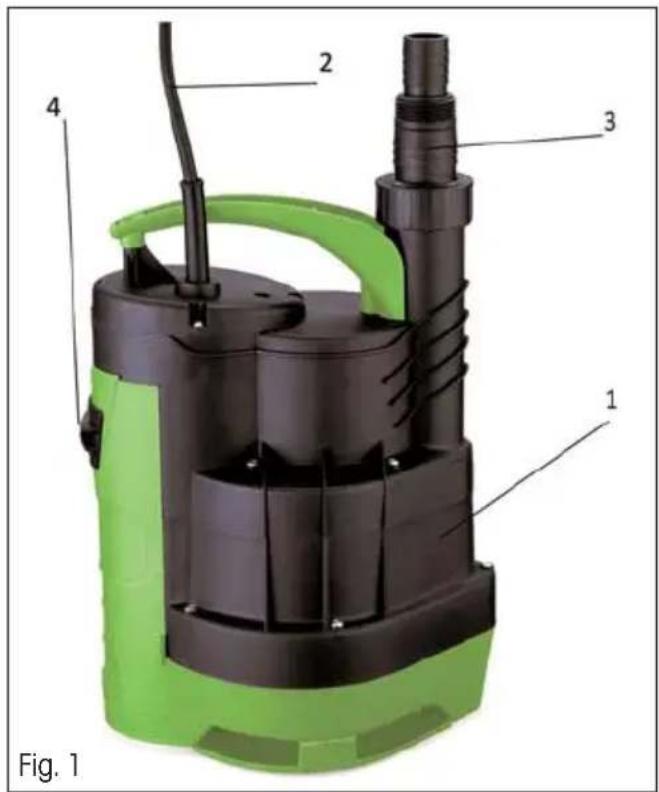

Description of the machine (see Fig. 1.)

1. Pump body
2. Power cord
3. Hose connection - 1" or 1 12 "
4. Automatic start switch

3. OPERATING INSTRUCTIONS

Purpose of use

This pump may be used at any time to transfer water from one location to another.
The appliance is intended for private household use and is not suitable for professional applications.
It is not suitable for work with waste water in sewage systems, salt water, aggressive or easily combustible substances, for work in food processing or as a pump for water jets on garden ponds.
It is not designed for pumping drinking water!

NOTE: Before using the submersible pump, please first carefully read all the safety instructions and instructions for use for the pump. Only after reading these instructions will you be able to safely and reliably use all the functions of the pump. You must conform to all local regulations in force in your country. These regulations are effective together with the particulars specified in these instructions.

ATTENTION! If you will be using the pump near pools or garden ponds, or in their protective zone, the electrical grid must be equipped with a circuit breaker.

The pump must not be used if there are people in the pool or garden pond! Also do not use it if there are fi shes or other living creatures in the pool or garden pond.

The submersible pump is designed to pump water at a maximum temperature of 35^ C.

The pump must not be used for other liquids, particularly motor oils, cleaning agents and other chemical products!

ATTENTION! You should never install the pump by hanging it on the outlet hose or power cord without additional support.

The submersible pump must be hung by the handle or placed on the tank bottom.

For the pump to function correctly, the pumped liquid must not contain foreign objects that are larger than specified in the overview of technical parameters.

After carefully reading these instructions you can prepare your pump for operation, however, keep the following points in mind:

Check if the pump is standing on the tank bottom or hung by the handle.
* Check if the discharge hose has been attached correctly.
* Ensure that the moisture from the water can never get to the electrical power source.
* Prevent the pump from running empty.

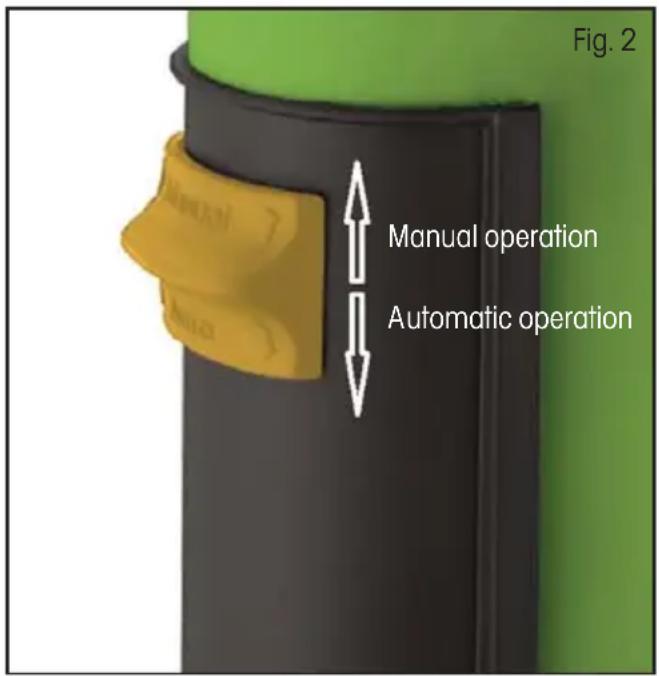

Selecting automatic/manual pump switching function (fi g. 2)

The pump switching can be set to automatic or manual mode.

Settings are made with the switch, see fig.2.

If automatic operation is selected, the pump start/stop switching is controlled by an integrated float.

If manual operation is selected, the pump start/stop performed by connecting to/disconnecting from power supply.

⚠️ ATTENTION! The pump must not be dry operated.

ATTENTION! Risk of dry running – The pump is cooled using the pumped liquid. In the event of dry running, the pump motor may burn up.

5. MAINTENANCE AND STORAGE

This submersible pump is approved as a maintenance-free product undergoing several final inspections. We recommend you perform regular inspections and maintenance, which will ensure a long lifetime and continuous performance.

ATTENTION! Disconnect the power source before performing any maintenance.

Maintenance

If the pump is regularly moved during operation, it should be rinsed out after each use with clean water.
If the pump is permanently installed, the working order of the float switch should be checked every 3 months.
* Any fi brous deposits that could deposit themselves inside the pump, should be removed using a water current.
If an excessive amount of debris accumulates in the body of the pump, flush the pump out with clean water.

Storage

Store the thoroughly cleaned out pump in a dry place out of children's reach.

6. WHAT TO DO "WHEN..."

When...	Causes	Repairs
The pump does not start	No power supply. Check the power supply.
	The fl oat won't switch. Check if the fl oat got stuck.
No flow
	The pressure hose is bent. Straighten the hose.
The pump does not turn off The fl oat cannot drop. Check if the fl oat got stuck.
Insuffi cient flow
	Reduced pump capacity due to dirty and contaminated water.	Clean the pump and fl ush the hose with clean water.
The pump turns off after a short time	The temperature fuse stops the pump due to dirty water.	Disconnect the power plug. Clean the pump and the pumping pit.
	The water is too hot. The temperature fuse stops the pump.	Check that the maximum water temperature of 35°C is not exceeded.

NOTE:

Not covered by the warranty:

Damage to the rotating mechanical gasket caused by running the pump empty, or by foreign objects in the water
Blocking the running of the wheel with foreign objects
Damage during transport
Damage caused by unprofessional alterations

7. TECHNICAL SPECIFICATIONS

	FVC 5015 EK
Voltage/Frequency	230 ~ 50 HZ
Power input 750W
Maximum transferred amount 14,000 l/h
Maximum delivery 8m
Maximum submersible depth 7m
Maximum temperature of the media 35°C
Maximum value of solid particles in the media 16mm
Maximum pressure 0.8bar
Weight	4.1kg

8. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

The appliance and its accessories are manufactured from various materials, e.g. metal and plastic.

Take damaged parts to a recycling centre. Inquire at the relevant government department.

This appliance meets all the basic requirements of the EU directives.

Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes.

User manual in the original language.

9. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

Černokostelecká 2111, 100 00 Praha 10, Czech Republic tel.: [phone], fax [phone]

EU DECLARATION OF CONFORMITY

Product/ brand: Electric Submersible Pump/ FIELDMANN

Type/ model: FVC 5015-EK as factory model BDP 750Y AC 230V, 50Hz, 750W, IPX8, Class I

Manufacturer: FAST ČR, a.s. Černokostelecká 2111, 100 00 Praha 10, Czech Republic VAT no: CZ26726548

The product is inline with directives and regulations listed below:

Directive LVD 2014/35/EU

Directive EMC 2014/30/EU

Directive RoHS 2011/65/EU

and norms:

EN 60335-1:2012+A11+A13

EN 60335-2-41:2003+A1+A2

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1

CE

Place of issuance: Prague

Date of issuance: 30.4.2021

Name: Ing. Zdeněk Pech Chairman of the Board

Signature:

IČO: 26726548, DIČ: CZ26726548

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).
