CMic-V1M - Microphone Synco - Free user manual and instructions

Product Type	Condenser Microphone
Brand	Synco
Model	CMic-V1M
Polar Pattern	Cardioid
Transducer Type	Electret Condenser
Frequency Response	20 Hz - 20 kHz
Impedance	≤ 2.2 kΩ
Sensitivity	-45 dB ± 3 dB re 1V/Pa
Sampling Rate	68 kHz / 24-bit
Power Supply	5V / 1A via USB Type-C
Signal-to-Noise Ratio	72 dB
Maximum SPL	135 dB SPL (1 kHz, 1% THD)
Dimensions (L × Diam)	47 mm × 47 mm × 156 mm
Net Weight	295 g
Output Connector	Type-C
Mute Function	Yes, press button to toggle mute (red indicator)
Monitoring Jack	3.5 mm for real-time earphone monitoring
Indicator Light	Green (flicker during recording), Red (mute mode)
Cleaning Instructions	Use only a soft, dry cloth
Warranty Period	30 days free replacement/repair, 12 months limited warranty

Frequently Asked Questions - CMic-V1M Synco

How do I mute the microphone?

Press the mute button once. The working indicator turns red to confirm mute mode is active. Press again to unmute.

Can I monitor audio in real time?

Yes. Plug earphones into the 3.5mm monitoring jack to listen to the recording in real time. Be mindful of the loudness.

What does the green light mean?

A flickering green light indicates normal recording. The intensity flickers according to the input level signal.

What devices are compatible with the Type-C output?

The microphone can connect to devices with a USB Type-C port (e.g., computers, Android phones) using a Type-C to USB cable or Type-C to Type-C cable. For iPhone, use a USB to Lightning adaptor (not included).

How should I clean the microphone?

Use a soft, dry cloth to clean the product. Keep it away from corrosive chemicals, liquids, and heat sources.

What is the polar pattern and why does it matter?

The polar pattern is cardioid, meaning it captures sound primarily from the front while rejecting noise from the sides and rear. This is ideal for solo vocals, podcasts, and streaming to minimize background noise.

What is the warranty period?

You get 30 days for free replacement or repair from receipt, and a 12-month limited warranty from the purchase date for manufacturing defects. Warranty does not cover human damage or misuse.

How do I connect the microphone to an iPhone?

Connect the microphone via Type-C to USB cable (included) to a USB to Lightning adaptor (not included). Then plug the adaptor into your iPhone.

What is the maximum sound pressure level (SPL) the microphone can handle?

The maximum SPL is 135 dB at 1 kHz with less than 1% total harmonic distortion, suitable for loud sources like drums or guitar amps.

Can I use this microphone for podcasting?

Absolutely. With its cardioid polar pattern, high sensitivity, and real-time monitoring, the CMic-V1M is well-suited for podcasting, voice-over, and streaming.

USER MANUAL CMic-V1M Synco

Microphone CMic-V1M >>> User Manual

Thank you for choosing SYNCO product.

Please read this manual carefully before use and follow all instructions mentioned herein.

Caring For Your SYNCO Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, impact of external force.
• Do not attempt to disassemble the product. Doing so voids warranty.
• Please have the product checked or repaired by authorized technicians if any malfunctions happened.
  ● Failure to follow all the instructions may result in mechanics damage.
• Warranty does not apply to human errors.

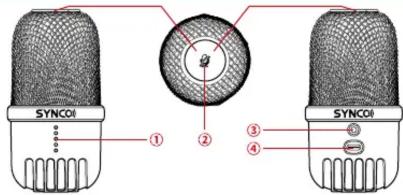

Product Introduction

1. Working Indicator

● ● ● ◎ ○

Green Light flicker: Normal Recording

(The green lights will flicker according to input level signal.)

● ● ● ● ●

Red Light: Mute Mode On

1. Mute Mode

Press once to initiate mute mode, and the working indicator turns red.

1. 3.5mm Monitoring Jack

For plug-in earphones to monitor the recording in real time. Please mind the loudness.

1. Type-C Output

Operations

1. The Use of Desktop Microphone Stand


2. The Use of Microphone


Specifications

1. Polar Pattern: Cardioid


1. Performance Parameter

Diaphragm Size	∅14mm
Transducer	Electret Condenser
Frequency Response	20Hz-20KHz
Impedance	≤2.2KΩ
Sensitivity	-45dB+3dB re 1 Volt/Pascal
Sampling Rate	48KHz/24bit
Power Supply	5V/1A
S/N Ratio	72 dB
Maximum SPL	135dB (1KHz THD > 1%)
Dimensions (L x Diam)	47mm x 47mm x 156mm
Output	Type-C
Net Weight	295g

Warranty

Warranty Period

Thank you for purchasing SYNCO products.

1. Customers are entitled to free replacement or repair service in case of quality defect(s) found in the product under normal use within 30 days upon receipt of the product.

2. Original SYNCO products are entitled to 12-month limited warranty service. The warranty period begins on the date of purchase of brand new, unused products by the first end-user.

Within the warranty period, if product defect or failure is attributable to material defection or technological problem, the defective product or defective part will be repaired or replaced without charge (service and materials fee).

Warranty Exclusions and Limitations

• Faults resulted from inappropriate use of a product without following its operation specification
  ● Artificial damage, e.g. crash, squeeze, scratch, or soaking
• Modifications to a product by its user or a third party without prior written consent of SYNCO, e.g. replacement of element or circuit, label alteration
• The code on product is inconsistent with that of warranty certificate, or the code on the product or warranty certificate is altered or torn off
• All consumable accessory attached to a product, like cable, wind muff, battery
• Faults as a result of force majeure, such as fire, flood, lightning, etc.

Warranty Claim Procedure

• If failure or any problem occurs to your product after purchase, please contact a local agent for assistance, or you can always contact SYNCO's customer service through email at. [e-mail]
• Please retain your sales receipt and warranty certificate as proof of purchase. If any of these documents is missing, only sales return or chargeable service will be provided.
• If the SYNCO product is out of the warranty coverage, the service and the parts cost will be charged.

Guangzhou Zhiying Technology Co., Ltd

Block 15th, No.200 Fangcun Avenue East, Liwan District, Guangzhou, China, 510000
[e-mail]
www.syncoaudio.com
https://www.facebook.com/syncomicrophones

WARRANTY CERTIFICATE
Please register your warranty. Meanwhile, you are welcomed to contact us via Email: [e-mail]
USER INFORMATION	Customer Name:
	Phone Number:
	Email:
	Address:
SALES INFORMATION	Sales Date:
	Model:
	Product Code:
	Dealer:
REPAIR RECORD	Service Date:
	Technician:
	Issue:

RESULT

□ Solved

□ Unsolved

□ Returned(Replaced)
