FZN 2305-E - Hedge Trimmer Fieldmann - Free user manual and instructions

Product Type	Hedge Trimmer
Brand	Fieldmann
Model	FZN 2305-E
Power Source	Electric (corded)
Power Rating	550 W
Voltage	230 V ~ 50 Hz
Blade Length	50 cm
Blade Material	High-carbon steel
Cutting Capacity	Up to 25 mm
Weight	3.5 kg
Dimensions (L x W x H)	95 x 25 x 15 cm
Noise Level (LwA)	95 dB(A)
Vibration Level	2.5 m/s²
Safety Features	Two-hand safety switch, blade guard
Maintenance	Clean blades after use, oil periodically
Spare Parts Availability	Blade set, motor brushes, switch
Warranty	24 months

Frequently Asked Questions - FZN 2305-E Fieldmann

How do I start the hedge trimmer?

Ensure the power cord is plugged in. Press and hold the safety switch on the handle, then squeeze the trigger. Release both to stop.

Can I use an extension cord?

Yes, use a heavy-duty extension cord rated for outdoor use (minimum 1.5 mm² cross-section). Keep it away from the cutting area.

How do I maintain the blades?

After each use, clean the blades with a brush and apply a light coat of oil to prevent rust. For sharpening, consult a professional.

What should I do if the blades jam?

Turn off the trimmer and unplug it. Carefully remove the jammed material with a stick or tool. Do not use hands near blades.

Is the hedge trimmer suitable for thick branches?

The maximum cutting capacity is 25 mm. For thicker branches, use a pruning saw to avoid damaging the trimmer.

Why does the trimmer stop during use?

Possible causes: thermal overload protection triggered (let it cool), damaged cord, or internal fault. Check connections and reset.

Can I replace the blade myself?

Yes, but only with genuine Fieldmann replacement parts. Disconnect power, remove screws, and swap blades. Torque screws to spec.

What protective gear should I wear?

Always wear safety goggles, ear protection, gloves, and non-slip footwear. Avoid loose clothing.

How do I store the hedge trimmer?

Clean and dry it. Attach the blade guard. Store in a dry place out of children's reach. Coil the cord loosely.

What does the warranty cover?

The 24-month warranty covers manufacturing defects. It does not cover normal wear, misuse, or unauthorized repairs. Keep your receipt.

USER MANUAL FZN 2305-E Fieldmann

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

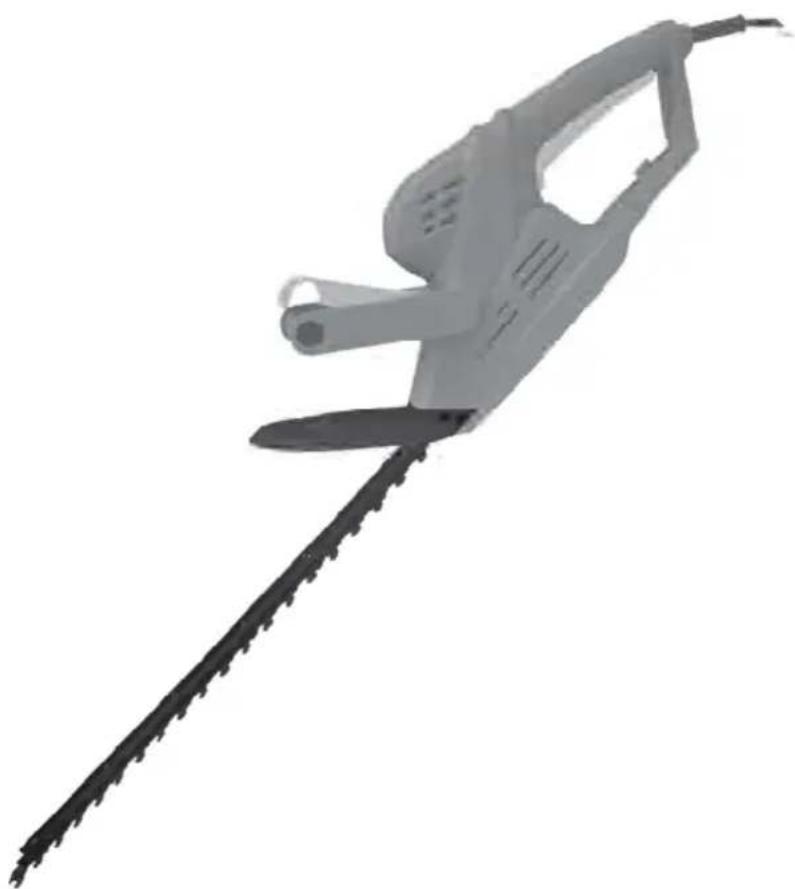

3D rendering of a hairless hatched tool (no text or symbols visible)

FZN 2305-E

English 3

Čeština 17

Slovenčina 31

Magyarul 45

Polski 59

1

Icon of a person reading a document inside a circle (no text or symbols)

Simple icon of a person wearing headphones inside a circle (no text or symbols)

8. MONTÁŽ STROJA (obr. 1)

Directive MD 2006/42/EC Directive EMC 2014/30/EU Directive RoHS 2011/65/EU Directive Noise 2000/14/EC

a normami:

EN 60745-1:2009+A11 EN 60745-2-15:2009+A1 EN 55014-1:2006+A1+A2 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013

CE

Ing. Zdeněk Pech Chairman of the Board

Dátum vydanie: 20. 8. 2019 Podpis:

FAST FAST CR, a.k. Černokostelska 1021, 254 Dl Fičany IČO: 26726548 tel. [phone] DIČ: CZ26726548 fax. [phone]

Ico 26728549 nic 01087988

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall ...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fasthungary.hu

Silhouette of a manual high-voltage tool with a long, jagged blade (no text or symbols visible)
