Product Type	Split air conditioner for cooling and heating
Model	Split 1200 Flat EQ C+H
Indoor Unit Dimensions (WxDxH)	1005 x 150 x 290 mm
Outdoor Unit Dimensions (WxDxH)	848 x 320 x 540 mm
Indoor Unit Weight	16 kg
Outdoor Unit Weight	40 kg
Power Supply	230 V ~ 50 Hz
Cooling Capacity	3500 W (12000 BTU/h)
Heating Capacity	3700 W (13000 BTU/h)
Airflow Rate (Max)	500 m³/h
Dehumidification Capacity	1.0 L/h
Energy Efficiency Class (Cooling)	A
EER / COP	3.21 / 3.30
Refrigerant Type	R410A (FCKW-free)
Refrigerant Charge	1400 g
Noise Level (Indoor)	≤ 40 dB(A)
Noise Level (Outdoor)	≤ 54 dB(A)
Max. Refrigerant Tube Length	4 m
Functions	Cooling, heating, dehumidification, timer (on/off), auto mode, night mode, remote control, motorized air direction lamella
Maintenance	Clean air filter every 3 months; check refrigerant lines for leaks annually; keep outdoor unit free from debris
Safety Features	Overheat protection, compressor delay timer, auto restart after power failure
Spare Parts / Repairability	Remote control, filters, fan motor, compressor, PCB – available via authorized service centers
Installation	Wall-mounted indoor unit; outdoor unit placed on a flat, ventilated surface; quick-pipe connection for refrigerant lines

Frequently Asked Questions - Split 1200 Flat EQ C+H Proklima

What is the cooling capacity of the Proklima Split 1200 Flat EQ C+H?

The cooling capacity is 3500 W (12000 BTU/h), suitable for rooms up to approximately 110 m³.

Can this air conditioner also heat the room?

Yes, it has a heating mode with a heating capacity of 3700 W (13000 BTU/h), ideal for inter-seasonal heating.

What is the energy efficiency class of this model?

The energy efficiency class for cooling is A, with an EER of 3.21 and COP of 3.30.

How to clean the air filter?

Remove the air intake grid and take out the filter. Wash it with warm water and mild detergent, dry thoroughly, and reinstall. Clean every 3 months.

What type of refrigerant does it use?

It uses R410A refrigerant, which is FCKW-free and environmentally friendly.

Is the unit difficult to install?

Installation is simpler than many models thanks to quick-pipe connections at the ends of the refrigerant tubes. However, professional installation is recommended.

Can I use the remote control to set a timer?

Yes, the remote control allows you to program ON/OFF timer and also has automatic and night modes.

What is the dehumidification capacity?

It can remove up to 1.0 liter of moisture per hour from the air, helping to reduce humidity.

How noisy is the indoor unit?

The indoor unit operates at a noise level of ≤ 40 dB(A), which is very quiet for comfortable sleeping.

What should I do if the air conditioner stops working suddenly?

First, check the power supply and circuit breaker. If the unit has an auto restart function, it may resume after a few minutes. If problem persists, contact a certified technician.

USER MANUAL Split 1200 Flat EQ C+H Proklima

Split-Air Conditioner SPLIT 1200 FLAT EQ C+H

Art.-No.: 23.658.21

Bar code: 4006825545241

Sales unit: 1 pc

Air conditioner for cooling and heating with a cooling capacity of 3,500 W and a heating capacity of 3,700 W - for wall installation. Automatic dehumidifying of air in a room.

Complete with remote controlled transmitter, 4 m cooling agent connecting tubes flexible insulation protection hose, tube ends equipped with quick release. Time programming device for ON/OFF. The outdoor unit can be used by temperatures from 0^ C up to +43^ C.

The air conditioner consists of two parts, an outdoor part and one for indoors. This allows a quick cooling and warrant an optimal noise level. Due to the quick catches installed at the ends of the cooling agent tubes, the connection of the cooling agent tubes between outdoor and indoor unit is extremely simple.

The max. cooling agent tube length is 4 m. The air conditioner is ideal for large rooms until approx. 110 m^3 .

Due to the possibility of heating operation, the air conditioner can additionally also be used as „interseasonal heating“.

3 setting of fan speed with a maximum speed of 500 m^3/h .

With the automatic dehumidification the units evaporates from its surrounding max. 1.0 l/h excess humidity. Timer for programme settings, Automatic- and night functions. All functions can be set with the remote controlled transmitter. Motorized ventilation lamella in the indoor unit.

Unit dimensions / Weight:

Indoor unit (WxDxH): 1,005x150x290 mm / 16 kg Outdoor unit (WxDxH): 848x320x540 mm / 40 kg

Packing dimensions / Weight:

Indoor unit (WxDxH): 1,080x260x375 mm / 20 kg Outdoor unit (WxDxH): 878x360x590 mm/44 kg

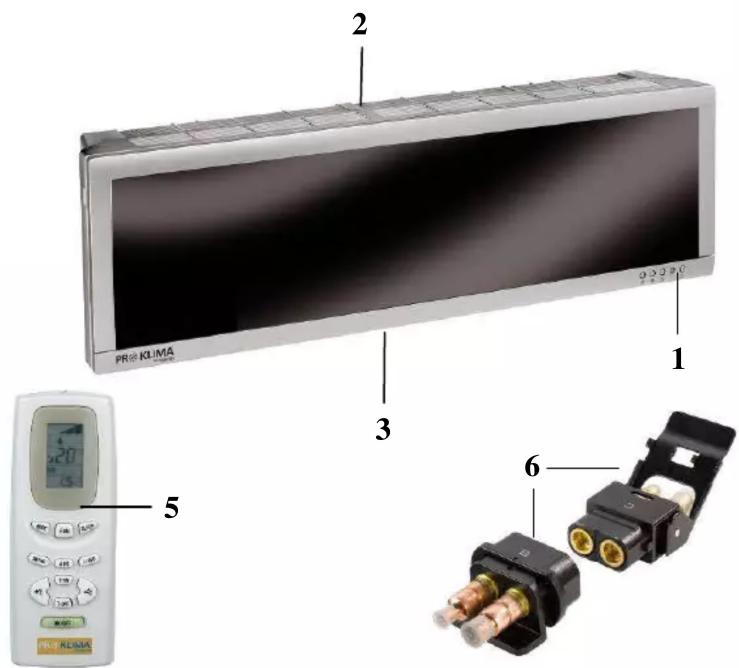

Features:

• LED-display (1)
• Air suction grid (2)
• Air escape plate fin (3)
• Fan (4)
• Remote control (5)
• Quick-pipe connection (6)

Technical data:

• Free of FCKW (R410A)
• Energy-Efficiency-Class: A
• EER / COP: 3.21 / 3.30
• Energy consumption when cooling: 545 kWh per year
• Cooling capacity max.: 3,500 W / 12,000 BTU/h
• Heating capacity max.: 3,700 W / 13,000 BTU/h
• Air throughput max.: 500 m³/h
• Capacity of humidity reduction max.: 1.0 l/h
• Mains: 230 V \~ 50 Hz
• Coolant quantity: 1,400 g for 4 m of tube
• Noise level: Indoors: ≤ 40 dB (A) Outdoors: ≤ 54 dB (A)
  Characteristics according to EN 14511
