CAFN051LC2 - Air purifier CARRIER - Free user manual and instructions

Product Type	Air Purifier
Brand	Carrier
Model	CAFN051LC2
Voltage	220 V / 50-60 Hz
Rated Power	62 W
CADR (Particles)	610 m³/h
Coverage Area	42 - 73 m²
Fan Speeds	3 speeds (Low, Middle, High)
Noise Levels	25 dB(A) (Low), 35 dB(A) (Middle), 58 dB(A) (High)
Motor Type	DC Motor
Filter Configuration	Pre-filter (washable), H11 HEPA filter, Activated Carbon filter
Bacteria Filtration Efficiency	≥ 98%
Ionizer	1000 million pcs/cm³ anion release
Timer	1, 4, or 8 hours
Modes	Auto, Sleep, Manual
Air Quality Display	PM2.5 concentration, temperature, humidity, color indicator (Blue/Green/Purple/Red)
Child Lock	Yes (touch 3s to lock/unlock)
Filter Reset Indicator	Yes
Dimensions (W x D x H)	460 x 230 x 710 mm
Weight	Not specified

Frequently Asked Questions - CAFN051LC2 CARRIER

How often should I replace the filters?

The filter replacement interval depends on usage and air quality. The Filter Reset Indicator will light up when replacement is needed. Typically, the HEPA and activated carbon filters should be replaced every 6-12 months, while the pre-filter is washable and can be reused.

Can I wash the filters?

Only the pre-filter is washable. It can be rinsed with water and dried before reuse. The HEPA filter and activated carbon filter must not be washed; they should be replaced when dirty.

What do the air quality indicator colors mean?

The colors indicate air quality: Blue = Excellent, Green = Good, Purple = Normal, Red = Bad. The display also shows PM2.5 concentration, temperature, and humidity.

How do I use the child lock?

Press and hold the child lock button for 3 seconds to enable or disable the lock. When active, other buttons become inoperative to prevent accidental changes.

What is CADR and why is it important?

CADR (Clean Air Delivery Rate) measures the volume of filtered air delivered per hour. A higher CADR means faster purification. For this model, CADR is 610 m³/h, suitable for large rooms up to 73 m².

Does the ionizer produce ozone?

The ionizer releases negative ions (anion) to help remove airborne particles. Carrier designs its ionizers to produce minimal ozone, within safe limits. If you are concerned, you can keep the ionizer turned off.

How do I set the timer?

Press the timer button to cycle through options: 1, 4, or 8 hours. The purifier will automatically turn off after the selected time.

Is the purifier noisy?

Noise levels vary by fan speed: 25 dB(A) on low (whisper quiet), 35 dB(A) on middle, and 58 dB(A) on high. The sleep mode runs at low speed for silent operation.

What is the coverage area of the CAFN051LC2?

The recommended coverage area is 42 to 73 m², making it suitable for large living rooms, open-plan areas, or offices.

How do I reset the filter replacement indicator?

After replacing the filters, press and hold the Filter Reset button for 3 seconds until the indicator turns off. This resets the timer for the next replacement cycle.

USER MANUAL CAFN051LC2 CARRIER

Air Purifier Product Introduction

FMCC

Mar, 2020

Household Air Purifier

CAFN--LC1 Series

White portable electronic device with a circular logo on the front panel (no visible text or symbols)

CAFN026LC1

• CADR: 210m^3/h
• Area 14-25m²
  • Size: 311*168*495mm

White portable water purifier with a circular logo and 'i540' label (no visible text beyond branding)

CAFN036LC1

• CADR: 410m^3/h
• Area 28 - 48m^2
• Size: 390*210*620mm

White portable air purifier with a circular logo on the front panel (no visible text or symbols)

CAFN051LC1

• CADR: 610m^3 /h
• Area 42 - 73m^2
  • Size: 449*249*713mm

Household Air Purifier

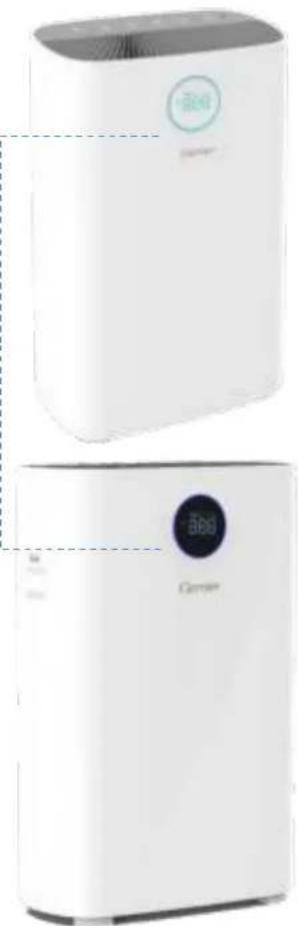

Appearance
Display with two different color option

Two white industrial air purifiers with digital display, one labeled '600' and the other 'Camer', shown from top and bottom views (no additional text or symbols visible)

Household Air Purifier

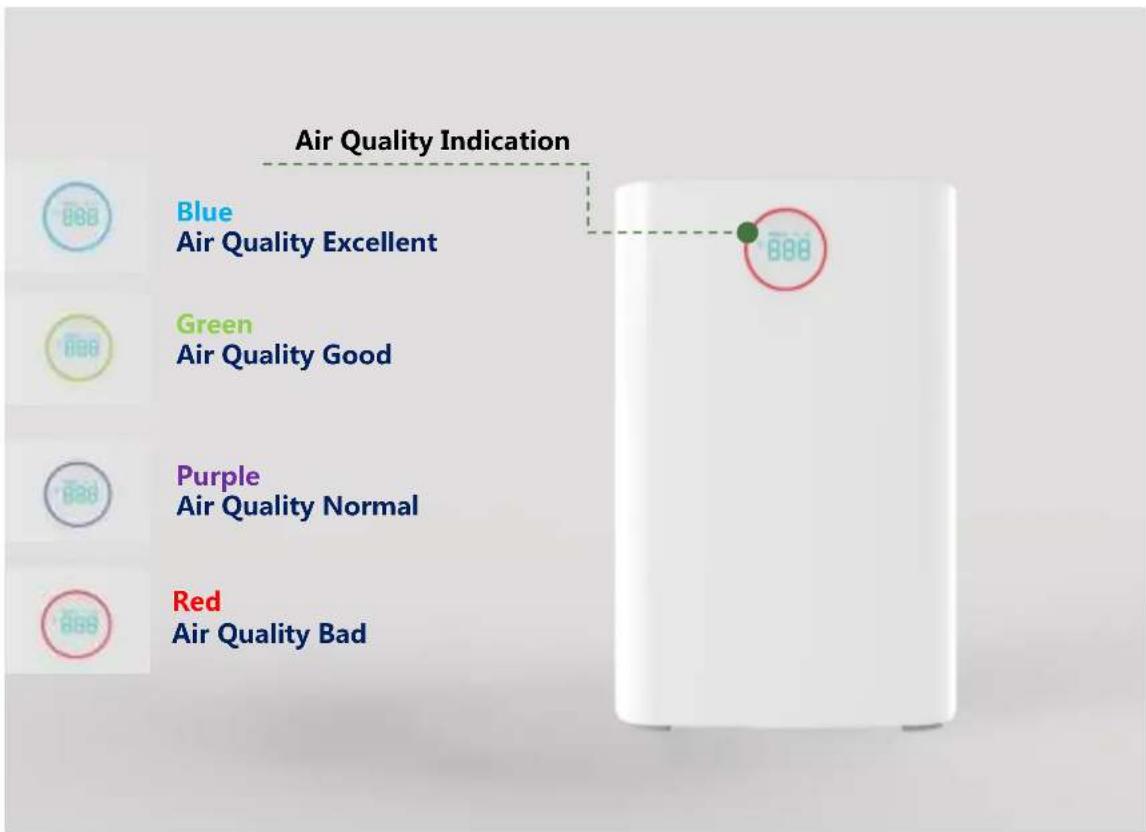

Air Quality Display

Household Air Purifier

Air Quality Display

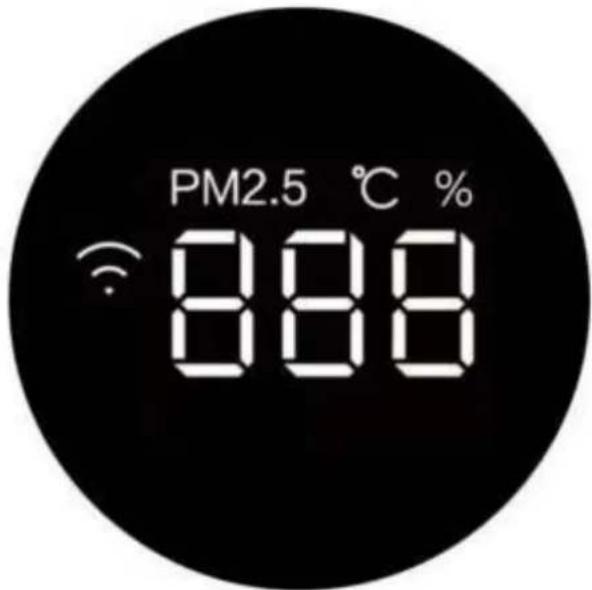

PM2.5
PM2.5 Concentration

Digital display

To obviously display air quality

Temperature and humidity Digital display

Household Air Purifier

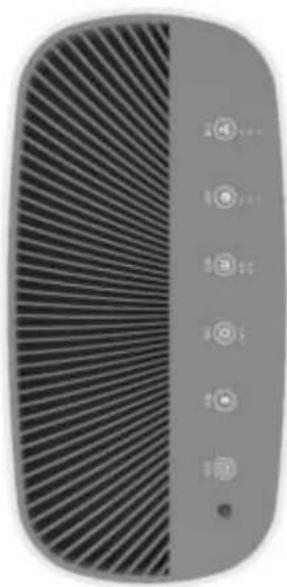

Control Panel

Close-up of a gray electronic device with a textured surface and control buttons on the right (no visible text or symbols)

Speed

3 speeds to adjust freely

Child lock

Touch for 3s to start or end lock mode

Auto/Sleep Mode

Mode Ions

1000 million pcs/cm³ ions releasing

Timing

1\~8 hours timing

Filter reset

(Filter Replacement Reminder)

Household Air Purifier

3 In 1 Filter

Circular grid pattern with intersecting lines forming a mesh structure (no text or symbols)

1st : Pre-filter

Made of white nylon to be washed repeatedly

Hair Dust Skins

Close-up of corrugated metal pipes arranged in a fan pattern (no text or symbols visible)

2nd : HEPA filter

HEPA filter widely used for medical use, to strongly absorb particles PM2.5\~0.3

Particles

Pollen

Allergy

Close-up of a granular, dark, textured surface with no visible text or symbols

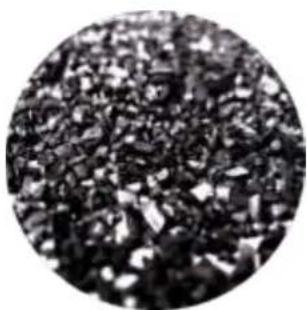

3rd : Activated carbon

5\~10 times powerful than traditional carbon filter

Pet Smell

Decoration Pollution

Smoke Smell

Household Air Purifier

Specification

Model Unit	CAFN026LC1	CAFNO36LC1 CAFN051LC1
Voltage V/Hz	220 v / 50	-60Hz 220 v / 50-60 Hz	220 v / 50 -60Hz
Rated power W	20W 32W	62W
CADR(Particles)	m3/h 210	m3/h 410m3/h	610m3/h
Motor type		DC Motor	DC Motor	DC Motor
Noise(Low-Middle-High)	db(A)	25dB(A)/32dB(A)/42dB(A)	25dB(A)/35dB(A)/54dB(A)	25dB(A)/35dB(A)/58dB(A)
Coverage Area	m2	14-25	28-48	42-73
Air FilterConfiguration	-	1:Pre-filter2:H11 HEPA3:Activated carbonFilter	1:Pre-filter2:H11 HEPA3:Activated carbon Filter	1:Pre-filter2:H11 HEPA3:Activated carbon Filter
StandardFunctions		Anion / Timing(1 / 4 / 8 hours)	Anion / Timing(1 / 4 / 8 hours)	Anion / Timing(1 / 4 / 8 hours)
Filter bacteria	%	≥98%	≥98%	≥98%
Filter Stage	mm	Four stages	Six stages	Six stages
Dimension	mm	L346*W173*H526mm	L410*W210*H628	L460*W230*H710mm
Loading QTY	20GP/40GP/40HQ	380/792/940 unit	325/663/738 unit	198/408/462 unit
Note: According to customer demand can be customized antibacterial species(Staphylococcus aureus, Escherichia coli, Staphylococcus aureus, Escherichia coli)
