Product Type	TV Wall Mount
Brand	Emos
Model	KT1145
Compatibility	Flat screen TVs with VESA mounting holes up to 400x400 mm
Max Weight Capacity	50 kg
Max Screen Size	65 inches
Material	Steel
Color	Black
Installation Type	Fixed wall mount
Included Hardware	M4, M5, M6, M8 bolts, washers, spacers, concrete anchors, lag bolts
Tools Required	Drill, Philips screwdriver, level, pencil
Mounting Surfaces	Concrete, brick, solid wood
Safety Features	Two-person installation recommended; check for hidden utilities before drilling
Certification	CE
Warranty	2 years (typical)
Package Contents	Wall plate, display plate, hardware kit, manual

Frequently Asked Questions - KT1145 Emos

What is the maximum TV size and weight for the Emos KT1145 TV mount?

The Emos KT1145 supports flat screen TVs up to 65 inches and a maximum weight of 50 kg.

Does the KT1145 support VESA patterns other than 400x400 mm?

Yes, the included hardware accommodates VESA patterns from 200x200 mm up to 400x400 mm. Use the appropriate bolts and spacers from the kit.

Can I install this mount on drywall or plasterboard?

The manual primarily covers concrete and brick installations. For drywall, you may need additional plasterboard anchors (not included) and must ensure the wall can support the load. We recommend consulting a professional.

What tools do I need for installation?

You will need a drill with an 8 mm bit, a Philips screwdriver, a level, and a pencil. The hardware kit includes all bolts and washers.

Is the KT1145 mount tilting or full-motion?

The KT1145 is a fixed wall mount. It does not tilt, swivel, or extend. For tilt or full-motion options, consider other Emos models.

How do I ensure the mount is level?

After marking the hole positions, use a level to verify the wall plate is perfectly horizontal before drilling. Adjust as needed.

What if my TV has recessed mounting holes?

Use the included spacers (small and large) to bridge any gaps between the TV back and the display plate. Select the appropriate bolt length to achieve a secure fit.

Can I install the mount alone?

The manual recommends at least two persons for installation, especially when lifting the TV onto the mount. One person should be physically fit and technically skilled.

How do I detach the TV from the mount?

To remove the TV, first unplug all electrical cords. Then loosen the locking screws on the display plate and lift the TV off the wall plate.

What should I do if I lose some hardware?

Contact Emos customer support or your nearest dealer for replacement hardware. Using incorrect bolts can compromise safety.

USER MANUAL KT1145 Emos

Black metal shelving unit with vertical supports and a small green indicator light (no text or symbols)

GB/ Wall Mount Installation Instructions

Caution:

1. It is recommended for this product to be installed by at least two persons, of which at least one person should be physically fit enough to handle heavy loads and technically skilled.
2. Before installing, please read this manual and make sure that there are no electrical cords, gas or water pipes in the place designated for mounting the holder.
3. We are not responsible for any damage incurred during installation, improper installation or subsequent use.
4. If in doubt, contact your nearest dealer and ask for assistance with installation.
5. For installation it is necessary to use safe and appropriate tools. Disregarding the instructions may cause property damage or injury.
6. If you intend to remove the TV from the wall, always make sure all electrical cords are unplugged.
7. If you are unsure of your wall load, select a different location for your installation or carrying capacity and increase the strength of the wall with renovation.
8. The product can be installed only for flat screen televisions or televisions containing mounting holes and have a flat back wall.

Tools necessary for installation (not included):

Philips Head Screw Driver

Electric or Portable Drill

Drill bit with 8mm in Diameter (for Wood, Concrete, or as needed)

Plaster Board or Chipboard Anchors (as needed)

Pencil

Level (if not included)

ncluded:

(A) M8×63 Lag Bolt 4 pcs (K) M5×25 Bolt 4 pcs
(B) Concrete Anchor or 4 pcs (L) M5 Lock Washer 4 pcs
(C) Lag Bolt Washer M8, 4 pcs (M) M6×12 Bolt 4 pcs
(D) Small Spacer 4 pcs (N) M6×30 Bolt 4 pcs
(E) Large Spacer 4 pcs (0) M6 Lock Washer 4 pcs
(F) M6 Washer 4 pcs (P) M8×12 Bolt 4 pcs
(G) M4×12 Bolt 4 pcs (Q) M8×30 Bolt 4 pcs
(H) M4×25 Bolt 4 pcs (R) MB Lock Washer 4 pcs
(I) M4 Lock Washer 4 pcs (S) M8×20 Bolt 4 pcs

(J) M5×12 Bolt 4 pcs

Black metal-framed TV or cable rack with vertical supports and a central logo (no text or symbols visible)

Empty rectangular frame with three vertical dashed lines dividing the space (no text or symbols)

Diagram of a mechanical device with a lever and connecting wires, no text or symbols present

Make sure it is level. Use a pen to mark off the locations. / Ujistěte se, že je v rovině. Body označte tužkou / Ulistite sa, že je v rovine. Body označte ceruzkou. / Sprawdzamy ustawienie w poziomie. Punkty zaznaczamy ołówkiem. / Győződjön meg róla, hogy vizszintben van-e! Egy ceruzával jelölje be a lyukak helyét. / Preverite, ali je v ravninil. Točke označite s svinčnikom. / Uvjerite se da je vodoravan. Mjesta označite olovkom. / Vergewissern Sie sich, dass er gerade liegt die Punkte mit Bleistift markieren. / Переконайтеся, чијрівно. Контури значіть олівцем. / Verificați să fie la nivel. Marcați punctele cu creion. / Patikrinkite, ar jis lygus. Naudokite pleštuką reikiamoms vietoms paslżyměti. / Pärliecinieties, ka tas ir līdzens. Izmantojiet pildspalvu, lai atzīmētu atrašanās vietas.

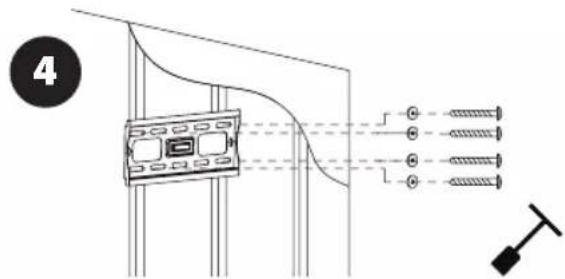

Fix the wall plate to the wall using the Lag Bolt (A) provided. / Kuchycení nástěnné desky ke zdi, použijte šroub s částečným závitem (A). / Na uchytenie nástennej dosky k stene, použite skrutku s čiastočným závitom (A). / Do umocowania płyty do ćsiany, wykorzystujemy šruby z gwintem niepełnym (A). / Rögzítse a fali panelt a falra a termékhez csomagolt négyszögletes fejü facsavarral (A). / Za pritrditev stenske plošče na steno uporabite vijak z delnim navojem (A). / Za pričvršćivanje zidne ploče na zid, uporabite vijak s djelomičnim navojem (A). / Zur Befestigung der Wandplatte die Schrauben (A) benutzen. / Для prikrípлення nastínnoї doшки do stíni, використовуйте гвинт з частичною різьбою (A). / Fixați placa de perete pe zid, folosind şurub cu filet partial (A). / Pritvirtinkite sienos plokstelę prie sienos naudodami pridėt varžta su kvadratine galvute (A). / Piestipriniet sienas pläksni pie sienas, izmantojot komplektāciją iekļauto koka skrūvi (A).

Choose the proper bolts for installation. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ šrub. / A szereléshez használja a megfelelő típusú és méretű csavarokat. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben auswählen. / Для установки виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Pasirinkite montavimui reikiamus varžtus. / Izvēlieties uzstādīšanai piemērotas bultskrūves.

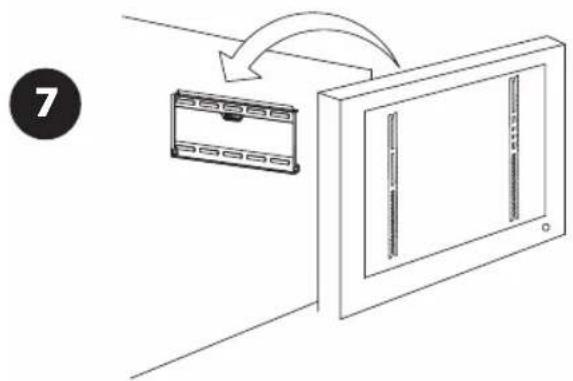

Install the screen on the display plate. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ śrub. / Helyezze fel a képernyőt a képernyő panelre. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben wählen. / Для установki виберіть правильний тип гвинтів. / Pentru instalare alegeti tipul adecvat de şuruburi. / Sumontuokite ekraną ant plokštės. / Uzstādiet ekrānu uz ekrāna plāksnes.

Black metal-framed TV or cable rack with vertical supports and a central logo (no text or symbols visible)

Pure brick wall pattern with no text, numbers, or symbols

Concrete – Brick Installation / Instalace – zděná stavba / Inštalácia – murovaná stavba / Instalacja – ściana murowana / Beton – téglafalra való szerelvény / Instalacija – zidana gradnja / Montaža – zidani objekt / Installation – gemauerter Bau / Монтаж – цегляна конструкция / Instalare – construcție zidită / Montavimas ant betono – plytu sienos / Uzstādīšana pie betona – kieğellem

1

Pure architectural line drawing of a brick wall with no text, numbers, or symbols

Choose the proper bolts for installation. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ śrub. / A szereléshez használja a megfelelő típusú és méretű csavarokat. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben auswählen. / Для установки виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Pasirinkite montavimui reikiamus varžtus. / Izvēlieties uzstādīšanai piemērotas bultskrūves.

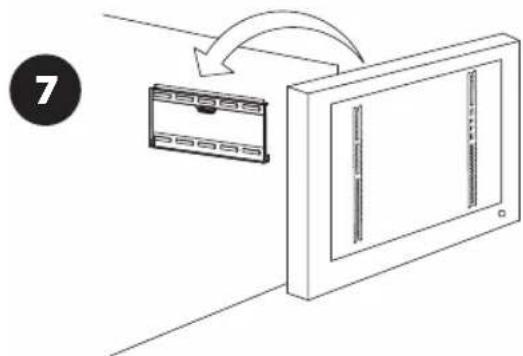

Install the screen on the display plate. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ šrub. / Helyezze fel a képernyőt a képernyő panelre. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben wählen. / Для установki виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Sumontuokite ekraną ant plokštės. / Uzstädiet ekrānu uz ekrāna plāksnes.

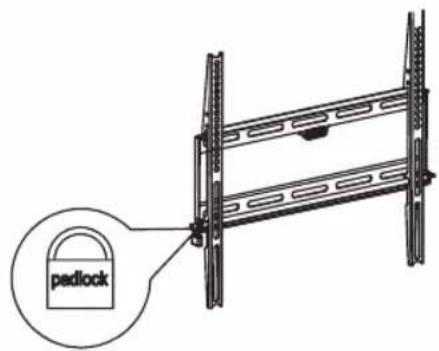

Tighten the screw to lock the display plate on the wall plate. / Utáhněte šrouby pro uzamčení monitoru k nástěnné desce. / Utiahnite skrutky pre uzamknutie monitora k nástennej doske. / Dokręcamy śruby mocujące odbiornik do płyty naściennej. / Húzza meg a csavart, hogy a képernyő panel a fali panelre szoruljo. / Za zaklenitev položaja monitorja na stenski plošči privijte vijake. / Zategnite vijke kako bi fiksirali televizor (monitor) u odnosu na zidnu ploču. / Die Schrauben für das Verschließen des Bildschirms an der Wandplatte festziehen. / Затягніть гвинти, щоб зафіксувати монітор до дошки на стіні. / Strângeți şuruburile pentru blocarea poziției ecranului la placa de perete. / Priveržkite varžtą ir užfiksuokite ekrano plokštę prie sieninės plokštės. / Pievelciet skrůvi, lai nostiprinātu ekrāna plâksni pie sienas plâksnes.
