A10x - Headphones Audix - Free user manual and instructions

Product Type	In-Ear Headphones
Brand	Audix
Model	A10x
Operating Principle	Dynamic - moving coil
Driver Size	10 mm
Diaphragm Material	Beryllium Alloy
Magnet Type	Neodymium
Sensitivity	107 dB SPL/mW
Frequency Response	10 Hz - 19 kHz
Impedance	35 Ohms
Noise Isolation	25 dB @ 1 kHz
Connector (Earphone)	MMCX gold-plated
Connector (Cable)	3.5 mm (1/8 in) gold-plated
Cable Length	1.5 m detachable
Cable Material	Silver-plated oxygen-free copper, braided
Ear Tips	Optimized silicone (S, M, L included)
Shell Material	Crystal Polycarbonate, tuned and vented
Rotation	360-degree via MMCX connectors
Reinforced Wire Wrap	Near connector for secure hold
Supplied Accessories	Protective carrying case, detachable cable, silicone ear tips set
Special Features	Precise imaging, low distortion, extended bass

Frequently Asked Questions - A10x Audix

What type of driver does the Audix A10x use?

The A10x uses a 10 mm dynamic driver with a composite beryllium diaphragm for low distortion and precise imaging.

What is the frequency response of the A10x?

The frequency response ranges from 10 Hz to 19 kHz, delivering over ten octaves of balanced sound with extended bass.

Are the ear tips replaceable?

Yes, the A10x includes replaceable optimized silicone ear tips in small, medium, and large sizes for a secure fit and strong isolation.

Can I use the A10x with balanced audio devices?

The included cable has a standard 3.5 mm plug, designed for single-ended outputs. For balanced use, a compatible cable with MMCX connectors may be needed.

How do I clean the Audix A10x earphones?

Gently wipe the earphones with a soft, dry cloth. Do not use liquids or abrasive cleaners. Clean ear tips separately with mild soap and water, then dry thoroughly.

Is the cable detachable?

Yes, the cable is detachable using gold-plated MMCX connectors, allowing for easy replacement or upgrade.

What is the noise isolation performance?

The A10x provides up to 25 dB of noise isolation at 1 kHz when properly fitted with the silicone ear tips.

Does the A10x have a built-in microphone?

No, the Audix A10x does not include a built-in microphone; it is designed purely for high-fidelity audio listening.

What accessories are included?

The package includes a protective carrying case, a detachable 1.5 m cable, and three pairs of silicone ear tips (S, M, L).

How should I store the earphones when not in use?

Store the A10x in the included protective carrying case to prevent damage and keep the ear tips clean.

USER MANUAL A10x Audix

The A10X Earphones are designed for the ultimate immersive listening experience. At the heart of the earphone is a dynamic low-mass moving coil assembly and composite beryllium diaphragm delivering over ten octaves of balanced frequency response and extended bass. With exceptional imaging, isolation and phase coherence, the A10X accurately presents the full details of your music.

FEATURES

• 10 mm dynamic driver with beryllium diaphragm for precise imaging and low distortion
  • High-energy balanced response with extended bass
• Optimized silicone ear tips (S, M, L) for strong seal and isolation
• Gold-plated MMCX connectors allow for 360-degree rotation for ideal positioning
• Reinforced wire wrap near the connector holds the earphone confidently in place
• Premium silver-plated, oxygen-free copper cable in a durable soft coat jacket with gold-plated 3.5 mm (1/8 in) plug

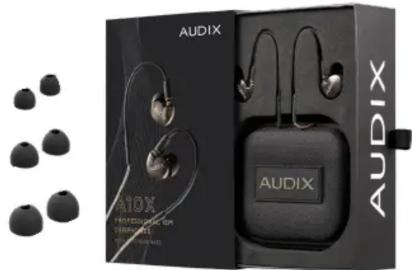

SUPPLIED ACCESSORIES

• Protective carrying case
• Detachable 1.5 m cable
• Small, medium and large pairs of silicone ear tips

NOISE ISOLATION POLAR PATTERN

Noise isolation is the measure of sound attenuation levels achieved with A10 earphones that have been properly fitted in the ear canals with the supplied silicone ear tips. The noise isolation polar pattern illustrates how attenuation of the A10X earphones varies as a function of both frequency and direction of the sound source. In general, lower frequencies are less attenuated than higher frequencies and sound sources coming the side of the head are less attenuated than from the front or back. Audix earphones do not carry a Noise Reduction Rating and are not meant to be used as a hearing protection device.

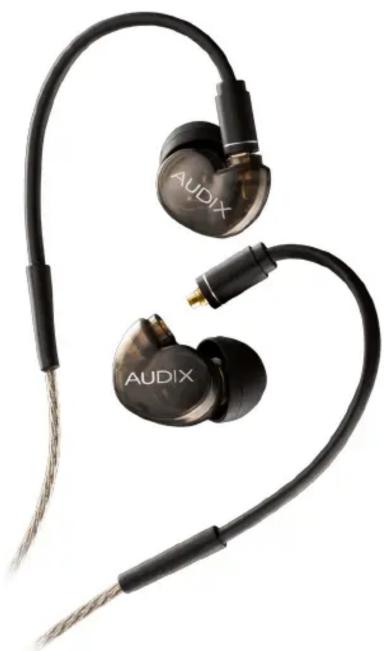

Close-up of two AUDIX audio workstation headphones with black earbuds and metallic leads (no text or symbols visible)

SPECIFICATIONS

Operating Principle Dynamic - moving coil

Sensitivity (@1 kHz) 107 dB SPL/mW

Frequency Response 10 Hz - 19 kHz

Impedance 35 Ohms

Noise Isolation* 25 dB @1 kHz

*See noise isolation polar pattern

Driver Size 10 mm

Diaphragm Beryllium Alloy

Magnet Neodymium

Shell Crystal Polycarbonate,

tuned and vented

Connectors MMCX, 3.5 mm (1/8 in)

Cable 1.5 m detachable MMCX,

braided, oxygen-free copper, 40 in silver-plated
