SLSBIN21 - Uncategorized SereneLife - Free user manual and instructions

Product Type	Storage Bin with Combination Lock
Brand	SereneLife
Model	SLSBIN21
Internal Capacity	21 Gallons (78 Liters)
Maximum Load	100+ lbs (45+ kg)
Material	Reinforced Engineered ABS Plastic
Lock Type	Manual 4-Digit Numeric Combination
Dimensions (External)	9.3 x 16.3 x 23.2 inches (23.6 x 41.4 x 58.9 cm)
Weight	Approximately 12 lbs (5.4 kg)
Construction	Heavy-Duty, Impact Resistant, Scratch & Stain Resistant
Opening Mechanism	Lift-Top Hinges
Handle	Side Panel Carry Handle Grips
Color	Black (as pictured)
Assembly Required	Yes (detailed instructions included)
Custom Passcode	User-Defined, Set via Internal Switch
Default Passcode	0000
Usage	Home, Office, School, Business, Mobile
Warranty	Contact manufacturer for details
Cleaning	Wipe with damp cloth; mild detergent if needed
Climate Resistance	Indoor use recommended, can withstand light outdoor exposure

Frequently Asked Questions - SLSBIN21 SereneLife

How do I set a custom passcode on the SereneLife SLSBIN21?

To set a custom passcode, first ensure the lock is in default position (0000). Remove the top drawer, and switch the internal lever from B to A position. Set your desired 4-digit code on the dials, ensuring they are perfectly aligned. Then switch the lever back to B. Remember to write down your new code as it cannot be recovered.

What is the internal capacity of the SLSBIN21 storage bin?

The SLSBIN21 has an internal storage capacity of 21 gallons, equivalent to 78 liters.

Is assembly required for this product?

Yes, assembly is required. The manual provides step-by-step instructions with images for attaching side, front, and back plates using screws. No special tools are needed.

What material is the bin made of?

The bin is constructed from reinforced engineered ABS plastic, which is heavy-duty, impact-resistant, and scratch- and stain-resistant.

What are the dimensions of the SLSBIN21?

The external dimensions are 9.3 inches deep, 16.3 inches wide, and 23.2 inches tall (23.6 x 41.4 x 58.9 cm).

Can I change the passcode after setting it?

Yes, you can change the passcode. Pull the four locks to unify them to the same orientation (e.g., all at 0), then pull each lock 5 times (each pull advances one number). After this, you can open and set a new code.

What is the maximum weight the bin can hold?

The maximum support weight is over 100 lbs (approximately 45 kg).

Is the bin weatherproof or suitable for outdoor use?

While the bin is rugged and impact-resistant, it is primarily designed for indoor use. Prolonged outdoor exposure may cause wear. Light outdoor use is acceptable.

How do I clean the SLSBIN21?

Clean using a damp cloth with mild detergent. Avoid abrasive cleaners that may scratch the surface.

Where can I get replacement parts or support?

For support, contact Pyle USA at phone [phone] or email [e-mail]. Replacement parts availability varies; contact them for inquiries.

USER MANUAL SLSBIN21 SereneLife

ASSEMBLY INSTRUCTIONS & LAYOUT

Please Note:

• Be sure to check the letters marked on the sides of the bin and align as shown in the images for proper orientation.
  • Reference the images on the corresponding page!

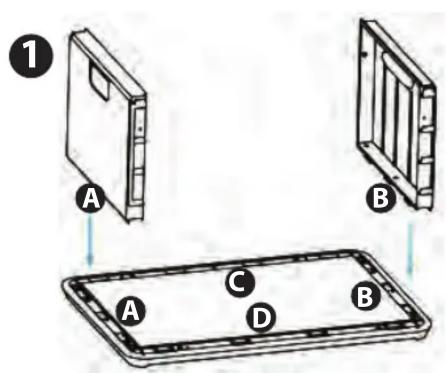

• Lay the bottom of the bin down and starl by adding in the side plates.

- You will feel the plastic latch engage when the sides are firmly pressed into place.

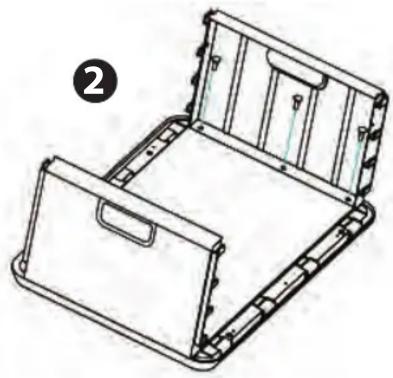

1. Add 3 screws each side to secure in the side plates.

2. Now we add the front and back plates.

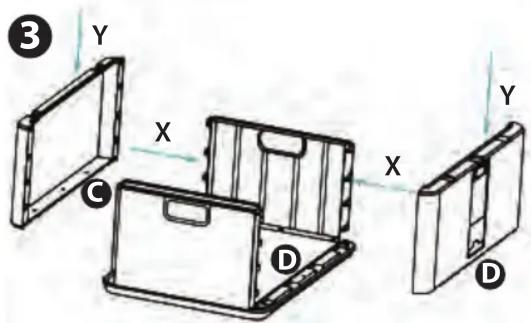

3. First align the front and back plates with the side plates in the "Y" direction, and push down latching onto the base.

4. Then push in to secure the latches in the "X" direction latching to the side plates.

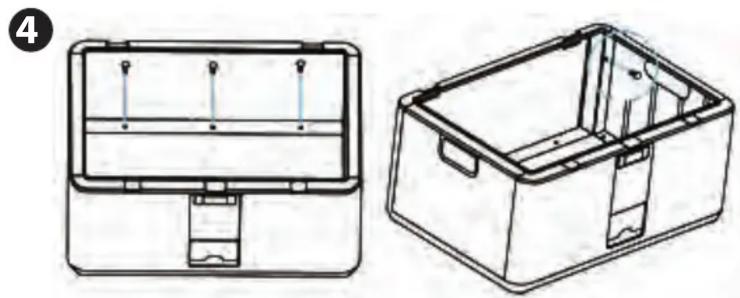

5. Add 3 screws on each side to secure in the front and back plates to the bottom panel.

- Add 4 screws (See second image) in the comers to securely attach the front and back plates to each side plate.

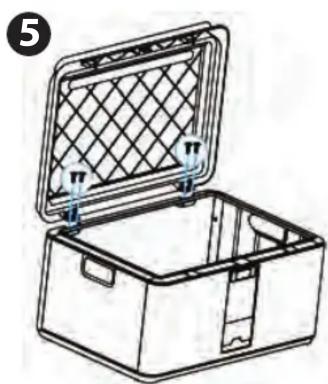

1. Align the hinge of the lid and attach with 2 screws on each side.

2. Set your own password following instructions below.

Technical line drawing of a mechanical device with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a two-part mechanical device with internal compartments and mounting points (no text or symbols)

Line drawing of an open plastic container with a mesh lid and side clips (no text or symbols)

Line drawing of a rectangular electronic device with lid and side slots (no text or symbols)

HOW TO SET A CUSTOM PASS CODE:

1. Adjust the pin to your current pass code (By default, the lock pin is set to "0000").

1. Completely remove the top drawer from the cabinet and on the inside of the cabinet switch the lever located on the lock from the B to A position.

1. While lever is in A position - set the desired new code. Make sure the 4 dials you set are exactly parallel and lined up - you don't want to set to the wrong number by mistake! (Sample below).

1. Once your new pass code is entered, change the lever back from A to the B position.

1. Make sure to write down & remember your code! There is no way to recover it once it is set!

If you want to change the pass code, follow this steps:

Step 1: Seeing from the gaps, pull the 4 lock of the gaps unified to the same orientation

Step 2: Such as the gap unified direction in the above figure 0 position, pull each lock pull 5 times, but ensure that each pull only a number

Step 3: After the second step is completed, you can open and change the new lock

Close-up of four metallic connector terminals with green wiring (no visible text or symbols)

Features:

• Convenient Storage Box Solution
• Integrated Combination Lock for Security
• User-Defined Number Pass Code Setting
• Safe, Rugged, Reliable Construction
  • Heavy-Duty Impact Resistance
  • Anti-Scratch & Stain-Resistant Housing
• Easy Access Lift-Top Hinges
• Clean & Streamline Modern Style
• Side Panel Carry Handle Grips

- Perfect for Home, Office, School, Business & Mobile Use

Technical Specs:

• Internal Storage Capacity: 21 Gallon/78 Liter
  • Maximum Support Weight: 100+ lbs.
• Construction Material: Reinforced Engineered ABS
  • Pass Code Type: Manual 4-Digit, Numerical
  • Dimensions: 9.3" x 16.3" x 23.2"

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]
