Dynamic - Roof box THULE - Free user manual and instructions

Product Type	Roof box
Brand	Thule
Model	Dynamic (Dynamic 800, Dynamic 900)
Dimensions (Dynamic 800)	Minimum length: 730 mm, Overall max length: 935 mm
Dimensions (Dynamic 900)	Minimum length: 820 mm, Overall max length: 935 mm
Width	Max 80 mm (crossbar width)
Height	Max 30 mm (crossbar height)

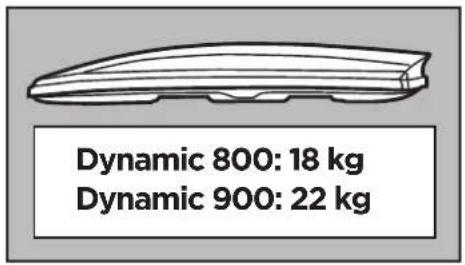

Weight (Dynamic 800)	18 kg
Weight (Dynamic 900)	22 kg

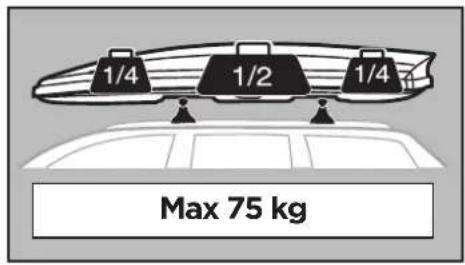

Maximum Load Capacity	75 kg
Maximum Speed	130 km/h
Key System	Thule One-Key System (keys 544, 596, 588, 452)
Compatible Accessories	Thule T-track adapter (696500, 697500), Thule Box Ski Carrier adapter (694800, 694900), Thule Boxlift (571000)
Mounting System	Roof rack crossbars (T-track compatible)
Security	Central locking with key, anti-theft design
Material	High-strength polymer / ABS (assumed based on typical Thule boxes)
Color	Black (typical)
Installation	Requires two persons, torque wrench recommended
Cleaning	Use mild soap and water, avoid abrasive cleaners
Maintenance	Check all bolts and locks regularly

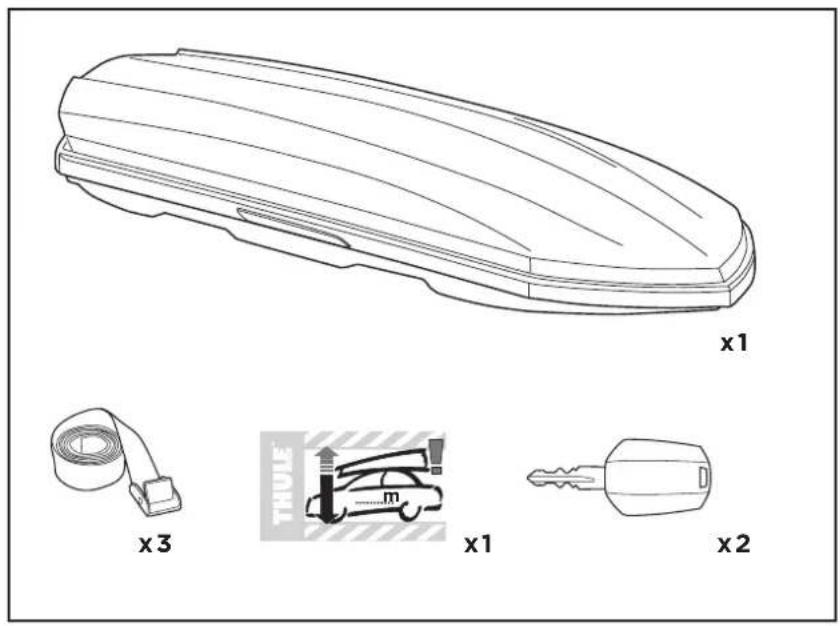

Included in Box	Roof box, mounting hardware, keys, user manual
Warranty	5 years (Thule standard)

Frequently Asked Questions - Dynamic THULE

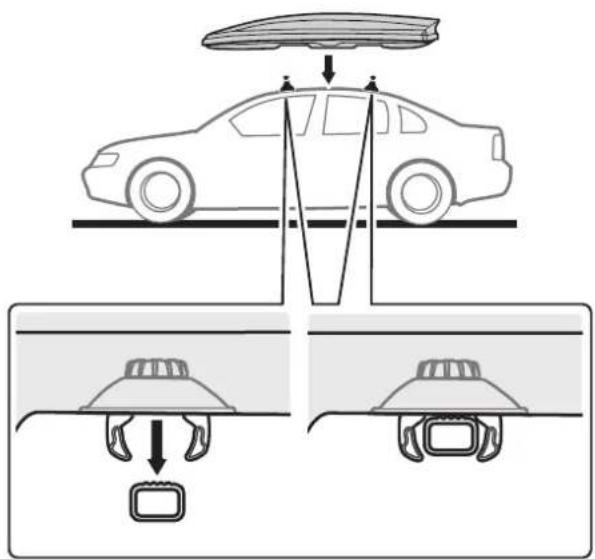

How do I install the Thule Dynamic roof box?

Place the roof box on your roof rack crossbars, align it centrally, and tighten the clamps using the provided tool. Refer to the manual for torque specifications. Ensure all locks are engaged.

What is the maximum weight capacity for the Dynamic roof box?

The maximum load capacity is 75 kg for both Dynamic 800 and Dynamic 900 models. The box itself weighs 18 kg (Dynamic 800) or 22 kg (Dynamic 900), so the total load on the roof must not exceed the vehicle's roof load limit.

Can I store skis or snowboards in the Dynamic roof box?

Yes, the Dynamic is compatible with the Thule Box Ski Carrier adapter (models 694800 for Dynamic 800 and 694900 for Dynamic 900) for safe transport of skis and snowboards.

What is the maximum speed when driving with the roof box attached?

The recommended maximum speed is 130 km/h (80 mph). Always adjust your driving to road conditions and follow local regulations.

How does the Thule One-Key System work?

The Thule One-Key System allows you to use a single key for all your Thule accessories. The Dynamic comes with keys from the 500 series (544, 596, 588, 452) which can be rekeyed to match your existing Thule lock.

What is the difference between Dynamic 800 and Dynamic 900?

The Dynamic 800 has a minimum length of 730 mm and weighs 18 kg. The Dynamic 900 has a minimum length of 820 mm and weighs 22 kg. Both have the same maximum load of 75 kg and speed limit.

How do I clean the roof box?

Use mild soap and water with a soft sponge. Avoid abrasive cleaners or pressure washers. Dry the box before storing to prevent moisture buildup.

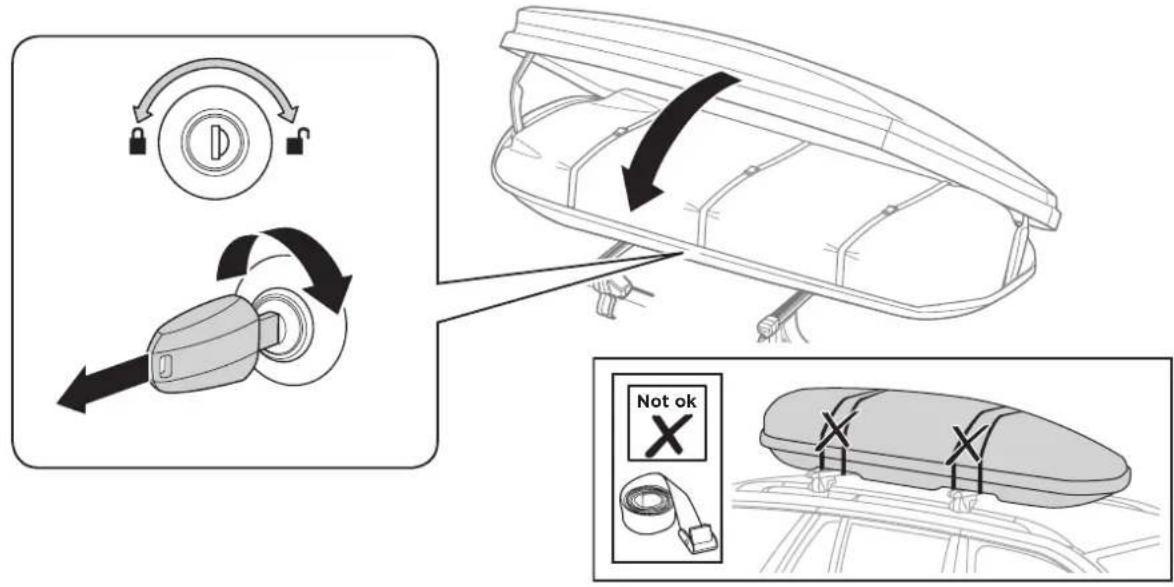

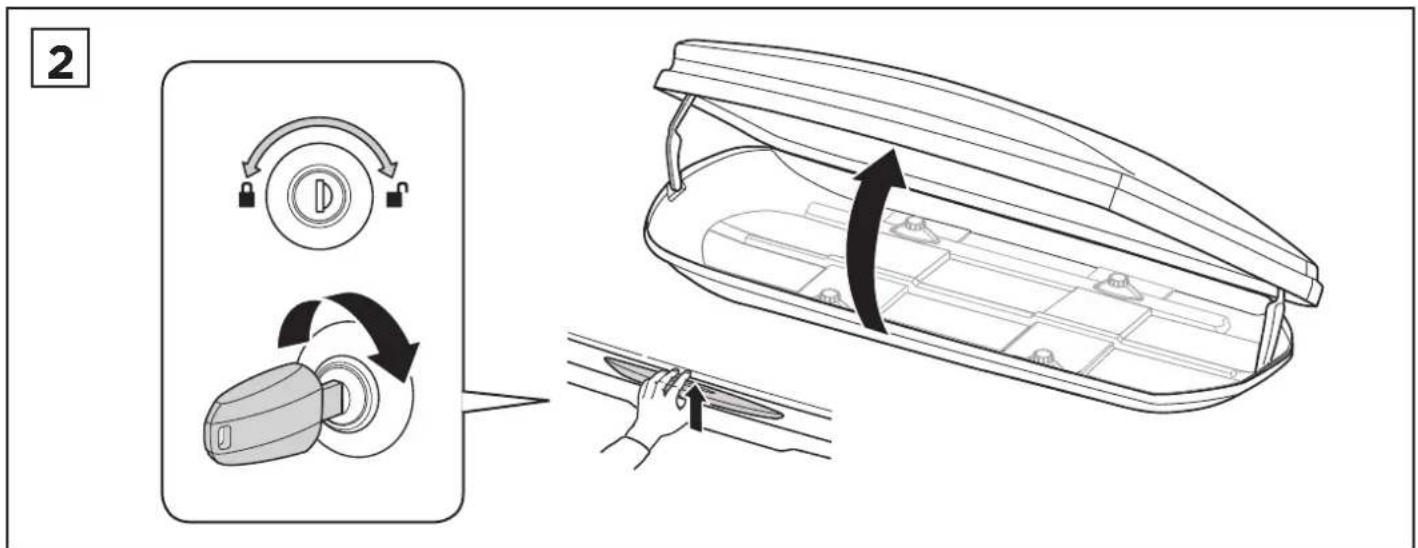

Is the roof box lockable?

Yes, the Dynamic features a central locking system. Insert the key and turn to lock or unlock both sides simultaneously. Always lock the box before driving.

Can I use the Dynamic roof box without a roof rack?

No, the Dynamic requires a roof rack system with crossbars. It is compatible with T-track adapters (Thule models 696500 and 697500) for various crossbar profiles.

What maintenance does the roof box require?

Periodically check all bolts and clamps for tightness, lubricate locks with graphite powder, and inspect seals for damage. Store the box in a dry place when not in use.

USER MANUAL Dynamic THULE

Silhouette of a black car hood with white trim and side slots (no text or symbols)

3

Line drawing of a mechanical clutch with internal compartments and a side view showing rotation (no text or symbols)

4

Technical line drawing of a boat hull with support structures and structural details (no text or symbols)

5

6

8

9

Side profile illustration of a car (no text or symbols)

i

i

i Thule T-track adapter

696500 → 24x30 mm

697500 → 20x27 mm

Technical line drawing of a mechanical assembly with a handle, plate, and bracket (no text or symbols)

i Thule Box Ski Carrier adapter

694800 → Dynamic 800

694900 → Dynamic 900

3D rendering of two parallel rectangular metal bars with rounded ends, no text or symbols present

Technical line drawing of a car rearview structure with horizontal bars and mounting brackets (no text or symbols)

