USER MANUAL MiVue Mirror R30 MIO

Getting to know the recorder 2

Using the Control panel....3

Inserting a memory card....4

Using your recorder in a vehicle 5

Operating basics....7

Turning the recorder ON 7

Continuous recording....7

Event recording....8

Camera mode 8

Playback mode 8

Configuring the recorder....9

Recording settings 9

System settings....10

GPS settings....11

Other settings....11

MiVue Manager 12

Installing MiVue Manager 12

Playing the recording files....12

For more information....15

Caring for your device 15

Precautions and notices....16

Safety precautions....16

About GPS....17

Regulatory information (CE)....18

WEEE 18

Getting to know the recorder

Note: The screenshots and other presentations shown in this manual may differ from the screens and presentations generated by the actual product.

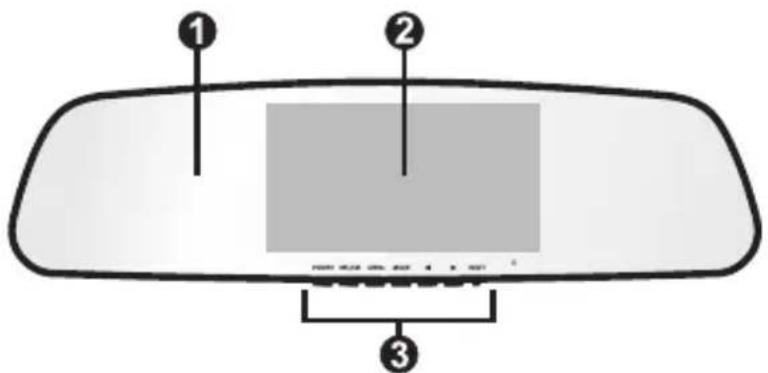

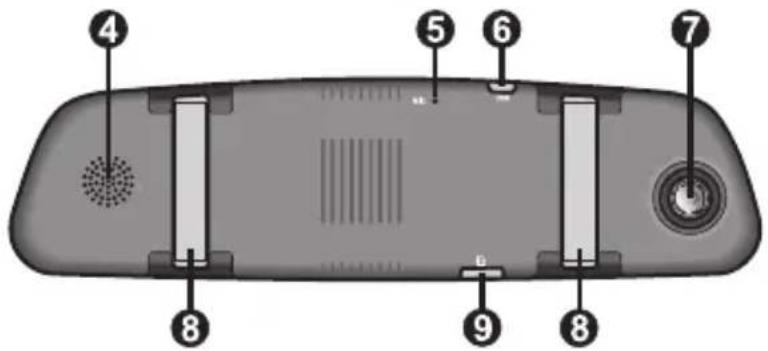

1 Rear-view mirror
2 LCD monitor
③ Control panel
4 Speaker
5 Microphone

6 Mini-USB port
7 Camera lens
8 Hooks
9 Memory card slot

Using the Control panel

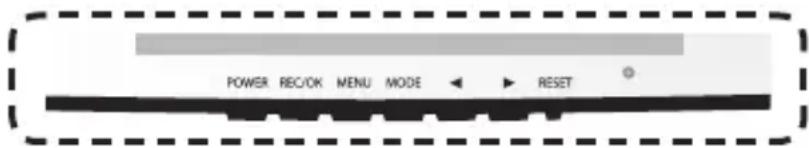

■ POWER

• Press and hold for 2 seconds to manually turn the recorder on and off.
• When the recorder is turned on, press to switch the LCD monitor on and off.

■ REC/OK

• In Recording mode, press to start and stop recording.
• In Camera mode, press to take a 4-megapixel photo.
• Acts as the ENTER button in the Settings menu.

■ MENU

• While continuous recording is in progress, press to manually start an event recording.
• Press to access the Settings menu.
• Acts as the BACK button in the Settings menu.

■ MODE

• Press briefly repeatedly to cycle through the modes: Recording > Camera > Playback.
• While continuous recording is in progress, press to take a photo.

• In the Settings menu, press ▶ to move to the previous/next item.
• While continuous recording is in progress, press to include or exclude sound in recordings.

- RESET

Press to restart the recorder.

Inserting a memory card

You must insert a memory card (not included) before you can start recording. The recorder supports memory cards with up to 32GB capacity.

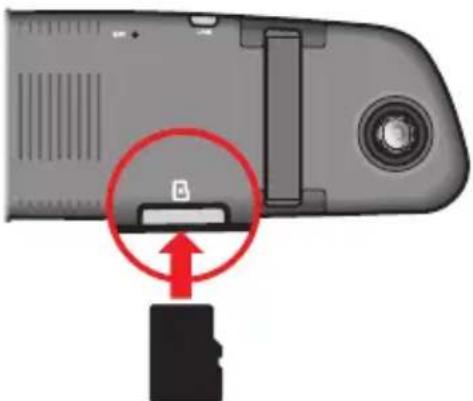

1. Hold the card by the edges and gently insert it into the slot with the label facing the rear side of the recorder.

Close-up of a device's rear panel showing a cable connector and a black plastic clip, with a red circle highlighting the cable (no text or symbols present)

1. To remove a card gently push the top edge of the card inwards to release it and pull it out of the slot.

Note:

■ DO NOT apply pressure to the centre of the memory card.
- You are advised to use a Class 10 memory card with at least 8GB capacity.
- MiTAC does not guarantee the product's compatibility with memory cards from all manufacturers.
■ Before you start recording please format the memory card to avoid malfunction caused by files not created by the recorder.
- You are recommended to turn the recorder off before removing the memory card.

Using your recorder in a vehicle

1. Make sure that your car is parked on level ground.

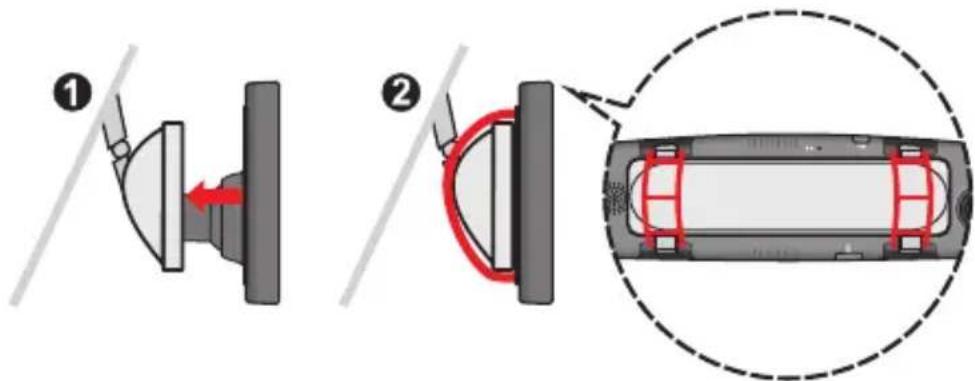

2. Use the provided rubber bands to mount the recorder on the rear-view mirror securely.

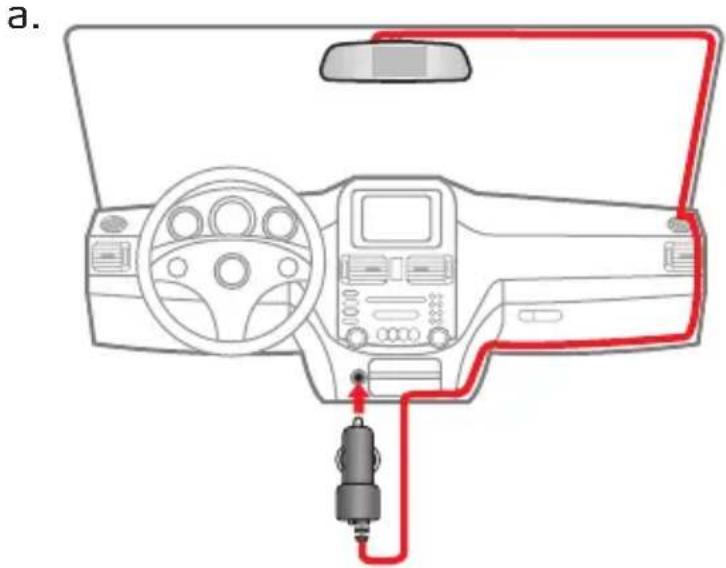

1. a. Connect the car charger to the mini-USB port of the recorder and then plug it to the cigarette lighter.

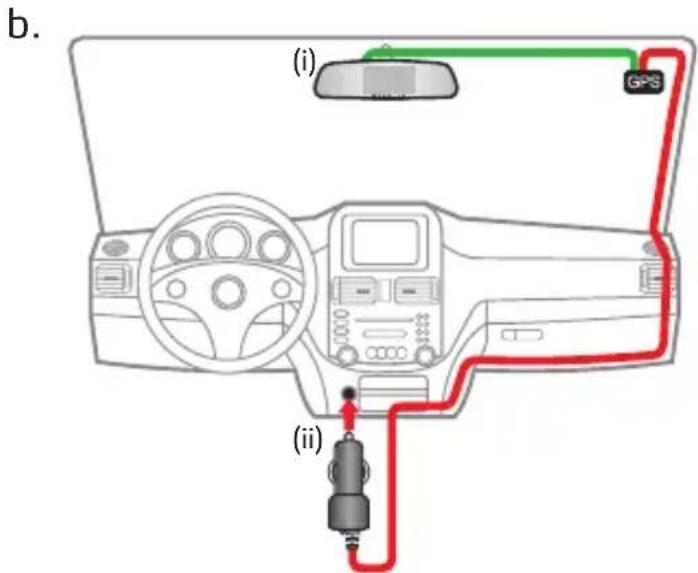

b. Install the GPS accessory (optional).

Connect the GPS accessory to the mini-USB port of the recorder (i). Connect the car charger to the mini-USB port of the GPS receiver and then plug it to the cigarette lighter (ii). Use the provided double sided tape to place the GPS receiver in a proper location securely.

Route the cables through the top ceiling and the A-pillar so that it does not interfere with driving. Make sure that the cable installation does not interfere with the vehicles airbags or other safety features.

1. When adjusting the angle of mounting, make sure that the camera's view is parallel with the level ground, and the ground/sky ratio is close to 6/4.

Top-down view of a device casing with red directional arrows indicating flow or movement (no text or symbols)

Operating basics

Turning the recorder ON

Complete the installation according to the instructions in the "Using your recorder in a vehicle" section. Once the vehicle engine is started the recorder automatically turns on.

• When the vehicle engine is turned off or the recorder's power is disconnected, the recorder automatically saves the recording and turns off.
• When a GPS fix is established, the GPS signal icon ( ) will show on the top-right corner of the screen*.
• Occasionally you may need to perform a hardware reset when the recorder stops responding or if it appears to be “frozen” or unresponsive. To restart the recorder press RESET.

* For selected models only.

Continuous recording

By default the system will automatically begin with continuous recording in a few seconds after start up. The recording may be divided into several video clips; recording will not stop between video clips.

- When continuous recording is in progress, you can stop recording by pressing REC/OK. When the recording stops, press REC/OK again to start recording manually.

CAUTION:

■ DO NOT remove the memory card while recording.
- If continuous recording is ongoing but there is not enough space on your memory card, new video clips will replace the old ones.

Event recording

en

By default if an event happens such as a sudden impact, high speed driving, an aggressive turn or an accidental crash the G sensor will prompt the recorder to start recording the event.

• If you want to manually start an event recording while continuous recording is in progress, press MENU.
• To stop event recording and resume continuous recording, press REC/OK.

Camera mode

The recorder allows you to take a snapshot by the following two methods:

■ While the recording is in progress press MODE to capture a still picture from the video clip.
- Press REC/OK to stop recording and then press MODE once to switch to the Camera mode. In Camera mode press REC/OK to take a 4-Megapixel photo.

Playback mode

1. Press REC/OK to stop recording, and then press MODE twice to switch to the Playback mode.
2. Use the ▶ button to select the desired video type: Event recording ( ) or Normal recording ( ), and then press REC/OK to enter the playback list.
3. Use the ◀ button to browse the playback list. Press REC/OK to select the desired file.
4. Press REC/OK again to start playback.
5. During playback, you can:
6. Press REC/OK to pause and resume the playback.
7. Use the ◀ button to change the playback speed (2x\~32x).

Configuring the recorder

en

While the recording is in progress, press REC/OK to stop recording. Then, press MENU to open the Settings menu.

• Press MENU repeatedly to cycle through the menu screens: Recording settings ( ) > System settings ( ) GPS settings ( ).
• Use the ◀ Button to select the desired option.
• Press REC/OK to confirm change; press MENU to cancel selection.

Recording settings

■ Video Resolution: Sets the resolution of the video.
■ Video Quality: Sets the video quality to S.Fine, Fine or Normal.
- Meter Mode: Sets the exposure metering mode to Center, Average or Spot.
- Stamp Setting: Sets the information (date, time and driver's name) that will be displayed on the video.
- AE bias: Sets the proper exposure level to adjust the brightness of the image.
■ Video Clip Length: Sets the length of each video clip for a continuous recording.
- LDWS Detect: Enables or disables the LDWS (Lane Departure Warning System) function. Once enabled, the system will alert the driver when it detects that the car has strayed from its intended lane (such as changing lane during driving).
- LDWS calibration: After the LDWS function is enabled, follow the steps below to calibrate the system.

1. Drive the vehicle in the middle of the lane.

2. Use the ◀ button to align the top line with the horizon. When done, press MODE and then repeat the step to align the bottom line with the front edge of the car's bonnet.

3. Press REC/OK to complete calibration.

- G-Sensor Setting: Sets the sensitivity level (Off, High, Medium or Low) of the G sensor that allows automatic triggering of the event recording while continuous recording is in progress.

System settings

■ Language: Sets the language.
- Driver ID Setting: This option allows you to enter the driver's name.

1. Use the ◀ button to select the desired characters.
2. Press MODE to switch to the next field and repeat the step until all fields have been completed.
3. When done, press REC/OK.

- Date/Time: Sets the system date and time.

1. Use the ◀ button to adjust the value of the selected field.
2. Press MODE to switch to the next field and repeat the step until all fields have been completed.

3. When done, press REC/OK.

4. LCD Standby: Selects Off to keep the LCD on; or sets the timer for the LCD to turn off automatically (15 sec, 30 sec or 1 min) after recording starts.
   ■ Power-off Delay: The recorder can be set to turn off in specified time (10 sec, 30 sec or 1 min) after power-off. Selects Off to turn it off immediately after power-off.

5. Beep: Enables or disables system notification sounds.
6. Format: Formats a memory card. (All data will be erased.)
7. Default Setting: Restores system settings to factory defaults.
   ■ Version: Displays the software information.

GPS settings

• Time Zone: Sets the time zone of your location and the system will automatically set the correct date and time accordingly.
  ■ GPS: Enables or disables the GPS function of the device.
  ■ GPS Location: Displays or hides the GPS information on the video.
• GPS Speed: Sets the speed value for the recorder to start offering alerts; or sets Off to disable speed alerts.

Other settings

Setting up Camera mode

Switch to Camera mode and press MENU.

■ Photo Resolution: Sets the resolution of the photo.
■ Image Quality: Sets the image quality to S.Fine, Fine or Normal.
- Stamp Setting: Sets the information (date, time and driver ID) that will be displayed on the photo.

Setting up Playback mode

Switch to Playback mode and press MENU.

• Play Mode: Sets the play mode of the video (or photo). The options are Play One, Play All, Repeat One or Repeat All.
• Delete: Enter the playback list and then you can delete file(s) by selecting Delete One or Delete All.

MiVue Manager

en

MiVue Manager™ is a tool for you to view the videos recorded on a recorder. Not all features are available for every model.

Installing MiVue Manager

Download MiVue Manager from the Support page of our website (www.mio.com/support) and follow the on-screen prompts to install it. Make sure to download the correct software version (Windows or Mac) according to your computer's operating system.

Playing the recording files

1. Remove the memory card from the recorder and access the card on the computer via a card reader. You are advised to copy the recording files to your computer for backup and playback.

You may also leave the memory card inserted in the MiVue device and connect the device to your computer via a USB cable.

1. Start MiVue Manager on the computer.

Note:

• The Map screen may not display when the computer is not connected to the Internet or when your MiVue model does not support the GPS function.

• G sensor chart displays data in 3-axis waveform about the car's shift forward/backward (X), to the right/left (Y) and upward/downward (Z).

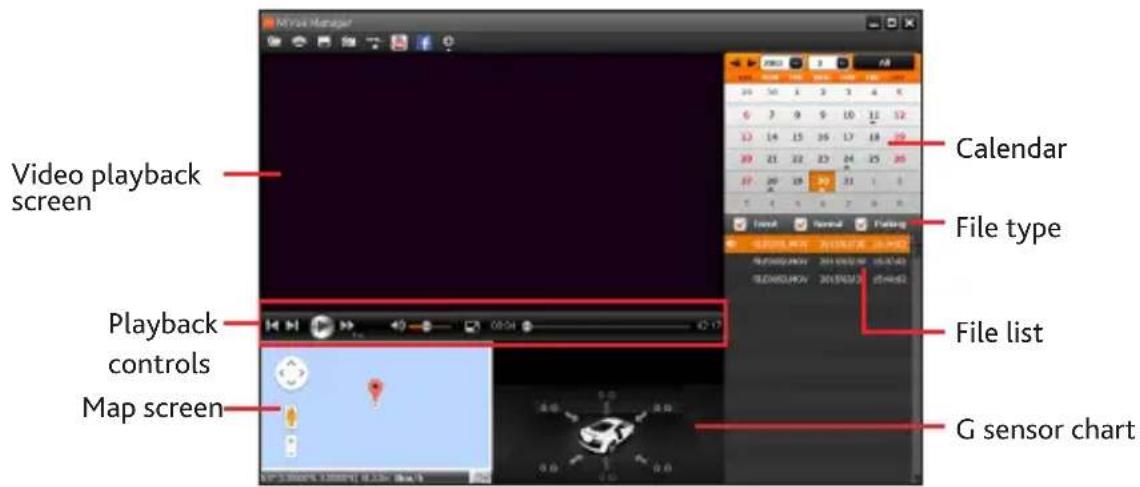

• By default MiVue Manager shows the calendar and the file list on the right.

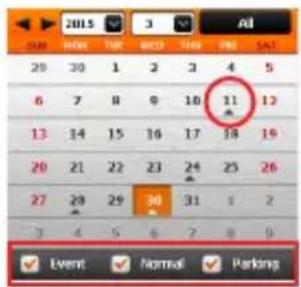

• When a recording file exists you will see the date marked with “▲.” Click that date to display the files that were recorded on that date.

• You can choose the file type to display: Event (emergency recordings); or/and Normal (continuous recordings); or/and Parking (parking recordings).

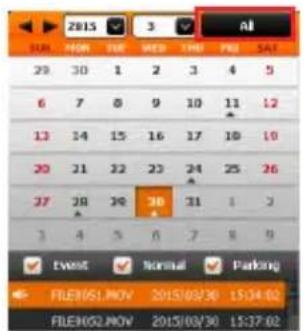

• To display all files in the current folder click All. To return to the calendar view click Calendar.

You can also click for the upper-left corner to select the folder that stores the recording files.

1. Double-click the desired file on the file list to start playback.
2. The playback controls are described as follows:

■ / !Starts or pauses the playback.
- / Skips to the previous / next file on the list.
■ Changes the playback speed to 1/4x, 1/2x, 1x (default), 1.5x, or 2x.

■ / Mutes or unmutes the volume.
■ : Adjusts the volume level.
■: Plays the video in full screen. Click to return to the normal view.
00:28 03:00 : Displays the playback progress. You can click on a point along the track bar to move directly to a different location for the playback.

1. The tool bar allows you to do the following:

2. Click to select the folder that stores the recording files.

3. Click preview and print the current video image.
4. Click to back up the selected files to the specified location on your computer.
5. Click 📁 capture and save the current video image to the specified location on your computer.
6. Click 🏠 to upload the selected file to YouTube/Facebook.
7. Click KML export the GPS information of the selected file in the KML format to the specified location on your computer.
8. Click open the Settings Menu. The Settings items are described as follows:

Change Language: Sets the display language of MiVue Manager.

Change Skin: Sets the color scheme of MiVue Manager.

Check for Update: Checks if there is any new version of MiVue Manager. Internet access is required for this feature.

About: Displays the version and copyright information of MiVue Manager.

For more information

Caring for your device

Taking good care of your device will ensure trouble-free operation and reduce the risk of damage.

• Keep your device away from excessive moisture and extreme temperatures.
• Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.
• Do not place anything on top of your device or drop objects on your device.
• Do not drop your device or subject it to severe shock.
• Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your device. In the event of moisture condensation, allow the device to dry out completely before use.
• The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen protectors designed specifically for use on portable devices with LCD panels may be used to help protect the screen from minor scratches.
• Never clean your device with it powered on. Use a soft, lint-free cloth to wipe the screen and the exterior of your device.
  ■ Do not use paper towels to clean the screen.
• Never attempt to disassemble, repair or make any modifications to your device. Disassembling, modifying or any attempt to repair could cause damage to your device, may inflict bodily harm or damage to property and will void any warranty.
• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your device, its parts or accessories.
• To discourage theft do not leave the device and accessories in plain view in an unattended vehicle.
  ■ Overheating may damage the device.

Precautions and notices

• For your own safety do not operate the controls of the product while driving.
• Make sure that no object is blocking the camera lens and no reflective material is placed near the lens. Please keep the lens clean.
• If the car's windscreen is tinted with a coating it may impact the recording quality.

Safety precautions

About charging

• Use only the charger supplied with your device. Use of another type of charger may result in malfunction and/or danger.
• This product is intended to be supplied by a LISTED Power Unit marked with “LPS”, “Limited Power Source” and output rated +5 V dc / 1.0 A.
  ■ Use a specified battery in the equipment.

About the charger

• Do not use the charger in a high moisture environment. Never touch the charger when your hands or feet are wet.
• Allow adequate ventilation around the charger when using it to operate the device or charge the battery. Do not cover the charger with paper or other objects that will reduce cooling. Do not use the charger while it is inside a carrying case.
• Connect the charger to a proper power source. The voltage requirements are found on the product case and/or packaging.
• Do not use the charger if the cord becomes damaged.
• Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture.

About the battery

CAUTION! This unit contains a non-replaceable internal Lithium Ion battery. The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns do not disassemble, crush, puncture or dispose of in fire or water.

■ Use a specified battery in the equipment.
■ Important instructions (for service personnel only)
- Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
- Replace only with the same or equivalent type recommended by the manufacturer.
- The battery must be recycled or disposed of properly.
■ Use the battery only in the specified equipment.

About GPS

• GPS is operated by the United States government, which is solely responsible for the performance of GPS. Any change to the GPS system can affect the accuracy of all GPS equipment.
• GPS satellite signals cannot pass through solid materials (except glass). When you are inside a tunnel or building, GPS positioning is not available. Signal reception can be affected by situations such as bad weather or dense overhead obstacles (e.g. trees, tunnels, viaducts and tall buildings).
  ■ The GPS positioning data is for reference only.

Regulatory information (CE)

en

For regulatory identification purposes, Mio™ MiVue™ R Series is assigned a model number of N460.

Products with the CE marking comply with the Electromagnetic Compatibility Directive (2004/108/EC) - issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Standards:

EN 55022: 2010 + AC: 2011

IEC 61000-4-4: 2012

EN 55024: 2010

IEC 61000-4-5: 2014

EN 61000-3-2: 2014

IEC 61000-4-6: 2013

EN 61000-3-3: 2013

IEC 61000-4-8: 2009

IEC 61000-4-2: 2008

IEC 61000-4-11: 2004

IEC 61000-4-3: 2006 + A1: 2007 + A2: 2010

The manufacturer cannot be held responsible for modifications made by the User and the consequences thereof, which may alter the conformity of the product with the CE Marking.

Declaration of conformity

Hereby, MiTAC declares that this N460 is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC.

WEEE

This product must not be disposed of as normal household waste, in accordance with the EU directive for waste electrical and electronic equipment (WEEE – 2002/96/EC). Instead, it should be disposed of by returning it to the point of sale, or to a municipal recycling collection point.

Revision: R00

(04/2015)

Disclaimer

Specifications and documents are subject to change without notice. MiTAC does not warrant this document is error-free. MiTAC assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the device and the documents.

Notes

Not all models are available in all regions.

Depending upon the specific model purchased, the color and look of your device and accessories may not exactly match the graphics shown in this document.

Do not operate the device while driving. Using this product does not change the requirement for a driver to take full responsibility for his or her behavior. This responsibility includes observing all traffic rules and regulations in order to avoid accidents, personal injury or property damage.

MiTAC Europe Ltd

www.mio.com
