Product Type	Freestanding or built-in dishwasher
Brand	Ariston Thermo
Model	LI68 Duo
Width	59.5 cm
Depth	57 cm
Height	82 cm
Capacity	12 standard place settings
Mains Water Pressure	20 kPa – 1 MPa (0.2 – 10 bar)
Wash Cycles	Auto Intensive, Auto Normal, Rapid, Soaking, Crystal, Auto DuoWash, RapidWash Drying
Delayed Start	2, 4, or 6 hours
Extra Drying Function	Yes, selectable via button
Half Load Option	Yes, selectable for upper or lower rack
Rack Selection	Upper or lower rack
Salt Indicator	Yes, low salt indicator light
Rinse Aid Indicator	Yes, low rinse aid indicator light
Salt Adjustment	Adjustable based on water hardness
Rinse Aid Dosage	Adjustable (6 settings)
Anti-Flood Protection	Yes, with bright red hose indicator
Filter System	Removable filter assembly (cup, semi-circular, cylindrical)
Spray Arms	Top and bottom, removable for cleaning
Upper Rack Height Adjustment	Yes, two positions
Cutlery Basket	Splitable with detachable side compartments
Water Connection	Cold water (hot water optional up to 60°C)
Electrical Connection	230V / 13A fuse (typical)
Safety Features	Earth connection, child lock (via door), overheat protection
Maintenance	Regular filter and spray arm cleaning, monthly deep clean
After-Sales Service	Ariston helpline and authorized service centres
Spare Parts Availability	Genuine Ariston spare parts for 5 years (upon registration)

Frequently Asked Questions - LI68 Duo Ariston Thermo

How do I start a wash cycle?

Load the dishes, add detergent and rinse aid, turn on the water tap, press the ON-OFF button, select the desired wash cycle using the cycle select button, then close the door. The cycle begins after a few seconds.

What should I do if the dishwasher won't start?

Check that the water supply tap is turned on, the door is closed properly, and the appliance is plugged in. Also verify that the water pressure is sufficient and the inlet hose is not blocked or kinked.

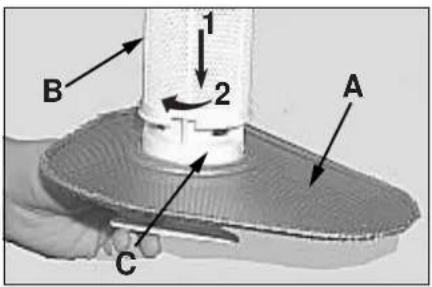

How do I clean the filters?

Remove the filter assembly after each wash by pulling the cup handle upwards. Rinse the cup and semi-circular filter under running water. Once a month, disassemble all parts (cup, semi-circular, cylindrical) and clean thoroughly with a non-metallic brush. Reassemble and press into place.

How do I adjust the salt consumption?

Unscrew the salt container cap. There is an arrow on the neck; turn it to the desired position according to water hardness (refer to the table in the manual). The settings are ‘-’ (low), ‘MED’ (medium), and ‘+’ (high).

Can I use the dishwasher with only half a load?

Yes, press the rack selection button to choose either the upper or lower rack. Use half the amount of detergent. This saves water and electricity.

How do I set a delayed start?

Press the delayed start button repeatedly to select 2, 4, or 6 hours. Then select the wash cycle and close the door. The countdown begins, and the cycle starts automatically at the end of the delay.

What do the flashing indicator lights mean?

Flashing cycle indicator lights indicate an error. Note which lights are flashing, turn off the appliance, and contact technical assistance. For example, if the crystal and auto duo-wash lights flash rapidly, the water tap may be off.

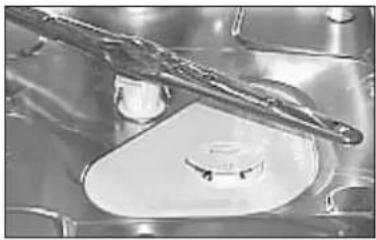

How do I clean the sprayer arms?

Remove the sprayer arms (top and bottom) once a month and rinse under running water. Use a non-metallic brush to clear any blocked holes. Ensure they rotate freely before reattaching.

Is it safe to use extension cords?

No, extension cords and multiple plugs are discouraged. If the power cord is too short, have it replaced by a qualified electrician with one of the correct length.

How do I register for the extended guarantee?

Complete and return the Registration Form supplied with the appliance using the FREEPOST envelope, or call the Registration Hotline at 0870 010 4305. Registration provides free spare parts for five years and enters you into a quarterly prize draw.

USER MANUAL LI68 Duo Ariston Thermo

Dishwasher Instructions for installation and use

Quick guide to your dishwasher

This manual explains pleasantly all your new electric household appliance has to offer. In addition, you will discover a world of useful hints and handy tips to help you get a better wash from your dishwasher and to make it last longer.

1. Installation and moving (p. 8)

Installation, after delivery or your moving house, is the most important procedure for the correct operation of your dishwasher. Always check: 1. That the electricity system is in accordance with norms; 2. That the water inlet and outlet hoses are connected correctly; 3. That the dishwasher is level on the ground. It is worth it: for the longer life span and the correct operation of your dishwasher.

2. Control panel at your orders (p. 2)

Learn to get to know the parts which make up your dishwasher, you will use it better for it. This is where you will find the description of the controls and the internal parts.

3. How to load your dishes (p. 3)

This page includes useful tips to help you load your dishwasher correctly and make the most of all the available space.

4. How to start your dishwasher (p. 4)

After loading the dishes, you need to select the right wash cycle and measure out the correct dose of detergent and rinse aid. Reading these pages will help you through all the wash phases.

5. Salt: an important ally (p. 7)

Using the right salt and in the right quantity will help you maintain your dishwasher in top condition, to wash better and to avoid possible damage caused by limescale.

6. Advice and suggestions to help you make savings as well (p.7)

This is where you will find small tips on how to wash your dishes better and to help make savings by selecting a wash cycle which best suits the type of load.

7. Troubleshooting (p. 10)

Before calling the technician, have a look here: a lot of problems can have an immediate solution. If you can't manage to solve it yourself, then call the Ariston helpline and any problem will be solved as quickly as possible.

Cartoon illustration of a smiling character holding a knife, surrounded by floating pills and coins (no text or symbols)

8. Safety for you and your family (p. 10)

Read this chapter carefully, as it will provide you with useful information on installation, use and maintenance safety. To avoid nasty surprises.

9. Special care and maintenance (p. 11)

Once in a while, once a month, spend a little time on the filter assembly and the sprayer arms. This is where you can learn how.

10. Keeping your dishwasher in shape (p.11)

Respect the few rules you will find here, and the result will be an enduring top-shape dishwasher.

11. Technical characteristics (p. 2)

All your appliance's technical data, in accordance with norms and regulations as always.

12. Ariston is still with you after purchase (p.12)

Ariston supports its products by means of after-sales services and assistance, offering you special guarantees, professional assistance as well as quality spare parts and accessories. To find out more, call the Ariston Freefone Number.

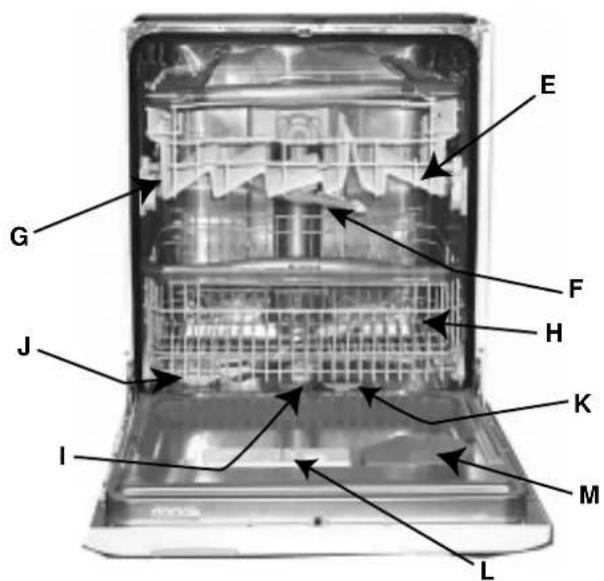

Let's open up your dishwasher together

How is it made?

Learn to get to know the parts which make up your dishwasher, you will use it better for it.

E. Upper rack

F. Top sprayer arm

G. Rack height adjuster

H. Lower rack

I. Bottom sprayer arm

J. Salt container cap

K. Washing filter

L. Detergent and rinse aid dispenser

M. "Turbo dry" fan

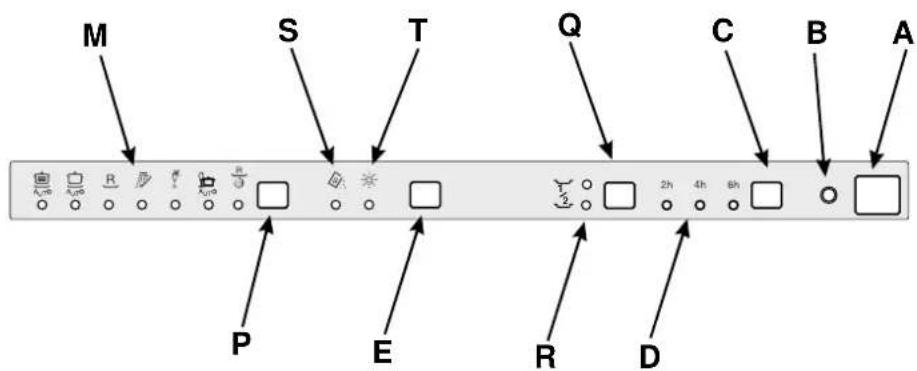

Control panel at your orders

A. ON-OFF Button

Press this button to switch the appliance on.

B.ON-OFF Indicator light

This light informs you that the dishwasher is on.

C.Delayed start select button

This button delays the start of the wash cycle you selected by 2, 4 or 6 hours.

D.Delayed start indicator light

This indicates that the delayed start has been set

E. Extra drying button Press this button for greater drying

Q. Rack selection button Press it to choose whether you want the dishes on the lower or upper rack to be washed.

R. Rack indicator light Displays the rack selected

S. Low salt indicator light

This light warns you that it is time to add more salt.

T. Low rinse aid indicator light

This light warns you that it is time to add more rinse aid

P. Cycle select button

Each time this button is pressed, one of the cycle indicator lights M will come on in sequence.

M.Cycle indicator light

This light informs you which cycle you have selected or the one in progress.

Technical Characteristics

Technical characteristics
Width cm. 59,5
Depth cm. 57
Height cm. 82
Capacity	12 standard place settings
Mains water pressure	20 KPa÷ 1MPa (0,2 ÷10 bar)
Power voltage	See data plate
Total absorber power	See data plate
Fuse	See data plate

This dishwasher conforms to the following European Community Directives:

• 73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications;

- 89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications;

How to load your dishes

Before washing, a few small steps can help you get a better wash and keep your dishwasher for longer. Remove the largest scraps of food left over on your plates, soak saucepans and frying pans with tough incrustations. After loading your dishes, make sure the blades on the sprayer arm turn well

First of all.

Before placing the dishes in the racks, remove the largest scraps of food left over on your plates, you will thus avoid blocking the filter, which would reduce the efficacy of the wash.

If the saucepans and frying pans are very dirty, allow them to soak before being washed. To make it easier to load your dishes, pull the racks out.

Multisystem racks

This dishwasher model is fitted with newer and more modern upper and lower racks and a cutlery basket. They are made to provide greater flexibility in loading dishes, making them more suitable to meet your specific needs.

The rack handles can be cleaned regularly: pull out the two fastening plugs, remove the handles and rinse them under running water. Put the handles back in place and fasten them using the plugs you removed previously.

What goes into the lower rack?

We recommend you place the most difficult dishes to wash into the lower rack: saucepans, lids, soup dishes and plates, but also: mugs, cups and glasses (see photos for load examples).

- Serving dishes and large lids: place them on the sides of the rack.

- Saucepans, salad bowls: must always be placed upside down

- Very deep dishes: place them obliquely, thus allowing water to run down them and cleaning them better

• Glasses and cups: Position them as indicated in the figure. The cutlery basket can be split up by pulling out the handle and removing the metal clip that keeps the two parts joined together.

When you only have little cutlery to wash, you can use just half the basket; save space for other crockery or place the other half of the basket in the upper rack instead (see figures A and B).

This basket is equipped with two removable grids: insert the cutlery one by one into the slots, with the handles at the bottom. Position them so that they don't touch. In this specific model, the cutlery basket is fitted with two detachable side compartments, as shown in figure A1, which can be hooked on either to the upper or lower rack, as required.

What goes into the upper rack?

Place delicate and lightweight dishes in the upper rack: glasses, tea cups and coffee cups, saucers - but plates too - shallow salad bowls, slightly dirty frying pans and shallow pans.

Position light weight dishes in such a way as to avoid their being moved by the spray of water.

The appliance can also be equipped with one or two tip-up compartments onto which you can place mugs and cups, as well as long sharp knives and serving cutlery.

After loading the dishes, remember to check that the blades on the sprayer arms can turn freely without hitting against any dishes.

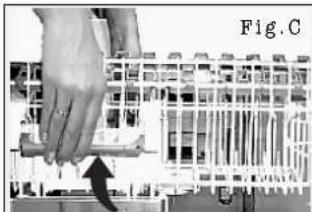

How to adjust the top rack.

The upper rack can be set in high or low position to enable you to organise your dishes effortlessly.

Hand pressing a component on a mechanical assembly (no visible text or symbols)

There are two handles on the sides of the upper rack: use these to adjust its height (see fig. C)

Three white plastic building structures with structural details, no visible text or symbols

Cartoon illustration of a woman using a refrigerator with a glass bowl, surrounded by a smiling face (no text or symbols)

Load examples
lower rack

Illustration of a basket filled with sliced meat and meat cuts, no text or symbols visible

upper rack

Interior view of a kitchen appliance with multiple cylindrical food items and a rack (no visible text or labels)

A metal basket containing various food items including vegetables, bread, and meat (no visible text or labels)

Interior view of a multi-level storage or processing unit with multiple cylindrical components and mesh framework (no visible text or symbols)

A metal wire cage containing multiple small white and black objects, possibly birds or insects, arranged in a rectangular pattern (no visible text or symbols).

Interior view of a stainless steel kitchen appliance with a hand pointing to a white cylindrical component (no visible text or symbols)

Where to put the different parts of the cutlery basket

3D wireframe model of a cage-like structure with no visible text or symbols

3D wireframe model of a mechanical or architectural component with grid lines and structural elements (no visible text or symbols)

Starting the dishwasher

Ready, steady, go!

You have loaded your dishes and you now have to set the wash cycle. It takes just one minute to learn how

First of all.

After performing all the operations described in the previous paragraphs, turn the water tap on completely, open the appliance door and press ON-OFF button "A": indicator light "B" comes on. Your appliance is now on and awaiting instructions.

Selecting the wash cycle.

Select the wash cycle by pressing button "P". Each time this button is pressed, one of the indicator lights "M" will come on in sequence, select the wash cycle you deem most suitable for the type of dishes to wash (take a look at page 6, where you will find the wash cycle table). Close the appliance door and after a few seconds, you will hear a short beep: the wash cycle has begun.

Modifying a wash cycle in progress.

But if you have chosen the wrong cycle, not to worry! You can modify the wash cycle in progress, if it has only just started. Open the appliance door carefully to avoid any hot water splashes, then keep button "P" pressed for approximately 5 seconds, until you hear 3 short beeps. Indicator light "M" will come off and at this point, all the settings will have been cancelled. You are now free to re-set the correct wash cycle.

You've left out a dish?

Well, it happens to everyone. Interrupt the wash cycle by opening the appliance door with the utmost care, as usual, then insert the dish you had forgotten. When you shut the appliance door, the cycle will start up from where you interrupted it.

Finished?

The end of the wash cycle is indicated by a double beep and the flashing of the wash cycle indicator light "M". Open the dishwasher door, press the ON-OFF button as well, thus cutting off the electricity supply to the appliance. Turn off the water tap.

Wait a few minutes before unloading the dishes: they are very hot! If you wait a little while, they dry better thanks to the steam. Empty the lower rack first.

Make sure the wash cycle has ended before removing the dishes!

There's been a power failure? Have you opened the dishwasher door?

The wash cycle stops and then restarts when the electricity comes back on or when you close the door. Everything is under control!

You decide when it starts.

When you have loaded the dishes, you can choose when to start your dishwasher before setting the wash cycle desired.

Press button "C" to delay the start of the wash cycle by 2, 4 or 6 hours. Each time you press it, you will hear a short beep and indicator light. "D" corresponding to the selected delay will come on.

Now you can select the desired wash cycle.

Close the appliance door and, after you hear the beep, the countdown to the delayed start will begin. If, for example, you have set the delayed start to 6 hours, the 6 hour indicator light will flash, then the 4 hour indicator light will flash, and finally the 2 hour indicator light. A quick look at the indicator lights will keep you informed of the countdown progress at all times. Once this time is up, indicator light "D" will stop flashing and the wash cycle will begin.

Have you changed your mind?

If you change your mind and you wish to set a different delay, just open the appliance door, press button "C" and repeat the selection. If on the other hand you want to cancel the delay set and you wish

Cartoon illustration of a woman standing beside a smiling cheese slice with arms, next to a person holding a bag (no text or symbols)

to start the wash cycle immediately, press the button in sequence until indicator light "D" comes off.

Once you close the appliance door, the wash cycle set previously will begin.

You want to wash on one rack only?

Remember to use half the amount of detergent.

Your dishwasher also allows you to wash half a load, to save water and electricity. Before setting any wash cycle whatsoever, press button "Q" repeatedly to select whether you want to run a half cycle on the upper or lower rack. Each time you press it, you will hear a short beep and indicator light "R" corresponding to the selected rack will come on.

Do you want extra drying?

Press button "E" before you start the selected wash cycle.

A prolonged beep will inform you that you have selected extra drying, a short beep indicates it has been disabled.

With extra drying, the wash cycle will last longer, to provide you with drier dishes.

If you have delayed the start of your wash cycle, it is best if you do not modify anything while you wait during the countdown. If you really have to, then press button "P" and keep it pressed down for approximately 5 second You will hear 3 short beeps and all the settings will be cancelled. You can now repeat the programming operations.

Detergent and rinse aid

Only use specific dishwasher detergents. Pour the detergent into the dispenser on the inside of the door. Before the wash cycle starts!

The detergent

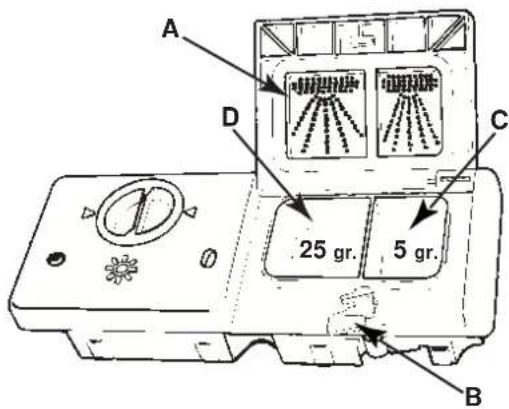

Loading the detergent

To open lid A, press button B. The detergent should be poured into the two containers C and D up to the rim.

Now you can close the lid: press it down until you hear it click.

If you prefer to use the detergent in tablet form, then place one inside the container "D" and close the lid.

It won't close!

Check whether there is any detergent residue on the edges of the dispenser. It is due to this residue that the lid won't close. Get rid of it and you'll see that it closes.

Useful tips

• Use the right amount of detergent: if you use too much, you will not get cleaner dishes, but just more environmental pollution.
- Keep your dishwasher detergent and rinse aid in a cool, dry place and away from children.

The rinse aid.

This product makes dishes sparkle more as it improves their drying. The rinse aid container is situated on the inside of the door. You should fill it up when the rinse aid indicator light "T" flashes.

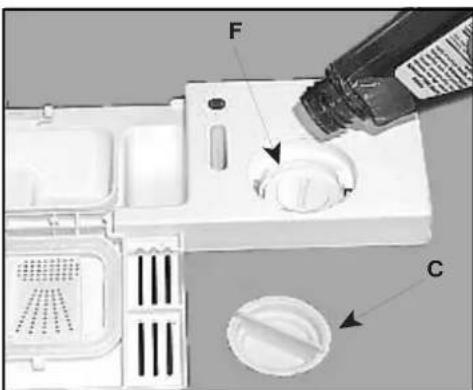

Loading the rinse aid.

To open the dispenser, turn cap C anticlockwise. Take care when you pour in the rinse aid to avoid it overflowing. You can adapt the amount of rinse aid used by the dishwasher: regulate the adjuster F which you will find under lid C.

You can choose from six different positions. It is normally set to 4.

Proper dosage of the rinse aid improves drying. If drops of water remain on the dishes or spotting occurs, turn the dosage adjuster to a higher setting. If, on the other hand, the dishes have white streaks, then turn the dosage adjuster down to a lower setting.

A wash cycle for every degree of soil

Salt, rinse aid, the right amount of detergent and the correct wash cycle: this is the formula to get the best results and to keep your dishwasher in shape

Note: in the auto wash cycles, the cycles could undergo some modifications due to the intervention of the sensor which evaluates how dirty the dishes are and optimises the cycle in accordance.

"AUTO" wash cycles

This means that your dishwasher is equipped with a sensor which evaluate how dirty your dishes are and allows these wash cycles to adjust automatically, to provide you with a more efficient and economic wash cycle.

CycleCycle selection instructions		Cycledescription	Detergent for prewash+ wash	Rinse Aid
Auto Intensive	Very dirty dishes and pans (not to be used for delicate items)	Pre-wash with cold waterPre-wash with hot water at 45°CExtended wash at 70°CRinse with cold waterHot rinse at 70°CDrying.	5+25 g.	*
Auto Normal	Normally dirty pans and dishes.Standarddailycycle.	2 pre-washes with cold waterExtended wash at 50°CHot rinse at 70°CDrying.	5+25 g.	*
Rapid	Economic and fast cycle to be used for slightly dirty dishes. Run cycle immediately after use.No drying.	Short wash at 45°C.Coldrinse.	25 g.
Soaking	Preliminary wash cycle for dishes while awaiting completion of the load with the dishes from the next meal.	Short cold wash to prevent food from drying onto the dishes
Crystal	Economic and fast cycle to be used for more delicate itemswhicharesensitiveto high temperatures. Run cycle immediately after use.	Wash at 50°CLukewarm rinseHot rinse at 70°CDrying.	25 g.	*
Auto DuoWash	Wash differentiated on the two racks: delicate for glassware and glasses on the upper rack and heavy duty for the pans on the lower rack.	Pre-wash with cold waterWash at 55°CHot rinse at 70°CDrying.	5+25 g.	*
RapidWash Drying	Economic and fast cycle to be used for slightly dirty dishes. Run cycle immediately after use.	Short wash at 40°C.ColdrinseHot rinse at 70°C.Drying	25 g.	*

Never without salt

Water in your home

Water hardness varies according to where you live. If the water in your home is hard, without water softening, incrustations would form on your dishes. Your dishwasher is fitted with a water softener which uses special salt to get rid of limescale in the water.

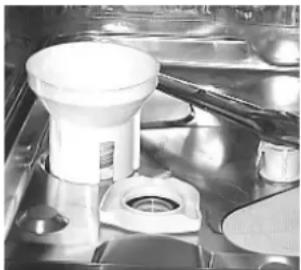

Loading the salt.

Always use salt which is intended for dishwasher use.

The salt container is situated underneath the lower rack, fill it up as follows:

1. Pull out the lower rack completely, unscrew and remove the container cap
2. Is it the first time you load the salt? First fill the container up with water (you won't have to do this again next time)
3. Put the dishwasher funnel on the hole and pour in approximately two kilos of salt. It is normal that some water comes out of the container.
4. Screw the cap back in place carefully.

Close-up of a mechanical component with a white funnel and mounting base (no visible text or symbols)

When should I load the salt?

The salt container should be filled up when the low salt indicator light "S" flashes. Your appliance will remind you to do so for three consecutive wash cycles.

Salt adjustment

Your dishwasher can adjust its salt consumption according to the hardness of the water in your home. This way, you can optimise and customise your dishwasher's salt consumption (not too much, nor too little).

To adjust salt consumption, do as follows:

1. Unscrew the salt container cap
2. There is an arrow on the neck of the container (see figure): if necessary, turn the arrow anticlockwise from the "-" setting to the "+" setting.

Select the arrow position depending on the water hardness, referring to the table provided.

Suggestions and advice for you. How to look after and protect the dishes you hold dear

■ Almost all silverware can be cleaned in a dishwasher. There are two exceptions: old silverware and silverware decorated with an oxidising agent. Hot water can loosen the handles on old silverware ad wear off the decorations on the other. Never let silverware come into contact with other metals: you will thus avoid stains and blackening

Apart from making you save time and energy, your dishwasher disinfects your dishes, washing them at a high temperature.

Cartoon illustration of a person inside a folder with arms and legs, waving (no text or symbols)

■ Silver plates and serving dishes should be washed immediately after use, especially if they have contained salt, eggs, olives, mustard, vinegar, fruit juices and cooked vegetables.
■ For particularly delicate dishes, we recommend you use the specific wash cycle offered by your dishwasher.

Water Hardness
Clarke degrees	°fH	mmol/l	Selector position	Salt consumption (grams/-cycle)	Autonomy (cycles\2-kg)
0 - 14	0 - 17	0 -1,7	/	0	/
14 - 36	18 - 44	1,8 - 4,4	"- "	20	60
36 - 71	45 - 89	4,5 - 8,9	MED	40	40
>71	>89	>8,9	"+"	60	25

Technical line drawing of a mechanical component with concentric layers and mounting base (no text or symbols)

ISHWASHER

To prevent rust from forming, load the salt just before beginning a wash cycle.

You don't know how hard the water in your home is? Ask the company that supplies water in your area.

Savings are easy

Using your electric household appliances wisely helps you make savings and is good for the environment.

Maximum load.

To optimise consumption levels, try to use the dishwasher with a full load only. If it takes quite some time to fill up your dishwasher, use the soak cycle to avoid the formation of bad odours and caked-on food.

The right wash cycle.

Select the most suitable wash cycle for the type of load you have placed in the dishwasher. The choice of wash cycle depends on the type of dishes to wash and on how dirty they are. To select the right wash cycle, please consult the wash cycle table on page 6.

Installation and moving

Your dishwasher has arrived

After having bought or moved your dishwasher to another home, a correct installation ensures that your dishwasher will operate smoothly and efficiently.

Choose where you want to install your dishwasher, you can even place it so that its sides or back panel are side by side with furniture or up against the wall. The dishwasher is provided with water supply and drain hoses, which can be directed towards the left or right to facilitate appropriate installation.

Levelling.

Once the appliance is positioned, adjust the feet by screwing them in or out depending on how high you want it and to level it so that it is horizontal. Make sure that it is not inclined more than 2 degrees. If the appliance is level, it will help ensure its correct operation.

Adjusting the back Feet

Insert the appliance into the cutout and then adjust the height using the screws located on the front bottom part of the machine. Use a screwdriver to turn the screws in the clockwise or anti-clockwise direction to increase or decrease the height respectively.

Cold water connection.

Connect the cold water supply hose to a 3/4 gas threaded connection, taking care to screw it tightly onto the tap. If the water hoses are new or have been out of use for an extended period of time, let the water run to make sure it is clear and free of impurities before making the connection. If this precaution is not taken, the water inlet could get blocked, causing damage to your dishwasher.

Hot water connection.

Your dishwasher can be supplied with hot water from the mains supply (if you have a central heating system with radiators) at a temperature of no more than 60°C. In this case, the wash cycle time will be about 15 minutes shorter and the wash will be slightly less effective.

The connection must be made to hot water supply following the same procedures as those indicated for the cold water connection.

Anti-flooding protection

Your dishwasher is provided with a special system which blocks the water supply in the event of leaks inside the appliance. It is further equipped with a water inlet hose that can withstand extremely high pressures and that turns bright red in the event of breakage. Safety in the event of flooding is ensured by the second clear hose that contains the former and thus highlights the latter when it has turned bright red. It is vital that you check it on a regular basis: if you see it has turned bright red, then you know you have to replace it as soon as possible. Call for an authorised technical engineer to come and replace it.

Drain hose connection.

Fit the drain hose into a drain pipe with a minimum diameter of 4 cm or place it over the sink. Avoid restricting or bending it. Use the special plastic elbow provided (see figure) to position it in the best possible way. The free end of the hose should be between 40 and 100 cm above the ground and should not be immersed in water.

Cartoon illustration of a smiling washing machine holding two hoses (no text or symbols)

Electrical connection.

First of all, check that the mains voltage and frequency values correspond to those stated on the rating plate located on the stainless steel inner door of the appliance and that the electrical system to which the dishwasher is connected is sized for the maximum current indicated on said rating plate.

Earth: indispensable safety.

Only now can you plug the appliance into a socket provided with an efficient earth connection (the system's earthing is a guarantee of safety provided for by law, make sure your system has it).

Power supply wire.

Check the power supply wire on a regular basis; if it is damaged, we recommend you have it replaced by an authorised technical Assistance service centre.

Electrical Connection

Electrical Connection

If your appliance is supplied with a 13 amp. fused plug it can be plugged into a 13 amp socket for immediate use. Before using the appliance please read the instruction below.

Replacing the fuse:

When replacing a faulty fuse, a 13 amp ASTA approved fuse to BS 1362 should always be used, and the fuse cover re-fitted. If the fuse cover is lost, the plug must not be used until a replacement is obtained.

Replacement fuse covers: If a replacement fuse cover is fitted, it must be of the correct colours as indicated by the coloured marking or the colour that is embossed in words on the basis of the plug. Replacements can be obtained directly from your nearest Service Depot.

Removing the plug:

If your appliance has a non-rewireable moulded plug and you should wish to remove it to re-route the mains cable through partitions, units etc., please ensure that either: -the plug is replaced by a fused 13 amp re-wireable plug bearing the BSI mark of approval

-01:

-the mains cable is wired directly into a 13 amp cable outlet,

controlled by a switch, (in compliance with BS5733) which is accessible without moving the appliance.

Disposing of the plug:

Ensure that before disposing of the plug itself, you make the pins unusable so that it cannot be accidentally inserted into a socket.

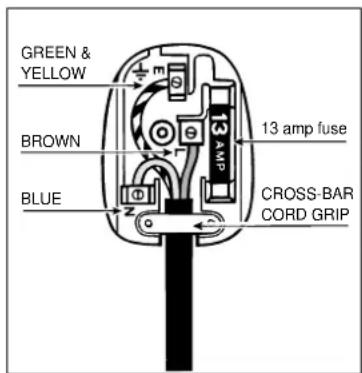

Instruction for connecting cable to an alternative plug: Important: the wires in the mains lead are coloured in accordance with the following code:

Green & Yellow-Earth

Blue-Neutral

Brown-Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminal in your plug, proceed as follows:

connect Green & Yellow wire to terminal marked "E" or ± coloured Green or Green & Yellow.

Connect Brown wire to terminal marked "L" or coloured Red.

Connect Blue wire to terminal marked "N" or coloured Black.

If a 13 amp plug (BS 1363) is used it must be fitted with a 13 amp fuse. A 15 amp plug must be protected by a 15 amp fuse, either in the plug or adaptor or at the distribution board.

If you are in any doubt about the electrical supply to your machine, consult a qualified electrician before use.

How to connect an alternative plug:

The wires in this mains lead are coloured in accordance with the following code:

- Blue "NEUTRAL" ("N")

-Brown "LIVE" ("L")

-Green

and Yellow "EARTH" ("E")

Disposing of the appliance:

When disposing of the appliance please remove the plug by cutting the mains cable as close as possible to the plug body and dispose of it as described above.

Caution: The dishwasher plug must be accessible even when the appliance is installed as a built-in unit so that maintenance can be done safely.

Troubleshooting

If you have a problem, read this

Your dishwasher may not work or not function properly. In many cases, these are problems which can be solved without having to call for a technician. Before calling the service centre, always check the points below.

The dishwasher won't start

■ Is the water supply tap turned on?
■Is the water supply tap connected to the hose properly?
■Has the water in your home been cut off?
■Is the pressure of the water supply sufficient?
■Is the hose bent?
■ Is the filter on the water supply hose blocked?
■Is the dishwasher door open?

The dishes are not clean.

■ Have you put the right amount of detergent into the dispenser?
■Is the wash cycle suitable for the dishes you have placed inside the appliance?
■Are the filter and microfilter clean?

■Can the sprayer arms turn freely?

The dishwasher won't drain.

■Is the drain hose bent?

Limescale deposits or a white film form on the dishes.

■ Is the lid on the salt container closed properly?
■Is the rinse aid dosage correct?

Error messages

Your dishwasher is equipped with a safety system which is able to detect any operating anomalies. These anomalies are reported by one or two wash cycle indicator lights "M" flashing rapidly. Take a note of which lights are flashing, turn the appliance off and call for technical assistance.

Tap off alarm

If you have forgotten to turn the water tap on, your appliance will remind you of this by sounding a few short beeps for a few minutes. Turn the tap on and your appliance will start up again after a few minutes. Were you to be absent when these beeps are sounded, the appliance will be blocked automatically and wash cycle 5 and 6 indicator lights (crystal and auto duo-wash) will flash rapidly.

Turn the appliance off at the ON-OFF button, turn on the water tap and wait approximately 20 seconds before turning the appliance back on, the wash cycle will start up again.

You have checked everything, but the dishwasher still doesn't work and the problem persists?

Call an authorised service centre near you and remember to mention:

• the type of malfunction
- the model mark (Mod....) and the serial number (S/N....) indicated on the rating plate located on the inner door, to one side.

Never call upon the services of unauthorised technicians and always refuse spare parts that are not originals.

Safety within your home

Your dishwasher was built in accordance with the strictest international safety regulations. They protect you and your family. Read the instructions and information contained in this manual: they will provide you with useful hints as to installation, use and maintenance safety. To avoid nasty surprises.

1. Dispose of the packaging material carefully (follow the instructions on how to divide your rubbish up provided by your local Council)
2. After removing the packaging, check to make sure your appliance is intact. If in doubt, contact a qualified professional.
3. Your dishwasher must only be used by adults and for washing household dishes, according to the instructions included in this manual. Do not touch the appliance with wet hands or feet or barefoot.

4. We discourage the use of extension leads and multiple plugs. If the electricity supply wire is not long enough, then have it replaced with one of the correct length and remember that it should be free of bends or dangerous kinks.

5. If the appliance is not operating properly or if maintenance operations are necessary, disconnect the dishwasher from the mains power supply (unplugit!).

6. Keep children away from the dishwasher when it is open and keep detergents out of their reach.
7. Your dishwasher is not to be installed outdoors, not even if the area is covered by a roof: it is extremely dangerous to leave it exposed to rain and thunderstorms.
8. Do not touch the heating element during or straight after a wash cycle.
9. Do not lean or sit on the door when it is open, as this could overturn the dishwasher.
10. If the appliance malfunctions, turn off the water inlet tap and disconnect the plug from the wall socket. Then try

consulting the section entitled "I you have a problem, read this". If you cannot resolve the problem, then call the service centre.

1. Once taken out of use, appliances must be made inoperable: cut the power supply wire and damage the doorlock.

Care and maintenance

Cleaning and special maintenance

The filter assembly

If you want consistent good results from your dishwasher, you need to clean the filter assembly.

The food particles are removed from the wash water, allowing it to be recirculated during the cycle, filtered perfectly. For this reason, it is a good idea to remove the larger food particles trapped inside the cup "C" and the semi-circular filter A after each wash; pull the cup handle upwards to remove them. Just rinse them under running water.

The entire filter assembly should be cleaned thoroughly once a month: cup C + semi-circular filter A + cylindrical filter B. Rotate filter "B" anticlockwise to remove it.

For cleaning, use a non metallic brush.

Reassemble the filter parts (as shown in the figure) and reinsert the whole assembly into the dishwasher. Position it into its housing and press downwards.

The dishwasher is not to be used without filters. Improper replacement of the filters may reduce the efficiency of the wash and even damage your dishwasher.

Cleaning the sprayer arms.

Food residue may become encrusted onto the sprayer arms and block the holes where water comes out. Check the sprayer arms regularly and clean them once in a while (letters F and I "How is it made?").

Once in a while, once a month, spend a little time on the filter assembly and the sprayer arms.

Close-up of a metallic mechanical component with a central circular base and a diagonal handle (no visible text or symbols)

Keep your dishwasher in shape

Respecting these few rules ensures you will always have a reliable work companion by your side.

After every wash.

When the wash cycle has ended, always remember to turn off the water supply tap and to leave the appliance door ajar. This way, moisture and bad odours will not be trapped inside.

Unplug the appliance.

Before carrying out any cleaning or maintenance on the dishwasher, always remove the plug from the electricity socket. Do not run risks.

No solvents! No abrasives!

To clean the exterior and rubber parts of your appliance, do not use solvents or abrasive cleaning products. Use a cloth dampened with lukewarm soapy water only. If there are any stains on the surface of the appliance interior, use a cloth dampened with water and a little white vinegar, or a cleaning product specifically made for dishwashers.

Going on holiday?

When you go away for an extended period of time, we recommend you do the following:

• run a cycle with the dishwasher empty
• turn off the water inlet tap.
- leave the appliance door ajar
This will help the seals last longer and prevent unpleasant odours from forming inside the appliance.

Moving the appliance.

Should the appliance have to be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

The seals.

One of the factors that cause unpleasant odours to form inside the dishwasher is food that remains trapped in the seals. Periodic cleaning using a damp sponge will prevent this from occurring.

Illustration of a woman pouring liquid from a bowl to a slice of cheese, with a hand holding a spoon (no text or symbols)

Your dishwasher is not a waste disintegrator!

Do not worry about removing every single bit of food residue from your dishes, but do get rid of bones, peel and rind and any other left-overs before placing them in the racks. Empty out all glasses and cups.

Stay in touch

Cartoon illustration of a smiling computer with arms and legs, pointing to the right (no text or symbols)

THANK YOU for choosing an Ariston appliance. We are confident you have made a good choice and that your new appliance will give many years of excellent service.

And we're there when you need us.

Register your purchase now

This will confirm your entitlement to free spare parts for five years, and you could also be lucky enough to recover the cost of your purchase in our quarterly prize draw.

Simply complete and return the Registration Form supplied with the appliance documents, using the FREEPOST envelope supplied. Or call the Registration Hotline on 0870 010 4305.

Enjoy complete peace of mind. By registering now, you automatically qualify for a full year's guarantee on parts and labour PLUS free functional parts cover for a further 4 years, provided they are genuine Ariston spare parts fitted by an Ariston Service Engineer.

We're as close to you as your telephone

For direct access to Genuine Ariston Spare Parts and Accessories, call 0870 558 5850 and speak to our skilled staff who can help you to identify and purchase the item you require.

For a Rapid Response to a problem with your appliance, call 0870 607 0805. We're open from Monday to Saturday (8am - 5.30pm weekdays, 9am - 5pm Saturday). We have our own department of highly trained Ariston service staff. For most calls, our Service Engineer can fix the problem on the first visit.

Please have the following details to hand when you ring us: The nature of the problem, the Model Number and the Serial Number. These numbers can be found on the appliance and on the portion of the Registration Card which you retain.
