Product Type	Remote Control
Brand	Gembird
Model	STR-MV-02
Compatibility	Universal for most TV, DVD, and audio devices
Dimensions (approx.)	17 x 5 x 2 cm
Weight (with batteries)	Approx. 100 g
Power Supply	2 x AAA batteries (not included)
Number of Keys	40+
Control Range	Up to 8 meters
Frequency	Infrared (IR) 38 kHz
Cable Length	N/A (wireless)
Color	Black
Material	ABS plastic
Key Functions	Power, volume, channel, mute, menu, directional pad
Programming Method	Auto-search or manual code entry
Battery Life	Approx. 6 months with normal use
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Certifications	CE, RoHS
Cleaning Instructions	Wipe with a soft dry cloth; avoid liquids
Battery Safety	Do not mix old and new batteries; remove if not used for long periods
Spare Parts Availability	Batteries only (standard AAA)
Repairability	Not user-serviceable; replace if defective

Frequently Asked Questions - STR-MV-02 Gembird

How do I set up the Gembird STR-MV-02 remote for my TV?

Turn on your TV. Press and hold the SETUP button until the LED blinks. Enter the 4-digit code for your TV brand (see manual). If the code is accepted, the LED turns off. Test volume and power.

What batteries does the remote use?

The remote requires two AAA alkaline batteries (not included). Insert them with correct polarity.

How do I replace the batteries?

Slide the battery cover off the back. Remove old batteries and insert new AAA batteries. Replace cover. Dispose of old batteries properly.

The remote is not working. What should I check?

First, check battery placement and charge. Ensure no obstacles between remote and device. Try resetting by removing batteries for 2 minutes. If still not working, reprogram the remote.

How do I find the correct code for my TV?

Press and hold SETUP until LED blinks. Press TV button. Use the CH+ and CH- buttons to scroll through codes. Stop when the TV responds (e.g., volume changes). Press SETUP to save.

Can I use this remote with multiple devices?

Yes, the STR-MV-02 can control up to 4 devices (e.g., TV, DVD, satellite box, soundbar). Program each device separately using the respective mode button (TV, DVD, AUX, etc.).

How do I clean the remote?

Use a soft, dry cloth to wipe the surface. Do not use any liquids or cleaners, as they may damage the electronics.

What if I lose the manual?

You can download the PDF manual from the manufacturer's website or from notice-facile.com. Search for Gembird STR-MV-02.

Is the remote backlit?

No, the Gembird STR-MV-02 does not have a backlight. Buttons are not illuminated.

How do I reset the remote to factory settings?

Remove batteries and press any key for 5 seconds to discharge. Reinsert batteries. The remote will default to factory settings and you must reprogram it.

USER MANUAL STR-MV-02 Gembird

Abstract logo design with a stylized arrow and 'GE' text, no readable text or symbols beyond the graphic elements.

GEMBIRD®

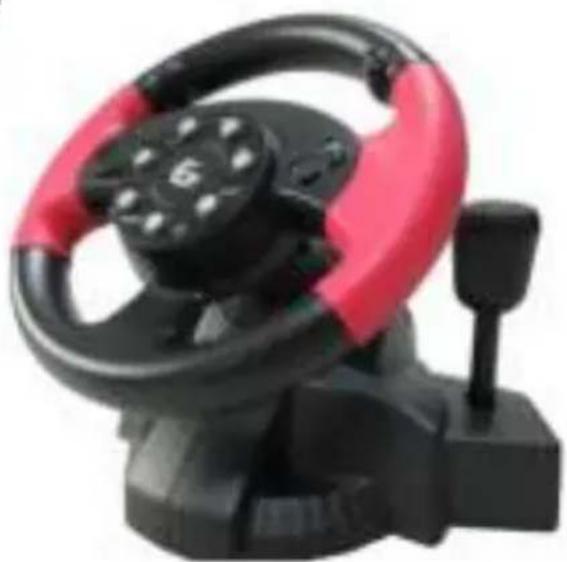

Black and red toy car steering wheel with black head and red grip (no visible text or symbols)

MULTI-INTERFACE VIBRATING RACING WHEEL (PC/PS2/PS3) MULTI-INTERFACE 4-IN-1 RENNLENKRAD UND PEDALE MIT VIBRATION MULTI-INTERFACE STUURWIEL MET VOETPEDALEN VOLANT GAMING AVEC VIBREUR, MULTI-PLATEFORMES (PC / PS2 / PS3) МУЛЬТИ-ИНТЕРФЕЙСНЫЙ 3-В-1 ИГРОВОЙ РУЛЬ С ПЕДАЛЯМИ И ОБРАТНОЙ ВИБРО-СВЯЗЬЮ, ДЛЯ ИГРОВЫХ КОНСОЛЕЙ PLAYSTATION 2/3 ИЛИ КОМПЬЮТЕРА С USB-ПОРТОМ

• Steering wheel with built-in vibration and gear stick
• 3 interfaces in one wheel: PC (USB), PS2, PS3
• Automatic game console detection without switching
- Spring-loaded pedals with accelerator and brakes functions
• 180-degree steering angle
• 2-axis, 12 buttons with view hat

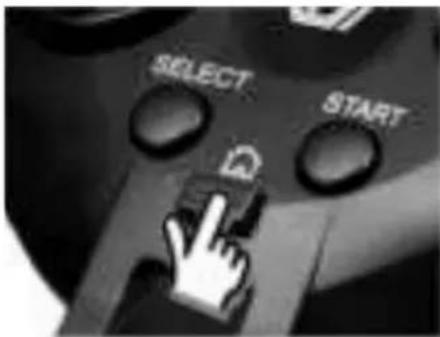

- PS Button for direct access to the PS3 menu in PS3
• Built-in dual vibration for realistic driving experience
- Comfortable tactile-enhanced rubber grip
- Sturdy heavy construction and strong suction cup fixation

Specifications

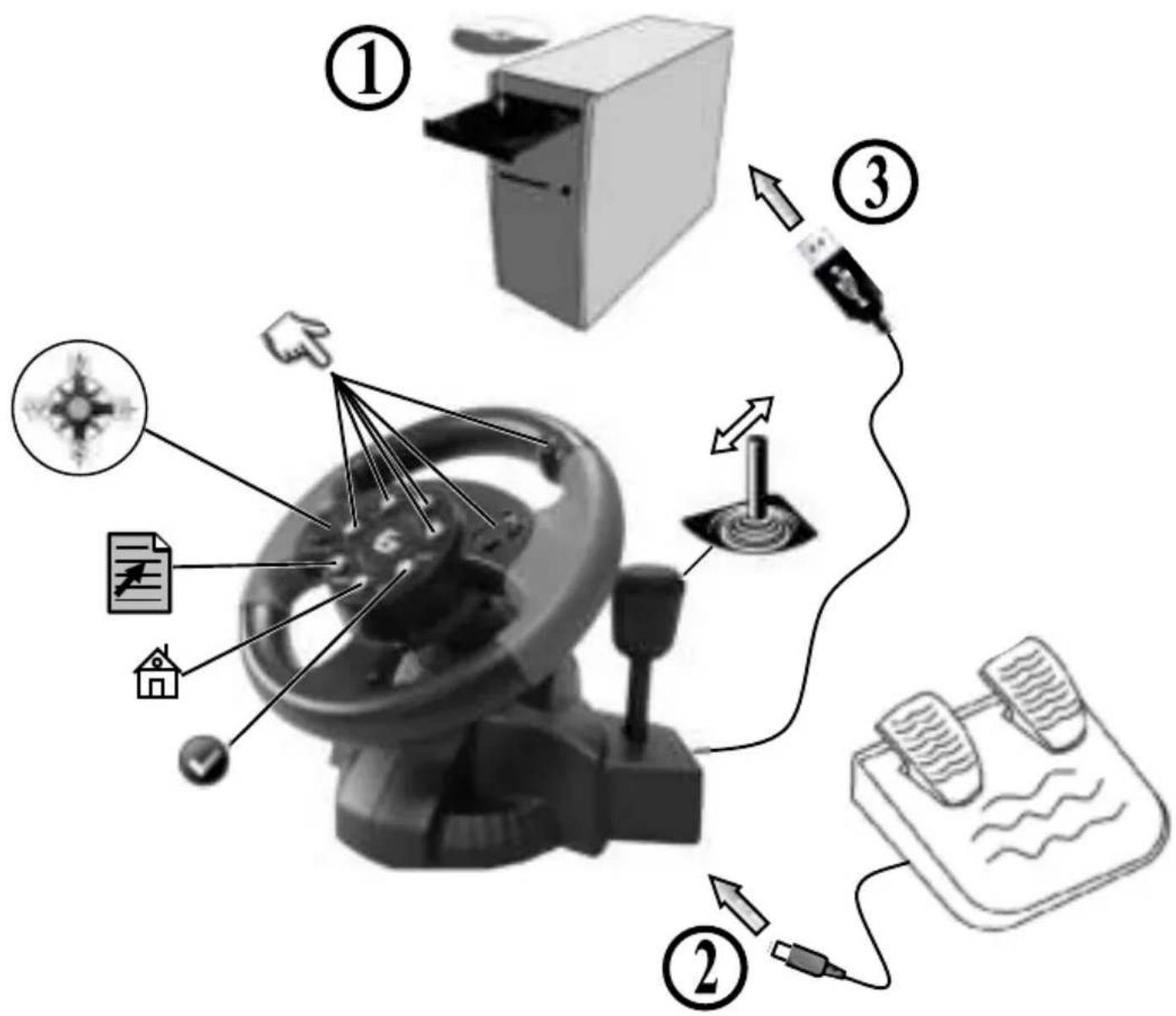

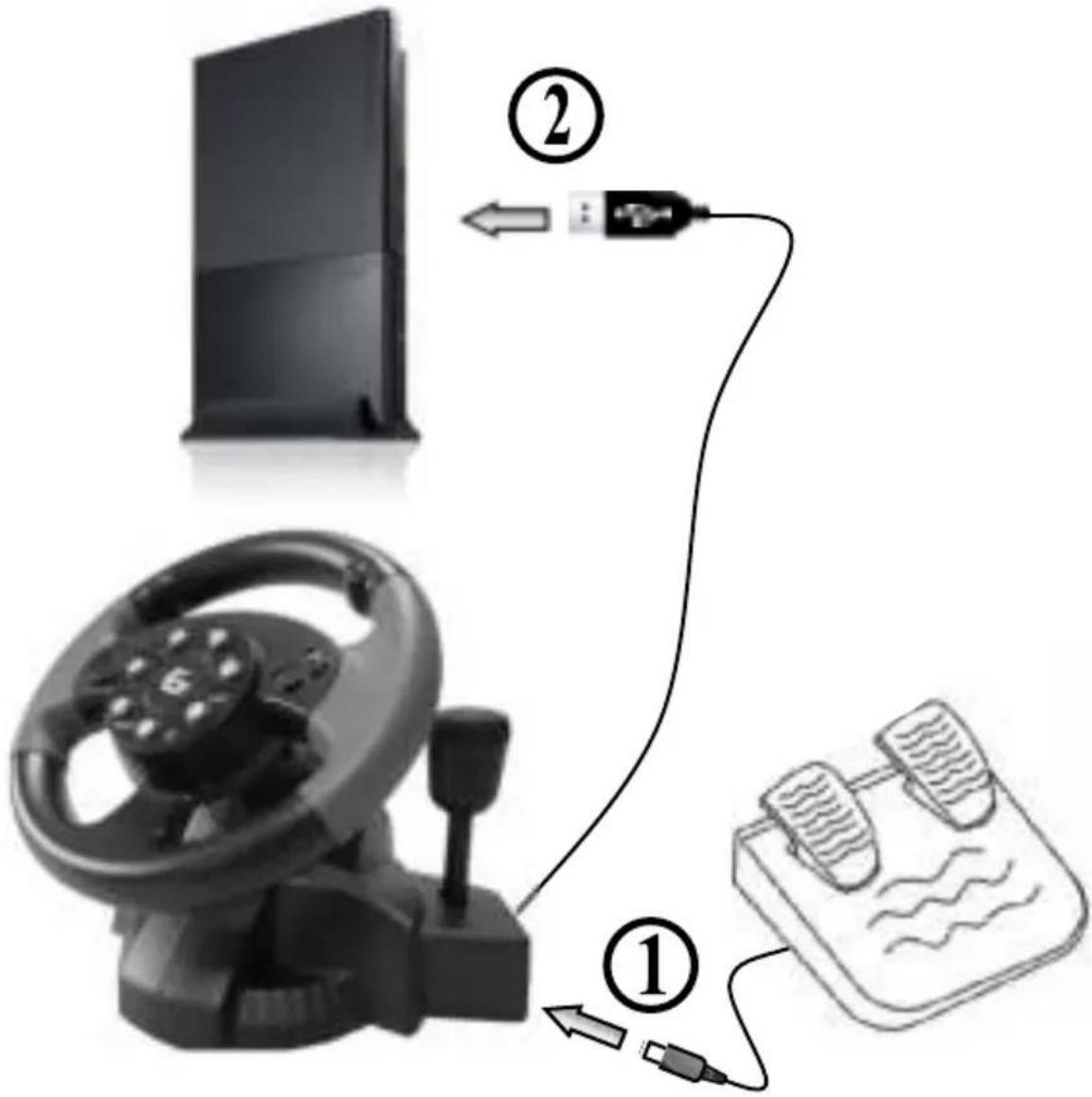

• Interface: PC (USB), Playstation 2/3
- Wheel rotation: 180 degrees
- Wheel diameter 220 mm (9")
• Supports: Digital mode and Analog mode in PS2, Direct-X mode and X-input mode in PC
• Power consumption: 5 V DC up to 120 mA
• Steering wheel cable length: 1.9 m
- Foot pedal unit cable length: 1.7 m
• Product size: 250 x 245 x 275 mm (LxWxH)
• Net weight: 1.8 kg

< 1 sec

5 sec

Direct X

X Input

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a box with water droplets falling (no text or symbols)

Illustration of a hand using a screwdriver to adjust or repair a tool (no text or symbols present)

Simple line drawing of a hand holding a box with a diagonal line crossing over it, no text or symbols present.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
